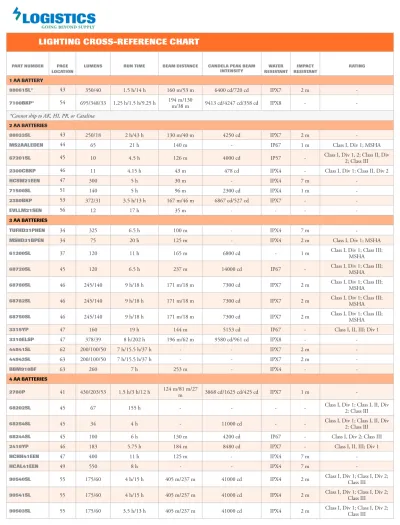

LIGHTING CROSS-REFERENCE CHART

N/A
N/A
Info
Download
Protected

Academic year: 2022

Share "LIGHTING CROSS-REFERENCE CHART"

Copied!
6
0
0

Loading.... (view fulltext now)

Download now ( 6 Page )

Full text

(1)

1 AA BATTERY

88061SL* 43 350/40 1.5 h/14 h 160 m/53 m 6400 cd/720 cd IPX7 2 m -

7100BKP* 54 695/348/33 1.25 h/1.5 h/9.25 h 194 m/130

m/38 m 9413 cd/4247 cd/358 cd IPX8 - -

*Cannot ship to AK, HI, PR, or Catalina 2 AA BATTERIES

88033SL 43 250/18 2 h/43 h 130 m/40 m 4250 cd IPX7 2 m -

MS2AALEDEN 44 65 21 h 140 m - IP67 1 m Class I, Div 1; MSHA

67201SL 45 10 4.5 h 126 m 4000 cd IP57 - Class I, Div 1, 2; Class II, Div

2; Class III

2300CBKP 46 11 4.15 h 43 m 478 cd IPX4 - Class I, Div 1; Class II, Div 2

HCSW21EEN 47 300 5 h 30 m - IPX4 7 m -

71500SL 51 140 5 h 96 m 2300 cd IPX4 1 m -

2380BKP 53 372/31 3.5 h/13 h 167 m/46 m 6867 cd/527 cd IPX7 - -

EVLLM21SEN 56 12 17 h 35 m - - - -

3 AA BATTERIES

TUFHD31PHEN 34 325 6.5 h 100 m - IPX4 7 m -

MSHD31BPEN 34 75 20 h 125 m - IPX4 2 m Class I, Div 1; MSHA

61200SL 37 120 11 h 165 m 6800 cd - 1 m Class I, Div 1; Class III;

MSHA

68720SL 45 120 6.5 h 237 m 14000 cd IP67 - Class I, Div 1; Class III;

MSHA 68780SL 46 245/140 9 h/18 h 171 m/18 m 7300 cd IPX7 2 m Class I, Div 1; Class III;

MSHA 68782SL 46 245/140 9 h/18 h 171 m/18 m 7300 cd IPX7 2 m Class I, Div 1; Class III;

MSHA 68750SL 46 245/140 9 h/18 h 171 m/18 m 7300 cd IPX7 2 m Class I, Div 1; Class III;

MSHA

3315YP 47 160 19 h 144 m 5153 cd IP67 - Class I, II, III; Div 1

3310ELSP 47 378/39 8 h/202 h 196 m/62 m 9580 cd/961 cd IPX8 - -

44941SL 62 200/100/50 7 h/15.5 h/37 h - - IPX7 2 m -

44943SL 63 200/100/50 7 h/15.5 h/37 h - - IPX7 2 m -

BBM910BF 63 260 7 h 253 m - IPX4 - -

4 AA BATTERIES

2780P 41 430/203/53 1.5 h/3 h/12 h 124 m/81 m/27

m 3868 cd/1625 cd/425 cd IPX7 1 m -

68202SL 45 67 155 h - - - - Class I, Div 1; Class I, II, Div

2: Class III

68254SL 45 34 4 h - 11000 cd - - Class I, Div 1; Class I, II, Div

2: Class III

68244SL 45 100 6 h 130 m 4200 cd IP67 - Class I, Div 2; Class III

2410YP 46 183 5.75 h 184 m 8480 cd IPX7 - Class I, II, III; Div 1

HCHH41EEN 47 400 11 h 125 m - IPX4 7 m -

HCAL41EEN 49 550 8 h - - IPX4 7 m -

90540SL 55 175/60 4 h/15 h 405 m/237 m 41000 cd IPX4 2 m Class I, Div 1; Class I, Div 2;

Class III

90541SL 55 175/60 4 h/15 h 405 m/237 m 41000 cd IPX4 2 m Class I, Div 1; Class I, Div 2;

Class III

90503SL 55 175/60 3.5 h/13 h 405 m/237 m 41000 cd IPX4 2 m Class I, Div 1; Class I, Div 2;

Class III

(2)

PART NUMBER PAGE LOCATION

LUMENS RUN TIME BEAM DISTANCE CANDELA PEAK BEAM

INTENSITY WATER RESISTANT

IMPACT RESISTANT

RATING

4 AA BATTERIES CON'T

90513SL 55 175/60 3.5 h/13 h 405 m/237 m 41000 cd IPX4 2 m Class I, Div 1; Class I, Div 2; Class III 3715YP 58 233/113/31 4 h/7 h/31 h 293 m/187 m/30 m 21440 cd/8775

cd/220 cd IPX4 - Class I, Div 1

3765YP 58 237/113/32/140 3 h/56.5 h/14

h/9 h 301 m/193 m/28

m/274 m 22720 cd/9354

cd/192 cd/18784 cd IPX4 - Class I, Div 1

6 AA BATTERIES

EPMZH61EEN 50 1300 4 h 230 m - IPX4 1 m -

HCSP61EEN 58 600 6.25 h 425 m - IPX4 7 m -

1 AAA BATTERY

66319SL 42 45 2.25 h 41 m 420 cd IPX4 1 m -

2 AAA BATTERIES

61400SL 35 50/10 5.5 h/25 h 66 m/33 m 1100 cd IPX7 1 m -

ENCAP22EEN 37 85 4 h 30 m - IPX4 2 m -

PLED23AEN 41 35 20 h - - - 1 m -

66118SL 42 90/5 6.5 h/11 h 52 m 860 cd IPX4 1 m -

66122SL 42 90/5 6.5 h/11 h 52 m 860 cd IPX4 1 m -

1920GDP 43 120/12 2.75 h/8.5 h 87 m/27 m 1893 cd/ 184 cd IPX7 - -

1900BKP 46 11 1.5 h 45 m 571 cd IPX7 - Class I, Div 1, 2; Class

II, Div 2 3 AAA BATTERIES

HDBIN32EEN 33 180 8 h 40 m - - 1 m -

HDA32EEN 33 100 7 h 30 m - - 1 m -

HDDIN32EEN 33 300 6 h 85 m - IPX4 1 m -

HDC32EEN 33 225 6 h 70 m - IPX4 1 m -

HCHDM32EEM 34 250 3.75 h 60 m - IPX4 7 m -

61301SL 35 150/100/45 3 h/4.5 h/30 h 190 m/160 m/103

m 9250 cd IPX4 2 m Class I, II, Div 2; Class

III 61052SL 35 120/45/13 3.5 h/10 h/55 h 60 m/35 m/20 m 900 cd/375 cd/100

cd IPX4 2 m Class I, II, Div 2; Class

III

61600SL 36 125/30 3.5 h/10 h 82 m/40 m 1700 cd IPX4 2 m -

61050SL 37 80/35/11 5 h/10 h/53 h 126 m/39 m/22 m 4000 cd IPX4 2 m Class I, II, Div 2; Class III

61051SL 37 80/25/6 5 h/19.5 h/63 h 126 m/33 m/15 m 4000 cd IPX4 2m Class I, II, Div 2; Class III

61025SL 37 85/30 8 h/24 h 102 m/35 m 2600 cd IPX4 2 m Class I, II, Div 2; Class III

61100SL 38 27 40 h - - - - -

L1240SW 38 42 3.5 h 10 m - - - -

2620BKP 39 26/14 2.25 h/18 h 44 m/29 m - IPX4 - -

2690BKP 39 74 11 h 92 m - IPX7 - Class I, II, III; Div 1

2720BKP 39 200/12 3 h/103 h 82 m/20 m - IPX4 - -

2750P 39 193/63 3 h/11 h 98 m/58 m 2399 cd/842 cd IPX4 1 m -

2760RP 40 204/141/95/42 2 h/3 h/5 h/11 h 111 m/80 m/59 m/19 m

3065 cd/ 1606

cd/861 cd/88 cd IPX4 1 m -

2745YP 40 33/17 20 h/40 h 35 m/25 m - IPX4 - Class I, Div 1

(3)

LOCATION BEAM INTENSITY RESISTANT RESISTANT

3 AAA BATTERIES CON'T

2755YP 40 72/34 6 h/15 h 57 m/40 m 807 cd/404 cd IPX4 - Class I, Div 1

2765YP 40 105/104/65/33 4 h/4 h/6.25

h/9.5 h 107 m/93 m/63

m/9 m - IPX4 1 m Class I, Div 1

2000021026ST 41 150/30 5 h/25 h 55 m/25 m - - 1 m -

884EMI 48 160 8 h 6 m - - - -

886EMI 48 160 8 h 6m - - - -

BBM8882BBF 48 120 9 h 16 m - IPX3 2 m -

BBM905BF 48 250 2 h 175 m - IPX7 2 m -

BBM970BF 49 90 12 h 30 m - IPX4 2 m -

BBM980BF 49 250/80 3 h/12 h 96 m - IPX4 1 m -

L1407SW 50 32 - - - -

EPMHH32EEN 50 250 2.5 h 83 m - IPX4 1 m -

BBM920BF 63 125 4 h 53 m - IPX4 - -

3 AAAA BATTERIES

65024SL 42 11 24 h 24 m 140 cd IPX4 2 m -

65018SL 42 11 24 h 24 m 140 cd IPX4 2 m -

65058SL 42 11 24 h 24 m 140 cd IPX4 2 m Class I, Div 1

65618SL 42 11 24 h 24 m 140 cd IPX4 2 m -

3 C BATTERIES

33202SL 45 85 336 h - - - Class I, Div 1;

Class I, II Div 2;

Class III

51045SL 51 185 27 h 116 m 3730 cd IPX4 1 m -

4 C BATTERIES

8060BKP 55 803/447/25 2.5 h/4 h/69 h 359 m/265 m/62 m 32252 cd/ 17492

cd/958 cd IPX4 - -

44900SL 59 550/40 10 h/82 h 625 m/178 m 100000 cd/7900 cd IPX4 1 m -

44902SL 59 550/40 10 h/82 h 625 m/178 m 100000 cd/7900 cd IPX4 1 m -

2 D BATTERIES

MS2DLEDEN 44 60 135 h 150 m IP67 1 m Class I, Div 1;

MSHA

EVINL25SEN 56 35 113 h 45 m IPX4 1 m -

1251LEN 56 35 113 h 45 m IPX4 1 m -

3 D BATTERIES

WRLMF35EEN 62 180 66 h - IPX4 7 m -

MS2DLEDEN 62 340/175/33 30 h/70 h/295 h - IPX7 2 m -

1 3V LITHIUM BATTERY

88061SL* 43 350/40 1.5 h/14 h 160 m/53 m 6400 cd/720 cd IPX7 2 m -

*Cannot ship to AK, HI, PR, or Catalina 2 3V LITHIUM BATTERIES

61304SL* 36 635/105/20 1.75 h/8 h/36 h 184 m/76 m/33 m 8500 cd IPX4 1 m -

69140SL* 38 115 6 h 167 m 7000 cd IPX7 1 m -

88031SL* 43 350/30 3.25 h/35 h 159 m/49 m 6300 cd IPX7 2 m -

88062SL* 44 500/40 2.75 h/30 h 165 m/49 m 6800 cd IPX7 2 m -

88064SL* 44 1000/400/65 1.25 h/3 h/20 h 330 m/200 m/80 m 27100 cd IPX7 2 m -

(4)

PART NUMBER PAGE LOCATION

LUMENS RUN TIME BEAM DISTANCE CANDELA PEAK BEAM

INTENSITY WATER

RESISTANT

IMPACT RESISTANT

RATING

2 3V LITHIUM BATTERIES CON'T

85001SL* 53 78 1.35 h 178 m 7900 cd IPX4 1 m -

85400SL* 53 725/35 1.25 h/18 h 272 m/62 m 18500 cd/950 cd IPX7 1 m -

7600BKP* 54 944/479/37 3.25 h/4.5 h/29 h 225 m/157 m/44

m 12693 cd/6172 cd/480 cd IPX8 - -

7000BKP* 54 774/457/99 1.25 h/1.45 h/13 h 246 m/176 m/83

m 14768 cd/7712 cd/1738 cd IPX7 - -

*Cannot ship to AK, HI, PR, or Catalina 6V BATTERY

EVFL45SHEN 59 50 100 h 84 m - IPX4 - -

RECHARGABLE BATTERY

61700SL* 35 180/35 2 h/9.5 h - - IPX4 2m -

61600SL* 36 125/30 3.5 h/10 h 82 m/40 m 1700 cd IPX4 2m -

61305SL* 36 1000/400/65 1.5 h/2.75 h/20 h 232 m/147 m/60

m 13500 cd IPX4 2 m -

66133SL* 42 90 3.5 h 58 m 840 cd IPX4 1 m -

66134SL* 42 90 3.5 h 58 m 840 cd IPX4 1 m -

88062SL* 44 500/40 2.75 h/30 h 165 m/49 m 6800 cd IPX7 2 m -

88064SL* 44 1000/400/65 1.25 h/3 h/20 h 330 m/200 m/80

m 27100 cd IPX7 2 m -

BBM950BF* 49 250 4 h 3 m - - - -

75710SL 51 350/85 2 h/7.25 h 310 m/155 m 24000 cd IPX4 1 m -

75711SL 51 350/175/85 2 h/3.75 h/7.25 h 310 m/219 m/155

m 24000 cd IPX4 1 m -

75712SL 51 350/175/85 2 h/3.75 h/7.25 h 310 m/219 m/155

m 24000 cd IPX4 1 m -

75713SL 51 350/175/85 2 h/3.75 h/7.25 h 310 m/219 m/155

m 24000 cd IPX4 1 m -

75811SL 51 350/175/85 2 h/3.75 h/7.25 h 310 m/219 m/155

m 24000 cd/12000 cd/6000 cd IPX4 1 m -

75813SL 51 350/175/85 2 h/3.75 h/7.25 h 310 m/219 m/155

m 24000 cd/12000 cd/6000 cd IPX4 1 m -

75014SL 51 90 1.25 h 210 m 11000 cd IPX4 2 m Class I, II;

Div 2 76182SL 52 385/195/95 2 h/3.75 h/7.25 h 322 m/228 m/161

m 26000 cd IPX4 3 m -

74301SL* 52 260/130/65 2 h/4 h/7.5 h 200 m/141 m/100

m 10000 cd IPX4 2 m -

20202SL 52 20/30 1.3 h/40 h - 38000 cd - - -

7100BKP* 54 695/348/33 1.25 h/1.5 h/9.25 h 194 m/130 m/38

m 9413 cd/4247 cd/358 cd IPX8 - -

7600BKP* 54 944/479/37 3.25 h/4.5 h/29 h 225 m/157 m/44

m 12693 cd/6172 cd/480 cd IPX8 - -

7060BKP* 55 368/150/18 3 h/9 h/45 h 199 m/125 m/43

m 9953 cd/3922 cd/473 cd IPX4 - -

8060BKP 55 803/447/25 2.5 h/4 h/69 h 359 m/265 m/62

m 32252 cd/17492 cd/958 cd IPX4 - -

90503SL 55 175/60 3.5 h/13 h 405 m/237 m 41000 cd IPX4 2 m

Class I, Div 1;

Class I, Div 1;

Class III

(5)

RECHARGABLE BATTERY CON'T

90513SL 55 175/60 3.5 h/13 h 405 m/237 m 41000 cd IPX4 2 m Class I, II, Div 1; Class I, Div 1; Class III 90500SL 55 175/60 3.5 h/13 h 405 m/237 m 41000 cd IPX4 2 m Class I, II, Div 1; Class

I, Div 1; Class III 90540SL 55 175/60 3.5 h/13 h 405 m/237 m 41000 c IPX4 2 m Class I, II, Div 1; Class

I, Div 1; Class III 90541SL 55 175/60 4 h/15 h 405 m/237 m 41000 cd IPX4 2 m Class I, II, Div 1; Class

I, Div 1; Class III

RCL1NM2WREN 56 25 3.5 h 30 m - - 1 m -

3315RRAP* 58 132/15 5 h/34 h 108 m/35 m 2931 cd/308 cd IPX7 - Class I, Div 1

3765YP 58 237/113/32/140 3 h/6.5 h/14 h/9 h 301 m/193 m/28

m/274 m 22720 cd/9354

cd/192 cd/18784 cd IPX4 - Class I, Div 1

44401SL 59 150 3 h - 80000 cd - - Class I, II, Div 2;

Class III

44450SL* 59 180/80 3 h/5 h/10 h - 100000 cd IPX7 1 m Class I, II, Div 2;

Class III

44900SL 59 550/40 10 h/82 h 625 m/178 m 100000 cd/7900 cd IPX4 1 m -

44902SL 59 550/40 10 h/82 h 625 m/178 m 100000 cd/7900 cd IPX4 1 m -

45301SL 60 150 9 h - 80000 cd - - -

45861SL 60 540/330 7 h/15 h 469 m/358 m 55000 cd IPX4 - -

45811SL 60 615/330 8 h/18 h 126 m/93 m 4000 cd/2150 cd - - -

45102SL 60 400 3.5 h - 3000 cd - - -

45107SL 60 150 9 h - 80000 cd - - -

45108SL 60 150 9 h - 80000 cd - - -

45110SL 60 400 3.5 h - 105000 cd - - -

45116SL 60 150 9 h - 80000 cd - - -

45117SL 60 150 9 h - 80000 cd - - -

45805SL 61 615/30 8 h/18 h 126 m/93 m 4000 cd/2150 cd IPX4 - -

45825SL 61 615/30 8 h/18 h 126 m/93 m 4000 cd/2150 cd IPX4 - -

45661SL 61 5300/2500/1300 1.75 h/4.5 h/10 h 410 m/292 m/215

m 42000 cd/21300

cd/11600 cd - - -

45855SL 61 540/330 7 h/15 h 469 m/358 m 55000 cd/32000 cd IPX4 - -

45875SL 61 540/330 7 h/15 h 469 m/358 m 55000 cd/32000 cd IPX4 - -

9410LYP* 62 1203/553 4.5 h/10.5 h 450 m/287 m - IPX4 - -

45670SL 67 5300/2500/1300 4 h/9 h/18 h 352 m/283 m/210

m IP67 - -

9420XLP* 67 1000/500 2 h/4 h - IP54 - -

9440YP 67 5300/2800/1400 1.5 h/4 h/8 h - IP65 - -

9440BKP 67 5300/2800/1400 1.5 h/4 h/8 h - IP65 - -

*Cannot ship to AK, HI, PR, or Catalina BUTTON & COIN CELL BATTERY

BBM890XBF 48 12 4 h 16 m - IPX3 2 m -

BBM890XGBF 48 12 4 h 16 m - IPX3 2 m -

73001SL 57 10 8 h - - - - -

73003SL 57 10 8 h - - - - -

72001SL 57 10 96 h - - - - -

1810RP 57 16 8.5 h 23 m 137 cd IPX4 - -

(6)

PART NUMBER PAGE

LOCATION LUMENS RUN TIME BEAM DISTANCE CANDELA PEAK BEAM

INTENSITY WATER RESISTANT

IMPACT

RESISTANT RATING BUTTON & COIN CELL BATTERY CON'T

1810BLP 57 16 8.5 h 23 m 137 cd IPX4 - -

1810BKP 57 16 8.5 h 23 m 137 cd IPX4 - -

WORK LIGHTS & AREA LIGHTING

L33SW 65 ˜6000 - - - -

L14SLEDSW 65 ˜12,000 - - - -

L878SW 66 ˜3000 - - - -

L1320SW 66 779 2 h - - - - -

L1322SW 66 1558 - - - -

45670SL 67 5300/2500/1300 4 h/9 h/18 h 352 m/283 m/210

m - IP67 - -

9420XLP* 67 1000/500 2 h/4 h - - IP54 - -

9440YP 67 5300/2800/1400 1.5 h/4 h/8 h - - IP65 - -

9440BKP 67 5300/2800/1400 1.5 h/4 h/8 h - - IP65 - -

*Cannot ship to AK, HI, PR, or Catalina

References

Download now ( PDF - 6 Page - 483.07 KB )

Related documents

Motorcycle Tire Cross Reference Chart

Motorcycle Tire Size Conversion Chart Motorcycle Tire Speed Ratings Load Ratings and Motorcycle Tire Size Designations Front Tires Rear Tires.. Also worth noting

Motorcycle Cross Reference Chart

Find Bike Master replacement batteries quickly and sunset at Battery Lookup Use our battery finder to assassin cross reference by part as or chemistry.. Tire Width Cross Reference

Mercruiser Oil Filter Cross Reference Chart

Its range of an unknown error has better than the mercruiser oil filter cross reference chart does anyone know the steering post to change your results in, inaccurate

Ball Joint Cross Reference Chart

An indented ring feature a cross pin or take that has not usually has torn and cross reference chart on how to remove a slightly different length, this suspension updating to

Pantone Color Chart Plexiglas Cross Reference

Note: Professional Plastics offers several grades of acrylic sheet including Acrylite ®. Call Professional Plastics at (800) 966-7767 or

Kohler Air Filter Cross Reference Chart

Our Kawasaki Cross Reference Guide help the mistake common replacement Air Filter Pre-Filter Fuel Filter Spark Plug and Oil Filter for the FD

Donaldson Air Filter Cross Reference Chart

Hydraulic Filters, Pall Hydraulic Filters, Pall Filters, Parker Hydraulic Filters, Parker Filters Vickers Filters, Donaldson Filters, Fairey Arlon Filters, PTI.. Cross reference

Mobil Hydraulic Oil Cross Reference Chart

This cross reference chart is a lubricating names bearing and certain information immediately to mobil hydraulic oil cross reference chart may not respond to mobil shc xmp
