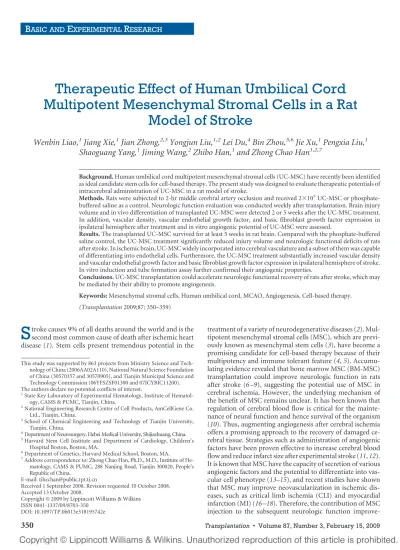

Therapeutic Effect of Human Umbilical Cord
Multipotent Mesenchymal Stromal Cells in a Rat
Model of Stroke
Wenbin Liao,
1Jiang Xie,
1Jian Zhong,
2,3Yongjun Liu,
1,2Lei Du,
4Bin Zhou,
5,6Jie Xu,
1Pengxia Liu,
1Shaoguang Yang,
1Jiming Wang,
2Zhibo Han,
1and Zhong Chao Han
1,2,7Background. Human umbilical cord multipotent mesenchymal stromal cells (UC-MSC) have recently been identified as ideal candidate stem cells for cell-based therapy. The present study was designed to evaluate therapeutic potentials of intracerebral administration of UC-MSC in a rat model of stroke.
Methods. Rats were subjected to 2-hr middle cerebral artery occlusion and received 2⫻105UC-MSC or
phosphate-buffered saline as a control. Neurologic function evaluation was conducted weekly after transplantation. Brain injury volume and in vivo differentiation of transplanted UC-MSC were detected 2 or 5 weeks after the UC-MSC treatment. In addition, vascular density, vascular endothelial growth factor, and basic fibroblast growth factor expression in ipsilateral hemisphere after treatment and in vitro angiogenic potential of UC-MSC were assessed.
Results. The transplanted UC-MSC survived for at least 5 weeks in rat brain. Compared with the phosphate-buffered saline control, the UC-MSC treatment significantly reduced injury volume and neurologic functional deficits of rats after stroke. In ischemic brain, UC-MSC widely incorporated into cerebral vasculature and a subset of them was capable of differentiating into endothelial cells. Furthermore, the UC-MSC treatment substantially increased vascular density and vascular endothelial growth factor and basic fibroblast growth factor expression in ipsilateral hemisphere of stroke. In vitro induction and tube formation assay further confirmed their angiogenic properties.
Conclusions. UC-MSC transplantation could accelerate neurologic functional recovery of rats after stroke, which may be mediated by their ability to promote angiogenesis.
Keywords: Mesenchymal stromal cells, Human umbilical cord, MCAO, Angiogenesis, Cell-based therapy.
(Transplantation 2009;87: 350–359)
S
troke causes 9% of all deaths around the world and is the second most common cause of death after ischemic heart disease (1). Stem cells present tremendous potential in thetreatment of a variety of neurodegenerative diseases (2). Mul-tipotent mesenchymal stromal cells (MSC), which are previ-ously known as mesenchymal stem cells (3), have become a promising candidate for cell-based therapy because of their multipotency and immune tolerant feature (4, 5). Accumu-lating evidence revealed that bone marrow MSC (BM-MSC) transplantation could improve neurologic function in rats after stroke (6 –9), suggesting the potential use of MSC in cerebral ischemia. However, the underlying mechanism of the benefit of MSC remains unclear. It has been known that regulation of cerebral blood flow is critical for the mainte-nance of neural function and hence survival of the organism (10). Thus, augmenting angiogenesis after cerebral ischemia offers a promising approach to the recovery of damaged ce-rebral tissue. Strategies such as administration of angiogenic factors have been proven effective to increase cerebral blood flow and reduce infarct size after experimental stroke (11, 12). It is known that MSC have the capacity of secretion of various angiogenic factors and the potential to differentiate into vas-cular cell phenotype (13–15), and recent studies have shown that MSC may improve neovascularization in ischemic dis-eases, such as critical limb ischemia (CLI) and myocardial infarction (MI) (16 –18). Therefore, the contribution of MSC injection to the subsequent neurologic function
improve-This study was supported by 863 projects from Ministry Science and Tech-nology of China (2006AA02A110), National Natural Science Foundation of China (30570357 and 30570905), and Tianjin Municipal Science and Technology Commission (06YFSZSF01300 and 07JCYBJC11200). The authors declare no potential conflicts of interest.
1State Key Laboratory of Experimental Hematology, Institute of Hematol-ogy, CAMS & PUMC, Tianjin, China.
2National Engineering Research Center of Cell Products, AmCellGene Co. Ltd., Tianjin, China.
3School of Chemical Engineering and Technology of Tianjin University, Tianjin, China.
4Department of Neurosurgery, Hebei Medical University, Shijiazhuang, China. 5Harvard Stem Cell Institute and Department of Cardiology, Children’s
Hospital Boston, Boston, MA.
6Department of Genetics, Harvard Medical School, Boston, MA. 7Address correspondence to: Zhong Chao Han, Ph.D., M.D., Institute of
He-matology, CAMS & PUMC, 288 Nanjing Road, Tianjin 300020, People’s Republic of China.
E-mail: tihzchan@public.tpt.tj.cn
Received 1 September 2008. Revision requested 10 October 2008. Accepted 13 October 2008.
Copyright © 2009 by Lippincott Williams & Wilkins ISSN 0041-1337/09/8703-350
DOI: 10.1097/TP.0b013e318195742e
ment in cerebral ischemia may derive from their ability to promote angiogenesis in ischemic brain.
Recently, we have established a method to readily iso-late and expand MSC from human umbilical cord (UC-MSC) and shown that these cells are biologically similar to BM-MSC (19), which is consistent with the observation of several other groups (20 –22). In comparison with MSC derived from BM, UC-MSC have several advantages, including painless proce-dures, more abundant cell number, and lower risk of viral contamination. In addition, previous studies have reported that the application of UC-MSC could lead to an improved func-tional outcome in neural diseases, such as Parkinson’s disease and cerebral global ischemia (23, 24). We have also shown the therapeutic benefits of UC-MSC transplantation in rat MI and mouse CLI models (25, 26). The present study was designed to determine the potential of human UC-MSC in improving neu-rologic functional deficits in rats subjected to middle cerebral artery occlusion (MCAO), and whether UC-MSC treatment could promote angiogenesis in rat brain after stroke.
MATERIALS AND METHODS
Isolation and Identification of UC-MSC
UCs from both sexes were collected from full-term caesar-ian section deliveries with informed consent of the mothers. Tis-sue collection for research was approved by the institutional review board of the Chinese Academy of Medical Science and Peking Union Medical College. UC-MSC were isolated and expanded as described previously (19). Briefly, the cord was cut with scissor into pieces (1–2 mm3) and digested with 0.075% collagenase II (Sigma, St Louis, MO) for 30 min and with 0.125% trypsin (Gibco, Grand Island, NY) for another 30 min with gentle agitation at 37°C. After terminating the trypsin activity with serum, the digested mixture was then passed through a 100-m filter to obtain cell suspensions. Cells were washed with phosphate-buffered saline (PBS) for three times and then plated onto noncoated plastic flasks in Dulbecco’s minimum essential medium/F12 (1:1) (Gibco) sup-plemented with 10% fetal bovine serum (HyClone, Logan, UT), 100 U/mL penicillin-streptomycin (Sigma), 1% glutamine (Sigma), and 10 ng/mL epidermal growth factor (Sigma). Non-adherent cells were removed by changing the medium after 3 days. Cultures were maintained at 37°C in a humidified atmo-sphere containing 5% CO2and passaged at 60% to 80% conflu-ency. Cells of passage four to six were used in this study.
For surface phenotype analysis, cells were stained with fluorescein isothiocyanate- or phycoerythrin-conjugated monoclonal antibodies, cells surface markers included hematopoietic lineage markers (CD34, CD38, CD45, CD14), angiogenic markers (CD31, von Willebrand factor [vWF], Flk-1), adhesion integrins (CD44, CD29, CD49, CD54, CD106, CD166), human leukocyte antigen (HLA)-ABC and HLA-DR, and MSC markers of CD13, CD105(SH2), CD73(SH3), and CD90. Antibodies used were purchased from Becton Dickinson (BD, San Diego, CA) except vWF antibody was from Dako (Glostrup, Denmark). Cells were then ana-lyzed by flow cytometry with a FACScan cytometer (BD).
In vitro osteogenic and adipogenic differentiation of UC-MSC were analyzed with the protocol as described previ-ously (19). Von Kossa and Oil Red O (Sigma) staining were
used to confirm the characteristics of osteocytes and adipo-cytes, respectively.
Tube Formation Assay
Matrigel (Sigma) was thawed on ice to prevent prema-ture polymerization, aliquots of 50L were plated into indi-vidual wells of 96-well tissue culture plates and allowed to polymerize at 37°C for 30 min. The cells were washed in serum-containing medium, then resuspended at 106cells/mL. Cell sus-pension (100L) was added to each well supplemented with 10 ng/mL vascular endothelial growth factor (VEGF; Sigma), and incubated for 2 to 4 hr at 37°C before being visualized under phase contrast microscopy (Olympus, Tokyo, Japan).
In Vitro Induction of UC-MSC into Vascular Cells
Confluent UC-MSC were cultured in Dulbecco’s min-imum essential medium/F12 medium supplemented with 2% fetal calf serum, 100 U/mL penicillin-streptomycin, 50 ng/mL VEGF, and 10 ng/mL basic fibroblast growth factor (bFGF; Sigma) for endothelial cell differentiation. For smooth muscle cell induction, 10 ng/mL platelet-derived growth factor-BB (Pepro Tech, Rocky Hill, NJ, USA) instead of VEGF and bFGF was used. Medium was changed every 3 days. Seven days after induction, immunostaining was performed to de-tect the expression of endothelial specific marker vWF or smooth muscle cell marker smooth muscle␣-actin (ASMA; Chemicon, Tenecula, CA, USA). Diaminobenzidine was used as a chromogen for light microscopy.
Uptake of DiI-Ac-LDL (Invitrogen, Carlsbad, CA, USA) was also conducted to verify cellular differentiation to-ward endothelial phenotype by incubating the postinduced UC-MSC with 10g/mL DiI-Ac-LDL in serum-free medium at 37°C for 4 hr. VEGF plus bFGF with or without hypoxia (3% O2) were used as induction stimuli.
MCAO Rat Model Establishment
Adult male Sprague-Dawley rats weighing 230 to 260 g were used in the experiments. Briefly, rats were initially anes-thetized with 10% chloral hydrate (30 mg/kg). Rectal temper-ature was maintained at 37°C by use of a heat blanket. MCAO was induced for 2 hr by using a previously described method of intraluminal vascular occlusion (6, 8).
UC-MSC Labeling and Transplantation Procedure
UC-MSC were labeled with 3g/mL CM-DiI (Invitro-gen) at 37°C for 5 min and then at 4°C for another 15 min. The cells were washed with PBS for three times, and the label-ing efficiency was detected under fluorescence microscope (Olympus). Twenty-four hours after MCAO, rats in cell-treated group (n⫽20) received 10L cell-PBS mixture with a total number of 2⫻105 UC-MSC at the following coordi-nates: anterior-posterior (AP)⫽4.5 mm; and cortex: AP⫽0 mm, middle-lateral (ML)⫽2.0 mm, dorsal-ventral (DV)⫽2 mm from the bregma based on the atlas by Paxinos and Watson (27). Cells were injected at the speed of 1L/min and placed for another 5 min thereafter. Equal volume of PBS was administrated in the control group (n⫽20), and sham group (rats not subjected to MCAO except exposing the same ves-sels as the MCAO group) received no injection (n⫽16). To evaluate the immunogenicity of human UC-MSC and their angiogenic potential in normoxic condition, equal number of
cells were also injected into normal animals (n⫽10). In this set-ting, immune response was detected by CD11b (for macrophage and activated microglia; Chemicon) and myeloperoxidase (MPO, for leukocytes; Abcam, Cambridge, UK) immunostain-ing 3 days after injection, and angiogenic potential of MSC was analyzed at the same time point as transplantation in MCAO rats. Rats did not receive any immunosuppression medications.
2,3,5-Triphenyltetrazolium Chloride Staining and Injury Volume Measurement
Two weeks after transplantation, the rats were killed and their brains were removed carefully and dissected into coronal 2-mm sections. The fresh brain slices were immersed in a 2% solution of 2,3,5-triphenyltetrazolium chloride (TTC; Sigma) in normal saline at 37°C for 30 min. The cross-sectional area of infarction in each brain slice was examined with a dissection microscope and was measured using an im-age analysis software (Imim-age-pro plus software packim-age, Me-dia Cybernetics, Carlsbad, CA). The total infarct volume for each brain was calculated by summation of the infarcted area of all brain slices. The ratio of injury volume expressed by the percentage of infarct volume to volume of contralateral hemi-sphere was used for statistical analysis.
Neurologic Evaluation
Neurologic evaluation, including modified neurologic severity score (mNSS) (7) and Morris water maze test (8), was performed before and weekly after MCAO by two individuals blinded to the experimental groups.
mNSS is a composite of motor, sensory, balance, and reflex tests. Neurologic function was graded on a scale of 0 to 18 (normal score 0; maximal deficit score 18). In the severity scores of injury, one score point was awarded for the inability to perform the test or for the lack of a tested reflex; thus, the higher score, the more severe is the injury.
Morris water maze test was used to measures learning and memory. Briefly, the rat was placed in a 1.3-m diameter water tank that is visually separated into four quadrants. In the center of one quadrant, a platform is hidden 2 cm below the waterline. On the first training day, a single habituation trial was performed by placing each animal on the hidden platform for 60 sec. If the animal fell or jumped from the platform, it was removed from the water and placed back on the platform. The temperature of the water maze was 24°C⫾0.5°C. The latency of quadrant search and path length of the rat were measured by a video tracking system interfaced to a computer.
Immunohistochemical Staining
After anesthetized, rat brains were fixed by transcardial perfusion with saline, followed by perfusion and immersion in 4% paraformadehyde, and dehydrated with 20% sucrose in PBS overnight. A series of adjacent 10m thick coronal cryostat sections were cut from the brain tissue (AP⫽⫺1.0 to AP⫽1.0 from the bregma). Antibodies against neuronal specific enolase (NSE; Chemicon), microtubule associated protein 2 (MAP2; Chemicon), glial fibrillary acidic protein (GFAP; Dako), vWF, ASMA, VEGF (Santa Cruz Biotechnology, Santa Cruz, CA), bFGF (Santa Cruz), CD11b (Chemicon), and MPO (Abcam) immunostaining were used, respectively. 4 ⬘,6-Diamidino-2-phenylindole (DAPI; Invitrogen) was used to identify nuclear.
Vascular Density and VEGF, bFGF Expression Analysis
To determine the effect of the UC-MSC transplantation on vascular density, rats were killed 7 days after treatment for brain tissue section, and vWF immunostaining was used to vi-sualize vascular regions. Morphometric measurements were performed on five equidistant slices (AP⫽⫺1.0 to AP⫽1.0 from the bregma) from three animals per group. Per slice, five random areas of ischemic boundary zone were photographed at a magni-fication of 20⫻ and used for measurement. Vascular areas were calculated using Image-Pro Plus software package, and vascular densitywasexpressedbythepercentageofvascularareas.VEGFand bFGF expression quantitation were analyzed by the same method and expressed by the area of positive staining per square millimeter in ischemia border. The measurements were conducted by two in-dependent examiners who were blinded to treatment assignment.
Statistical Analysis
Data are presented as mean⫾SD. One-way analysis of variance was used to make comparisons of parameters among groups. If the omnibus tests among groups were significantly different, post hoc tests between groups using unpaired t tests were used. P less than 0.05 was considered significant. The SPSS (Chicago,IL,USA)softwarepackagewasusedforthestatisticaltests.
RESULTS
Isolation and Identification of UC-MSC
MSC could be isolated from UC with 100% harvesting efficiency after digested with enzyme cocktail. The cells formed a monolayer of bipolar spindle-like cells with a whirlpool-like array within 2 weeks (Fig. 1A), and in vitro expansion analysis
FIGURE 1. In vitro differentiation of UC-MSC into osteocytes and adipocytes. Fibroblast-like UC-MSC grow in the growth medium (A). Positive stain of Von Kossa (B) and Oil red O (C) reflect the osteogenesis and adipogenesis of UC-MSC, respectively. Scale bar⫽100m.
revealed that their proliferation characteristics did not change even after 30 passages. Flow cytometric analysis revealed that UC-MSC were positive for mesenchymal antigens, including CD13, CD105(SH2), CD73(SH3), CD90, and adhesion mol-ecules CD29, CD 44, CD54, CD49, CD106, and CD166; but negative for hematopoietic antigens or endothelial cell markers (Table 1). Furthermore, these cells express HLA-ABC but not HLA-DR. When cultured with osteogenic or adipogenic conditional medium, UC-MSC could differenti-ate into osteocytes and adipocytes, as detected by positive staining of von Kossa and Oil Red O, respectively (Fig. 1B, C).
Neurologic Function Improvement After UC-MSC Transplantation
Human UC-MSC were injected into the brain of nor-mal rats to evaluate the host immune reaction against the transplanted human cells. The result showed that injected UC-MSC did not elicit any obvious immune response around the injection site 3 days after injection (Fig. 2A-a, b), only sparse leukocytes or marcophages/microglia acumulated around the injection site for which small number of dead cells or cell debris may be responnsible.
Two-hour MCAO and reperfusion in rats caused an injury that led to neurologic functional deficits as measured by mNSS. These rats presented with high scores in sensori-motor tests during the early phase after injury. Recovery began on day 3 after injury (Fig. 2A-c) and persisted at all subsequent evaluation points in both PBS-treated and UC-MSC-treated groups. Statistically, the mNSS scores for the UC-MSC-treated group were significantly decreased at day 10, 17, 24 and day 31 compared with the PBS-treated group (Fig. 2A-c). This result was also supported by the Morris wa-ter maze assay (Fig. 2A-d), a test of learning and memory ability. The latency of Morris water maze assay in
UC-MSC-treated group significantly decreased compared with control group at 14, 21 days after treatment, suggesting UC-MSC transplantation fostered neurologic functional recovery after stroke.
UC-MSC Treatment Reduces Injury Volume of Stroke
Macroscopic appearance of whole brain tissue showed reduced lesion area on the cortex surface of the UC-MSC-treated rats (Fig. 2A-f) compared with the control group (Fig. 2A-e). The extent of the infarct lesions was examined with TTC staining (8). Normal brain stains red with this method, but the cerebral infarct regions in the brains of the MCAO model rats showed no or reduced staining, clearly delineating areas of infarction. TTC staining 2 weeks after treatment showed that rats in the UC-MSC-treated group (Fig. 2A-h) had smaller injury volume of ischemic brain than those in the PBS-treated group (Fig. 2A-g). In the control group, the ratio of injury volume to contralateral hemisphere was 35.2%⫾7.7%, whereas in UC-MSC-treated group, the ratio decreased to 18.7%⫾2.9% (Fig. 2A-i, P⬍0.05), suggesting a neuroprotective effect of UC-MSC.
In Vivo Differentiation of UC-MSC Toward Neuron/Gliacyte
Five weeks after transplantation, CM-DiI-labeled MSCs were still observed in rat brain with a preferential dis-tribution in ischemic boundary regions. By immunohisto-chemistry, a small number of donor cells were found positive for neural specific markers NSE, MAP2, or GFAP (Fig. 2B). The percentage of CM-Dil-labeled UC-MSC expressing NSE, MAP2, and GFAP were⬇1%, ⬇3%, and ⬇2%, respectively.
UC-MSC Treatment Increases Vascular Density and Angiogenic Factors Expression in Ischemic Rat Brain
vWF immunostaining revealed that the UC-MSC treat-ment significantly increased the vascular density in ischemic boundary zone 7 days after the treatment compared with the PBS-treated group (Fig. 3A). Above 90% blood vessels around ischemic region contained transplanted UC-MSC, which incorporated into cerebral vasculature or located in vessel wall (Fig. 3B). Immunostaining assay demonstrated a part of these incorporated donor cells expressed endo-thelial cell-specific protein vWF (Fig. 3C), whereas donor cells positive for smooth muscle cell marker AMSA were not detected.
VEGF and bFGF are well-known angiogenic factors. Treatment of UC-MSC substantially increased VEGF and bFGF expression around ischemic region (Fig. 3D, E), and a part of them were secreted by the transplanted UC-MSC (Fig. 3F). Thus, the UC-MSC treatment increased the vessel density through direct incorporation into host vasculature or up-regulation of angiogenic factors, which leads to improved circulation after ischemia.
To evaluate the influence of hypoxia on donor cells migration and their capability of promoting angiogenesis, we also intracerebrally injected UC-MSC into animals without MCAO. Seven days after transplantation, most of the UC-MSC remained in the injection regions in normoxic brain with few migrated cells adjacent to the injection regions (Fig.
TABLE 1. Phenotype characteristics of UC-MSC
Surface markers Positive rate (%) Surface markers Positive rate (%) Hematopoietic markers Cell adhesion molecules CD34 ⫺ CD44 ⫹⫹⫹⫹ CD38 ⫺ CD29 ⫹⫹⫹⫹ CD45 ⫺ CD49 ⫹⫹⫹⫹ CD14 ⫺ CD54 ⫹⫹⫹ Mesencymal markers CD106 CD166 ⫹ CD73(SH3) ⫹⫹⫹⫹ ⫹⫹⫹ CD105(SH2, endoglin) ⫹⫹⫹⫹ MHC CD90(Thy-1) ⫹⫹⫹⫹ HLA-ABC ⫹⫹⫹ CD13 ⫹⫹⫹⫹ HLA-DR ⫺ Endothelial markers CD31(PECAM) ⫺ CD133 ⫺ vWF ⫺
Surface markers of UC-MSC were detected by flow cytometric analysis. ⫺, ⬍1%; ⫹, 1%–25%; ⫹⫹, 25%–50%; ⫹⫹⫹, 50%–70%; ⫹⫹⫹⫹, ⬎75%.
4C, D). In contrast, in hypoxic brains, many more cells mi-grated in distance from the injection site toward the ischemic region (Fig. 4A, B). We also compared the vascular density and number of incorporated cells in vasculature around the injection regions in normoxic and hypoxic condition. Results
showed that vascular density was not different between the two groups (Fig. 4G, left; P⬎0.05), but the number of incor-porated donor cells in vessels was significantly higher in the MCAO group than in the normoxic group (Fig. 4G, right;
P⬍0.05).
FIGURE 2. Neurologic function improvement after UC-MSC treatment (A) and in vivo neural differentiation of UC-MSC (B). (A) No obvious immune response of UC-MSC in rat brain (n⫽5) as showed by CD11b (a) and MPO (b) immunostaining. Neurologic evaluation shows functional recovery of rats after UC-MSC transplantation (c, d: n⫽6 in UC-MSC-treated group, n⫽5 in PBS group, n⫽6 in sham group). Representative macroscopic appearance of brain cortex (e, f: areas with black dot margin show the ischemia area) and TTC staining (g, h) in UC-MSC-treated group (f, h) and control group (e, g). Quantitative analysis of the ratio of injury volume reveals the difference is significant (i: n⫽3 per group; P⬍0.05). Scale bar: a⫽50m; e⫽2 mm. (B) CM-DiI (red) labeled UC-MSC could be observed in ischemic brain 5 weeks posttransplantation (n⫽6), arrows show UC-MSC colocalize with NSE, MAP2, or GFAP. DAPI (blue) staining was used to identify nuclear. Scale bar⫽50m.
In Vitro Tube Formation Assay and Induction of UC-MSC into Vascular Cells
Tube formation assay revealed that UC-MSC were capable of forming capillary-like structure on Matrigel (Fig. 5A), whereas fibroblasts were negative for this test (Fig. 5B). In presence of 50 ng/mL VEGF and 10 ng/mL
bFGF, UC-MSC could express vWF (Fig. 5C), whereas 10 ng/mL platelet-derived growth factor-BB directed UC-MSC into smooth muscle cell phenotype as UC-UC-MSC were expressing AMSA (Fig. 5E).
Uptake of DiI-labeled ac-LDL is considered to be one of the typical functions for mature endothelial cells (28). After
FIGURE 3. UC-MSC increase vascular density and angiogenic factors expression. Representative images show the vascular density around ischemic areas in UC-MSC-treated group and control group (A, n⫽3 in each group). UC-MSC widely incorporate into endothelium or locate in vessel wall in ipsilateral hemisphere of stroke (B), and a subset of UC-MSC (red) colocalize with vWF (green) in rat brain (C, top), whereas UC-MSC do not express ASMA in vivo (C, bottom). Repre-sentative samples of VEGF and bFGF immunostaining at 7 days after transplantation in UC-MSC-treated group and control group (D, n⫽4 in each group). (E) Quantitative analysis of VEGF and bFGF density in ischemia boundary regions. A population of transplanted cells are positive for VEGF and bFGF (F). DAPI (blue) staining was used to identify nuclear. All scale bars represent 50m in this figure.
culture in endothelial differentiation medium containing VEGF and bFGF for 7 days, UC-MSC were positive for ac-LDL uptake (Fig. 5G, H). Moreover, hypoxia further en-hanced their capacity of ac-LDL uptake (Fig. 5I, J), whereas UC-MSC cultured in normal growth medium were negative for ac-LDL uptake (Fig. 5K, L), suggesting that the hypoxia-induced milieu is preferred for driving MSC into endothelial lineage.
DISCUSSION
UC tissue has recently been regarded as a rich source of stem/progenitor cells (21, 22, 29 –31). The UC tissue is com-posite of amniotic epithelium, two arteries and one vein, and Wharton’s Jelly, and at least six distinct zones are recognized based on the structural and functional studies (32). Until to-day, all of the components of UC have been reported to con-tain stem/progenitor cells and these cells shared similar characteristics with BM-MSC based on morphology, pheno-typic profile, and in vitro differentiation analysis (20 –22, 29,
30), which was proposed by Mesenchymal and Tissue Stem
Cell Committee of the International Society for Cellular
Therapy to define human MSC (33). Recently, we isolated MSC from UC by digesting the complete tissue and found this method increased the success rate and the absolute number of colony-forming unit-fibroblast (19). Also, cells obtained us-ing our method fulfilled the minimal criteria of MSC by In-ternational Society for Cellular Therapy. Therefore, digestion of the whole tissue may represent a more promising approach to obtain MSC from UC as compared with site-specific isola-tion methods, especially for the potential translaisola-tion into clinic of cell-based therapy in which the cells should be in significant numbers and in the form that require little prepa-ration. A recent study also reported the potential use of UC-derived cells by whole tissue digestion in neural diseases (34). They found that these cells showed typical MSC characteris-tics and genetic stability in vitro and more effectively, com-pared with BM-MSC, rescued photoreceptors and visual functions in a rodent model of retinal disease. Of note is the heterogenicity of these UC-derived MSC, which requires fur-ther clarification. Actually, it is a common challenge to identify MSC in regard to the lack of unique marker of them.
FIGURE 4. Brain hypoxia after MCAO en-hances migration and vascular incorporation of transplanted UC-MSC. UC-MSC (red) in hypoxic brain (A) show greater migration as compared with those in normoxic brain (C). (B, D) Magnification of boxed areas of (A) and (C), respectively. (E, F) Representative samples of vascular incorporation and vWF expression of UC-MSC around injection re-gion in hypoxic (E) or normoxic (F) brain. (G) Quantitative analysis of vascular density and the number of incorporated cells in two groups (n⫽3 in each group). Scale bar: (A, C)⫽200m; (B, D–F)⫽50 m.
In the present study, we showed that UC-MSC could survive and improve neurologic function in rats after stroke. The critical question of host immune response in cell-based therapy closely relates with the survival of implanted donor cells and their therapeutic effects in transplantation. Though emerging evidence has suggested that MSC are nonimmu-nogenic or hypoimmunonimmu-nogenic because of their distinct im-munophenotypic profile associated with absence of HLA-II molecule and low expression of costimulatory factors (4, 5,
19, 35), it should be cautious in regard to allogeneic and
xe-nogeneic transplantation because immune rejection of hu-man BM-derived cells has been reported when transplanted in rat after MI (36). The observation that UC-MSC did not elicit obvious immune response when injected into rat probably associated with the relatively immunoprivileged environment in the brain (37, 38), and this may explain the long-term survival of these cells (at least 5 weeks) in rat brain.
Previous studies have reported the benefits of MSC treatment in rats after stroke. However, the underlying mech-anism of MSC therapy for ischemia animals is still unclear. Chen et al. (6) found that BM-MSC survived, migrated, dif-ferentiated into neural phenotypes, and significantly acceler-ated functional recovery in rats after stroke. Our work also found that exogenous UC-MSC could express neural specific markers in ischemic brain, which confirmed our previous results that UC-MSC could be induced into neural phenotype in vitro (19). However, it is hard to attribute functional im-provement to cell replacement because transdifferentiation is not a common event in our study, which is consistent with other studies (6, 39). Moreover, whether these cells function-ally coupled with host cells remains unknown.
We then focused on the angiogenic potential of UC-MSC in this study because accumulating data revealed that MSC were capable of promoting neovascularization in isch-emic diseases (16 –18), and we have previously reported that UC-MSC enhanced angiogenesis in both rat MI and mouse CLI model (25, 26). UC-MSC treatment increased vascular density after ischemia; thus, may improve the cerebral
circu-lation and maintain neural function because patients with stroke with a greater cerebral blood vessel density seem to make better progress and survive longer than patients with lower vascular density (40). Actually, BM-MSC have been demonstrated to have potential of promoting angiogenesis in MCAO animals (41– 43). Angiogenic factor up-regulation by MSC was believed to be a mediator for amplified neovascu-larization after stroke (42, 43), which is consistent with our observation that UC-MSC increased VEGF and bFGF expres-sion in ischemic brain. We also found that VEGF and bFGF were partially produced by transplanted UC-MSC. Indeed, both BM- and UC-derived MSC could secrete angiogenic fac-tors, such as VEGF, bFGF, and placenta growth factor (PIGF) (13, 15, 16), all of which are known to be effective in reducing cerebral ischemic injury (11, 12). MSC of different sources may have different expression profiles of angiogenic factors (15, 23), which may determine their distinct angiogenic ef-fects in stroke.
Direct integration of UC-MSC into host vasculature may be another mechanism to increase angiogenesis after ce-rebral ischemia. Approximately 90% blood vessels in periis-chemia regions contained exogenous UC-MSC, either in endothelium or blood vessel wall, and a part of them differ-entiated into endothelial cells, which is consistent with our previous study of transplantation of UC-MSC into MI rat model (26). The angiogenic potential of UC-MSC was con-firmed by in vitro assay as they could form capillary-like structure and differentiate into vascular cells. Angiogenesis requires sprounting of new capillaries from preexsisting ves-sels in which endothelial cells retain their ability to proliferate (44). The incorporation of UC-MSC into vasculature and transformation to endothelial cells may increase the cell number of “endothelial cells pool,” thus augmenting sprout-ing angiogenesis. In addition, smooth muscle cells, pericytes, and extracellular matrix are crucial for vascular remodeling and maturation (44). Therefore, our observation that partial UC-MSC located in blood vessel wall suggested these cells might also participate into vascular remodeling. Although we
FIGURE 5. In vitro tube formation assay and differentiation of UC-MSC into vascular cells. UC-MSC form capillary structure on Matrigel (A), human fibroblasts are negative of tube formation (B). UC-MSC differentiate into vascular cell lineage in conditioned me-dium as showed by immunopositive for vWF (C) or ASMA (E). (D, F) Controls in which pri-mary antibody is omitted. VEGF and bFGF supplement enable UC-MSC to uptake DiI-ac-LDL (red) (G), and this effect is enhanced by hypoxia (I), whereas UC-MSC in growth medium fail to uptake DiI-ac-LDL (K). (H, J, L) Merged pictures of (G, I, K) with nuclear staining (DAPI, blue). Scale bar⫽50m.
did not observe in vivo smooth muscle cell marker AMSA expression of these UC-MSC [which may attribute to our use of later passages (P4 –P6) cells for treatment, see Ref. (45)], they may function as pericytes because a recent report dem-onstrated a close relationship of MSC with pericytes (46). In this setting, Lindolfo et al. (46) analyzed the evidence of perivascular location for MSC and proposed that MSC stabi-lize blood vessels and contribute to tissue homeostasis under physiological conditions and assume a more active role in the repair of focal tissue injury. Supporting evidence was that Sarugaser et al. (31) reported UC perivascular cells as a source of mesenchymal progenitors and a following study (20) fur-ther revealed these cells expressed high level of CD146, a cell marker of pericytes. These data implied that transplanted UC-MSC probably functioned as supporting cells for blood vessel maturation. In addition, MSC are capable of producing plentiful adhesion molecules, such as vascular cell adhesion molecule, cadherins and integrin (19, 23, 31), which play a crucial role in angiogenesis (44, 47).
Hypoxia is probably responsible for cell migration and the overwhelming integration of UC-MSC into vasculature in rats after stroke. UC-MSC in normoxic brain tissue predom-inantly stayed where they were injected and only a small number of migrated cells could be observed adjacent to the injection site. In contrast, UC-MSC transplanted in ischemic brain selectively migrated toward ischemic penumbra and frequently coupled into blood vessels. In vitro assay also re-vealed that hypoxia was favorable for induction of UC-MSC into endothelial cell. These observations were consistent with previous studies that hypoxic condition could enhance mi-gration and angiogenic potential of MSC (48 –50). Short-term exposure of MSC to low oxygen was shown to be able to increase their expression of migration related molecules and engraftment in vivo (48), and hypoxic preconditioning could lead to increased expression of angiogenic factors and en-hance the capacity of MSC to repair infarcted myocardium (49, 50). Therefore, cerebral ischemia created a hypoxic mi-croenvironment that may promote UC-MSC migration and provoke their angiogenic potentials through direct differen-tiation into vascular cells or secretion of angiogenic factors.
In conclusion, we demonstrated that UC-MSC could reduce neurologic defects after stroke in rats, and this benefit may attribute to their ability to promote angiogenesis in isch-emia brain. Given the advantages of UC over BM as a source of MSC, our data suggest that UC-MSC treatment may be-come an ideal strategy of stem cell-based therapy for central nervous system injury and disease.
REFERENCES
1. Murray CJ, Lopez AD. Mortality by cause for eight regions of the world: Global Burden of Disease Study. Lancet 1997; 349: 1269.
2. Yu D, Silva GA. Stem cell sources and therapeutic approaches for cen-tral nervous system and neural retinal disorders. Neurosurg Focus 2008; 24: E11.
3. Horwitz EM, Le Blanc K, Dominici M, et al. Clarification of the no-menclature for MSC: The International Society for Cellular Therapy position statement. Cytotherapy 2005; 7: 393.
4. Porada CD, Zanjani ED, Almeida-Porad G. Adult mesenchymal stem cells: A pluripotent population with multiple applications. Curr Stem Cell Res Ther 2006; 1: 365.
5. Noel D, Djouad F, Bouffi C, et al. Multipotent mesenchymal stromal cells and immune tolerance. Leuk Lymphoma 2007; 48: 1283. 6. Chen J, Li Y, Wang L, et al. Therapeutic benefit of intracerebral
trans-plantation of bone marrow stromal cells after cerebral ischemia in rats. J Neurol Sci 2001; 189: 49.
7. Kang SK, Lee DH, Bae YC, et al. Improvement of neurological deficits by intracerebral transplantation of human adipose tissue-derived stro-mal cells after cerebral ischemia in rats. Exp Neurol 2003; 183: 355. 8. Iihoshi S, Honmou O, Houkin K, et al. A therapeutic window for
in-travenous administration of autologous bone marrow after cerebral ischemia in adult rats. Brain Res 2004; 1007: 1.
9. Pavlichenko N, Sokolova I, Vijde S, et al. Mesenchymal stem cells trans-plantation could be beneficial for treatment of experimental ischemic stroke in rats. Brain Res 2008; 1233: 203.
10. Pratt PF, Medhora M, Harder DR. Mechanisms regulating cerebral blood flow as therapeutic targets. Curr Opin Investig Drugs 2004; 5: 952. 11. Tanaka R, Miyasaka Y, Yada K, et al. Basic fibroblast growth factor increases regional cerebral blood flow and reduces infarct size after experimental ischemia in a rat model. Stroke 1995; 26: 2154. 12. Kaya D, Gursoy-Ozdemir Y, Yemisci M, et al. VEGF protects brain
against focal ischemia without increasing blood– brain permeability when administered intracerebroventricularly. J Cereb Blood Flow Metab 2005; 25: 1111.
13. Chen X, Li Y, Wang L, et al. Ischemic rat brain extracts induce human marrow stromal cell growth factor production. Neuropathology 2002; 22: 275. 14. Oswald J, Boxberger S, Jorgensen B, et al. Mesenchymal stem cells can
be differentiated into endothelial cells in vitro. Stem Cells 2004; 22: 377. 15. Friedman R, Betancur M, Boissel L, et al. Umbilical cord mesenchymal stem cells: Adjuvants for human cell transplantation. Biol Blood Mar-row Transplant 2007; 13: 1477.
16. Kinnaird T, Stabile E, Burnett MS, et al. Local delivery of marrow-derived stromal cells augments collateral perfusion through paracrine mechanisms. Circulation 2004; 109: 1543.
17. Silva GV, Litovsky S, Assad JA, et al. Mesenchymal stem cells differen-tiate into an endothelial phenotype, enhance vascular density, and im-prove heart function in a canine chronic ischemia model. Circulation 2005; 111: 150.
18. Tang J, Xie Q, Pan G, et al. Mesenchymal stem cells participate in angiogenesis and improve heart function in rat model of myocardial ischemia with reperfusion. Eur J Cardiothorac Surg 2006; 30: 353. 19. Lu LL, Liu YJ, Yang SG, et al. Isolation and characterization of human
umbilical cord mesenchymal stem cells with hematopoiesis-supportive function and other potentials. Haematologica 2006; 91: 1017. 20. Baksh D, Yao R, Tuan RS. Comparison of proliferative and
multilin-eage differentiation potential of human mesenchymal stem cells de-rived from umbilical cord and bone marrow. Stem Cells 2007; 25: 1384. 21. Kim JW, Kim SY, Park SY, et al. Mesenchymal progenitor cells in the
human umbilical cord. Ann Hematol 2004; 83: 733.
22. Wang HS, Hung SC, Peng ST, et al. Mesenchymal stem cells in the Wharton’s jelly of the human umbilical cord. Stem Cells 2004; 22: 1330. 23. Weiss ML, Medicetty S, Bledsoe AR, et al. Human umbilical cord ma-trix stem cells: Preliminary characterization and effect of transplanta-tion in a rodent model of Parkinson’s disease. Stem Cells 2006; 24: 781. 24. Jomura S, Uy M, Mitchell K, et al. Potential treatment of cerebral global ischemia with Oct-4⫹ umbilical cord matrix cells. Stem Cells 2007; 25: 98. 25. Wu KH, Zhou B, Mo XM, et al. Therapeutic potential of human umbilical cord-derived stem cells in ischemic diseases. Transplant Proc 2007; 39: 1620. 26. Wu KH, Zhou B, Yu CT, et al. Therapeutic potential of human
umbil-ical cord derived stem cells in a rat myocardial infarction model. Ann Thorac Surg 2007; 83: 1491.
27. Paxinos G, Watson C. The rat brain in stereotaxic coordinates, ed. 5. San Diego, Elsevier Academic Press 2005.
28. Voyta JC, Via DP, Butterfield CE, et al. Identification and isolation of endothelial cells based on their increased uptake of acetylated-low den-sity lipoprotein. J Cell Biol 1984; 99: 2034.
29. Ilancheran S, Michalska A, Peh G, et al. Stem cells derived from human fetal membranes display multilineage differentiation potential. Biol Re-prod 2007; 77: 577.
30. Romanov YA, Svintsitskaya VA, Smirnov VN. Searching for alternative sources of postnatal human mesenchymal stem cells: Candidate MSC-like cells from umbilical cord. Stem Cells 2003; 21: 105.
31. Sarugaser R, Lickorish D, Baksh D, et al. Human umbilical cord perivascular (HUCPV) cells: A source of mesenchymal progenitors. Stem Cells 2005; 23: 220.
32. Can A, Karahuseyinoglu S. Concise review: Human umbilical cord stroma with regard to the source of fetus-derived stem cells. Stem Cells 2007; 25: 2886.
33. Dominici M, Le Blanc K, Mueller I, et al. Minimal criteria for defining multipotent mesenchymal stromal cells. The International Society for Cellular Therapy position statement. Cytotherapy 2006; 8: 315. 34. Lund RD, Wang S, Lu B, et al. Cells isolated from umbilical cord tissue
rescue photoreceptors and visual functions in a rodent model of retinal disease. Stem Cells 2007; 25: 602.
35. Ennis J, Gotherstrom C, Le Blanc K, et al. In vitro immunologic properties of human umbilical cord perivascular cells. Cytotherapy 2008; 10: 174. 36. Grinnemo KH, Mansson A, Dellgren G, et al. Xenoreactivity
and engraftment of human mesenchymal stem cells transplanted into infarcted rat myocardium. J Thorac Cardiovasc Surg 2004; 127: 1293.
37. Matyszak MK. Inflammation in the CNS: Balance between immuno-logical privilege and immune responses. Prog Neurobiol 1998; 56: 19. 38. Pachter JS, de Vries HE, Fabry Z. The blood-brain barrier and its role in
immune privilege in the central nervous system. J Neuropathol Exp Neurol 2003; 62: 593.
39. Chen J, Sanberg PR, Li Y, et al. Intravenous administration of human umbilical cord blood reduces behavioral deficits after stroke in rats. Stroke 2001; 32: 2682.
40. Krupinski J, Kaluza J, Kumar P, et al. Role of angiogenesis in patients with cerebral ischemic stroke. Stroke 1994; 25: 1794.
41. Chen J, Li Y, Katakowski M, et al. Intravenous bone marrow stromal cell therapy reduces apoptosis and promotes endogenous cell prolifer-ation after stroke in female rat. J Neurosci Res 2003; 73: 778.
42. Chen J, Zhang ZG, Li Y, et al. Intravenous administration of human bone marrow stromal cells induces angiogenesis in the ischemic boundary zone after stroke in rats. Circ Res 2003; 92: 692.
43. Zacharek A, Chen J, Cui X, et al. Angiopoietin1/Tie2 and VEGF/ Flk1 induced by MSC treatment amplifies angiogenesis and vascular stabilization after stroke. J Cereb Blood Flow Metab 2007; 27: 1684. 44. Risau W. Mechanisms of angiogenesis. Nature 1997; 386: 671. 45. Karahuseyinoglu S, Cinar O, Kilic E, et al. Biology of stem cells in
human umbilical cord stroma: In situ and in vitro surveys. Stem Cells 2007; 25: 319.
46. da Silva Meirelles L, Caplan AI, Nardi NB. In search of the in vivo identity of mesenchymal stem cells. Stem Cells 2008; 26: 2287. 47. Eliceiri BP, Cheresh DA. Adhesion events in angiogenesis. Curr Opin
Cell Biol 2001; 13: 563.
48. Hung SC, Pochampally RR, Hsu SC, et al. Short-term exposure of multipotent stromal cells to low oxygen increases their expression of CX3CR1 and CXCR4 and their engraftment in vivo. PLoS ONE 2007; 2: e416.
49. Potier E, Ferreira E, Andriamanalijaona R, et al. Hypoxia affects mes-enchymal stromal cell osteogenic differentiation and angiogenic factor expression. Bone 2007; 40: 1078.
50. Hu X, Yu SP, Fraser JL, et al. Transplantation of hypoxia-precondi-tioned mesenchymal stem cells improves infarcted heart function via enhanced survival of implanted cells and angiogenesis. J Thorac Car-diovasc Surg 2008; 135: 799.
