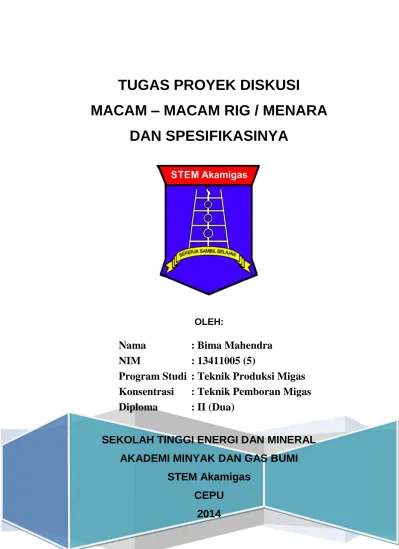

TUGAS PROYEK DISKUSI
MACAM – MACAM RIG / MENARA
DAN SPESIFIKASINYA
OLEH:
SEKOLAH TINGGI ENERGI DAN MINERAL
AKADEMI MINYAK DAN GAS BUMI
STEM Akamigas
CEPU
2014
Nama
: Bima Mahendra
NIM
: 13411005 (5)
Program Studi : Teknik Produksi Migas
Konsentrasi
: Teknik Pemboran Migas
Diploma
: II (Dua)
1) TRUCK MOUNTED RIG
Name : Self Propelled Truck Mounted Drilling & Workover Mechanical Rig
Category : Land Rigs
Specifications : General
Type : Self Propelled Truck Mounted Drilling & Workover Mechanical Rig
Year of Manufacture : 2007 Last Complete Overhaul : 2009 Recent Activity : 2 wells 2009
Estimated rig-up time on first well : 14 days Rig Depth :
2,500 mtrs with 3-1/2‖ (13.3lbs/ft) drill-pipe 2,000 mtrs with 4-1/2‖ (16.6lbs/ft) drill-pipe Drawworks
Type : ZJ20(XJ650)
Rated input power : 450 KW Line diameter : 1-1/8‖
Drive type : Mechanical
Brakes, quantity 1 : Eaton, WCB 224
Mast Specifications
Type – self-elevating : JJ1580/35-K telescoping Total height under the crown to the ground : 114 ft Rated Static Hook Load : 158 tons
Racking system capacity : 145 stands of 4-1/2‖ DP & 12 stands of DC
Crown block : 4 x 760 mm dia. , 1 x 915 mm dia Hook block : YG-160B
Swivel : SL160
Dead line anchor type : Hubei Jianghau, E160A Sub-Structure
Type : ZT 160B telescoping substructure Rig floor height : 5.1 meter high
Simultaneous capacity setback : 200,000 lbs Rotary Table
Type : NSLT Drive unit : ZP-175
Drive type : Vertical chain driven Circulating & Pumping Unit
Pump type, Quantity 2 : F-800, 550 hp@140 spm Pulsation dampners : K-20
Drive – each unit : Chidong Series 190 Diesel Compressed Air Distribution & Producing Air compressor : 2 x 100 cfm@120 psi
Mud System
Shaker tank : 28 cu.m Intermediate Tank : 30 cu.m Reserve Tank : 44.5 cu.m Suction tank : 45 cu.m Storage tank : 200 cu.m Water tank : 110 cu.m
Desander : 4 x 10‖ cone, w/- shaker unit Desilter : 8 x 5‖ cone, w/- shaker unit Centrifuge : SB150-D, 260mᵌ per hour Mixing unit : 3 of 8 x 6 Centrifugal pumps
Vacuum degasser : ZCQ/4 240 cu.m per hour Poorboy Degasser : YQ800
Electric System
Electrical generator set : 2 x Volvo Penta / Samford units, 50 Hertz
Auxiliary aggregate & lighting systems : Various Rig Floor Equipment
Kelly spinner : Jiangsu Rushi Machinery, 6800 Hydraulic winch : YC-5, 5 ton
Hydraulic winch : YC-3, 3 ton Instrumentation : Hubei Jianghau
Elevators, slips, tongs : Complete package Huts, metal structures, panels : Various Pipe and Handling Equipment
Drill pipe : 2500m of 3 ½‖ 13.3lb/ft Drill collars : 6 ½‖ & 4 ¾‖
Subs : Complete package
Fishing Tools : Complete package Blow out Equipment
BOP : 11‖ 3K
Accumulator : 16 x 10gal, 3K Camps
Rig Camp : 8 Man Base Camp : 45+ man Mobile Equipment Cranes x 2 : 25 & 20 ton Trucks x 2 : 10m 20ton
2) Trailer Mounted Rig
Wilson Mogul 42 Double Trailer Mounted Rig
550 HP, Mechanical, +/- 6,000' Trailer Mounted Drilling Rig A. Draw Works:
- Single Drum Draw Works
- Foster Model 27 AH break out Cat heads (serial # 1404) - Manual Braking System
- 1,500’ 1‖ drilling line, spooled, never used, still in protective coating - Driller’s console, with controls
B. Power:
- Detroit Model 12V71 diesel engine - Engine rated for 550 peak Horse Power - Radiator and Electric starter
- Allison Model TC955 torque converter C. Substructure:
- 10’ Height
- 16’ Width (with walkways extended) - 12’ Length
- 2 piece substructure
- Box type structure, with rotary table beams - 10’ W x 40’L back on ramp
- Removable Stairways - Folding walkways - Safety railings - Lighting
D. Mast:
- Wilson 102’ Height hydraulic derrick (serial #991-102-300) - Hydraulically raised with multiple scooping raising arm - Crown Block and Safety Platform
- Pipe racking board - Standpipe
- 3‖ (ID) x 50’ long Kelly hose - Tong counterweights
- Vapor proof lighting
- Martin – Decker weight indicator E. Rig Mounted Equipment: - Hydraulic Break Out Cylinder - Winch
- Hydraulic Storage Tanks - Fuel tanks
- Air compressor – Bendix Westinghouse Model TUFLO 1000 - Deadline anchor
- Hydraulic leveling jacks
- Folding walkways, with stairs and safety railings - Rig Mounted on Tri Axle Trailer
Travelling and Rotating Equipment:
- Chain Driven Rotary Table - Gardner Denver Model 175 - Split Master Bushing
- Swivel - Gardner Denver Model SW 125
- Kelly - Brand New 40’Length x 4 1/4‖ Square Kelly - Drive Bushing
- Travelling Blocks - 3 sheave blocks, grooved for 1‖ line - WEBB-WILSON Hydra Hook Elevator Bales
- Rig set up to add an extra travelling block to increase all capacities - Air Head Oiler
F. Casing, Pipe and Equipment: - 7,000’ +/- 3 ½ OD drill pipe - 3 ½ ‖ IF connection
- 4 ¾ ‖ OD flush drill collars, 3 ½‖ IF connections, slip recessed - 6 ¼ ‖ OD with 4 ½ ― X-hole connection drill collars
- 2 Standard 32’ pipe trailers - 1 Extended 35’ center trailer G. Well Control Equipment: - Williams 11‖ annular BOP
- Washington Rotating head assembly, complete with 16 ¾‖ air bowl - Assortment of Flanges including
- Companion flange 13 5/8 x 13 3/8 - Companion flange 13 5/8 x 9 5/8 - Companion flange 13 5/8 x 7 inch
H. Custom Rig Doghouse:
- 8’W x 24’L trailer mounted dog house - Easy Access Front Porch
- Rear porch where generator is mounted - Custom Built House for all tools
- Storage areas - Breezeway - 3000 gal fuel cell - Geolograph - Work Bench - Drilling Supplies - Night work lights
- All mounted on 40’ trailer I. Generator:
- Stateline 10 KV generator with all necessary Switching gear, gauges and controls, mounted on Rig Doghouse Porch
Miscellaneous Equipment and Parts: - Tool Trailer
- Soap tank with MYERS Model C20-8CR injection pump and 1 ¼ ― lubricator
- Soap pump powered by Waukesha Engine
- Assortment of casing elevators and single side door elevators - 2‖ air pump
- Assortment of change over subs
- Dead man stakes and cable for rig tie down and secure lines - Webb Wilson Type B tongs with assortment of tong jaws - 4 ½ ― bottleneck drill pipe elevators
- Drill collar slips
J. Air System (available at additional cost): 2001 Ingersoll Rand Airpac:
- Model number XHP1170 - Twin air compressors included - Trailer Mounted
- Cat powered C15 engines capable of 525 HP
- Twin air units rated for 350 PSI and 1170 Cubic Feet each - Both air unit have approx 7,600 hrs
- All units plumbed together
- compressor, complete with all necessary collers, gauges, valving and controls
3) Carrier Mounted Rig
Cabot 750 Drilling Rig
Carrier Mounted Rig
Carrier:
Cabot 750 Drilling Rig, Carrier Mounted 3X2 Tandem Axles is powered by (2) rebuilt Caterpillar 3406 Engines (0 hour rebuild) and Allison 750 auto transmission (two C700 rebuild transmissions). Front and rear ends rebuilt by truck part specialist. 112’ Mast, 300,000# capacity complete with
racking board, all raising lines and guidelines. Drawworks, hydromatic break, and crown assembly also rebuilt.
New Components on Carrier: Two Radiators for the 3406’s Two PTO’s with pumps Two Hydraulic pumps All new tires and wheels
Two tilt cylinders from National Oilwell One scooping cylinder from National Oilwell Chains, Spockets and clutch parts on Drawworks Hydraulic Tank
Steering gear and linkage Break water tank
Mirror, Lights and Wiring Cab, steering column and seat
Power steering pump and tanks Drive shafts
Piping and Hoses Hydraulic valve bank Hydraulic filters and lines Air tanks and brakes Racking Board
Additional Equipment Also Available:
Substructure: 17’ Cabot style telescoping substructure with hand rails, V door, two sets of stairs, bell nipple and low line to mud system. Also incorporated is break water cooling tank and pumps
Rotary Table: 20.5‖ New style Ideco driven by Cabot 750 drop box Block/Hook: 160 Ton Ideco UTB160
Swivel: 150 Ton Swivel
Mud Pumps: (2) Ideco T800 mud pumps with D398 Cat Engines, pinion driven charging pumps (5 X 6) with all valve and piping.
Mud System: Two tank mud system (800 Bbls) with all standard equipment including shaker, desander/desilter, degasser, agitators, charging pumps (5 x 6), two mixing pumps (electric driven), two hopper pumps
Choke Manifold: with poor boy degasser
Generator House: Two 3406 cat gen sets with all electrical distribution and external plug panel. Also to include cold start and rig air compressor. Ancillary Equipment:
Motor Control Center for all electrical functions 4.5‖ Drilling Hose
6’ x 8’ Dog House
400 bbl fresh Water Tank with two 3x4 25HP pump Main rig Diesel Tank with filtration and distribution pumps
Rig change house and tool room with personnel lockers and mech tool room area (8’ x 40’)
4 station koomey unit type 80 suited for environment 12 man camp house with day room (14’ x 52’)
Two 120 Gallon air receivers and two 4K Ingersoll Rand air winches New drill line spooler air operated with drill line of 1 1/8‖
Electrical and lighting package to include all wiring, plugs ,receptacles and lighting as required per rig layout
Instrumentation Pac: Weight Indicators Rotary Torque RPM Meter
Mud Pump SPM Meters Pit Level Indicators Flowmeter
Optional Items at additional cost:
Handling tools including – Make up and break out tongs, pipe elevators, Kelly drive
Annular – 7 1/16, 5000 NL Shaffer Double with 5000 lbs Nov available as optional equipment if required
5) Heli – Portable Land Rig
OIME SL7 Heli Rig UNIT U40 1100 HP
Land Rig
DRAWWORKS
UNIT U-40 (S/N: 60) ―New Rebuilt 10/08‖, Single Drum Drawworks, Crown-O-Matic
& Driller’s Control Console, Hydraulic Catheads, 2-Engine, In-Line Compound, (2)
Quincy 325 Air Compressors with Twin Disc Torque Converter Model 11561-TC (S/N:
280050) with Hydromatic Brake 22‖ Double (REBUILT).
POWERED BY (2) VOLVO TAD-1830 Diesel Engines, 550-HP, w/ TWIN DISC Fluid
Couplings, Total 1100 HP (LOW HOURS)
MAST
LEE C. MOORE 131’ x 18’6‖ 550,000# Static Hook Load Cantilever Mast, Pin-Type, 5
SUBSTRUCTURE
16’H x 46’L Box-on-Box Substructure w/ Rotary Beams, V-Door, Stairs, Safety Rails,
Deadline Anchor, Built-In Parts Rooms, Air Receiver Tank, Wiring, Plumbing, Skidded
w/ Steam Heaters & Hydraulic Power Units Mounted.
MUD PUMPS
2-MZ-9 Triplex Mud Pumps, 1,000-HP, with 6‖ x 8‖ Centrifugal Charging Pumps,
Master Skidded, Each POWERED BY CAT 398 Diesel Engine, Split Pump House,
Skidded in House (PUMP #1-GOOD CONDITION, PUMP #2-REBUILT)
MUD SYSTEM
(2) Tank 850-Barrel Mud System, w/ V-Crimped Walls, Mud Agitators, Flow Troughs,
Internal & External Plumbing, (2) 5‖x 6‖ Centrifugal Pumps w/15HP Electric Motor,
Skidded, 1-Linear Motion Shale Shaker, 2-10‖ Cone Desanders, 10-5‖ Cone Desilters
1-Tank 250 BBL Premix Tank with 2-50HP Pump Packages w/ 5x6 Centrifugal Pumps.
8’W x 30’L Mud House, w/ V-Crimped Walls, Stand, Skidded
GENERATORS / UTILITY HOUSE
(1) 600KW-3412 CAT Generator and (1) 400-KW Generator p/b VOLVO Diesel Engine
GARDNER DENVER Screw Type Air Compressor GE Electrical Controls
All Mounted in Skidded 10’W x 35’L Round top Utility House w/ V-Crimped Walls.
ROTATING EQUIPMENT
OILWELL 201/2‖x 531/4‖ Rotary Table, w/ Master Bushing 250-Ton Rotary Swivel (GARDNER DENVER)
TRAVELING EQUIPMENT
McKISSICK 250-Ton Traveling Block/Hook Combination BAASH ROSS 3‖ x 96‖ Elevator Links
WELL CONTROL EQUIPMENT
5-STATION CLOSING UNIT, Skidded Mounted in Building w/ Remote Control Panel,
Mounted on Side of Doghouse
4-1/16‖ 5,000# Choke Manifold Mounted in Doghouse Building
RIG HOUSES
10’W x 30’L Round Top Doghouse, V-Crimped Walls, Satellite Automatic Driller, 4-
Pen Drilling Recorder, Knowledge Box, Lockers, Parts Storage, Skidded
WATER / FUEL TANKS
500-Barrel Water tank, V-Crimped Sides, (2) 2‖ x 3‖ Water Transfer Pumps p/b 20-HP
Electric Motors, Skidded
6,000-Gallon Fuel Tank, V-Crimped Sides, Skidded w/ Fuel Pump & Electric Motor,
3 Compartment Lube Structure
AUXILIARY EQUIPMENT
5,000# Capacity Air Hoist
Pipe Spinners w/ VARCO TW50 Torque Wrenches Kelly Spinner
Iron Roughneck
15,000’ Electric / Hydraulic Wireline Measuring Unit
31/2‖x 55’ Kelly Hose, (2) 31/2‖ Vibrator Hoses, Upper & Lower Kelly Valves
42‖H x 60’L Catwalk, 3-Sets (4) Pipe Racks
(1) 1/8‖ x 5000’ Drilling Line w/ Stand, ¼ Spool of Line Remaining Rig Lights w/ Wiring
20- Sections of rig Matting w/ Lifting Eyes
RIG BOILER
1-150HP Diesel Fired Boiler Package, Steam Heaters, in Steel Skidded Building
6) Stasionary Land Rig
Rig name: NOV CE-ATEX 2000 HP AC PAD DRILLING RIG Rig type: STATIONARY / ELECTRICAL AC DRIVE
Drilling depth: 20,000 ft @ 5‖ DP Mast: Cantilever
Clear working height: 142’ Base width: 25’
Hook load: 1,000,000 lbs -12lines
Substructure: DRECO H Slingshot
Floor height: 30’
Clear Height Under Rotary Beams: 26’ Setback Capacity: 650.000 lbs
Rotary Capacity 950.000 lbs
Drawworks: DSGD 500 TON 2300HP AC
Max Input Rating: 2300 HP Hoisting Capacity: 500 Ton
Drive: 2 x NOV Baylor AC motors 1230 HP each Drum grooving: Lebus 1-1/2‖
Rotary equipment: Rotary Table Type: D-375 NOV Rotary Table Opening: 37 1/2‖ Static Drilling Load: 1.400.000 lbs Static Casing Load: 1.650.000 lbs Top Drive Type: NOV TDS 11-SA
Top Drive System Capacity: 1.000.000 lbs
TDS max. Continuous Torque 37,500 lb.ft @ 110 RPM TDS max. Continous Torque 18,250 lb.ft @ 228 RPM TDS max. Intermittent Torque –55.000 ft-lbf
Travelling equipment: Travelling Block Type: DRECO 650TB-500-8C
Travelling Block Capacity: 1.000.000 lbs Q-ty and type of sheaves: 6 X 50‖
Drive:
Genset Type and Make: 5 X 3512B CAT + SR4B
Horsepower Rating: 1757 HP each Generator Type: CAT SR4B Brushless Generator Rating: 1300 kW each
Mud system: Mud Pumps: 3 x triplex NOV 12-P-160 AC 5000 PSI Horsepower Rating: 1600 HP each
Power Pump: NOV Baylor AC motor Shale Shakers: Brandt King Cobra 3 + 2 Desilter: Brandt King Cobra 24 x 4‖ cones Desander: Brandt King Cobra 3 x 12‖ cones Vacuum Degasser: Brandt DG-10
Mud Tanks System Capacity: 2203 bbls HP Mud lines: Dual, 5000 PSI 4‖ ID
Bop equipment: BOP Control System: NOV Koomey
Shaffer 13-5/8‖ 10000PSI Double Ram LXT Shaffer 13-5/8‖ 10000PSI Single Ram LXT Shaffer 13-5/8‖ 5000PSI Spherical
Choke Line: 3-1/16‖ 10000PSI Kill Line: 2-1/16‖ 10000PSI
7) Mechanical Land Rig
Gardner Denver 500 - 600hp Mechanical
Drilling Rig
Drilling Depth Capacity : 10,000’
Power System:
Series 60 Detroit Engines 600 HP 400KW Marathon Generator
Drawworks :
Gardner Denver 500
5 Speed Allison Transmission
Mast:
Lee C. Moore 126’x 12’ base 280,000# static hook load, category IV certified 8-2006
Drill Line:
1 1/8’ EIPS new
Substructure :
Dreco One Piece 12.6’W x 13.6’H x 40’
Mud Pumps :
One (1) PZ-8 triplex powered by 550 HP 3412E Cat Engine New
One (1) MM 550 IDECO Duplex Powered by 3412E Cat engine
Rotary :
Gardner Denver 17 ½‖
Crown Block:
Lee C. Moore five (5) sheaves
Traveling Block and Hook :
McKissick Joy 150 Ton
Swivel:
National P-200 new
Boiler:
100 HP Cleaver Brooks
Kelly:
5 ¼‖ Hex, 5 ¼‖ Bushing New
Annular Preventer :
Hydril GK 11‖ 3,000 psi WP
Ram Preventers:
Shaffer LWS double ram 11‖, 5,000 psi
Choke Manifold:
4 1/16‖ 5,000 psi WP dual choke one fixed, one adjustable
Accumulator System :
Five (5) station 150 gallon capacity
Mud Tank System :
One (1) 500 Bbl. Total
One (1) Mongoose Linear Shaker One (1) Cone desander
2 - Agitators 4 – Mud guns
Mud Mixing Pumps :
Auxiliary Equipment :
One (1) 350 Bbl. water tank
Two (2) Hydraulic Hoists 4,200# ea One 10,000 gallon fuel tank
One (1) air hoist 4,000# new
Kelly spinner forward & reverse new Pit pump 25 HP 3x4
8) Electric Land Rig
National 1320 2000 HP SCR Drilling Rig
2000Hp Land Drilling Rig
Drawworks:
National 1320 UE powered by (2) GE 1,000 HP Electric Motors Type B1 Catheads
Elmagco Brake
Substructure & Mast:
Mast - Inland Steel USA 28B455
Enclosed Box Substructure - 31.75' Setback Motor Package:
1 - 3406 Caterpillar (Cold Start) 4 - 399 Caterpillar Engines
4 - Synchronos AC Generators (600 Volt)
2 - Quincey QSI-245 Air Compressors - 60 HP Electric Motors SCR:
Baylor Thyrig System Top Drive Scr
Mud Pumps:
Rotating & Traveling Equipment: National - Oilwell C-375 Rotarty Table Block - National 500 Ton
Swivel - Cont. Emsco L8-400 Kelly - 5 1/4" Hex Kelly 45'
Blowout Prevention
Annular Hydril 13 5/8 5000 psi D Rams QOP 13 5/8 10000 psi
S Ram QOP 13 5/8 10000 psi
Koomey Type 80 20 Bottle Precharge System (3,000psi) house is on off drillers side of floor Remotes – Driller console, Ground Unit Remote
3‖ x 4‖ choke manifold system with gauges and manual chokes 9 valves total
Handling Tools / Auxiliary Equipment: Wildcat ADS-1 Automatic Driller
Martin Decker Type E Weight Indicator(1)martin decker E-Totco Reader survey tool
Doghouse, Water, Fuel, & Mud Tanks: 3 Mud Tank System (1115 bbls)
3 Derrick Flo-line Mud Cleaners W/(1) 2 cone desander and (1) 16 cone desilter(1) vacu-flo 1200 degasser
2 8X6X11 100 HP Cent.Pumps for desander and desilter
2 8X6X14 100 HP Cent.Pumps for degasser 2 6X5X14 50 HP Charger Pumps
2 2X3X13 15 HP Cent. Pumps for trip tank
2 Halco low pressure mixing hoppers (9) Adjataters on mud tanks
2 Water Tanks (500 bbls each)(1) fuel tank-20,000 gal(1) Heated top and bottom doghouse
Two story Parts House
Fire Box Storage - for flammables Top Drive:
Rebuilt 500 Ton National PS-149-H
Drill Pipe & Drill Collars
Drill Pipe 603 Jts 19.60 S-135 4 1/2IF 19,000 ft HWDP 38Jts 49.30 Spiral 4 1/2 IF 1170 ft 6 1/2" DC 12 Jts 91.53 Spiral 4 1/2Xh 375 ft
9) Box / Swing Rig
Brewster N45 Rig Inventory
N45 Brewster Drawworks : Serial # 2C—TD 10-56, Total HP 900 Twin
C-15 w/ 450 Torque Con.
Cat C-15 Drawworks Motors : 1. Serial # JRE01381 2. Serial #JRE01385
(with Motor Shed)
Derrick : 105’ Butler Parks – 300,000# load, 11,000’ Board, A-Frame
11’6‖
Substructure : (15’16‖W x 43’W x11’H)
Blocks : 150 Ton McKissack w/BJ Unimatic Serial # 25
Swivel : King, Serial #15M-814 150 Ton
Mud Pumps : 1. Emsco DP 550 - Serial #118 2. Emsco DB 550 - Serial #
Mud Pits : 1. Serial # 2002A, Cap +/- 250 bbl Size 6’ x 10’x 40’
2. Serial # 2002B, Cap +/- 250 bbl Size 6’ x 10’x 40’
Desilter : (Shopmade) Mission 8-Cone
Linear Shale Shaker : Serial # 200613, Screen’s x 3 (model #DF275SM) Centrifuge Mud Mixer Pump : Serial # 15944 MCM Pump Series 250
Size 5x6 Motor Type BJHE Model # WWE50-18-3261 Serial # 10418 FHJ – 11‖ Impeller
275 KW Generators :1. Model #SR4B, 6YR02520 Motor 9NR05087, 3306
2. Model #SR4B, 6YR02510 Motor 9NR05085, 3306
6 – Caterpillar Motors :
1. DW#1 C-15 Serial #JRE01381 2. DW#2 C-15 Serial #JRE01385 3. Pump#1 D379 Serial #68B4886 4. Pump#2 D379 no tag
5. Gen #1 3306 Serial #6YR02520 6. Gen #2 3306 Serial #3YR02519
BOP : Regan Bag Type. 17‖ Oil cap 25 gal.
Accumulator (Shopmade) : 1765 RPM Motor Serial # slow3820
3000# Choke Manifold with 2-5000# check valves 7000’ 4-1/2” 20# XHole Drill Pipe
20 - 6 ¼” Drill Collars Cat Walk (8x45) (4) Sets Pipe Racks
Stand By 120 Gal. : Serial # D6325 R/S Series, Curtis 30 HP Electric
Motor
Compressor Serial : # 03036EP3E286TS
Drawworks Air : Model Quincy 325 1.Serial # 20060417-0167
Compressor : 2. Serial # 20060417-0166
Stir Pump : (Serial # 6000) with Electric Motor Serial # 712109
Miller Gold Star Welder : Serial # 16090469C
Pipe Spinners : Serial # PS0126 (model 3507, Oilwork Inc)
Star Recorder – 2 Pen
Satellite Air/ Hydraulic Driller
WT Indicator : 1 1/8, 8 Line, Hydraulic 10 360,000 Totc brand
Tongs Wooly : ―B2‖ Broll Serial # 43186 B/O International Tool Kelly Spinner
Diesel Tank Size 8x14 : Serial #KM-3811
Water Tank : 12 x 15 Shopmade Serial # GF5353
Dog House (8x30x7 ½ ) : Scopes into Water Tank, 3‖ Insulation in Ceiling
& Walls, AC/Heat
Dog House Water Tank : (88x10x34’6‖=420 bbl cap) Sure Shot Survey Tool with 2-7 clocks
Miscellaneous Hand Tools & Chains
Miscellaneous Subs & Stabbing tools
Toolpusher House – Fleetwood Trailer VIN# 1EB1T252854005852
10) Telescopic Rig
Mast:
Mast Type: Telescopic Double Mast MFG: Do-All
Drill Line Size: 1 1/8‖ (28.6mm)
Static Hookload: 410,000 lbs (182,000 daN) Mast Clear Height: 105 ft (32m)
Number of Lines: 10
Substructure:
Substructure Type: One piece, Step-down Substructure MFG: Do-All
Max Pipe Setback: 350,000 lbs (155,500 daN) Max Rotary Setback: 410,000 lbs (182,000 daN) Floor Height: 15’6‖ (4.72m)
Drawworks (Mechanical):
Drawworks Drive: Detroit 60 Series Drawworks HP: 750
Transmission: Allison 6620
Overhead Equipment:
Blocks: McKinney 250t 5 sheave
Circulating System:
System pressure: 5000 psi (34,000 kPa)
Mud Pumps:
Pump MFG and
style: Rong Li F1000 Triplex
Quantity: 2
Pump Drives: Detroit 2000 Series (1005HP) Pump Stroke: 10‖ (254mm)
Mud System:
Total Mud Capacity: 90m3 Active Volume: 75m3 Number of
Compartments: 3 + 1 Pill + 1 Trip Trip Tank Capacity: 4.30m3
Pill Tank Capacity: 3.80m3 Centrifugal Pumps: 3
Shakers: Brandt King Cobras (x2)
BOP (Nace Trim):
Rams: 11‖ 5000 psi (34000 kPa) Double Gate
Accumulator:
Accumulator MFG: Control Tech Operating Pressure: 21,000 kPa Number of Stations: 5
Choke Manifold (Nace Trim):
Type: Double Gate
Size: 3 1/8‖ 5000 psi
Generators:
Generator MFG: Stamford
Engine: 60 Series Detroit (x2)
Misc. Equipment:
Fuel Capacity: 20,000 Litres Pipe Tubs: 5 Stand Alone Top Drive: 250t Canrig
Tubulars:
Drill Pipe
Connections: 4‖ FH Drill Pipe Size: 4‖ (101.6)
Drill Collars: 2 – 8‖ (6 5/8‖ Reg) 18 – 6 ½‖ (4 ½‖ XH)
