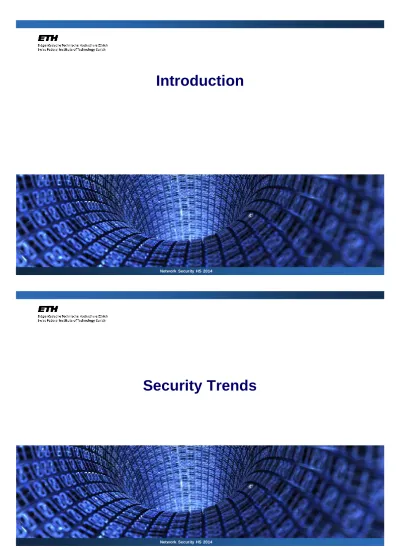

Network Security HS 2014
Introduction
Network Security HS 2014
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 3
Why is network security an issue?
§ Email, web sites, video conferencing, instant messaging, voice over IP, e-commerce, e-government, distributed control systems (for energy, water, traffic etc.), social networks ...
à Economy and our life more and more depends on the Internet
à Distributed information systems have become critical infrastructures
§ Open systems
à technology is standardized and is no longer a secret
§ Insecurity driven by organized crime
à Entirely new «business models»
§ Huge and fast growing Internet user base (est.: 2.80 billion)
à increasing risk (both damage potential and probability of
occurrence increase)
http://www.internetworldstats.com/stats.htm
Internet Security Evolution
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 5
Cybercrime is now a business
Klikparty, 2007 Credits Engin Kirda
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 6
Klikparty, 2007 Credits Engin Kirda
Network Security HS 2014
Security Threats
Asymmetric threat and leverage
§
Asymmetric Threat
§ IT and the Internet continually give attackers new opportunities for leverage
- automation, technique propagation - distant action in a network
- security unaware users join the Internet
§ Attacker tries a few exploits on a few systems, but defenders must secure all systems against all exploits
§
Leverage
§ You may reach 100 million potential subjects (customers, or victims)
§ We can’t count on previous constraints (e.g. travel cost, cost of physical shipment) to limit the effectiveness of an attacker
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 9
Attacker Motivation
§
Ego§ To show the world what one can do
§ To impress peers
§ To live some fantasy of omnipotence
§
Revenge, destruction, creation of fear: § Cyber warfare§ Terrorism
§ Secret service activities (Stuxnet 2010, Snowden/NSA 2013)
§ Direct revenge (e.g. a disgruntled former employee)
§
Criminal intent§ Blackmail, racketeering (Schutzgelderpressung)
§ Credit card fraud
§ Infiltrating e-banking
§ Spamming, phishing
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 10
Attacker Motivation (cont.)
§
Acquisition of computing and network resources:
§ Typically commercial motivation, stealth is usually desired
§ Has become widespread in the last few years: Botnets
- The cybercriminal’s cloud
- Botnets have 10k to >1M hosts, have been used in DoS attacks...
§ Often causes overall network degradation and cost for
protection (e.g. Spam) à collateral damages are significant
§
Acquisition of sensitive information:
§ Industry espionage by competitors and intelligence agencies
§ Undercover criminal investigations (“On-line-Durchsuchung” in Germany, http://www.spiegel.de/netzwelt/tech/0,1518,464629,00.html)
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 11
What can attackers do?
§
Attack flow of information
§ Send fake messages § Replay messages
§ Modify messages in transit
§
Attack services to achieve
denial of service
§ Overload system resources
§
Attack Internet
infrastructure
§ DNS, BGP, ARP
§
Gain unauthorized access
to services
§
Infiltrate security protocols
or processes (e.g. MITM)
§
Change system functions
§ Infiltrate system with attack code
§
Modify foreign web pages
§ change appearance of a webpage
§ Place attack code
§
Hijack user sessions
§ E-banking
§
Assume false identity
§
Use social engineering to
establish trust
§
Break crypto
§
etc.
Where are the attack targets?
§
Hackers attack us where we sit: Client-side attacks
dominate
§ Browser attacks now target plug-ins
§ IFrame based attacks are now prevalent
§
Attacks of all shapes and sizes
§ Anti-virus worms
§ Social networking attacks - MySpace & Facebook
§ Phishing - banking industry is target #1
§ Web mines - www.goggle.com rather than
www.google.com
§ Documents - PDFs are no longer safe!
§
Data stored on end-points is often most valuable and
the least protected!
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 13
Network Security HS 2014
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 15
What is the goal of „security“?
§
Confidentiality§
Integrity§
Availability And more:§
Authenticity§
Accountability§
Non repudiation§
Privacy The CIA triadC
I
A
Glossary:Confidentiality: prevention of unauthorized disclosure of information
Integrity: prevention of unauthorized modification or deletion of information
Availability: prevention of unauthorized withholding of information
Attack classification
Passive attacks
Confidentiality
Compromise
of content Traffic analysis
Active attacks
Denial of service
Modification
Fabrication
Availability Integrity and Authenticity
Replay
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 17
Establishment of a virtual secure channel
Alice Bob Secure Channel Source authenticity Authorized recipients
Security
measures
Content integrity, confidentiality
Internet
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 18
What is a “secure channel”?
Not confidential channel
An attacker can eavesdrop on all information sent.
Confidential channel
No eavesdropping possible on information sent.
Not authentic channel
The receiver has no guarantee that the sender is the one he claims to be, and that the content is original.
Authentic channel
The receiver can be assured that the sender of the information is the one he claims to be and that the content is original. Channel type Not confi-dential confi-dential Not authentic authentic
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 19
Secure communication using insecure
channel
Sender Receiver Channel Security trans-formation Message Secret Key 1 Attacker• Has full access to the physical channel • Knows all mechanisms and protocols • Does not know any secret keys
Security trans-formation Message Secret Key 2 encryption decryption Part of Kerckhoff’s design principles
for military ciphers
Access control
Information system (hardware, software, storage, applications)Local security measures
Access control
attacker Legitimate
user
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 21
System Map: Security on different OSI layers
Application Transport Network Physical Layer Application Transport Network Physical Layer Application Transport Network Physical Layer User Interface User Interface Quantum Cryptography IPSEC SSL SSH Link encryption Auth Auth Auth
Intrusion detection/protection, spam filtering, economic incentives, legal enforcement, forensics
Hardware and software platforms and environments
Network Security HS 2014
Conclusions
NSHS08H8353226 ETH Zurich, Bernhard Plattner Intro – Network Security 23
Take Home Message
§
Decades of security problems:Security is a process, not a one time thing
§
What is the security goal? Know the CIA triad!§
Attacks differ a lot but can be classified§
Cryptography can provide secure channels in an insecure network§
Security can be implemented at different OSI layers§
Know some significant historic attack cases (see reader on Moodle)Threats to Civilization
November 2014
Firewall Techniques
Bernhard Plattner TIK-CSG / [email protected]
Firewall techniques
§
What is a firewall?
§ A firewall is a hardware or software device which is configured to permit, deny, or proxy data through a computer network which has different levels of trust.
§
Types of operation
§ Simple packet filter
§ Stateful filter
§ Application layer/ proxy based
Bernhard Plattner TIK-CSG / [email protected]
Firewall Rules
§
Filtering
§ Ingress: Filter incoming traffic
§ Egress: Filter outgoing traffic
§
Default Policy
§ Accept all versus reject all
§
Deny Access
§ Drop - silently drop packet
§ Reject - drop packet and inform sender
§
Transparency
§ firewall and network fingerprinting
Firewall Rule Processing
Bernhard Plattner TIK-CSG / [email protected]
Stateless Firewall - Packet Filter
Functionality
§
examine a packet at the network layer§
decision based on header in packetPros
§
application independent§
good performance andscalability Cons
§
No state or application contextSource: CheckPoint
Bernhard Plattner TIK-CSG / [email protected]
Stateful Firewall
Functionality
§
keep track of the state of the network connections§
decision based on session statePros
§
easyer to specifiy rules Cons§
state explosionBernhard Plattner TIK-CSG / [email protected]
Application Layer Firewall
Functionality
§
take application state into security decisionPros
§
application layer awareness Cons§
supported application protocols§
performance, scalabilityFirewall Attack/Bypass Techniques
§
IP Address spoofing
§
Fragmentation
§ the port number is only in the first fragment meaning that filtering on TCP or UDP is lost
§ without reassembly, attack gets through
§
Vulnerabilities
§ exploiting vulnerabilities in firewall software/OS
§
Denial of Service
§ state explosion (what‘s the FW fallback policy?)
§
Tunneling/covert channel
Bernhard Plattner TIK-CSG / [email protected]
Firewall Detection 1
§
Port scanning
§ identify potential firewall IP through traceroute
§ port scan targets, analyze response
- Check source IP of responses of blocked/open ports - Analyze differences in responses
§
Firewall defense
§ firewall improves obscurity by spoofing the source address of the RST/ACK packet to be that of the target host
Tools: nmap, firewalk, hping
Bernhard Plattner TIK-CSG / [email protected]
Firewall detection 2
§
Play with Time to Live (TTL)
§ set packet TTL to expire one hop past firewall
§ if packet is passed by firewall, a TTL expired should be received
§ If packet is blocked by firewall, either of the following could occur:
- an ICMP administratively prohibited response is received.
- the packet is dropped without comment.
§
Firewall defense
§ firewall checks for low TTL
November 2014
Firewall implementation
Firewall setup: Two Variants
Internet
Protected internal network (DMZ – „de-militarized zone“) Variant 1
Internet Protectedinternal
network (DMZ – „de-militarized zone“) Firewall Variant 2 Firewall 1 DNS Firewall 2 public servers DNS public servers
Bernhard Plattner TIK-CSG / [email protected]
Firewalling with Linux iptables: How packets
traverse the kernel
Destination NAT (Pre-Routing) Source NAT (Post-Routing) Local Process Drop Input Chain Forward Chain Output Chain Routing Drop Drop ipchains or iptables
Bernhard Plattner TIK-CSG / [email protected]
Chains
§
Chain: Set of rules which are interpreted
sequentially
§
Interpretation stops when a target
or the end of the
chain is reached
§
Targets: ACCEPT, DROP, REJECT, LOG, RETURN
§
Built-in chains: INPUT, OUTPUT, FORWARD
§
Chain policy: Sets implicit target at the end of the
chain
§
User-defined chains: Like subroutines
§
When end of chain is reached:
§ If a built-in chain: Policy of the chain is applied
§ If a user-defined chain: Next rule of the calling chain will be applied (implicit RETURN)
Bernhard Plattner TIK-CSG / [email protected]
Operations on chains
§
Create new chain –
iptables –N chain_name§
Erase all rules in chain –
iptables –F chain_name§
Remove empty chain –
iptables –X chain_name§
Set chain policy –
iptables –P chain_name target
§
Managing rules in a chain
add: iptables –A chain_name rule_spec delete: iptables –D chain_name rule_num insert: iptables –I chain_name [rule_num]
rule_spec
Rules
§
A rule specifies a filter and optionally a target
§
Rules may be inserted in chains and deleted
from chains
à
chains can be built up and
changed dynamically
§
Filters can use different criteria (match or don‘t
match)
§
Source and destination addresses:
-s, -d
§
Protocols:
-p
§
Interfaces:
-i, -o
Bernhard Plattner TIK-CSG / [email protected]
Examples
iptables –L INPUT
iptables –P INPUT DROP
iptables –A INPUT –s 129.132.16.11 –p icmp –j DROP
iptables –A INPUT –s ! 129.132.16.11 -j ACCEPT
iptables –A INPUT –p ! tcp -j DROP
iptables –D INPUT 14
Documentation
§
A compact user guide to iptables:
http://www.linuxguruz.com/iptables/howto/iptables-HOWTO.html
(somewhat outdated)
§
An extensive tutorial on IP and iptables:
http://www.frozentux.net/iptables-tutorial/iptables-tutorial.html
§
Ubuntu:
https://help.ubuntu.com/community/IptablesHowTo
