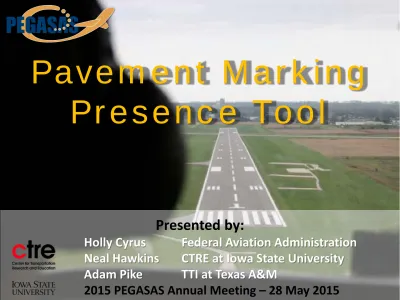

Pavement Marking
Presence Tool
Presented by:
Holly Cyrus Federal Aviation Administration Neal Hawkins CTRE at Iowa State University
Executive Summary Slide
A smart phone application
(different operating systems) to assess the pavement marking presence, retroreflectivity, and color
Windows
The Team
•
Holly M. Cyrus, FAA Technical Monitor
•
Omar Smadi, PEGASAS lead PI
•
Co-PI
– Neal Hawkins, CTRE at Iowa State – Paul Carlson, TTI at Texas A&M
•
Other team members
– Nick Burdine, CTRE
– Skylar Knickerbocker, CTRE – Adam Pike, TTI
Motivation / Need
• Over 6,000 airports in the U.S. • Pavement marking impacts
– Safety
– Service level – Guidance
• Pavement marking evaluation
equipment is expensive ($20k per machine just for retroreflectivity)
• Constrained resources (when to
paint)
• Quality assurance to guarantee
Research Objective(s)
• Develop a mobile (smart phone)
application to assess pavement marking:
1. Presence
2. Color
3. Retroreflectivity
• Using iOS, Android, Windows
Research Objective(s)
• Develop a mobile (smart phone)
application to assess pavement marking:
1. Presence
2. Color
3. Retroreflectivity
• Using iOS, Android, Windows
Research Objective(s)
• Develop a mobile (smart phone)
application to assess pavement marking:
1. Presence
2. Color
3. Retroreflectivity
• Using iOS, Android, Windows
format
Approach / Methods
Tasks:
1-Initial Assessment
2-App Development
3-Tool Testing
4-Bead Analysis
5-Measurement Geometries
6-Marking Retroreflectivity
7-Marking Color
8-Final Report
+Approach / Methods
Task 1-Initial Assessment (CTRE):
• Assess the impact of image resolution, light
presence, size of the image, and distance to
pavement marking on the presence analysis tool that has already been developed.
• 75% complete. Additional testing is required.
Lighting has more of an impact than image resolution.
Approach / Methods
Task 2-Presence Application Development (CTRE):
• Result - Develop a Pavement Marking Presence
application for the three different platforms available.
Activities:
App store requirements (iOS, Android, and Windows) App GUI (Graphical User Interface) design
Develop App(s) for the different platforms
Approve App(s) through the different App Stores
Technical memo detailing the app development and design
Approach / Methods
Task 2-Presence Application Development (CTRE):
• 50% complete.
Approach / Methods
Task 3-Tool Testing (CTRE):
• Development and implementation of a testing
protocol using different smart phones representing a range of the platforms to evaluate the developed
App.
• Result - The App design will be modified based on
the results from the testing and also feedback from potential users.
Approach / Methods
Task 4-Bead Analysis (CTRE):
• Assess the feasibility of using image analysis to
determine bead presence in the marking and develop a correlation to pavement marking retroreflectivity.
• Result - Decide if additional work will be completed
to modify the App to include this capability.
Additional time and resources might be needed to incorporate this capability in the new App.
Approach / Methods
Task 5-Sensitivity of Markings Retroreflective Measurements at Non-Standard Measurement Geometries (TTI):
• Develop an array of non-standard testing geometries
based on various aircraft configurations (pilot position with respect to lighting position).
• Result - Evaluate sensitivity of measurement
Approach / Methods
Task 5-Sensitivity of Markings Retroreflective Measurements at Non-Standard Measurement Geometries (TTI):
Activities:
Acquire runway marking materials Fabricate runway markings samples
Evaluate retroreflectivity at various geometries Analyze results
Approach / Methods
• Test Variables
– Vehicles (planes and standard car) – Determine light and observer
positions (unique to each vehicle)
– Evaluation distance (50-800 feet) – Markings to evaluate (14 samples)
• Identify specific geometries • Develop test protocol
• Conduct evaluations
• 125 Geometries evaluated on
each pavement marking sample
Vehicles Selected Manufacturer Type Boeing 767/ 200-300 Boeing 757/200-300 Boeing 777/200-300 Boeing 747-400 Boeing 737/100-200 Boeing 737/300-400-500 Boeing 737/600-700-800-900 MD 11 MD 80 MD 90 DC 10 Lear 55 Lear 35
Results / Important Findings 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 0.11 0.21 0.31 0.5 1 1.5 2 Ret ro alpha beta1 88a Panel 11 Panel 12 Panel 14 Panel 15 Panel 16 Panel 17
Approach / Methods
Task 6-Develop and Test Prototype Inspection Tool to Assess Marking Retroreflectivity (TTI):
• Develop and test ideas to assess marking
retroreflectivity in the field using a smart phone or tablet.
• Result - A technical memorandum will be developed
that describes the prototype development, testing, and results.
Approach / Methods
• Evaluated the light source location and orientation
compared to the lens location of 19 smart phones
– 14 android phones – 4 apple phones – 1 windows phone
– 12 had light source on side of lens (portrait)
– 5 had light source above or below lens (portrait)
Approach / Methods
• Used caliper to
evaluate the
distance between center of light
source and center of lens
• Distances ranged
from 0.235-0.595 inches
Approach / Methods
Task 7-Incorporate Techniques to Assess Marking Color (TTI):
• Develop and test ideas to assess color.
• Result - A technical memorandum will be developed
that describes the prototype development, testing, and results.
Approach / Methods
Task 8-Final Report:
• Result - draft and final report for review by FAA.
Activities:
Draft final report Final report
Immediate Next Steps
• Complete application development and deploy on
IOS
• Conduct testing and evaluation
Immediate Next Steps
• Finish Technical Memorandum for Task 5 • Continue development of tool to assess
retrorefelctivity and color of in-service pavement markings.
• Finish Phase I of Tasks 6 and 7 and develop Technical
