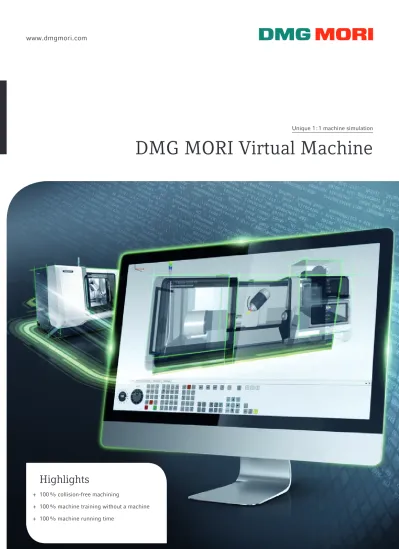

Unique 1 : 1 machine simulation
DMG MORI Virtual Machine
Highlights
+ 100 % collision-free machining
+ 100 % machine training without a machine + 100 % machine running time
“We use the DMG MORI Virtual Machine because we save 25 % running-in time by doing so”.
Dietmar Glockner,
ZAHORANSKY FORMENBAU GmbH, Head of CAM Programming and Vice Head of Production
1 : 1 machine simulation taking 3D tools, fixturing, workpiece geometry and continuous material removal into consideration
The DMG MORI Virtual Machine emulates your physical machine 1 : 1, including the complete machine geometry and kinematics as well as the actual control unit. Thanks to 1 : 1 machine simulation, collisions and programming errors are identified on the PC – and not after they reach the machine. Unique in-depth simulation guarantees the feasibility of your components, as well as 100 % collision-free and executable NC programs. This simulation helps you avoid machine damage and removes the need for time-consuming proving out on the machine.
100 % collision-free machining
Precise 1 : 1 machine simulation.
Guaranteed to be feasible and collision-free.
Highlights
+ 100 % component feasibility + 100 % collision-free NC programs + 100 % executable NC programs + 0 % machine damage
“Thanks to the DMG MORI Virtual Machine, we can program fully while the physical machine is producing at 100 % capacity.”
Sascha Jung, AG der Dillinger Hüttenwerke, Training and Staff Development
100 % programming with all control unit features
100 % machine running time
A complete workstation to boost
your machine productivity.
Programming with the DMG MORI Virtual Machine is 100 % identical to programming the physical control unit. All cycles and NC
functions are available. You can check the feasibility of the machining task without leaving your desk. Create NC programs that use the comprehensive features of your control unit and determine the on-machine cycle times.
Optimise the cutter paths and ensure minimum non-productive times. 1 : 1 machine simulation helps you guarantee collision-free and executable programs. Benefit from an additional programming workstation, and create programs while the machine is producing.
Highlights
+ 100 % programming while the machine is running
+ 100 % determination of on-machine cycle times
+ 50 % reduction in non-productive times thanks to optimised cutter paths + 100 % collision-free and executable
“Thanks to the DMG MORI Virtual Machine, our staff are trained in the basics of 5-axis machine operation without needing access to or endanger-ing the physical machine.”
Walter Pachatz, Geislinger GmbH, Head of Training
Highlights
+ 100 % effective learning of DMG MORI machine operation + 100 % machine productivity during staff training
+ 0 % damage to your machines during the induction phase + 100 % attractive classroom licenses to suit your needs
The DMG MORI Virtual Machine precisely emulates the complete machine geometry and kinematics and simulates the physical control unit 1 : 1. All NC functions, machining cycles and parametric programs are available. Operations are managed easily via a virtual control panel, or the physical DMG MORI ControlPanel. This means that your staff can master the physical machine without actually using it.
Machine operation with all functions is thus quickly and effectively covered. And you can avoid damage to your machines during the teaching phase. Teach your staff how to operate your DMG MORI machines while the machines are producing at 100 % capacity. To this end, we offer the DMG MORI Virtual Machine as an attractive training workstation with a classroom license for 6 to 20 participants.
100 % machine training
DMG MORI operator training – without
a physical machine thanks to 1 : 1 simulation.
Airbus Defence and Space GmbH
Willy-Messerschmitt-Straße 1, 85521 Ottobrunn, Germany www.airbusdefenceandspace.com
Created from the former EADS in 2014, the Airbus Defence and Space facility in Ottobrunn, Germany is responsible for the development and construction of engine components for the Ariane 5 carrier rocket. The DMG MORI Virtual Machine is used for precise simulation of the machining processes on two
DMU 70 eVo linear and one DMC 125 FD duoBLOCK® machines.
In the eyes of Wolfgang Simon, Head of Mechanical Production, the most important argument in favour of the DMG MORI Virtual Machine is its reliability: “We machine billets worth up to € 100,000. The first machining attempt has to hit the mark.” During the simulation you can verify the feasibility of a
program and ensure there are zero collisions. “When an NC program reaches the machine, it has to run”,
Wolfgang Simon adds.
Airbus Defence and Space GmbH
Perfect machining results thanks to
unique 1 : 1 simulation on the PC.
Highlights
+ 100 % feasible, collision-free and executable NC programs
+ 0 % prove-out time on the machine + Minimal set-up times + Optimisation of cycle times
on the machine
Precise simulation: Thanks to the full integration of the real control system, DMG MORI Virtual Machine can accurately simulate the entire machining process,
including tool changing.
Airbus Defence and Space has also improved productivity thanks to the DMG MORI Virtual Machine, as Wolfgang Simon explains: “Simulating our programs on the PC completely replaces time-consuming proving-out on the machine and minimises set-up times.” This results in a significant increase
in machine uptime.
Program optimisation also plays a major role: “Because all control unit features are available, we can optimise our programs’ running times”.
www.dmgmori.com
100 % collision-free machining
Check the manufacturing feasibility of your components and ensure that your NC programs are 100 % collision-free and executable.
100 % machine training without a machine
Give your staff 100 % training in operating your DMG MORI machines in the class-room and without a physical machine – thanks to the DMG MORI Virtual Machine.
100 % machine running time
Create NC programs guaranteed to be collision-free and executable in the comfort of your own office, and determine the precise running times while your physical DMG MORI machines are producing at 100 % capacity.
Let us help you plan the implementation of Industry 4.0 networking in your machine shop. Talk to us!
DMG MORI Virtual Machine
Unique 1 : 1 machine simulation.
Contact – Consultancy & Sales DMG Electronics GmbH Stefanie Weigl Tel.: +49 (0) 8363 89 5314 Mobile: +49 (0)151 5714 2859 [email protected] FL Y.D6654_0715UK
