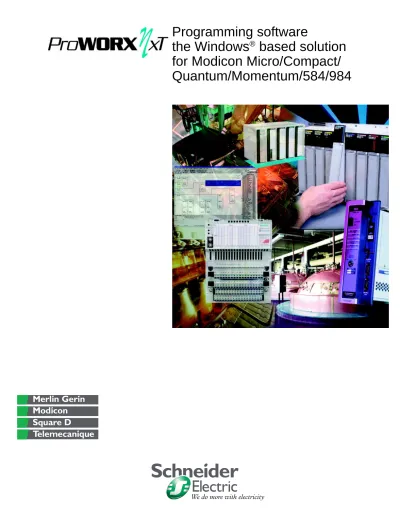

Programming software
the Windows
®
based solution
for Modicon Micro/Compact/
Quantum/Momentum/584/984
2
owners, chances are you have a range of different vintage Modicon PLCs in your operation – 984s, 584s,Quantum, Momentum, etc. But up to now, you have had to use different programming software to develop and implement control architectures for them.
ProWORX NxT
The future of 984 ladder logic programming
The simple solution
Introducing ProWORX NxT, the simple cross-platform programming solution for Modicon PLCs. This leading edge software gives you the power to program all your Modicon controllers, online or offline, manage your I/O subsystems, and analyze your plant’s activity in real-time, all in a familiar Windows environment.
ProWORX NxT is the only programming software you’ll need for your Modicon PLCs. It is compatible with the Modicon Micro, Compact, 584, 984, Quantum, and Momentum.
ProWORX NxT, the common programming environment that will simplify and speed up your system development and commissioning time.
4
Windows - Full-featured Modicon PLC programming - Runs in Windows 3.1/95/98/NT
Easy to use - Drag-and-Drop
- Multiple Network Editor views - User-defined Register Edit screens - Symbolic Addressing
- Cut-and-Paste, Search and Global Replace Increased Visibility - I/O Drawing Generator
- Network Scan
- Graphical I/O Card display - Traffic Cop
- Terminal block display
Superior Documentation - Document complete system hardware (controllers, I/O drops, racks, lots/ channels, power supplies, I/O interfaces and software configuration addresses, networks, segments) - Extensive listings
- Supports Windows® printers
Product Summary
Product Part Number Description
372 SPU 680 01 NDEV NxT Offline/Online 372 SPU 681 01 NONL NxT Online
372 SPU 610 01 NLDV NxT Lite Offline/Online 372 SPU 684 01 NXUP Modsoft Upgrade TO NDEV 372 SPU 680 01 NMAN NxT User Manual
372 SPU 680 01 NSTH NxT 3 Multi-user License 372 SPU 680 01 NSTE NxT 10 Multi-user License 372 SPU 680 01 NSTW NxT 20 Multi-user License 372 SPU 610 01 NLTH NxT LITE 3 Multi-user License 372 SPU 610 01 NLTE NxT LITE 10 Multi-user License 372 SPU 610 01 NLTW NxT LITE 20 Multi-user License
372 SPU 684 01 MSTH Modsoft Upgrade to NDEV 3 Multi-user License 372 SPU 684 01 MSTE Modsoft Upgrade to NDEV 10 Multi-user License 372 SPU 684 01 MSTW Modsoft Upgrade to NDEV 20 Multi-user License 372 SPU 684 01 NXPW ProWORX Plus to NXT NDEV Upgrade
(Existing CSP required)
372 SPU 684 01 NPTH ProWORX Plus to NXT NDEV Upgrade 3 Multi-user License
372 SPU 684 01 NPTE ProWORX Plus to NXT NDEV Upgrade 10 Multi-user License
372 SPU 684 01 NPTW ProWORX Plus to NXT NDEV Upgrade 20 Multi-user License
ProWORX NxT
Reduced development time and effort
With the Network Editor, ProWORX NxT reduces development time by using the same commands and instructions for every controller. Simply cut, copy, and paste networks from one platform to any other!
Real-time network status
Find the controller you need fast and simplify network diagnostics with ProWORX NxT’s powerful Network Scan feature. Network Scan searches your Modbus or Modbus Plus networks, then identifies and graphically dis-plays each device found and shows its status.
Advanced I/O management
Ensure that the I/O card you are configuring in the software matches the one on your plant floor with Pro WORX NxT’s graphical Traffic Cop. It displays I/O cards on your screen the same way they look in real life, eliminating all confu-sion. To place a card, just select it from the convenient drop down menu and then drag it into the controller slot you want. To save even more time, the Traffic Cop automatically associates the card’s I/O points with with a block of free addresses in your controller.
Once configured, manage your I/O with NxT’s complete documentation tools, with references for each head, drop, rack, slot and address. And the Traffic Cop’s graphical display shows you at a glance that your I/O is healthy.
Easy Subsystem Configuration
Using the new Wizards now included within Nxt, the user is stepped through complicated communications configuration with ease. The Peer Cop wizard guides the user through the method of Modbus Plus Peer Cop transaction and creates the configuration extension while doing so. The same can be said for the Ethernet I/O Scanner wizard, whereby the user enjoys the uncomplicated configuration of Ethernet communication between two PLC’s in a straight forward manner.
6
On-line Help System - Context-sensitive
- Available from anywhere in the program Seamless Integration With 3rd party system management tools PLCs Supported - Momentum - all controllers
- Quantum Automation Series – 113, 213, 424, 534 - 984 Series
Slot mount PLCs: 380, 381, 381E, 385, 385E/D, 480, 480E, 485, 680, 685E, 780, 785, 785E, 785L, 785EQ Chassis mount PLCs: 984, A, B, X - Compact TSX A120 Series, Micro Controller
Series, 351/455
- AT/MC, AT4, Q984, B984 - 584 Series – Levels 3 and 4
Hardware - IBM compatible 386DX 33mhz or faster, with 4 MB of RAM, 20MB (40MB with drawings) hard drive, printer (optional) and cables/ interface card (optional)
ProWORX NxT
Intuitive register editor
A powerful analysis tool, the Data Watch Window shows you information from your plant in real-time, or logs it to disk for in-depth historical analysis later on. Easily get the data you need to make informed, effective production deci-sions. View and edit data in full page display, see trends and track data points against time in a spreadsheet, and monitor any combinations of discretes and analogs.
Windows environment
The familiar Windows-based programming environment means you spend less time learning how to do things, and more time actually being productive.
I/O drawing generator
Save hours of painstaking effort with ProWORX NxT’s I/O Drawing Gen-erator, which can automatically create wiring diagrams for the I/O cards defined in the Traffic Cop. Generate the drawings you need all at once or just one card at a time – simply select an address the I/O card uses with the Network Editor, then click the drawing button on the Hardware-Back Referencing panel. NxT displays the diagram, and if you want, saves it as an AUTOCAD-compatible .DXF file or prints it.
www.schneiderautomation.com
Schneider Electric International DivisionWorld Trade Center Europole F-38050 Grenoble Cedex 9 Tel: 33+ (0) 4 76 57 60 60 Fax: 33+ (0) 4 76 60 63 63 European Division 43-45 blvd. Franklin Roosevelt F-92504 Rueil-Malmaison Cedex Tel: 33+ (0) 1 41 29 80 00 Fax: 33+ (0) 1 47 14 07 47
North American Division
Square D Company 1415 South Roselle Road Palatine, IL 60173 USA Tel: 00+ 1 847 397 2600 Fax: 00+ 1 847 925 7271 Marketing Headquarters 5, rue Nadar F-92566 Rueil-Malmaison Cedex Tel: 33+ (0) 1 41 29 82 00 Fax: 33+ (0) 1 47 51 80 20 July 2000 AUTED199512EN Mar keting Comm unications NA ART. 25144 ProWORX Plus
ProWORX Plus includes a number of productive application tools that formed the basis of what ProWORX Nxt is today. ProWORX Plus appeals to the dis-cerning DOS user in that it offers all of the flexibility of the Nxt product, but available under a legacy environment still widely in use throughout industry.
Products
As denoted in the feature summary, we offer several versions. The standard Online Offline version, Online Offline with Productivity Module, Online only and Lite. Lite offers full functionality within the standard programming environ-ment, however the PLC support range is limited.
Productivity Module
The ProWORX Plus “Productivity Module” contains a number of features that take the DOS package over and above the standard Online Offline System Programmer package in that it offers utilities such as the “Bill of Materials” generator, the Offline “Emulator” to name just two.
Supported Environment
ProWORX Plus is exclusively designed to run within the DOS environment. As a note of caution, Schneider Electric does not suggest, nor support the installation or operation of ProWORX Plus on machines that employ Microsoft Windows NT as its operating system.
PLCs Supported - Momentum - 700 Series (except M1E) - Quantum Automation Series – 113, 213, 424, 534 - 984 Series
Slot mount PLCs: 380, 381, 381E, 385, 385E/D, 480, 480E, 485, 680, 685E, 780, 785, 785E, 785L, 785EQ Chassis mount PLCs: 984, A, B, X - Compact TSX A120 Series (except Phase II) - Micro Controller Series, 351/455
- AT/MC, AT4, Q984, B984 - 584 Series – Levels 3 and 4
