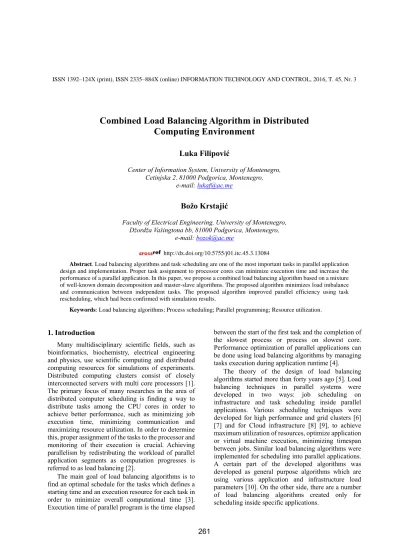

Combined Load Balancing Algorithm in Distributed
Computing Environment
Luka Filipović
Center of Information System, University of Montenegro, Cetinjska 2, 81000 Podgorica, Montenegro,
e-mail: [email protected]
Božo Krstajić
Faculty of Electrical Engineering, University of Montenegro, Džordža Vašingtona bb, 81000 Podgorica, Montenegro,
e-mail: [email protected]
http://dx.doi.org/10.5755/j01.itc.45.3.13084
Abstract. Load balancing algorithms and task scheduling are one of the most important tasks in parallel application design and implementation. Proper task assignment to processor cores can minimize execution time and increase the performance of a parallel application. In this paper, we propose a combined load balancing algorithm based on a mixture of well-known domain decomposition and master-slave algorithms. The proposed algorithm minimizes load imbalance and communication between independent tasks. The proposed algorithm improved parallel efficiency using task rescheduling, which had been confirmed with simulation results.
Keywords: Load balancing algorithms; Process scheduling; Parallel programming; Resource utilization.
1. Introduction
Many multidisciplinary scientific fields, such as bioinformatics, biochemistry, electrical engineering and physics, use scientific computing and distributed computing resources for simulations of experiments. Distributed computing clusters consist of closely interconnected servers with multi core processors [1]. The primary focus of many researches in the area of distributed computer scheduling is finding a way to distribute tasks among the CPU cores in order to achieve better performance, such as minimizing job execution time, minimizing communication and maximizing resource utilization. In order to determine this, proper assignment of the tasks to the processor and monitoring of their execution is crucial. Achieving parallelism by redistributing the workload of parallel application segments as computation progresses is referred to as load balancing [2].
The main goal of load balancing algorithms is to find an optimal schedule for the tasks which defines a starting time and an execution resource for each task in order to minimize overall computational time [3]. Execution time of parallel program is the time elapsed
between the start of the first task and the completion of the slowest process or process on slowest core. Performance optimization of parallel applications can be done using load balancing algorithms by managing tasks execution during application runtime[4].
Algorithms should be accurate, efficient, stable, portable, and maintainable [11]. Efficient parallel algorithm must avoid communication overheads and load imbalance. Load imbalance of parallel application can occur due to uneven load of computing cores which affect low utilization of distributed system [12]. Many load balancing algorithms have been developed in an effort to coordinate execution time on each core separately, reduce computation time and load imbalance. An efficient load balancing algorithm can improve application performance and help avoid unnecessary delays [3]. In a real distributed environment, a workload of resources varies and it’s not always possible to get the resources that are completely free or equally burdened. In addition, many modern supercomputer architectures (such as multi-core or SMP clusters) that look homogeneous from the outside actually conceal a heterogeneous and dynamic environment on the inside. For instance, processors located within the same node are actually competing for shared resources, and intra-node communication is typically much faster than inter-node communication [13]. Losses during execution of parallel applications can happen in imbalanced applications as a result of CPU cores idle time once they have finished their work and wait for slowest core or group of core to finish the given tasks. This phenomenon occurs on heterogeneous clusters or dynamic clusters with a variable load (clusters on which multiple users simultaneously execute parallel applications and thus burden the resources) [11] [14] [15].
Load balancing algorithms can be classified as static and dynamic. Static load balancing algorithms have good usability on homogeneous clusters while they execute tasks on all cores which have similar duration. Performance of programs using these algorithms is reduced at the end of the runtime without possibility of rescheduling. One of widely used static algorithms is domain decomposition algorithm. On the other side, dynamic algorithms can give better efficiency on heterogeneous resources, but make unnecessary communication during executing time. The master slave algorithm is a typical representative of dynamic algorithms [16] [17] [18].
In this paper, we analyze domain decomposition and master slave algorithms, their strengths and weaknesses. We create a new load balancing algorithm by combining these two in order to minimize useless communication between tasks and idle time. The proposed algorithm improves parallel efficiency using task rescheduling, which has been verified through numerical demanding simulation.
The paper is organized as follows. A brief description of the Domain distribution and Master slave load balancing algorithms is given in Section 2. In Section 3, the proposed algorithm is presented. Finally, the simulation results and concluding remarks are given in Sections 4 and 5.
2. Domain distribution and Master-slave load balancing algorithms
Scheduling of parallel tasks using domain decomposition and master slave can be used on a various type of distributed computer resources: homogenous clusters and heterogeneous clusters. Depending on the type of allocated resources, scheduling algorithms can give different efficiency results.
In static load balancing, the assignment of tasks to processors is performed before program execution begins. Scheduled task is always executed on the assigned CPU core. Static scheduling methods minimize the overall execution time of a concurrent program and minimize the communication delays. The advantage of static scheduling methods is that all the overhead of the scheduling process is incurred at compile time, resulting in a more efficient execution time environment compared to dynamic scheduling methods [16] [19] [20].
Domain decomposition (DD) algorithm [17] is one of the most used static algorithms. Many applications in physics, chemistry, mechanics and climate modeling simulations are parallelized using domain decomposition algorithm. With this scheduling policy, tasks are dispatched to all CPU cores with equal probability, according to pre-defined rules or random order. Efficiency of the algorithm is maximal till moment when first cores finishes assigned jobs in Tmin
(Figure 1). From this moment, the fastest core or group of cores are in the idle state, which induces load imbalance and utilization losses, until Tmax moment
when parallel application finishes its work. Load imbalance happens because duration of tasks is not known in advance as well as the impact of external factors which may disrupt performance, which is the main disadvantage of this algorithm. Efficiency of applications using domain distribution algorithm is strongly affected by heterogeneity and variability of distributed computer system. Domain distribution algorithm is the most efficient when the computational problem can be divided into equal parts and computational load is equally distributed among the processor cores [13].
Dynamic load balancing is based on the reschedu-ling of processes among the CPU cores during execu-tion time of parallel program. Rescheduling is perform-ed by transferring tasks from the heavily loadperform-ed proce-ssors to the lightly loaded cores with the aim of reduc-ing the execution time and minimizreduc-ing load imbalance. The load balancing operations may be managed by a single core or distributed among all the processing elements that participate in the load balancing process. Each core passes its current load information to its neighbors at the specified time intervals, resulting the redistribution of load among all the processing elem-ents in a short period of time [21]. Main advantages of dynamic algorithms is a fact that system doesn’t need to be aware of the tasks run-time behavior before exe-cution and adjustment of task scheduling to the resour-ces. Disadvantage of dynamic algorithms is run-time overhead for transferring load information among proc-essors, decision making for the processes redistribution and communication delays for task relocation [22].
Master-slave (MS) paradigm [18], as one of the basic and the most used dynamic scheduling algo-rithms, is often used in computational biology parallel simulations [23] [24]. It involves two types of compu-ting cores. Preprocessing, task allocation and post processing is performed on the master core, while task execution is performed on slave cores. Master core generates a list of tasks that need to be executed and sends one or more instructions to slave cores. Slave core, upon completion of given tasks, signals the end of assigned tasks whereupon master core allocates them the next task or list of tasks. This routine is repeated until all processes are finished. The advantage of the algorithm is reflected in a good management process. One disadvantage of an algorithm is an increased communication between the master and slave cores and potential waiting of slave cores for allocation of new tasks waiting for execution. Tasks cannot be executed on master core, so this is another disadvantage, especially during the execution on the smaller number of cores [25].
3. Proposed combined algorithm (CA)
In this section, a new load balancing algorithm, ba-sed on combination of DD and MS algorithms, is prese-nted. The motivation was to improve load balancing performance and execution time for parallel applica-tions which consist of many independent tasks. The proposed combined algorithm consists of three phases.
Figure 2. The proposed algorithm
Phase 1. As seen in Figure 1, application’s usability with DD algorithm is 100% till Tmin moment. Opposed
to this algorithm, master-slave makes load imbalance from the start of application because tasks can’t be executed on master core. Therefore, DD algorithm is used in the first phase of the proposed CA algorithm (Figure 2). In the first phase CA works as DD until Tmin
when all assigned tasks to the fastest core are finished. The fastest core then sends signal to each other core to finish task which it executes and terminate execution of rest assigned unfinished tasks. This phase is finished when all cores finish executing started tasks.
Phase 2. In the second phase, all computing cores send reports to the pre-specified core. Each report includes:
1. status of assigned tasks,
2. execution time of finished tasks,
3. information about resources (core speed and allocated memory).
Pre-specified core analyzes received information, makes a list of unfinished tasks, chooses algorithm (DD or MS) for the third phase, and performs rescheduling. The choice of the algorithm is performed according to the number of computing cores, heterogeneity of a cluster (c) and execution time of each performed task (b).
Domain decomposition algorithm is chosen for the third phase if:
DD1) application runs on homogeneous cluster on less than 32 cores,
DD2) each core from the first phase executes similar number of tasks with similar duration, DD3) number of unfinished tasks is less or equal to the number of cores where parallel application executes.
Master–slave algorithm is chosen for the third phase if:
MS1) application runs on more than 32 cores, i.e. when master-slave algorithm can’t produce a significant loss of utilization due execution. MS2) application runs on heterogeneous cluster or on clusters where load rapidly changes,
MS3) duration of tasks is significantly different, MS4) each core from the first phase executed significantly different number of tasks.
Phase 3. Selected algorithm from the second phase is executed in the third phase of the proposed algorithm.
Figure 3 presents operations of combined algorithm per stages. In the first phase of the proposed algorithm, the DD algorithm was used (marked with blue). The second phase selected MS algorithm because parallel application was started on 64 cores (according MS1 rule) and nearly half of tasks were unfinished after termination (according MS4 rule) and made resche-duling (marked with red). Regarding decision from the second phase in this example, MS was executed in the third phase (marked with green).
Figure 3. Task scheduling using combined algorithm
According to analysis and rescheduling in the sec-ond phase, the proposed algorithm increases the efficie-ncy and reduces execution time for parallel applications in the third phase. The execution time of the proposed algorithm is shorter (Figure 3) than execution time of the standard DD algorithm measured in same condi-tions (Figure 1). Moreover, the efficiency of the propo-sed algorithm is increapropo-sed due to minimized idle time and improved resource usage.
Disadvantages of the combined algorithm are termi-nation of assigned tasks at the end of the first phase and duration of the second phase. Duration of the second phase is insignificantly low and can’t affect the effi-ciency of parallel application. Termination of assigned tasks in the first phase can increase duration of this phase only if there is one task whose duration is enor-mously higher than duration of others. This increase of first phase duration can affect the performance of the whole algorithm. In that case, there is no improvement in efficiency compared with DD and MS.
The combined algorithm works as DD algorithm during their maximal efficiency and interrupts work when its effectiveness starts to weaken. It has a similar performance as DD in the case when DD has a high efficiency. The proposed algorithm has better perfor-mance than DD when DD has low efficiency due to interruption and rescheduling.
CA has better performance than MS because MS doesn’t execute tasks on master core whole time and has less communication loses during execution time. The MS algorithm produce less efficiency than the proposed algorithm which starts as DD and makes rescheduling to achieve better resource usage.
4. The results of simulation and analysis Performance of the combined algorithm is verified through numerical demanding application Cross-Point queued switch (CQ) simulator for performance analysis [26]. Simulator is parallelized using MPI [27]. It exe-cutes simulations of eight different switching algo-rithms (LQF, RR, ERR, FBRR, EELQF, ELQF, FBLQF and RAND) with 12 different buffer sizes on 32 input files of generated traffic. Simulation was performed for matrix of 16x16 and 1.000.000 time slots. During the preprocessing, simulator prepares 3072 independent tasks. Simulation was performed on Paradox [28] HPC cluster during HP-SEE project [29].
Figure 4 presents frequency of computational time of CQ tasks. 95% of tasks finished assigned work between 12 and 18 seconds. The average execution time was 15.10 seconds, while the longest task was executed in 165 seconds. The statistics is based on the pattern of 800.000 executed tasks.
Figure 4. Frequency of task computational time
Total execution time depends on the duration of each task and their scheduling. Simulations using DD, MS and CA are performed on 16-128 cores. Input files were copied on nodes in the preprocessing phase of the application. Average results of twenty executions at different clusters loads are presented at Figure 5.
CA gave better results than DD and MS algorithms in all conditions. The impact of rescheduling and reduced runtime was more noticeable as the number of cores increased. In few cases, CA required up to 0.5% time more than DD. In the best case, CA finished execution 21.6% faster than DD due task rescheduling at the end of application. MS algorithm required more time than DD and CA, especially during execution on 16 cores due to described disadvantages.
Figure 6 presents execution time comparison between CA and other algorithms. The difference between CA and DD ranges from 1.7% to 8.2%. DD required more time to execute than CA due to static scheduling process. The difference between CA and DD was higher when the application was started on larger number of cores.
Figure 6. Execution time comparison between CA, DD and MS
Figure 7. Time distribution of CA’s phases
Figure 8. Algorithm choice in CA’s third phase
The difference between CA and MS was bigger, since MS algorithm had specified weaknesses. Inability to execute tasks on master core produced losses during execution on lower cores. Communication between cores during the entire process of execution caused lower efficiency on 128 cores.
Figure 7 presents time distribution of CA phases. Three segments are indicated: the first phase till termination, termination and synchronization phase and the third phase for simulations performed on 16-128 cores. Duration of termination and third phase increased as simulation was performed on bigger number of cores. Termination phase time, marked by red color, increased on 128 cores because the fastest core waited for more cores to finish tasks which were executed in time when termination signal was sent. We noticed high efficiency of CA and DD algorithm on 16 cores and higher number of tasks which were rescheduled on 64-128 cores.
Figure 8 shows which algorithm performed schedu-ling in the third phase. Domain distribution was sele-cted in the most cases when simulation was executed on 16 cores, because the program detected Paradox as a homogenous cluster with a number of allowed cores less than 32. On the other hand, master-slave had priority in other cases because the algorithm from the second phase detected tasks with different duration and selected this dynamic algorithm for the third phase.
5. Conclusion
In this paper, the combined load balancing algo-rithm for parallel applications which consist of many independent tasks has been presented. The algorithm is created on the strengths of the domain decomposition and master slave algorithms and task rescheduling. Using mixture of these, standard static and dynamic, algorithms we reduced execution time, minimized load imbalance and improved performance of parallel application in various distributed environments. This paper also identifies situations when the proposed algorithm doesn’t provide improvements, but it still maintains performance comparable to constituent algorithms.
The main contribution of this paper can be summarized as follows:
the combined load balancing algorithm based on domain decomposition and master slave algorithms has been proposed,
heuristic approach for the selection of load balancing algorithm after domain decomposition in the first phase,
new algorithm improves the performance of parallel application which consist of many independent tasks,
Further research will be focused on evaluation of the combined algorithm on various heterogeneous clusters as well as its implementation for practical parallel applications.
Acknowledgments
This work makes use of results produced by the High-Performance Computing Infrastructure for South East Europe’s Research Communities (HP-SEE), a project co-funded by the European Commission (under contract number 261499) through the Seventh Frame-work Programme. HP-SEE involves and addresses specific needs of a number of new multi-disciplinary international scientific communities (computational physics, computational chemistry, life sciences, etc.) and thus stimulates the use and expansion of the emer-ging new regional HPC infrastructure and its services. Full information is available at: http://www.hp-see.eu/.
