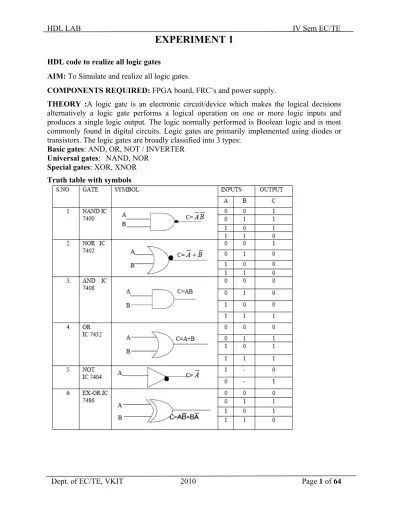

EXPERIMENT 1

HDL code to realize all logic gates

AIM: To Simulate and realize all logic gates.

COMPONENTS REQUIRED: FPGA board, FRC’s and power supply.

THEORY :A logic gate is an electronic circuit/device which makes the logical decisions

alternatively a logic gate performs a logical operation on one or more logic inputs and produces a single logic output. The logic normally performed is Boolean logic and is most commonly found in digital circuits. Logic gates are primarily implemented using diodes or transistors. The logic gates are broadly classified into 3 types:

Basic gates: AND, OR, NOT / INVERTER Universal gates: NAND, NOR

Special gates: XOR, XNOR Truth table with symbols

(2)

Generalizing, c a d e f b g h i Truth Table

VHDL CODE VERILOG CODE

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity allgates is port ( a, b : in std_logic; c, d, e, f, g, h, i : out std_logic); end allgates;

architecture dataflw of allgates is begin c<= a and b; d<= a or b; e<= not a; f<= a nand b; g<= a nor b; h<= a xor b; i<= a xnor b; end dataflw;

module allgates ( a, b, c, d, e, f, g, h, i); input a, b;

output c, d, e, f, g, h, i; assign c = a & b; assign d = a | b, assign e = ~a , assign f = ~(a & b), assign g = ~(a | b), assign h = a ^ b; assign i = ~(a ^ b); endmodule inputs outputs a b c d e f g h i 0 0 0 0 1 1 1 0 1 0 1 0 1 1 1 0 1 0 1 0 0 1 0 1 0 1 0 1 1 1 1 0 0 0 0 1 LOGIC GATES

(3)

Simulation Result Before Execution

After Execution

User Constraint File

net “a” loc = “p74”; net “b” loc = “p75”; net “c” loc = “p84”; net “d” loc = “p85”;

net “e” loc = “p86”; net “f” loc = “p87”; net “g” loc = “p88”; net “h” loc = “p89”; net “i” loc = “p90”;

(4)

EXPERIMENT 2

HDL codes to design and simulate combinational circuits AIM: Write HDL codes for the following combinational circuits.

COMPONENTS REQUIRED: FPGA board, FRC’s and power supply.

THEORY : A decoder is a multiple input, multiple output logic circuit that converts coded

inputs into coded outputs where the input and output codes are different. The enable inputs must be ON for the decoder to function, otherwise its outputs assumes a ‘disabled’ output code word. Decoding is necessary in applications such as data multiplexing, seven segment display and memory address decoding.

a) 2 to 4 Decoder Block Diagram y0 Sel 0

Sel 1 y1

y2

en y3

Truth Table

inputs outputs en Sel1=a Sel0=b y3 y2 y1 y0 1 0 0 0 0 0 1 1 0 1 0 0 1 0 1 1 0 0 1 0 0 1 1 1 1 0 0 0 0 x x 0 0 0 0

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity dec2_4 is

port (en :in std_logic ;

sel : in std_logic_vector(1 downto 0); y : out std_logic_vector(3 downto 0)); end dec2_4;

architecture dec2 of dec2_4 is begin

process(en, sel)

module dec2_4 (y, sel, en); input en; input [1:0] sel; output [3:0]y; reg [3:0]y; always@(sel) begin if(en= =1) if (sel= =0) y = 4’b0001; else if (sel= =1) y = 4’b0010; else if (sel= =2) y = 4’b0100; else if (se = =3) y = 4’b1000; else y = 4’bx; end endmodule 2 to 4 Decoder

(5)

begin if(en ='1') then y <= "0000"; else case sel is when "00"=> y <= "0001"; when "01"=> y <= "0010"; when "10"=> y <= "0100"; when "11"=> y <= "1000"; when others => null; end case; end if; end process; end dec2; Simulation Result Before Execution After Execution

net “en” loc = “p74”; net “sel0” loc = “p75”; net “sel1” loc = “p76”; net “y0” loc = “p84”; net “y1” loc = “p85”;

(6)

net “y3” loc = “p87”;

b. 8 to 3 encoder without priority

THEORY : An encoder is a digital circuit which performs the inverse of decoder. An

encoder has 2N_{input lines and N output lines. In encoder the output lines generate the binary}

code corresponding to input value. The decimal to BCD encoder usually has 10 input lines and 4 output lines. The decoder decimal data as an input for decoder an encoded BCD output is available at 4 output lines.

Block Diagram

Truth Table

i7 y2 y 1 y 0 i0 i0 en

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity enc83 is

port (en : in std_logic;

i : in std_logic_vector(7 downto 0); y : out std_logic_vector(2 downto 0)); end enc83;

architecture encd of enc83 is begin process(en, i) begin if (en = ‘1’) then y <= “000”; else case (i) is when "00000001" => y <= "000"; when "00000010" => y <= "001" ; when "00000100" => y <= "010" ; when "00001000" => y <= "011" ; when "00010000" => y <= "100" ; when "00100000" => y <= "101" ; when "01000000" => y <= "110";

module enc8_3 (i, en, y); input [7:0]i; input en; output [2:0]y; reg [2:0]y; always @ (en, i) begin if(en= =0) y = 3’b0; else case(i) 8’b 00000001 : y=3’b000; 8’b 00000010 : y=3’b001; 8’b 00000100 : y=3’b010; 8’b 00001000 : y=3’b011; 8’b 00010000 : y=3’b100; 8’b 00100000 : y=3’b101; 8’b 01000000 : y=3’b110; 8’b 10000000 : y=3’b111; endcase end endmodule e n I7 I6 I5 I4 I3 I2 I1 I0 y 2 y 1 y0 1 x x x x x x x x 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 0 1 1 1 1 1 1 0 x 1 1 0 0 1 1 1 1 1 0 x x 1 0 1 0 1 1 1 1 0 x x x 1 0 0 0 1 1 1 0 x x x x 0 1 1 0 1 1 0 x x x x x 0 1 0 0 1 0 x x x x x x 0 0 1 0 0 x x x x x x x 0 0 0 8:3 Priority Encoder

(7)

when "10000000" => y <= "111" ; when others=> NULL;

end case; end if; end process; end encd; Simulation Result Before Execution After Execution

net “en” loc = “p74”; net “i0” loc = “p84”; net “i1” loc = “p85”;

net “i2” loc = “p86”; net “i3” loc = “p87”; net “i4” loc = “p93”; net “i5” loc = “p94”; net “i6” loc = “p95”; net “i7” loc = “p100”; net “y0” loc = “p112”; net “y1” loc = “p114”;

(8)

8 to 3 encoder with priority

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity encoder8_3 is

port ( enable: in std_logic;

d_in: in std_logic_vector(7 downto 0); d_out: out std_logic_vector(2 downto 0) ); end encoder8_3;

architecture encoder_arch of encoder8_3 is begin process(enable,d_in) variable i :integer; begin d_out<= “000” if ( enable = '1') then for i in 0 to 7 loop if d_in(i)=’1’ then d_out<= conv_std_logic_vector(i,3); end if; end loop; end if; end process; end encoder_arch;

module encoder (din, dout); input [7:0] din; output [2:0] dout; reg [2:0] dout; always @(din) begin casex (din) 8’b00000001: dout=3’d0; 8’b0000001x: dout=3’d1; 8’b000001xx: dout=3’d2; 8’b00001xxx: dout=3’d3; 8’b0001xxxx: dout=3’d4; 8’b001xxxxx: dout=3’d5; 8’b01xxxxxx: dout=3’d6; 8’b1xxxxxxx: dout=3’d7; default: dout=3’d0; endcase end endmodule

(9)

c. 8 to 1 Multiplexer

THEORY : Multiplexer is a digital switch.It allows digital information from several sources

to be rooted on to a single output line.The basic multiplexer has several data input lines and a single output line.The selection of a particular input line is controlled by a set of selection lines.Normally there are 2N_{input lines and N selection lines whose bit combinations}

determine which input is selected.Therefore multiplexer is many into one and it provides the digital equivalent of an analog selector switch.

Block Diagram

Truth Table

I0

I1

y

I7

sel (2 to 0)

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity mux8_1 is

port(I: in std_logic_vector (7 downto 0); sel: in std_logic_vector (2 downto 0); en: in std_logic; y: out std_logic); end mux8_1;

architecture behavioral of mux8_1 is begin

process (I,sel,en) is begin

if en=’1’ then

if sel=”000” then y<=I(0); elsif sel=”001” then y<=I(1); elsif sel=”010” then y<=I(2); elsif sel=”011” then y<=I(3);

module mux8_1 input [7:0]I; output [2:0]sel; output y; input en; reg y; always @(en,sel,I,y); begin if (en= =1) begin if (s= =000); y=I[0]; else if (s==001); y=I[1]; else if (s==010); y=I[2]; else if (s==011); y=I[3]; else if (s==100); y=I[4]; else if (s==101); y=I[5]; else if (s==110); y=I[6]; else if (s==111); y=I[7]; end else y=0;

Sel2 Sel1 Sel0 y

0 0 0 I0 0 0 1 I1 0 1 0 I2 0 1 1 I3 1 0 0 I4 1 0 1 I5 1 1 0 I6 1 1 1 I7 8:1Mux

(10)

elsif sel=”100” then y<=I(4); elsif sel=”101” then y<=I(5); elsif sel=”110” then y<=I(6); else y<=I(7); end if; else y<=’0’; end if; end process; end behavioral; end end endmodule Simulation Result Before Execution After Execution

net “en” loc = “p74”; net “sel0” loc = “p75”; net “sel1” loc = “p76”;

net “sel2” loc = “p77”; net “i0” loc = “p112”; net “i1” loc = “p114”; net “i2” loc = “p113”;

(11)

net “i3” loc = “p115”; net “i7” loc = “p117”; net “i5” loc = “p118”; net “i6” loc = “p121”;

net “i7” loc = “p123”; net “y” loc = “p84”;

d. 4-Bit Binary to Gray Converter THEORY

Binary Data: The binary number system is simply another way to count.It is less

complicated than the decimal system because it is composed of only 2 digits.The 2 binary digits are 1 and 0.The position of 1 or 0 in a binary number indicates its weights or value within the number, the weight of each successfully higher position in a binary number is an increasing power of two.

Gray Code: Gray code is an unweighted code,which means that there are no specific weights

assigned to the bit positions.The gray code exibhits only a single bit change from one code number to next. Gray code is not an arithmetic code.

The “Reflected binary code”, also known as Gray code after Frank Gray. In a Gray code the adjacent numbers differ by one symbol. The original name reflected binary code is derived from the fact that the second half of the values are equivalent to the first half in reverse order, except for the highest bit, which is inverted.

Block Diagram clk en q(3 downto 0)

rst Truth Table Rst Clk En B3 B2 B1 B0 G3 G2 G1 G0 1 x 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 1 0 0 0 1 0 1 1 0 0 1 0 0 0 1 1 0 1 1 0 0 1 1 0 0 1 0 0 1 1 0 1 0 0 0 1 1 0 0 1 1 0 1 0 1 0 1 1 1 0 1 1 0 1 1 0 0 1 0 1 0 1 1 0 1 1 1 0 1 0 0 0 1 1 1 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 1 0 1 1 1 0 1 0 1 1 1 1 0 1 1 1 0 1 1 1 1 1 0 4 bit Binary to Gray

(12)

0 1 1 1 1 0 0 1 0 1 0

0 1 1 1 1 0 1 1 0 1 1

0 1 1 1 1 1 0 1 0 0 1

0 1 1 1 1 1 1 1 0 0 0

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity B2G is

port ( b : in std_logic_vector(3 downto 0); g : out std_logic_vector(3 downto 0)); end B2G; architecture BG2 of B2G is begin g(3) <= b(3); g(2) <= b(2) xor b(3); g(1) <=b(1) xor b(0); g(0) <= b(1) xor b(0); end BG2; module b2g(b,g); input [3:0] b; output [3:0] g; assign g[3]=b[3]; assign g[2] = (b[3]^b[2]); assign g[1] = (b[1]^b[2]); assign g[0] = (b[0]^b[1]); endmodule Simulation Result Before Execution After Execution

net “b<0>” loc = “p74”; net “b<1>” loc = “p75”; net “b<2>” loc = “p76”;

(13)

net “b<3>” loc = “p77”; net “g<0>” loc = “p84”; net “g<1>” loc = “p85”; net “g<2>” loc = “p86”; net “g<3>” loc = “p87”; e.1 De-Multiplexer ( 1 to 4)

THEORY : A demultiplexer is a circuit that receives information on a single line and

transmits this information on one of 2N_{output lines. The selection of specific output lines is}

controlled by the value of N selection lines. The single input variable din as a path to all 4 outputs but the input information is directed to only one of the output lines.

Block Diagram

i

en y(3 downto 0) sel(1 downto 1)

Truth Table

i en Sel1 Sel0 y3 y2 y1 y0 1 0 0 0 0 0 0 1 1 0 0 1 0 0 1 0 1 0 1 0 0 1 0 0 1 0 1 1 1 0 0 0 0 1 x x 0 0 0 0

library ieee;

use ieee.std_logic_1164.all; entity dec1 is

port (enable:in std_logic;din :std_logic_vector (1 downto 0); dout:out std_logic_vector

(3 downto 0)); end dec1;

architecture dec2 of dec1 is begin process(enable,din) begin if(enable='1') then dout<="0000"; else case din is when "00"=>dout<="0001"; when"01"=>dout<="0010"; when"10"=>dout<="0100"; when"11"=>dout<="1000";

module demux (sel, i, en, y); input en, i;

input [1:0]sel; output [3:0]y; reg [3:0]y;

always @ (en or sel or i) begin if(en= =1) y = 4’b0000; else case(sel) 2’b00 : y[0] = i; 2’b01 : y[1] = i; 2’b10 : y[2] = i; 2’b11 : y[3] = i; endcase end endmodule 1:4 Demux

(14)

when others=>dout<="0000"; end case; end if; end process; end dec2; Simulation Result Before Execution After Execution

net “en” loc = “p74”; net “i” loc = “p75”; net “sel<0>” loc = “p76”;

net “sel<1>” loc = “p77”; net “y<0>” loc = “p84”; net “y<1>” loc = “p85”; net “y<2>” loc = “p86”; net “y<3>” loc = “p87”;

(15)

e.2

1-BIT COMPARATOR

THEORY : Comparator is a special combinational circuit designed primarily to compare the

relative magnitude of 2 binary numbers. It receives 2N bit numbers A and B as inputs and the outputs are A>B, A=B and A<B. Depending upon the relative magnitudes of the 2 numbers one the outputs will be high.

Block Diagram Truth Table

a L E

b

G

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity comp1 is port( a, b: in std_logic; g, e, l : out std_logic); end comp1;

architecture dtflcomp1 of comp1 is begin

g<= a and(not b); e<= a xnor b; l<= (not a) and b; end dtflcomp1;

module comp1 (a, b, l, e, g); input a, b;

output l, e, g; assign g = a & ~(b); assign e = ~(a^b); assign l = ~(a) & b; endmodule Simulation Result Before Execution

a

b

L

E

G

0

1

0

1

0

1

0

1

0

1

0

1bit Comparat or

(16)

After Execution

net “a” loc = “p74”; net “b” loc = “p75”; net “g” loc = “p84”;

net “e” loc = “p85”; net “l” loc = “p86”;

(17)

e.3 2-Bit Comparator Block Diagram a(1 to 0) x y b(1 to 0) z Truth Table inputs outputs

a0 a1 b0 b1 a>b a=b a<b

0 0 0 0 0 1 0 0 0 0 1 0 0 1 0 0 1 0 0 0 1 0 0 1 1 0 0 1 0 1 0 0 1 0 0 0 1 0 1 0 1 0 0 1 1 0 0 0 1 0 1 1 1 0 0 1 1 0 0 0 1 0 0 1 0 0 1 1 0 0 1 0 1 0 0 1 0 1 0 1 1 0 0 1 1 1 0 0 1 0 0 1 1 0 1 1 0 0 1 1 1 0 1 0 0 1 1 1 1 0 1 0

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity compar is

Port ( a, b : in std_logic_vector(1 downto 0); equ: out std_logic; less,

grt : buffer std_logic);

module comp(a, b, equ, grt, less); input [1:0] a,b;

output equ, grt, less; reg equ, grt, less; always @(a or b) begin

assign grt = (a[0] &~b[0])|(a[1] & ~b[0] & ~b[1])| (a[0] & b[1]&a[1]);

2 bit Comparator

(18)

end compar;

architecture dtflcomp of compar is begin

grt<= (a(0) and not b(0)) or (a(1) and not b(0) and not b(1)) or (a(0) and not b(1) and a(1)); less<=(not a(0) and b(0)) or (not a(1) and b(0) and b(1)) or (not a(0) and not a(1) and b(1)); equ <= grt nor less;

end dtflcomp;

assign less = (~a[0] & b[0])| (~a[1] & b[0] & b[1])|(~a[0] &~a[1] & b[1]); assign eqy = ~(grt | less); endmodule

After Execution

net “a<0>” loc = “p74”; net “a<1>” loc = “p75”; net “b<0>” loc = “p76”;

(19)

net “grt” loc = “p84”; net “less” loc = “p85”; net “equ” loc = “p86”;

EXPERIMENT 3

AIM:Write HDL code to describe the functions of a full Adder Using three modeling styles.

COMPONENTS REQUIRED: FPGA board, FRC’s and power supply. Block Diagram

Truth table

INPUTS OUTPUTS

a b cin SUM Cout

0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1 Data Flow

FULL ADDER Sum Cout

a b c

(20)

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity fulladder is

port ( a, b, cin : in std_logic; sum, cout : out std_logic); end fulladder;

architecture data of fulladder is begin

sum<=a xor b xor cin;

cout<= ( a and b) or ( b and cin) or ( cin and a);

end data;

module fulladder ( a, b, c,s,cout); input a, b,c;

output s, cout; assign s= (a ^ b^c);

assign cout= ((a & b)|(b & c)|(c&a)); endmodule

BEHAVIORAL STYLE

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity fulladder1 is port ( a, b, c : in std_logic; sum, carry : out std_logic); end fulladder1;

architecture Behavioral of fulladder1 is begin

process(a, b, c) begin

if(a='0' and b='0' and c='0') then sum<='0'; carry<='0';

elsif(a='0' and b='0' and c='1') then sum<='1'; carry<='0';

elsif(a='1' and b='1' and c='0') then sum<='0';

module fulladd(cin,x,y,s,co); input cin,x,y; output s,co; reg s,co; always@(cin or x or y) begin case ({cin,x,y}) 3'b000:{co,s}='b00; 3'b001:{co,s}='b01; 3'b010:{co,s}='b01; 3'b011:{co,s}='b10; 3'b100:{co,s}='b01; 3'b101:{co,s}='b10; 3'b110:{co,s}='b10; 3'b111:{co,s}='b11; endcase end endmodule

(21)

carry<='1';

else sum<='1'; carry<='1'; end if;

end process; end Behavioral;

STRUCTURAL STYLE

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity halfadder1 is

port ( x,y : in std_logic;

sum,carry : out std_logic); end halfadder1;

architecture behavioral of halfadder1 is begin sum<= x xor y; carry <= x and y; end behavioral; library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity fulladder1 is

port (x, y, cin : in std_logic; sum, cout : out std_logic); end fulladder1;

module fa (x, y, cin, carry, sum); input x, y, cin;

output carry, sum; ha ha1 (y, cin, s0, c0); ha ha2 (x, s0, sum, c1); or ( carry, c0, c1); endmodule

//module for half adder module ha(a, b, s, c); input a, b; output s, c; xor(s, a, b); and (c, a, b); endmodule

(22)

architecture structural of fulladder1 is component halfadder1

port (x, y : in std_logic; sum,carry : out std_logic); end component;

signal temp1, temp2, temp3 :std_logic; begin

L1: halfadder1 port map (x, y, temp1, temp2);

L2: halfadder1 port map (temp1, cin, sum, temp3);

cout<= temp2 or temp3; end structural;

After Execution

net “x” loc = “p74”; net “y” loc = “p75”;

(23)

net “sum” loc = “p84”;

net “cout” loc = “p85”;

EXPERIMENT 5

AIM:Write a model for 32 bit ALU using the schematic diagram shown below.

COMPONENTS REQUIRED:FPGA/CPLD board, FRC’s, jumper and power supply. OPCODE ALU OPERATION

1 A+B 2 A-B 3 A Complement 4 A*B 5 A and B 6 A or B 7 A nand B 8 A xor B 9 Right shift 10 Left Shift 11 Parallel load Block Diagram A1(3 to 0) B1(3 to 0) Zout (7 downto 0) ALU

(24)

opcode (2 to 0)

Truth table

Operation Opcode A B Zout

A+B 000 1111 0000 00001111 A-B 001 1110 0010 00001100 A or B 010 1111 1000 00001111 A and B 011 1001 1000 00001000 Not A 100 1111 0000 11110000 A1*B1 101 1111 1111 11100001 A nand B 110 1111 0010 11111101 A xor B 111 0000 0100 00000100

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity alunew1 is

Port( a1,b1:in std_logic_vector(3 downto 0); opcode : in std_logic_vector(2 downto 0); zout : out std_logic_vector(7 downto 0)); end alunew1;

architecture Behavioral of alunew1 is

signal a: std_logic_vector( 7 downto 0);

signal b: std_logic_vector( 7 downto 0); begin

a<= "0000" & a1; b<= "0000" & b1;

zout<= a+b when opcode ="000" else a-b when opcode ="001" else a or b when opcode ="010" else a and b when opcode ="011" else not a when opcode ="100" else a1 * b1 when opcode ="101" else

module ALU ( a, b, s, en, y ); input signal [3:0]a, b;

input [3:0]s; input en;

output signal [7:0]y; reg y; always@( a, b, s, en, y ); begin if(en==1) begin case 4’d0: y=a+b; 4’d1: y=a-b; 4’d2: y=a*b; 4’d3: y={4’ d0, (a & b)}; 4’d4: y={4’ d0, (a | b)}; 4’d5: y={4’ d0, (a ^ b)}; 4’d6: y={4’ d0, ~(a & b)}; 4’d7: y={4’ d0, ~(a | b)}; 4’d8: y={4’ d0, ~(a ^ b)}; default: begin end

end case end else y=8’d0; end endmodule

(25)

a nand b when opcode ="110" else a xor b; end Behavioral; Simulation Result Before Execution After Execution

(26)

EXPERIMENT 6

AIM:Develop the HDL code for the following flip-flop: SR, JK, T, D.

COMPONENTS REQUIRED:FPGA board, FRC’s and power supply. THEORY :

SR flip-flop: A SR flip - flop is the simplest possible memory element. The SR flip flop has

two inputs Set and Reset. The SR flip-flop is a basic building block for other flip-flops.

D flip-flop: This is a flip - flop with a delay (D) equal to exactly equal to one cycle of the

clock. The defect with SR FF is the indeterminate output when the data inputs at S and R are 1. In order to avoid this the input to R is through an inverter from S so that the input to R is always the complement of S and never same. The S input is redesignated as D.

JK flip-flop: The JK flip flop is called a “universal flip flop” because the other flip flops like

D, SR, T can be derived from it. The “racing or race around condition” takes place in a JK FF when J=1 and K=1 and clock=1.

(27)

T flip-flop: T stands for toggling. It is obtained from JK FF by tying both the inputs J and K.

a. SR FLIP FLOP

Block Diagram

Truth Table

clk s q r rst qb pr

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity SR_ff is port ( clk, s, r : in std_logic; q : buffer std_logic); end SR_ff; architecture Behavioral of SR_ff is begin process( clk) begin

if (clk'event and clk = '1') then if (s='0' and r='0')then q<= q; elsif (s='0' and r='1')then q<= '0'; elsif (s='1' and r='0')then q<= '1'; elsif (s='1' and r='1')then q<= 'Z'; end if ; end if; end process ; end Behavioral; module srff(sr, clk, q, qb); input [1:0] sr; input clk; output q, qb; reg q,qb; always@(posedge clk) begin case (s,r) 2'd0 : q= q; 2'd1 : q=0; 2'd2 : q=1; 2'd3 : q=q; endcase qb=~q; end endmodule Simulation Result Before Simulation rst p r Clk s r q qb 1 x x x x 0 1 0 1 x x x 1 0 0 0 1 0 0 Qb Qbprevious 0 0 1 0 1 0 1 0 0 1 1 0 1 0 0 0 1 1 1 1 1 SR FF

(28)

After Simulation

net “s” loc = “p74”; net “r” loc = “p75”; net “clk” loc = “p18”; net “q” loc = “p84”; b. JK FLIP FLOP

Block Diagram

Truth Table

j k q Rst Clk J K Q Qb 1 1 0 0 Previous state 1 1 0 1 0 1 1 1 1 0 1 0 1 1 1 1 Qb Q

1 No +ve edge - - Previous state

0 - - - 0 1

(29)

clk qb rst VHDL CODE VERILOG library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity jk_ff is port ( clk : in std_logic; jk : in std_logic_vector(1 downto 0); q, qb : out std_logic); end jk_ff; architecture Behavioral of jk_ff is begin process(clk)

variable temp1, temp2 : std_logic; begin

if rising_edge(clk) then case jk is

when "01"=> temp1 :='0'; when "10"=> temp1 :='1'; when "00"=> temp1 := temp1; when "11"=>temp1 := not temp1; when others => null;

end case; q<= temp1;

temp2 := not temp1; qb <= temp2; end if; end process ; end Behavioral; module jkff(jk, clk, q, qb); input [1:0]jk; input clk; output q, qb; reg q, qb; always@(posedge clk) begin case (jk) 2'd1:q=q; 2'd1:q=0; 2'd2:q=1; 2'd3:q=~q; endcase qb=~q; end endmodule Simulation Result Before Simulation

(30)

After Simulation

net “jk<1>” loc = “p75”; net “jk<0>” loc = “p76”; net “clk” loc = “p18”; net “q” loc = “p84”; net “qb” loc = “p85”; c. T FLIP FLOP

(31)

Block Diagram

Truth Table

T

clk q rst qb

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity tff is port ( t, clk : in std_logic; q : buffer std_logic); end tff; architecture Behavioral of tff is begin process(clk) begin

if (clk’event and clk=’1’)then q <= not t; end if; end process; end Behavioral; module tff(t,clk, q); input t,clk; output q; reg q; always@(posedge clk) begin case(t) 1’d0 : q = q; 1’d1 : q = ~q; endcase end endmodule Simulation Result Before Execution After Execution Rst T Clk q 1 0 1 q 1 1 1 qb

1 x No +ve edge Previous state

0 x x 0

(32)

net “t” loc = “p74”; net “clk” loc = “p18”;

net “q” loc = “p84”;

(33)

Block Diagram

Truth Table

d

q clk qb

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity dff is port ( clk : in std_logic; d : in std_logic; q : out std_logic); end dff; architecture Behavioral of dff is begin process(clk) begin

if (clk'event and clk = '1') then q <= d; end if ; end process ; end Behavioral; module dff(d,clk,rst,q,qb); input d,clk,rst; output q,qb; reg q,qb; reg temp=0; always@(posedge clk,posedge rst) begin if (rst==0) temp=d; else temp=temp; q=temp; qb=~ temp ; end endmodule Simulation Result Before Execution After Execution clk d q qb x 1 1 0 1 1 1 0 1 0 0 1 D FF

(34)

net “d” loc = “p74”; net “clk” loc = “p18”;

net “q” loc = “p84”;

(35)

AIM:Design 4 bit Binary, BCD counter (Synchronous reset and Asynchronous reset and any sequence counters.

COMPONENTS REQUIRED:FPGA board, FRC’s and power supply. a)BCD COUNTER

Block Diagram

Truth Table

clk

q(3 downto 0)

rst

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity bcd is

port ( clr,clk,dir : in std_logic;

q : inout std_logic_vector (3 downto 0); tc : out std_logic);

end bcd;

architecture Behavioral of bcd is

signal clkd:std_logic_vector(21 downto 0); begin process(clk) begin if rising_edge(clk) then clkd<= clkd + '1'; end if; end process; process(clkd,clr)

variable temp:std_logic_vector(3 downto 0); begin

if(clr='1')then temp:="0000"; tc<='0';

elsif rising_edge(clkd(21)) then if (dir='1') then module bcd(clr,clk,dir, tc, q); input clr,clk,dir; output reg tc; output reg[3:0] q; always@(posedge clk,posedge clr) begin if(clr==1) q=4'd0; else begin if (dir==1) q=q+1; else if(dir==0) q=q-1; if(dir==1 & q==4'd10) begin q=4'd0;tc=1'b1; end

else if(dir==0 & q==4'd15) begin q=1'd9;tc=1'b1; end else tc=1'b0; end end endmodule Rst Clk Q 1 x 0000 0 1 0001 0 1 0010 0 1 0011 0 1 0100 0 1 0101 0 1 0110 0 1 0111 0 0 1 1 1000 1001 BCD counter

(36)

temp:=temp+1; elsif(dir='0') then temp:=temp-1; end if;

if(dir='1' and temp="1010") then temp:="0000"; tc<='1';

elsif(dir='0' and temp="1111") then temp:="1001"; tc<='1'; else tc<='0'; end if; end if; q<=temp; end process; end Behavioral;

net “clk” loc = “p18”; net “clr” loc = “p74”; net “q<0>” loc = “p84”; net “q<1>” loc = “p85”; net “q<2>” loc = “p86”; net “q<3>” loc = “p87”;

(37)

Block Diagram

Truth Table

clk qout(3 dt 0) rst VHDL CODE library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity bin_as is port ( rst, clk : in std_logic;

q : out std_logic_vector (3 downto 0)); end bin_as;

architecture Behavioral of bin_as is

signal temp : std_logic_vector(3 downto 0); signal clkd : std_logic_vector(21 downto 0); signal clkdiv : std_logic;

begin process(clk) begin

if clk = ‘1’ and clk’ event then clkd<= clkd + '1'; end if; end process; clkdiv<= clkd(21); process(clkdiv, rst) begin

if clk= ‘1’ and clk’ event then if rst = ‘1’ then

temp<=(others =>’0’); else temp <= temp + ‘1’;

Clk Rst Qout x 1 0000 1 0 0001 1 0 0010 1 0 0011 1 0 0100 1 0 0101 1 0 0110 1 0 0111 1 0 1000 1 0 1001 1 0 1010 1 0 1011 1 0 1100 1 0 1101 1 0 1110 1 0 1111 Binary counter

(38)

end if; end if; q<=temp; end process; end Behavioral;

net “clk” loc = “p18”; net “rst” loc = “p74”; net “q<0>” loc = “p84”; net “q<1>” loc = “p85”; net “q<2>” loc = “p86”; net “q<3>” loc = “p87”;

(39)

VHDL CODE library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity asy is port ( rst, clk : in std_logic;

q : out std_logic_vector (3 downto 0)); end asy;

architecture Behavioral of asy is

signal temp : std_logic_vector(3 downto 0); signal clkd : std_logic_vector(21 downto 0); signal clkdiv : std_logic;

begin process(clk) begin

if clk = ‘1’ and clk’ event then clkd<= clkd + '1'; end if; end process; clkdiv<= clkd(21); process(clkd, rst) begin if rst = ‘1’ then temp<=(others =>’0’);

elsif clk = ‘1’ and clk’ event then temp <= temp + ‘1’;

q<=temp; end if; end process; end Behavioral;

net “clk” loc = “p18”; net “rst” loc = “p74”; net “q<0>” loc = “p84”; net “q<1>” loc = “p85”; net “q<2>” loc = “p86”; net “q<3>” loc = “p87”;

INTERFACING PROGRAMS

(40)

1.

Write a HDL code to control the speed, direction of DC & Stepper

motor

DC MOTOR library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity dcmotr is

port ( dir,clk,rst : in std_logic;

pwm : out std_logic_vector(1 downto 0); rly : out std_logic;

row : in std_logic_vector(0 to 3)); end dcmotr;

architecture Behavioral of dcmotr is

signal countr: std_logic_vector(7 downto 0); signal div_reg: std_logic_vector(16 downto 0); signal ddclk,tick: std_logic;

signal duty_cycle:integer range 0 to 255; begin

process(clk,div_reg) begin

if(clk'event and clk='1') then div_reg<=div_reg+'1'; end if;

end process;

ddclk<=div_reg(12);

tick<= row(0) and row(1) and row(2) and row(3); process(tick) begin if falling_edge(tick) then case row is when"1110"=> duty_cycle<=255; when"1101"=> duty_cycle<=200; when"1011"=> duty_cycle<=150; when"0111"=> duty_cycle<=100; when others => duty_cycle<=100; end case; end if; end process; process(ddclk, rst) begin if rst='0'then countr<=(others=>'0');

(41)

pwm<="01";

elsif(ddclk'event and ddclk='1') then countr<= countr+1; if countr>=duty_cycle then pwm(1)<='0'; else pwm(1)<='1'; end if; end if; end process;

rly<='1' when dir='1' else '0'; end Behavioral;

dc motor

net "clk" loc="p18"; net "reset" loc="p74"; net "dir" loc="p75"; net "pwm<0>" loc="p5"; net "pwm<1>" loc="p141"; net "rly" loc="p3";

net "row<0>" loc="p64"; net "row<1>" loc="p63"; net "row<2>" loc="p60"; net "row<3>" loc="p58";

PRODEDURE

1. Make connection between FRC 9 and FPGA board to the dc motor connector of VTU card 2. Make the connection between FRC 7 of FPGA board to the K/B connector of VTU card 2 3. Make the connection between FRC 1 of FPGA board to the DIP switch connector of VTV card 2.

4. Connect the down loading cable and power supply to FPGA board.

5. Then open xilinx impact s/w, select slave serial mode and select the respective bit file and click program.

6. Make the reset switch on.

7. Press the Hex keys and analyze speed changes for dc motor.

RESULT: The DC motor runs when reset switch is on and with pressing of different keys

variation of DC motor speed was noticed.

STEPPER MOTOR

(42)

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity steppermt is

port ( clk,dir,rst : in std_logic; dout : out std_logic_vector(3 downto 0)); end steppermt;

architecture Behavioral of steppermt is

signal clk_div:std_logic_vector(15 downto 0); -- speed is maximum at 15 signal shift_reg:std_logic_vector(3 downto 0);

begin process(clk) begin if rising_edge (clk) then clk_div <= clk_div+'1'; end if; end process;

process(rst,clk_div(15)) -- speed is maximum at 15 begin

if rst='0' then shift_reg<="0001"; elsif rising_edge (clk_div(15)) then if dir='1' then

shift_reg <= shift_reg(0) & shift_reg(3 downto 1); else

shift_reg<= shift_reg ( 2 downto 0) & shift_reg(3); end if; end if;

end process; dout<= shift_reg; end Behavioral;

net "clk" loc = "p18"; net "dir" loc = "p85"; net "rst" loc = "p84";

net "dout<0>" loc = "p7"; net "dout<1>" loc = "p5"; net "dout<2>" loc = "p3"; net "dout<3>" loc = "p141";

PROCEDURE

1. Make connection between FRC 9 and FPGA board to the stepper motor connector of VTU card 1

2. Make the connection between FRC 1 of FPGA board to the DIP switch connector of VTU card 1.

5. Visualize the speed variation of stepper motor by changing counter value in the program.

RESULT: The stepper motor runs with varying speed by changing the counter value

(43)

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity externallc is

port ( cnt : in std_logic; light : out std_logic); end externallc;

architecture Behavioral of externallc is begin

light<=cnt; end Behavioral;

net "cnt" loc = "p74"; net "light" loc = "p7";

PROCEDURE

1.Make the connections b/w FRC9 of fpga board to external light connector of vtu card 2 2.Make connection b/w FRC1 of fpga board to the dip switch connector of vtucard2 3.Connect the Downloading cable and power supply to fpga board.

4.Then open the xilinx impact software select the slave serial mode and select respective bit file and click program

5. Make the reset switch on and listen to the tick sound.

RESULT: Once the pin p74 (reset) is switched on the tick sound is heard at the external light

junction.

3.

Write HDL code to generate different waveforms(sawtooth, sine

wave, square, triangle, ramp etc) using DAC change the frequency

and amplitude.

(44)

SAWTOOTH

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity sawtooth is

port ( clk,rst : in std_logic;dac : out std_logic_vector(0 to 7)); end sawtooth;

architecture Behavioral of sawtooth is signal temp:std_logic_vector(3 downto 0); signal cnt:std_logic_vector( 0 to 7); begin process(clk) begin if rising_edge(clk) then temp<= temp+'1'; end if; end process; process (temp(3),cnt) begin if rst='1' then cnt<="00000000"; elsif rising_edge(temp(3)) then cnt<= cnt+1;

end if; end process; dac<=cnt; end Behavioral;

User Contraint File

net "clk" loc="p18";

net "dac_out<0>" loc="p27"; net "dac_out<1>" loc="p26"; net "dac_out<2>" loc="p22"; net "dac_out<3>" loc="p23"; net "dac_out<4>" loc="p21"; net "dac_out<5>" loc="p19"; net "dac_out<6>" loc="p20"; net "dac_out<7>" loc="p4";

SQUARE

library ieee;

(45)

use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity squarewg is

port ( clk,rst : in std_logic; dac : out std_logic_vector(0 to 7)); end squarewg;

architecture Behavioral of squarewg is signal temp:std_logic_vector(3 downto 0); signal cnt:std_logic_vector(0 to 7);

signal en: std_logic; begin process(clk) begin if rising_edge(clk) then temp<= temp+'1'; end if; end process; process(temp(3)) begin if rst='1' then cnt<="00000000"; elsif rising_edge (temp(3)) then if cnt< 255 and en='0' then cnt<=cnt+1;

en<='0';

dac<="00000000"; elsif cnt=0 then en<='0'; else en<='1'; cnt<=cnt-1; dac<="11111111"; end if; end if; end process; end Behavioral;

TRIANGLE

library ieee; use ieee.std_logic_1164.all;

(46)

use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity triangwg is

port ( clk,rst : in std_logic; dac : out std_logic_vector(0 to 7)); end triangwg;

architecture Behavioral of triangwg is signal temp: std_logic_vector( 3 downto 0); signal cnt: std_logic_vector(0 to 8); signal en:std_logic; begin process(clk) begin if rising_edge(clk) then temp<= temp+1; end if; end process; process( temp(3)) begin if rst='1' then cnt<="000000000"; elsif rising_edge(temp(3)) then cnt<=cnt+1; if cnt(0)='1' then dac<=cnt(1 to 8); else dac<= not(cnt( 1 to 8)); end if; end if; end process; end Behavioral;

RAMP

(47)

use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity rampwg is

Port ( clk,rst : in std_logic;

dac : out std_logic_vector(0 to 7)); end rampwg;

architecture Behavioral of rampwg is signal temp:std_logic_vector(3 downto 0); signal cnt:std_logic_vector( 0 to 7); begin process(clk) begin if rising_edge(clk) then temp<= temp+'1'; end if; end process; process (temp(3),cnt) begin if rst='1' then cnt<="00000000"; elsif rising_edge(temp(3)) then cnt<= cnt+15; end if; end process; dac<=cnt; end Behavioral;

SINE WAVE

(48)

use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity sinewave is

Port ( clk,rst : in std_logic;

dac_out : out std_logic_vector(0 to 7)); end sinewave;

architecture Behavioral of sinewave is signal temp: std_logic_vector(3 downto 0); signal counter: std_logic_vector(0 to 7); signal en: std_logic;

begin process(clk) is begin if rising_edge (clk) then temp<= temp+'1'; end if; end process; process(temp(3)) is begin if rst='1' then counter<="00000000"; elsif rising_edge(temp(3)) then if counter<255 and en='0' then counter<= counter+31; en<='0'; elsif counter=0 then en<='0'; else en<='1'; counter<= counter-31; end if; end if; end process; dac_out<= counter; end Behavioral; PROCEDURE:

1. Make connection between FRC 5 and FPGA and DAC connector of VTU card 2.

2. Make the connection between FRC 1 of FPGA board to the DIP switch connector of VTU card 2.

RESULT:The waveform obtained Ramp, Saw tooth, Triangular, Sine and Square waves are

as per the graph.

4.

Write a HDL code to display messages on the given seven segment

display

(49)

library ieee;

use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use ieee.std_logic_unsigned.all; entity sevkeybrd is

Port ( read : in std_logic_vector(3 downto 0); clk : in std_logic;

scan : inout std_logic_vector(3 downto 0); disp_cnt : out std_logic_vector(3 downto 0); disp1 : out std_logic_vector(6 downto 0)); end sevkeybrd;

architecture Behavioral of sevkeybrd is signal cnt_2bit:std_logic_vector(1 downto 0); begin

process(clk) begin if clk='1' and clk'event then cnt_2bit<= cnt_2bit+1; end if; end process; process(cnt_2bit) begin case cnt_2bit is when "00" => scan<= "0001"; when "01"=> scan<="0010"; when "10"=>scan<="0100"; when "11"=>scan<="1000"; when others=> null;

end case; end process; disp_cnt<="1110"; process(scan,read) begin case scan is

when "0001"=>case read is

when "0001"=>disp1<="1111110"; when "0010"=>disp1<="0110011"; when "0100"=>disp1<="1111111"; when "1000"=>disp1<="1001110"; when others =>disp1<="0000000"; end case;

when "0010"=> case read is

when "0001"=>disp1<="0110000"; when "0010"=>disp1<="1011011"; when "0100"=>disp1<="1111011"; when "1000"=>disp1<="0111101";

5. User Constraint File

net "clk" loc="p18";

net "disp_cnt<0>" loc="p30"; net "disp_cnt<1>" loc="p29"; net "disp_cnt<2>" loc="p31"; net "disp_cnt<3>" loc="p38"; net "disp<0>" loc="p26"; net "disp<1>" loc="p22"; net "disp<2>" loc="p23"; net "disp<3>" loc="p21"; net "disp<4>" loc="p19"; net "disp<5>" loc="p20"; net "disp<6>" loc="p4";

net "read_l_in<0>" loc="122"; net "read_l_in<1>" loc="124"; net "read_l_in<2>" loc="129"; net "read_l_in<3>" loc="126"; net "scan_l<0>" loc="132"; net "scan_l<1>" loc="136"; net "scan_l<2>" loc="134"; net "scan_l<3>" loc="139";

(50)

when others=>disp1<="0000000"; end case;

when "0001"=>disp1<="1101101"; when "0010"=>disp1<="1011111"; when "0100"=>disp1<="1110111"; when "1000"=>disp1<="1001111"; when others=>disp1<="0000000"; end case;

when "0001"=>disp1<="1111001"; when "0010"=>disp1<="1110000"; when "0100"=>disp1<="0011111"; when "1000"=>disp1<="1000111"; when others=>disp1<="0000000"; end case;

when others=> null; end case;

end process;

end Behavioral;

PROCEDURE

1. Make connection between FRC 5 and FPGA board to the seven segment connector of VTU card 1.

2. Make the connection between FRC 4 to FPGA board to K/B connector of VTU card1. 3. Then open xilinx impact s/w, select slave serial mode and select the respective bit file and click program.

5. Change the pressing of Hex Keys to watch the display on LCD’s ranging from 0000 to FFFF.

RESULT:The values from 0 to F were displayed on all 4 LCD’s with the respective Hex

Key being pressed.

(51)

Xilinx FPGA FOR DC & Stepper MOTOR FRC FRC1 FRC2 FRC3 FRC4 FRC6 FRC7 Xilinx FPGA 1 74 84 112 122 40 58 FRC FRC9 2 75 85 114 124 41 60 1 7 3 76 86 113 129 42 63 2 5 4 78 87 115 126 48 64 3 3 5 77 93 117 132 50 65 4 141 6 80 94 118 136 51 66 9 5V 7 79 95 121 134 56 67 10 GND 8 83 100 123 139 57 28 9 VCC VCC VCC VCC VCC VCC 10 GND GND GND GND GND GND

FOR LCD & DAC FOR ADC

FRC FRC5 FRC8 FRC10 1 4 96 62 2 20 99 59 3 19 101 49 4 21 102 47 5 23 103 46 6 22 116 4 7 26 120 43 8 27 131 13 9 30 133 12 10 29 137 11 11 31 138 10 12 38 140 6 13 5V 5V 5V 14 -5v -5v -5v 15 3.3 3.3 3.3 16 GND GND GND

POSSIBLE VIVA QUESTION & ANSWER

1. What is HDL?

Hardware description language is a computer aided design(CAD). Tool to design and synthesis of digital system. HDL language is similar to language.

(52)

It is similar to C Language.

3. Justify the statement "Debugging the design is easy " in HDL.

Yes, because HDL packages implementation simulator & test benches 4. List the Hardware Description Language?

VHDL & Verilog

5. What is the abbreviation of VHDL?

VHDL means Very High Speed Integrated Circuit(VHSIC) hardware description language.

6. What is the VHDL standard ?

The updated standard in 1993 is IEEE standard 1076-1993. 7. Write the general structure of VHDL model?

entity entity_name is

port(define input and output port); architecture architecture_name is begin

statements;

end architecture_name;

8. Write the general structure for verilog?

module modulename(input and output variable); input...;

output...;

statement;

endmodule;

9. Which package is attached with VHDL program?

std_logic_1164 package is attached with VHDL program. 10. What is the Verilog HDL standard and who is maintaining it?

IEEE standard 1364-1995 is the verilog HDL standard and it is maintain by verilog international organization.

11. In VHDL, what are the modes that the ports can take? in, out, buffer, inout.

12. Explain the function of the modes of the port.

in-The port is only an i/p and appears only on the right hand side of the statement. out-The port is only an o/p and appears only on the left and right hand side of the statement.

buffer-The port can be used as both i/p & o/p but should have only one source. inout-The port can be used as both an i/p & o/p.

13. Explain the structure of the verilog module.

(53)

Declaration- name, inputs and outputs of the module are listed. Body-shows the relationship between the inputs & outputs. 14. Which of two Hardware Description Language is case Sensitive? Verilog is case Sensitive.

15. How should the module be terminated in verilog?

The module is terminated by the predefined word end module. 16. What are the modes that exists in verilog ports?

input : The port is only an i/p Port. output : The port is only an o/p Port.

inout : The port can be used as both an i/p and o/p. 17. How are the operators broadly classified?

Logical- AND,OR,XOR. Relational =,=,<,<,>,> Arithmetic +,-,*,

Shift to move the bits of an objects in a certain direction right or left. 18. State the different types of Logical Operators.

Logical Operators are AND, OR, NAND, NOR, NOT and Exclusive-OR. 19. Write the verilog bitwise logical operators.

AND - &, OR - |, NAND - ~(&), NOR - ~(|), EX-OR - ^, EX-NOR - ~ ^, NOT- ~. 20. What are Boolean Logical Operators, Give example.

The Boolean Logical operators operate on 2 operands, the result is Boolean 0 or 1. Verilog Boolean logical operators are &&-AND Operator, ||-OR Operator.

21. What are Reduction Operators. Give examples.

The Reduction Opetators operate on a single Operand and the result is Boolean. Example of verilog Reduction Logical Operators are:

& Reduction AND | Reduction OR ~& Reduction NAND

~| Reduction NOR

^ Reduction XOR

~ ^ Reduction XNOR

! Negation.

22. What are relational Operators. Give example.

Relational Operators are used to compare the values of two objects and the result is Boolean 0 or 1, the VHDL relational operators are:

= Equality /= Inequality < Less than

(54)

<= Less than or equal > Greater than

>= Greater than or equal.

23. What are Arithmetic Operators. State few arithmetic Operators in HDL? Arithmetic Operators performs various operators like.

VHDL Arithmetic Operators Verilog Arithmetic Operators + Addition + Addition

- Subtraction - Subtraction * Multiplication * Multiplication / Division / Division Mod Modulus % Modulus rem Remainder ** Exponent abs absolute {,} Concatenate ** Exponent

24. What are shift & rotate operators? Shift Left represents multiplication by 2. Shift Right represents division by 2. Example of VHDL shift operators.

ASll 1 - Shift A one position left logical. ASrl 2 - Shift A two position right logical. ASla 1 - Shift A one position left arithmetic. ASla 2 - Shift A two position right arithmetic. A rol 1 - Rotate A one position left.

A rol 1 - Rotate A one position right. Verilog Shift Operators.

A<<1 Shift a one position left logical A>>2 Shift a two position right.

25. What are the different types of VHDL data types?

The VHDL data types are broadly classified into 5 types. 1) Scalar Type - Bit type

Boolean Integer Real Character Physical

User defined type Severity type 2) Composite Type-Bit vector type Array type Record 3) Access Type

4) File Type

5) Other Types - Std_logic_type Std_logic_vector type Signed

(55)

Unsigned

26. What are the different types of data types in Verilog? Nets, Registers, Vectors, Integers, Parameters, Real, Array. 27. What are the different styles of writing the description?

Behavioral, Structural, Switch level, Data flow, Mixed language. 28. What is Behavioral Description?

Behavioral description models the system as to how the o/p's behave with the i/p's. In behavioral description the architecture includes predefined word process in VHDL and always/initial Verilog module.

29. What is Structural Description?

Structural description model the system as component or gates.

Key word component is used in the architecture(VHDL) if gate construct. In Verilog and, or, not is included in the module.

30. Explain what is Switch level description?

The system is described using switches or transistors. The verilog key words nmos, pmos, cmos, transistors describes the system.

31. Explain what is data flow?

The data flow describes how the systems signal flows from the inputs to the outputs. The description is done by writing the Boolean functions of the outputs.

32. What are the advantages of using mixed type description?

Mixed type description use more than one type or style of the previously mentioned descriptions.

33. What is the function of data flow descriptions?

Data flow descriptions simulates the system by showing how the signa flows system inputs to outputs.

34. How is signal assignment done in HDL?

In VHDL the signal assignment operator <= is used & in verilog, the predefined word assign is used.

35. How do you declare a constant in HDL?

A constant is VHDL is declared by using the predefined word constant and in verilog it is declared by its type like time or integer.

To assign a value to a constant assignment operator :=is used in VHDL & = in verilog.

36. Write a time delay signed assignment statement.

To assign a delay time to a signed - assigned statement the predefined word after is used in VHDL & in Verilog it is # (Delay time).

Ex : S1 - sel and b after 10 nsec - VHDL. assign # 10 S1=sel & b // Verilog.

(56)

37. Define Vector data types.

A vector is a data type that declares an array of similar elements such as to declare an object that has a width of more than 1 bit.

38. What is the difference between syntax error and semantic error?

Syntax error is those that result from not following the rules of the language. it terminates compilation of the program.

A semantic error is an error in the mechanics of the statement. it may not terminate the program, but the outcome of the program may not be as expected.

39. What is the function of Behavioral Description?

The behavioral description describes the system by showing how the outputs behave according to changes in its inputs. In behavioral description one need not know the logic diagram of the system but one should know how the output behaves in response to change in the output.

40. What are the two phase of execution in HDL?

The two phases of execution in HDL are Calculation and Assignment. 41. What do you mean by Sequential Calculation?

Sequential calculation means the calculation of a statement will not wait until the proceeding statement is assigned only until the calculation is done.

42. Which are the Sequential statements that are assigned with behavioral description? If statement, else-if, loop statements, for loop, forever, report, repeat, next-exit. 43. State the difference between signal and variable assignment.

A process is written based on signal assignment statements and then another process is written based on variable assignment statements. The difference can be observed by the simulation wave forms.

44. When do use loop statements and what is its advantage?

Loops is used to repeat the execution of statements written inside the body. The number of repetitions is controlled by the range of an index parameter. The loop allows the code to be shortened.

45. When is Structural Description best suited?

It is best suited when the digital logic of the system hardware components is known. 46. What type of components are used in structural description?

Components can be gate level: AND, OR, NOT, XOR, XNOR gates. Components can be of higher logic level such as Register Transfer Level (RTL) or processor level.

47. What type of statements are written in Structural Description and why?

Statements are “Concurrent “ in nature. At any simulation time, all statements that have an event are executed concurrently.

(57)

Verilog recognizes all the primitive gates such as AND, OR, NOT, XOR, XNOR. Basic VHDL packages do not recognize any gates unless the package is limited to one more libraries, packages that have gate description.

49. List the verilog built-in gates.

BUFFER, NOT, AND, NAND, OR, NOR, XOR, XNOR. 50. Does VHDL have built-in gates.

No, VHDL does not have built-in gates. 51. What is Binding?

Binding is linking segment 1 in the code to segment 2 in the same code which makes information in segment 2 visible to segment 1.

52. Types of Bindings performed.

(i) Binding between Entry and component in VHDL (ii) Binding between library and module in VHDL.

(iii) Binding between library and component in VHDL. (iv) Binding between two modules in verilog.

53. What are State Machines?

Synchronous sequential circuits are called “State Machines”. 54. What are the main components of State Machines.

Latches and Flip Flops. Additional combinational components may also be present. 55. Which are the two types of synchronous Sequential Circuits.

Mealy and Moore Circuits. 56. What is a Mealy Circuit?

The output or next state of Mealy circuit depends on the inputs and the present state of flip flops/latches.

57. What is Moore Circuit?

The output or next state of Moore circuit depends only on the present state. Present and next states for particular flip-flops are the same output pin.

58. Define state diagram.

A diagram which shows transition between states. 59. What is a ‘Generate’ statement?

It is mainly used for repetition of concurrent statement.

60. Name the keyword used to define global constants in VHDL and Verilog. Generic in VHDL and parameter in Verilog.

61. Disadvantage of structural description in VHDL.

(58)

code as it dose not have built-in libraries or packages for logical gates. (ii) The description is not suited when the number of gates becomes larger. 62. What is Switch Level Description?

Switch Level Description implements Switches (transistors) to describe relatively small-scale digital systems.

63. Application Area of Switch level description.

Very Large Scale Integrated (VLSI) Circuit layouts. 64. Disadvantages of Switch Level description.

(i) Only small-scale systems can be simulated using pure switch level description.

(ii) If the system is not small, huge number of switches are needed that may render simulation impractical.

65. Are built-in-switches statements present in Verilog. If Yes? What are they?

Yes. They are Nmos, Pmos and Cmos.

66. Built-in Switches statement present in VHDL?

No, but to use these statements, user built packages must be developed. 67. What are strong Outputs?

The o/p is either the ground or the Vdd. 68. What is pmos Switches?

For a strong signal it should Pass1. 69. What is nmos Switches?

For a strong signal it should Pass0. 70. What is cmos Switches?

The Switch which can pass both strong 1 and strong 0 is a Cmos Switch. 71. What are Bi-directional Switches?

Bi-directional Switches conduct in both ways from drain to source from source to drain.

72. Application of Bi-directional Switches Used as Bi-directional buffer(bunes).

73. List the three types of Bi-directional switches in Verilog. Tran, Tranif 0, Tranif 1.

74. Operation of three types of Bi-directional Switches. (i) Switch ‘Tran’ has no control. It conducts all the time.

(ii) Switch ‘Tranif 1’ conducts if control is 1,otherwise the o/p is put on high impedance.

(59)

High impedance.

75. What is a procedure Task and functions?

Procedure and task can have more than one i/p and more than o/p, function have a single o/p,but can have more than one i/p.

76. Where do procedures and functions exits in VHDL? They can be called only from within the ‘Process’. 77. Where do Task and functions exits in Verilog?

Task and function in Verilog can be called only from within ‘always’ or ‘initial’.

78. Define task.

Task are Verilog sub programs. 79. Define Procedure.

Procedure are VHDL sub programs. 80. Define Functions.

Functions are behavioural statements which must be called inside process for VHDL or always or initial for Verilog.

81. Advantages of using Functions,Procedures,Tasks. (i) They optimize the style of writing HDL Code. (ii) They shorten the code.

82. Difference between VHDL and Verilog with reference to pocedure. VHDL allows procedure calls to be written inside functions. Verilog does not allow such calls.

83. List some of the functions available in VHDL packages. (i) Mod : Finds modulesof X mod Y.

(ii) Abs : Finds the absolute value of a signed number.

(iii) To-INTEGER : Which return an integer value of a signed input.

(iv) To-INTEGER : Which takes an integer and returns its signed binary equivalents. 84. List the main characteristics of Procedures, Tasks and Functions.

The body of the procedure cannot include behavioural statement 'Process'.

The body of the task cannot include 'Always' or 'Initial', functions return a single output with 'Return', a predefined word.

85. What is the necessity of Mixed - Type Description?

For best implementation of code in both behavioral and structural description. Explanation with examples.

86. Mention some VHDL Pre-defined types. Bit, Std_logic, array and natural.

87. Give few examples of User-Defined types. Week days, weather or grades or classes.

(60)

88. Which is Pre-defined word used to instantiate a user defined types? Type; Ex : Type week days is (Mon, Tue,Fri);

89. Explain this statement. Signal Scores.

Grades declares signal scores as of the type grades. 90. What is the advantage of Packages?

Packages allow the usesd to access built-in constructs. 91. Write Syntax for Package.

Package<Package Name>is End<Package name>

Package body <Package name>is --- End <Package name>

92. What is described in the body of the package?

The body of the packages contains the code for all the identifiers listed in the declaration.

93. Tone/Falls: VHDL allows for multi dimensional arrays but Verilog only allows single dimensional arrays.

94. Write VHDL syntax for single dimensional array. Type data vector is array(3 downto 0) of word array; Sub type word array is Std_Logic_Vector(1 downto 0). 95. Give Syntax for verilog single dimensional array.

Reg[1:0] data vector[0:3]

96. Mention the Pre-defined object type to declare the file. File.

97. What is Port Direction?

Port Direction or mode of the file is nothing but the purpose of file i.e. input file or output file. They are declared as infile or outfile.

98. What is Textio?

It is an IEEE packages used with the file handling programs. 99. Mention the built-in procedures for file handling?
