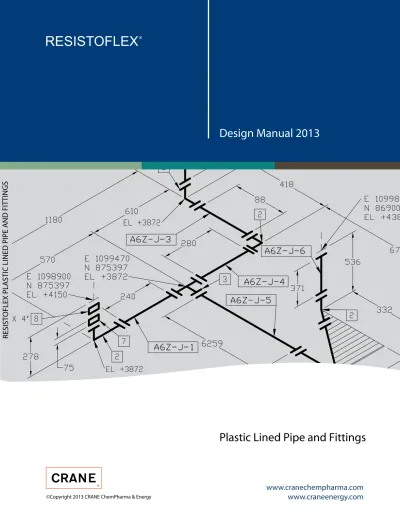

Lined Piping Design Guide

(1)

Plastic Lined Pipe and Fittings

One Quality Way

Marion, NC 28752

Tel: (828) 724-4000

Fax: (828) 724-4783

CP_EG-RESIST OFLEX-DM2013-B U-EN-L15-5-2013-2 www.flowoffluids.com

RESISTOFLEX PLASTIC LINED PIPE AND FITTINGS

®

CRANE ChemPharma & Energy

www.cranechempharma.com

www.craneenergy.com

Crane Co., and its subsidiaries cannot accept responsibility for possible errors in catalogues, brochures, other printed materials, and website information. Crane Co. reserves the right to alter its products without notice, including products already on order provided that such alteration can be made without changes being necessary in specifications already agreed. All trademarks in this material are property of the Crane Co. or its subsidiaries. The Crane and Crane brands logotype, in alphabetical order, (ALOYCO®, CENTER LINE®, COMPAC-NOZ®, CRANE®, DEPA® & ELRO®, DUO-CHEK®, FLOWSEAL®, JENKINS®, KROMBACH®, NOZ-CHEK®, PACIFIC, RESISTOFLEX®, REVO®, SAUNDERS®, STOCKHAM®, TRIANGLE®,

www.cranechempharma.com

www.craneenergy.com

Design Manual 2013

(2)

www.cranechempharma.com

www.craneenergy.com

2 Crane Co.

ence in a number of focused niche markets. With approximately 10,000 employees working together in

, a CRANE ChemPharma business wihthin the Fluid Handling Unit of CRANE Co. is the largest

plastic-lined piping products supplier in the world, with manufacturing and sales locations in North

Financial Strength

giving it the capacity to continue strategic

acquisitions.

Global Reach

Worldwide operations in over 120 locations

grow Economic Value Added (EVA) with top

people and products, customer focus, and a

common Crane Business System

through-out the Company.

Leadership

Our businesses have leading market shares

in focused niche markets and seek to

® Teflon is a registered trademark of E. I. du Pont de Nemours Company

A

b

out C

R

ANE

five business segments across 25 countries, Crane generated 2011 net sales of $2.5 billion.

RESISTOFLEX MANUFACTURING PLANT IN MARION, USA320,000 SQ SUZHOU, CHINA 60,000 SQ FT SINGAPORE 10,000 SQFT

®

resistant plastic lined pipe,

chemical hoses.

ResistoPure™ is a brand of

for the Biotech, Pharmaceutical,

Food & Beverage, and

Cosmet-ics industries.

RESIS

TOFLEX

www.cranechempharma.com

www.craneenergy.com

2

(3)

3

About Crane ChemPharma Flow Solutions ...2

Terminology and Standards ...4

Resistoflex Distribution Network ...5

The Thermalok Process ...6

The Swaging Process...7

Standard Material Specifications ...8

Standard and Custom Coatings ...9

Flange, Pipe, and Liner Data ...10

Pressure and Vacuum Capabilities ...11

Pipe Spool Dimensions ...12

Minimum Flanged Spool Lengths ...13

90 Degree Elbows ... 14 - 15 Special Angle Elbows ...15

45 Degree Elbows ...16

Equal Tees ...17

Reducing Tees ... 18 - 19 Crosses ...20

Short Stack Tees and Crosses ...21

Instrument Tees ... 22 - 24 Strainer Tee Assembly ...25

Lugged Body Instrument Tees ... 26 - 28 45Degree Laterals ...29

Concentric Reducers ... 30 - 31 Eccentric Reducers ...32

Ductile Iron Reducing Filler Flanges...33

Carbon Steel Reducing Filler Flanges ... 34 - 39 Blind Flanges ...40

Spectacle Blind Flanges ...41

Lined Ring Spacers ...41

Solid Plastic Spacers ...42

Bull's Eye Sight Indicators ...43

90 Degree Elbows ...44

Reducing 90 Degree Elbows ...45

45 Degree Elbows ...46 Equal Tees ...47 Reducing Tees ... 48 - 49 Strainer Tee ...50 Instrument Tees ... 51 - 53 Crosses ...54 45 Degree Laterals ...55 Concentric Reducers ... 56 - 57 Eccentric Reducers ...58

Reducing Filler Flanges ... 59 - 60 Nozzle Liner...61

Thermowell Baffles ...62

Reinforced Dip Pipes and Spargers ... 63 - 64 Reducing Filler Flanges for Dip Pipes ...65

Solid PTFE Dip Pipes and Spargers ...66

PTFE Mixing Tee Nozzles ...67

CONQUEST®_{Flangeless Piping System Design Considerations ... 68 - 75} MultiAxis®_{Bent Piping ...76}

CONQUEST®_{Testing and Verification Data ... 77 - 82} Joint Reduction Technologies - Life Cycle Cost Estimating ... 83 - 87 HIFTM_{Adapter ... 88 - 89} Pressure Drop Data ...90

Flange Bolt Torquing and Pressure Testing ... 91 - 92 Bolt Torque Requirements ... 93 - 94 Bolt Length Requirements ...95

Storage and Maintenance ...96

Heat Tracing ... 97 - 98 Venting and Insulation ...99

(4)

4 www.cranechempharma.com

www.craneenergy.com

Terminology & Standards

®_{, is the only PTFE used}

PTFE Polytetrafluoroethylene, manufactured by DuPont under the trade name Teflon by Resistoflex.

PFA Perfluoroalkoxy, manufactured by DuPont under the trade name of Teflon®_.

PVDF Polyvinylidene Fluoride, manufactured by Arkema under the name Kynar®_{and Kynar Flex}®

PP Polypropylene

FEP Perfluoro (Ethylene - Propylene) Copolymer

®_{, is the only ETFE}

ETFE Ethylenetetrafluoroethylene, manufactured by DuPont under the trade name Tefzel used by Resistoflex

ANSI American National Standards Institute ASTM American Society for Testing and Materials

A395 ASTM standard pertaining to ferritic ductile iron for flanges and fittings. A105 ASTM standard pertaining to forged steel used for flanges

A587 ASTM standard pertaining to electric-resistance-welded low-carbon steel pipe for use as process lines in chemical industries.

A53 ASTM standard pertaining to steel pipe, seamless or welded.

A513 ASTM standard pertaining to electric-resistance-welded carbon and alloy steel mechanical tubing A216 ASTM standard pertaining to cast steel (grade WCB)

INDUSTRY STANDARD LINER COLORATION

INDUSTRY STANDARDS

LINER MATERIALS

PTFE White PVDF Black

PP Orange or milky white FEP Natural - clear PFA Natural - off white

ETFE Natural - shiny, milky white ASTM F1545

Resistoflex fully complies with ASTM F1545, including all qualification testing on representative pipe/fittings. This qualification testing includes high/low temperature aging, steam/cold water temperature cycling, and vacuum testing. All finished lined piping components are electrostatically tested at 18 KV. Hydrostatic testing is available on request, at an additional charge.

(5)

5 www.cranechempharma.com

www.craneenergy.com

Global Support

Crane Resistoflex has a well-established network of distributors and ChemPharma sales offices throughout the world. This exten-sive network offers our customers local, knowledgeable, and personalized service, regardless of location. Resistoflex customers can rely on support from authorized distributors and ChemPharma sales offices in the Americas, Europe, Asia, Australia, and the Middle East.

Our distributors are not just order takers. Many of them share over 40 years of partnership with Resistoflex, and all are experienced in the technology of fluid handling and how plastic lined pipe can be used to solve fluid handling problems safely and economi-cally. All of our distributors are dedicated to providing unmatched customer service. Additional involvement with, and experience in related products results in a team of professionals able to assist in any specialized project.

To find a local distributor or ChemPharma sales office, visit www.cranechempharma.com or contact our Customer Service Center at (828) 724-4000.

(6)

6

₇

www.cranechempharma.com

www.craneenergy.com

The Thermalok

®

_Process

Resistoflex Thermalok steel pipe and PTFE liner act as one integral piece. Combining dissimilar materials with very different coefficients of thermal expansion, our precision Thermalok Process locks the isostatically molded PTFE liner into the pipe housing, making it full vacuum rated from -20°F to 450°F. We developed and patented the Thermalok process for lining steel pipe in the 1950’s, and have been the world leader in the manufacture of plastic-lined piping products ever since.

The Thermalok process positively locks the plastic liner in the metal pipe housing while effectively relieving stresses that could cause unwanted liner movement in service.

Thermalok Process

• Incoming lots of resin are analyzed in our Quality Assurance laboratory for conformance to established raw material specifications.

• The liner is processed under controlled conditions to a size somewhat larger than the I.D. of the steel housing into which it will be installed. It is then thoroughly inspected for conformance to design specifications. Next, the PTFE liner is subjected to a battery of quality tests designed to ensure liner integrity.

• The liner is then drawn through a sizing die at carefully controlled draw rates which results in a calculated reduction in the oustide diameter.

• A programmed heating cycle relaxes the liner inside the steel housing, resulting in a snug liner fit. Design allowances are incorporated in this procedure to eliminate undesirable stresses in the finished product.

• Both liner ends of the pipe spool are then hot flared. Temperature, time and pressure are carefully monitored. • The finished pipe is then tested in accordance with ASTM F1545 standards.

This unique Thermalok process provides lined pipe with dimensional stability under vacuum, pressure, and thermal cycling conditions, which prevents liner buckling and cracked flares within operational limits.

Drawing and Sizing

Thermalok Field Flare Pipe

Thermalok Field Flare (FF) pipe is Flange x Plain End or Plain End x Plain End pipe with movable liner for distributor or end-user fabrication1_{with the following features:}

• Resistoflex manufactures Field Flare pipe utilizing the the same Thermalok Process as factory-finished pipe, but the process is modified to result in a movable liner.

• The liner can be removed from the pipe, allowing the fabricator a wide variety of flange options, including the Resistoflex field flare flange, all types of weld flanges, and lap joint flanges.

• Resistoflex Field Flare pipe has the same performance characteristics of the factory-finished pipe, including full vacuum capability.

• Available in PTFE, PP, and PVDF, in the same sizes as factory-finished spools.

• Housings are available in CS or SS.

(7)

7 www.cranechempharma.com

www.craneenergy.com

(8)

8 www.cranechempharma.com

www.craneenergy.com

Liners: PTFE — Polytetrafluoroethylene, ASTM D4894 and D4895

PFA — Perfluoroalkoxy, ASTM D3307

PVDF — Polyvinylidene Fluoride, ASTM D3222 and D5575 PP — Polypropylene, ASTM D4101

Pipe: Thermalok (Carbon Steel):

1" through 4" size, Sch. 40 Carbon Steel per ASTM A53 ERW, Grade B Type E or A587 Sch. 40 ERW 6" - 8" size, Sch. 40 Carbon Steel per ASTM A53 ERW, Grade B Type E

10" size = Sch. 30 Carbon Steel per ASTM A53 ERW, Grade B Type E 12" size = Sch. 20 Carbon Steel per ASTM A53 ERW, Grade B Type E

Thermalok (Stainless Steel) 304LSS or 316LSS:

1" through 8" size, Sch. 40 Stainless Steel per ASTM A312 Sch. 40 ERW 10" size = Sch. 30 Stainless Steel per ASTM A312 Sch. 40 ERW

12" size = Sch. 20 Stainless Steel per ASTM A312 Sch. 40 ERW

Swaged:

1" through 6" size, Sch. 40 Carbon Steel per ASTM A513 ERW 8" size, Sch. 30 Carbon Steel per ASTM A513 ERW

Flanges: Lap-joint, 1" through 12" size, Ductile Iron ASTM A395, dimensions per ANSI B16.42 Class 150

Lap-joint, 1" through 12" size, Forged Carbon Steel, ASTM A105, dimensions per ANSI B16.5 Class 150 Lap-joint, 1" through 12" size, Forged Stainless Steel, ASTM A182, dimensions per ANSI B16.5 Class 150 Threaded (for Swaged pipe), 1" - 8" size, Forged Steel ASTM A105, dimensions per ANSI B16.5 Class 150

Note: Standard flange configuration for Thermalok pipe spools and most fabricated fittings is rotating lap joint. The lap is a "flared" lap. Fixed flanges are available, including slip-on and welding neck.

Fittings: Fabricated Carbon Steel: Components per ASTM A587, ASTM A53 and/or ASTM A234

Fabricated Stainless Steel: Components per ASTM A312 and/or ASTM A403

Cast Fittings: Ductile Iron Casting (60-40-18) per ASTM A395 or Cast Steel per ASTM A216 Gr. WCB Fittings Flange Material: Ductile Iron Casting (60-40-18) per ASTM A395, or Cast Steel per ASTM A216 Gr. WCB, or Forged Carbon Steel per ASTM A105, or Forged Stainless Steel per ASTM A182.

Fittings flanges are rotating lap joint or fixed as specified in the Design Guide. Standard fittings dimensions per ANSI B16.5 Class 150.

Fabrication: Pipe and Fittings Tolerances:

Dimension Tolerance, in.

Length and Centerline Dimensions ± 1 / 8"

Fixed Flange Bolt Hole Alignment ± 1 / 16"

Flange Perpendicularity 3 / 32 in/ft of nom. pipe

(with Pipe Centerline) diameter

Standard Materials Specifications

Pipe and fittings manufactured by Resistoflex are in full compliance with:

ASTM F1545, Standard Specification for Plastic-Lined Ferrous Metal Pipe, Fittings, and Flanges as follows Resistoflex purchases approved ASTM designations of resin used to manufacture liner

Resistoflex uses approved ASTM designations of materials of construction of housings and flanges Resistoflex meets or exceeds minimum dimensional requirements

Resistoflex meets qualification testing requirements, including steam/cold water, temperature aging, and vacuum testing Resistoflex performs 30KV electrostatic test on 100% of finished product. Hydrostatic test is available on request. Resistoflex products also meet the following specifications/requirements:

(9)

9 www.cranechempharma.com

www.craneenergy.com

(10)

10 www.cranechempharma.com

www.craneenergy.com

Pipe Dimensions

)l a n i m o n ( . n i , s n o i s n e m i D e p i P e z i S ) S P N ( OD s s e n k c i h T ll a W 0 4 . h c S Sch.30 Sch.20 5 . 0.840 0.109 --5 7 . 1.050 0.113 1 1.315 0.133 5 . 1 1.900 0.145 2 2.375 0.154 5 . 2 2.875 0.203 3 3.500 0.216 4 4.500 0.237 6 6.625 0.280 8 8.625 0.322 0.277 0 1 10.750 -- 0.307 2 1 12.750 0.330 0.250

Plastic-Liner Data

PTFE = polytetrafluoroethylene

PFA = perfluoroalkoxy PP = polypropylenePVDF = polyvinylidene fluoride ETFE = ethylene tetrafluoroethylene

1_{Max. allowable temperature depend on the specific contact chemicals. Refer to the Chemical Resistance guide on page 227.} 2_{10” - 12” non-vacuum pipe and fittings band is red with black letters.}

3_{Available unpigmented as a special option.}

s c it s ir e t c a r a h C r e n i L PTFE PFA PP ₍_h_o_mP_oV_pD_o_lF_y_m_e_r₎ ₍_c_o_pP_oV_lD_y_mF_e_r₎ ETFE F ° , e g n a R e r u t a r e p m e T e c iv r e S 1 _-₂₀_°_F_t_o₄₅₀_°_F ₀_°_F_t_o₄₅₀_°_F ₀_°_F_t_o₂₂₅_°_F ₀_°_F_t_o₂₇₅_°_F _-₂₀_°_F_t_o₂₇₅_°_F _-₂₀_°_F_t_o₃₀₀_°_F r o l o C r e n i L Whtie Natural Orange3 _B_l_a_c_k3 _B_l_a_c_k3 _N_a_t_u_r_a_l d n a B n o it a c if it n e d I r e n i L f o r o l o C _B_l_aW_c_kh_Ltie_ew_tt_etih_ir_n_g2 _W_hB_ti_ero_Lw_en_ttw_e/_ir_n_g _B_l_aO_cr_kan_Lg_ee_tt_ew_ir/_n_g Bla_Lck_ew_tt_e/_irW_n_ghtie Bla_Lc_ekw_tt_e/_irW_n_ghtie Gra_Ly_ew_tt_e/W_ir_n_ghtie e p i P f o n o i s n a p x E l a m r e h T f o t n e i c if f e o C /. n i/ . n i , g n i n i L o t r o ir P r e n i L °F 5.5x10-5 7.8x10-5 4.8x10-5 6.6x10-5 7.8x10-5 7.4x10-5 ti v it c u d n o C l a m r e h T y ,r e n i L f o )r o t c a F " K " ( BTUi-n/.hr-.sq. tf-.°F 1.7 1.3 0.8 0.9 1.18 1.65 i s p , d l e i Y t a r e n i L f o h t g n e rt S e li s n e T 3,000-4,000 3,800-4,500 4,000-4,500 5,000-6,000 4,500-5,500 6700 % , d l e i Y t a r e n i L f o n o it a g n o l E 250-350 300-350 10-13 8-10 10-20 150-300 i s p , d l e i Y t a r e n i L f o h t g n e rt S e v i s s e r p m o C 1,700 3,500 5,500-8,000 10,000-16,000 5000-8500 2,500 r e n i L f o y ti v a r G c if i c e p S 2.14-2.19 2.12-2.17 0.90-0.92 1.75-1.78 1.76-1.78 1.70-1.72

Flange Dimensions

)l a n i m o n ( . n i , s n o i s n e m i D e g n a l F e z i S ) S P N ( 0 5 1 s s a l C Class300 D O Thickness (_oN_fo_B)._oa_tln_Hd_oD_l_eia_s. B_Do_i_atl_mC_eri_t_ecl_re OD Thickness (_oN_fo_B)._oa_tln_Hd_oD_l_eia_s. B_Do_i_atl_mC_eri_tc_el_re 5 . 31/2 7/16 (4)5/8 23/8 33/4 9/16 (4)5/8 25/8 5 7 . 37/8 1/2 (4)5/8 23/4 45/8 5/8 (4)3/4 31/4 1 41/4 9/16 (4)5/8 31/8 47/8 11/16 (4)3/4 31/2 5 . 1 5 11/16 (4)5/8 37/8 61/8 13/16 (4)7/8 41/2 2 6 3/4 (4)3/4 43/4 61/2 7/8 (8)3/4 5 5 . 2 7 7/8 (4)3/4 51/2 71/2 1 (8)7/8 57/8 3 71/2 15/16 (4)3/4 6 81/4 11/8 (8)7/8 65/8 4 9 15/16 (8)3/4 71/2 10 11/4 (8)7/8 77/8 6 11 1 (8)7/8 91/2 121/2 17/16 (12)7/8 105/8 8 131/2 11/8 (8)7/8 113/4 15 15/8 (12)1 13 0 1 16 13/16 (12)1 141/4 171/2 17/8 (16)11/8 151/4 2 1 19 11/4 (12)1 17 201/2 2 (16)11/4 173/4

(11)

11 www.cranechempharma.com

www.craneenergy.com

Pressure and Vacuum Capabilities of Lined Pipe

& Fittings

The pressure/temperature ratings of 1" to 12" RESISTOFLEX Plastic-Lined Piping Products conform to standard ANSI codes and specifications per the appropriate flange metallurgy. See Figure 1. The pressure/temperature ratings for lined piping with ANSI B16.5 Class 300 flanges are adjusted to account for plastic raised faces on pipe and fittings, and are lower than

actual ANSI B16.5 Class 300 pressure/temperature ratings.

PVDF (1" - 8") and PP (1" - 12") pipe and fittings have been full vacuum rated at their maximum service temperature and can be used at full vacuum within their operating temperature ranges. Standard 1" - 12" PTFE pipe and fittings are available to provide full vacuum / 450°F performance, in general. However, a few fittings are not rated to full vacuum / 450°F. Actual vacuum ratings are shown on the individual fittings dimensional pages in this manual.

Figure 1: Working pressures for Resistoflex plastic-lined pipe and fittings

* Pipe and fittings with Class 300 flanges cannot operate at the full ANSI B16.5 Class 300 pressure ratings, as the plastic flares acting as the gasket sealing faces are the limiting factor.

Maximum service temperatures may be reduced by the chemical being handled. Please contact our Technical Service Department at 828-724-4000 for more information.

0 (-18)

250 (17.2)

285 (19.7)

230 (15.9)

485 (33.4)

50 (10)

250 (17.2)

285 (19.7)

230 (15.9)

485 (33.4)

100 (38)

250 (17.2)

285 (19.7)

230 (15.9)

485 (33.4)

150 (65)

242 (16.7)

285 (19.7)

212 (14.6)

485 (33.4)

200 (93)

235 (16.2)

260 (17.9)

195 (13.4)

475 (32.8)

250 (121)

225 (15.5)

245 (16.9)

185 (12.8)

460 (31.7)

300 (149)

215 (14.8)

230 (15.9)

175 (12.1)

450 (31)

350 (177)

207 (14.3)

215 (14.8)

167 (11.5)

440 (30.3)

400 (204)

200 (13.8)

160 (11)

425 (29.3)

450 (232)

185 (12.8)

155 (10.7)

405 (27.9)

Class 150

Ductile Iron

psig (barg)

Class 150

Carbon Steel

psig (barg)

Class 150

Stainless Steel

Type 304L/316L

psig (barg)

Class 300

Carbon Steel*

psig (barg)

Temperature

°F (°C)

(12)

12 www.cranechempharma.com

www.craneenergy.com

Thermalok Pipe

Swaged Pipe

Size (NPS)

Nominal Liner Thickness (in.) _{Max. Length} (ft.)

Size (NPS)

Nominal Liner Thickness (in.) Max. Length (ft.) PTFE PFA PP PVDF

PTFE PFA PP/PVDF PTFE PFA PP PVDF 1/2 0.054 N/A 10 3/4 0.062 10 1 0.130 0.113 0.135 0.125 20 1 0.130 0.113 0.150 20 20 20 20 1.5 0.150 0.114 0.160 0.125 20 1.5 0.130 0.114 0.160 40 40 40 40 2 0.155 0.114 0.175 0.125 20 2 0.130 0.114 0.172 40 40 40 40 3 0.155 0.130 0.175 0.125 20 3 0.130 0.130 0.175 40 20 40 40 4 0.160 0.150 0.210 0.145 20 4 0.160 0.150 0.207 40 20 40 40 6 0.255 0.145* 0.220 0.160 20 6 0.225 N/A 0.218 20 N/A 40 40 8 0.310 N/A 0.220 0.185 20 8 0.300 0.218 20 20 20 10 0.350 N/A 0.320 0.220 _{PP/PVDF - 20}PTFE - 15 12 0.450 0.380 N/A PTFE - 15_{PP - 20}

Pipe Spool Dimensions

PTFE / Polypropylene / PVDF / PFA Lined

Van Stone Flange

(Thermalok) Threaded RotatableFlange (Swaged) Threaded ChamferedFlange (Swaged)

1_{This 10"-12" PTFE is not swaged and not rated for vacuum}

2_{10"-12" PPL is not swaged. 10"-12" PVDF-lined pipe is available on special order - please consult factory.} 3_{2.5" is available in PPL, only.}

4_{NVR = Not rated for vacuum service.}

Minimum spool lengths are listed on the following page.

Thermalok®_{pipe is Sch. 40 through 8"; 10" = Sch. 30; 12" = Sch. 20. See product specifications for pipe materials.}

Swaged pipe is Sch.40 through 6"; 8" = Sch. 30; 10"-12" (non-swaged) = Sch. 30. See product specifications for pipe materials. Thermalok®_{standard flange is DI (A395) Van Stone. Steel flanges are available at an additional cost.}

Swaged standard flange is CS (A105) threaded chamfered or threaded rotatable. 10" - 12" Non-Vacuum Pipe standard flange is forged steel (A105) rotating. N/A = Not Available

e z i S ) S P N ( k o l a m r e h T ﬁ_P_T_F_E _S_w_a_g_e_d_P_T_F_E_/_P_P_/_P_V_D_F_/_P_F_A r e n i L E F T P ). n i( s s e n k c i h T Max.(Ltfe).ngth ). n i( s s e n k c i h T r e n i L Max.Length(tf). E F T P PP/PVDF PFA PTFE PP/PVDF PFA 2 / 1 0.054 20 A / N 4 / 3 0.062 20 1 0.130 20 0.130 0.150 0.130 20 20 20 2 / 1 1 0.150 20 0.130 0.160 0.130 40 40 40 2 0.160 20 0.130 0.172 0.130 40 40 40 2 / 1 2 3 _N_/_A _N_/_A ₀_.₁₇₅3 A / N A / N 403 A / N 3 0.160 20 0.130 0.175 40 40 4 0.160 20 0.160 0.207 40 40 6 0.275 20 0.225 0.218 20 40 8 0.310 20 0.300 0.218 20 20 0 1 0.320 15 A / N 0.3202 20 20 2 1 0.425 15 0.3802 ₂₀ ₂₀ R V N 0 1 1,4 ₀_.₂₀₀ ₂₀ A / N 2 R V N 2 1 1,4 ₀_.₂₀₀ ₂₀

Thermalok Pipe Housings Available in Stainless Steel and Other Alloys. Swaged pipe is available in carbon steel, only. * 6" PFA-lined pipe is non-vacuum rated.

Pipe Spool Dimensions

(13)

13 www.cranechempharma.com

www.craneenergy.com

s e h c n i n i h t g n e L l o o p S e p i P m u m i n i M k o l a m r e h T 3 _C _{s s a l} e z i S ) S P N ( s n o i t p O o N W h t i n e V C t g n i l p u o o s r G r g n i d n u o t S s d u 0 5 1 0 5 1 s s a l C C s a l 0 0 3 s s a l C 0 5 1 s C s a l 0 0 3 s F d l e i a l F e r 4

Minimum Flanged Pipe Spool Lengths

Distance Piece

For filling spaces greater in length than the maximum spacer (3”) but less than the minimum flanged pipe spool, a distance piece is used. A distance piece does not have flanges, but is held in place by using long bolts or studs between the adjacent flanges.

1 _{Available only as fixed flange spools.}

2 _{Capability of field threaders, such as Wheeler Rex or equal, 8” size requires alternate method of threading.}

Wheeler Rex will only thread up through 6”. Minimum spool lengths for flange one end piping is 3 ft. when using a Wheeler Rex machine.

3_{Thermalok minimum lengths can be reduced by using fixed flanges}

at one or both ends at an additional cost.

4_{When using a pipe end forming machine such as a Conrac by PHI.}

Min. length assumes no welding of stubends. Consult factory for details.

s e h c n I n i s h t g n e L l o o p S e p i P m u m i n i M d e g a w S e z i S ) S P N ( d r a d n a t S Special1 d l e i F 2 0 5 1 s s a l C Class300 Class150 Class300 1 4 4 21/2 21/2 7 2 / 1 1 4 4 23/4 23/4 7 2 41/2 41/2 31/8 31/8 7 3 5 5 31/2 31/2 8 4 51/2 51/2 33/4 33/4 8 6 51/2 51/2 41/8 41/8 10 8 7 7 41/2 41/2 12 1 3 8 / 5 3 8 / 1 4 8 / 7 4 2 / 1 5 2 / 1 1 8 / 3 3 4 8 / 5 4 8 / 1 5 7 2 2 / 1 3 4 / 1 4 8 / 7 4 2 / 1 5 8 3 4 8 / 1 5 8 / 3 5 8 / 3 6 1 8 / 5 0 4 8 1/2 3 3 1/4 3 7/8 4 3/8 N/A N/A 3 3 3/8 3 7/8 4 1/2 3/4 / 3 4 2 / 1 5 8 / 5 5 4 / 3 6 1 1 6 2 / 1 5 8 / 3 6 2 / 1 6 2 / 1 7 1 2 / 1 6 8 2 / 1 6 2 / 1 7 7 8 / 3 8 1 2 / 1 6 0 1 2 / 1 8 8 / 7 9 2 / 1 8 1 1 Consult Factory Consult Factory 12 (PTFE, PP, only) 2 / 1 8 1 8 / 3 0 2 / 1 8 1 8 / 5 1

Length

(14)

14 www.cranechempharma.com

www.craneenergy.com

90° Elbows

PTFE-Lined

Housing Materials

DI = ASTM A395 Cast Ductile Iron

FAB STEEL = Housing fabricated from pipe and/or weld fittings Flange Materials

CS = ASTM A105

CAST STEEL = ASTM A216 CAST STEEL = ASTM A216

DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum d e g n a l F . b l 0 5 1 e z i S P a r t N u m b e r ) . n i ( s n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F / g H . n i ( B C M a t e r i a l R _F= ₌R _Fo _it _xa _et i _dn g 1 E 9 0 0 M 3 V V 0 V 1 0 0 31 / 2 2 L L L L L L L L E E T S B A F I D R 0 5 4 / V F 0 0 1 V 0 Z Z 3 M 0 0 9 E C S 5 . 1 E 9 0 0 M 3 V V 0 V B 0 0 4 2 7 / 8 D I 0 0 B V 0 Z Z 3 M 0 0 9 E C S 2 E 9 0 0 M 3 V V 0 V 2 0 0 41 / 2 3 5 / 8 D I 0 0 2 V 0 Z Z 3 M 0 0 9 E C S 3 51 / 2 5 D I S C 4 61 / 2 6 3 / 1 6 D I D S C 6 0 3 V 0 V V 3 M 0 0 9 E 0 0 3 V 0 Z Z 3 M 0 0 9 E 0 0 4 V 0 V V 3 M 0 0 9 E 0 0 4 V 0 Z Z 3 M 0 0 9 E 0 0 0 6 N 0 V V 1 M 0 0 9 E 8 8 1 / 2 I D DI F E E T S B A F CS R E E T S B A F DI R 8 0 0 8 N 0 V V 1 M 0 0 9 E 9 1 0 5 / 8 I D DI F E 9 0 0 M 3 Z Z 0 V 8 0 0 FA B S T E E CS R E E T S B A F DI R 0 1 0 0 E N 0 V V 1 M 0 0 9 E 1 1 123/4 I D DI F E 9 0 0 M 3 Z Z 0 V E 0 0 FA B S T E E CS R E 9 0 0 M 3 V V 0 V E 0 0 FA B S T E E DI R C F 2 1 E 9 0 0 M 1 V V 0 N F 0 0 12 1 5 DI I E E T S T S A C A S T S T E E L 0 0 8 V 0 V V 3 M 0 0 9 E 0 0 6 V 0 Z Z 3 M 0 0 9 E 0 0 6 V 0 V V 3 M 0 0 9 E 0 0 F N 0 Z Z 2 0 0 9 M E

90° Elbows

PTFE-Lined

Housing Materials

DI = ASTM A395 Cast Ductile Iron

CS = ASTM A105

CAST STEEL = ASTM A216 CAST STEEL = ASTM A216

DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum d e g n a l F . b l 0 5 1 e z i S P a r t N u m b e r ) . n i ( s n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F / g H . n i ( B C M a t e r i a l R _F= ₌R _Fo _it _xa _et i _dn g 1 E 9 0 0 M 3 V V 0 V 1 0 0 31 / 2 2 L L L L L L L L E E T S B A F I D R 0 5 4 / V F 0 0 1 V 0 Z Z 3 M 0 0 9 E C S 5 . 1 E 9 0 0 M 3 V V 0 V B 0 0 4 2 7 / 8 D I 0 0 B V 0 Z Z 3 M 0 0 9 E C S 2 E 9 0 0 M 3 V V 0 V 2 0 0 41 / 2 3 5 / 8 D I 0 0 2 V 0 Z Z 3 M 0 0 9 E C S 3 51 / 2 5 D I S C 4 61 / 2 6 3 / 1 6 D I D S C 6 0 3 V 0 V V 3 M 0 0 9 E 0 0 3 V 0 Z Z 3 M 0 0 9 E 0 0 4 V 0 V V 3 M 0 0 9 E 0 0 4 V 0 Z Z 3 M 0 0 9 E 0 0 0 6 N 0 V V 1 M 0 0 9 E 8 8 1 / 2 I D DI F E E T S B A F CS R E E T S B A F DI R 8 0 0 8 N 0 V V 1 M 0 0 9 E 9 1 0 5 / 8 I D DI F E 9 0 0 M 3 Z Z 0 V 8 0 0 FA B S T E E CS R E E T S B A F DI R 0 1 0 0 E N 0 V V 1 M 0 0 9 E 1 1 123/4 I D DI F E 9 0 0 M 3 Z Z 0 V E 0 0 FA B S T E E CS R E 9 0 0 M 3 V V 0 V E 0 0 FA B S T E E DI R C F 2 1 E 9 0 0 M 1 V V 0 N F 0 0 12 1 5 DI I E E T S T S A C A S T S T E E L 0 0 8 V 0 V V 3 M 0 0 9 E 0 0 6 V 0 Z Z 3 M 0 0 9 E 0 0 6 V 0 V V 3 M 0 0 9 E 0 0 F N 0 Z Z 2 0 0 9 M E

(15)

15 www.cranechempharma.com

www.craneenergy.com

15

Fabricated Special Angle Elbows

Lined with PTFE or ETFE (Tefzel

®

₎

Resistoflex can provide special angle elbows in various sizes and many configurations. These are custom fabrications to accommo-date non-standard applications that may occur in piping design. When need for a special angle elbow arises, a rough sketch or description giving the pipe size, angle required and desired face-to-centerline dimension should be submitted to the Resistoflex factory. Fabricated Special Angle Elbows are not rated for vacuum service. As a guide, when centerline to face dimensions are not provided, special angle elbows less than 45° have standard 45° elbow centerline to face dimensions. Special angle elbows greater than 45° have standard 90° centerline to face dimensions. Dimensions are for correspoinding sizes.

Tefzel®_{is a trademark of Dupont.}

y l n O y d o B l e e t S b a F -d e g n a l F . b l 0 0 3 e z i S ) S P N ( NuPmabtrers ). n i( n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F °/ g H . n i( B C Mateiral R_F=₌R_Fo_it_xa_eit_dng 1 R6390YY-016 4 2 L E E T S B A F CS R FV/450 0 0 1 V 0 Y Y 3 M 0 0 9 E 31/2 5 . 1 R6390YY-024 41/2 27/8 0 0 B V 0 Y Y 3 M 0 0 9 E 4 2 R6390YY-032 5 35/8 0 0 2 V 0 Y Y 3 M 0 0 9 E 41/2 3 R6390YY-048 6 5 0 0 3 V 0 Y Y 3 M 0 0 9 E 51/2 4 R6390YY-064 7 63/16 0 0 4 V 0 Y Y 3 M 0 0 9 E 61/2 6 R6390YY-096 81/2 81/2 0 0 6 V 0 Y Y 3 M 0 0 9 E 8 8 E900MAYY0V800 10 105/8

Bend radius is 1 x diameter for 1" - 4", and 1.5 x diameter for 6" and larger.

90° Elbows

PTFE-Lined

Housing Materials

FAB STEEL = Housing fabricated from pipe and/or weld fittings Flange Materials CS = ASTM A105 FV = Full Vacuum d e g n a l F . b l 0 5 1 e z i S P a r t N u m b e r ) . n i ( s n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F / g H . n i ( B C M a t e r i a l R _F= ₌R _Fo _it _xa _et i _dn g 1 E 9 0 0 M 3 V V 0 V 1 0 0 31 / 2 2 L L L L L L L L E E T S B A F I D R 0 5 4 / V F 0 0 1 V 0 Z Z 3 M 0 0 9 E C S 5 . 1 E 9 0 0 M 3 V V 0 V B 0 0 4 2 7 / 8 D I 0 0 B V 0 Z Z 3 M 0 0 9 E C S 2 E 9 0 0 M 3 V V 0 V 2 0 0 41 / 2 3 5 / 8 D I 0 0 2 V 0 Z Z 3 M 0 0 9 E C S 3 51 / 2 5 D I S C 4 61 / 2 6 3 / 1 6 D I D S C 6 0 3 V 0 V V 3 M 0 0 9 E 0 0 3 V 0 Z Z 3 M 0 0 9 E 0 0 4 V 0 V V 3 M 0 0 9 E 0 0 4 V 0 Z Z 3 M 0 0 9 E 0 0 0 6 N 0 V V 1 M 0 0 9 E 8 8 1 / 2 I D DI F E E T S B A F CS R E E T S B A F DI R 8 0 0 8 N 0 V V 1 M 0 0 9 E 9 1 0 5 / 8 I D DI F E 9 0 0 M 3 Z Z 0 V 8 0 0 FA B S T E E CS R E E T S B A F DI R 0 1 0 0 E N 0 V V 1 M 0 0 9 E 1 1 123/4 I D DI F E 9 0 0 M 3 Z Z 0 V E 0 0 FA B S T E E CS R E 9 0 0 M 3 V V 0 V E 0 0 FA B S T E E DI R C F 2 1 E 9 0 0 M 1 V V 0 N F 0 0 12 1 5 DI I E E T S T S A C A S T S T E E L 0 0 8 V 0 V V 3 M 0 0 9 E 0 0 6 V 0 Z Z 3 M 0 0 9 E 0 0 6 V 0 V V 3 M 0 0 9 E 0 0 F N 0 Z Z 2 0 0 9 M E 15

Fabricated Special Angle Elbows

Lined with PTFE or ETFE (Tefzel

®

₎

Resistoflex can provide special angle elbows in various sizes and many configurations. These are custom fabrications to accommo-date non-standard applications that may occur in piping design. When need for a special angle elbow arises, a rough sketch or description giving the pipe size, angle required and desired face-to-centerline dimension should be submitted to the Resistoflex factory. Fabricated Special Angle Elbows are not rated for vacuum service. As a guide, when centerline to face dimensions are not provided, special angle elbows less than 45° have standard 45° elbow centerline to face dimensions. Special angle elbows greater than 45° have standard 90° centerline to face dimensions. Dimensions are for correspoinding sizes.

Tefzel®_{is a trademark of Dupont.}

y l n O y d o B l e e t S b a F -d e g n a l F . b l 0 0 3 e z i S ) S P N ( NuPmabtrers ). n i( n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F °/ g H . n i( B C Mateiral R_F=₌R_Fo_it_xa_eit_dng 1 R6390YY-016 4 2 L E E T S B A F CS R FV/450 0 0 1 V 0 Y Y 3 M 0 0 9 E 31/2 5 . 1 R6390YY-024 41/2 27/8 0 0 B V 0 Y Y 3 M 0 0 9 E 4 2 R6390YY-032 5 35/8 0 0 2 V 0 Y Y 3 M 0 0 9 E 41/2 3 R6390YY-048 6 5 0 0 3 V 0 Y Y 3 M 0 0 9 E 51/2 4 R6390YY-064 7 63/16 0 0 4 V 0 Y Y 3 M 0 0 9 E 61/2 6 R6390YY-096 81/2 81/2 0 0 6 V 0 Y Y 3 M 0 0 9 E 8 8 E900MAYY0V800 10 105/8

Bend radius is 1 x diameter for 1" - 4", and 1.5 x diameter for 6" and larger.

(16)

16

www.cranechempharma.com

www.craneenergy.com

45° Elbows

PTFE-Lined

Housing Materials

DI = ASTM A395 Cast Ductile Iron CAST STEEL = ASTM A216

CS = ASTM A105

CAST STEEL = ASTM A216 DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum

*This part number is special order

d e g n a l F . b l 0 5 1 e z i S ) S P N ( PatrNumber ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F °/ g H . n i( A C Mateiral R=Rotaitng d e x i F = F 1 0 0 1 V 0 V V 3 M 0 0 5 E * 4 / 3 1 2 L E E T S B A F DI R 0 5 4 / V F D DI F E E T S B A F CS 5 . 1 E500M1VV0NB00 0 0 1 N 0 V V 1 M 0 0 5 E 0 0 1 S 0 Z Z 3 M 0 0 5 E 4 / 1 2 27/8 DI DI F 0 E500M3ZZ0VB0 FABSTEE CS R 2 E500M3VV0V200 21/2 35/8 L L L E E T S B A F I D R R R 0 0 2 V 0 Z Z 3 M 0 0 5 E CS 3 E500M3VV0V300 3 5 DI 0 0 3 V 0 Z Z 3 M 0 0 5 E CS 4 E500M3VV0V400 4 63/16 DI 0 0 4 V 0 Z Z 3 M 0 0 5 E CS 6 0 0 6 N 0 V V 1 M 0 0 5 E 5 81/2 I D DI F 0 E500M3ZZ0V60 FABSTEE CS R 0 E500M3VV0V60 FABSTEE DI R 8 0 0 8 N 0 V V 1 M 0 0 5 E 2 / 1 5 105/8 I D DI F E500M3ZZ0S800 FABSTEE CS F E500M3VV0V800 E500M3VV0V800 E E T S B A F DI R 0 1 0 0 E N 0 V V 1 M 0 0 5 E 2 / 1 6 123/4 I D I E E T S FAB CS DI e z i S ) S P N ( ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( A C Mateiral R_F=₌R_Fo_it_xa_eit_dng 1 E500MAYY0 100 21/4 2 L E E T S B A F CS F 0 5 4 / V F 5 . 1 B00 V V 0 Y Y A M 0 0 5 E 23/4 27/8 R 2 E500MAYY0V200 3 35/8 3 E500MAYY0V300 31/2 5 4 E500MAYY0V400 41/2 6 3/16 6 E500MAYY0V600 51/2 81/2 8 E500MAYY0V800 6 105/8 Part Number d e g n a l F . b l 0 0 3 0 0 E V 0 Z Z 3 M 0 0 5 E I L L L L L E E T S FAB L D R FAB 2 1 E500M1VV0NF00 71/2 15 DI I E E T S 0 0 F V 0 Z Z 3 M 0 0 5 E L CS D F F

(17)

17 www.cranechempharma.com

www.craneenergy.com

17

Equal Tees

PTFE-Lined

Housing Materials

CS = ASTM A105

DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum e z i S ) S P N ( P a r t N u m b e r ) . n i ( n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F / g H . n i ( B C M a t e r i a l R _F= ₌R _Fo _it _xa _et i _dn g 1 T N 0 0 M 3 V V V V 1 0 0 31 / 2 2 F A B S T E E L L E E T S B A F L E E T S B A F L E E T S B A F L E E T S B A F L E E T S B A F L E E T S B A F I D R R R R R R R R R 0 5 4 / V F 0 5 4 / V F 0 5 4 / V F 0 5 4 / V F 0 5 4 / V F 0 5 4 / V F 0 0 1 V Z Z Z 3 M 0 0 N T C S 5 . 1 T N 0 0 M 3 V V V V B 0 0 4 2 7 / 8 D I 0 0 B V Z Z Z 3 M 0 0 N T C S 2 T N 0 0 M 3 V V V V 2 0 0 41 / 2 3 5 / 8 D I 0 0 2 V Z Z Z 3 M 0 0 N T C S 3 T N 0 0 M 3 V V V V 3 0 0 51 / 2 5 D I 0 0 3 V Z Z Z 3 M 0 0 N T C S 4 T N 0 0 M 3 V V V V 4 0 0 61 / 2 6 3 / 1 6 D I 0 0 4 V Z Z Z 3 M 0 0 N T C S 6 T N 0 0 M 3 V V V V 6 0 0 8 8 1 / 2 D I 0 0 6 V Z Z Z 3 M 0 0 N T C S S C S C 8 T N 0 0 M 3 V V V V 8 0 0 9 1 0 5 / 8 DI F V / 4 5 0 0 0 8 V Z Z Z 3 M 0 0 N T CS F V / 3 7 5 0 1 T N 0 0 M 3 V V V V E 0 0 0 0 E V Z Z Z 3 M 0 0 N T 11 1 2 3 / 4 F V / 4 50 2 1 T N 0 0 M 3 V V V V F 0 0 12 1 5 F V / 3 75 0 0 F V Z Z Z 3 M 0 0 N y l n O y d o B l e e t S b a F - d e g n a l F . b l 0 0 3 e z i S ) S P N ( P a r t N u m b e r ) . n i ( n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F ° / g H . n i ( B C M a t e r i a l R _F= ₌R _Fo _it _xa _et i _dn g 1 TN 0 0 M 3 Y Y Y V1 0 0 31 / 2 2 L E E T S B A F CS R F V / 4 5 0 5 . 1 TN 0 0 M 3 Y Y Y VB 0 0 4 2 7 / 8 2 TN 0 0 M 3 Y Y Y V2 0 0 41 / 2 3 5 / 8 3 TN 0 0 M 3 Y Y Y V3 0 0 51 / 2 5 4 TN 0 0 M 3 Y Y Y V4 0 0 61 / 2 6 3 / 1 6 6 TN 0 0 M 3 Y Y Y V6 0 0 8 8 1 / 2 8 TN 0 0 M A Y Y Y V8 0 0 10 1 0 5 / 8 150lb. Flanged T L E E T S B A F L E E T S B A F I I D D

(18)

18 www.cranechempharma.com

www.craneenergy.com

Reducing Tees

PTFE-Lined

Housing Materials

CS = ASTM A105 DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum

r o j a M e z i S ) S P N ( r o n i M e z i S ) S P N ( a r t N u m b e r s 150lb. Flanged P ) . n i ( s n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F / g H . n i ( B C D M a t e r i a l R = _FR ₌_Fo _it _xa _et i _dn g 5 . 1 1 4 27 / 8 2 L E E T S B A F L E E T S B A F I D 0 5 4 / V F S C 2 1 2 / 1 4 3 5 / 8 2 D I S C 5 . 1 2 7 / 8 D I S C 3 1 2 / 1 5 5 2 D I S C 5 . 1 2 7 / 8 D I S C 2 3 5 / 8 D I S C 4 61 / 2 6 3 / 1 6 2 CS F V / 3 2 5 5 . 1 2 7 / 8 DI F V / 4 5 0 0 B 4 V Z Z Z 3 M 0 0 R T CS F V / 3 2 5 2 T R 0 0 M 3 V V V V 4 2 0 3 5 / 8 DI F V / 4 5 0 0 2 4 V Z Z Z 3 M 0 0 R T CS F V / 3 2 5 3 T R 0 0 M 3 V V V V 4 3 0 5 DI F V / 4 5 0 0 3 4 V Z Z Z 3 M 0 0 R T CS F V / 3 2 5 6 2 T R 0 0 M 3 V V V V 6 2 0 8 8 1 / 2 8 / 5 3 DI F V / 4 5 0 0 2 6 V Z Z Z 3 M 0 0 R T CS 2 3 / 2 0 0 3 T R 0 0 M 3 V V V V 6 3 0 5 DI F V / 4 5 0 0 3 6 V Z Z Z 3 M 0 0 R T CS 2 3 / 2 0 0 4 T R 0 0 M 3 V V V V 6 4 0 0 3 8 V Z Z Z 3 M 0 0 R T 6 1 / 3 6 DI F V / 4 5 0 0 0 4 6 V Z Z Z 3 M 0 0 R T CS 2 3 / 2 0 0 3 3 T R 0 0 M 3 V V V V 8 DI _F_V_/₄₅₀ T R00M3VVVVB10 T R00M3ZZZVB10 T R00M3VVVV210 T R00M3ZZZV210 T R00M3VVVV2B0 T R00M3ZZZV2B0 T R00M3VVVV310 T R00M3ZZZV310 T R00M3VVVV3B0 T R00M3ZZZV3B0 T R00M3VVVV320 T R00M3ZZZV320 T R00M3VVVV4B0 1 TR00M3ZZZR410 a 8 4 9 1 0 5 / 8 0 4 8 V V V V 3 M 0 0 R T ₆₃_/₁₆ D I S C 0 4 8 V Z Z Z 3 M 0 0 R T CS F V / 1 5 0 6 6 DI CS DI CS 8 0 6 8 V V V V 3 M 0 0 R T 2 / 1 8 DI F V / 4 5 0 0 6 8 V Z Z Z 3 M 0 0 R T CS F V / 1 5 0 0 1 0 6 E V V V V 3 M 0 0 R T 0 6 E V Z Z Z 3 M 0 0 R T 1 1 1 2 3 / 4 2 / 1 8 R 0 5 4 / V F 0 T R 0 0 M 3 V V V V E 8 0 T R 0 0 M 3 Z Z Z V E 8 1 0 5 / 8 2 1 12 1 5 6 1 / 3 6 5 7 3 / V F 10 8 6 4 /4 3 2 1 DI CS DI CS DI CS DI CS DI CS DI CS / 1 8 2 / 5 0 1 8 4 F V V V V 3 M 0 0 R T 0 4 F V Z Z Z 3 M 0 0 R T 0 6 F V V V V 3 M 0 0 R 0 T 6 F V Z Z Z 3 M 0 0 R 0 T 8 F V V V V 3 M 0 0 R 0 T 8 F Z Z Z Z 3 M 0 0 R 0 T E F V V V V 3 M 0 0 R 0 T E F V Z Z Z 3 M 0 0 R 0 T 5 R

(19)

19 www.cranechempharma.com

www.craneenergy.com

Fabricated Two-Piece Reducing Tees

PTFE-Lined

y l n O y d o B l e e t S b a F -d e g n a l F . b l 0 0 3 r o j a M e z i S ) S P N ( r o n i M e z i S ) S P N ( PatrNumber ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( B C D Mateiral R_F=₌R_Fo_it_xa_eit_dng 5 . 1 1 TR00M3YYYVB10 4 27/8 2 L E E T S B A F CS R 0 5 4 / V F 2 1 TR00M3YYYV210 41/2 35/8 2 5 . 1 TR00M3YYYV2B0 27/8 3 1 TR00M3YYYV310 2 / 1 5 5 2 5 . 1 TR00M3YYYV3B0 27/8 2 TR00M3YYYV320 35/8 4 1.5 2 3 2 3 4 B 4 V Y Y Y 3 M 0 0 R T 2 / 1 6 63/16 8 / 7 2 5 2 3 / V F 2 4 V Y Y Y 3 M 0 0 R T 35/8 3 4 V Y Y Y 3 M 0 0 R T 5 6 2 6 V Y Y Y 3 M 0 0 R T 8 81/2 8 / 5 3 0 0 2 / 3 2 3 6 V Y Y Y 3 M 0 0 R T 5 4 6 V Y Y Y 3 M 0 0 R T 63/16 8 3 TR00M3YYYV830 9 105/8 5 0 5 4 / V F 0 5 4 / V F 4 TR00M3YYYV840 63/16 6 TR00M3YYYV860 81/2 r o j a M e z i S ) S P N ( r o n i M e z i S ) S P N ( PatrNumber ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( B C D Mateiral R_F=₌R_Fo_it_xa_eit_dng 6 8 8 2 L E E T S B A F CS R 2 / 1 1 TR M3VVVV6B0 27/8 8 1 TR M3VVVV810 9 101/4 2 2 / 1 1 TR M3VVVV8B0 27/8 2 TR M3VVVV820 35/8 0 1 1 TR M3VVVVE10 1 1 123/4 2 / 1 1 TR M3VVVVEB0 27/8 2 TR M3VVVVE20 5/8 3 TR M3VVVVE30 5 4 TR M3VVVVE40 63/16 2 1 1 TR M3VVVVF10 2 1 15 2 2 / 1 1 TR M3VVVVFB0 27/8 2 TR M3VVVVF20 35/8 3 TR M3VVVVF30 5 1 TR00M3VVVV610 00 00 00 00 00 00 00 00 00 00 00 00 00 2 3 0 0 0 0 0 0 d e g n a l F . b l 0 5 1

Construction is an equal tee with a shortened stack and a reducing filler flange bolted together

Fabricated Two-Piece Reducing Tees

PTFE-Lined

Fabricated Two-Piece Reducing Tees

PTFE-Lined

Reducing Tees

PTFE-Lined

(20)

20 www.cranechempharma.com

www.craneenergy.com

Crosses

PTFE-Lined

Housing Materials

CS = ASTM A105

DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum d e g n a l F . b l 0 5 1 e z i S ) S P N ( P a r t N u m b e r ) . n i ( s n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F / g H . n i ( B C M a t e r i a l R _F= ₌R _Fo _it _xa _et i _dn g 1 C N 0 0 M 3 V V V V 1 0 0 31 / 2 2 L E E T S B A F I D R 0 0 1 V Z Z Z 3 M 0 0 N C CS 5 . 1 C N 0 0 M 3 V V V V B0 0 4 2 7 / 8 DI F V / 4 5 0 0 0 B V Z Z Z 3 M 0 0 N C CS N o V a c u u m 2 C N 0 0 M 3 V V V V 2 0 0 41 / 2 3 5 / 8 DI F V / 4 5 0 0 0 2 V Z Z Z 3 M 0 0 N C CS N o V a c u u m 3 C N 0 0 M 3 V V V V 3 0 0 51 / 2 5 DI F V / 4 5 0 0 0 3 V Z Z Z 3 M 0 0 N C CS N o V a c u u m 4 C N 0 0 M 3 V V V V 4 0 0 61 / 2 6 3 / 1 6 DI F V / 4 5 0 0 0 4 V Z Z Z 3 M 0 0 N C CS N o V a c u u m 6 C N 0 0 M 3 V V V V 6 0 0 8 8 1 / 2 DI F V / 4 5 0 0 0 6 V Z Z Z 3 M 0 0 N C CS N o V a c u u m 8 C N 0 0 M 3 V V V V 8 0 0 9 1 0 5 / 8 DI F V / 4 5 0 0 0 8 V Z Z Z 3 M 0 0 N C CS N o V a c u u m e z i S ) S P N ( P a r t N u m be r ) . n i ( s n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F g n i t a R m u u c a V ) F / g H . n i ( B C M a t e r i a l R _F= ₌R _Fo _it _xa _et i _dn g 1 CN 0 0 M 3 Y Y Y R1 0 0 31 / 2 2 L E E T S B A F CS R N o Va c u u m 5 . 1 CN 0 0 M 3 Y Y Y RB0 0 4 2 7 / 8 2 CN 0 0 M 3 Y Y Y R2 0 0 41 / 2 3 5 / 8 3 CN 0 0 M 3 Y Y Y R3 0 0 51 / 2 5 4 CN 0 0 M 3 Y Y Y R4 0 0 61 / 2 6 3 / 1 6 6 CN 0 0 M 3 Y Y Y R6 0 0 8 8 1 / 2 8 CN 0 0 M A Y Y Y R8 0 0 10 1 0 5 / 8 d e g n a l F . b l 0 0 3 0 5 4 / V F

Crosses

PTFE-Lined

(21)

21 www.cranechempharma.com

www.craneenergy.com

DI Short Stack Tees & Crosses

PTFE-Lined, 150lb. Flanged

Housing Materials

DI = ASTM A395 Cast Ductile Iron Flange Materials

DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum

*All bolt holes are tapped.

** 4 holes closest to centerline are tapped. The other bolt holes are bored smooth. Note: Vacuum ratings for this product are for

steady-state vacuum, only. Frequent vacuum cycling may reduce service life.

e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( B C D Mateiral _B_oSt_tla_Hc_ok_l_e _B_oR_tlu_Hn_o_l_e 1 TH00B1VVVN100 31/2 2 13/16 I D DI * 3 1 -2 / 1 1/2-13 FV/450 5 . 1 TH00B1VVVNB00 4 27/8 115/32 1/2-13* 1/2-13 FV/450 2 TH00B1VVVN200 41/2 35/8 111/16 5/8-11* 3/4 FV/450 3 TH00B1VVVN300 51/2 5 23/16 5/8-11* 3/4 FV/350 4 TH00B1VVVN400 61/2 63/16 211/16 5/8-11* 3/4 FV/210 6 TH00B1VVVN600 8 81/2 311/16 3/4-10** 7/8 11/210 8 TH00B1VVVN800 9 105/8 415/16 3/4-10** 7/8 m u u c a V o N 0 1 TH00B1VVVNE00 11 123/4 6 7/8-9** 1 2 1 TH00B1VVVNF00 12 15 71/32 7/8-9** 1 e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( B C D Mateiral _B_oSt_tla_Hc_ok_l_e _B_oR_tlu_Hn_o_l_e 1 CH00B1VVVN100 31/2 2 13/16 I D DI * 3 1 -2 / 1 1/2-13 FV/300 5 . 1 CH00B1VVVNB00 4 27/8 115/32 1/2-13* 1/2-13 FV/250 2 CH00B1VVVN200 41/2 35/8 111/16 5/8-11* 3/4 FV/250 3 CH00B1VVVN300 51/2 5 23/16 5/8-11* 3/4 FV/200 4 CH00B1VVVN400 61/2 63/16 211/16 5/8-11** 3/4 25/200 6 CH00B1VVVN600 8 81/2 311/16 3/4-10** 7/8 m u u c a V o N 8 CH00B1VVVN800 9 105/8 415/16 3/4-10** 7/8 0 1 CH00B1VVVNE00 11 123/4 6 7/8-9** 1 150 lb. Flanged 150 lb. Flanged Short Stack Tees

Short Stack Crosses

CH00B1VVVNF00

12 12 15 7 1/32 7/8-9** 1

DI Short Stack Tees & Crosses

PTFE-Lined, 150lb. Flanged

Housing Materials

DI = ASTM A395 Cast Ductile Iron Flange Materials

*All bolt holes are tapped.

** 4 holes closest to centerline are tapped. The other bolt holes are bored smooth. Note: Vacuum ratings for this product are for

steady-state vacuum, only. Frequent vacuum cycling may reduce service life.

e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( B C D Mateiral _B_oSt_tla_Hc_ok_l_e _B_oR_tlu_Hn_o_l_e 1 TH00B1VVVN100 31/2 2 13/16 I D DI * 3 1 -2 / 1 1/2-13 FV/450 5 . 1 TH00B1VVVNB00 4 27/8 115/32 1/2-13* 1/2-13 FV/450 2 TH00B1VVVN200 41/2 35/8 111/16 5/8-11* 3/4 FV/450 3 TH00B1VVVN300 51/2 5 23/16 5/8-11* 3/4 FV/350 4 TH00B1VVVN400 61/2 63/16 211/16 5/8-11* 3/4 FV/210 6 TH00B1VVVN600 8 81/2 311/16 3/4-10** 7/8 11/210 8 TH00B1VVVN800 9 105/8 415/16 3/4-10** 7/8 m u u c a V o N 0 1 TH00B1VVVNE00 11 123/4 6 7/8-9** 1 2 1 TH00B1VVVNF00 12 15 71/32 7/8-9** 1 e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( B C D Mateiral _B_oSt_tla_Hc_ok_l_e _B_oR_tlu_Hn_o_l_e 1 CH00B1VVVN100 31/2 2 13/16 I D DI * 3 1 -2 / 1 1/2-13 FV/300 5 . 1 CH00B1VVVNB00 4 27/8 115/32 1/2-13* 1/2-13 FV/250 2 CH00B1VVVN200 41/2 35/8 111/16 5/8-11* 3/4 FV/250 3 CH00B1VVVN300 51/2 5 23/16 5/8-11* 3/4 FV/200 4 CH00B1VVVN400 61/2 63/16 211/16 5/8-11** 3/4 25/200 6 CH00B1VVVN600 8 81/2 311/16 3/4-10** 7/8 m u u c a V o N 8 CH00B1VVVN800 9 105/8 415/16 3/4-10** 7/8 0 1 CH00B1VVVNE00 11 123/4 6 7/8-9** 1 150 lb. Flanged 150 lb. Flanged Short Stack Tees

Short Stack Crosses

CH00B1VVVNF00

12 12 15 7 1/32 7/8-9** 1

DI Short Stack Tees & Crosses

PTFE-Lined

C D

B

C STACK BOLT HOLES

RUN BOLT HOLES C D B C STACK BOLT HOLES

RUN BOLT HOLES

(22)

22 www.cranechempharma.com

www.craneenergy.com

T400M300ZR110 T400M300ZRB10 T400M300ZR210 T400M300ZR310 T400M300ZR410

Instrument Tees with 1" Branch

(23)

23 www.cranechempharma.com

www.craneenergy.com

Instrument Tee with 1.5" Branch

PTFE-Lined

Housing Materials

FAB STEEL = Housing fabricated from pipe and/or weld fittings DI = ASTM A395 Cast Ductile Iron

Flange Materials CS = ASTM A105

*Nominal ID. For exact ID to determine if an instrument will fit in the bore, field measurement is necessary.

e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( P R T J S* Mateiral R=_FR₌_Fo_it_xa_eit_dng 5 . 1 T400M300ZSBB0 4 3 33/8 27/8 15/16 L E E T S B A F CS F 0 5 4 / V F 0 B B R Z 0 0 3 M 0 0 4 T 4 11/8 R 2 T400M300ZS2B0 59/16 3 41/8 35/8 15/16 F 0 B 2 R Z 0 0 3 M 0 0 4 T 41/2 4 11/8 R 3 T400M100VN3B0 65/16 3 53/8 5 15/16 DI DI F 0 B 3 R Z 0 0 3 M 0 0 4 T 51/2 4 11/8 L E E T S B A F CS R 4 T400M300ZS4B0 71/16 3 67/8 63/16 15/16 F 0 B 4 R Z 0 0 3 M 0 0 4 T 61/2 4 11/8 R 6 T400M300ZS6B0 81/16 3 83/4 81/2 15/16 F FV/450 0 B 6 R Z 0 0 3 M 0 0 4 T 8 4 11/8 R 27/400 8 T400M300ZS8B0 95/16 3 11 105/8 15/16 F FV/450 0 B 8 R Z 0 0 3 M 0 0 4 T 9 4 11/8 R NoVacuum 0 1 T400M300ZSEB0 103/8 3 133/8 123/4 15/16 F FV/450 0 B E R Z 0 0 3 B 0 0 4 T 11 4 131/4 11/8 R NoVacuum 2 1 T400M300ZSFB0 117/8 3 161/8 15 15/16 F FV/450 0 B F R Z 0 0 3 B 0 0 4 T 12 4 16 11/8 R NoVacuum e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( P R T J S* Mateiral R_F=₌R_Fo_it_xa_eit_dng 5 . 1 T400MA00YSBB0 4 1/2 3 3/ 3 2 4 3 27/8 111/32 L E E T S B A F CS F FV/450 3 T400MA00YS3B0 65/16 3 57/8 5 111/32 4 T400MA00YS4B0 71/16 3 71/8 63/16 111/32 6 T400MA00YS6B0 1/16 9 7/8 12 1/8 / 1 8 111/32 8 T400MA00YS8B0 5/16 105/ 111/32 150lb. Flanged 300lb. Flanged 8 8 3 9

Instrument Tees with 1.5" Branch

(24)

24

₂₂

www.cranechempharma.com

www.craneenergy.com

Instrument Tee with 2” Branch

PTFE-Lined

Housing Materials

CS = ASTM A105 FV = Full Vacuum

*Nominal ID. For exact ID to determine if an instrument will fit in the bore, field measurement is necessary.

d e g n a l F . b l 0 5 1 e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( P T J S* Mateiral R=_FR₌_Fo_it_xa_eit_dng 2 T400M300ZM220 59/16 41/8 35/8 125/32 L E E T S B A F CS F 0 5 4 / V F 0 2 2 R Z 0 0 3 M 0 0 4 T 41/2 15/8 R 3 T400M300ZS320 65/16 53/8 5 17/8 F 0 2 3 R Z 0 0 3 M 0 0 4 T 51/2 15/8 R 4 T400M300ZM420 71/16 67/8 63/16 125/32 F 0 2 4 R Z 0 0 3 M 0 0 4 T 61/2 15/8 R 6 T400M300ZS620 81/16 83/4 81/2 17/8 F FV/450 0 2 6 R Z 0 0 3 B 0 0 4 T 8 15/8 R 28/450 8 T400M300ZS820 95/16 11 105/8 17/8 F FV/450 0 2 8 R Z 0 0 3 B 0 0 4 T 9 15/8 R NoVacuum 0 1 T400M300ZSE20 103/8 133/8 123/4 17/8 F FV/450 0 2 E R Z 0 0 3 B 0 0 4 T 11 131/4 15/8 R NoVacuum 2 1 T400M300ZSF20 117/8 161/8 15 17/8 F FV/450 0 2 F R Z 0 0 3 B 0 0 4 T 12 16 15/8 R NoVacuum

Instrument Tees With 2" Branch

(25)

25 www.cranechempharma.com

www.craneenergy.com

Strainer Tee Assembly

PTFE-Lined, 150lb. Flanged

Housing Material

FAB STEEL = Housing fabricated from carbon steel pipe and/or weld fittings. Flange Material

CS = ASTM A105

Note: 12th character in the part number indicates the size of the holes in the strainer. All part numbers in the table are shown with an “R”, which indicates 1/8” holes. The following are the available hole sizes and their

corresponding character: Q = 1/16”; R = 1/8”; S = 3/16”; T = 1/4”; U = 5/16”; V = 3/8” If other hole sizes are required, please contact the factory.

B B B C e z i S ) S P N ( PartNumber ) . n i( s n o i s n e m i D g n i s u o H l a i r e t a M s e g n a l F Vac_i(u_nu_.m_H_gR_/a_F₎itng B C Material R_F=₌R_Fo_it_xa_eit_dng 1 T807M3VVVV1R0 31/2 2 L E E T S B A F I D R 0 R 1 V Z Z Z 3 M 7 0 8 T CS 2 / 1 1 T807M3VVVVBR0 4 27/8 DI 0 R B V Z Z Z 3 M 7 0 8 T CS 2 T807M3VVVV2R0 41/2 35/8 DI 0 R 2 V Z Z Z 3 M 7 0 8 T CS 3 T807M3VVVV3R0 51/2 5 DI 0 R 3 V Z Z Z 3 M 7 0 8 T CS 0 5 4 / V F 4 T807M3VVVV4R0 61/2 63/16 DI 0 R 4 V Z Z Z 3 M 7 0 8 T CS 6 T807M3VVVV6R0 8 81/2 0 R 6 V Z Z Z 3 M 7 0 8 T T I D S C I D S C I D S C I D S C R 8 V V V V 3 M 7 0 8 10 807M3VVVVER 12 807M3VVVVFR FV/375 T807M3ZZZV8R0 T807M3ZZZVER0 T807M3ZZZVFR0 8 0 0 0 T T 9 10 5/8 12 3/4 15 11 12

Strainer Tee Assembly

PTFE-Lined, 150 lb. Flanged

Note: Plastic-lined baffle tee strainers are designed to prevent relatively large particles from passing. These are not designed to be fine particulate screens or filters.

(26)

26 www.cranechempharma.com

www.craneenergy.com

27

Lugged Body Instrument Tees, 1.5” Branch

PTFE / Polypropylene / PVDF-Lined, 150lb. Flanged

Housing Materials Fabricated Steel Flange Material

ASTM A105 Forged Steel Vacuum Ratings

All 1 1/2” - 8” lugged body instrument tees are rated for full vacuum at maximum operating temperature.

10” - 12” sizes are not rated for vacuum service.

Actual branch inside diameter may vary. If ID of branch is critical, consult the factory.

Note: Lugged Body Instrument Tees cannot be installed side by side, they need to have a flanged spool installed between them.

PTFE lined lugged body instrument tees are supplied with a rotating flange on the branch. PP & PVDF lined lugged body instrument tees are supplied with a fixed flange on the branch.

e z i S ) S P N ( Liner PatrNumbers ). n i( s n o i s n e m i D P T J _NH_o_.H_&ol_Se_is_z_e G 2 / 1 1 E F T P T400M3ZZZLBB0 4 5 27/8 (4)1/2-13 37/8 P P T400P3ZZZLBB0 F D V P T400K3ZZZLBB0 2 E F T P T400M3ZZZL2B0 2 / 1 4 6 35/8 (4)5/8-11 43/4 P P T400P3ZZZL2B0 F D V P T400K3ZZZL2B0 3 E F T P T400M3ZZZL3B0 2 / 1 5 71/2 5 (4)5/8-11 6 P P T400P3ZZZL3B0 F D V P T400K3ZZZL3B0 4 E F T P T400M3ZZZL4B0 2 / 1 6 9 63/16 (8)5/8-11 71/2 P P T400P3ZZZL4B0 F D V P T400K3ZZZL4B0 6 E F T P T400M3ZZZL6B0 8 11 81/2 (8)3/4-10 91/2 P P T400P3ZZZL6B0 F D V P T400K3ZZZL6B0 8 E F T P T400M3ZZZL8B0 9 131/2 105/8 (8)3/4-10 113/4 P P T400P3ZZZL8B0 F D V P T400K3ZZZL8B0 0 1 PTFE T400B3ZZZLEB0 11 16 123/4 (12)7/8-9 141/4 2 1 PTFE T400B3ZZZLFB0 12 19 15 (12)7/8-9 17 26

Lugged Body Instrument Tees, 1" Branch

PTFE / Polypropylene / PVDF-Lined, 150lb. Flanged

All 1” - 8” lugged body instrument tees are rated for full vacuum at maximum operating temperature.

e z i S ) S P N ( Liner PatrNumbers ). n i( s n o i s n e m i D P T J _NH_o_.H_&o_Sle_is_z_e G 1 E F T P T400M3ZZZL110 2 / 1 3 41/4 2 (4)1/2-13 31/8 P P T400P3ZZZL110 F D V P T400K3ZZZL110 2 / 1 1 E F T P T400M3ZZZLB10 4 5 27/8 (4)1/2-13 37/8 P P T400P3ZZZLB10 F D V P T400K3ZZZLB10 2 E F T P T400M3ZZZL210 2 / 1 4 6 35/8 (4)5/8-11 43/4 P P T400P3ZZZL210 F D V P T400K3ZZZL210 3 E F T P T400M3ZZZL310 2 / 1 5 71/2 5 (4)5/8-11 6 P P T400P3ZZZL310 F D V P T400K3ZZZL310 4 E F T P T400M3ZZZL410 2 / 1 6 9 63/16 (8)5/8-11 71/2 P P T400P3ZZZL410 F D V P T400K3ZZZL410 6 E F T P T400M3ZZZL610 8 11 81/2 (8)3/4-10 91/2 P P T400P3ZZZL610 F D V P T400K3ZZZL610 8 E F T P T400M3ZZZL810 9 131/2 105/8 (8)3/4-10 113/4 P P T400P3ZZZL810 F D V P T400K3ZZZL810 0 1 PTFE T400B3ZZZLE10 11 16 123/4 (12)7/8-9 141/4 2 1 PTFE T400B3ZZZLF10 12 19 15 (12)7/8-9 17

Lugged Body Instrument Tees with 1" Branch

(27)

27 www.cranechempharma.com

www.craneenergy.com

₂₇

Lugged Body Instrument Tees, 1.5” Branch

PTFE / Polypropylene / PVDF-Lined, 150lb. Flanged

All 1 1/2” - 8” lugged body instrument tees are rated for full vacuum at maximum operating temperature.

e z i S ) S P N ( Liner PatrNumbers ). n i( s n o i s n e m i D P T J _NH_o_.H_&ol_Se_is_z_e G 2 / 1 1 E F T P T400M3ZZZLBB0 4 5 27/8 (4)1/2-13 37/8 P P T400P3ZZZLBB0 F D V P T400K3ZZZLBB0 2 E F T P T400M3ZZZL2B0 2 / 1 4 6 35/8 (4)5/8-11 43/4 P P T400P3ZZZL2B0 F D V P T400K3ZZZL2B0 3 E F T P T400M3ZZZL3B0 2 / 1 5 71/2 5 (4)5/8-11 6 P P T400P3ZZZL3B0 F D V P T400K3ZZZL3B0 4 E F T P T400M3ZZZL4B0 2 / 1 6 9 63/16 (8)5/8-11 71/2 P P T400P3ZZZL4B0 F D V P T400K3ZZZL4B0 6 E F T P T400M3ZZZL6B0 8 11 81/2 (8)3/4-10 91/2 P P T400P3ZZZL6B0 F D V P T400K3ZZZL6B0 8 E F T P T400M3ZZZL8B0 9 131/2 105/8 (8)3/4-10 113/4 P P T400P3ZZZL8B0 F D V P T400K3ZZZL8B0 0 1 PTFE T400B3ZZZLEB0 11 16 123/4 (12)7/8-9 141/4 2 1 PTFE T400B3ZZZLFB0 12 19 15 (12)7/8-9 17

Lugged Body Instrument Tees with 1.5" Branch

(28)

28 www.cranechempharma.com

www.craneenergy.com

₃₀

45° Laterals

PTFE-Lined, 150lb. Flanged

Housing Materials CAST STEEL = ASTM A216

CAST STEEL = ASTM A105 CAST STEEL = ASTM A216 DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( Y Z S C Mateiral R=_FR₌_Fo_it_xa_eit_dng 1 LN00M3VVVV100 53/4 13/4 71/2 2 FABSTEEL DI R FV/450 0 0 1 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 5 . 1 LN00M3VVVVB00 7 2 9 27/8 FABSTEEL DI R FV/450 0 0 B N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 2 LN00M3VVVV200 8 21/2 101/2 35/8 FABSTEEL DI R FV/450 0 0 2 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 3 LN00M3VVVV300 10 3 13 5 FABSTEEL DI R FV/450 0 0 3 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 4 LN00M3VVVV400 12 3 15 63/16 FABSTEEL DI R FV/450 0 0 4 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 6 LN00M3VVVV600 141/2 31/2 18 81/2 FABSTEEL DI R FV/450 0 0 6 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 8 LN00B3VVVV800 171/2 41/2 22 105/8 FABSTEEL DI R FV/210,15/450 0 0 8 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 28

Lugged Body Instrument Tees, 2” Branch

PTFE / Polypropylene / PVDF Lined, 150lb. Flanged

All 2” - 8” lugged body instrument tees are rated for full vacuum at maximum operating temperature.

e z i S ) S P N ( Liner PatrNumbers ). n i( s n o i s n e m i D P T J _NH_o_.H_&o_Sle_is_z_e G 2 E F T P T400M3ZZZL220 2 / 1 4 6 35/8 (4)5/8-11 43/4 P P T400P3ZZZL220 F D V P T400K3ZZZL220 3 E F T P T400M3ZZZL320 2 / 1 5 71/2 5 (4)5/8-11 6 P P T400P3ZZZL320 F D V P T400K3ZZZL320 4 E F T P T400M3ZZZL420 2 / 1 6 9 63/16 (8)5/8-11 71/2 P P T400P3ZZZL420 F D V P T400K3ZZZL420 6 E F T P T400M3ZZZL620 8 11 81/2 (8)3/4-10 91/2 P P T400P3ZZZL620 F D V P T400K3ZZZL620 8 E F T P T400M3ZZZL820 9 131/2 105/8 (8)3/4-10 113/4 P P T400P3ZZZL820 F D V P T400K3ZZZL820 0 1 PTFE T400B3ZZZLE20 11 16 123/4 (12)7/8-9 141/4 2 1 PTFE T400B3ZZZLF20 12 19 15 (12)7/8-9 17

Lugged Body Instrument Tees with 2" Branch

(29)

29 www.cranechempharma.com

www.craneenergy.com

30

45° Laterals

PTFE-Lined, 150lb. Flanged

Housing Materials CAST STEEL = ASTM A216

CAST STEEL = ASTM A105 CAST STEEL = ASTM A216 DI = ASTM A395 Cast Ductile Iron FV = Full Vacuum e z i S ) S P N ( PatrNumbers ). n i( s n o i s n e m i D g n i s u o H l a ir e t a M s e g n a l F g n it a R m u u c a V ) F / g H . n i( Y Z S C Mateiral R=_FR₌_Fo_it_xa_eit_dng 1 LN00M3VVVV100 53/4 13/4 71/2 2 FABSTEEL DI R FV/450 0 0 1 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 5 . 1 LN00M3VVVVB00 7 2 9 27/8 FABSTEEL DI R FV/450 0 0 B N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 2 LN00M3VVVV200 8 21/2 101/2 35/8 FABSTEEL DI R FV/450 0 0 2 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 3 LN00M3VVVV300 10 3 13 5 FABSTEEL DI R FV/450 0 0 3 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 4 LN00M3VVVV400 12 3 15 63/16 FABSTEEL DI R FV/450 0 0 4 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 6 LN00M3VVVV600 141/2 31/2 18 81/2 FABSTEEL DI R FV/450 0 0 6 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum 8 LN00B3VVVV800 171/2 41/2 22 105/8 FABSTEEL DI R FV/210,15/450 0 0 8 N Z Z Z 2 B 0 0 N L CASTSTEEL CASTSTEEL F NoVacuum
