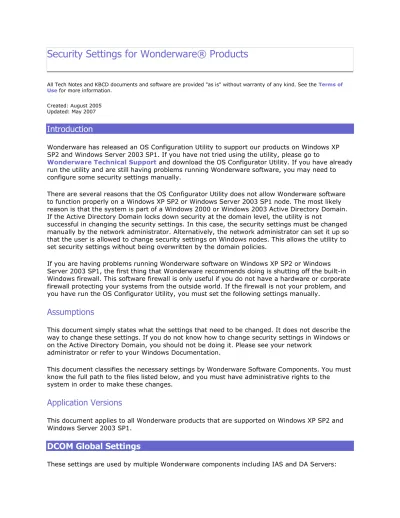

Security Settings for Wonderware® Products
All Tech Notes and KBCD documents and software are provided "as is" without warranty of any kind. See the Terms of Use for more information.
Created: August 2005 Updated: May 2007
Introduction
Wonderware has released an OS Configuration Utility to support our products on Windows XP SP2 and Windows Server 2003 SP1. If you have not tried using the utility, please go to
Wonderware Technical Support and download the OS Configurator Utility. If you have already run the utility and are still having problems running Wonderware software, you may need to configure some security settings manually.
There are several reasons that the OS Configurator Utility does not allow Wonderware software to function properly on a Windows XP SP2 or Windows Server 2003 SP1 node. The most likely reason is that the system is part of a Windows 2000 or Windows 2003 Active Directory Domain. If the Active Directory Domain locks down security at the domain level, the utility is not
successful in changing the security settings. In this case, the security settings must be changed manually by the network administrator. Alternatively, the network administrator can set it up so that the user is allowed to change security settings on Windows nodes. This allows the utility to set security settings without being overwritten by the domain policies.
If you are having problems running Wonderware software on Windows XP SP2 or Windows Server 2003 SP1, the first thing that Wonderware recommends doing is shutting off the built-in Windows firewall. This software firewall is only useful if you do not have a hardware or corporate firewall protecting your systems from the outside world. If the firewall is not your problem, and you have run the OS Configurator Utility, you must set the following settings manually.
Assumptions
This document simply states what the settings that need to be changed. It does not describe the way to change these settings. If you do not know how to change security settings in Windows or on the Active Directory Domain, you should not be doing it. Please see your network
administrator or refer to your Windows Documentation.
This document classifies the necessary settings by Wonderware Software Components. You must know the full path to the files listed below, and you must have administrative rights to the system in order to make these changes.
Application Versions
This document applies to all Wonderware products that are supported on Windows XP SP2 and Windows Server 2003 SP1.
DCOM Global Settings
Security settings (in Component services) Component Services Com Security
Launch and Activation Permissions Everyone and Remote Activation
Access Permission
Add Local Access and Remote Access permissions for the ANONYMOUS user.
Archestra LogViewer
Used by all FactorySuite A² components including InTouch, IAS, InSQL, DA Servers. Make the following entry into the registry:
HKLM\Software\Policies\Microsoft\WindowsNT\RPC\RestrictRemoteClients = 0
SuiteLink
Used by all Wonderware products.
Add the following to the firewall settings exception list:
• slssvc.exe
InTouch
Requires SuiteLink common component modification. Add following programs in exception list:
• wm.exe
InSQL
Requires SuiteLink common component modification.
The following processes need to be added to the firewall exclusion list:
• InSQLData.exe • InSQLConfig.exe • InSQLSCM.exe • InSQLRet.exe
• SQLServr.exe
Add the following ports to the Firewall exception list:
File and printer sharing 445/tcp
SQL Server Browser 1434/udp
SQL TCP 1433/tcp
DCOM 135/tcp
Industrial Application Server
Requires SuiteLink common component modification. Add Application list to be excluded in firewall blocking list:
• aaIDE.exe • aaLogger.exe • Slssvc.exe • aaPim.exe • BootStrap.exe • aaDcomTransport.exe • SQLServr.exe • NmxSvc.exe
Add the following ports to the Firewall exception list:
DCOM 135/tcp
File and printer sharing 445/tcp
SQL TCP 1433/tcp
SQL Server Browser 1434/udp
DA Servers
Requires SuiteLink common component modification. Add the following ports to the Firewall exception list:
DAS SI Direct 102 DAS MBTCP 502 DAS ABTCP 2221 DAS ABTCP 2222 DAS ABTCP 2223 S/L DA Servers 5413 DAS ABCIP 44818
The following files need to be excluded in the firewall. They are common to all DA Servers: • aaEngine.exe • NmxSvc.exe • OPCEnum.exe • Dllhost.exe • DASAgent.exe
The following files need to be excluded in the firewall. They are specific to each DA Server:
• DASABCIP.exe • DASMBTCP.exe • DASABTCP.exe • DASSIDirect.exe • FSGateway.exe • DASS7.exe • S7ConSvr.exe • DASMBSerial.exe • DASMBPlus.exe • DASAlarm2U.exe
If you are using Industrial Application Server and are planning on deploying DI Objects you will need to manually exclude the following files in the firewall. You will need to create dummy files with these names as they are not on the system until a deploy occurs. Windows XP SP2 firewall will not exclude files unless they already exist on the system. These files are deployed to the
\Program Files\Archestra\Framework\Bin directory.
• DASABCIP.exe • DASMBTCP.exe • DASABTCP.exe • DASSIDirect.exe • DASS7.exe • DASMBSerial.exe
• DASMBPlus.exe • DASAlarm2U.exe • aaEngine.exe • NmxSvc.exe • DASAgent.exe
The following file is deployed to the \Windows\System32 sub-directory:
OPCEnum.exe
IO Servers
Requires SuiteLink common component modification.
InBatch
1. Add ports (9001 - 9016) list to be excluded in firewall blocking list for communication: Vista 9001/tcp EnvMngr 9002/tcp MsgMngr 9003/tcp SecMngr 9004/tcp RedMngr 9006/tcp UnilinkMngr 9007/tcp BatchMngr 9008/tcp LogMngr 9011/tcp InfoMngr 9012/tcp RedMngrX 9013/udp RedMngrX2 9014/udp HistQMngr 9015/tcp HistQReader 9016/tcp
2. Enable File and Printer Sharing:
File and printer sharing 445/tcp
3. Add the InBatch Server to the Local Intranet Zone in Internet Explorer as a trusted site. If the InBatch Server site is not a secured site, you may need to change the Local Intranet Zone to allow unsecured sites.
InControl
Requires SuiteLink common component modification. Add following programs to the exception list:
• RTEngine.exe • ICOPCServer.exe
Modifications must be made to the firewall registry settings if you frequently switch between Domain and Workgroup logons. If you do, set both the Domain and Standard profiles so that all Wonderware products are configured in both profiles. These profiles are located in the registry: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SharedAccess\Parameters\FIrew allPolicy
There is one key per firewall policy. The profile in effect when the machine is connected to the domain is under the key DomainProfile. The profile in effect when the machine is not connected to the domain is under the key StandardProfile.
The list of application exceptions for each profile is stored as a set of string values under the profile subkey of AuthorizesApplications\List. The list of port exceptions for each profile is stored as a set of string values under the profile subkey of GloballyOpenPorts\List.
So, to see in the registry what application exceptions are in force for the domain firewall profile, look at the values under the following key:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Service\SharedAccess\Parameters\Firewa llPolicy\DomainProfile\AuthorizedApplications\List
To see in the registry what port exceptions are in force for the domain firewall profile, look at the values under the following key:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Service\SharedAccess\Parameters\Firewa llPolicy\DomainProfile\GloballyOpenPorts\List
To see the exceptions in force for the workgroup policy, please look in the following locations: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Service\SharedAccess\Parameters\Firewa llPolicy\StandardProfile\AuthorizedApplications\List
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Service\SharedAccess\Parameters\Firewa llPolicy\StandardProfile\GloballyOpenPorts\List
R. Ekstein
