Chinese Grammatical Error Diagnosis Using Ensemble Learning
Yang Xiang, Xiaolong Wang
†, Wenying Han, and Qinghua Hong
Intelligent Computing Research Center,
Harbin Institute of Technology Shenzhen Graduate School, China
{xiangyang.hitsz, hanwenying09, hongqh65}@gmail.com,
†
Abstract
Automatic grammatical error detection for Chinese has been a big challenge for NLP researchers for a long time, mostly due to the flexible and irregular ways in the expressing of this language. Strictly speaking, there is no evidence of a series of formal and strict grammar rules for Chinese, especially for the spoken Chi-nese, making it hard for foreigners to master this language. The CFL shared task provides a platform for the research-ers to develop automatic engines to de-tect grammatical errors based on a num-ber of manually annotated Chinese spo-ken sentences. This paper introduces HITSZ’s system for this year’s Chinese grammatical error diagnosis (CGED) task. Similar to the last year’s task, we put our emphasis mostly on the error detection level and error type identification level but did little for the position level. For all our models, we simply use supervised machine learning methods constrained to the given training corpus, with neither any heuristic rules nor any other refer-enced materials (except for the last years’ data). Among the three runs of results we submitted, the one using the ensemble classifier Random Feature Subspace (HITSZ_Run1) gained the best perfor-mance, with an optimal F1 of 0.6648 for the detection level and 0.2675 for the identification level.
1
Introduction
Automatic grammatical error detection for Chi-nese has been a big challenge for NLP research-ers for a long time, mostly due to the flexible and irregular ways in the expressing of this language.
Different from English which follows grammati-cal rules strictly (i.e. subject-verb agreement, or strict tenses and modals), the Chinese language has no verb tenses or numbers and endures heavily for the incompleteness of grammatical elements in a sentence (i.e. the zero subject or verb or object). Some examples are shown below in Table 1.
Examples 1. 四月/最/熱。
April is the hottest.
2. 我/一/看到/你/就/覺得/非常/開心。 I feel very happy as soon as I see you. 3. 他們很高興。
[image:1.595.306.526.342.442.2]They are very happy
Table 1. Some typical examples for special grammatical usage in Chinese.
In the above table, the first sentence contains no verb elements in the Chinese version. In the Chinese language, the adjectives will not co-occur with copulas in many cases. So if we add a
be (是) into the sentence (四月/是/最/熱), it will be grammatically incorrect. In the second sen-tence, the conjunction 就has nothing to do with the meaning of the whole sentence, but it is a necessary grammatical component when collo-cate with the word 一 to express the meaning of
as soon as. The adverb 很 is an essential element for the third sentence which corresponds to the word very in the English version. However, we can simply remove very but cannot remove 很
due to some implicit grammatical rules. Overall, the expression of the Chinese language is flexi-ble and the grammar of Chinese is complicated and sometimes hard to summarize, so that it is very difficult for foreign language learners to learn Chinese as the second language.
The CFL14 and 15 shared tasks provide a plat-form for learners and researchers to observe var-ious cases of grammatical errors and think
er about the intrinsic of these errors. The goal of the shared task is to develop computer-assisted tools to help detect four types of grammatical errors in the written Chinese. The error types include Missing, Redundant, Disorder and Selec-tion. And in last years shared task, several groups submitted their report, employing different su-pervised learning methods in which some groups obtained good results in detection and classifica-tion (Yu et al., 2014). Similar to the last year’s task, we put our emphasis mostly on the error detection level and error type identification level but did little for the position level although this year’s task includes the evaluation on this level.
In this paper, we use supervised learning methods to solve the error detection and identifi-cation sub tasks. Different from most of previous work, we didn’t use any external language mate-rials except for the dataset for the year 2014’s shared task. What we adopt include feature ex-traction, data construction and ensemble learning. We also report some of our observations towards the errors and summarize some conceivable rules, which might be useful for future developers. At last, we analyze the limitation of our work and propose several directions for improvement.
The following of this paper is organized as: Section 2 briefly introduces the literature in this community. Section 3 shows some observations towards the data provided. Section 4 introduces the feature extraction and learning methods we used for the shared task. Section 5 includes ex-periments and result analysis. And future work and conclusion are arranged at last.
2
Related Work
In the community of grammatical error correc-tion, more work focused on the language of Eng-lish such as those researches during the CoNLL2013 and 2014 shared tasks (Ng et al., 2013; Ng et al., 2014). A number of English lan-guage materials and annotated corpus can be used such that the research on this language went deeper. However, the resource for Chinese is far from enough, and very few previous works are related to Chinese grammatical error correction. Typical ones are the CFL 2014 shared task (Yu et al., 2014) ant the task held in this year. Fol-lowing, we briefly introduce some previous work related to Chinese grammatical error diagnosis.
Wu et al. proposed two types of language models to detect the error types of word order, omission and redundant, corresponding to three of the types in the shared task. Chang et al. (2012)
proposed a probabilistic first-order inductive learning algorithm for error classification and outperformed some basic classifiers. Lee et al. (2014) introduced a sentence level judgment sys-tem which integrated several predefined rules and N-gram based statistical features. Cheng et al. (2014) shown several methods including CRF and SVM, together with frequency learning from a large N-gram corpus, to detect and correct word ordering errors.
In the last year’s shared task, there are also some novel ideas and results for the error diag-nosis. Chang et al. (2014)’s work included man-ually constructed rules and rules that automati-cally generated, the latter of which are something like frequent patterns from the training corpus. Zhao et al. (2014)’s employed a parallel corpus from the web, which is a language exchange website called Lang-8, and used this corpus to training a statistical machine translator. Zampieri and Tan (2014) used a journalistic corpus as the reference corpus and took advantage of the fre-quent N-grams to detect the errors in the data provided by the shared task. NTOU’s submission for the shared task was a traditional supervised one, which extracted word grams and POS N-grams as features and trained using SVM (Lin et al., 2014). In their work, they also employed a reference corpus as the source of N-gram fre-quencies.
Our submission was similar to NTOU’s work whereas we didn’t use any large scale textural corpus as references. Our target was to see to what extent can the supervised learner learn only from the limited resource and what types of clas-sifiers perform better in this task.
3
Data Analysis
We show some of our observations towards the training data in this section. What we observed are some frequent cases among the error types
Missing and Redundant.
的衣服) or a friend of mine (我的一個朋友), but in the grammar of Chinese, a 的 is inserted due to the incompleteness of the expressions.
For the error type Redundant, the word 了 (an auxiliary word related to a perfect tense) ac-counts for 10.88% in all the Redundant sentences (and 21.78% sentences contain 了 are incorrect). The word is redundant when the sentence con-tains nothing related to a perfect tense. For in-stance, 我第一次去(了) 英國留學。 (I studied abroad in Britain for the first time.) and 當時他不 老(了)。(He wasn’t old at that time.). So we can judge whether the word is redundant according to the tense of the sentence.
Words that are grammatical incorrect are al-most function words, which behave differently in the grammars for Chinese and English (or other languages). Typical examples are 是(is), 都
(auxiliary), 有 (be), 會(will), 在(in/at), 要(will), etc. However, we didn’t do much towards specif-ic words in our research but only recognize there should be some frequent rules that we can follow. And we will further discuss some proposals later.
4
Supervised Learning
In this work, neither did we use any external cor-pora except for the dataset for the year 2014’s shared task, nor are any language specific heuris-tic rules or frequent patterns included. We were going to see what kind of features and what type of supervised learners can benefit this problem most. As declared previously, we did little for the position level extraction, so we introduce mostly on feature extraction, model selection and the construction of the training data.
4.1 Feature Extraction
For this task, we tried several kinds of features such words, POS (part-of-speech), as well as syntactic parse trees and dependency trees. Final-ly, we find that POS Tri-gram features perform stably and generate the best results. Therefore, we define the POS Tri-gram for sentential classi-fication at first.
For each word in a sentence, we extract the following triple as the Tri-gram for this word: <POS-1, POS, POS+1>. And for the beginning and the ending of a sentence, we add two indica-tors to make up the column vecindica-tors. For example, in the sentence這/一天/很/有意思。(This day is very interesting.), the sentence-level POS
fea-tures are (r, m, zg, l) the feafea-tures for the word這 (This) are <start, r, m>1.
In addition, we extract the relative frequency (probability) for each triple based on the CLP 14 and 15 dataset as P(<POS-1, POS, POS+1>). In the experiment, we noticed that the frequency features are also good indicators to detect candi-dates for grammatical errors.
To summarize, we extract two types of POS Tri-gram features: the binary Tri-gram and the probabilistic Tri-gram. The binary Tri-gram de-mands that if the sentence contains this Tri-gram (i.e. <start, r, m>), the corresponding position in the gram vector (the union set of all possible Tri-grams after removing those with very low fre-quencies) is set to be 1. For probabilistic Tri-gram, the position is set to be the relative fre-quency (the proportion for the Tri-gram).
4.2 Supervised Learning
After feature extraction, we put the features into several supervised learners. We use a series of single classifiers such as Naïve Bayes (NB), De-cision Tree (DT), Support Vector Machines (SVM) and Maximum Entropy (ME), and en-semble learners Adaboost (AB), Random Forest (RF) and Random Feature Subspace (RFS). RF is an ensemble of several DTs, each of which sam-ples training instances with replacement and samples features without replacement. RFS is an ensemble classifier based on feature sampling which takes results trained on different feature subspace as majority voters. The classifiers are from Weka (Hall et al., 2009).
We take those training sentences with annotat-ed errors as positive instances and subsample the correct sentences as negative ones. Through tun-ing towards the proportion of negative instances, we discovered that the number of negative in-stances also affected the final results.
5
Experiment and Analysis
In the experiment, we use the training data from this year’s and last year’s shared tasks. Table 2 lists the number of sentences for each type in the training data. Since the scale of this year’s data is really small, we add last year’s corpus into the training data and do cross validations in the train-ing steps. Table 2 lists the number of sentences for each error type in these two years’ dataset.
Our experiments cover training data construc-tion, feature selection and supervised learning.
1
Method Detection Level Identification Level Accuracy Precision Recall F1 Accuracy Precision Recall F1 ME 0.4985 0.3235 0.0028 0.0055 0.4975 0.1154 0.00075 0.0015 SVM 0.5144 0.6091 0.0803 0.1418 0.4969 0.4677 0.0453 0.0825 NB 0.5146 0.5562 0.1448 0.2297 0.4771 0.3765 0.0698 0.1177 DT 0.6255 0.6285 0.6140 0.6211 0.5249 0.5321 0.4128 0.4649 RFS 0.6284 0.7479 0.3873 0.5103 0.6064 0.7245 0.3433 0.4658 RF 0.6510 0.7173 0.4985 0.5882 0.6121 0.6817 0.4208 0.5203 AB 0.6654 0.7177 0.5453 0.6197 0.6105 0.6700 0.4355 0.5279

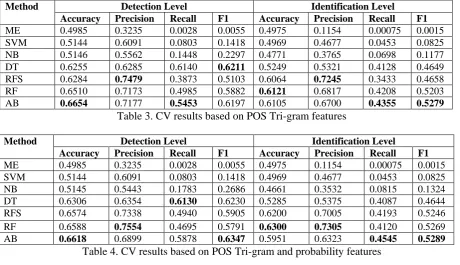

Table 3. CV results based on POS Tri-gram features
[image:4.595.71.532.71.336.2]Method Detection Level Identification Level Accuracy Precision Recall F1 Accuracy Precision Recall F1 ME 0.4985 0.3235 0.0028 0.0055 0.4975 0.1154 0.00075 0.0015 SVM 0.5144 0.6091 0.0803 0.1418 0.4969 0.4677 0.0453 0.0825 NB 0.5145 0.5443 0.1783 0.2686 0.4661 0.3532 0.0815 0.1324 DT 0.6306 0.6354 0.6130 0.6230 0.5285 0.5375 0.4087 0.4644 RFS 0.6574 0.7338 0.4940 0.5905 0.6200 0.7005 0.4193 0.5246 RF 0.6588 0.7554 0.4695 0.5791 0.6300 0.7305 0.4120 0.5269 AB 0.6618 0.6899 0.5878 0.6347 0.5951 0.6323 0.4545 0.5289
Table 4. CV results based on POS Tri-gram and probability features
Error type No. in 15 No. in 14 Correct 2205 5541 Disorder 306 710 Redundant 430 1803 Missing 620 2201 Selection 849 827
Table 2. Error type distribution for the two years’ shared tasks.
We tried several groups of training data, different combinations of features and a variety of classi-fiers in the training phase.
5.1 Training Data Construction
As mentioned previously, the sentences that con-tain no grammatical errors behave as the nega-tive instances for training. To avoid imbalance between the positive and negative instances, negative ones were randomly selected to con-struct the training set. At last, we divided the training data into 8 parts and used 8-fold cross validation (CV) for the classifiers. We found that, when we selected 4000 negative instances, the system achieved the best results.
5.2 Feature Selection
As mentioned in §4.1, we investigate the features POS gram and POS gram + POS Tri-gram probability. We report the CV results gen-erated by four single classifiers and three ensem-ble classifiers in Taensem-ble 3 and Taensem-ble 4 for the two set of features, respectively. The results have
been optimized through tuning the parameter settings for each classifier.
From the results, we find that the ensemble classifiers generally perform better than the sin-gle ones, and AB achieves the best results for detection and identification.
5.3 Final Results
Among the three runs of results we submitted, the first run is the best. We show the results in Table 5 and compare them with the CV results.
Accuracy Precision Recall F1 Detection Level
0.509 0.5047 0.974 0.6648
Identification Level
0.173 0.2401 0.302 0.2675 Table 5. The final results
This submission is generated by the ensemble classifier RFS by using POS Tri-gram and prob-ability features. We see that the performance of the identification level greatly falls behind that in the cross validation. One of the possible reasons for this gap, we consider is the setting of instanc-es, which may be quite distinct between the training and the testing data. And another possi-ble reason is the reasonability of the probability features.
5.4 Analysis
[image:4.595.308.521.492.573.2]Figure 1. Accuracy of the four error types and the correct type on four classifiers that perform best.
ture set outperforms the first, on both the detec-tion level and the identificadetec-tion level. To some extent, it indicates that the patterns for the grammatical phrases may frequently occur in the datasets.
Further, we pick up the last four classifiers which perform relatively better on the task data, including DT and three ensemble classifiers, and do statistical analysis on the true positive rates during cross validation (Figure 1). The results reveal that the difficulty on judging decreases from Redundant, Missing to Disorder and Selec-tion. In addition, the accuracy for the correct la-bel is not quite high, leading to a number of false negative sentences.
Through observation, we found several cases might affect the predicting results. A typical case is that a grammatically wrong sentence can be corrected through several ways, corresponding to more than one error types. For example, the sen-tence 他 馬 上 準 備 上 學 (He is preparing for school.) can be classified to any of the four types:
Correct Sentence Type 1. 他(馬上)準備上學 Redundant 2. 他(準備)(馬上)上學 Disorder 3. 他(很快地)準備上學 Selection
4. 他馬上要準備上學(了) Missing
Table 6. Example on multiple ways for correc-tion.
All the four directions are reasonable but the dataset only provide the third one. Therefore, these data may create confusion for classification and should be considered in the future work. In addition, some annotation maybe not so cleat, for instance in the sentence 但是這幾天我發現(到)你
有一些生活上不好的習慣 (But these days I
no-ticed some bad habits on you in your daily life). The given annotation is selection, but we think
redundant is much more reasonable.
6
Future Work
According to the observations towards the train-ing data, we think the followtrain-ing direct proposal is learning from the position level, just as the shared task demands. On this level, we can ex-tract more pointed features, integrating both syn-tactic and semantic ones. Besides, for the senten-tial level classification, the deep neural network based methods (i.e. Convolutional Neural Net-works) are expected, with traditional features or embeddings, to detect more structured rules. In addition, we deem that dependency tree features may be useful and should be further developed. And improvement may also be achieved by min-ing the confusion in annotation (i.e. the differ-ence between selection and redundant).
7
Conclusion
In this paper, we introduce the ensemble learning based method used in the CFL shared task for Chinese grammatical error diagnosis. We report some of our observations towards the training data, features and learners we used in our exper-iments. Different from most previous work, we didn’t use any other external language corpus for reference and we didn’t use any rules either. The results show that the ensemble methods perform better than the single classifiers based on our simple features. From the results, we see space for further development.
Acknowledgement
This work was supported in part by the National Natural Science Foundation of China (61272383, 61173075 and 61203378), and the Strategic Emerging Industry Development Special Funds of Shenzhen (JCYJ20120613151940045).
0.00% 20.00% 40.00% 60.00% 80.00% 100.00%
RF AB DT RFS
Reference
Ru-Yng Chang, Chung-Hsien Wu, and Philips Kokoh Prasetyo. 2012. Error Diagnosis of Chinese Sen-tences using Inductive Learning Algorithm and Decomposition-based Testing Mechanism. ACM Trans. Asian Language Information Processing.
Tao-Hsing Chang, Yao-Ting Sung, Jia-Fei Hong and Jen-I Chang. 2014.KNGED:a Tool for Grammati-cal Error Diagnosis of Chinese Sentences. In Pro-ceedings of the 1st Workshop on Natural Language Processing Techniques for Educational Applica-tions (NLPTEA'14), Nara, Japan, 30 November, 2014, pp. 48-55.
Shuk-Man Cheng, Chi-Hsin Yu, and Hsin-Hsi Chen. 2014. Chinese Word Ordering Errors Detection and Correction for Non-Native Chinese Language Learners. In Proceedings of COLING 2014, pp. 279-289.
Mark Hall, Eibe Frank, Geoffrey Holmes, Bernhard Pfahringer, Peter Reutemann, Ian H. Witten. 2009. The WEKA Data Mining Software: An Update; SIGKDD Explorations, Volume 11, Issue 1.
Lung-Hao Lee, Liang-Chih Yu, Kuei-Ching Lee, et al. 2014. A Sentence Judgment System for Grammati-cal Error Detecgtion. In Proceedings of COLING 2014: System Demonstrations, 67–70.
Chuan-Jie Lin and Shao-Heng Chan. 2014. Descrip-tion of NTOU Chinese Grammar Checker in CFL 2014. In Proceedings of the 1st Workshop on Natu-ral Language Processing Techniques for Educa-tional Applications (NLPTEA'14), Nara, Japan, 30 November, 2014, pp. 75-78.
Ting Liu, Wanxiang Che, Zhenghua Li. 2011. Lan-guage Technology Platform. Journal of Chinese In-formation Processing. 25(6), pp. 53-62.
Hwee Tou Ng, Siew Mei, Yuanbin Wu, Christian Hadiwinoto and Joel Tetreault. 2013. The CoNLL-2013 Shared Task on Grammatical Error Correc-tion. In Proceedings of the Seventeenth Con-ference on Computational Natural Language Learning: Shared Task (CoNLL-2013 Shared Task). Sofia, Bulgaria.
Hwee Tou Ng, Siew Mei Wu, Ted Briscoe, Christian Hadiwinoto, Raymond Hendy Susanto and Chris-topher Bryant. 2014. The CoNLL-2014 Shared Task on Grammatical Error Correction. In Proceed-ings of the Eighteenth Conference on Computa-tional Natural Language Learning: Shared Task (CoNLL-2014 Shared Task). Baltimore, Maryland.
Chung-Hsien Wu, Chao-Hong Liu, Harris Matthew and Liang-Chih Yu. 2010. Sentence Correction In-corporating Relative Position and Parse Template Language Models, IEEE Trans. on Audio, Speech and Language Processing, vol. 18, no. 6, pp. 1170-1181.
Liang-Chih Yu, Lung-Hao Lee, and Li-Ping Chang (2014). Overview of Grammatical Error Diagnosis for Learning Chinese as a Foreign Language. In Proceedings of the 1st Workshop on Natural Lan-guage Processing Techniques for Educational Ap-plications (NLPTEA'14), Nara, Japan, 30 Novem-ber, 2014, pp. 42-47.
Marcos Zampieri and Liling Tan. 2014. Grammatical Error Detection with Limited Training Data: The Case of Chinese. In Proceedings of the 1st Work-shop on Natural Language Processing Techniques for Educational Applications (NLPTEA'14), Nara, Japan, 30 November, 2014, pp. 69-74.
