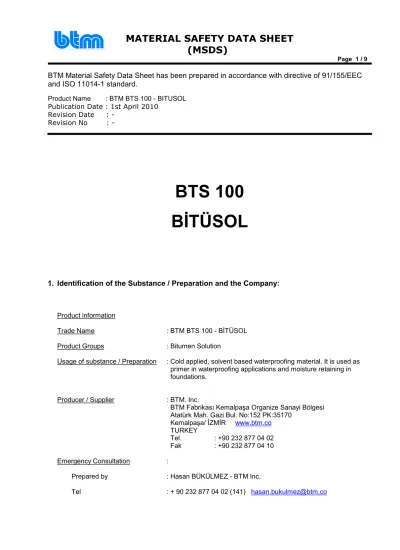

: BTM BTS BĐTÜSOL

(1)

BTS 100

BĐTÜSOL

1. Identification of the Substance / Preparation and the Company:

Product information

Trade Name : BTM BTS 100 - BĐTÜSOL

Product Groups : Bitumen Solution

Usage of substance / Preparation : Cold applied, solvent based waterproofing material. It is used as primer in waterproofing applications and moisture retaining in foundations.

Producer / Supplier : BTM. Inc.

BTM Fabrikası Kemalpaşa Organize Sanayi Bölgesi Atatürk Mah. Gazi Bul. No:152 PK:35170

Kemalpaşa/ ĐZMĐR www.btm.co TURKEY Tel. : +90 232 877 04 02 Fak : +90 232 877 04 10 Emergency Consultation :

Prepared by : Hasan BÜKÜLMEZ - BTM Inc.

(2)

2. Composition / Information of Ingredients:

Hazardous substances according to the regulation of Hazardous chemicals and european union directive 67/548/EEC on health and environmentally:

Components CAS-no EINECs-no Concentration Symbol(s) R-Phrase(s)

Solvent naphtha (petroleum),

medium aliph. 64742-88-7 265-191-7 %20 F, Xn; R10, R65 - - - - - - - - - - - -

3. Hazards Identification:

Physical Hazards

R10: Flammable

Hazards for health

R65: May cause lung damage it swallowed.

Symptoms depending on usage:

Inhalation : To make applications in closed and poorly ventilated areas may cause irritation to respiratory system. Don’t inhale vapor and fumes of the material Skin contact : Material my cause irritation and skin drying in case of contact with product

for along time

Eye contact : It may cause eye irritation and redness

(3)

4. First Aid Measures:

After inhalation : Leave the sufferer in a well ventilated area, if symptoms such as headache and dizziness occur.

After skin contact : Wash with plenty of soap and water. Get medical attention if irritation occur

After eye contact : In case of contact, wash eyes with plenty of water for 15 minutes. Get medical attention immediatelly when irritation continues. After ingestion : It is not possible to ingest the product by accidentially. Get medical

attention when it occurs. Do not induce vomiting. If the mouth is contaminated with product, rinse with water it and provide to drink plenty of water.

General Caution: Seek medical attention any case of doubt or when symptoms occur.

5. Fire-Fighting Measures:

Extinguishing agents : Dry chemical powder, carbon dioxide, foam. Extinguishing agents unsuitable for safety : None.

Special protective equipment : As a result of burning, fumes are harmful for health. Protective clothing and self contained breathing apparatus should be used. Hazards without protection : Hazards without protection dirty water contaminated by product should keep away from wells and groundwaters. If there is no any treatment plant in the area, dirty waters shouldn’t be discharged to seawage.

6. Accidental Release Measures:

Personal precautions : Do not inhale the fumes of the product. Remove all ignition sources. Environmental precautions : Prevent mixing of ground water, surface water or sewers, if the Product spread out. Product should be collected up immediatelly with

a dry inert material such as soil, sand, ext. It should filled into containers with appropiate label for disposal. See sections 8 and 13 of this MSDS in case of spreading on the land.

Methods for cleaning up : Use appropriate mechanical means.

(4)

7. Handling and Storage:

Safe handling advice : Application should be done by trained and qualified personnel.

It is recommended to wear gloves, work cloths with long sleeves, long pants, boots, helmet and protected goggles. Do not wear synthetic fabrics.

Advice on protection again ist fire and explosion : Keep away from ignition sources. Don’t smoke.

Storage:

Requirements for storage areas and containers : Products should be stored in a warehouse and on a flat surface.

Advice on common storage : It shouldn’t be stored in the same area with strong oxidizing acids.

Further information about storage : Keep away from direct sunlight, heat and ignition sources. Don’t smoke in storage area. Products should be stored (in temperatures 0-30°C), in dry and cool areas. Shelf life of product is 12 months when it is stored in dry and cool areas with its original packing. Unauthorized entry into this area should be prohibited.

Additional Cautions: See the section 10

8. Exposure Controls / Personal Protection:

Technical measures / Protections : Not need any special measures. General/Special protective measures are used during application of this product.

Respiratory Protection : If the application will be done in closed or nonventilated areas an approved respirator Tip A1-3 (for organic vapor) should be used. Avoid from inhalation of vapour/fumes.

(5)

Hand Protection : Protective gloves should be wear. Chemical resistant or AS2161 pvc gloves should be used.

Eye Protection : Splashing materials during application can cause eye irritation. Suitable protective goggles should be used.

Skin and Body protection : Work clothes (long shirt, long pants), protective footwear should be used. Don’t wear synthetic clothes.

9. Physical and Chemical Properties:

General Đnformation:

Appearance : Viscous liquid

Color : Black

Base : Organic solvent – bitumen

PH : -

Flash Point : 80°C

Relative density : 0,92 - 0,98 gr/cm³

Solids ratio : % 60

Conductivity : None

Solubility (in water) : Non soluble

Drying time : 20 minutes after application. Completely dries after 24 hours.

Cleaners : Organic solvent

Voc (Volatile Organic Compound) : max. 350g/l

Self ignition characteristic : Product is not self-igniting.

10. Stability and Reactivity:

Technical measures / Protections : Not need any special measures.

Conditions to avoid : It is stable in the proposed use and storage conditions. Keep away from flame and hot materials.

Materials to avoid : Keep away from strong oxidizers and acids. Hazardous decomposition products : -

(6)

11. Toxicological Information:

Acute toxicity:

LD/LC50 values for classification (toxicological experiment values) Cas No: 64742-88-7 / Solvent naphtha (petroleum), medium aliph.

Ingestion LD 50 5000mg/kg (rat)

Skin contact LD 50 2000mg/l (rabbit)

Inhalation LC 50/4 h 5mg/l (rat)

Primary irritant effect:

Skin: Irritates

Eyes: Irritates

Sensitivity: May cause increase of sensitivity of skin.

Additional toxicological caution: No evidence is found related to this product. Health risks stated chapter 3 may be occur during application.

12. Ecological Information:

Ecotoxicity effects:

No evidence is found about ecotoxicity effects low ecological toxicity is estimated, because the product is not soluble in water.

General cautions:

There is no any known effect to the enviroment. Don’t discharge the product to sewers which has not any connection to treatment plant.

(7)

13. Disposal Considerations:

Waste and contaminated packages should be disposed in accordance with “hazardous waste control regulation”. Regulations stated in national legislations should be applied.

Waste Code: -

Disposal of Packaging Material: Waste packing materials should be given to licensed authorized institutions for recycling, in accordance with laws and regulations

14. Transport Information:

ADR/RID:

ADR/RID class : 3

UN number : 1999

Packing group : III

Description of product : 1999 - TARS, LIQUID (Including road asphalt and oils, bitumen and cut backs)

IMDG:

IMDG class : 3

UN number : 1999

Packing group : III Marine pollutant : No.

ICAO-TI ve IATA-DGR: ICAO/IATA class : 3

UN number : 1999

Packing group : III

(8)

15. Regulatory Information:

Dangerous Features : Xn: Harmful to health F: Flammable Risk (R) Conditions : R10: Flammable

Security (S) advice :

S3/S7/S9: Store container with tightly closed in cool and good ventilated area

S23: Don’t inhale the fumes and vapour of product.

S36/S37/S39: Use suitable protective clothes, gloves, goggles/mask.

S38: Use suitable respirator in nonventilated areas.

S46: Seek medical advice immediately when it swallows and show the container and label.

S51: Use only in well ventilated areas.

Regulation: It is prepared in accordance with AB directives 67/548/EEC and 1999/45/EC.

16. Other Information:

Chapter 2, R phrases:

R10: Flammable

The information contained in this form has been prepared as a necessity of chemical substance

regulations. Product should not be used except of purposes specified in section 1. Special conditions for use of this product is not controlled by manufactures so the consumer is responsible for ensuring the requirements of relevant legislations. The information contained in this from is based on the current state of national legislation and guides for health, safety and environment. It does not guarantee tecnical

performance and eligibility for special occasions. If you would like more detailed information, manufacturer contact information can be found in the first page.

(9)

Dictionary:

CAS-no : Chemical Abstracts Service (CAS) Đndex Number

EINECs-no : Euro Đnventory of Existing Commercial Chemical Substances ADR/RID : Transportation by road

(International agreement on dangerous goods by road and train – European / Cross-Border) ICAO : Đnternational Civil Aviation Organization

IATA : Đnternational Air Transport Association IMDG : The Đnternational Maritime Dangerous Goods

LD 50 : The close that kills half %50 of the animals tested (lethal dose)

LC 50 : Standart measure of the toxicity of the surrounding medium that will kill half of the sample population of a specific test animal in a specified period through exposure via inhalation.

This Material Safety Data Sheet is prepared by BTM Co. Material Safety Data Sheet of BTM’s products can be found at www.btm.co
