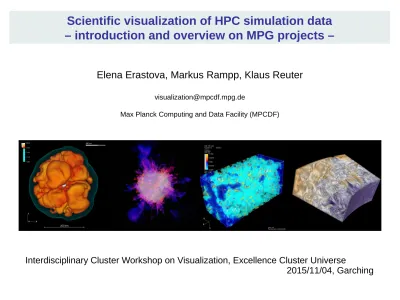

Scientific visualization of HPC simulation data

– introduction and overview on MPG projects –

Elena Erastova, Markus Rampp, Klaus Reuter

[email protected]

Max Planck Computing and Data Facility (MPCDF)

Interdisciplinary Cluster Workshop on Visualization, Excellence Cluster Universe

(2)

Outline

●

Introduction

●

Some basics on grid-based visualization techniques

●

Visualization workhorses: ParaView and VisIt

●

Data handling

●

Gallery of visualization projects

●

Summary

(3)

K. Reuter, MPCDF Garching, 2015/11/04

Introduction

MPCDF provides visualization infrastructure and project support for the Max-Planck Society

● support for adaptation and instrumentation of simulation codes

● guidance for selection, adoption and usage of analysis & visualization software ● dedicated support for individual (particularly demanding) visualization projects

Main challenges

● broad range of scientific fields: plasma physics, astrophysics, materials science, life sciences, ...

● variety of simulation codes: in-house developments, third-party, commercial, open source, closed source ● integration of legacy analysis pipelines

● complexity of datasets generated by HPC simulations

● data structures and file formats: often non-standardized and heterogeneous ● dimensionality: multidimensional (3D + time), multi-variate data

● memory requirements: massive amount of raw data

● topology: gridded data, mesh-free data, complex coordinates, ...

(4)

some basics on scientific visualization

Terminology: “Visualization” vs “Rendering”

● visualization: visual representation of data

e.g. chemical structures: create a ball-and-stick model from atom positions (and compute an image or do a 3D print)

● rendering: generation of a 2D image from a 1, 2, 3D model

e.g. create a 2D projection of a 3D “balls and sticks” model

Popular techniques for 3D scalar fields

● volume rendering

● ray casting: follow straight lines starting from a camera model (view point),

intersecting an image plane (2D grid), and hitting objects (3D model)

● splatting: “throw” voxels at 2D image plane from back to front (like “snowballs”)

● transfer function and color table map from data space to color space,

e.g. we may intuitively mimick opacity and emissivity of a gas

● provides qualitative and quantitative information

● pseudocolor plots

● color table maps from data space to color space ● 2D is straightforward, 3D requires clipping

● provides mostly quantitative information

● iso surfaces (surfaces of constant scalar value)

[wikipedia.org]

[visitusers.org]

[MPCDF]

(5)

ray casting

View Ray


Camera

[adapted from wikipedia.org]

(6)

ray tracing

Light Source

Scene Object

Shadow Ray

View Ray


Camera

[adapted from wikipedia.org]

[blender.org]

(7)

some basics on scientific visualization (cont'd)

Popular techniques for 3D vector fields

● colored arrow plots

● streamlines, streaklines, pathlines ● contraction to 3D scalar field

● vector magnitude ● projection

[visitusers.org]

streamlines

[visitusers.org] colored arrow plot

[MPCDF] streamwise vorticity

[by courtesy of V. Avsarkisov (TU Darmstadt)]

[MPCDF] velocity magnitude

(8)

some basics on scientific visualization (cont'd)

Gridded vs ungridded data

●

depending on the simulation approach, data values may be available

at the vertices of a grid

or

at (independent) points in space

●

gridded data

(vertices connected by edges)

●

connectivity information greatly simplifies interpolation and parallelization

●

many of the aforementioned algorithms require gridded data

●

topologies: unstructured, structured, rectilinear, tetrahedral, …

●

parallelization is often easiest/work best on rectilinear grids

●

ungridded data

●

only suitable for certain visualization algorithms (→ talk by K Dolag)

(9)

Visualization tools

Overview on popular software tools for scientific visualization

●

1D, 2D (time dependent) data:

Python/SciPy/matplotlib

, R, Matlab,

gnuplot

, IDL, ...

● mostly conventional plotting (2D vector graphics, publication-quality)

● suitable to implement data processing pipelines and (automated) quantitative analysis

●

3D (time dependent) data:

ParaView

and

VisIt

● implement extensive toolboxes of visualization algorithms ● enable interactive data exploration and quantitative analysis ● publication-quality plots, renderings, movies

● main workhorses when it comes to HPC visualization

(10)

[www.paraview.org]

ParaView's architecture enabling HPC scale parallelism

●

comprehensive

open-source toolbox for scientific visualization

●

scalable

parallel architecture, implementation based on VTK, MPI and TCP/IP

●

mature

code base, but still actively developed

*2000 LANL & Kitware, since 2005 Sandia & Kitware

●

extensible

via plugins (eg. data readers, data filters, in-situ connectors)

●

controllable via Python scripting

●

widely used

●

well documented → www.paraview.org

[www.paraview.org]

(11)

●

comprehensive

open-source toolbox for scientific visualization

●

scalable

parallel architecture, implementation based on VTK, MPI and TCP/IP

●

mature

code base, but still actively developed

*2000 LLNL

●

extensible

via plugins (eg. data readers, data filters, in-situ connectors)

●

controllable via Python scripting

●

widely used

●

well documented → visit.llnl.gov

(12)

Workflow (VitIt example)

(13)

Data management

How to get data from an HPC code into your favourite visualization tool?

Criteria for selecting an IO library (and data format):

●

performance: a parallel code requires parallel IO

●

portability: code maturity, availability at HPC centers

●

usability: code changes, debug options

For

small

data sets (time series of aggregate variables) it may work to

●

write text or binary files in a proprietary format during a code run

●

apply a data conversion pipeline as a second step (e.g. using Python)

However, for larger data sets (~ few hundred MB) this procedure is

inefficient

and will finally become

the bottleneck.

VTK

(www.vtk.org) provides – among others – an extensive framework to handle gridded

and ungridded data of various kinds, including file formats that are compatible with

ParaView and VisIt.

Pro: Python bindings are helpful to implement postprocessing including format conversion.

Caveat: VTK's (complex!) C++ code may be hard to integrate with existing HPC code.

(14)

Data management (cont'd)

Software solutions for HPC

●

MPI-IO (low-level), HDF5 (library, tools), NetCDF (library, tools)

●

popular strategy

: HDF5 for data to be visualized, raw MPI-IO or HDF5 for checkpoints

●

future: in-situ visualization

HDF5 in a nutshell

● Hierarchical Data Format

(groups, dataset) correspond to POSIX (directory, file) ● efficient parallel IO (MPI-IO, GPFS)

● → www.hdfgroup.org

● supported by tools such as ParaView and VisIt

● use XDMF to add XML grid information → www.xdmf.org

[www.hdfgroup.org]

(15)

Data management: workflows

Wrap-up: How to get data from an HPC code into your favourite visualization tool?

Explicit data conversion

allows some basic post-processing and/or data reduction of simulation output quick (& dirty) programming: copy/paste from I/O statements in simulation code duplication of data

→ which format? Silo (VisIt's "proprietary" data format), HDF5, VTK, ...

Development of a reader plugin for VisIt or Paraview

no data duplication, no additional pre-processing step plugin is dynamically loaded (code may reside in $HOME)

development requires C programming and compilation against a ParaView/VisIt installation

Adaptation of I/O in simulation code

no data duplication, no additional preprocessing step

may promote interoperability with other tools (depending on chosen format, e.g. hdfview) implications for software management (code policies, access to source code, …)

(16)

Outline

●

Introduction

●

Some basics on grid-based visualization techniques

●

Visualization workhorses: ParaView and VisIt

●

Data handling

●

Gallery of visualization projects

(17)

MPCDF visualization projects

Project selection

●

scientific domains:

●

plasma physics, astrophysics, CFD, molecular dynamics, ...

●

data structures/grids:

●

regular: cartesian, polar (2D, 3D), block-structured (”Yin-Yan”)

●

irregular: (mapped) point clouds

●

data sizes, dimensions:

●

up to 2048

3

(cartesian), 1000 × 180 × 360 (polar), 2048 × 769 × 1153 (cylindrical)

●

up to 10

6

particles in 3D, 10

7

nodes in 3D unstructured mesh

●

multi-variable (scalar, vector), time-dependent

●

tools: parallel HDF5 (+XDMF), VisIt, ParaView, Splotch

●

→

http://www.rzg.mpg.de/services/visualisation/scientificdata/projects

Aims

●

Sketch results & experiences from real-world visualization projects

(18)

Core-collapse supernova

Visualisation approach (M. Rampp, MPCDF)

● data: (1000×180×360) zones on a non-uniform, polar grid ● approx. 700 output files (time steps)

● proprietary output format was converted to VisIt's Silo format first using a simple FORTRAN code ● ”multi-channel” volume-rendering (non-standard use-case for VisIt)

● elements Ni56 , O16 , C12 shine in blue, green, red ● gained experience with stereo rendering

Simulations by N. Hammer, Th. Janka & E. Müller

(MPA)

● supernova explosion of 15 M

sol star

● first 3D simulations of long-term evolution (Hammer et al., ApJ 714, 1371, 2010) ● instabilities & mixing of heavy elements ● simulation code: PROMETHEUS/HOTB

(3D hydrodynamics, finite-volume, PPM)

(19)

Core-collapse supernova (cont'd)

Visualization techniques using VisIt

3D Volume rendering

● operators: box, ”spherical to cartesian” coordinate transform

● rendering algorithms: splatting (for interactive exploration), ray casting (for producing the final HQ result) ● movie was coded up using a Python script and then rendered non-interactively

● created individual image files for each of the 3 scalar variables ● finally applied RGB image composition using ImageMagick

Quantitative analysis

● plots: pseudocolor

(20)

Core-collapse supernova (cont'd)

Quantitative analysis using VisIt

●

plots are taken directly from Hammer et al., ApJ 714, 1371, 2010

●

multiple isosurfaces shed light on the morphology of the instability

●

analyze different scalar fields in slice planes,

(21)

Core-collapse supernova (another case)

Visualisation approach (E. Erastova, M. Rampp)

● data: (1000×180×360) zones on non-uniform, polar grid ● approx. 1000 output files (time steps)

● pseudo-color plots for data exploration and quantitative analysis

● combined volume renderings for HQ movies

● alternative technique: multiple, semi-transparent iso-surfaces

Simulations by Th. Janka et al. (MPA)

● neutrino-driven explosions of massive stars from first principles ● simulation code: VERTEX (3D, time-dependent radiation

hydrodynamics with detailed microphysics)-first 3D simulations of long-term evolution

● code writes HDF5 and XDMF ● a “spiral mode” was discovered

with the help of 3D visualization

(22)

Core-collapse supernova (cont'd)

Interactive graphics with X3DOM in a web browser

● supplements publication of simulation results, e.g. by APJ

→ http://iopscience.iop.org/0004-637X/793/2/127/media

● 3D data format and object model (→ www.x3dom.org) ● X3D(OM) file export supported by Paraview, VisIT (2.10) ● controls: mouse enables zoom and interaction

● plain HTML5, no browser plugin required

[MPCDF]

.x3d file export

(23)

DNS of turbulence

Visualisation approach (M. Rampp, L. Shi)

● data: (2048×769×1153) zones on non-uniform, cylindrical grid ● approx. 1000 output files (time steps)

● developed an I/O and visualisation strategy

● changes to the simulation code NSCOUETTE

– parallel HDF5 output of physical variables, p(θ,z,r), (u_θ,u_z,u_r) – generation of XDMF metadata and output in separate XML files

● visualisation with VisIt

– applied ”swap coordinates” operator to transpose coordinates: (θ,z,r) → (r,θ,z)

Simulations by L. Shi, M. Avila, B. Hof (MPI f. Dynamics

and Self Organization, FAU Erlangen, IST Austria)

● DNS of fluids (pipe flows, Taylor-Couette flows) ● Code NSCOUETTE: Solves incompressible

Navier Stokes equations using a pseudospectral method (Shi, Rampp, Hof, Avila, Computers and Fluids, 2015) ● Basic research in turbulence: lab experiments, numerical

simulations, astrophysis: accretion in cold discs

(Hof et al., Science, 2010, Avila et al., Science, 2011) ● PRACE/DECI project HYDRAD

(24)

DNS of turbulence (cont'd)

Visualization pipeline implemented using VisIt

● expressions: vorticity(u_r,u_θ,u_z)= ∂u_r/∂z – ∂u_z/∂r ● operator ”swap coordinates”: (θ,z,r) → (r,θ,z) ● operator ”transform coordinates”: (r,θ,z)→(x,y,z) ● plots: pseudocolor, volume, (+vector, ...)

● Python code

[MPCDF]

(25)

SPH visualization

Simulations by S. Kochfahr et al. (MPE)

● SPH simulations produce point clouds with a

strongly varying particle density (SPH's “adaptive resolution”)

● Background: SPH "particles" sample scalar fields,

particles carry size information (smoothing kernel)

● very limited support by standard software,

special-purpose software does not cover full spectrum of features: interactivity, slicing, quantitative analysis

?

visualization as particles

visualization as a

smooth density field

(26)

SPH visualization (cont'd)

Visualisation approach (C. Simion, MPE and K. Reuter, MPCDF)

● mapping to unstructured grids which can be handled by VisIt and Paraview ● approach: 3D Delaunay triangulation to create a tetrahedral mesh

● preserves resolution, avoids interpolation to a regular grid ● initially used inefficient VTK library implementation

● CPU time scales as N2 ● huge memory requirements

● implemented custom code using the faster Qhull library

[MPCDF]

visualization as a smooth density field

Synergies with a materials science project (FHI)

● principle/code was reused to analyze materials science data

(27)

SPH visualization (cont'd)

[MPCDF] ●

Splotch

is a special ray tracer to visualize SPH simulation data (without conversion).

→ Talk by K. Dolag (LMU) this afternoon will give you all the technical details.

→ K. Dolag, et al., New Journal of Physics, Volume 10, Issue 12, pp. 125006 (2008)

●

Code extension to tackle time-dependent visualizations of

large simulation data sets (~10

10

_{particles) (K. Reuter, MPCDF, 2011).}

→ Implemented MPI parallelization of particle handling and frame interpolation.

●

Parallelization enabled visualization support for users at the MPE and MPA,

(28)

Geospatial data and bird migration

Visualisation approach (K. Reuter, MPCDF & K. Safi, MPI-Orn., 2012)

● visualization with ParaView, lots of Python scripting

● tedious generation and optimization of camera movement → better use artist's tools such as Blender?

Data by M. Wikelski (MPI for Ornithology)

● observational data

● a bird’s (gull) GPS track correlated with wind data ● topography data, earth's magnetic field data, … ● time-dependent data

Visualization adapted to wall-projection at the “hennhouse”, ie. the visitors and media center MPI-Orn at Radolfzell/Bodensee.

[MPCDF]

(29)

Summary and Conclusions

●

ParaView and VisIt provide (partly parallel) implementations

of many state-of-the-art visualization algorithms

●

spohisticated and mature open-source tools

●

end-user ready

●

strong in visualizing gridded data at HPC scale

●
