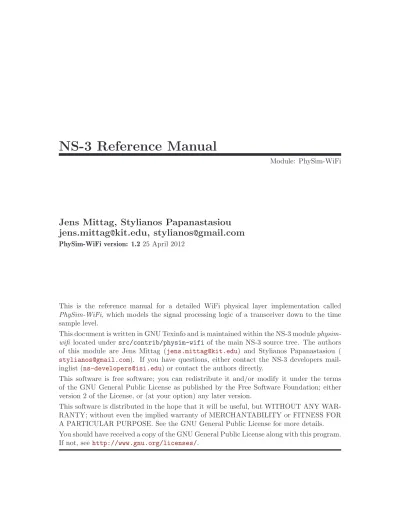

NS-3 Reference Manual
Module: PhySim-WiFi
Jens Mittag, Stylianos Papanastasiou
[email protected], [email protected]
PhySim-WiFi version: 1.225 April 2012
This is the reference manual for a detailed WiFi physical layer implementation called
PhySim-WiFi, which models the signal processing logic of a transceiver down to the time sample level.
This document is written in GNU Texinfo and is maintained within the NS-3 module physim-wifi located under src/contrib/physim-wifiof the main NS-3 source tree. The authors of this module are Jens Mittag ([email protected]) and Stylianos Papanastasiou (
[email protected]). If you have questions, either contact the NS-3 developers mail-inglist ([email protected]) or contact the authors directly.
This software is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This software is distributed in the hope that it will be useful, but WITHOUT ANY WAR-RANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, seehttp://www.gnu.org/licenses/.
i
Short Contents
1 Introduction
. . . .
12 Implementation
. . . .
33 Examples and Usage
. . . .
114 Additional Remarks
. . . .
151 Introduction
This module contains a physical layer implementation of the OFDM-based IEEE 802.11 standard, more precisely, for the Orthogonal frequency division multiplexing (OFDM) PHY specification for the 5 GHz band1. It can be used as a drop-in replacement for the official
YansWifiPhyimplementation when higher simulation accuracy is required.
The NS-3 default physical layer, YansWifiPhy, implements a packet-level PHY model which abstracts channel effects on individual packet bits by using average bit-error rates w.r.t. signal-to-noise and interference ratios to determine whether a packet is successfully received. In contrast, the PhySimWifiPhy implementation performs all signal processing steps that a real transceiver would follow when decoding a frame. As such, individual bits are explicitly considered and detailed lower-layer techniques such as bit interleaving, forward error correction, OFDM modulation and so on are applied. The end result of accounting for these mechanisms is a detailed and accurate signal representation, allowing consideration of effects such as frequency- and time-selective fading as well as enabling evaluation of the impact of advanced physical layer signal processing algorithms on the performance of the whole network. Further, by modeling the physical layer at this granularity, existing and new wireless channel models can easily be implemented and plugged into the simulator, without the need to build empirical bit-error or packet-error rates. For additional information on the motivation of this work, consult the publications"Bridging the Gap between Physical Layer
Emulation and Network Simulation"or"Enabling Accurate Cross-Layer PHY/MAC/NET
Simulation Studies of Vehicular Communication Networks".
Figure 1.1 shows the conceptual architecture of the PhySimWifiPhy implementation,
how it interacts with the existing WiFi MAC layer implementation and which sub-modules (i.e. signal processing modules) are used to simulate the frame construction and frame reception of a transceiver. In the following, the manual gives a basic overview of the frame transmission and reception process. Further details are then provided in Chapter 2
[Implementation], page 3. MacLow PhySimWifiPhy PhySimWifiChannel W ir eless P h ys ica l M A C C h an n el La y er Layer Send() StartReceive() SendPacket() ReceiveOk() PhySim... ...ConvolutionalEncoder ...BlockInterleaver ...Scrambler ...OFDMSymbolCreator PhySim... ...InterferenceHelper ...SignalDetector ...ChannelEstimator ...ConvolutionalEncoder ...BlockInterleaver ...Scrambler ...OFDMSymbolCreator PropagationDelayModel PhySimPropagationLossModel
Figure 1.1: Architecture of the PhySimWifi implementation: how it connects to the existing WiFi MAC implementation and which sub-modules are used to simulate the frame construction and frame reception process.
1
Chapter 1: Introduction NS-3 PhySim-WiFi manual
Whenever the MAC layer triggers a SendPacket() request on a PhySimWifiPhy in-stance, the frame construction process is started and a transition from packet-level to bit-level and from bit-bit-level to signal-bit-level is performed. To do so, the data bits of the packet are taken as an input (if given; if not, a random bit sequence that corresponds to the pay-load length is generated) and the functionality of several sub-modules is used to achieve the transformation. The necessary sub-modules are calledPhySimConvolutionalEncoder,
PhySimBlockInterleaver, PhySimScrambler and PhySimOFDMSymbolCreator, and they
correspond to the transformations specified in the IEEE 802.11 standard for OFDM-based transmission. Section 2.1 [Frame Construction Process], page 3 of this manual elaborates further on the details of the frame construction process.
After the complex time samples, which constitute the packet, have been generated, the packet is passed down to the wireless channel (which is of type
PhySimWifiChannel). The channel computes the propagation delay (using the existing
PropagationDelayModel implementations), applies a propagation loss (using sub-classes
of PhySimPropagationLossModel) and schedules a corresponding StartReceive() event
at the receiving PhySimWifiPhy2. For further details on how a propagation loss model can manipulate the signal, look atSection 2.2 [Modeling the Wireless Channel Effects], page 5. When the StartReceive() event expires, the incoming packet is first added to the
PhySimInterferenceHelper module, which keeps track of all currently incoming frames.
Afterwards, the reception process begins, depending on the current transmission and re-ception state of the receiving physical layer. During the rere-ception process, two additional sub-modules are used, apart from the ones already mentioned in the transmission process, namely PhySimSignalDetector and PhySimChannelEstimator. Further implementation details are described in Section 2.3 [Frame Reception Process], page 6.
Note that the increase in simulation accuracy is accompanied by an increase in com-putional effort. Depending on the WiFi mode used, the number of network nodes simu-lated, the amount of packets and data bits transmitted and the used channel models, the simulation can be up to 1000 or 10000 times slower than the default YansWifiPhy imple-mentation. In general, simulation requirements decrease with lower amounts of transmitted data, higher PHY data rates (transmission mode) and simpler channel models. A future version will include optional support for OpenCL, such that the signal processing parts can be parallelized, e.g. through the usage of recent GPGPUs with multiple compute units and cores (cf. "GPU-based Architectures and their Benefit for Accurate and Efficient Wireless
Network Simulations" for initial performance results).
1.1 System Requirements
The following libraries are required to build and use thePhySimWifiPhyimplementation:
• IT++ Signal Processing Library, Version 4.0.6 or higher
2 The term ‘receiving’ might be misleading here, since the frame might arrive, but not be received, because
2 Implementation
The following subsections contain detailed descriptions of the frame construction and recep-tion processes, the implementarecep-tion of the wireless channel and the interacrecep-tion of the new PHY with higher layer functions such as MAC busy and idle state signaling.
2.1 Frame Construction Process
The frame construction process starts whenever a SendPacket() is initiated from higher layers, that is, in a typical case, fromMacLow. Frame construction entails the transformation of individual bits in the packet into a sequence of complex time samples as well as the creation of a corresponding signal header and a preamble containing the OFDM short and long training symbols. The final constructed frame adheres to the frame format illustrated
inFigure 2.1.
Short Training Symbols
t t t t t t t t t t0 1 2 3 4 5 6 7 8 9 GI2 T1 T2 GI Signal GI Data1 GI Data2
Long Training Symbols 1. OFDMsymbol
2. OFDM symbol
3. OFDM symbol
Signal Detection, Coarse Frequency Offset Estimation
and Synchronization
Fine Channel Estimation Datarate, Length, Parity Bit
Service field, Data bits
Data bits Preamble
Signal
Header Payload
Figure 2.1: IEEE 802.11 PHY format for for the Orthogonal frequency division multi-plexing (OFDM) PHY specification for the 5 GHz band.
In detail, frame construction consists of the following steps:
1. Get the payload of the packet viapacket->PeekData(). The data is transformed to a vector of bits (itpp::bvec) and either reflects the real bits of the packet (if given), or a sequence of zero bits. The latter case does not lead to an immediately predictable bit pattern, however, since the bits are randomly scrambled later on in the construction process using a random seed.
2. The preamble of the packet is created usingPhySimWifiPhy::ConstructPreamble(). 3. The signal header is created with BPSK modulation and a coding rate of 1/2 using
PhySimWifiPhy::ConstructSignalHeader(uint32_t length, const WifiMode mode).
4. The payload of the packet is encoded at the requested WiFi rate using
PhySimWifiPhy::ConstructData(const itpp::bvec& bits, const WifiMode mode).
5. The preamble, the signal header and the data symbols are concatenated into a single vector of complex time samples, i.e. into a itpp::cvec.
6. The energy of the samples produced in the above steps is normalized to unit power and then transmit power and transmitter antenna gain factors are applied to the samples.
Chapter 2: Implementation NS-3 PhySim-WiFi manual
7. All runningEndPreamble,EndHeaderandEndRxevents are canceled, since it is the task of MAC to prevent transmissions when the receiver is busy (Section 2.5 [Integration
with MAC Layer], page 8 elaborates on the details).
8. The effect of transmitter oscillator offsets, i.e. a slight frequency offset, is applied (to the time samples).
9. A PhySimWifiPhyTag is created to store the complex time samples and bundle other
information that is used by the signal processing sub-modules (e.g. channel estimate values, transmit WiFi mode, transmitted data bits).
10. Physical layer state is changed throughPhySimWifiPhyStateHelper::SwitchToTx. 11. The packet is passed on to PhySimWifiChannel.
Figure 2.2 describes the general signal processing steps that take place within
PhySimWifiPhy::ConstructData. First, the input bits are scrambled by the
PhySimScrambler using a randomly generated scrambling sequence in order to prevent
long trails of consecutive 0s and 1s. In the second step, thePhySimConvolutionalEncoder
adds forward error correction bits at a rate that depends on the requested WiFi mode (e.g. at rate 1/2 when using 6 Mbps in a 20 MHz channel). Afterwards, the bit sequence is divided into equally sized blocks, whereas each block has to contain exactly the right number of bits that will be constitute one OFDM symbol later (cf. NCBPS parameter of the IEEE 802.11 standard, Section 17).
Input bit sequence
Scrambling
Convolutional encoding, e.g. with rate = 1/2 Scrambled bit
sequence
Scrambled bit sequence + forward error correction bits
Division of bits into equally sized blocks
Block interleaving
Bit modulation
OFDM modulation Divided bits for
future OFDM symbols
Interleaved blocks
Modulated bits
Transition from bits to complex time samples
OFDM symbols
80 time samples per symbol
Figure 2.2: The signal processing steps that perform the transformation from bit-level to the final OFDM symbols at signal level.
For each block, the bits are mapped to the correct sub-carriers by the
PhySimBlockInterleaver in order to avoid long runs of low reliability bits, then
modulated according to the requested WiFi mode (i.e. either using BPSK, QPSK, 16-QAM or 64-QAM) and, finally, passed on to the OFDM modulator. The OFDM modulator inserts four pilot symbols at pre-defined sub-carrier positions; these can later be used by the receiver to track the channel characteristics over time. The last two steps are implemented within the PhySimOFDMSymbolCreator and the result of all the signal processing steps described above is a sequence of complex time samples, where each block of 80 time samples corresponds to one OFDM symbol.
In PhySimWifiPhy::ConstructSignalHeader, the same sequence of signal processing
steps as above is used, except that there is no scrambling of bits and the simplest modulation scheme (BPSK) and a coding rate of 1/2 are used.
2.2 Modeling the Wireless Channel Effects
The wireless channel multiplexer, i.e. the entity that interconnects the PhySimWifiPhy
instances, is implemented in subclasses of type PhySimWifiChannel. The multiplexer has to be configured to use instances of type PhySimPropagationLossModel and
PropagationDelayModel in order to apply propagation loss effects (for pathloss,
shadowing and fast fading) and propagation delays.
Currently, two channel multiplexer implementations are available, the classic
PhySimWifiUniformChannel and a PhySimWifiManualChannel. The uniform multiplexer
applies the same propagation and delay models to all wireless links. As such, all links will be exposed to the same channel effects (e.g. all links will experience a ThreeLogDistance pathloss and a Rayleigh fading). In comparison, the PhySimWifiManualChannel further allows to specify individual delay and propagation loss models for individual links. For instance, one can specify a default ThreeLogDistance pathloss to all links (with a given set of pathloss exponents), and refine the channel conditions between individual nodes by configuring a different pathloss model for those.
Independent of the used multiplexer, the PhySim WiFi module contains the following propagation loss models, which all operate on the complex time samples in order to reflect pathloss, shadowing or frequency- and time-selective fast-fading effects:
• PhySimFriisSpacePropagationLoss, in order to apply the well-known Friis Space
propagation model
• PhySimConstantPropagationLoss, in order to apply a constant propagation loss (in
dB)
• PhySimLogDistancePropagationLoss, in order to apply a logarithmic pathloss w.r.t.
distance
• PhySimThreeLogDistancePropagationLoss, in order to use different pathloss
expo-nents for different distance ranges
• PhySimShadowingPropagationLoss, in order to apply a shadowing effect with a
Gaus-sian normal random variable
• PhySimRicianPropagationLoss, in order to apply a fast-fading Rician effect (or
Chapter 2: Implementation NS-3 PhySim-WiFi manual
• PhySimTappedDelayLinePropagationLoss, in order to use the multi-tap channel
im-plementations that are included within IT++ (e.g. ITU and COST models)
• PhySimVehicularChannelPropagationLoss, in order to apply sophisticated channel
effects, that are based on channel soundings in the 5.9 GHz domain using different environments (Urban Canyon, Suburban Street, Expressway) and different experiment setups (Oncoming and Same Direction)
For further information about the implemented channel models, interested readers may refer to the API Documentation, which outlines implementation details and gives references to relevant works in the literature.
2.3 Frame Reception Process
The frame reception process is divided into 4 events withinPhySimWifiPhy, seeFigure 2.3: the initial PhySimWifiPhy::StartReceive event that indicates that the first complex time sample has propagated through the channel and has arrived at the receiver, the
PhySimWifiPhy::EndPreamble event, that indicates that all complex time samples that
represent the frame preamble with all of its training symbols have arrived at the receiver,
the PhySimWifiPhy::EndHeader event which expires once all complex time samples that
represent the signal header have arrived, and finally the PhySimWifiPhy::EndRx event, which indicates when the whole frame has finally arrived.
Preamble
Signal
Header Payload
Short Training Symbols Long Training Symbols 1. OFDMSymbol 2. OFDMSymbol ... N. OFDMSymbol
StartReceive() EndPreamble() EndHeader() EndRx()
Figure 2.3: The frame reception process and its division into four distinct events.
AtPhySimWifiPhy::StartReceive, the packet is added toPhySimInterferenceHelper
in order to keep track of the interference added by the arriving packet. Further, depending on the current PHY state, that is only if the physical layer is currently inIDLEorCCA_BUSY
state, a newPhySimWifiPhy::EndPreamble event is scheduled and it is checked whether a
new CCA_BUSY phase has to be started (e.g. because the cumulative signal energy at the
received now exceeds the configured CcaBusyThreshold). Since v1.1, also packet capture is supported, i.e. anPhySimWifiPhy::EndPreamble event is also scheduled if the physical layer is currently inSYNC or RXstate and if the signal-to-interference noise ratio is greater or equal than 8 dB. For further information regarding packet capture and how it works, please take a look at"An Experimental Study on the Capture Effect in 802.11a Networks".
AtPhySimWifiPhy::EndPreamble, thePhySimSignalDetectormodule is used to check
whether the repeating pattern of the short training symbols can be detected or not. If it can be detected and if the signal-to-interference noise ratio (SINR) is greater than 4 dB and if the physical layer is either in CCA_BUSY, IDLE or SYNC state, it is then assumed that the receiver can lock on to that frame. The 4 dB requirement is introduced in order to distinguish multiple preambles (that would be the case if the receiver is in SYNC state and two preambles are overlapping in time). Then the receiver performs an initial channel estimation also takes place through the PhySimChannelEstimator module. Afterwards, a
PhySimWifiPhy::Endheader event is scheduled and the physical layer state is changed to
SYNC.
Note that for all events the cumulative time samples of all arriving packets are used as input for the signal processing. Contrary to v1.0, the signal detection mechanism does not process more than the 320 samples of the preamble anymore, since this adds only additional computation time while not increasing the accuracy of the simulation.
At PhySimWifiPhy::EndHeader, the initial channel estimate is applied to all time sam-ples. Afterwards, the header is decoded by applying the reverse signal processing steps of the frame construction process. The result is a bit vector that contains the SIGNAL header of the packet. The header is then examined to determine the modulation and coding rate used for the rest of the frame, the frame length, and the parity bit. Only if all values in the header are plausible, and the physical layer is currently in SYNC state, a PhySimWifiPhy::EndRx
event is scheduled after the expected end of the packet. In addition the physical layer state is changed toRX. Please note, that contrary to v1.0, running PhySimWifiPhy::EndPreamble
events are not cancelled any more, since this would disable the packet capture feature.
At PhySimWifiPhy::EndRx, the data symbols are decoded. Again, the initial channel
estimate is applied to all time samples. Afterwards, OFDM and bit modulation are reversed and the forward error correction bits are used to correct possible errors. Then, the initial state of the scrambler at the transmitter is recovered and used to re-arrange the bits into their original order. And if the decoded data bits are identical to the transmitted data bits in the end, the reception is considered to be successful, and the physical layer state is changed either toIDLE orCCA_BUSY, depending on whether the cumulative signal strength is above or below the configured CcaBusyThreshold.
2.4 Physical Layer State Machine
Based on the frame format and the events of the reception process, the physical layer distinguishes between 5 different states, see Figure 2.4: the TX state, which is active when the physical layer is transmitting a packet, the IDLE state, which is active whenever no reception process is going on and the whenever the cumulative signal strength is below the CcaModelThreshold, the CCA_BUSY state, which is similar toIDLE, except that the signal strength is above CcaModelThreshold, the SYNC state, which reflects the situation that a preamble has been detected and locked on to, and finally the RX state, which is active whenever the receiver is decoding the payload of a packet.
Chapter 2: Implementation NS-3 PhySim-WiFi manual
TX
RX CCA
SYNC
IDLE Energy raises/dropsabove/below CCA threshold Reception finished Header decode successful / Packet capture Header decode failed / Preamble detected Header decode failed Preamble detected Reception finished Start / End of
Transmission TransmissionEnd of
Packet capture
Figure 2.4: The state machine of the physical layer implementation and the allowed transitions between those states.
The transitions of the physical layer state machine are implemented through
PhySimWifiPhyStateHelper, which is responsible for transition checks (e.g. if a transition from the current state into a new state is allowed) and the notification of other layers, e.g. the MAC1.
2.5 Integration with MAC Layer
The physical layer provides feedback to the MAC layer whenever the receiver is
in TX, RX or CCA_BUSY state, in order to enable the CSMA mechanism of IEEE
802.11. The notification is performed in PhySimWifiPhyStateHelper, whereas
PhySimWifiPhyStateHelper::NotifyRxStart is used to implement the virtual carrier
sensing functionality, while PhySimWifiPhyStateHelper::NotifyMaybeCcaBusyStart is used for the physical carrier sensing counterpart.
In order to trigger the notifications for physical carrier sensing correctly,PhySimWifiPhy
contains two methods to detect the start of the next CCA_BUSY phase, start the de-tected phase and end an already running CCA_BUSY phase. These are, respectively,
PhySimWifiPhy::CheckForNextCcaBusyStart, PhySimWifiPhy::StartCcaBusy and
PhySimWifiPhy::EndCcaBusy. CheckForNextCcaBusyStart is called whenever the
receiver needs to decide whether to switch to theIDLE orCCA_BUSYstate; specifically, it is called after a PhySimWifiPhy::EndRx event, a failed PhySimWifiPhy::EndPreamble or a failed PhySimWifiPhy::EndHeader event, and whenever there is a need to check whether to stay IDLEor not, as outlined in PhySimWifiPhy::StartReceive.
1 Please note that the state machine presented in "Bridging the Gap between Physical Layer Emulation
Checking whether to turn to a CCA_BUSY state is made on a per 80 time samples block level by computing the cumulative signal strength of such blocks (cf.
PhySimHelper::GetOFDMSymbolSignalStrength. Once the signal strength exceeds the
3 Examples and Usage
3.1 How to use
PhySimWifiPhy
instead of
YansWifiPhy
When using the YansWifiPhy implementation, one would use something similar to the following example code to configure and set everything up.
#include "ns3/wifi-module.h" YansWifiChannelHelper wifiChannel;
wifiChannel.AddPropagationLoss("ns3::FixedRssLossModel");
wifiChannel.SetPropagationDelay("ns3::ConstantSpeedPropagationDelayModel"); YansWifiPhyHelper wifiPhy = YansWifiPhyHelper::Default();
wifiPhy.SetChannel(wifiChannel.Create()); WifiHelper wifi = WifiHelper::Default(); wifi.SetStandard(WIFI_PHY_STANDARD_80211a);
NqosWifiMacHelper wifiMac = NqosWifiMacHelper::Default (); wifiMac.SetType ("ns3::AdhocWifiMac");
wifi.SetRemoteStationManager ("ns3::ConstantRateWifiManager", "DataMode", StringValue ("OfdmRate6Mbps"),
"NonUnicastMode", StringValue ("OfdmRate6Mbps")); NodeContainer nodes;
nodes.Create(2);
wifi.Install (wifiPhy, wifiMac, nodes);
In order to use the PhySimWifiPhy implementation instead of YansWifiPhy, one has to replace the YansWifiChannelHelper and YansWifiPhyHelper classes with
PhySimWifiChannelHelperand PhySimWifiPhyHelper only, see below.
#include "ns3/wifi-module.h" #include "ns3/physim-wifi-module.h" PhySimWifiChannelHelper wifiChannel;
wifiChannel.AddPropagationLoss("ns3::PhySimConstantPropagationLoss"); wifiChannel.SetPropagationDelay("ns3::ConstantSpeedPropagationDelayModel"); PhySimWifiPhyHelper wifiPhy = PhySimWifiPhyHelper::Default();
wifiPhy.SetChannel(wifiChannel.Create()); WifiHelper wifi = WifiHelper::Default(); wifi.SetStandard(WIFI_PHY_STANDARD_80211a);
NqosWifiMacHelper wifiMac = NqosWifiMacHelper::Default (); wifiMac.SetType ("ns3::AdhocWifiMac");
wifi.SetRemoteStationManager ("ns3::ConstantRateWifiManager", "DataMode", StringValue ("OfdmRate6Mbps"),
"NonUnicastMode", StringValue ("OfdmRate6Mbps")); NodeContainer nodes;
Chapter 3: Examples and Usage NS-3 PhySim-WiFi manual
wifi.Install (wifiPhy, wifiMac, nodes);
3.2 How to trace events from
PhySimWifiPhy
The whole implementation can act as a trace source at the occurence of different events. The most interesting and important events are probably the ones published in PhySimWifiPhy itself.
void PhyTxTrace (std::string context, Ptr<const Packet> p, Ptr<const PhySimWifiPhyTag> tag);
void PhyStartRxTrace (std::string context, Ptr<const Packet> p, Ptr<const PhySimWifiPhyTag> tag);
void PhyStartRxErrorTrace (std::string context, Ptr<const Packet> p,
Ptr<const PhySimWifiPhyTag> tag, enum PhySimWifiPhy::ErrorReason reason); void PhyEnergyDetectionFailedTrace (std::string context, Ptr<const Packet> p,
Ptr<const PhySimWifiPhyTag> tag);
void PhyRxOkTrace (std::string context, Ptr<const Packet> p, Ptr<const PhySimWifiPhyTag> tag);
void PhyHeaderOkTrace (std::string context, Ptr<const Packet> p, Ptr<const PhySimWifiPhyTag> tag);
void PhyPreambleOkTrace (std::string context, Ptr<const Packet> p, Ptr<const PhySimWifiPhyTag> tag);
void PhyRxErrorTrace (std::string context, Ptr<const Packet> p,
Ptr<const PhySimWifiPhyTag> tag, enum PhySimWifiPhy::ErrorReason reason); void PhyHeaderErrorTrace (std::string context, Ptr<const Packet> p,
Ptr<const PhySimWifiPhyTag> tag, enum PhySimWifiPhy::ErrorReason reason); void PhyPreambleErrorTrace (std::string context, Ptr<const Packet> p,
Ptr<const PhySimWifiPhyTag> tag, enum PhySimWifiPhy::ErrorReason reason); void PhyCcaBusyStart (std::string context, Ptr<const NetDevice> device, Time duration); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/Tx", MakeCallback(&PhyTxTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/StartRx", MakeCallback(&PhyStartRxTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/StartRxError", MakeCallback(&PhyStartRxErrorTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/EnergyDetectionFailed", MakeCallback(&PhyEnergyDetectionFailedTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/RxOk", MakeCallback(&PhyRxOkTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/HeaderOk", MakeCallback(&PhyHeaderOkTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/PreambleOk", MakeCallback(&PhyPreambleOkTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/RxError", MakeCallback(&PhyRxErrorTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/HeaderError", MakeCallback(&PhyHeaderErrorTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/PreambleError", MakeCallback(&PhyPreambleErrorTrace) ); Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/CcaBusyStart", MakeCallback(&PhyCcaBusyStart) );
Apart from the above, there is also a trace source available inPhySimWifiPhyStateHelper
which allows the user to be notified about all the physical layer state changes and transi-tions.
void StateLogger (std::string context, Ptr<NetDevice>, Time start, Time end , enum PhySimWifiPhy::State state);
Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/State/State", MakeCallback(&StateLogger));
3.3 How to change the signal processing configuration
The signal processing modules offer quite a few configuration parameters. For instance, the correlation threshold or the correlation technique of the signal detector can be set through the NS-3 attribute system. A user may also enable or disable soft decision decoding, oscil-lator effects, random scrambler initialization and other features. Since all these parameters are documented within the source code and exposed through the doxygen generated API documentation, this manual refers to the API documentation for a detailed description of all those parameters.
However, there is a small issue in the way NS-3 configures the Wifi standard, which prevents the proper change of default attributes after setting the physical layer to a specific IEEE standard. For instance if you use the following code to first configurePhySimWifiPhy
to reflect a IEEE 802.11a setup and then want to change the CCA threshold from the default -62 dBm to -82 dBm, it won’t work. The reason is that the attribute system does not apply the changes in chronological order.
WifiHelper wifi = WifiHelper::Default(); wifi.SetStandard(WIFI_PHY_STANDARD_80211a);
Config::SetDefault ("ns3::PhySimWifiPhy::CcaModelThreshold", DoubleValue (-82.0));
The proper way of doing this would be to not change the default value for the object instantiation, but to change the value after the physical layer has been created by using the correspondingConfig::Setcall, see blow.
WifiHelper wifi = WifiHelper::Default(); wifi.SetStandard(WIFI_PHY_STANDARD_80211a);
Config::Set ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/CcaModelThreshold", DoubleValue (-82.0));
This issue is existing for the PhySimWifiPhy attributes CcaModelThreshold, Frequency,
4 Additional Remarks
The current implementation is already stable and all the OFDM based communication modes are working and validated, either against the reference values of the example in Annex G of the IEEE 802.11 (2007) standard, against the CMU channel emulator testbed at Chalmers (see the publication mentioned in the beginning of this manual), or against theoretical results and curves. However, the current implementation has a few minor missing features, that will be added in a following up release:
• No multi-channel operation support so far
• It is possible to mix different data rates, as long as they share the same channel width. However, multiple (and overlapping) channels using different channel widths (e.g. 10 and 20 MHz channels) are not supported, since different channel band-widths imply different complex sample durations, which are not currently handled by
5 Changelog
5.1 Changes from v1.1 to v1.2
• Fix of an equation error in PhySimLogDistancePropagationLoss::DoCalcRxPower: instead of calculating log10 (m_distance / m_referenceDistance), a log10
(m_referenceDistance / m_distance) was used in v1.1.
• An implementation of the method PhySimInterferenceHelper::GetNoiseFloorDbm
was added.
• The attributes of ns3::PhySimShadowingPropagationLoss were renamed to
StandardDeviation and MinimumDistance.
• Added configuration of IEEE 802.11g modes inPhySimWifiPhy::ConfigureStandard. • Update in PhySimWifiPhy::StartReceiveto properly handle the case of packet cap-ture during SYNCING and RX states: now we notify a RxDrop in case that capture is not successful and tag the packet as being captured if it is successful.
• More time samples are used for preamble detection inPhySimWifiPhy::EndPreamble. • If a packet is captured inPhySimWifiPhy::EndPreamble, it is tagged as being captured
(using the PhySimWifiPhyTag object).
• A rare but significant bug in PhySimWifiPhy::EndPreamble has been fixed: so far, running EndCcaBusy events have not been canceled in case of successful preamble detection, which is, however, required to avoid unallowed state transitions.
• Bugfix in PhySimWifiPhy::EndHeader: it is necessary to check for a new CcaBusy period in case header decoding did not succeed.
5.2 Changes from v1.0 to v1.1
• A bug in Payload and Overall SINR Computation which let the whole simulation crash was fixed.
• The frequency offsets are modeled through a triangular variable instead of a uniform variable and have been moved from PhySimWifiPhy::SendPacket to
PhySimWifiPhy::StartReceive (thanks to Michele Segata). In order to generate
the frequency offset between sender and receiver, a triangular random variable is used. This choice derives from the following formulation. The frequency offset between sender and receiver is the difference between the central frequencies of the two wireless card, so Fof f =Ftx−Frx=F0+Errtx−(F0+Errrx) =Errtx−Errrx
where F tx and F rx are the frequencies of sender and receiver respectively, F 0 the center frequency (e.g., 5.9 GHz for 802.11p), and Err tx and Err rx the errors in frequency of sender and receiver respectively. Assuming Err tx and Err rx being two uniformly distributed random variables between -1 and 1 (multiplied by the offset tolerance as mandated by the standard like, e.g., 20 ppm for 20 MHz channel), the result of their difference is a triangular distribution between -2 and 2. Actually, the real distribution of central frequencies is generally not uniform, but it should depend on the technology used. We could expect a more concentrated distribution for modern devices. Uniform distribution is a worst-case scenario, but in the absence
Chapter 5: Changelog NS-3 PhySim-WiFi manual
of vendor-provided distributions this is the best we can do and it is good to test feasibility.
• Signal detector was improved and a default correlation threshold of 0.85 is configured. This translates to a minimum of 5db SNR in order to correctly detect the preamble. Please note that this only works in the absence of interference. In case of interference, an additional SINR check of 4dB is introduced to distinguish overlapping preambles.
• The accuracy of the SpeedOfLight value/attribute inConstantSpeedPropagationDelayModel
was increased.
• New trace sources have been added: StartRx, StartRxError and EnergyDetection-Failed. Furthermore, the trace sources PreambleError, HeaderError and RxError have been extended to include also an error reason. The reasons are defined enum PhySimWifiPhy::ErrorReason
• Frequency tolerance for 802.11p has been set to 20ppm again. • A memory leak in PhySimWifiPhy::EndRxwas resolved
• The PhySimInterferenceHelper class has now an optimization parameter/attribute
called MaximumPacketDuration that can be used to reduce the amount of memory/history. This can be useful if the maximum packet duration is known prior to simulation, and memory consumption shall be reduced.
• A vector out of bound error in PhySimWifiPhy::EndPreamblewas fixed.
• A rare bug in PhySimInterferenceHelper::GetBackgroundNoise, in particular within case 3 of this method, was fixed.
• Two bugs in the computation of V2V EXPRESSWAY ONCOMING and
V2V URBAN CANYON ONCOMING have been fixed. • Packet capture capabilities have been added.
