HOME APPLIANCES CONTROL THROUGH
ELECTRONIC-MAIL
Tatikonda Venkata Rao
1, G. Chandra Reddy
2 1Pursuing M.Tech, Assistant Professor , Nalanda Institute of Technology (NIT), Siddharth Nagar,
Kantepudi Village, Sattenepalli Mandal, Guntur Dist, AP, (India)
ABSTRACT
The Home mechanization turn out to be more famous these days and alludes to the use of the PC and new innovation for control the local elements and home appliances. In this paper we are presenting the new innovation utilizing Ethernet association, the ARM7 based lpc2148 microcontroller utilized as a part of this task. At whatever point the individual need to control the gadgets in the home the client need to send an email to the mail id relegate to the Home framework. In this framework we proposed the idea with deference email controlled. Whatever we have sent in an email with the title with separate that comparing information we control the apparatuses. The individual used to send information like DEVICE 1 ON/OFF from email then the naturally the gadgets will control. We have interfaced the framework with MATHLAB programming on PC and composed the application like perusing viewpoint mail from determined individual. In this framework we utilize math lab programming for perusing mail and exchange information through serial port. We compose the code in such an approach to control machines by utilizing serial port. Of course, we put away information in the controller, if the information (from email) matches, then resultant information control the apparatuses either DEVICE ON/OFF.
Keywords:
Email, MATLAB Software Tool, ARM7 LPC 2148, Device Control.
I.
INTRODUCTION
The prominence of system empowered home computerization has been expanding enormously these days in
view of straightforwardness and much higher moderateness. Also, with the long development of the Internet
innovation, there is expanding the interest for the remote control and observing of such system empowered
apparatuses. On the other hand, the new and energizing technologies are build the availability of gadgets inside
of the home with the end goal of home mechanization through web are yet to be investigated.
Home computerization gets to be to the use of PC and data innovation for control of home apparatuses and
household highlights. The application differs from basic remote control of lighting to complex PC/smaller scale
controller based systems including shifting degrees of knowledge and mechanization. Home mechanization
framework results in accommodation, vitality effectiveness, costs and security advantages prompting enhanced
nature of life. Home computerization is turning out to be more well-known step by step because of its various
favourable circumstances. This paper goes for outlining an essential home mechanization application on
225 | P a g e
MATLAB software tool. In this paper we adding to the home robotization framework through email by utilizingARM7TDMI here we are interfacing the microcontroller with PC it comprises of visual fundamental
programming and which is associated with the web association.The main purpose of this project is to develop a
Home automation system through email, here we are using an lpc2148 micro controller and personal computer
with the matlab software which is connected to the internet and the microcontroller is interfaced to the pc
whenever the user needs to control the load which means appliances in the home like fans, lights etc. which are
also connected to the controller then the user will sent an email to the particular mail id which assigned for the
microcontroller, whatever the mail sent by the user will receive the pc and the pc will contain the MATHLAB
software and that software will sends the commands to the controller to switch on/off conditions of the lights or
fans etc.
II.
LITERATURE
REVIEW
To complete this project on hardware need to refer some previously developed concepts those are discussed in
given below
“Java-based home automation system”: This paper shows the outline and usage of a Java-based robotization
framework that can screen and control home apparatuses by means of the World Wide Web. The outline
depends on a standalone installed framework board incorporated into a PC-based server at home. The home
machines are associated with the information/yield ports of the inserted framework board and their status are
gone to the server. The observing and control programming motor depends on the blend of Java Server pages,
JavaBeans, and intelligent C. The home apparatuses can be observed and controlled locally by means of the
inserted framework board, or remotely through a Web program from anyplace on the planet gave that an
Internet access is accessible. The framework is adaptable and permits multi-merchant apparatuses to be added
with no real changes to its centre. Secret key assurance is utilized to piece unapproved clients from getting to the
machines at home. In the event that the Internet association is down or the server is not up, the implanted
framework board still can control and work the machines locally. "A remote controller for home and office
appliances by telephone”:This paper portrays the configuration and improvement of a telephone based remote
controller for home and office robotization. The circuit is planned in light of the Turkish phone gauges and
associated with the phone arrange simply like any ordinary phone sets. Any tone dialing double tone different
recurrence (DTMF) phone set or hand-held tone dialer may be utilized to send charges to the control unit, and
remotely control an extensive variety of mains machines in homes and workplaces. The outlined circuit can
likewise recognize the client distinguishing proof number for averting non-approved utilization of the control
unit. The criticism sign advises the client about the consequences of the charges. Domestic gateway is a piece of
crucial home network system serving as a connection path to permit external access to your private home
installations. This equipment is an object of control as seen from the standpoint of enterpriser and is constructed
as a machine primarily based on OSGi (open carrier gateway initiative) platform if you want to facilitate
control. The control server assigned outside is remotely coping with more than one home gateways based totally
on OSGi and desires initial provisioning characteristic for system registration all through initial booting
procedure or rebooting system. These paper pursuits to realize preliminary provisioning feature for home
226 | P a g e
present day technology so that it will be useful to the lives of others is a big contribution to the network. Thispaper affords the layout and implementation of a low value but flexible and relaxed cellular phone primarily
based domestic automation system. The layout is based totally on a standalone Arduino BT board and the house
home equipment is linked to the input/ output ports of this board through relays. The communication between
the cellular telephone and the Arduino BT board is Wi-Fi. This device is designed to be low price and scalable
allowing style of gadgets to be managed with minimum changes to its centre. Password safety is being used to
simplest allow authorized customers from having access to the home equipment at home.
III. HARDWARE
DESIGN
Fig 1: Block Diagram
The Home robotization through Email utilizing Ethernet innovation comprises of diverse equipment and
programming modules. The accompanying square graph demonstrates the diagram of equipment parts
incorporated into the framework.
Power Supply
Force gives may be an essential interest for any task. The greater part of electronic activities/applications may
come chips away at Dc voltage, however our home current is Ac in this way we have to change over Ac voltage
to Dc voltage for this we must stride down voltage from 230v Ac to 12v Ac by utilizing 12v-0v-12v
transformers, however still it had been Ac give along these lines we'd like to change over Ac to Dc for that need
to utilize span rectifier, the yield voltage of extension rectifier is 12v throbbing Dc, in order to impel
unadulterated Dc voltage should use channels for the taking out the swells, accordingly it ought to get
immaculate 12v Dc from that require to change over 5v Dc by utilization of controller named as 7805, in that
7805 controller "78" demonstrates it's a positive voltage and "05" shows 5v yield voltage consequently by 7805
controller we tend to have gotten 5v Dc directed yield voltage.
LCD
The fundamental guideline behind fluid precious stone atoms is that when an electric current is connected to
them, they tend to untwist. This reasons an adjustment in the light point going through them. This reasons an
227 | P a g e
specific zone of LCD. Consequently that range gets to be darker contrasting with others. For making a LCDscreen, an intelligent mirror must be setup in the back. A terminal plane made of indium-tin oxide is continued
top and a glass with a polarizing film is likewise included the base side. The whole territory of the LCD must be
secured by a typical terminal or more it ought to be the fluid gem substance. Next comes another bit of glass
with a terminal fit as a fiddle of the rectangle on the base and, on top, another polarizing film. It must be noticed
that the two are kept at right edges. At the point when there is no present, the light goes through the front of the
LCD it will be reflected by the mirror and bobbed back. As the anode is associated with an interim battery the
current from it will bring about the fluid gems between the basic plane terminal and the cathode moulded like a
rectangle to untwist. Therefore the light is obstructed from going through. In this manner that specific
rectangular zone seems clear.
Fig 2: LCD Display with Pins.
LPC2148 Microcontroller
The LPC2148 microcontroller load up taking into account a 16-bit/32-bit ARM7TDMI-S CPU with constant
copying, 16-bit/32-bit ARM7TDMI-S microcontroller in a little LQFP64 bundle, 8 kB to 40 kB of on-chip static
RAM and 32 kB to 512 kB of on-chip streak memory; 128-piece wide interface/quickening agent empowers
rapid 60 MHz operation, In-System Programming/In-Application(ISP), Single 10-bit DAC gives variable simple
yield, Two 32-bit clocks/outside occasion counters (with four catch and four think about channels each), PWM
unit (six yields) and guard dog, Low power Real-Time Clock (RTC), Multiple serial interfaces including two
UARTs (16C550), two Fast I2C-transport (400kbit/s), SPI and SSP with buffering and variable information
length capacities.
LAMP
The brilliant light is an electric light which delivers light with a wire fiber warmed to a high temperature by an
electric current going through it, until it gleams. The hot fiber is shielded from oxidation with a glass or quartz
globule that is loaded with inactive gas or cleared. In an incandescent light, fiber vanishing is anticipated by a
compound process that redeposits metal vapor onto the fiber, amplifying its life.
228 | P a g e
Fan
The fan is a machine used to make stream inside of a liquid, commonly a gas, for example, air. Fan comprises of
a pivoting course of action of cutting edges which follow up on the liquid. The turning gathering of sharp edges
and centre point is known as a rotor. More often than not, it is contained inside of the some type of lodging or
case. This may be immediate the wind current or build security by giving articles from reaching the fan cutting
edges. Most fans are controlled by electric engines, however distinctive of force may be utilized, including
inward ignition motors and water driven engines. Fans produce streams with high volume and low weight wind
stream, instead of compressors which deliver high weights at a similarly low volume.
Fig 4: FAN
Relay
A transfer is an electrically worked switch. It is for the most part used to control higher voltage circuits with
lower voltage. The "control" and "controlled" circuits are electrically disengaged from one another. Since
transfers are switches, the wording connected to switches is additionally connected to transfers; a hand-off
switches one or more shafts, each of whose contacts can be tossed by stimulating the curl.
1) Normally-Open (NO): The circuit is detached i.e. open when the hand-off is idle.
2) Normally-Closed (NC): The circuit is associated i.e. shut when the transfer is inert.
Transfer: Relay is a gadget which gives association between two or more focuses or gadget because of the info
given to the hand-off. The other utilizing of transfer give disengagement between the controller and the gadget
as we probably am aware gadgets may take a shot at AC and in addition on DC. Hence the hand-off gives
seclusion between the controller and the gadget it may take a shot at AC and also on DC. It will get signals from
microcontroller which takes a shot at DC subsequently we require a transfer to extension hole. Hand-off is
amazingly valuable when you have to control a lot of voltage or current with little electrical sign. Hand-off
working is straightforward, when force is connected to transfer current begin moving through the control curl
then the electromagnetic begins invigorating. It comprises of threeHear focuses A, B, C are utilized as control
focuses. At the point when force is supplied to data terminal because of electromagnetic impact, B and C are
229 | P a g e
Fig 5: Relay.
IV.SOFTWARE DESIGN
In this proposed system, as we used LPC2148 we need to use following software tools to program for it.
1. Keil uVision
2. Flash Magic
3. Visual Basic
The Keil uVision is an IDE for Embedded C language. In this IDE, we need to import the utilities and libraries
according to the controller we are using. This IDE is very simpler and in user friendly manner to use. It includes
all the C/C++ compilers, assemblers, and debuggers in it. It simplifies the process of embedded simulation and
testing along with Hex file generation.
The flash magic is a programming utility. The C/C++ program written in IDE will be processed into Hex file i.e.
in .hex format. It is necessary to dump the hex file on to the microcontroller.
MATLAB (grid research facility) is a multi-worldview numerical registering environment and fourth-era
programming dialect. A restrictive programming dialect created by Math Works, MATLAB permits lattice
controls, plotting of capacities and information, usage of calculations, formation of client interfaces, and
interfacing with projects written in different dialects, including C, C++, Java, Fortran and Python.
In spite of the fact that MATLAB is planned basically for numerical registering, a discretionary tool kit utilizes
the MuPAD typical motor, permitting access to typical figuring abilities. An extra bundle, Simulink, includes
graphical multi-space re-enactment and model-based configuration for dynamic and inserted
frameworks.MATLAB (network research center) is a multi-worldview numerical figuring environment and
fourth-era programming dialect. An exclusive programming dialect created by Math Works, MATLAB permits
lattice controls, plotting of capacities and information, usage of calculations, production of client interfaces, and
interfacing with projects written in different dialects, including C, C++, Java, Fortran and Python. In spite of the
fact that MATLAB is proposed essentially for numerical figuring, a discretionary tool kit utilizes the MuPAD
typical motor, permitting access to typical processing capacities. An extra bundle, Simulink, includes graphical
230 | P a g e
V. WORKING DESCRIPTION
The project will starts from when powered up to the microcontroller and pc, thecontroller wait for the email and
pc also whenever the email is received by the pc it will be forward to the controller through vb, according to the
instruction received by the user the controller will configures the device operation. The pc will connect to the
internet connection then the email will be received by the vb will be perfect and according to the configuration
of the controller developed by the developer then the devices which are connected to the controller get
controlled.
VI. RESULTS
I observed results in this project are, whenever sent a mail through e-mail with subject DEVICE1 ON, and then
automatically turned on device connected to controller through relay. And same as for turn of the device also.
The results pictures of the project as mention given below.

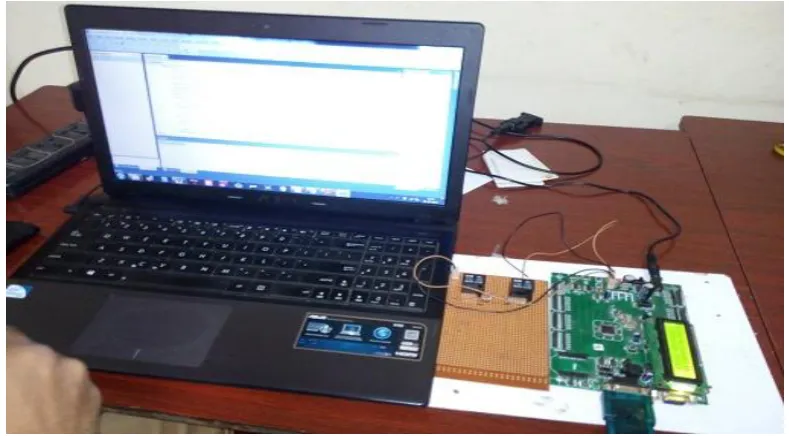

Fig 6: ARM board interface to PC through serial cable
VII.CONCLUSION
In this computation world, where directly or indirectly everything is dependent on computation and information
technology. This paper discuss with a basic application of home automation using ARM 7 processor which can
be easily implemented and used efficiently. The code provided by the application is generic and flexible in a
user friendly manner and can be extended for any future applications like power control, surveillance, etc. and
also this technique is better than other home automation methods is several ways. For example, home
automation through DTMF, the call tariff becomes huge disadvantage, which is not the case in proposed
method. Also, in Web server based home automation, the design of server application and the placement is
eliminated by this method, because it simply uses the already existing web server application provided by
231 | P a g e
After the code is Programmed in to the controller and powered up then the pc and controller waits for themessage and execute the code by operating devices which are connected to the controller and according to the
configuration the device performs its operation and here we are developing a conventional system for the
Efficient usage of the home and offices and for the emergency conditions.
REFERENCES
[1]. Al-Ali A. R. andAl-Rousan M., "Java-based home automation system", IEEE Transactions on Consumer
Electronics, vol. 50, no. 2, pp. 498-504, 2004.
[2]. Ali M., Vlaskamp J.H.A, Eddiny N.N., Falconer B. and Oram C., "Technical Development and
Socioeconomic Implications of the Raspberry Pi as a Learning Tool in Developing Countries", 5th
Computer Science and Electronic Engineering Conference (CEEC), pp. 103-108, 2013.
[3]. Ardam H. and Coskun I., "A remote controller for home and office appliances by telephone", IEEE
Transactions on Consumer Electronics, vol. 44, no. 4, pp. 1291-1297, 1998.
[4]. Baudel T. and Beaudouin-Lafon M., "Charade: remote control of objects using free-hand gestures",
Communications of the ACM, voI. 36, no. 7, pp. 28-35, 1993.
[5]. Bromley K., Perry M., and Webb G. "Trends in Smart Home Systems, Connectivity and Services",
www.nextwave.org.uk, 2003
[6]. Kushiro N., Suzuki S., Nakata M., Takahara H. and Inoue M., "Integrated home gateway controller for
home energy management system", IEEE International Conference on Consumer Electronics, pp. 386-387,
2003.
[7]. Ok S. and Park H., "Implementation of initial provisioning function for home gateway based on open
service gateway initiative platform", The 8th International Conference on Advanced Communication
Technology, pp. 1517-1520, 2006.
[8]. Saito T., Tomoda I., Takabatake Y., Ami J. and Teramoto K., "Home Gateway Architecture And Its
Implementation", IEEE International Conference on Consumer Electronics, pp. 194195, 2000.
[9]. Sriskanthan N., Tan F. and Karande A., "Bluetooth based home automation system", Microprocessors and
Microsystems, Vol. 26, no. 6, pp. 281-289, 2002.
www.raspberrypi.org/archives/tag/raspberry-pi-user-guide
[10].YoonD., BaeD., KoH. and Kim H., "Implementation of Home Gateway and GUI for Control the Home
Appliance", The 9th International Conference on Advanced Communication Technology, pp. 1583-1586,
232 | P a g e
AUTHOR
DETAILS
TATIKONDA VENKATA RAO, pursuing M.Tech from Nalanda Institute of
Technology(NIT), Siddharth Nagar, Kantepudi village, Sattenepalli Mandal, Guntur
dist, AP, INDIA.
G. CHANDRA REDDY,working as Assistant Professor from Nalanda Institute of
Technology Siddharth Nagar, Kantepudi village, Sattenepalli Mandal, Guntur dist,
