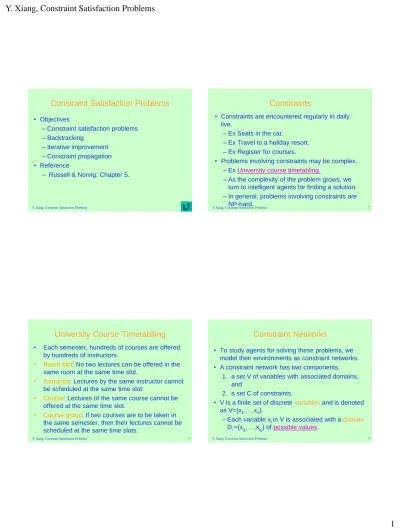

Y. Xiang, Constraint Satisfaction Problems

(1)

Constraint Satisfaction Problems

• Objectives

– Constraint satisfaction problems – Backtracking

– Iterative improvement – Constraint propagation

• Reference

– Russell & Norvig: Chapter 5.

Y. Xiang, Constraint Satisfaction Problems 1

Constraints

• Constraints are encountered regularly in daily live.

– Ex Seats in the car.

– Ex Travel to a holiday resort.

– Ex Register for courses.

• Problems involving constraints may be complex.

– Ex University course timetabling.

– As the complexity of the problem grows, we turn to intelligent agents for finding a solution.

– In general, problems involving constraints are

NP-hard. ₂

Y. Xiang, Constraint Satisfaction Problems

University Course Timetablling

• Each semester, hundreds of courses are offered by hundreds of instructors.

• Room-slot: No two lectures can be offered in the same room at the same time slot.

• Instructor: Lectures by the same instructor cannot be scheduled at the same time slot.

• Course: Lectures of the same course cannot be offered at the same time slot.

• Course group: If two courses are to be taken in the same semester, then their lectures cannot be scheduled at the same time slots.

Constraint Networks

• To study agents for solving these problems, we model their environments as constraint networks.

• A constraint network has two components:

1. a set V of variables with associated domains, and

2. a set C of constraints.

• V is a finite set of discrete variablesand is denoted as V={x₁,…,xn}.

– Each variable xi in V is associated with a domain D_i={x_i1,…,x_ik} of possible values.

(2)

Constraint Networks (CN)

• An assignmentover a subset X V is a combination of values for variables in X.

– An assignment over X is completeif X = V.

• C is a set of constraintsdenoted C={C₁,…,C_m}.

– Each constraint C_iis relative to a subset X V and is a set of acceptable assignments over X.

– Subset X is called the scope of constraint C_i.

• An assignment that satisfies all relevant constraints is called a consistentor legalassignment.

• A solutionis a consistent, complete assignment.

• A CN is inconsistentif it has no solution.

5

Constraint Satisfaction Problems (CSPs)

• Tasks of determining whether a solution exists for a CN and finding solutions if they exist are referred to as constraint satisfaction problems (CSP).

• Focus: whether a solution exists & find oneif exists.

– Ex Map coloring.

– Ex The n-queens.

–Other CSPs.

• Arityof a constraint is the cardinality of its scope.

– Unary constraint and binary constraint.

– Binary constraint network has only unary and binary constraints.

Ex Map Coloring

• Color each region with one of {r,g,b}

s.t. no adjacent regions have the same color.

• Constraint network

– What is V and what are variable domains?

– What is an assignment over X = {W,N,S}?

– What is the constraint b/w W and N?

– How many constraints are in C and what are their scopes?

– Is assignment {N=r,Q=g,S=b,E=g} consistent?

– What is a solution?

N W

S Q

R E

Ex The n-queesn

• Place n queens on an nn chessboard s.t. no queen attacks another.

• Constraint network for 4-queen

– What is V if we use one variable for each row?

– What is the domain of x₂?

– What is the constraint b/w x₁and x₃?

 When the order of variables is clear, we write an assignment as a tuple.

– How many constraints are in C?

– What is a solution?

(3)

Other CSPs

• Crossword puzzles.

• 3SAT.

• Job shop scheduling.

• Radio link frequency assignment.

• Space telescope scheduling.

• 3D interpretation of 2D drawing.

• Hospital nurse scheduling.

• Airline flight scheduling.

• Floor plan layout.

• Automobile transmission design.

Constraint Graphs

• Structure of CNs can be expressed as constraint graphs, and they are useful in solving CSPs.

• There are three common forms of constraint graphs.

• In a primal graph, each node represents a variable and each link connects two constrained variables.

• In a dual graph, each node (drawn as a cluster) is labeled by the scope of a constraint. Each link connects two clusters that share some variables and is labeled by the intersection.

• Ex Map coloring.

Constraint Graphs (Cont)

• In a hypergraph, each node represents a variable.

Each hyperlink represents a constraint and connects all variables in its scope. It is drawn by a link from a box to each variable in the scope.

• Ex Crypt-arithmetic Puzzle.

Ex Crypt-arithmetic Puzzle

• Substitute each letter by a distinct digit without leading zero s.t. the sum is arithmetically correct.

• Constraint network and constraint graph – What are the variables?

– How to represent distinct digit?

– How to represent no leading zero?

– How to represent arithmetic sum?

– What is the constraint hypergraph?

12

T W O + T W O --- F O U R

(4)

Solve CSPs by Search

• Tree search such as BFS, DFS, etc are applicable to CSPs.

– How?

– How many leaf nodes are at level n+1?

– How many complete assignments are there?

• Observation

– Unlike problems such as 8-puzzle, neither the order of variable assignment, nor the search path matters in CSPs.

– Hence, search can focus on a single order only.

Chronological Backtracking

• Idea: Depth-first search that assigns one variable each time (forwards) and backtracks when a variable has no legal values to assign.

• An recursive algorithm.

– Ex The 4-queen.

• Chronological: Always backtrack to the most recent value assignment.

backtracking(config[]) { // assume access to a CN

if config is complete, return config;

v = getVariable(config);

vu[] = orderDomainValue(v, config);

for each u in vu,

if u is consistent with config, add {v=u} to config;

result = backtracking(config);

if result != null, return result;

remove {v=u} from config;

return null;

}

Complexity of Backtracking

• Suppose |V|=n and |D_i|≤ k.

• In the worst case, the full search tree is explored.

• What is the total number of nodes in full search tree?

– How many levels are in the search tree?

– What is the branching factor?

• Sum of geometric series

– Sum k⁰+ k¹+… + kⁿis (kⁿ⁺¹-1)/(k-1).

• Time complexity of backtracking.

(5)

Variable Ordering

• Does the order of variables make any difference to the efficiency of chronological backtracking?

– Ex Map coloring: D=(r,g,b) except DQ=(b,g,r).

 Order 1: (W,N,Q,E,R,S).

 Order 2: (W,N,S,Q,E,R).

• Styles of variable ordering – Fixed

– Dynamic

Minimum Remaining Values (MRV) Heuristic

• Choose the next variable x that has the fewestlegal values.

• Rational behind MRV

– If x has no legal value, the search tree is pruned immediately.

– Otherwise, x is most likely to cause failure soon, thereby pruning the search tree.

• Overhead: At each forward step, for each

remaining variable x, each constraint that involves x must be checked.

Maximum Degree (MDeg) Heuristic

• Choose the next variable x that involves the largest number of constraints with unassigned variables.

• Rational behind

– Reduce the branching factor on future choices.

• Overhead: At each forward step, for each remaining variable x, count its current degree.

• MRV and MDeg can be combined in chronological backtracking, with MRV as the primary heuristic and MDeg as the tie-breaker.

Value Selection

• Given variable order, does the order in which values are assigned make any difference to efficiency?

– Ex Map coloring with variable ordering (W,N,Q,E,R,S) and value order (r,g,b).

• Styles of value ordering – Fixed

– Dynamic

(6)

Forward Checking

• To assign variable x with value u, for each unassigned variable y connected to x by a constraint C_i, delete from D_yeach value inconsistent with x=u by C_i.

• If for any y, D_ybecomes empty, consider another value u’ of x.

• If for each y, D_yis non-empty, assign x=u.

• Ex Map coloring with variable order (W,Q,R,N,S,E).

• Benefit: Avoid a value that will cause failure before it is assigned and hence prune search space.

Looking Back in Search

• When a branch of the search fails, chronological backtracking backs up to the preceding variable.

– This is often inefficient.

– Ex A coloring problem.

• It is more efficient to go all the way back to the source of failure.

• However, jumping too far back may skip potential solutions.

– Ex Jumping back to x2.

• Challenge: What is the adequate jump back point?

22

x₁{r,b,g}

x₅{b,g}

x₃{r,b,g}

x₇{r,b}

x₆{r,g,y}

x₄{r,b}

x₂{b,g}

Dead-end and Conflict Set

• If a consistent assignment u_i=(u₁,…,u_i) for x₁,…,x_iis inconsistent with every possible value of x_i+1, then (u₁,…,ui) is a dead-end state, and x_i+1is a dead-end variable.

• Let ui=(u₁,…,ui) for x₁,…,xi be a consistent assignment and x be an unassigned variable. If there is no value u in the domain of x s.t. (u_i, x=u) is consistent, then u_iis a conflict set of x.

– If u_idoes not contain a subtuple that is in conflict with x, then u_iis a minimalconflict set of x.

Culprit Variable

• Let u_i=(u₁,…,u_i) be a tuple. Then u_k=(u₁,…,u_k), where k ≤ i, is a prefixtuple of u_i.

• Let u_i=(u₁,…,u_i) for x₁,…,x_ibe a dead-end state.

The culprit variable relative to u_iis x_kwhere k = min{j | j≤i and u_jis a conflict set of x_i+1}.

– Ex What is the culprit variable wrt (x₁=r, x₂=b, x₃=b, x₄=b, x₅=g, x₆=r)?

• The culprit variable is the adequate jump back point.

– Why?

(7)

Backjumping Algorithm

backjump() { // assume access to a CN i =1; D_i’ = D_i; latest_i=0; // latest: a pointer while 1≤i≤n,

x_i= selectValue(i);

if x_i== null, i = latest_i; else i++; D_i’ = D_i; latest_i=0;

end while;

if i== 0, return “no solution”;

else return assignment over {x₁,…,x_n};

}

• Ex The coloring problem.

selectValue(i) { while D_i’ ≠ {},

select u D_i’ and remove u from D_i’ ; consistent = true; k = 1;

while k<i and consistent, if k > latest_i, latest_i=k;

if (u_k, x_i=u) is inconsistent, consistent = false;

else k++;

if consistent, return u;

return null;

• Does backjump() jumps back to the culprit variable?

Local Search

• Backtracking builds up a solution by assigning one variable at a time consistently.

• Local search iteratively improves a complete but inconsistent assignment, one variable at a time.

• Challenges

– Which variable to improve next?

– Which value of the variable to select?

Time Bounded Min-Conflicts Algorithm

minConflictTB(c[], maxSteps) { // c: constraints in CN current = a complete assignment;

for i=1 to maxSteps,

if current is legal, return current;

v = randomly selected variable violating c;

u = value of v minimizing # constraint violations;

set v = u in current;

return failure;

}

(8)

Example and Properties

• Ex Solving 8-queens.

• Can agent avoid repeating the same assignments?

• An algorithm for CSPs is completeif it always finds a solution when one exists, or terminates when no solution exists.

• Is the algorithm complete?

Nogood

• An intelligent CSP agent should use learning to avoid regenerating a conflict set.

• Given a CN, any partial assignment that does not appear in any solution is a nogood.

– Is every conflict set a nogood?

– Is every nogood a conflict set?

Min-Conflicts Algorithm With Nogood Learning minConflictNL(c[]) { // c[]: constraints from CN

parSol[] = ;

varLeft[] = a complete assignment;

return minConflictNL(parSol, varLeft, c);

}

• Each element of parSol and varLeft is a pair in the form (variable, value).

• parSol and varLeft have no variables in common.

• The union of parSol and varLeft is a complete assignment.

minConflictNL(parSol[], varLeft[], c[]) { nogood[] = ;

loop

if varLeftparSol is legal, return varLeftparSol;

(v,u) = element in varLeft violating c;

vu[] = values of v consistent with parSol wrt c & nogood;

if vu is emtpy,

if parSol is empty, return no-solution;

add parSol to nogood;

move most recently added element of parSol to varLeft;

else

u’ = element of vu minimizing # constraint violations with varLeft wrt c;

remove (v,u) from varLeft and add (v,u’) to parSol;

end loop }

(9)

Example and Properties

• Ex The 4-queens.

• Is the algorithm complete?

– Does it always find a solution when one exist?

– Does it terminate when there is no solution?

Relative Arc Consistency

• Forward checkingpropagates the implications of a constraint from variable x to y.

• Constraint propagation is the general concept to propagate implications of a constraint on one variable to others, and arc consistency is an effective method of constraint propagation.

• Let Cxybe a constraint of scope {x,y}. Variable x is arc-consistent relative toy iff for every value uD_x there exists a value wD_ys.t. (u,w)C_xy.

• Ex Constraint C_xy: x < y with D_x= D_y={1,2,3}.

– Is x arc-consistent relative to y?

Enforce Relative Arc-Consistency

• If x is not arc-consistent relative to y, consistency can be enforced by executing algorithm revise():

revise(x, y, C_xy) { for each uD_x,

if there is no wD_ys.t. (u,w)C_xy, D_x= D_x/{u};

}

• Ex Given Cxy: x < y with D_x= D_y={1,2,3}, how to make x arc-consistent relative to y?

– Is y arc-consistent relative to x?

– How to make both arcs consistent?

• What is the complexity of revise()?

Arc Consistency

• Let C_xybe a constraint of scope {x,y}. Variables x and y are arc-consistent iff x is arc-consistent relative to y and y is arc-consistent relative to x.

• A CN is arc-consistent iff every pair of variables constrained are arc-consistent.

• Arc consistency in a CN can be enforced by the algorithm arcConsistency().

• Ex Map coloring with order (W,Q,R,N,S,E).

– After assigning W=r, is the CN arc consistent?

– After Q=g, what happens if arcConsistency() is run?

(10)

Enforce Arc-Consistency

arcConsistency() { agenda = {};

for each pair {x, y} of variables adjacent in CN, agenda = agenda{(x,y),(y,x)};

while agenda ≠ {},

remove (x,y) from agenda and revise(x, y, C_xy);

if D_xis revised,

for each z adjacent to x in CN and z≠ y , agenda = agenda{(z,x)};

}

• What is the complexity of arcConsistency()?

37

The k-consistency

• Can an arc-consistent CN contain inconsistency?

– Could an arc-consistent CN have no solution?

– Ex A triangle-structured coloring CSP.

• A CN is k-consistent if for every set X of k-1 variables and for every consistent assignment over X, a consistent value can be assigned to any k’th variable.

– 1-consisency = node consisency – 2-consisency = arc consisency – 3-consisency = path consisency

– Ex Is CN of 4-queens k-consistent for k=1,2,3?

Strong k-consistency

• A CN is strongly k-consistent if it is i-consistent for all i≤ k.

• If a CN with |V|=n is strongly n-consistent, what would happen if backtracking() is applied to it?

• For a general CN, what is the complexity to establish strong n-consistency?

– In general, CSPs are NP-hard.

• Between strong n-consistency and arc-consistency, a range of middle ground exists to trade efficiency of search with efficiency of consistency checking.

Solving Tree-Structured CSPs

• Structure info in constraint graphs can provide guidance for limited consistency checking and efficient search.

• Let the constraint graph of a CN be a tree T. The CN can be solved using solveTreeCN().

– After 1^stfor loop, every parent is arc-consistent relative to its child.

– The 2^ndfor loop is backtracking free.

– Ex A coloring problem with domain {r,g} for each variable.

• Complexity of solveTreeCN().

(11)

solveTreeCN() {

pick a node as root of T;

define an order r for nodes s.t. pi(x) precedes x in r;

denote r = (x₁,x₂,…,x_n);

for i=n to 2, revise(pi(x_i), x_i);

if Dpi(xi)={}, return null;

for i=1 to n, assign x_ia value consistent with the value assigned to pi(x_i);

return complete assignment;

}

Cutset Conditioning

• What if the CN is not tree-structured?

– Can solveTreeCN() be extended to solve more general CNs?

• A cycle cutsetof a graph is a subset of nodes whose removal renders the graph a tree.

• Solving binary CNs using cutsetCondition().

• Complexity of cutsetCondition().

cutsetCondition() {

choose a cycle cutset X and denote Z=V/X;

let A(X) be the set of consistent assignments of X;

if A(X)={}, return null;

for each xA(X), for each yZ,

remove each uD_yinconsistent with x ; apply solveTreeCN() to CN over Z;

if solution z is found, return xz ; return null;

}

Cluster Tree Decomposition

• Idea: Decompose CN into a set of small subCNs;

enforce consistency in each subCN; and search the solution for CN efficiently.

solveCNByClusterTree() {

decomposeCN into a cluster tree T;

for each cluster Q in T,

find the set S(Q) of consistent assignments of Q;

if S(Q)={}, return null;

set Tinto a binary CN;

apply solveTreeCN() to T;

}

44

(12)

Decompose CN into Cluster Tree

• Divide V into overlapping clusters s.t. each xV is contained in at least one cluster.

• For every constraint in C, all variables in its scope must be contained in at least one cluster.

• Organize clusters into a tree T s.t. every two adjacent clusters in T have at least one common variable.

• Any variable contained by two clusters in T must be contained by all clusters along the path.

Set Cluster Tree into Binary CN

• For each cluster Q and its set S(Q) of consistent assignments, create a mega-variable q of domain D_q=S(Q).

• For each two adjacent clusters Q and R, denote Z=QR and corresponding mega-variables q and r.

• Constraint over {q,r} is that assignment of q and assignment of r must agree on the value of variables in Z.

How to Decompose CN into Cluster Tree

• Conditions of the cluster tree have been presented.

– Algorithms to generate such cluster trees from CNs are needed.

• The decomposition steps –Triangulateconstraint graph.

–Identifyclusters.

–Organizingclusters into cluster tree.

Triangulating Constraint Graph

triangulateCG(G) { G’ = G; fillin = {};

for i=1 to n,

select node x_iin G with adjacent node set adj(x_i);

if nodes in adj(x_i) are not pairwise linked, add links in G to make adj(x_i) pairwise linked;

record links added to fillin;

remove x_iand its incident links from G;

add links in fillinto G’;

return G’;

(13)

Identify Clusters

• Idea: Bookkeeping during triangulateCG(G).

• During triangulateCG(G):

– Record Qi= adj(x_i) {x_i} before each x_iis removed from G.

• After triangulateCG(G):

identifyCluster({Q₁, Q₂,…, Qn}) { Clus = {Q₁, Q₂,…, Q_n};

for i=n to 1,

if Q_iis a subset of Q_k(k<i), remove Q_ifrom Clus;

return Clus;

}

49

Construct Cluster Tree

buildClusterTree(Clus) {

init cluster tree T with no clusters;

pick QClus;

add Q to T;

remove Q from Clus;

while Clus≠{},

select QClusand Q’ from T s.t. |QQ’| is maximal;

add Q to T;

connect Q to Q’;

remove Q from Clus;

return T;

}

Triangulation Revisited

• How to select node x_iin each iteration?

• Ex Map coloring problem.

– What are the clusters produced if triangulation is performed in order (N,W,U,E,S,R)?

– What is the consequence to computation in solveCNByClusterTree()?

• Conclusion: The less number of fillins, the better.

• Finding triangulations with minimum # fillins is NP- hard.

• Heuristic: Select x_iwith minimum # of fillins.

Solving CSPs by Cluster Tree:

Complexity

• What is the complexity of finding set S(Q) for cluster Q?

• The tree widthof a cluster tree decomposition of a constraint graph is one less than the size of the largest subproblem.

– What is the above complexity in terms of tree width?

• What is the complexity of solveCNByClusterTree()?
