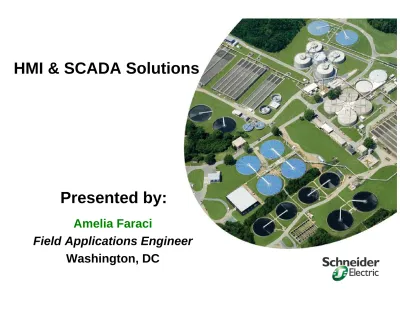

HMI & SCADA Solutions

Amelia Faraci

Field Applications Engineer

Washington, DC

Part 1: Introduction - SCADA Offer

Part 7: Vijeo Historian

Part 6: Switch2Viejo Citect

Part 5: SCADA Software - Vijeo Citect

Part 2: Magelis HMI – Low End Offer

Part 3: Magelis HMI – High End Offer

Part 4: HMI Software – Vijeo Designer

XP Magelis XBT-N/R/RT XBT-GT/GKMagelis Magelis Modular iPC Desktop PC

Unity Pro™ software Twido™ Suite

Vijeo Designer Vijeo Citect

Import/Export objects Import symbols

Magelis Smart & Compact

iPC FactoryCast™

Modules

Common Look & Feel Common Behavior Shared objects libraries

Web Gate Graphic portability

HMI/SCADA Software

Visualisation Control Unity Twido suite System Level Global HMI Windows software

PC Hardware : Networks, PCI, PCMCIA Extensions, Database

MiniSCADA (St Alone) WEB Client SCADA (CS) Local HMI Dedicated Software

Dedicated Hardware : Harsh Environnement, Real time

Open HMI Graphic HMI Semi Graphic HMI Functional Unit HMI Local control Control Room

A Scalable HMI & SCADA Offer

Part 7: Vijeo Historian

Part 6: Switch2Viejo Citect

Part 5: SCADA Software - Vijeo Citect

Part 1: Introduction - SCADA Offer

Part 3: Magelis HMI – High End Offer

Part 2: Magelis HMI – Low End Offer

Magelis HMI – Low End Offer

„

Operator Interface Terminals

† Semi-graphic, touch screen/keypad or keypad only terminals

† Display text messages, perform diagnostics, control and adjust your control system devices

† Easy to use, install and configure

„

Applications

† Small and repetitive machines

† Complex machines

† Machine builders for industrial, building and infrastructure applications.

„ Very flexible User-interface

† Innovative user-interface with touchpad and keypad configurable

† Customization of keys via insert labels

† Optimized screen with semi-graphic and numerous font display capabilities

„ Compact & OptimumTerminal

† Matrix screen 3”9, in the small body of current XBT R

† A single cable for power-supply and communication ,

† A TE low-cost winning association with Nano & Micro PLC.

„ Communication

† RJ45 (RS485-RS232 signals) - powered by PLC (5VDC)

† Modbus-Unitelway

„ A new configuration software for Low-end range ,Vijeo Designer Lite V1

† Available for XBT N – R – RT

† Easy and same look & feel than Vijeo Designer

† Software available in 6 languages including Chinese.

Magelis XBT RT

Combination Touch Screen and Keyboard

Well suited for dirty environments

Part 7: Vijeo Historian

Part 6: Switch2Viejo Citect

Part 5: SCADA Software - Vijeo Citect

Part 1: Introduction - SCADA Offer

Part 2: Magelis HMI – Low End Offer

Part 3: Magelis HMI – High End Offer

Part 4: HMI Software – Vijeo Designer

„

Magelis XBTGT complete range

–

from 3.8” to 15” screens

¾Including multimedia features

y Analog video channel support

y Display real-time video

y Record and replay video sequence coded in MPEG-4

XBTGT

Magelis XBTGT

„ Configurable touchscreenby software to mix or not keys and touchpad.

„ Industrial Pointerfor quick and accurate selection on screen and a clear access to the selectable area thanks to a mouse shape change.

„ Keyboard inspired of XBT Fto an easy substitution and with addition of new Dynamic Function Keys below the screen.

„ ÆStatic Functions Keys always independent of pages and Dynamic Functions Keys pages dependant.

„ Portable applicationsbetween XBT GT and XBT GK. „ Complete consistentphysical and virtual keypads. „ Ability to lock/unlockthe keyboard.

„ Ability to press simultaneously at least 2 functionkeys for safety usage.

„ Alphabetic characters are provided by numeric keys, as multiple presses, as what is used on cell phones.

„ The automatism have the ability to control each ledindividually with 3 colors (green, orange, red) and 2 blinking speeds Æ10 status.

„ The right graphic HMI solution for rough environment

XBT GK 5”7 XBT GK 10”4

Magelis XBT GK

New Graphic Panels with Innovative

User-Interface

„ Open Terminal

† Display

– Graphical touch screen with high resolution and maximum colors:

– XBTGTW450, TFT SVGA 800x600, 256K colors, 8.4” screen

– XBTGTW750, TFT XGA 1024x768, 16 Million colors, 15” screen † Communication interfaces

– Standard: 2 Ethernet ports, 2 serial ports RS23C, 4 USB ports, 1 CF slot, 1 sound output (mini-jack)

– In addition: XBTGTW450 - 2nd _{CF slot, XBTGTW750 - 1 more USB port on front face,}

1 keyboard PS/2 port, 2 PCMCIA slots and 1 parallel port † Software environment

– Windows XP embedded installed with Vijeo Designer Runtime, Media player, Internet Explorer, Office Viewer and Acrobat Reader

† Miscellaneous

– Removable power supply 24VDC plug, Certifications = CE , UL508 and CSA. XBTGTW750

XBTGTW450

Adobe Acrobat Office Viewers

IE

Multimedia _{Web functions Connectivity}

„ Smart iPC

† Windows HMI for harsh / limited space environments

y Vijeo Designer Run Time

† To run Windows Client applications for general users

y No CD drive, No OS/Data modifications

† Available in 8.4, 12 & 15 inch sizes

„ Compact iPC

† General purpose iPC for machine builders

y Vijeo Designer RT or third party software

† Available in 8.4, 12 & 15 inch sizes

„ Modular iPC

† Expandable & Powerful iPC for End Users

y PC based control,

y SCADA

y third party software

„ Magelis iDisplay

† To be connected on Magelis Modular iPC

† Or to any 3rd party PC including office PC

† Available in 15 & 19 inch sizes

Industrial PCs

Smart 8.4" Compact iPC 8.4"

They got everything from Smart …

„ Fanless operation

„ Low power Intel Celeron M @ 600 Mhz, SVGA bright color LCD with touch screen.

„ 230 x 177 x 65

„ Dual Ethernet with Gigabit support

„ Improved Vijeo Designer support with Embedded 512 kb SRAM

and Compact iPC …

„Intel Celeron M @ 1Ghz, SVGA bright color LCD with touch screen, 1 PCI expansion slot.

„230 x 177 x 120

„Dual Ethernet with Gigabit support

„Improved Vijeo Designer support with Embedded 512 kb SRAM

Smart 15" Compact iPC

15"

Updated from legacy Smart …

„ Low power Intel Celeron M @ 600 Mhz, XGA bright color LCD with touch screen, …

„ Dual Ethernet with Gigabit support

„ Embedded 512 kb SRAM for Vijeo Designer

„ Fanless operation

„ Front USB port

„ VGA port

and Compact iPC …

„ Intel Pentium M @ 1.6Ghz, XGA bright color LCD with touch screen, 1 PCI expansion slot.

„ Dual Ethernet with Gigabit support

„ Embedded 512 kb SRAM for Vijeo Designer

„ System Monitoring for improved reliability and availability

iDisplay 15" iDisplay 19"

„ XGA – 1024x768 bright color LCD with touch screen

„ Dual ports for video : DVI and VGA

„ Dual ports for Touch screen : USB and RS232

„ Front USB port

„ Same sizes than Smart and Compact iPC 15"

„ SXGA – 1280x1024 bright color LCD with touch screen

„ Dual ports for video : DVI and VGA

„ Dual ports for Touch screen : USB and RS232

„ Front USB port

iDisplays

„ USB memory stick

† Download an application from a memory stick

9 The easiest way to upgrade user application without removing any part of the panel (incl. CF Card)

† Upload data logging from memory stick

9 The easiest way to recover data file located on non Ethernet panel without removing any part of the panel (incl CF Card)

The right solution for

• Large OEM that have to update a world-wide install base

• Large installation wanted to collect regularly data (Water / Waste Water business…)

„ USB keyboard & mouse

† Support of external mouse and keyboard on XBT GT & XBTGK

9 On XBTGK, external device have priority on the embedded one

Same behaviour on the whole range of Vijeo Designer products (XBTGT , XBTGK, XBTGTW, Smart & Compact iPC

Part 7: Vijeo Historian

Part 6: Switch2Viejo Citect

Part 5: SCADA Software - Vijeo Citect

Part 4: HMI Software - Vijeo Designer

Part 1: Introduction - SCADA Offer

Part 2: Magelis HMI – Low End Offer

Vijeo-Designer

(Graphic Range)

Vijeo-Designer WEB (WEB servers)

Vijeo-Designer Lite (Low End Range) Vijeo-Designer Suite

(For the whole Schneider HMI)

„ Replaces XBTL1000 for XBTN/R

„ Configures XBT RT

„ Same look & feel as Vijeo Designer

„ Enhance the easy to use compared to XBTL1000

„ Available in 6 languages including Chinese

Vijeo Designer Lite

Build step by step the HMI cockpit, providing same look & feel between the different tools

„ Vijeo Designer & Vijeo Designer Lite consistency

† Enhance consistency between low end & high end configuration tool panel offer

9 Spreadsheet view for variable configuration 9 Graphic Panel Folder support

9 Graphic Panel Thumbnail View support

9 Reduce navigation tab, add variable node within projects

−Variable Tab -> Variable Node in Navigator

−Toolchest Tab -> Integrated with Toolchest window

9 Being able to open more than one project at a time

−Cut & Paste between projects

9 …

Consistency Enhancement in

Vijeo Designer Family

Configuration

Configuration

Optimized for text & semi-graphical terminals

(XBTN/R/RT)

Graphics mngt. (bitmap,

preconfigured buttons & lamps, bar graphs, simple trends, pictograms library)

Multi-language (6 Build Time, unlimited Run Time, several fonts incl. ASCII, Chinese, Cyrilic, Greek, Japanese Katakana…)

Simulator (off-line)

Static PLC variable links (Unity, Twido, PL7, Concept)

Advanced HMI

Advanced HMI

Import of XBTL1000 text & semi-graphical

applications

(specific tool for XBTH/P)

Communication

Communication Serial lines connection Drivers supported:

• Schneider & Siemens (on all terminals)

• Rockwell, Mitsubishi, etc Omron (XBTN/R)

Vijeo Designer Lite

„ A MS-Windows based Build Time

„ A multi-platform Run Time available on XBTGT / Magelis iPC

„ Drivers for Schneider, Siemens, Omron, Rockwell and Mitsubishi included

Vijeo Designer

„ Multi-platform

– From optimum 3.8” monochrome to 15” iPC

„ Multi-languages

– Up to 10, with dynamic switch

„ Multi-protocol

– Simultaneous communication over multiple ports

„ Multi-access

– Local or remote visualization (WEB Gate)

Vijeo Designer

„ Turnkey solution for standard HMI needs – Native & Smart part for HMI common needs

– Alarm (Turnkey solution for Alarm Viewer w/o script)

– Security (Built-in password management)

– Recipes

„ Support latest available PC technology

– Application download using Ethernet, USB & RS232 port

„ Simulation

– WYSIWYG panel simulator (incl. Fonts)

– PLC variables simulator

„ Adaptation to target capabilities

– Download permit only if the application can run

Vijeo Designer

„ Display Vijeo Designer pages from an Internet Browser running on PC

– Flexible page design

– Panels accessible through Internet Browser can be same as those running on Run Time or different

– Includes Safety mode to prevent variable overwrites

– Secure access

– Filter using WEB client IP address or passwords

„ WEB (server) access included with license

– Only one connection to a WEB browser (client) allowed at a time

„ Supported by all targets that have an ethernet port

Vijeo Designer

WEB Gate - Remote Visualization and

Control

„

Variables can be shared between

targets

Vijeo Designer

„ Unity’s DDT support (new in v4.6.1)

† Support of Unity’s structures and complex type data format within Vijeo Designer

„ 3rd _{party symbolic file support}

†Rockwell RS-Logix symbolic file support

9 L5K file format (incl. unallocated and DDT) † Siemens Step 7

PLC Programming Tool Support

PLC Programming Tool Support

Configuration

Configuration

Graphics & Panels mngt. (tools, library, animation, master panels, Pop-up windows, …) Scripts

Simulator (WYSIWYG) Enhanced PLC variable links (Unity, Twido, PL7, Concept, Siemens, …)

Multi-language (6 Build Time, 15dynamic Run Time, 38 fonts incl. Asia & Middle east)

Multi-platform mngt. (all size of GT, GK, GTW & iPC)

User security levels

Advanced HMI

Advanced HMI Recipes

Data logging (memory, CF card, USB stick)

Data manager tool

Trends (Real-time & historical with zoom)

Diag buffer (TE PLCs) Alarm management Data sharing (8 panels) WEB Gate & WEB diagnostics (web server) Web browser (XBT=HTML pages only, iPC=full incl. ActiveX) Video multimedia

Snapshot & JPEG Viewer

Communication

Communication

Multiple connections at the same time: Serial lines, USB , Ethernet & Field buses.

Drivers supported:

• Schneider incl. FIPWay& Modbus+,

• Siemens incl. Profibus DP, • Rockwell incl. DeviceNet &

Ethernet/IP,

• GE Fanuc, Mitsubishi, Omron & Panasonic

USB Keyboards & mouse

Bar code readers Printers

Part 7: Vijeo Historian

Part 6: Switch2Viejo Citect

Part 1: Introduction - SCADA Offer

Part 2: Magelis HMI – Low End Offer

Part 3: Magelis HMI – High End Offer

Part 5: SCADA Software – Vijeo Citect

Part 4: HMI Software – Vijeo Designer

First system installed in 1973

„ Developed by the site since nothing existed to handle such a large application „ Designed with an infinite architecture – no roadblocks to expandability

Bought by Schneider Electric in 2006

„ Fills a very large product gap

„ Replaces former non-integrated offering

Vijeo Citect vs. Citect SCADA

„ Currently identical except for a few drivers (Mitsubishi)

„ Vijeo Citect has FastLinx for common tag database with Schneider Unity PLCs. „ Schneider Electric is developing Water/Wastewater specific DFBs along with

companion Vijeo Designer and Vijeo Citect Screens

Support for Vijeo Citect

„ Primary support is in North Andover, MA

„ Engineering (higher level) support comes from Australia

Vijeo Citect

Scalable

„ Resize your system to suit your needs

Flexible

„ True client-server architecture to ensure high performance

Reliable / Redundancy

„ Renowned built-in redundancy provides fail-proof solution

Connectivity

„ Open Access using standard protocols and 140+ native drivers

Ease of Use

„ Easy to configure and easy to upgrade

Licensing

„ Free build-time release

Vijeo Citect

Redundant Batch Control or

Scheduler _Redundant

Alarm, Trend, Report and IO Servers

Web Clients (Display or Manager) Display Clients Vijeo Citect System Redundant Vijeo Citect Systems Table PCs Vijeo Pocket Machine OEM (incl XP Embedded) Local Control Room

Scenario:

Vijeo Citect

Mining & Minerals Processing

Olympic Dam – BHP Billiton

Largest Copper and Uranium Mining and Processing Plant in Australia Over 500,000 real world controller data points

> 2000 Vijeo Citect pages > 300 PLCs & drives

70 Vijeo Citect Clients

The world’s largest windows based SCADA installation

Example of Scalability

Argyle Diamond Mine

Largest Diamond Mine in the World

(32% of world’s diamonds)

Installed 1992 on Windows 3.1

33 PLCs

33,000 digital I/O points

16,000 analog I/O

11,500 alarms

50 operator interfaces

Upgraded over time to latest

CitectSCADA and MS Windows

versions.

24/7/365 Operations No Downtime - EVER

Vijeo Citect

12,000 tags

>300 Citect pages > 100 PLCs & drives 25 Vijeo Citect Clients

Water/ Wastewater Example

Redundant Communications

Redundant Networks

Redundant Servers

Redundant Alarming

Redundant Trending

Full synchronization of data on restoration of a failed server

Result:

• No single point of failure

•

Out of the box

configuration

Vijeo Citect

All out of the BOX No coding required

Simple Wizard Configuration

Vijeo Citect

140 + Hardware drivers included to all major hardware platforms

Single company for support and enhancements

Open connectivity in and out of SCADA OPC Client & Server

DDE Client & Server ODBC Client & Server OLE-DB API Connectivity Active X Transmitton Triconex Corporation Unidata

Universal Instruments Corporation UTICOR Technology Vikingegaarden VIPA Weidmuller Westinghouse Woojin Yokogawa Zworld ABB Instrumentation ACI Action Controls Advantech

Alfa Laval Automation Allen Bradley Ampcontrol April B & R Baker Hughes Barber Coleman Beckhoff BHP Bosch Bristol Babcock

Campbell Scientific Inc Cegelec

Clipsal

Colby Demag

Contemporary Control Systems Contec Systems

Control Microsystems Inc Control Techniques

Danfoss

Data Electronics Delta Tau

Detroit Diesel Corporation

Deutsche Bergbau Technik GmbH Eberle Echelon Elpro Technologies Elsag Bailey Emerson Engage Networks Enron Eurotherm International Fischer & Porter

Fisher and Paykel Fisher Controls Fluke Foxboro Fuji Electric Ganter GE GE Fanuc GEC GEC Alsthom Giddings Lewis Harris Controls Hewlett Packard Hitachi Honeywell HWT

Hyundai heavy industries ICON Control Systems Idec Izumi Innotech Intech Intelligent Instrumentation Intuitive Technologies Moeller Moore Industries Moore Products Motorola MOX Products MTL Industries National Instruments Nematron NJ International Omnitronics Omron Johnson Controls Kaye Instruments Keyence

Leeds & Northrup

LG Industrial Solutions Magna-Controls Matsushita Mauell Measurex Microwave Networks Minidata

Schneider Automation (Modicon) Schneider Automation (Square D)

Schneider Automation (Telemecanique) Siemens

Sixnet Softing AG

Sprecher & Schuh Steeplechase TANO Automation Telefrang Toshiba Opto 22 Philmac Phoenix Contact PLC Direct (Koyo) Reliance Electric Rosemount RTP SAAB SAIA Samsung Schlage Electronics

Vijeo Citect

A common database between controllers and Vijeo Citect (dynamic tag linking)

Reduction in development costs and improved productivity thanks to

– Reduced development time

– Elimination of data entry errors

– Easy to use

Vijeo Citect

„

Speedlink – Provides the ability to generate and link Vijeo

Citect alarm, trend, memory mode tags, accumulator and

associated tags from Unity Pro

„

Web Gate ActiveX Control – The Vijeo Web Gate Control

object provides a remote viewer for an HMI target that can be

embedded within a Vijeo Citect graphics page

„

Additional Schneider Symbol Libraries – The symbol libraries

have been expanded to provide a new types of symbols and

to provide a greater range of existing symbol types

„

New version OFS – The version of OPC Factory Server

installed with Vijeo Citect has been upgraded to V3.31.

„

Multilingual Installation – English, French, German, Spanish

Vijeo Citect

Vijeo Citect Express Wizard for communication

Program your PLC with Unity

Connect & Synchronization with Vijeo Citect

Vijeo Citect

„ Symbol Library included „ 32 bit color (everywhere)

„ Easy pick palette

„ Improved swap colors (adjust color) „ Flashing colors

„ Unlimited numbers of flashing colors

„ Flashing Symbols

Vijeo Citect

Vijeo Citect

„

Trends and Alarms on One Page

„ Disturbance Analysis

– Display all the data in one visual tool

„ Data Comparison

– Compare the same trend at multiple time intervals

„ Sequence of Events

– See exactly how any number of alarms or trends interacted

Vijeo Citect

Vijeo Citect

WEB CLIENT

WEB CLIENT

Will display a live Vijeo Citect project in an Internet browser. This will be

achieved using standard Web-based communication protocols

„ Vijeo Citect - fully integrated HMI/SCADA solution „ Scalable: from 150 I/Os points to unlimited

„ Flexible: True client / server architecture

„ Reliable: DCS style redundancy for continuous operations

„ 1st_{year service is automatically included (updates, patches,}

phone support …)

„ Vijeo Citect Lite - HMI/SCADA software w/o networking

+ one I/O Driver for the OEM marketplace

„ Cost effective

„ From 150 I/O points to 1200 I/O points

„ Stand-alone system

„ Can be updated to Vijeo Citect

„ Vijeo Historian

„ Convert the data to the language of business

„ Transfer specific information between external applications and the control system

Vijeo Citect

„

Vijeo Citect Lite

„ 300 pts – 600 pts – 1200 pts

„

Vijeo Citect Full Server

„ 75 pts – 150 pts – 500 pts – 1500 pts – 5000 pts-15000 pts – Unlimited

„

Vijeo Citect Clients

„ Display Clients – Manager Clients – Web Clients – Manager Web Clients

„

Floating Licenses

„ Display Clients – Manager Clients – Web Clients – Manager Web Clients

Vijeo Citect

„ No charge if your customer requires development license be supplied

„ Can leave development license on the runtime machine for ease of maintenance

„ Multiple developers can work simultaneously without extra charge

Vijeo Citect

Ease of Maintainability – No Development

License Cost

Scalable

„ Resize your system to suit your needs Flexible

„ True client-server architecture to ensure high performance Reliable / Redundancy

„ Renowned built-in redundancy provides fail-proof solution Connectivity

„ Open Access using standard protocols and 140+ native drivers

Licensing

„ Free build-time software

5

Main

messages

5

Main

messages

Vijeo Citect

Part 7: Vijeo Historian

Part 5: SCADA Software – Viejo Citect

Part 1: Introduction - SCADA Offer

Part 2: Magelis HMI – Low End Offer

Part 3: Magelis HMI – High End Offer

Part 6: Switch2Vijeo Citect

„ A useful tool for upgrading

„ Get benefits of the Vijeo Citect Platform

„ Reduce risk to migration

„ Customizable style sheet to improve conversion

„ Turnkey displays and database

„ What to do?

„ Customer sends source file for conversion

„ Customer receives a quotation

Switch2Citect makes switching to Vijeo Citect a simple, reliable alternative for upgrading legacy HMI/SCADA systems.

Vijeo Citect

Make Generic

(3 free displays)

Email to Schneider (with the Order)

Switch2Vijeo Citect Files Switch (Convert/Add/Modify) Vijeo Citect Project Legacy System Files Enhance

Vijeo Citect

Current „ Intellution „ Fix32: V7.0 „ iFix: V3.5 „ Wonderware „ InTouch: V5.x – 9.x „ UGS „ FactoryLink: V6 „ Rockwell „ RSView32: V6.4 „ Schneider Electric „ Vijeo Look „ Monitor Pro: 7.2, 7.6 Future „ Iconics „ Genesis32 V3.x – 8.x „ Siemens „ WinCC V6.x „ Axeda „ Wizcon „ GE „ Cimplicity V4.x – 6.x

If the your version is not listed, don’t despair, take advantage of our free sample conversions to see if we can do it anyway!

Part 6: Switch2Vijeo Citect

Part 5: SCADA Software – Viejo Citect

Part 1: Introduction - SCADA Offer

Part 2: Magelis HMI – Low End Offer

Part 3: Magelis HMI – High End Offer

Part 7: Vijeo Historian

Vijeo Historian

Gateway between the factory and

production management,

Vijeo Historian takes you into a familiar universe : > Microsoft SQL Server ergonomics

> Application view

Reports and recordings on your

databases

Vijeo Historian

• Server based

architecture to collect

and distribute data.

• Data logged can be

published or accessed

directly from the host

SQL Server Database

exposing the information

to a vast array of

reporting tools.

• Data sources include:

Citect Scada, Intellution,

Wonderware, Microsoft

SQL servers, Oracle

databases.

Vijeo Historian

„

Data Access

„ Direct access to tag, alarm and trend from multiple SCADA systems

„ Converted to Business Language (not tag names)

„

Data Transfer

„ Insert tag, alarm or trend data within your database applications

„ Set control values within the SCADA system from entries in your database

„ Triggered by either time or events within your control system.

Vijeo Historian

Web Client

Microsoft Excel

Vijeo Historian

„

Data Collection

„ Unifies data from SCADA systems

„ Backfills data from SCADA for reliability

„

Data Compression

„ The acquisition rate must be set with respect of the communications to the PLC.

„ Our Historian only stores changes

– Dead-bands are selectable on a per tag basis

Vijeo Historian

Reporting

Microsoft Reporting Services

Vijeo Historian

„ Formats „ PDF „ Web Page „ Microsoft Excel „ XML „ CSV „ Delivery

„ Managed File Share

„ eMail (subscription)

„ Schedule

„ Hour, Day, Week, Month, Once

„ Just like Outlook

Vijeo Historian

„ Graphical

„ Tables, Matrix, Charts

„ Drag & Drop from data queries

Vijeo Historian

„ Statistics

„ First, Last, Max, Min, Avg, Total, On/Off Count, On/Off Time, Confidence

„ Graph

„ Sampled data to display is a graph

„ Samples

„ Raw Data – per interval

„ For more complex calculations

Vijeo Historian

„ Location/Tag List

„ Historian Location (with wildcard)

„ Historian Tag (with wildcard)

„ Period List

„ Start and End time

„ Intervals

„ Time Period

– Each Day, Hour, 5 min

„ Tag Period

– Each Batch, Shift, Operator, Product, Pump Run

Vijeo Historian

„

User Controlled

„ Individuals subscribe to the reports the want.

„ Reports contain only one level of data and drill enables drill down when data is worth a closer look

Vijeo Historian

„ Historian & Data Transfers (VJH2110xx)

„ Based on the amount of data that is being stored

„ Number of points is the maximum number of tags being stored within the system

„ Number of alarms is not limited

„ Available in 150, 500, 1500, 5000, 15000, 50000, and 100000 points

„ Client Access License (VJH212x00)

„ Enables the user to view data from the connectors within the Web Browser and Microsoft Excel clients

„ Based on the number of people accessing the data (n CALs allow n simultaneous logins

„ Control System Connector (VJH20432x)

„ Enables the user to access data from a data source (Vijeo Citect 6.1 or SQL Server)

„ Vijeo Historian 4.0 includes unlimited Vijeo Citect 6.1 connectors and one SQL Server connector

„ Additional SQL Server connectors can be ordered separately

„ Historian & Data Transfer Upgrade (VJ21101x-yy)

„ Upgrade allows the customers to increase the amount of data that is being stored

Vijeo Historian

„

The Complete Picture

„ Reliable collectors to a number of systems through OPC

„ Tags, Alarms and Actions

„ Industry Standard data store

„ Perfect technology to cross two networks

„ Well understood security

„ Lower training and maintenance costs

„

Integrated into your business

„ Open Standards

„ Push & Pull for production data

„ Office integration

Vijeo Historian
