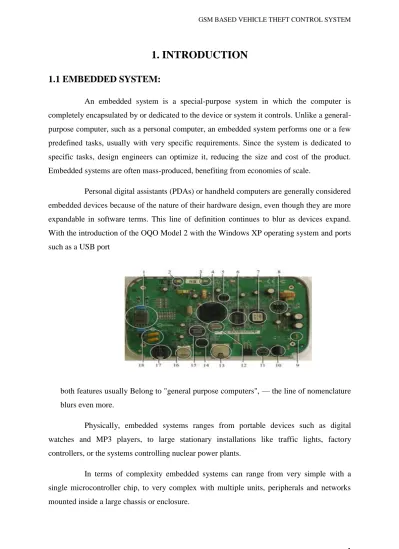

1. INTRODUCTION
1.1 EMBEDDED SYSTEM:
An embedded system is a special-purpose system in which the computer is completely encapsulated by or dedicated to the device or system it controls. Unlike a general-purpose computer, such as a personal computer, an embedded system performs one or a few predefined tasks, usually with very specific requirements. Since the system is dedicated to specific tasks, design engineers can optimize it, reducing the size and cost of the product. Embedded systems are often mass-produced, benefiting from economies of scale.
Personal digital assistants (PDAs) or handheld computers are generally considered embedded devices because of the nature of their hardware design, even though they are more expandable in software terms. This line of definition continues to blur as devices expand. With the introduction of the OQO Model 2 with the Windows XP operating system and ports such as a USB port
both features usually Belong to "general purpose computers", — the line of nomenclature blurs even more.
Physically, embedded systems ranges from portable devices such as digital watches and MP3 players, to large stationary installations like traffic lights, factory controllers, or the systems controlling nuclear power plants.
In terms of complexity embedded systems can range from very simple with a single microcontroller chip, to very complex with multiple units, peripherals and networks mounted inside a large chassis or enclosure.
2
1.2 HISTORY:
In the 1960s, computers possessed an ability to acquire, analyze, process data, and make decisions at very high speeds. However there were some disadvantages with the computer controls. They were: high cost, program complexity, and hesitancy of personnel to learn. However the new concept of electronic devices was evolved. They were called programmable controllers which later became a part of embedded systems. This concept developed from a mix of computer technology, solid state devices, and traditional electro mechanical sequences. The first mass-produced embedded system was the Autonetics D-17 guidance computer for the Minuteman missile released in 1961. It was built from discrete transistor logic and had a hard disk for main memory.
REQUIREMENTS OF TYPICAL EMBEDDED SYSTEMS: -
EX: CHEMICAL PLANT: Consider a chemical plant. No. of temperatures have to be
measured &based on values certain operations are performed, such as opening a value. INPUT: - From sensors which measure temperatures.
OUTPUT: signal that controls a value.
Ex: MOBILE PHONES: The processor of a mobile phone needs to carry out a great deal of communications protocol processing to make "TELEPHONECAL‖.
3
1.3 CHARACTERISTICS:
Embedded systems often use a (relatively) slow processor and small memory size with an intentionally simplified architecture to minimize costs.
Programs on embedded systems must often run with limited resources
Embedded system designers use compilers to develop an embedded system.
They often have no operating system or a speciali8zed embedded operating system (often a real-time operating system ).
Programs on an embedded system often must run with resources: often there is no disk drive, operating system, keyboard or screen. may replace rotating media, and a small keypad and screen may be used instead of a PC's keyboard and screen.
Embedding a computer is to interact with the environment, often by monitoring and controlling external machinery. In order to do this, analog inputs and outputs must be transformed to and from digital signal levels.
1.4
APPLICATIONS OF EMBEDDED SYSTEMS:Some widely used applications of embedded systems are listed below:
Automatic teller machines
Cellular telephones.
Computer network.
Disc drives.
Thermo stats.
Sprinklers.
Security monitoring systems.
Hand held calculations.
House-hold appliances.
Inertial guided systems.
Flight control hardware / software.
4
1.5 GSM
The Global System for Mobile Communications (GSM) is the most popular standard for mobile phones in the world. GSM phones are used by over a billion people across more than 200 countries. The ubiquity of the GSM standard makes international roaming very common between mobile phone operators, which enable phone users to access their services in many other parts of the world as well as their own country. GSM differs significantly from its predecessors in that both signaling and speech channels are digital, which means that it is seen as a second generation (2G) mobile phone system. This fact has also meant that data communication was built into the system from very early on. GSM is an open standard, which is currently developed by the 3GPP.From the point of view of the consumer, the key advantage of GSM systems has been higher digital voice quality and low cost alternatives to making calls such as text messaging. The advantage for network operators has been 8 the ability to deploy equipment from different vendors because the open standard allows easy inter-operability. Also, the standards have allowed network operators to offer roaming services, which mean the subscribers, can use their phone all over the world. GSM retained backward-compatibility with the original GSM phones as the GSM standard continued to develop, for example packet data capabilities were added in the Release '97 version of the standard, by means of GPRS. Higher speed data transmission has also been introduced with EDGE in the Release '99 version of the standard.
5
2. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
2.1 BLOCK-DIAGRAM
FIG 2.1 Block diagram of vehicle theft control system
2.2 BLOCK DIAGRAM EXPLANATION:
The project ―GSM BASED VEHICLE THEFT CONTROL SYSTEM‖ deals with the design & development of a theft control system for automobiles which is being used to prevent / control the theft of a vehicle. The developed system makes use of an embedded system based on GSM technology. An interfacing mobile is also connected to the microcontroller, which is in turn, connected to the engine.
Once, the vehicle is being stolen, the information is being used by the vehicle owner for further processing. The information is passed onto the central processing insurance system, where by sitting at a remote place, a particular number is dialed by them to the interfacing mobile that is with the hardware kit which is installed in the vehicle. By reading the signals received by the mobile, one can control the ignition of the engine; say to lock it or to stop the engine immediately. Again it will come to the normal condition only after entering a secured password. The owner of the vehicle & the centre processing system will know this secured password. We can modify this concept such that the vehicle owner also can lock the vehicle from his mobile phone.
GSM MODEM KEYPAD KEYPAD MICRO CONTROLLER LCD LED MEMS ADC
6 The main concept in this design is introducing the mobile communications into the embedded system. With the help of SIM tracking knows the location of vehicle and informs to the local police or stops it from further movement.
7
2.3 SCHEMATIC DIAGRAM:
8
2.4
SCHEMATIC DESCRIPTION:
The operation of this circuit mainly depends on the MEM sensor. The actual position of the MEM sensor should be 90 degrees with respect to ground. If there is any change in the actual position of the MEM a control signal will be given to the ADC. The ADC will convert the analog signal to the digital signal and it will send the digital signal to the micro controller. Micro controller will send a signal to the GSM module. As GSM receives a signal from micro controller it informs the owner as “vehicle theft detected” through an SMS. When the owner receives the above message he will send a message to the GSM module to lock the engine. As the GSM receives a secret code from the owner it sends a signal to the micro controller and the micro controller will lock the engine. As this is a protocol we have shown the locking of the engine by glowing led.
After locking the engine, the owner can able to find the location of the Automobile by using the signals generated by GSM. After reaching the position where vehicle was locked, the owner enters an secret code to unlock the engine. In this way we can protect the vehicles. And we can also use this as a accident sensor.
9
3. HARDWARE COMPONENTS
3.1 MICRO CONTROLLER (AT89S52)
3.1.1 INTRODUCTION:
A Micro controller consists of a powerful CPU tightly coupled with memory, various I/O interfaces such as serial port, parallel port timer or counter, interrupt controller, data acquisition interfaces-Analog to Digital converter, Digital to Analog converter, integrated on to a single silicon chip.
If a system is developed with a microprocessor, the designer has to go for external memory such as RAM, ROM, EPROM and peripherals. But controller is provided all these facilities on a single chip. Development of a Micro controller reduces PCB size and cost of design.
One of the major differences between a Microprocessor and a Micro controller is that a controller often deals with bits not bytes as in the real world application.
Intel has introduced a family of Micro controllers called the MCS-51.
10
NECESSITY OF MICROCONTROLLERS:
Microprocessors brought the concept of programmable devices and made many applications of intelligent equipment. Most applications, which do not need large amount of data and program memory, tended to be:
Costly:
The microprocessor system had to satisfy the data and program requirements so, sufficient RAM and ROM are used to satisfy most applications .The peripheral control equipment also had to be satisfied. Therefore, almost all-peripheral chips were used in the design. Because of these additional peripherals cost will be comparatively high.
An example:
8085 chip needs An Address latch for separating address from multiplex address and
data.32-KB RAM and 32-data.32-KB ROM to be able to satisfy most applications. As also Timer / Counter, Parallel programmable port, Serial port, Interrupt controller are needed for its efficient applications.
In comparison a typical Micro controller 8052 chip has all that the 8052 board has except a reduced memory as follows. 4K bytes of ROM as compared to 32-KB, 128 Bytes of RAM as compared to 32-KB.
Bulky:
On comparing a board full of chips (Microprocessors) with one chip with all components in it (Micro controller)
Debugging:
Lots of Microprocessor circuitry and program to debug. In Micro controller there is no Microprocessor circuitry to debug. Slower Development time: As we have observed Microprocessors need a lot of debugging at board level and at program level, whereas, Micro controller do not have the excessive circuitry and the built-in peripheral chips are easier to program for operation.
11 So peripheral devices like Timer/Counter, Parallel programmable port, Serial Communication Port, Interrupt controller and so on, which were most often used were integrated with the Microprocessor to present the Micro controller .RAM and ROM also were integrated in the same chip. The ROM size was anything from 256 bytes to 32Kb or more. RAM was optimized to minimum of 64 bytes to 256 bytes or more.
Typical Micro controllers have all the following features:
8/16/32 CPU
Instruction set rich in I/O & bit operations.
One or more I/O ports.
One or more timer/counters.
One or more interrupt inputs and an interrupt controller
One or more serial communication ports.
Analog to Digital /Digital to Analog converter
One or more PWM output
Network controlled interface
Why AT 89C52? :
The system requirements and control specifications clearly rule out the use of 16, 32 or 64 bit micro controllers or microprocessors. Systems using these may be earlier to implement due to large number of internal features. They are also faster and more reliable but, the above application is satisfactorily served by 8-bit micro controller. Using an inexpensive 8-bit Micro controller will doom the 32-bit product failure in any competitive market place.
Coming to the question of why to use AT89C52 of all the 8-bit Micro controller available in the market the main answer would be because it has 8 Kb on chip flash memory which is just sufficient for our application. The on-chip Flash ROM allows the program memory
12 to be reprogrammed in system or by conventional non-volatile memory Programmer. Moreover ATMEL is the leader in
Flash technology in today‘s market place and hence using AT 89C52 is the optimal solution.
8052 micro controller architecture:
The 8052 architecture consists of these specific features:
Compatible with MCS®-51 Products
8K Bytes of In-System Programmable (ISP) Flash
4.0V to 5.5V Operating Range
Fully Static Operation: 0 Hz to 33 MHz
Three-level Program Memory Lock
256 x 8-bit Internal RAM
32 Programmable I/O Lines
Three 16-bit Timer/Counters
Eight Interrupt Sources
Full Duplex UART Serial Channel
Low-power Idle and Power-down Modes
Interrupt Recovery from Power-down Mode
Watchdog Timer
Dual Data Pointer
13
Fast Programming Time
Flexible ISP Programming (Byte and Page Mode)
3.1.2 PIN DIAGRAM:
14
3.1.3 FUNCTIONAL BLOCK DIAGRAM OF MICROCONTROLLER
15
3.1.4 Internal Block diagram:
Fig 3.
Fig 3.1.4 AT89C52 internal block diagram
The 8052 oscillator and clock:
The heart of the 8052 circuitry that generates the clock pulses by which all the internal all internal operations are synchronized. Pins XTAL1 And XTAL2 is provided for
16 connecting a resonant network to form an oscillator. Typically a quartz crystal and capacitors are employed. The crystal frequency is the basic internal clock frequency of the micro controller. The manufacturers make 8052 designs that run at specific minimum and maximum frequencies typically 1 to 16 MHz.
Types of memory:
The 8052 have three general types of memory. They are on-chip memory, external Code memory and external Ram. On-Chip memory refers to physically existing memory on the micro controller itself. External code memory is the code memory that resides off chip. This is often in the form of an external EPROM. External RAM is the Ram that resides off chip. This often is in the form of standard static RAM or flash RAM.
a) Code memory
Code memory is the memory that holds the actual 8052 programs that is to be run. This memory is limited to 64K. Code memory may be found on-chip or off-chip. It is possible to have 4K of code memory on-chip and 60K off chip memory simultaneously. If only off-chip memory is available then there can be 64K of off chip ROM. This is controlled by pin provided as Ea
b) Internal memory
The 8052 have a bank of 256 bytes of internal RAM. The internal RAM is found on-chip. So it is the fastest Ram available. And also it is most flexible in terms of reading and writing. Internal Ram is volatile, so when 8052 is reset, this memory is cleared. 256 bytes of internal memory are subdivided. The first 32 bytes are divided into 4 register banks. Each bank contains 8 registers. Internal RAM also contains 128 bits, which are addressed from 20h to 2Fh. These bits are bit addressed i.e. each individual bit of a byte can be addressed by the user. They are numbered 00h to 7Fh. The user may make use of these variables with commands such as SETB and CLR.
17
Special Function registered memory:
Special function registers are the areas of memory that control specific functionality of the 8052 micro controller.
a) Accumulator (0E0h)
As its name suggests, it is used to accumulate the results of large no of instructions. It can hold 8 bit values
b) B register (0F0h)
The B register is very similar to accumulator. It may hold 8-bit value. The b register is only used by MUL AB and DIV AB instructions. In MUL AB the higher byte of the product gets stored in B register. In div AB the quotient gets stored in B with the remainder in A.
c) Stack pointer (81h)
The stack pointer holds 8-bit value. This is used to indicate where the next value to be removed from the stack should be taken from. When a value is to be pushed onto the stack, the 8052 first store the value of SP and then store the value at the resulting memory location. When a value is to be popped from the stack, the 8052 returns the value from the memory location indicated by SP and then decrements the value of SP.
d) Data pointer
The SFRs DPL and DPH work together work together to represent a 16-bit value called the data pointer. The data pointer is used in operations regarding external RAM and some instructions code memory. It is a 16-bit SFR and also an addressable SFR.
e) Program counter
The program counter is a 16 bit register, which contains the 2 byte address, which tells the 8052 where the next instruction to execute to be found in memory. When the 8052 is
18 initialized PC starts at 0000h. And is incremented each time an instruction is executes. It is not addressable SFR.
f) PCON (power control, 87h)
The power control SFR is used to control the 8052‘s power control modes. Certain operation modes of the 8052 allow the 8052 to go into a type of ―sleep mode‖ which consumes much less power.
g) TCON (timer control, 88h)
The timer control SFR is used to configure and modify the way in which the 8052‘s two timers operate. This SFR controls whether each of the two timers is running or stopped and contains a flag to indicate that each timer has overflowed. Additionally, some non-timer related bits are located in TCON SFR. These bits are used to configure the way in which the external interrupt flags are activated, which are set when an external interrupt occurs.
h) TMOD (Timer Mode, 89h)
The timer mode SFR is used to configure the mode of operation of each of the two timers. Using this SFR your program may configure each timer to be a 16-bit timer, or 13 bit timer, 8-bit auto reload timer, or two separate timers. Additionally you may configure the timers to only count when an external pin is activated or to count ―events ‖ that are indicated on an external pin.
19
i) TO (Timer 0 low/high, address 8A/8C h)
These two SFRs taken together represent timer 0. Their exact behavior depends on how the timer is configured in the TMOD SFR; however, these timers always count up. What is configurable is how and when they increment in value.
j) T1 (Timer 1 Low/High, address 8B/ 8D h)
These two SFRs, taken together, represent timer 1. Their exact behavior depends on how the timer is configured in the TMOD SFR; however, these timers always count up.
k)Timer 2:
Timer 2 is a 16-bit Timer/Counter that can operate as either a timer or an event counter. The type of operation is selected by bit C/T2 in the SFR T2CON (shown in Table 2). Timer 2 has three operating modes: capture, auto-reload (up or down counting), and baud rate generator. The modes are selected by bits in T2CON, as shown in Table 3. Timer 2 consists of two 8-bit registers, TH2 and TL2. In the Timer function, the TL2 register is incremented every machine cycle. Since a machine cycle consists of 12 oscillator periods, the count rate is 1/12 of the oscillator frequency.
20 Table 3. Timer 2 Operating Modes
In the Counter function, the register is incremented in response to a 1-to-0 transition at its corresponding external input pin, T2. In this function, the external input is sampled during S5P2 of every machine cycle. When the samples show a high in one cycle and a low in the next cycle, the count is incremented. The new count value appears in the register during S3P1 of the cycle following the one in which the transition was detected. Since two machine cycles (24 oscillator periods) are required to recognize a 1-to-0 transition, the maximum count rate is 1/24 of the oscillator frequency. To ensure that a given level is sampled at least once before it changes, the level should be held for at least one full machine cycle.
l) P0 (Port 0, address 90h, bit addressable)
This is port 0 latch. Each bit of this SFR corresponds to one of the pins on a micro controller. Any data to be outputted to port 0 is first written on P0 register. For e.g., bit 0 of port 0 is pin P0.0, bit 7 is pin p0.7. Writing a value of 1 to a bit of this SFR will send a high level on the corresponding I/O pin whereas a value of 0 will bring it to low level.
m) P1 (port 1, address 90h, bit addressable)
This is port latch1. Each bit of this SFR corresponds to one of the pins on a micro controller. Any data to be outputted to port 0 is first written on P0 register. For e.g., bit 0 of port 0 is pin P1.0, bit 7 is pin P1.7. Writing a value of 1 to a bit of this SFR will send a high level on the corresponding I/O pin whereas a value of 0 will bring it to low level
n) P2 (port 2, address 0A0h, bit addressable)
This is a port latch2. Each bit of this SFR corresponds to one of the pins on a micro controller. Any data to be outputted to port 0 is first written on P0 register. For e.g., bit 0 of port 0 is pin P2.0, bit 7 is pin P2.7. Writing a value of 1 to a bit of this SFR will send a high level on the corresponding I/O pin whereas a value of 0 will bring it to low level.
21
o) P3(port 3,address B0h, bit addressable)
This is a port latch3. Each bit of this SFR corresponds to one of the pins on a micro controller. Any data to be outputted to port 0 is first written on P0 register. For e.g., bit 0 of port 0 is pin P3.0, bit 7 is pin P3.7. Writing a value of 1 to a bit of this SFR will send a high level on the corresponding I/O pin whereas a value of 0 will bring it to low level
p) IE (interrupt enable, 0A8h):
The Interrupt Enable SFR is used to enable and disable specific interrupts. The low 7 bits of the SFR are used to enable/disable the specific interrupts, where the MSB bit is used to enable or disable all the interrupts. Thus, if the high bit of IE is 0 all interrupts are disabled regardless of whether an individual interrupt is enabled by setting a lower bit.
q) IP (Interrupt Priority, 0B8h)
The interrupt priority SFR is used to specify the relative priority of each interrupt. On 8052, an interrupt maybe either low or high priority. An interrupt may interrupt interrupts. For e.g., if we configure all interrupts as low priority other than serial interrupt. The serial interrupt always interrupts the system, even if another interrupt is currently executing. However, if a serial interrupt is executing no other interrupt will be able to interrupt the serial interrupt routine since the serial interrupt routine has the highest priority.
r) PSW (Program Status Word, 0D0h)
The program Status Word is used to store a number of important bits that are set and cleared by 8052 instructions. The PSW SFR contains the carry flag, the auxiliary carry flag, the parity flag and the overflow flag. Additionally, it also contains the register bank select flags, which are used to select, which of the ―R‖ register banks currently in use.
22
s) SBUF (Serial Buffer, 99h)
SBUF is used to hold data in serial communication. It is physically two registers. One is writing only and is used to hold data to be transmitted out of 8052 via TXD. The other is read only and holds received data from external sources via RXD. Both mutually exclusive registers use address 99h.
I/O ports:
One major feature of a microcontroller is the versatility built into the input/output (I/O) circuits that connect the 8052 to the outside world. The main constraint that limits numerous functions is the number of pins available in the 8052 circuit. The DIP had 40 pins and the success of the design depends on the flexibility incorporated into use of these pins. For this reason, 24 of the pins may each used for one of the two entirely different functions which depend, first, on what is physically connected to it and, then, on what software programs are used to ―program‖ the pins.
Port 0
Port 0 is an 8-bit open drain bidirectional I/O port. As an output port, each pin can sink eight TTL inputs. When 1s are written to port 0 pins, the pins can be used as high-impedance inputs. Port 0 can also be configured to be the multiplexed low-order address/data bus during accesses to external program and data memory. In this mode, P0 has internal pull-ups. Port 0 also receives the code bytes during Flash programming and outputs the code bytes during program verification. External pull-ups are required during program verification.
Port 1
Port 1 is an 8-bit bidirectional I/O port with internal pull-ups. The Port 1 output buffers can sink/source four TTL inputs. When 1s are written to Port 1 pins, they are pulled high by the inter-nal pull-ups and can be used as inputs. As inputs, Port 1 pins that are externally being pulled low will source current (IIL) because of the internal pull-ups. In addition, P1.0 and P1.1
23 can be configured to be the timer/counter 2 external count input (P1.0/T2) and the timer/counter 2 trigger input (P1.1/T2EX), respectively, as shown in the follow-ing table. Port 1 also receives the low-order address bytes during Flash programming and verification.
Port 2
Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. The Port 2 output buffers can sink/source four TTL inputs. When 1s are written to Port 2 pins, they are pulled high by the inter-nal pull-ups and can be used as inputs. As inputs, Port 2 pins that are externally being pulled low will source current (IIL) because of the internal pull-ups. Port 2 emits the high-order address byte during fetches from external program memory and dur-ing accesses to external data memory that use 16-bit addresses (MOVX @ DPTR). In this application, Port 2 uses strong internal pull-ups when emitting 1s. During accesses to external data memory that use 8-bit addresses (MOVX @ RI), Port 2 emits the contents of the P2 Special Function Register. Port 2 also receives the high-order address bits and some control signals during Flash program-ming and verification.
Port 3
Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. The Port 3 output buffers can sink/source four TTL inputs. When 1s are written to Port 3 pins, they are pulled high by the inter-nal pull-ups and can be used as inputs. As inputs, Port 3 pins that are externally being pulled low will source current (IIL) because of the pull-ups. Port 3 receives some control signals for Flash programming and verification. Port 3 also serves the functions of various special features of the
24 AT89S52, as shown in the fol-lowing table
RST
Reset input. A high on this pin for two machine cycles while the oscillator is running resets the device. This pin drives high for 98 oscillator periods after the Watchdog times out. The DISRTO bit in SFR AUXR (address 8EH) can be used to disable this feature. In the default state of bit DISRTO, the RESET HIGH out feature is enabled.
ALE/PROG
Address Latch Enable (ALE) is an output pulse for latching the low byte of the address during accesses to external memory. This pin is also the program pulse input (PROG) during Flash programming. In normal operation, ALE is emitted at a constant rate of 1/6 the oscillator frequency and may be used for external timing or clocking purposes. Note, however, that one ALE pulse is skipped dur-ing each access to external data memory. If desired, ALE operation can be disabled by setting bit 0 of SFR location 8EH. With the bit set, ALE is active only during a MOVX or MOVC instruction. Otherwise, the pin is weakly pulled high. Setting the ALE-disable bit has no effect if the microcontroller is in external execution mode.
25
INTERRUPTS:
Interrupts are hardware signals that are used to determine conditions that exist in external and internal circuits. Any interrupt can cause the 8052 to perform a hardware call to an interrupt –handling subroutine that is located at a predetermined absolute address in the program memory. Five interrupts are provided in the 8052. Three of these are generated automatically by the internal operations: Timer flag 0, Timer Flag 1, and the serial port interrupt (RI or TI) Two interrupts are triggered by external signals provided by the circuitry that is connected to the pins INTO 0 and INTO1. The interrupts maybe enable or disabled, given priority or otherwise controlled by altering the bits in the Interrupt Enabled (IE) register, Interrupt Priority (IP) register, and the Timer Control (TCON) register. . These interrupts are mask able i.e. they can be disabled. Reset is a non maskable interrupt which has the highest priority. It is generated when a high is applied to the reset pin. Upon reset, the registers are loaded with the default values. Each interrupt source causes the program to do store the address in PC onto the stack and causes a hardware call to one of the dedicated addresses in the program memory. The appropriate memory locations for each for each interrupt are as follows:
In interrupt A Address Rr RESET 00 00 IE E0 (External interrupt 0) 00 03 T F0 (Timer 0 interrupt) 00 0B I E1 (External interrupt 1) 00 13 T F1 (Timer 1 interrupt) 00 1B S SERIAL 00 23
The AT89C52 is a low-power, high-performance CMOS 8-bit microcomputer with 4K bytes of Flash programmable and erasable read only memory (PEROM). The device is manufactured using Atmel‘s high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set and pin out. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C51 is a
26 powerful microcomputer, which provides a highly flexible and cost-effective solution to many embedded control applications.
Hardware details:
The on chip oscillator of 89C52 can be used to generate system clock. Depending upon version of the device, crystals from 3.5 to 12 MHz may be used for this purpose. The system clock is internally divided by 6 and the resultant time period becomes one processor cycle. The instructions take mostly one or two processor cycles to execute, and very occasionally three processor cycles. The ALE (address latch enable) pulse rate is 16th of the system clock, except during access of internal program memory, and thus can be used for timing purposes. AT89C52 Serial port pins
PIN ALTERNATE USE SFR
P3.O RXD Seria data input SBUF
P3.I TXD Serial data output SBUF
P3.2 INTO External interrupt 0 TCON-1 P3.3 INT1 External interrupt 1 TCON- 2 P3.4 TO External timer 0 input TMOD
P3.5 T1 External timer 1 input TMOD P3.6 WR External memory write pulse ---
P3.7 RD External memory read pulse ---- Table – AT89C52 serial port pins
The two internal timers are wired to the system clock and prescaling factor is decided by the software, apart from the count stored in the two bytes of the timer control registers. One of the counters, as mentioned earlier, is used for generation of baud rate clock for the UART. It would be of interest to know that the 8052 have a third timer, which is usually used for generation of baud rate. The reset input is normally low and taking it high resets the micro controller,
27 In the present hardware, a separate CMOS circuit has been used for generation of reset signal so that it could be used to drive external devices as well.
Writing the software:
The 89C52 has been specifically developed for control applications. As mentioned earlier, out of the 128 bytes of internal RAM, 16 bytes have been organized in such a way that all the 128 bits associated.
With this group may be accessed bit wise to facilitate their use for bit set/reset/test applications. These are therefore extremely useful for programs involving individual logical operations. One can easily give example of lift for one such application where each one of the floors, door condition, etc may be depicted by a single hit. The 89C52 has instructions for bit manipulation and testing. Apart from these, it has 8-bit multiply and divide instructions, which may be used with advantage. The 89C52 has short branch instructions for 'within page' and conditional jumps, short jumps and calls within 2k memory space which are very convenient, and as such the controller seems to favor programs which are less than 2k byte long. Some versions of 8751 EPROM devices have a security bit which can be programmed to lock the device and then the contents of internal program EPROM cannot be read. The device has to be erased in full for further alteration, and thus it can only be reused but not copied. EEPROM and FLASH memory versions of the device are also available now.
Memory unit:
Memory is part of the micro controller whose function is to store data. The easiest way to explain it is to describe it as one big closet with lots of drawers. If we suppose that we marked the drawers in such a way that they cannot be confused, any of their contents will then be easily accessible. It is enough to know the designation of the drawer and so its contents will be known to us for sure.
Memory components are exactly like that. For a certain input we get the contents of a certain addressed memory location and that‘s all. Two new concepts are brought to us: addressing and memory location. Memory consists of all memory locations, and addressing is nothing but selecting one of them. This means that we need to select the desired memory
28 location on one hand, and on the other hand we need to wait for the contents of that location. Besides reading from a memory location, memory must also provide for writing onto it. This is done by supplying an additional line, called control line. We will designate this line as R/W (read/write). Control line is used in the following way: if r/w=1, reading is done, and if opposite is true then writing is done on the memory location. Memory is the first element, and we need a few operation of our micro controller.
Central Processing Unit:
Let add 3 more memory locations to a specific block that will have a built in capability to multiply, divide, subtract, and move its contents from one memory location onto another. The part we just added in is called ―central processing unit‖ (CPU). Its memory locations are called registers.
Registers are therefore memory locations whose role is to help with performing various mathematical operations or any other operations with data wherever data can be found. Look at the current situation. We have two independent entities (memory and CPU), which are interconnected, and thus any exchange of data is hindered, as well as its functionality. If, for example, we wish to add the contents of two memory locations and return the result again back to memory, we would need a connection between memory and CPU. Simply stated, we must have some ―way‖ through data goes from one block to another.
Bus:
That ―way‖ is called ―bus‖. Physically, it represents a group of 8, 16, or more wires. There are two types of buses: address and data bus. The first one consists of as many lines as the amount of memory we wish to address, and the other one is as wide as data, in our case 8 bits or the connection line. First one serves to transmit address from CPU memory, and the second to connect all blocks inside the micro controller.
Input-output unit:
Those locations we‘ve just added are called ―ports‖. There are several types of ports: input, output or bi-directional ports. When working with ports, first of all it is necessary to choose which port we need to work with, and then to send data to, or take it from the port.
29 When working with it the port acts like a memory location. Something is simply being written into or read from it, and it could be noticed on the pins of the micro-controller.
3.2 555 TIMER IC
The 555 Timer IC is an integrated circuit (chip) implementing a variety of timer and multi vibrator applications. The IC was designed by Hans R. Camenzind in 1970 and brought to market in 1971 by Signetics (later acquired by Philips). The original name was the SE555 (metal can)/NE555 (plastic DIP) and the part was described as "The IC Time Machine". It has been claimed that the 555 gets its name from the three 5 kΩ resistors used in typical early implementations, but Hans Camenzind has stated that the number was arbitrary. The part is still in wide use, thanks to its ease of use, low price and good stability. As of 2003, it is estimated that 1 billion units are manufactured every year.
Depending on the manufacturer, the standard 555 package includes over 20 transistors, 2 diodes and 15 resistors on a silicon chip installed in an 8-pin mini dual-in-line package (DIP-8). Variants available include the 556 (a 14-pin DIP combining two 555s on one chip), and the 558 (a 16-pin DIP combining four slightly modified 555s with DIS & THR connected internally, and TR falling edge sensitive instead of level sensitive).
Ultra-low power versions of the 555 are also available, such as the 7555 and TLC555. The 7555 requires slightly different wiring using fewer external components and less power.
30 The 555 has three operating modes:
Monostable mode:
In this mode, the 555 functions as a "one-shot". Applications include timers, missing pulse detection, bounce free switches, touch switches, frequency divider, capacitance measurement, pulse-width modulation (PWM) etc
A stable - free running mode:
The 555 can operate as an oscillator. Uses include LED and lamp flashers, pulse generation, logic clocks, tone generation, security alarms, pulse position modulation, etc.
Bi stable mode or Schmitt trigger:
The 555 can operate as a flip-flop, if the DIS pin is not connected and no capacitor
is used. Uses include bounce free latched switches, etc. The 555 Timer IC is available as an 8-pin metal can, an 8-pin mini DIP (dual-in-package) or a 14-pin DIP.
This IC consists of 23 transistors, 2 diodes and 16 resistors. The explanation of terminals coming out of the 555 timer IC is as follows. The pin number used in the following discussion refers to the 8-pin DIP and 8-pin metal can packages.
31 555 timer IC 8 pin configuration
Pin 1: Grounded Terminal. All the voltages are measured with respect to this terminal.
Pin 2: Trigger Terminal. This pin is an inverting input to a comparator that is responsible for
transition of flip-flop from set to reset. The output of the timer depends on the amplitude of the external trigger pulse applied to this pin.
Pin 3: Output Terminal. Output of the timer is available at this pin. There are two ways in
which a load can be connected to the output terminal either between pin 3 and ground pin (pin 1) or between pin 3 and supply pin (pin 8). The load connected between pin 3 and ground supply pin is called the normally on load and that connected between pin 3 and ground pin is called the
normally off load.
Pin 4: Reset Terminal. To disable or reset the timer a negative pulse is applied to this pin
due to which it is referred to as reset terminal. When this pin is not to be used for reset purpose, it should be connected to + VCC to avoid any possibility of false triggering.
Pin 5: Control Voltage Terminal. The function of this terminal is to control the threshold
and trigger levels. Thus either the external voltage or a pot connected to this pin determines the pulse width of the output waveform. The external voltage applied to this pin can also be used to modulate the output waveform. When this pin is not used, it should be connected to ground through a 0.01 micro Farad to avoid any noise problem.
Pin 6: Threshold Terminal. This is the non-inverting input terminal of comparator 1, which
compares the voltage applied to the terminal with a reference voltage of 2/3 VCC. The amplitude
of voltage applied to this terminal is responsible for the set state of flip-flop.
Pin 7: Discharge Terminal. This pin is connected internally to the collector of transistor and
mostly a capacitor is connected between this terminal and ground. It is called discharge terminal because when transistor saturates, capacitor discharges through the transistor. When the transistor is cut-off, the capacitor charges at a rate determined by the external resistor and capacitor.
Pin 8: Supply Terminal. A supply voltage of + 5 V to + 18 V is applied to this terminal with
32 The 555 timer IC is an amazingly simple yet versatile device. It has been around now for many years and has been reworked into a number of different technologies. The two primary versions today are the original bipolar design and the more recent CMOS equivalent. These differences primarily affect the amount of power they require and their maximum frequency of operation; they are pin-compatible and functionally interchangeable.
This page contains only a description of the 555 timer IC itself. Functional circuits and a few of the very wide range of its possible applications will be covered in additional pages in this category.
The operation of the 555 timer revolves around the three resistors that form a voltage divider across the power supply, and the two comparators connected to this voltage divider. The IC is quiescent so long as the trigger input (pin 2) remains at +VCC and the threshold input (pin
6) is at ground. Assume the reset input (pin 4) is also at +VCC and therefore inactive, and that the
control voltage input (pin 5) is unconnected. Under these conditions, the output (pin 3) is at ground and the discharge transistor (pin 7) is turned on, thus grounding whatever is connected to this pin.
The three resistors in the voltage divider all have the same value (5K in the bipolar version of this IC), so the comparator reference voltages are 1/3 and 2/3 of the supply voltage, whatever that may be. The control voltage input at pin 5 can directly affect this relationship, although most of the time this pin is unused.
The internal flip-flop changes state when the trigger input at pin 2 is pulled down below +VCC/3. When this occurs, the output (pin 3) changes state to +VCC and the discharge
transistor (pin 7) is turned off. The trigger input can now return to +VCC; it will not affect the
state of the IC.
However, if the threshold input (pin 6) is now raised above (2/3)+VCC, the output will
return to ground and the discharge transistor will be turned on again. When the threshold input returns to ground, the IC will remain in this state, which was the original state when we started this analysis.
33 The easiest way to allow the threshold voltage (pin 6) to gradually rise to (2/3)+VCC
is to connect it to a capacitor being allowed to charge through a resistor. In this way we can adjust the R and C values for almost any time interval we might want.
The 555 can operate in either monostable or astable mode, depending on the connections to and the arrangement of the external components. Thus, it can either produce a single pulse when triggered, or it can produce a continuous pulse train as long as it remains powered.
In monostable mode, the timing interval, t, is set by a single resistor and capacitor, as shown to the right. Both the threshold input and the discharge transistor (pins 6 & 7) are connected directly to the capacitor, while the trigger input is held at +VCC through a resistor. In
the absence of any input, the output at pin 3 remains low and the discharge transistor prevents capacitor C from charging.
When an input pulse arrives, it is capacitively coupled to pin 2, the trigger input. The pulse can be either polarity; its falling edge will trigger the 555. At this point, the output rises to +VCC and the discharge transistor turns off. Capacitor C charges through R towards +VCC.
During this interval, additional pulses received at pin 2 will have no effect on circuit operation. The standard equation for a charging capacitor applies here: e = E(1 - (-t/RC)). Here, "e" is the capacitor voltage at some instant in time, "E" is the supply voltage, VCC, and " " is the
34 base for natural logarithms, approximately 2.718. The value "t" denotes the time that has passed, in seconds, since the capacitor started charging.
We already know that the capacitor will charge until its voltage reaches (2/3)+VCC,
whatever that voltage may be. This doesn't give us absolute values for "e" or "E," but it does give us the ratio e/E = 2/3. We can use this to compute the time, t, required to charge capacitor C to the voltage that will activate the threshhold comparator:
2/3 = 1 - (-t/RC) -1/3 = -(-t/RC) 1/3 = (-t/RC) ln(1/3) = -t/RC -1.0986123 = -t/RC t = 1.0986123RC t = 1.1RC
The value of 1.1RC isn't exactly precise, of course, but the round off error amounts to about 0.126%, which is much closer than component tolerances in practical circuits, and is very easy to use. The values of R and C must be given in Ohms and Farads, respectively, and the time will be in seconds. You can scale the values as needed and appropriate for your application, provided you keep proper track of your powers of 10. For example, if you specify R in megohms and C in microfarads, t will still be in seconds. But if you specify R in kilo ohms and C in microfarads, t will be in milliseconds. It's not difficult to keep track of this, but you must be sure to do it accurately in order to correctly calculate the component values you need for any given time interval. The timing interval is completed when the capacitor voltage reaches the (2/3)+VCC
upper threshold as monitored at pin 6. When this threshold voltage is reached, the output at pin 3 goes low again, the discharge transistor (pin 7) is turned on, and the capacitor rapidly discharges back to ground once more. The circuit is now ready to be triggered once again.
35
If we rearrange the circuit slightly so that both the trigger and threshold inputs are controlled by the capacitor voltage, we can cause the 555 to trigger itself repeatedly. In this case, we need two resistors in the capacitor charging path so that one of them can also be in the capacitor discharge path. This gives us the circuit shown to the left.
In this mode, the initial pulse when power is first applied is a bit longer than the others, having a duration of 1.1(Ra + Rb)C. However, from then on, the capacitor alternately charges and discharges between the two comparator threshold voltages. When charging, C starts at (1/3)Vcc and charges towards VCC. However, it is interrupted exactly halfway there, at
(2/3)VCC.Therefore, the charging time, t1, is ln(1/2)(Ra + Rb)C = 0.693(Ra + Rb)C.
When the capacitor voltage reaches (2/3)VCC, the discharge transistor is enabled (pin
7), and this point in the circuit becomes grounded. Capacitor C now discharges through Rb alone. Starting at (2/3)VCC, it discharges towards ground, but again is interrupted halfway there,
at (1/3)VCC. The discharge time, t2, then, is -ln(1/2)(Rb)C = 0.693(Rb)C.The total period of the
pulse train is t1 + t2, or 0.693(Ra + 2Rb)C. The output frequency of this circuit is the inverse of the period, or 1.44/(Ra + 2Rb)C.
Note that the duty cycle of the 555 timer circuit in astable mode cannot reach 50%. On time must always be longer than off time, because Ra must have a resistance value greater than zero to prevent the discharge transistor from directly shorting VCC to ground. Such an action would
36 One interesting and very useful feature of the 555 timer in either mode is that the timing interval for either charge or discharge is independent of the supply voltage, VCC. This is
because the same VCC is used both as the charging voltage and as the basis of the reference
voltages for the two comparators inside the 555. Thus, the timing equations above depend only on the values for R and C in either operating mode.
In addition, since all three of the internal resistors used to make up the reference voltage divider are manufactured next to each other on the same chip at the same time, they are as nearly identical as can be. Therefore, changes in temperature will also have very little effect on the timing intervals, provided the external components are temperature stable. A typical commercial 555 timer will show a drift of 50 parts per million per Centigrade degree of temperature change (50 ppm/°C) and 0.01%/Volt change in VCC. This is negligible in most
practical applications
3.3 ADC 0808
The ADC0808/ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals. The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808, ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808, ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For 16 channels multiplexer with common output (sample/hold port) see ADC0816 data sheet.
37
FEATURES:
Easy interface to all microprocessors
Operates ratio metrically or with 5 VDC or analog span adjusted voltage reference
No zero or full-scale adjust required
8-channel multiplexer with address logic
0V to VCC input range
Outputs meet TTL voltage level specifications
ADC0808 equivalent to MM74C949
KEY SPECIFICATIONS:
Resolution 8 Bits
Total Unadjusted Error ±½ LSB and ±1 LSB
Single Supply 5 VDC
Low Power 15 mW
38
BLOCK DIAGRAM:
3.3 .1 Block diagram of ADC 0808
PIN DIAGRAM OF ADC 0808
39
FUNCTIONAL DESCRIPTION:
MULTIPLEXER:
The device contains an 8-channel single-ended analog signal multiplexer. A particular input channel is selected by using the address decoder. Table 1 shows the input states for the address lines to select any channel. The address is latched into the decoder on the low-to-high transition of the address latch enable signal.
CONVERTER CHARACTERISTICS: The Converter:
The heart of this single chip data acquisition system is its 8- bit analog-to-digital converter. The converter is designed to give fast, accurate, and repeatable conversions over a wide range of temperatures. The converter is partitioned into 3 major sections: the 256R ladder network, the successive approximation register, and the comparator. The converter's digital outputs are positive true. The 256R ladder network approach shown in figure 4.2 was chosen over the conventional R/2R ladder because of its inherent mono tonicity, which guarantees no missing digital codes. Mono tonicity is particularly important in closed loop feedback control systems. A non-monotonic relationship can cause oscillations that will be catastrophic for the system. Additionally, the 256R network does not cause load variations on the reference voltage.
40 The bottom resistor and the top resistor of the ladder network in figure4.3 are not the same value as the remainder of the network. The difference in these resistors causes the output characteristic to be symmetrical with the zero and full-scale points of the transfer curve. The first output transition occurs when the analog signal has reached +½ LSB and succeeding output transitions occur every 1 LSB later up to full-scale. The successive approximation register (SAR) performs 8 iterations to approximate the input voltage. For any SAR type converter, n-iterations are required for an n-bit converter.
The most important section of the A/D converter is the comparator. It is this section which is responsible for the ultimate accuracy of the entire converter. It is also the comparator drift which has the greatest influence on the repeatability of the device. A chopper-stabilized comparator provides the most effective method of satisfying all the converter requirements. The chopper-stabilized comparator converts the DC input signal into an AC signal. This signal is then fed through a high gain AC amplifier and has the DC level restored. This technique limits the drift component of the amplifier since the drift is a DC component which is not passed by the AC amplifier. This makes the entire A/D converter extremely insensitive to temperature, long term drift and input offset errors.
3.4 RS 232:
In
telecommunications, RS-232 (Recommended Standard 232) is a standard for serial binary data signals connecting between a DTE (Data terminal equipment) and a DCE (Data Circuit-terminating Equipment). It is commonly used in computer serial ports.Scope of the standard:
The Electronic Industries Alliance (EIA) standard RS-232-C as of 1969 defines:
Electrical signal characteristics such as voltage levels, signaling rate, timing and slew-rate of signals, voltage withstand level short-circuit behavior, and maximum load capacitance.
Interface mechanic characteristics, pluggable connectors and pin identification. Functions of each circuit in the interface connector.
41 Standard subsets of interface circuits for selected telecom applications.
The standard does not define such elements as
Character encoding (for example, ASCII, Baudot or EBCDIC)
The framing of characters in the data stream (bits per character, start/stop bits, parity) Protocols for error detection or algorithms for data compression
Bit rates for transmission, although the standard says it is intended for bit rates lower than 20,000 bits per second. Many modern devices support speeds of 115,200 bps and above Power supply to external devices.
Details of character format and transmission bit rate are controlled by the serial port hardware, often a single integrated circuit called a UART that converts data from parallel to serial form. A typical serial port includes specialized driver and receiver integrated circuits to convert between internal logic levels and RS-232 compatible signal levels.
History:
The original DTEs were electromechanical teletypewriters and the original DCEs were (usually) modems. When electronic terminals (smart and dumb) began to be used, they were often designed to be interchangeable with teletypes, and so supported RS-232. The C revision of the standard was issued in 1969 in part to accommodate the electrical characteristics of these devices.
Since application to devices such as computers, printers, test instruments, and so on were not considered by the standard, designers implementing an RS-232 compatible interface on their equipment often interpreted the requirements idiosyncratically. Common problems were non-standard pin assignment of circuits on connectors, and incorrect or missing control signals. The lack of adherence to the standards produced a thriving industry of breakout boxes, patch boxes, test equipment, books, and other aids for the connection of disparate equipment. A common deviation from the standard was to drive the signals at a reduced voltage: the standard requires the transmitter to use +12V and -12V, but requires the receiver to distinguish voltages as low as +3V and -3V. Some manufacturers therefore built transmitters that supplied +5V and -5V and labeled them as "RS-232 compatible."
42 Later personal computers (and other devices) started to make use of the standard so that they could connect to existing equipment. For many years, an RS-232-compatible port was a standard feature for serial communications, such as modem connections, on many computers. It remained in widespread use into the late 1990s. While it has largely been supplanted by other interface standards in computer products, it is still used to connect older designs of peripherals, industrial equipment (such as based on PLCs), and console ports, and special purpose equipment such as a cash drawer for a cash register.
The standard has been renamed several times during its history as the sponsoring organization changed its name, and has been variously known as EIA RS 232, EIA 232, and most recently as TIA 232. The standard continues to be revised and updated by the EIA and since 1988 the Telecommunications Industry Association (TIA). Revision C was issued in a document dated August 1969. Revision D was issued in 1986. The current revision i TIA-232-F Interface between Data Terminal Equipment and Data Circuit-Terminating Equipment Employing Serial Binary Data Interchange, sissued in 1997. Changes since Revision C have been in timing and details intended to improve harmonization with the CCITT standard V.24, but equipment built to the current standard will interoperate with older versions.
Limitations of the standard:
Because the application of RS-232 has extended far beyond the original purpose of interconnecting a terminal with a modem, successor standards have been developed to address the limitations. Issues with the RS-232 standard include:
The large voltage swings and requirement for positive and negative supplies increases power consumption of the interface and complicates power supply design. The voltage swing requirement also limits the upper speed of a compatible interface.
Single-ended signaling referred to a common signal ground limits the noise immunity and transmission distance.
Multi-drop (meaning a connection between more than two devices) operation of an RS-232 compatible interface is not defined; while multi-drop "work-arounds" have been devised, they have limitations in speed and compatibility.
43
Asymmetrical definitions of the two ends of the link make the assignment of the role of a newly developed device problematic; the designer must decide on either a DTE-like or DCE-like interface and which connector pin assignments to use.
The handshaking and control lines of the interface are intended for the setup and takedown of a dial-up communication circuit; in particular, the use of handshake lines for flow control is not reliably implemented in many devices.
No method for sending power to a device, while a small amount of current can be extracted from the DTR and RTS lines this can only be used for low power devices such as mice.
While the standard recommends a 25-way connector and its pinout, the connector is large by current standards.
Role in modern personal computers:
Today, RS-232 is gradually being superseded in personal computers by USB for local communications. Compared with RS-232, USB is faster, has lower voltage levels, and has connectors that are simpler to connect and use. Both standards have software support in popular operating systems. USB is designed to make it easy for device drivers to communicate with hardware. However, there is no direct analog to the terminal programs used to let users communicate directly with serial ports. USB is more complex than the RS 232 standard because it includes a protocol for transferring data to devices. This requires more software to support the protocol used. RS 232 only standardizes the voltage of signals and the functions of the physical interface pins. Serial ports of personal computers are also often used to directly control various hardware devices, such as relays or lamps, since the control lines of the interface could be easily manipulated by software. This isn't feasible with USB which requires some form of receiver to decode the serial data.
As an alternative, USB docking ports are available which can provide connectors for a keyboard, mouse, one or more serial ports, and one or more parallel ports. Corresponding device drivers are required for each USB-connected device to allow programs to access these USB-connected devices as if they were the original directly-connected peripherals. Devices that convert USB to RS 232 may not work with all software on all personal computers.
44
Standard details:
In RS-232, data is sent as a time-series of bits. Both synchronous and asynchronous transmissions are supported by the standard. In addition to the data circuits, the standard defines a number of control circuits used to manage the connection between the DTE and DCE. Each data or control circuit only operates in one direction that is, signaling from a DTE to the attached DCE or the reverse. Since transmit data and receive data are separate circuits, the interface can operate in a full duplex manner, supporting concurrent data flow in both directions. The standard does not define character framing within the data stream, or character encoding.
Voltage levels:
The RS-232 standard defines the voltage levels that correspond to logical one and logical zero levels. Valid signals are plus or minus 3 to 15 volts. The range near zero volts is not a valid RS-232 level; logic one is defined as a negative voltage, the signal condition is called marking, and has the functional significance of OFF. Logic zero is positive; the signal condition is spacing, and has the function ON. The standard specifies a maximum open-circuit voltage of 25 volts; signal levels of ±5 V,±10 V,±12 V, and ±15 V are all commonly seen depending on the power supplies available within a device. RS-232 drivers and receivers must be able to withstand indefinite short circuit to ground or to any voltage level up to +/-25 volts. The slew rate, or how fast the signal changes between levels, is also controlled.
Because the voltage levels are higher than logic levels typically used by integrated circuits, special intervening driver circuits are required to translate logic levels. These also protect the device's internal circuitry from short circuits or transients that may appear on the RS-232 interface, and provide sufficient current to comply with the slew rate requirements for data transmission.
Because both ends of the RS-232 circuit depend on the ground pin being zero volts, problems will occur when connecting machinery and computers where the voltage between the ground pin on one end and the ground pin on the other is not zero. This may also cause a hazardous ground loop.
45
Connectors:
RS-232 devices may be classified as Data Terminal Equipment (DTE) or Data Communications Equipment (DCE); this defines at each device which wires will be sending and receiving each signal. The standard recommended but did not make mandatory the D-subminiature 25 pin connector. In general, terminals have male connectors with DTE pin functions, and modems have female connectors with DCE pin functions. Other devices may have any combination of connector gender and pin definitions.
Presence of a 25 pin D-sub connector does not necessarily indicate an RS-232C compliant interface. For example, on the original IBM PC, a male D-sub was an RS-232C DTE port (with a non-standard current loop interface on reserved pins), but the female D-sub connector was used for a parallel Centronics printer port. Some personal computers put non-standard voltages or signals on their serial ports.
The standard specifies 20 different signal connections. Since most devices use only a few signals, smaller connectors can be used. For example, the 9 pin DE-9 connector was used by most IBM-compatible PCs since the IBM PC AT, and has been standardized as TIA-574. More recently, modular connectors have been used. Most common are 8 pin RJ-45 connectors. Standard EIA/TIA 561 specifies a pin assignment, but the "Yost Serial Device Wiring Standard" invented by Dave Yost is common on UNIX computers and newer devices from Cisco Systems. Many devices don't use either of these standards. 10 pin RJ-50 connectors can be found on some devices as well. Digital Equipment Corporation defined their own DECconnect connection system which was based on the Modified Modular Jack connector. This is a 6 pin modular jack where the key is offset from the center position. As with the Yost standard, DECconnect uses a symmetrical pin layout which enables the direct connection between two DTEs. Another common connector is the DH10 header connector common on motherboards and add-in cards which are usually converted via a cable to the more standard 9 pin DE-9 connector (and frequently mounted on a free slot plate or other part of the housing).
Conventions:
For functional communication through a serial port interface, conventions of bit rate, character framing, communications protocol, character encoding, data compression, and error
