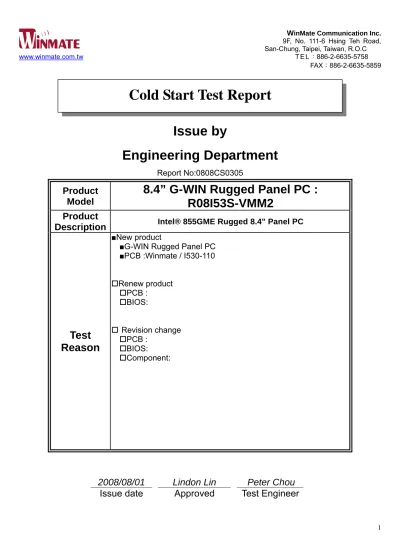

Cold Start Test Report

1

Issue by

Engineering Department

Product

Model

8.4” G-WIN Rugged Panel PC :

R08I53S-VMM2

Product

Description

Test

Reason

■New product

■G-WIN Rugged Panel PC ■PCB :Winmate / I530-110 †Renew product

2008/08/01

Lindon Lin

Peter Chou

Issue date

Approved

Test Engineer

1. Document Introduction and Revision History

This document describes how we conduct the environment conditions and test procedure. It includes the test equipment we use , the test condition ,and the test procedure we take. We also define our test criteria and the way to conclude the test result .

(According to client’s test specification, please see following sheets in detail.)

Table of Testing Summary Results

NO Test Item Condition Description Sect. / Page Reference to 1 Cold Start Test -Thermal Cycle: -10 ± 2oC

-The unit under test shall be powered off for the four hours.

-System power on, then 2 minutes later , system power off.

-After 10 minutes system power on again. -Two minutes later, system power off again.

-Recycle step a & a’& a” for 15 times -Total test time: 8 hours

4 / 5

3

2. Product Configuration

1. M/B ：Winmate / I530-110

2. CPU：Intel_Celeron_M_1.0GHz_400MHz

3. RAM：Transcend / 512MB DDR / SAMSUNG K4H510838D-UCCC / 400MHz 4. CF：Transcend / 4GB / Industrial

5. DVD-ROM：No

6. Card+Reader with Floppy: No 7. LCD：8.4" Mitsubishi AA084XA03 8. Inverter：QF82V3.30S

9. T/S Control Board：Touch SCN-A5-FLT08.4-Z01-0H1-R 10. Adapter：LI SHIN / 0452B1280 / OUTPUT：12V / 6.67A

11. Heat sink ：Yes (On CPU) / Yes ( On Intel 855GME Chipset) / Yes ( On Intel ICH4 Chipset) 12.CPU FAN ：No

13. System Fan：No

14. Power Board：Topower 8~36V DC-DC 12V Output 15. EUT of stage：Prototype Sample Version

SBC Specifications :

Processor Intel® Celeron M 1GHz Processor BIOS Award 4Mbit Flash

System Chipset Intel® 855GME / ICH4 Chipset Memory Slot 1 x SO-DIMM, Max 1GB DDR 333 KB / Mouse 1x PS/2

Ethernet 2 x RJ-45 (10/100 Mbps, Optional GigaLAN) USB Ports 2 x USB 2.0

VGA 1 x VGA(DB-15) Serial Ports 1 x RS232/422/485 Expansion slot 1 x Mini PCI, 1 x CF

3. Product Configuration of Photo

EUT of Photo

Top View Bottom View

5

4. Cold Start Test

A.Test Equipment:

─Test Site: Winmate LAB

─ Programmable Temperature & Humidity Chamber ─Kson/ THS-G4T-100 / S/N: 5887K

B. LAB Environmental Conditions:

─Ambient Temperature :25 +/- 3 oC ─Relative Humidity :55 +/- 20% RH

C. Test Method / Specification :

─Reference to IEC68-2-1 Testing Procedures ─Temperature : -10oC

─ Humidity Cycle: 10 + 2.5%RH ─ Running Windows system

─The unit under test shall be powered off for the four hours. ─ System power on, then 2 minutes later , system power off. ─ After 10 minutes system power on again.

─Two minutes later, system power off again. ─ Recycle step a & a’& a” for 15 times ─Total test time: 8 hours

─Quantity : Total 1 Set

─Testing Period: July 21, 2008 to July 21,2008

D. Check Condition and Requirements:

The On/Off cycling is to verify the quality of the product. It is to ensure that the product will not be damaged in any form during a sudden rush of current caused by interrupt errors, by power supply surges, or overshoot voltage.

The unit under test shall be powered off for the four hours. System power on, then 2 minutes later , system power off. After 10 minutes system power on again .Two minutes later, system power off again. Recycle step a & a’& a” for 15 times .Total test time: 8 hours.

As illustrated in Figure 1.

E. Test Result:

Examine the appearance of specimen(s) by visual check and perform functional check after this test. Connect the specimen with rated power then examine whether the display function of specimen could be work normally or not.

─ Functional Check & Mechanical Structure : Normal ─Appearance check(Visual check) :No visible damage

7 F. Test Judgment: ─ Test Result Appearance check (Visual check) Check Item Style Item No. Initial Final Functional & Performance check 8.4” G-WIN Rugged Panel PC : R08I53S-VMM2
