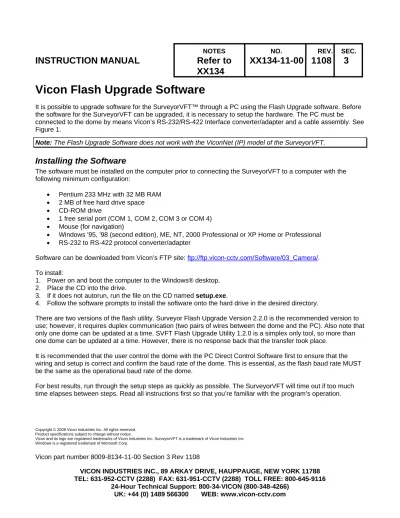

NOTES NO. REV. SEC.
INSTRUCTION MANUAL
Refer to
XX134-11-00 1108 3
XX134
Vicon Flash Upgrade Software
It is possible to upgrade software for the SurveyorVFT™ through a PC using the Flash Upgrade software. Before the software for the SurveyorVFT can be upgraded, it is necessary to setup the hardware. The PC must be connected to the dome by means Vicon’s RS-232/RS-422 Interface converter/adapter and a cable assembly. See Figure 1.
Note: The Flash Upgrade Software does not work with the ViconNet (IP) model of the SurveyorVFT.
Installing the Software
The software must be installed on the computer prior to connecting the SurveyorVFT to a computer with the following minimum configuration:
• Pentium 233 MHz with 32 MB RAM • 2 MB of free hard drive space • CD-ROM drive
• 1 free serial port (COM 1, COM 2, COM 3 or COM 4) • Mouse (for navigation)
• Windows '95, '98 (second edition), ME, NT, 2000 Professional or XP Home or Professional • RS-232 to RS-422 protocol converter/adapter
Software can be downloaded from Vicon’s FTP site: ftp://ftp.vicon-cctv.com/Software/03_Camera/. To install:
1. Power on and boot the computer to the Windows® desktop. 2. Place the CD into the drive.
3. If it does not autorun, run the file on the CD named setup.exe.
4. Follow the software prompts to install the software onto the hard drive in the desired directory.
There are two versions of the flash utility. Surveyor Flash Upgrade Version 2.2.0 is the recommended version to use; however, it requires duplex communication (two pairs of wires between the dome and the PC). Also note that only one dome can be updated at a time. SVFT Flash Upgrade Utility 1.2.0 is a simplex only tool, so more than one dome can be updated at a time. However, there is no response back that the transfer took place.
It is recommended that the user control the dome with the PC Direct Control Software first to ensure that the wiring and setup is correct and confirm the baud rate of the dome. This is essential, as the flash baud rate MUST be the same as the operational baud rate of the dome.
For best results, run through the setup steps as quickly as possible. The SurveyorVFT will time out if too much time elapses between steps. Read all instructions first so that you’re familiar with the program’s operation.
Copyright © 2008 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc. SurveyorVFT is a trademark of Vicon Industries Inc. Windows is a registered trademark of Microsoft Corp.
Figure 1 Pin Out Connections
RS-232/RS-422 Converter SurveyorVFT COMM TB3
Signal To Signal
RXD- (RESPONSE IN -) PIN 4 (RESPONSE OUT -) RXD+ (RESPONSE IN +) PIN 3 (RESPONSE OUT +)
GND (GROUND) PIN 5 (GROUND)
T/R+ (COMMAND OUT +) PIN 1 (COMMAND IN +) T/R- (COMMAND OUT -) PIN 2 (COMMAND IN -)
Communication Set Up
1. Have the RS-232 to RS-422 converter/adapter and cable ready. The converter/adapter is available from Vicon. Connect the SurveyorVFT to the cable/adapter and then to the PC Comm Port. Refer to Figure 1.
Note: It is important that the adapter get enough power. When using a laptop, be sure it is fully charged and turn
off the power save features to assure the power remains high. When using a laptop with an adapter, it is recommended to use the external DC input if available.
2. Setup the Comm Port and Baud Rate. By default, the program is set to use the PC’s Comm Port 1 and is set to communicate to the SurveyorVFT at 4800 baud. It is necessary to know the baud rate of the SurveyorVFT; the same rate MUST be selected for the utility. The PC Comm Port must be configured as follows:
• Bits: baud rate as high as possible • Data Bits: 8
• Parity: None • Stop Bits: 1
When running Flash Utility 2.2.0, duplex mode is required. When running Simplex Flash Utility 1.2.0, no response is necessary, so simplex mode is adequate. The dome MUST be wired to the adapter in duplex mode for absolute position and source titling, as these require getting data from and sending data to the dome.
Flash Upgrade Utility
The SurveyorVFT PCB has been updated to meet RoHS requirements. The new versions have blue PCBs; the previous PCBs were green. The new board has a new flash chip. Therefore, the flash code software is defferent from the old version. The units must be flashed accordingly. The flash code for the old verion is 1.X.X, while the flash code for the new RoHS version is 2.X.X. The flash code version can be found by entering Preset 92; either “App: 1.X.X” or “App: 2.X.X” will display. All new versions of flash code will be posted at Vicon’s FTP site:
ftp://ftp.vicon-cctv.com/Software/03_Camera/. In the SVFT-PRS pressurized dome, the pressure sensor has been moved to the Customer Interface Board (CIB) on RoHS version; non-RoHS versions had the pressure sensor as part of the housing.
Flash Upgrade Utility Version 2.2.0
The opening screen of Flash Utility software version 2.0.0 is displayed below. Use the Save button to store all custom settings, like Presets, stored in the SurveyorVFT. Performing a Flash upgrade will reset all user settings to factory default. Use this option to store the custom settings, so that they can be returned to the SurveyorVFT after the Flash upgrade has been performed. After the Flash Utility is complete, press the Restore button to restore all the custom settings that were previously saved.
1. Click on the Flash button to begin the flash Upgrade utility.
2. Use the Browse button to find the flash upgrade file or enter the path and file name directly into the textbox.
The file must have the .hex extension.
3. Press the Begin Button to send the command to the SurveyorVFT to begin the download session.
4. After the SurveyorVFT responds to the command to begin the session, the Next button will appear enabled. Click it to confirm the download.
5. The screen provides a selection of download baud rates. The option buttons range from 4800 to 57600 baud. Recommended selection is the 57600 option button. If for any reason the file transfer does not complete, check that the file being downloaded is the correct name and size. If it is correct, try again using a slower baud rate.
6. Press the Send button. There are two indicators for file transfer progress. One is the gauge that shows a
graphic of progress. The other is a message that displays the state of the transfer at that moment. Watch for error messages. In case of error messages, check all cables and connections. When the message “File Sent” appears, the download was completed successfully. Wait a few seconds for the SurveyorVFT to apply the update and reset; check the monitor for the version information.
Flash Upgrade Utility Version 1.2.0
This utility works in both simplex and duplex mode connection. The Flash utility application does not need a response (simplex mode) from the dome to proceed.
To establish initial communication or to change Comm Port and Baud Rate settings, use the Settings menu. Refer to the screen that follows.
Select download baud rate Settings Baud Rate Options Be sure to select Application (never Boot)
The screen provides a selection of download baud rates. The option buttons range from 4800 to 115200 baud. If for any reason the file transfer does not complete, check that the file being downloaded is the correct name and size. If it is correct, try again using a slower baud rate.
Note: This is the baud rate just for the download; it is not the baud rate for the flash upgrade and the dome
operation, which must be the same.
Select the file to download and click Send File. The following screen will display.
SurveyorVFT Utility Download Screen SurveyorVFT Video Screen
Absolute Position
This feature is used to command the dome to a particular position determined by pan, tilt, zoom and iris. It can also be used to retrieve absolute positioning coordinates. These values are read with respect to the camera dome’s zero compass feature. The Absolute Positioning program requires duplex mode. Refer to SurveyorVFT Programming Manual XX134-4X.
Source Titling
This enables the user to edit text titles for cameras, alarms, sectors, and presets located in the configuration file of the dome. The Source Title configuration requires duplex mode. Click on Utility and select Source Titling. The screen below will display.
1. Click on Utility menu, select Configuration upload (from SurveyorVFT to PC), name the file and save (.bin file). If you already have a SurveyorVFT configuration file, this step can be omitted.
2. Open the .bin file from the File menu.
3. Edit titles by selecting the Source Titling field values; click Save Changes for each altered title. Refer to the screen that follows. Some of the characters are not supported by the dome, for example, !, @, #, %; they are translated to a space character.
Troubleshooting:
1) Adapter - It is very important that the RS-232 to RS-422 adapter be wired correctly. The RS-232 side MUST be connected to the PC and the RS-422 side goes to the SurveyorVFT.
