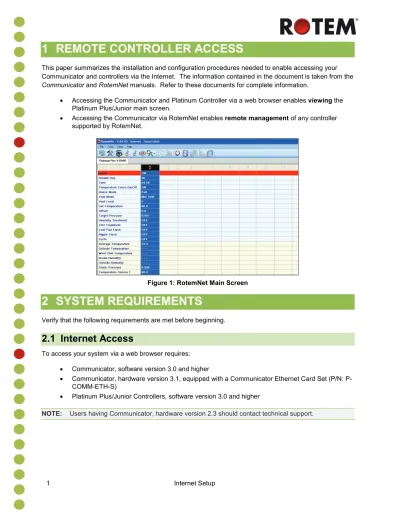

Figure 1: RotemNet Main Screen

1 REMOTE CONTROLLER ACCESS

This paper summarizes the installation and configuration procedures needed to enable accessing your Communicator and controllers via the Internet. The information contained in the document is taken from the Communicator and RotemNet manuals. Refer to these documents for complete information.

• Accessing the Communicator and Platinum Controller via a web browser enables viewing the

Platinum Plus/Junior main screen.

• Accessing the Communicator via RotemNet enables remote management of any controller

supported by RotemNet.

Figure 1: RotemNet Main Screen

2 SYSTEM REQUIREMENTS

2.1 Internet Access

To access your system via a web browser requires: • Communicator, software version 3.0 and higher

2.2 RotemNet

Verify that your PC meets the following requirements:

• _{OS: 32-bit or 64-bit* versions of Windows XP and up} • _CPU:

o Dual core and up CPU recommended o CPU 2.2 GHz minimum

• _RAM*:

o 32-bit systems: 1.5 GB and up o 64-bit systems: 4 GB and up • _{Hard Drive: 150 megabytes available}

NOTE: * RotemNet is an in-memory application. Your memory requirements depend on the amount and

3 INTERNET AND ROTEMNET CONFIGURATION

• Verify that the Ethernet cable is attached to the Communicator Ethernet Access Port and Ethernet access device.

• Verify that the Communicator recognizes the Ethernet card (select SYSTEM > Test > Hardware Profile). If the screen reads NO LINK, there is no Internet connection. If it reads OK, the Internet connection is working.

Figure 2: Communicator Ethernet Card and Cable Port

3.1 Setting up the Communicator Internet Connection

1. In the Communicator screen, select SYSTEM > Advanced Setup > Internet > My Account. 2. Write down the Ethernet device serial number (the number being with 1400).

3. On the Ethernet cable port (Figure 2), verify that: • the green lights remains on

NOTE: The Allowed S/N is the Device S/N found in SYSTEM  Advanced Setup  Internet.

NOTE: If you want to add a picture to your Internet account, click Browse and select the file.

e. Type the CAPTCHA letters. f. Click Submit.

A confirmation message will be sent to you.

5. In SYSTEM > Advanced Setup > Internet > My Account a In the Name field, type the name.

b. In the Account name, type the account name that you chose on the myrotemnet page.

c. In the Users field, type the maximum number of users that can simultaneously access the

network.

d. Click Save.

The Internet connection is now configured.

6. In a web browser, go to http://www.myrotem.net and login using the name and password that you chose.

Figure 3 appears

• If the Communicator is defined correctly, it is displayed on the site with its name and its status is a green circle.

• If the Communicator is not defined correctly, it does not appear on the screen.

• _{The red exclamation mark (!) indicates that the chip is not online. This means that there is a} connectivity problem, lost internet connection, or other possible problems. It does not mean that the Communicator is not defined properly.

Figure 3: My RotemNet Home Page (Example)

7. Click to view the controller details. Figure 4 appears.

8. Enter the house number you need to view by clicking the appropriate number at the top of the screen.

3.2 RotemNet Internet Network Setup

NOTE: Set up a web browser account before setting up a RotemNet Internet account.

1. In the Main Screen, select Setup > Network Setup. The Setup Screen appears.

2. Select the Internet radio box.

Figure 5 appears.

Figure 5: Internet Setup screenshot

3. Edit the farms as needed:

o Adding a Farm to an Internet Network, page 7 o Editing a Farm in an Internet Network, page 7 o Deleting a Farm from an Internet Network, page 8 o Connecting to a Farm in an Internet Network, page 8 o Disconnecting from a Farm in an Internet Network, page 8

3.2.1 Adding a Farm to an Internet Network

1. Click .

The Add New Record screen appears.

Figure 7: Add New Record screen

2. Type the farm name.

3. Type the device serial number; located in the Communicator device under Main Menu > System > Advanced Setup .> Internet > My Account.

4. Type the account name and password used when you registered. 5. Set the number of controllers.

NOTE: All fields are required.

6. Click OK.

3.2.3 Deleting a Farm from an Internet Network

2. Click . Figure 8 appears.

3. Click either Yes to delete it or No to ignore and go back to the Modem Communication screen.

Figure 8: Delete Farm window

3.2.4 Connecting to a Farm in an Internet Network

2. Click .

o The RotemNet main screen appears.

o If there are any active alarms, they appear when the connection is made.

3.2.5 Disconnecting from a Farm in an Internet Network
