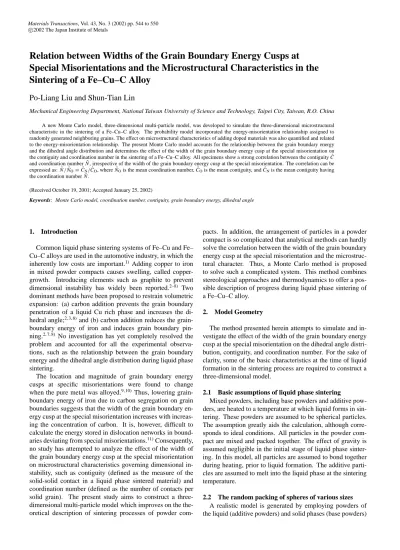

(1)Materials Transactions, Vol. 43, No. 3 (2002) pp. 544 to 550 c 2002 The Japan Institute of Metals. Relation between Widths of the Grain Boundary Energy Cusps at Special Misorientations and the Microstructural Characteristics in the Sintering of a Fe–Cu–C Alloy Po-Liang Liu and Shun-Tian Lin Mechanical Engineering Department, National Taiwan University of Science and Technology, Taipei City, Taiwan, R.O. China A new Monte Carlo model, three-dimensional multi-particle model, was developed to simulate the three-dimensional microstructural characteristic in the sintering of a Fe–Cu–C alloy. The probability model incorporated the energy-misorientation relationship assigned to randomly generated neighboring grains. The effect on microstructural characteristics of adding doped materials was also quantified and related to the energy-misorientation relationship. The present Monte Carlo model accounts for the relationship between the grain boundary energy and the dihedral angle distribution and determines the effect of the width of the grain boundary energy cusp at the special misorientation on the contiguity and coordination number in the sintering of a Fe–Cu–C alloy. All specimens show a strong correlation between the contiguity Ĉ and coordination number N̂ , irrespective of the width of the grain boundary energy cusp at the special misorientation. The correlation can be expressed as: N̂ / N̂O = Ĉ N /Ĉ O , where N̂O is the mean coordination number, Ĉ O is the mean contiguity, and Ĉ N is the mean contiguity having the coordination number N̂ . (Received October 19, 2001; Accepted January 25, 2002) Keywords: Monte Carlo model, coordination number, contiguity, grain boundary energy, dihedral angle. 1. Introduction Common liquid phase sintering systems of Fe–Cu and Fe– Cu–C alloys are used in the automotive industry, in which the inherently low costs are important.1) Adding copper to iron in mixed powder compacts causes swelling, called coppergrowth. Introducing elements such as graphite to prevent dimensional instability has widely been reported.2–8) Two dominant methods have been proposed to restrain volumetric expansion: (a) carbon addition prevents the grain boundary penetration of a liquid Cu rich phase and increases the dihedral angle;2, 3, 8) and (b) carbon addition reduces the grainboundary energy of iron and induces grain boundary pinning.2, 7, 8) No investigation has yet completely resolved the problem and accounted for all the experimental observations, such as the relationship between the grain boundary energy and the dihedral angle distribution during liquid phase sintering. The location and magnitude of grain boundary energy cusps at specific misorientations were found to change when the pure metal was alloyed.9, 10) Thus, lowering grainboundary energy of iron due to carbon segregation on grain boundaries suggests that the width of the grain boundary energy cusp at the special misorientation increases with increasing the concentration of carbon. It is, however, difficult to calculate the energy stored in dislocation networks in boundaries deviating from special misorientations.11) Consequently, no study has attempted to analyze the effect of the width of the grain boundary energy cusp at the special misorientation on microstructural characteristics governing dimensional instability, such as contiguity (defined as the measure of the solid-solid contact in a liquid phase sintered material) and coordination number (defined as the number of contacts per solid grain). The present study aims to construct a threedimensional multi-particle model which improves on the theoretical description of sintering processes of powder com-. pacts. In addition, the arrangement of particles in a powder compact is so complicated that analytical methods can hardly solve the correlation between the width of the grain boundary energy cusp at the special misorientation and the microstructural character. Thus, a Monte Carlo method is proposed to solve such a complicated system. This method combines stereological approaches and thermodynamics to offer a possible description of progress during liquid phase sintering of a Fe–Cu–C alloy. 2. Model Geometry The method presented herein attempts to simulate and investigate the effect of the width of the grain boundary energy cusp at the special misorientation on the dihedral angle distribution, contiguity, and coordination number. For the sake of clarity, some of the basic characteristics at the time of liquid formation in the sintering process are required to construct a three-dimensional model. 2.1 Basic assumptions of liquid phase sintering Mixed powders, including base powders and additive powders, are heated to a temperature at which liquid forms in sintering. These powders are assumed to be spherical particles. The assumption greatly aids the calculation, although corresponds to ideal conditions. All particles in the powder compact are mixed and packed together. The effect of gravity is assumed negligible in the initial stage of liquid phase sintering. In this model, all particles are assumed to bond together during heating, prior to liquid formation. The additive particles are assumed to melt into the liquid phase at the sintering temperature. 2.2 The random packing of spheres of various sizes A realistic model is generated by employing powders of the liquid (additive powders) and solid phases (base powders).

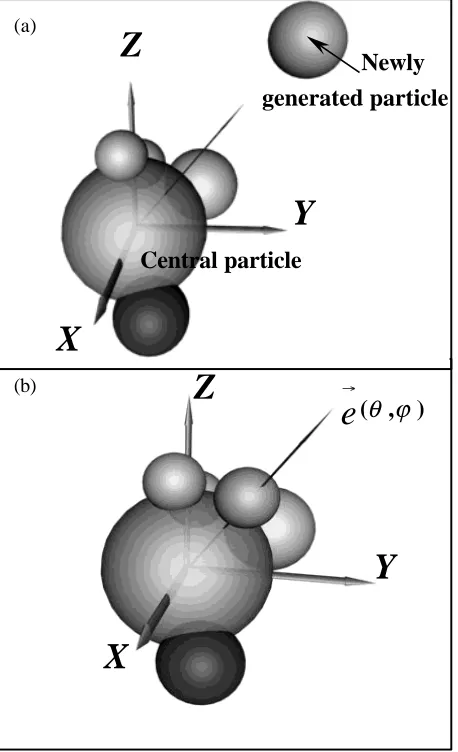

(2) Relation between Widths of the Grain Boundary Energy Cusps at Special Misorientations. (a). Z. 545. Newly generated particle. Y Central particle. X. Fig. 1 Sketch of the three-dimensional coordinate system in the present model.. Z. (b) whose particle size distributions exhibit truncated normal distributions. In the truncated normal distribution, only the particle sizes situating in the interval between R − 3σ and R + 3σ are generated in the calculation, where R is the mean particle radius and σ is the standard deviation of the distribution. We assume that the size distribution of particles is a truncated normal distribution with a mean radius R = 8 µm and a standard deviation σ = 1 µm in the interval (R − 3σ , R + 3σ ). The relative volumetric ratios of solid phase to liquid phase, designated 25, 50, 75, and 90 vol% solid phase particles with the remainder of the liquid phase particles, was treated as an input variable that determined their relative probabilities in probabilistic generation of particles. Each particle was randomly generated according to the size distribution function and the relative volume fraction of each phase. 2.3 Irregular particle packing To calculate the particle arrangement in three-dimensional space, the position of each particle with respect to the center of the original particle is denoted as: V (r, θ, ϕ) = r e(θ, ϕ),. (1). where e is a unit vector, r denotes the distance between the centers of the original particle and the newly generated particle, θ represents the angle between V and the z axis, and ϕ represents the angle between the x axis and the projection of V on the x-y plane (Fig. 1). In this approach, two numbers (θ and ϕ) are generated randomly to determine the direction of a newly generated particle. The direction depends on two random angles, θ randomly selected from zero (for a point on the positive unit-axis) to 360 degrees (2π radians), and ϕ randomly selected from zero to 180 degrees (π radians). In such a manner, a group of particles sequentially attached around the central particle. The particle packing in a threedimensional space was thus formulated. Figure 2 illustrates such an arrangement of particles. In such an arrangement, the newly generated particle was in point contact with the central particle. 2.4 Anisotropy in grain boundary energy In liquid phase sintered systems, solid grains can either exist as isolated grains or bond with the adjacent grains,. e(. , ). Y X. Fig. 2 Sketch showing the basis for generation of the newly generated particle. The simulated particle (a) moving along the direction e (θ, ϕ) and (b) contacting the central particle.. which accordingly yields a distribution of dihedral angle. Anisotropy in grain boundary energy causes such a phenomenon. In fact, grain boundary energy between two adjacent grains is determined by the misorientation angle of these two grains. The relation between the grain boundary energy and the misorientation angle can be described by a dislocation model.12–14) However, this model becomes invalid when the misorientation angle exceeds 15 deg, due to the overlapping of dislocation cores.12, 14) Thus, for both low and high angle grain boundaries, a coincidence-site-lattice model is usually utilized.13, 15–18) In the coincidence-site-lattice model, each grain has a random orientation. The relative orientation between two neighboring grains can be expressed by a rotation matrix, which represents the rotation of one grain around a certain axis by a deviation angle ∆θd . In addition, the maximum permissible deviation angle from coincidence can be expressed as the Brandon angle (∆θc ) by √ ∆θc = π/(12 × Σ), (2) where the notation Σ gives the reciprocal of the fraction of sites which are coincident between two grains.19) With the above definition, the anisotropy in grain boundary energy.

(3) 546. P.-L. Liu and S.-T. Lin. (γGB ) can be expressed as:20). thermodynamic criterion is met:. (γGB − γCSL )/(γRGB − γCSL ). 2γsl ≤ γGB ,. = 1 − exp(−Γ × (∆θd /∆θc )),. (3). where γRGB is the energy for random boundaries, γCSL is the grain boundary energy for grains having coincident lattice sites, and Γ is a parameter that determines relative importance of misorientation on the grain boundary energy. Here, γCSL assumes a value of zero at the Σ1 (lower angle) boundary, and where γCSL equals 0.8 γRGB above the Σ3 (twin) boundary.20) The energy for random grain boundaries of the gamma-iron, γRGB = 756 mJm−2 , was used in this model.21) The Γ is the grain boundary energy parameter whose increase makes grain boundary energy cusps sharper and more localized. According to the eq. (3), the width of the grain boundary energy cusp at the special misorientation is very narrow when Γ ≥ 9. Theoretically, the width of the grain boundary energy cusp at the special misorientation of a pure material should be narrow. For this reason, the grain boundary energy parameter of a pure material is assumed to be Γ = 9. In fact, a liquid phase sintered material that includes a base phase and an additive phase, is not a pure material. A small amount of solute segregation on grain boundaries of a pure material causes the increasing in the width of the grain boundary energy cusp at the special misorientation. Therefore, the general feature of energy angle relations as in the earlier cited experimental observations was assumed to be Γ = 3.20) In order to quantify the relation between the grain boundary energy configuration and the amount of adding solutes, we assume that the parameter, Γ , of the grain boundary energy configuration decreases when a small amount of solute was added to a pure metal. As shown in Fig. 3, Γ ranges from 9 to 3 in 3 decrements on adding solute in the present model. 2.5 Dihedral angle Bonding of adjacent grains occurs prior to the formation of liquid phase. When liquid phase is formed, the liquid phase can penetrate and dissolve the grain boundary, if the following. (4). where γsl denotes the energy of a solid-liquid interface.22–26) If the above criterion is not fulfilled, the liquid phase does not penetrate and dissolve the grain boundary completely. Under such a condition, there will exist an equilibrium dihedral angle Ψ among the solid grains and the liquid phase, which can be expressed by:27) γGB = 2γsl × cos(Ψ/2).. (5). Herein, the energy of a solid(Fe)-liquid(Cu) interface, γsl , is taken as 444 mJm−2 .4) 2.6 Coordination number As mentioned earlier, a group of particles is randomly generated according to the size distribution function and the relative volume fraction of each phase. These particles sequentially attached around the central particle. Consider the central particle which is in point contact with neighboring particles. According to the basic assumptions, additive particles are assumed to melt into liquid phase at the sintering temperature. Therefore, only base particles may bond together during liquid phase sintering. Alternatively, the number of contact particles depends on that the grain boundary between the central particle and each contact particle does not separate by a liquid film. The inter-particle contacts of the central particle, the three-dimensional coordination number N̂ , were counted in this model. For example, the condition of N̂ = 2 was shown in Fig. 4. 2.7 Contiguity The contiguity of solid phase in a liquid phase sintered system is the total area of solid-solid contacts as a fraction of the total area of solid-solid and solid-liquid contacts. For two spherical solid grains with radii of R1 and R2 being in contact (Fig. 4), a geographical relationship exists as:28–30) R1 sin Ψ1 = R2 sin Ψ2 = RC sin α,. (6). where. =9. 1.0. =3 rGB / rRGB. 0.8. =6. 0.6. 0.2. 0.0 6. 12. (7). Ψ = Ψ1 + Ψ2. (8). RC = 2 cos(Ψ/2)R1 R2 /(R2 − R1 ).. (9). With these relationships, the solid-solid interfacial area, SSS , yields as:29, 31). 0.4. 0. 2α = Ψ1 − Ψ2. 18. 24. 30. Misorientation Angle Fig. 3 Assumed interface energy spectrum.. 36. 42. 2π RC2 (1 − cos α),. R1 = R2. (10). π(R1 sin(Ψ/2))2 ,. R1 = R2. (11). π(R1 sin Ψ1 )2 ,. R1 ≈ R2 .. (12). When such a geometric calculation is calculated threedimensional multi-particle model with a Monte Carlo technique, the contiguity (Ĉ) can be expressed as: Ĉ = 2ASS /(2ASS + ASL ),. (13).

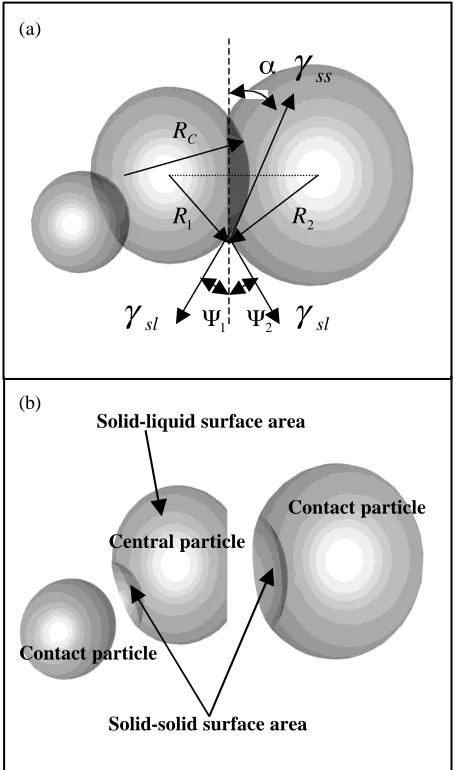

(4) Relation between Widths of the Grain Boundary Energy Cusps at Special Misorientations 0.15. (a). (a). 547. Expectation = 79.16 Standard Deviation = 4.68. 0.1. ss 0.05. RC. R1. Probability Density. 0. R2. sl. 1. sl. 2. 0.15. (b). Expectation = 71.42 Standard Deviation = 3.78. 0.1. 0.05. 0. 0.2. (c). Expectation = 68.63 Standard Deviation = 3.21. 0.15. (b) Solid-liquid surface area. 0.1 0.05 0. Contact particle Central particle. Dihedral Angle Fig. 5 Effect of Γ values on a dihedral angle distribution: (a) 3, (b) 6, and (c) 9.. Contact particle. the grain boundary energy spectrum during liquid phase sintering of a Fe–Cu–C alloy. Subsequently, the results by numerical computation are briefly discussed.. Solid-solid surface area. 4. Results and Discussion Fig. 4 Drawing of three spherical solid particles in contact during liquid phase sintering. The detail of the bulk geometry is shown in (a), and the contact region is given in (b).. where ASS =. n . (SSS )i. i =1. ASL =. 4π RO2. −. (14). n . 2π RO2 (1. − cos Ψi ) ,. (15). i =1. where ASS is the solid-solid surface area, ASL is the solidliquid surface area, n is the coordination number N̂ , RO is the radius of the central particle, and Ψi is the dihedral angle among the central particle, the i-th particle, and the liquid phase. 3. Numerical Simulation The program of this model was run on a workstation of SunOS Release 4.1.3 of UNIX system using SIMCRIPT as the computer programming language. It is best suited for representing complex simulation models. Statistical comparisons of 1000 simulated particles were made between the present results of the both effects of the matrix fraction and. This study has proposed a new approach for solving a wellknown class of problems. The parameter, Γ , of the grain boundary energy configuration was originally assumed to decrease when a small amount of solute was added to pure metal. Figure 5 presents the histogram for the dihedral angle distribution simulated for various Γ values. The Monte Carlo simulation results indicate that the dihedral angle distribution broadens with a decrease in the Γ value, as expected. Adding a small amount of carbon to iron-copper in mixed powder compacts reduces the grain-boundary energy of iron and increases the dihedral angle at the grain boundaries with the copper-rich liquid phase.2, 8) Figure 6 shows that the coordination number increases with the volume fraction of solid, irrespective of Γ values or widths of grain boundary energy cusps at special misorientations. Figure 7 reveals that the contiguity increases with an increase in the mean dihedral angle or with a decrease in the value of Γ , indicating that the dihedral angle increases as the value of Γ decreases. According to the results presented here, changing the width of the grain boundary energy cusp at the special misorientation, as represented by the value of Γ , significantly influences the contiguity. In other words, carbon atoms in iron induce grain boundary pinning and prevent the copper penetration into the grain boundary.3) Consequently, the increased probability of mutually contacting gamma-iron grains causes an increase in contiguity..

(5) 548. P.-L. Liu and S.-T. Lin. Mean Coordination Number. 10. 8. 6. 4. 2. 0 0.2. 0.4. 0.6. 0.8. 1.0. Volume Fraction of Solid Fig. 6 Variations in coordination number with an increase of volume fraction of solid. 1.00. Contiguity. 0.80. 0.60. 0.40. 0.20. 0.00. 5. Conclusions 0.2. 0.4. 0.6. 0.8. 1.0. Volume Fraction of Solid Fig. 7. remain at particle corners or at its original location. Therefore, the fraction of the solid particle surface shared by adjacent solid particles, or contiguity, increases with an increase of dihedral angle or a decrease of Γ . Above results prove the approach for solving that carbon addition prevents the gamma-iron grain boundary penetration of a liquid Cu rich phase and explain previous suggestions that solute segregation modifies the shape of the energy-misorientation curve of the pure metal.10) In liquid phase sintered microstructures, a correlation between the contiguity and coordination number affects each other. Therefore, a bivariate frequency distribution between contiguity and coordination number is a good technology to be studied. Figure 8 illustrates bivariate contiguitycoordination number frequency functions predicted from the model for Γ = 3, when volume fractions of solid are 0.25, 0.5, 0.75 and 0.9, respectively. Dramatically, there is a significant difference in the bivariate frequency functions with the change in the volume fraction of solid. The distribution reveals that both contiguity and coordination number decreased with the decrease in the volume fraction of solid, owing to the higher probability for wetting. At present, there are no theories or computer simulations whose predictions can be compared with this result. Moreover, it can also be observed that there exists a strong correlation between the contiguity Ĉ and the coordination number N̂ . To quantify this correlation between Ĉ and N̂ , we normalize both the variables: divide the average contiguity C N having coordination number N̂ by total average contiguity Ĉ O , and divide N̂ by mean coordination number N̂O . We find that N̂ / N̂O is a direction proportion to Ĉ N /Ĉ O , irrespective of the width of the grain boundary energy cusp at the special misorientation. For example, the correlation for Γ = 3, 6, and 9 in 0.5 volume fraction of solid was shown in Fig. 9.. Variations in contiguity with an increase of volume fraction of solid.. Figures 5 and 7 show that the presented data are accurate and consistent with those obtained by experiments for Fe– Cu–C alloys. Recent experimental observations have indicated that the structure of grain boundaries differs from that of the matrix. Therefore, two locations exist a difference in free energy. The difference in free energy is the driving force for grain boundary segregation of carbon during heating.32) Grain boundaries provide a high density of energetically favorable sites for carbide precipitation. Following carbon depletion, the free energy of segregation for carbon decrease at no coincident atoms, supporting the claim of the original assumption of the grain boundary energy configuration. The reducing grain-boundary energy of iron at no coincident atoms, together with the increase of the dihedral angle, induces grain boundary pinning and prevents the grain boundary penetration of a liquid Cu rich phase. Following an increase of volume fraction of solid, interconnected solid particles inhibiting the copper penetration have a tendency for liquid copper to. This study has demonstrated the feasibility of applying the Monte Carlo method to analyze the effect of the width of the grain boundary energy cusp at the special misorientation on microstructural characteristics in the sintering of a Fe–Cu–C alloy. The three-dimensional Monte Carlo model combines multi-particle arrangement, non-uniform particle size, irregular packing and a continuous spectrum of grain boundary energy to solve that the relatively low grain boundary energy at no coincident atoms causes an increase in contiguity and dihedral angle. The contiguity can be expressed through a simple mathematical relationship related to their coordination number, irrespective of the width of the grain boundary energy cusp at the special misorientation. Acknowledgements Professor Wei-Ning Yang is appreciated for allowing us to use a computer on a workstation with the UNIX system, and for many stimulating discussions..

(6) Relation between Widths of the Grain Boundary Energy Cusps at Special Misorientations. (b). 2. 1.4. 1.8. 1.2. 1.4 1.2 1 0.8 0.6. gu. ity. 15. 13. Co. atio. 0.2 0. er mb. Co. u nN. nti. in or d. (c). 0.9. 7. 0.6 5. 0.9 5. 1. 3. 5. 7. 0.6 0.4. 0.3 5. 9. 0.8. gu. ity. 0.0 5. nti. 0.0 5. Co. 0.3 5. 0.6 5. 0.9 5. 0.4 0.2 0. 11. 1. Probability DensityM. 1.6. Probability DensityM. (a). 549. 15. 13. 11. 5. 3. 1. er umb 9 on N inati d r o Co. (d). 1.2. 0.6 0.5 0.4 0.3 0.2. 1. Probability DensityM. 0.7. 0.8 0.6 0.4 0.2. 0.1. 0. ity. 5. 15. 13. 0.9 5. Co. ber. nti. um. nN. tio ina o rd. gu. ity. 15. 13. 7. 5. 3. 1. er umb 11 on N inati d r o Co. 9. 0.6 5. 7. 9. 1. 0.3 5. 11. 3. 0.0 5. gu. 0. 0. nti. 0. 3. Co. 5. 0. 6. 5. 0. 9. 5. 0 5. Probability DensityM. 0.8. Co. Fig. 8 Bivariate coordination number-contiguity distribution: (a) 0.25, (b) 0.5, (c) 0.75, and (d) 0.9 volume fraction of solid with the Γ value of 3. 2.5. 2) 3) 4) 5). Normalized Contiguity. 2.0. 6) 1.5. 7). 1.0. 8) 9). 0.5. 10) 11). 0.0 0.0. 0.5. 1.0. 1.5. 2.0. 2.5. Normalized Coordination Number Fig. 9 Normalized mean contiguity (Ĉ N /Ĉ O ) vs their normalized mean coordination number ( N̂ / N̂O ). Data points vary with Γ values for 0.5 volume fraction of solid.. REFERENCES 1) R. M. German: Sintering Theory and Practice, (John Wiley and Sons, New York, 1996) pp. 491–493.. 12) 13) 14) 15) 16) 17) 18). S. J. Jamil and G. A. Chadwick: Powder Metall. 28 (1985) 65–71. R. L. Lawcock and T. J. Davies: Powder Metall. 33 (1990) 147–149. C. T. Huang and K. S. Hwang: Powder Metall. 39 (1996) 119–123. A. Griffo, R. M. German and H. Nayar: Ad. Powder Metall. and Particulate Mater., ed. by Joseph M. Capus and R. M. German (Metal Powder Industries Federation, Princeton, New Jersey, 1992) pp. 301–315. Hidenori Kuroki, Gang Han and Kenji Shinozaki: Int. J. Powder Metall. 35 (1999) 57–62. M. Berlinger, B. Wasiczko, H. Nayar, R. Kiefer and Y. T. Chen: Ad. Powder Metall. and Particulate Mater., ed. by Joseph M. Capus and R. M. German (Metal Powder Industries Federation, Princeton, New Jersey, 1992) pp. 285–300. Y. Trudel and R. Angers: Modern Developments in Powder Metallurgy, ed. by Henry H. Hausner (Plenum Press, New York, 1973) pp. 305–322. J. E. Blendell, C. A. Handwerker, W. A. Kaysser and G. Petzow: Surfaces and Interfaces in Ceramic and Ceramic-Metal Systems, ed. by Joseph Pask and Anthony Evans (Plenum Press, New York and London, 1980) pp. 217–226. H. Kuhn, G. Baero and H. Gleiter: Acta Metall. 27 (1979) 959–963. G. A. Chadwick and D. A. Smith: Grain Boundary Structure and Properties, (Academic Press, London, 1976) pp. 148–154. J. P. Hirth and J. Lothe: Theory of Dislocations, (McGRAW-HILL Book Company, New York, 1982) pp. 672–678. D. G. Brandon, B Ralph, S. Ranganathan and M. S. Wald: Acta Metall. 12 (1964) 813–821. W. Missol: Acta Metall. 24 (1976) 73–79. A. Garbacz and M. W. Grabski: Scr. Metall. 23 (1989) 1369–1374. A. Garbacz and M. W. Grabski: Acta Metall. 41 (1993) 475–483. D. H. Warrington and M. Boon: Acta Metall. 23 (1975) 599–607. L. S. Shvindlerman and B. B. Straumal: Acta Metall. 33 (1985) 1735– 1749..

(7) 550. P.-L. Liu and S.-T. Lin. 19) D. G. Brandon: Acta Metall. 14 (1966) 1479–1484. 20) N. Ono, K.Kimura and T. Watanabe: Acta Metall. 47 (1999) 1007– 1017. 21) L. E. Murr: Interfacial Phenomena in Metals and Alloys, (AddisonWesley Pub. Co., Massachusetts, 1975) pp. 131. 22) W. D. Kingery: J. Appl. Phys. 30 (1959) 301–306. 23) H. D. Park, W. H. Baik, S. J. L. Kang and D. Y. Yoon: Metall. Mater. Trans. A 27A (1996) 3120–3125. 24) A. D. Rollett, D. J. Srolovitz and M. P. Anderson: Acta Metall. 37 (1989) 1227–1240. 25) D. R. Clarke: Intergranular Phases in Polycrystalline Ceramics in Surface and Interfaces of Ceramic Materials, (Kluwer Academic Publishers, Dordrecht, Boston, 1989) pp. 57–79.. 26) S. S. Kim and D. Y. Yoon: Acta Metall. 31 (1983) 1151–1157. 27) N. M. Parikh and M. Humenik, JR.: J. Am. Ceram. Soc. 40 (1957) 315– 320. 28) S. C. Yang, S. S. Mani and R. M. German: Ad. Powder Met., (Metal Powder Industries Federation, Princeton, New Jersey, 1990) pp. 469. 29) R. M. German: Metall. Trans. A 16A (1985) 1247–1252. 30) R. M. German: Liquid Phase Sintering, (Plenum Press, New York, NY, 1985) pp. 117. 31) R. M. German: Liquid Phase Sintering, (Plenum Press, New York, NY, 1985) pp. 31–35. 32) Shigeru Suzuki, Pavel Lejeck and Siegfried Hofmann: Mater. Trans., JIM 40 (1999) 463–473..
