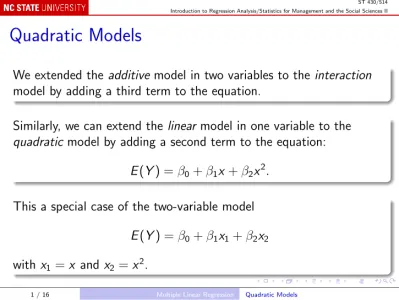

We extended the additive model in two variables to the interaction model by adding a third term to the equation.

(1)

Quadratic Models

Similarly, we can extend the linear model in one variable to the quadratic model by adding a second term to the equation:

E (Y ) = β0+ β1x + β2x². This a special case of the two-variable model

E (Y ) = β₀+ β₁x₁+ β₂x₂ with x₁ = x and x₂ = x².

1 / 16 Multiple Linear Regression Quadratic Models

(2)

Example: immune system and exercise

x = maximal oxygen uptake (VO₂ max, mL/(kg · min));

y = immunoglobulin level (IgG, mg/dL);

data for 30 subjects (AEROBIC.txt).

Get the data and plot them:

aerobic <- read.table("Text/Exercises&Examples/AEROBIC.txt", header = TRUE)

plot(aerobic[, c("MAXOXY", "IGG")])

Slight curvature suggests a linear model may not fit.

(3)

Check the linear model:

plot(lm(IGG ~ MAXOXY, aerobic))

Graph of residuals against fitted values shows definite curvature.

Fit and summarize the quadratic model:

aerobicLm <- lm(IGG ~ MAXOXY + I(MAXOXY^2), aerobic) summary(aerobicLm)

(4)

Output

Call:

lm(formula = IGG ~ MAXOXY + I(MAXOXY^2), data = aerobic)

Residuals:

Min 1Q Median 3Q Max

-185.375 -82.129 1.047 66.007 227.377

Coefficients:

Estimate Std. Error t value Pr(>|t|) (Intercept) -1464.4042 411.4012 -3.560 0.00140 **

MAXOXY 88.3071 16.4735 5.361 1.16e-05 ***

I(MAXOXY^2) -0.5362 0.1582 -3.390 0.00217 **

---

Signif. codes: 0 *** 0.001 ** 0.01 * 0.05 . 0.1 1

Residual standard error: 106.4 on 27 degrees of freedom Multiple R-squared: 0.9377, Adjusted R-squared: 0.9331 F-statistic: 203.2 on 2 and 27 DF, p-value: < 2.2e-16

(5)

The quadratic term I(MAXOXY^2) is significant, so we reject the null hypothesis that the linear model is acceptable.

The quadratic term is negative, which is consistent with the concavity of the curve.

The other two t-ratios test irrelevant hypotheses, because the quadratic term is important.

Extrapolation: the fitted curve has a maximum at MAXOXY = 88.3071

2 × 0.5362 ≈ 82

and declines for higher MAXOXY, which seems unlikely to represent the real relationship.

(6)

An alternative analysis

The graph of IGG against log(MAXOXY) is more linear:

with(aerobic, plot(log(MAXOXY), IGG))

aerobicLm2 <- lm(IGG ~ log(MAXOXY), aerobic) summary(aerobicLm2)

with(aerobic, plot(MAXOXY, IGG)) with(aerobic, lines(sort(MAXOXY),

fitted(aerobicLm)[order(MAXOXY)], col = "blue"))

with(aerobic, lines(sort(MAXOXY),

fitted(aerobicLm2)[order(MAXOXY)], col = "red"))

The fitted curve continues to increase indefinitely, but with diminishing slope.

(7)

Output

Call:

lm(formula = IGG ~ log(MAXOXY), data = aerobic)

Residuals:

-165.455 -88.651 -2.395 55.756 218.934

Coefficients:

Estimate Std. Error t value Pr(>|t|) (Intercept) -4885.71 324.33 -15.06 5.87e-15 ***

log(MAXOXY) 1653.38 83.07 19.90 < 2e-16 ***

---

Signif. codes: 0 *** 0.001 ** 0.01 * 0.05 . 0.1 1

Residual standard error: 107.6 on 28 degrees of freedom Multiple R-squared: 0.934, Adjusted R-squared: 0.9316 F-statistic: 396.1 on 1 and 28 DF, p-value: < 2.2e-16

(8)

More Complex Models

Complete second-order model When the first-order model

E (Y ) = β0+ β1x1+ β2x2

is inadequate, the interaction model

E (Y ) = β₀+ β₁x₁+ β₂x₂+ β₃x₁x₂

may be better, but sometimes a complete second-order model is needed:

E (Y ) = β0+ β1x1+ β2x2+ β3x1x2+ β4x₁²+ β5x₂²

8 / 16 Multiple Linear Regression More Complex Models

(9)

Example: cost of shipping packages Get the data and plot them:

express <- read.table("Text/Exercises&Examples/EXPRESS.txt", header = TRUE)

pairs(express)

Fit the complete second-order model and summarize it:

expressLm <- lm(Cost ~ Weight * Distance +

I(Weight^2) + I(Distance^2), express) summary(expressLm)

plot(expressLm)

(10)

Output

Call:

lm(formula = Cost ~ Weight * Distance + I(Weight^2) + I(Distance^2), data = express)

Residuals:

-0.86027 -0.19898 -0.00885 0.16531 0.94396

Coefficients:

Estimate Std. Error t value Pr(>|t|) (Intercept) 8.270e-01 7.023e-01 1.178 0.258588 Weight -6.091e-01 1.799e-01 -3.386 0.004436 **

Distance 4.021e-03 7.998e-03 0.503 0.622999 I(Weight^2) 8.975e-02 2.021e-02 4.442 0.000558 ***

I(Distance^2) 1.507e-05 2.243e-05 0.672 0.512657 Weight:Distance 7.327e-03 6.374e-04 11.495 1.62e-08 ***

---

Signif. codes: 0 *** 0.001 ** 0.01 * 0.05 . 0.1 1

Residual standard error: 0.4428 on 14 degrees of freedom Multiple R-squared: 0.9939, Adjusted R-squared: 0.9918 F-statistic: 458.4 on 5 and 14 DF, p-value: 5.371e-15

(11)

Qualitative Variables

A qualitative variable (or factor) is one that indicates membership of different categories.

E.g., a person’s gender = male or female: a qualitative variable with two levels, indicating membership of one of two categories.

E.g., package type = Fragile, Semifragile, or Durable:

three levels, corresponding to three categories.

(12)

We code a qualitative variable using indicator (dummy) variables:

Choose one level to use as a base or reference level, say male or Durable.

For each other level, create a variable

x_j =

(1 if this item is in this category 0 otherwise.

For gender, there is only one other category, so the only indicator variable is

x =

(1 for a female 0 for a male.

(13)

For packages, there are two other categories, so the indicator variables are

x_Fragile =

(1 for a Fragile package 0 otherwise,

xSemifragile =

(1 for a Semifragile package 0 otherwise,

For any item, at most one of the indicator variables is non-zero, indicating a non-base category;

if they are all zero, the item belongs to the base category.

(14)

Example: shipment cost of packages, by type.

Get the data and plot them:

cargo <- read.table("Text/Exercises&Examples/CARGO.txt", header = TRUE)

plot(COST ~ CARGO, cargo)

Fit and summarize the model:

cargoLm <- lm(COST ~ CARGO, cargo) summary(cargoLm)

(15)

Output

Call:

lm(formula = COST ~ CARGO, data = cargo)

Residuals:

-2.20 -1.80 -1.00 1.05 4.24

Coefficients:

Estimate Std. Error t value Pr(>|t|) (Intercept) 3.260 1.075 3.032 0.0104 * CARGOFragile 9.740 1.521 6.405 3.38e-05 ***

CARGOSemiFrag 5.440 1.521 3.577 0.0038 **

---

Signif. codes: 0 *** 0.001 ** 0.01 * 0.05 . 0.1 1

Residual standard error: 2.404 on 12 degrees of freedom Multiple R-squared: 0.7745, Adjusted R-squared: 0.7369 F-statistic: 20.61 on 2 and 12 DF, p-value: 0.0001315

(16)

Note that the intercept is the fitted value for CARGOFragile = 0 and CARGOSemiFrag = 0; that is, for Durable packages.

The coefficients of CARGOFragile and CARGOSemiFrag measure the differences between those categories and Durable.

The overall model F -test is the same as the analysis of variance test:

cargoAov <- aov(COST ~ CARGO, cargo) summary(cargoAov)

Output

Df Sum Sq Mean Sq F value Pr(>F) CARGO 2 238.25 119.13 20.61 0.000132 ***

Residuals 12 69.37 5.78 ---

Signif. codes: 0 *** 0.001 ** 0.01 * 0.05 . 0.1 1
