A New Robust Methodology of Image Compression based on CDF Wavelets

(1)

A New Robust Methodology of Image Compression

based on CDF Wavelets

Pradeep Kumar Pal

M.Tech, Research Scholar,

Department of Computer Science & Engineering IET, Alwar, India

Kapil Dev Sharma

Assistant Professor

Department of Computer Science & Engineering IET, Alwar, India

ABSTRACT

It is used specially for the compression of images where tolerable degradation is required. With the wide use of computers and consequently need for large scale storage and transmission of data, efficient ways of storing of data have become necessary. With the growth of technology and entrance into the Digital Age, the world has found itself amid a vast amount of information. Dealing with such enormous information can often present difficulties. Image compression is minimizing the size in bytes of a graphics file without degrading the quality of the image to an unacceptable level. The reduction in file size allows more images to be stored in a given amount of disk or memory space. It also reduces the time required for images to be sent over the Internet or downloaded from Web pages.JPEG and JPEG 2000 are two important techniques used for image compression.

Keywords

Image,wavelets,transform,compression

1. INTRODUCTION

An image may be defined as a two-dimensional function f(x, y), where x and y are spatial (plane) coordinates, and the amplitude of f at any pair of coordinates (x, y) is called the intensity or gray level of the image at that point. When x, y, and the amplitude values of f are all finite, discrete quantities, we call the image a digital image. The field of digital image processing refers to processing digital images by means of a digital computer. Note that a digital image is composed of a finite number of elements, each of which has a particular location and value. These elements are referred to as picture elements, image elements,

pels, and pixels. Pixel is the term most widely used to denote the elements of a digital image

MATLAB

MATLAB is software package that lets you do analyze data, mathematics and computation; develop algorithms, simulation and modeling, and produce graphical displays and graphical user interfaces. MATLAB is a powerful computing system for handling scientific and engineering calculations. The term MATLAB stands for Matrix Laboratory, because the System was designed to formulate matrix computations particularly easy [20].

Objectives:

A new compression scheme will developed for images.

Objective of this work are:



The objective of image compression is to reduce the redundancy of the image and to store or transmit data in an efficient form.



Analysis the wavelets family with discreet wavelets transformation



To Calculate MSE for proposed algorithms.



To calculate Compression Ratio for proposed algorithms.

2. LITERATURE SURVEY

a. Discrete Wavelet Transform:

The Discrete Wavelet Transform, which is based on sub-band coding, is found to yield a fast computation of Wavelet Transform. It is easy to implement and reduces the computation time and resources required. The discrete wavelet transform uses filter banks for the construction of the multi resolution time-frequency plane. The Discrete Wavelet Transform analyzes the signal at different frequency bands with different resolutions by decomposing the signal into an approximation and detail information.

b. Inverse discrete wavelets transform:

The IDWT block computes the inverse discrete wavelet transform (IDWT) of the input subbands. By default, the block accepts a single sample-based vector or matrix of concatenated subbands. The output is frame based, and has the same dimensions as the input. Each column of the output is the IDWT of the corresponding input column.

2.1 Literature Survey

There are read flowing research papers related to work thesis work

M. Mozammel et al. [28]states a new image compression

scheme based on discrete wavelet transform is proposed in this research which provides sufficient high compression ratios with no appreciable degradation of image quality. The effectiveness and robustness of this approach has been justified using a set of real images. The images are taken with a digital camera .

Somasundar Reddy et al. [29] proposed a theory based

on Image compression which is of prime importance in Real time applications like video conferencing where data are transmitted through a channel. This method provides better results in terms of compression ratio, mean square error and peak signal to noise ratio. Proposing a simple and effective method combined with effective thresholding for further compression in this paper that saves a lot of bits in the image data transmission.

Fathima et al. [30]analyzed lossy compression of an RGB

(2)

3. IMPLEMENTATION AND RESULTS

3.1 Mean Square Error

The Mean Square Error (MSE) is the error metrics used to compare image compression quality. The MSE represents the cumulative squared error between the compressed and the original image, whereas PSNR represents a measure of the peak error. The lower the value of MSE, the lower the error.

In the previous equation, M and N are the number of rows and columns in the input images, respectively.

3.2 Compression Ratio

The compression ratio typically affects the picture quality. Generally, the higher the compression ratio, the poorer the quality of the resulting image. The tradeoff between compression ratio and picture quality is an important one to consider when compressing images. Furthermore, some compression schemes produce compression ratios that are highly dependent on the image content. For example, a highly detailed image of a crowd at a football game may produce a very small compression ratio, whereas an image of a pure blue sky may produce a very high compression ratio.

3.3 Rate

A digital image can be represented by a two dimensional (2-D) array i.e., a matrix, each of whose element J (i,j) corresponds to the value of the (i,j)th pixel in then image. If each pixel represents a shade of gray in monochrome images, we need to allocate only one byte or 8bits per pixel (bpp). With 28 = 256 combinations, one can represent numbers ranging from 0 to 255[14].

In the imaging context, the pixel or block of pixel is consider as a set of symbol. A code, on the other hand, is sequence of symbols or number that are used to represent information. A string of codes is called a code word. The whole data compression process can now we visualized as a mapping of all possible sequence of symbols of a message (of N1 bits), separately or in a file, to a set of codes, separately or infield, using N2 bits. The compression ratio(Cr) is then defined as N1/N2 and the relative redundancy id defined as

Rd=1-1/Cr

Now these scenarios emerge. In scenario one, N2=N1, this means that the compression ratio is 1 and relative redundant is 1-1/1=0. This indicates that there is no redundancy in the image. The input message is reproduces exactly.

3.4

.

Proposed algorithms:

• Step 1: Read the Gray Level Image /Color Image

• Step 2: Set transformation computation method

• Step 3: Apply the biorthogonal wavelet

• Step 4: Decide the iteration for biorthogonal wavelet

• Step 5: Compute iterated wavelets transformation using convolution method

• Step 6: Apply wavelets matrix method

• Step 7: Apply the fast convolution method using fft

• Step 8: Calculate execution time in second

• Step 9: Calculate the mean square Error (MSE)

3.5 Result

[image:2.595.312.549.138.325.2]

Using above proposed algorithms designed a tool in MATLAB and run on MATLAN command, with different test image which is shown in below figure.

Figure 1: Test Image

Table 1: Test Image Description

Name Size Dimension

Test1.bmp 301KB 640x480

Test2.bmp 257KB 512x512

Test3.bmp 768B 512x512

[image:2.595.97.239.160.200.2]

This algorithm was verified using several input images having different resolution. The images contained different size and dimension.. With all such images, the algorithm correctly compressed the image. This algorithm was also tried computation time also. After successfully implementing and verifying the algorithm in MATLAB, values of MSE record. Here results of Compression ration and MSE with four input image are shown.

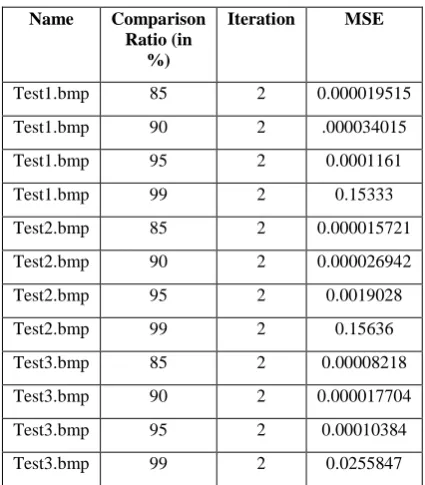

Table 2: Result of CR and MSE

Name Comparison Ratio (in

%)

Iteration MSE

Test1.bmp 85 2 0.000019515

Test1.bmp 90 2 .000034015

Test1.bmp 95 2 0.0001161

Test1.bmp 99 2 0.15333

Test2.bmp 85 2 0.000015721

Test2.bmp 90 2 0.000026942

Test2.bmp 95 2 0.0019028

Test2.bmp 99 2 0.15636

Test3.bmp 85 2 0.00008218

Test3.bmp 90 2 0.000017704

Test3.bmp 95 2 0.00010384

[image:2.595.322.535.437.680.2]

(3)

SnapShots of Result:

Figure3 :Compression with 85%

[image:3.595.330.528.301.630.2]

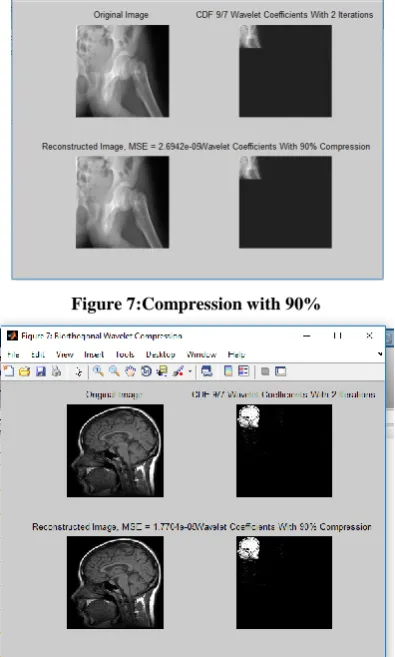

Figure 6:Compression with 90%

(4)

Figure10:Compression with 95%

[image:4.595.329.525.57.620.2]

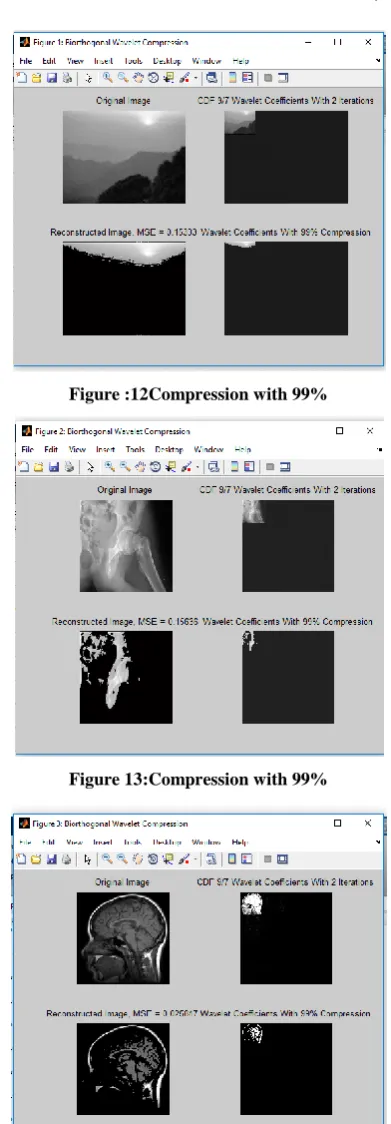

Figure :12Compression with 99%

(5)

3.6 Analysis of other comparsion method

results:

C.SomasundarReddy et al. [29] clearly discusses about the performance evaluation of the proposed method in terms of MSE Table3 shows how the result of method defined in [29].

Table3: Test Image Description [ 29]

S.No. Tresholding MSE

(DWT) MSE(CWT)

1 10 0.0916 0.0023

2 20 0.1987 0.0923

3 30 0.9984 0.2345

4 40 1.0645 0.986

5 50 2.0013 1.464

6 60 3.2045 2.8001

7 70 5.6123 5.0062

8 80 7 6.21

9 90 8.1254 7.9345

10 100 10.0234 9.0123

Fahima Tabassum et al. [30] Evaluates the mean square error between the original and recovered image which is image dependent. We worked on more than 200 images of two types: some structure with background and human face. We found that human face provides less error. MSE Table3.4 shows how the result of method defined in [30].

Table.4: Test Image Description [ 29]

Sno Image MSE

1 Test1 0.0620

2 Test2 0.1059

3 Test 3 0.1429

4 Test4 0. 1779

5 Test5 0.2120

6 Test 6 0.2496

7 Test7 0.2831

8 Test 8 0.3476

Result of proposed method is shown in Table 3.2. Now we can conclude from table 3.3 and table 3.4 value of MSE is lesser than the mention in table 3.3 and table 3.4. if you find a compression scheme having a lower MSE , you can recognize that it is a better one. MSE low means good quality and high means bad quality.

4. CONCLUSION

We have studied Cohen–Daubechies–Feauveau(CDF) wavelet with different iteration and compression ratio. Here value of MSE is depending upon the iteration and how much compression ratio is our milestone. In the parallel of MSE calculation record the execution time for better performance

of algorithms. In this thesis we have made comparsion of our results with two base paper each have different order of values of MSE. We have akrady know that the mean square error value is zero for ideal image as decompressed image degraded from its orginal image MSE will be increase from zero. concluded that our proposed algorithms is better in context of compression ratio to the other algorithms studied. The second conclusion that we have arrived that value of MSE is minimum (order of 0.0000XX) in comparison to other algorithms that we have considered .This proposed algorithm can save storage space in some online applications where picture and signature are stored in the databases for future reference.

5. REFERENCES

[1] Ahmed, N., Natarajan, T., Rao, K. R., “Discrete Cosine Transform”, IEEE Trans. Computers, vol. C-23,, pp. 90-93.

[2] Wallace, G.The JPEG still picture compression standard. Communications of the ACM 34(4): 30-44.

[3] Watson, A. B. DCT quantization matrices visually optimized for individual images. Proceedings of the SPIE: 202-216 (Human Vision, Visual Processing, and Digital Display IV. Rogowitz ed. SPIE. Bellingham, WA). 1993

[4] Matthias Kramm, "Compression of Image Clusters using KarhunenLoeve Transformations", TU-M¨unchen, Institute for Computer Science, Boltzmannstr. 3, 85748 Garching, Germany.

[5] N. Ahmed, T. Natarajan, and K. R. Rao, “Discrete cosine transform,”IEEE Trans. Comput., vol. C-23, pp. 90–93.

[6] J. M. Shapiro, “Embedded image coding using zero trees of wavelet coefficients,”IEEE Trans. Signal Processing, vol. 41, pp. 3445–3462, Dec.1993.

[7] A. Said and W. A. Pearlman, “New, fast, and efficient image codec based on set partitioning in hierarchical trees,” IEEE Trans. Circuits, Syst.,Video Technol., vol. 6, pp. 243–249, June 1996.

[8] C. Chrysafis and A. Ortega, “Efficient context-based entropy coding for lossy wavelet image compression,” in Proc. 1997 Data Compression Conf., pp. 241–250 Mar. 1997

[9] J. Liang and T. D. Tran, “Fast multiplier less approximations of the DCT with the lifting scheme,” IEEE Trans. Signal Processing, vol. 49, pp.3032–3044, Dec. 2001.

[10]G. K. Wallace, “The JPEG still picture compression standard,” IEEETrans. Consumer Electronics, vol. 38, pp. 18–34, Feb. 1992.

[11]M. Atonini, M. Barlaud, P. Mathieu, and I. Daubechies, “Image coding using wavelet transform,” IEEE Trans. Image Processing, vol. 1, pp.205–220, Apr. 1992.

[12]H. S. Malvar, Signal Processing With Lapped Transforms. Norwood, A: Artech House.

[13] R. C. Gonzalea and R. E. Woods, "Digital Image Processing", 2nd Ed., PrenticeHall, 2004.

(6)

2007.IEEEInternational Conference on, Vo1.3, pp. III-329-339, 2005.

[15]Kumar, T. and K. Verma, 2010a. A theory based on conversion of RGB image to gray image. Int. J. Computer. Appli., 7: 5-12. DOI: 10.5120/1140-1493.

[16].H. Yan, I. Pollak, M. N. Do, and C. A. Bouman, “Fast

search for best representationsIn multi tree dictionaries,” IEEE Trans. Image Proc, vol. 15, pp. 1779–1793, July 2006.

[17]Osman G. Sezer, OztanHarmanciy, Onur G. Guleryuzy "Sparse Orthonormal Transforms For Image Compression" Georgia Institute of Technology, Atlanta, GA , USA.

[18]ChengjieTu, And Trac D. Tran, "Context-Based Entropy Coding of Block Transform" Coefficients for Image Compression, IEEE Transactions On Image Processing, VOL. 11, NO. 11 , PP-1271-1283, NOVEMBER 2002

[19]NikolayPonomarenko, Vladimir Lukin, KarenEgiazarian, JaakkoAstola. “DCT Based High Quality Image Compression”.

[20]Sugreev Kaur and Rajesh Mehra, “High Speed And Area Efficient 2d Dwt Processor Based Image Compression Signal& Image Processing: An International Journal (SIPIJ) Vol.1, No.2, December 2010.

[21]ZhigangGao, Yuan F. Zheng, “Quality Constrained Compression Using DWT Based Image Quality Metric”, Ohio State University

[22]KamrulHasanTalukder and Koichi Harada, “Discrete Wavelet Transform for Image Compression and A Model of Parallel Image Compression Scheme for Formal Verification”, , Proceedings of the World Congress on Engineering 2007 Vol IWCE 2007, July2-4, 2007

[23]SherinKishk, HosamEldin Mahmoud Ahmed and HalaHelmy,"Integral Images Compression using Discrete

Wavelets and PCA", International Journal of Signal Processing, Image Processing and Pattern RecognitionVol. 4, No. 2, June, 2011.

[24] Rehna V. J, Jeya Kumar M. K, "WAVELET based image coding schemes: a recent survey", International Journal on Soft Computing (IJSC) Vol.3, No.3, August 2012.

[25]Ashanta Ranjan Routray Munesh Chandra Adhikary, "Image Compression Based on Wavelet and Quantization with Optimal Huffman Code", International Journal of Computer Applications (0975 – 8887) Volume 5– No.2, August 2010.

[26]G Boopathi, "An Image Compression Approach using Wavelet Transform and Modified Self Organizing Map", IJCSI International Journal of Computer Science Issues, Vol. 8, Issue 5, No 2, ISSN (Online): 1694-0814, September 2011

[27]Debnath, J.K.; Rahim, N.M.S. and Wai-keung Fung, "A modified Vector Quantization based image compression technique using wavelet transform", Neural Networks,IJCNN 2008. (IEEE World Congress on Computational Intelligence) 2008, Pp: 171 – 176, 2008

[28]M. Mozammel Hoque Chowdhury and Amina Khatun, "Image Compression Using Discrete Wavelet Transform", IJCSI International Journal of Computer Science Issues, Vol. 9, Issue 4, No 1, ISSN (Online): 1694-0814, July 2012

[29]C.SomasundarReddy, "Image Compression using Complex Wavelet Transform (CWT) with Custom Thresholding" 978-1-5090-5686-6/17 /IEEE 2017.
