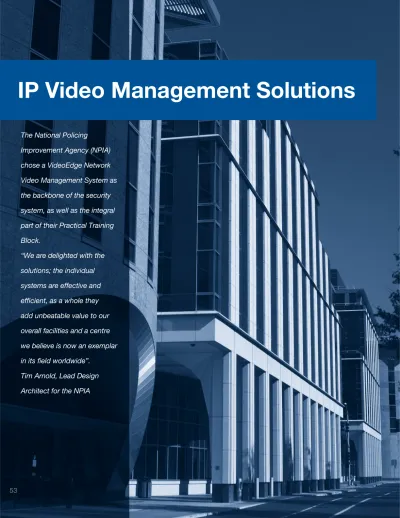

IP Video Management Solutions

53

IP Video Management Solutions

The National Policing

Improvement Agency (NPIA)

chose a VideoEdge Network

Video Management System as

the backbone of the security

system, as well as the integral

part of their Practical Training

Block.

“We are delighted with the

solutions; the individual

systems are effective and

efficient, as a whole they

add unbeatable value to our

overall facilities and a centre

we believe is now an exemplar

in its field worldwide”.

Tim Arnold, Lead Design

Architect for the NPIA

IP

v

ide

o

m

an

age

m

en

t

s

o

lu

tio

ns

IP Video Management Solutions

VideoEdge Network Video Management Systems:

American Dynamics VideoEdge Network Video Recorder (NVR) is the industry’s first turn-key solution that transforms most standard commercial off-the-shelf (COTS) computers into appliance servers. Our bundled servers are preconfigured with an embedded Linux operating system, web server, network security, and storage applications to get you up and running within a couple of minutes.

The open system architecture of VideoEdge NVR allows you to start with a four camera slot license and can easily scale up as needed by uploading a valid updated NVR camera license file. There is no need to register each individual camera as required by many other similar products on the market today.

VideoEdge NVR Management Suite of software expands the capacities of VideoEdge NVR with Windows®_{-based solutions}

that offer useful and advanced features to better manage, access, and control our enterprise IP surveillance system.

Vx Client: Vx Client allows you to log into many VideoEdge NVRs and create a single virtual NVR interface. Cameras from different NVRs can be viewed in any combination; plus you can quickly and easily search through hours of video using Motion Search capabilities.

VMx Agent: VMx Agent enables Vx Client users to remotely push any camera and view combination over the network onto the local monitor(s) of the VMx Agent PC.

Cx Alert Console: Cx Alert Console software lets you easily monitor alerts (such as motion detection, sensor alarms, NVR alerts) generated by one or more VideoEdge NVRs. It also creates customized multi-layer maps that are used for map-based monitoring by Cx Alert Console and Vx Client software products.

Cx Site Manager: Cx Site Manager gives you single-site login and maintains a single SQL database repository of all NVR alerts. This makes it much easier for IT and physical security departments in multi-site organizations to administer and manage their systems.

Vx Player: Use Vx Player to view video exported from any VideoEdge NVR. Vx Player provides standard controls for playback of recorded ISO images or video that is exported from the NVR to a local or network drive.

Web Client: VideoEdge NVRs come standard with a built-in web server. This enables you to configure the NVRs from any client PC, including Windows, Macintosh, or UNIX systems. It supports most standard browsers for logging into the NVR to manage the system.

I

P surveillance systems are at their best with VideoEdge NVR solutions. Manage, access, and

control your IP systems with state-of-the-art features that allow you to search quickly and easily

through many hours of video. Alerts can be generated through more than one NVR, and each system

can be customized for a solution that fits your needs. VideoEdge solutions deliver high-quality results

each and every time.

Model Number Guide for VideoEdge NVR (bundled server solution)

examPle branD FamIly Channels PlatForm total CaPaCIty (tb avaIlable)

videoedge nvr & Internal storage (2u bundled servers)

aD american Dynamics n network video management systems xxx 004 s server xxxx 0100 = 1.00 tb 0500 = 5.00 tb

Model Number Guide for VideoEdge NVR (software license upgrades)

examPle branD FamIly tyPe PlatForm ProDuCt tyPe

videoedge nvr software license upgrade aD american Dynamics n network video management systems s software nvr nvr license uPg

unit price for quantity add-on camera slots or channels

55

VideoEdge Network Video Recorders (NVR)

videoedge network video recorder (nvr):

Appliance server for low total cost-of-•

ownership plus highest level of security and performance

Preconfigured NVR on qualified server •

platform

Supports automatic bridging of multiple •

networks Embedded Linux

• ® _{operating system with}

2.6 kernel eliminates additional cost of server operating system and minimizes patch management

Efficient design supports largest number •

of video channels per NVR Chain-of-custody feature provides •

indisputable video evidence

Expandable storage up to 160 one TB •

volumes per NVR

Integrates with a variety of applications •

including Software House and Kantech access control systems, to provide a complete command and control software solution

Open platform supports many third party •

devices and hardware

Remote management from many standard •

web browsers or client software Scalable architecture supports •

on-demand upgrades for additional video and storage devices

Optional Windows

• ®_{-based management}

suite provides total end-to-end solution

IP

v

ide

o

m

an

age

m

en

t

s

o

lu

tio

ns

vIDeoeDge nvr management soFtWare ComParIson table

Vx Client VMx Agent Cx Alert _{Console Manager}Cx Site Vx Player Web Client

Windows XP Pro, Vista (Bus.,

Ent., ultimate) 32-bit Yes Yes Yes Yes Yes Macintosh, UNIXWindows, Maximum # of Displays per

Workstation 2 2 2 1 2 2

Video Codec Support MJPEG, MPEG-4 MJPEG, MPEG-4 MJPEG, MPEG-4 N/A MJPEG, MPEG-4 MJPEG, MPEG-4 Log into multiple VideoEdge

NVRs (Local/Remote) Yes Yes Yes Yes N/A No

Support Single-Site Login Yes* No (NVR Login _{not required)} Yes* Required* N/A No Automatic login to NVR on

Application launch Yes Yes Yes N/A N/A No

Customize guI Interface

(enable/disable tabs) Yes No Yes N/A N/A No

Customize guI Background

(theme) Yes No Yes N/A N/A No

Customize Camera Display

Information Yes Yes No N/A N/A No

Logical Camera grouping Yes No Yes N/A N/A No

Modify Camera Settings

(if permission allows) Yes No No N/A N/A Yes

Receive and Acknowledge

Camera Alerts Yes No Yes N/A N/A No

Drag-n-Drop cameras Yes No (via Vx Client) No N/A N/A No Number of Live Cameras per

Monitor up to 16 up to 16 1,2 4, 9 N/A N/A 1, 2, 4, 8

Create and Select Custom

Camera Views Yes No No N/A N/A No

Modify NVR Settings

(if admin permission) Yes No No N/A N/A Yes

Sequencing Live Video Yes Yes (via Vx Client) Yes N/A N/A No Maximum # of Simultaneous

Playback 4 N/A 1 N/A 1 1 per session

Export Video to

local/network Drive Yes N/A No N/A N/A Yes (ISO Images)

Convert MJPEg to AVI

or MOV formats Yes No No N/A N/A No

Create ISO Images for

chain-of-custody Yes N/A Yes N/A N/A Yes

Map-based monitoring Yes No Yes N/A N/A No

Create Custom Multi-Layer

Maps (via Raster Images) No No Yes N/A N/A No

57

vmx agent (video wall) Fibre raID storage

(Frs-2) isCsI raID storage

(Irs-2)

videoedge nvr

IP encoder analog Fixed Cameras,

speedDomes, or mini-Domes IP Fixed Cameras, speedDomes, or mini-Domes

s y s t e m D I a g r a m

VideoEdge NVR

The VideoEdge Network Video Management System is a scalable enterprise IP video surveillance

solution. The Network Video Recorder manages the IP encoder and cameras devices, records the

video onto its configured storage devices, and provides clients with secure access to live and recorded

video. With built-in NVR virtualization, you can manage many NVRs and edge devices as a single logical

system. Whether you have traditional analog cameras or newer IP and megapixel cameras, the

VideoEdge Network Video Management System provides you with the necessary components to

configure an IP video solution that meets your needs.
