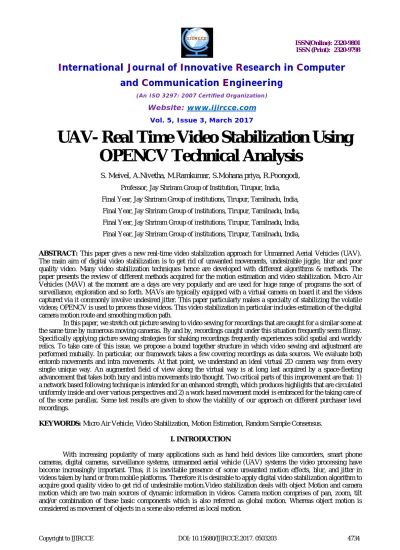

UAV- Real Time Video Stabilization Using
OPENCV Technical Analysis
S. Meivel, A.Nivetha, M.Ramkumar, S.Mohana priya, R.Poongodi,
Professor, Jay Shriram Group of Institution, Tirupur, India,
Final Year, Jay Shriram Group of institutions, Tirupur, Tamilnadu, India,
Final Year, Jay Shriram Group of institutions, Tirupur, Tamilnadu, India,
Final Year, Jay Shriram Group of institutions, Tirupur, Tamilnadu, India,
Final Year, Jay Shriram Group of institutions, Tirupur, Tamilnadu, India,
ABSTRACT: This paper gives a new real-time video stabilization approach for Unmanned Aerial Vehicles (UAV). The main aim of digital video stabilization is to get rid of unwanted movements, undesirable jiggle, blur and poor quality video. Many video stabilization techniques hence are developed with different algorithms & methods. The paper presents the review of different methods acquired for the motion estimation and video stabilization. Micro Air Vehicles (MAV) at the moment are a days are very popularly and are used for huge range of programs the sort of surveillance, exploration and so forth. MAVs are typically equipped with a virtual camera on board it and the videos captured via it commonly involve undesired jitter. This paper particularly makes a specialty of stabilizing the volatile videos; OPENCV is used to process those videos. This video stabilization in particular includes estimation of the digital camera motion route and smoothing motion path.
In this paper, we stretch out picture sewing to video sewing for recordings that are caught for a similar scene at the same time by numerous moving cameras. By and by, recordings caught under this situation frequently seem flimsy. Specifically applying picture sewing strategies for shaking recordings frequently experiences solid spatial and worldly relics. To take care of this issue, we propose a bound together structure in which video sewing and adjustment are performed mutually. In particular, our framework takes a few covering recordings as data sources. We evaluate both entomb movements and intra movements. At that point, we understand an ideal virtual 2D camera way from every single unique way. An augmented field of view along the virtual way is at long last acquired by a space-fleeting advancement that takes both bury and intra movements into thought. Two critical parts of this improvement are that: 1) a network based following technique is intended for an enhanced strength, which produces highlights that are circulated uniformly inside and over various perspectives and 2) a work based movement model is embraced for the taking care of of the scene parallax. Some test results are given to show the viability of our approach on different purchaser level recordings.
KEYWORDS: Micro Air Vehicle, Video Stabilization, Motion Estimation, Random Sample Consensus.
I. INTRODUCTION
These MAVs are a type of unmanned aerial vehicle (UAV), its software levels from surveillance, search and rescue, sensing, exploration, among others. The movies captured by way of an MAVs entails unstable camera motions which might be due to numerous reasons together with vibrations of onboard vehicles, climate conditions and so forth, so as an cease end result it produces unstable films. The unstable video effects in visual fatigue, and affects the similarly analysis of the picture collection. So in this experience it turns into destructive that to reduce this undesired jitter, video stabilization becomes important. Pictures caught by a solitary gadget, for example, a mobile phone, a DV or a tablet, regularly have a restricted field of view. Picture sewing can extend the view point by joining substance from a few covering pictures caught by numerous cameras, which is regularly alluded to as display [1] or picture mosaics [2]. In this work, we stretch out picture sewing to video sewing for recordings that are caught at the same time for the same scene by numerous moving cameras. One test in video sewing under this situation is that recordings caught by moving cameras frequently seem flimsy. Accordingly, specifically applying picture sewing strategies to temperamental video outlines in the casing by-casing style would experience the ill effects of two downsides. In the first place, solid point of view bends would be come about as a result of the flimsiness in the caught recordings.
Second, the casing by-casing sewing does not consider the fleeting smoothness inside the recordings with the goal that butterflies would turned out to be obvious. The current answers for this issue to a great extent depend on extra equipment and require to compel the development between cameras. For example, FullView camera sort FC-110 gathers 10 CCD cameras around its optical focus into a glass compartment; GoPano mounts a round focal point before a mobile phone camera for extended view points; Perazzi et al. [3] proposed a strategy for all encompassing video catching through an unstructured camera exhibit; and Li et al. [4] and Jiang and Gu [5] proposed to line recordings under static cameras. When all is said in done, these equipment based arrangements are costly and badly designed.
In this work, we propose an all-product way to deal with together line and settle temperamental recordings caught by different moving cameras, along these lines making a stablized video with an extended see point. This is a sort of communitarian catching that has as of now been investigated in photography, including CamSwarm [6] (Photo) and PanoSwarm [7] (Panorama imaging). We expect that our communitarian video catching can share the same advantages. This is likewise identified with robots/rambles co-vision where a few works have been done, e.g., thick 3D reproduction from various cameras [8] and community oriented visual SLAM (CoSLAM) [9].
The key in video sewing is the manner by which to deal with camera movements. We can fasten pictures of various perspectives at each person outline utilizing different picture sewing strategies [10]–[12]. Be that as it may, as previously mentioned, he outcomes have a tendency to experience the ill effects of both spatial and transient ancient rarities. Then again, video adjustment techniques (e.g., [13]–[16]) can evacuate anxious and insecure movements. Be that as it may, these strategies can't be amplified
Straight forwardly to stabilize a sewed video, e.g., point of view mutilations in sewed casings, movement estimation under an augmented view edge, and huge movement diversities inside a sewed edge are some main considerations for the unsuitable result.
Video stabilization is the technique of removing undesired jitters and digicam shakes in an unstable video which might be triggered because of unstable camera motion. Video stabilization also improves the quality of the video. Normally there are two forms of stabilization strategies one is the mechanical image stabilization where one external devices along with shock absorbers, gyroscopes and many others to stabilize volatile videos. The other approach is known as digital video stabilization in which it is uses characteristic monitoring approach to attain digicam motion path and with the aid of the usage of appropriate movement and movement repayment we will stabilize the videos. Furthermore this is a robust stabilization method where it does no longer require any additional records like details of the taking pictures tool, captured vicinity and so on.
Figure 1 video stabilization block diagram
To take care of the issue, we figure video sewing and adjustment into a bound together structure with the end goal that spatial arrangement what's more, worldly soundness can be accomplished at the same time. We perceive that picture highlights shape the reason for both sewing and adjustment. To accomplish a brilliant execution, we might want to have rich components to cover all edges thickly and consistently inside and crosswise over perspectives. In outline, we are confronting three difficulties: (1) discovery of rich picture components to encourage a joint sewing and adjustment, (2) sewed outcomes being free from spatial curios (e.g., misalignments and mutilations), and (3) keeping the worldly consistency in sewed outcomes (i.e., free from nerves furthermore, flimsiness). With respect to the picture highlights, we plan a matrix based tracker. Not the same as customary methodologies that embrace a worldwide limit [17] over the entire edge, we partition each outline into normal frameworks and a nearby edge is received for every matrix. Along these lines, we can create more components as contrasted and a worldwide limit, particularly for textureless areas [18]. At that point, the identified elements are pruned for a adjusted circulation before the KLT following [19]. Next, we extend the following to various perspectives by presenting a planebased homography-RANSAC. Therefore, the elements are scattered thickly and consistently not just inside a solitary view be that as it may, likewise crosswise over various perspectives, which establishes a strong framework for resulting steps. Concerning the edge sewing, we receive work based twists [20], since they can deal with spatially-variation movements brought on by scene profundity and parallax, along these lines creating great sewing comes about. In particular, we receive the twist based strategy in [10] that has been generally utilized for picture sewing, with accentuation given to the control of work structures [11], [21].
To implement the fleeting consistency, we pick the bundled paths adjustment approach [16]. For video sewing, we need to adjust it so as to take numerous sources of info with the end goal that all recordings can be smoothed all the while to a mutually stabilized position as for sewing requirements. The packaged ways approach is based upon work twists for movement estimation. Similarly, the work twists can speak to spatially variant movements, prompting great adjustment comes about. All the more critically, as both sewing and adjustment receive the work structure, the included imperatives can be effectively controlled for a joint improvement.
The primary commitment of this paper is a brought together structure that encourages the join video sewing and adjustment. To the best of our insight, this is the primary system that accomplishes spatial arrangement and worldly soundness all the while on the recordings caught by numerous cameras that can move uninhibitedly. Moreover, our approach appreciates a higher productivity and vigor because of the quick and rich element following technique and the 2D movement display. At last, the work based movement estimation empowers us to deal with scenes with parallax viably.
II. PROPOSED METHOD
The set of rules is quite easy but produces pretty good stabilization for panning videos and forwarding shifting.The algorithm works as follows:
1. Find the transformation from preceding to current frame using optical flow for all frames. The transformation simplest consists of 3 parameters: dx, dy, da (perspective). Basically, an inflexible Euclidean transform, no scaling, no sharing.
2. Accumulate the transformations to get the “trajectory” for x, y, angle, at every frame.
4. Create a new transformation such that new_transformation = transformation + (smoothed_trajectory – trajectory). 5. Apply the new transformation to the video.
Here’s an example video of the algorithm in motion the use of a smoothing radius of +- 30 frames.
We can see what’s occurring underneath the hood with the aid of plotting a few graphs for every of the steps mentioned above on the instance video.
Step 1
This graph indicates the dx, dy transformation for previous to current frame, at each frame. I’ve ignored da (angle) as it’s now not specially interesting for this video seeing that there is very little rotation. You can see it’s quite a bumpy graph, which correlates with our statement of the video being shaky, though nevertheless orders of magnitude higher than Hollywood’s shaky cam effect. I’m looking at you Bourne Supremacy.
Step 2 and 3
I’ve proven each the accumulated x and y, and their smoothed version so that you get a higher concept of what the smoothing is doing. The red is the unique trajectory and the green is the smoothed trajectory.
It is really worth noting that the trajectory is as substitute abstract quantity that doesn’t necessarily have an instantaneous relationship to the movement brought on with the aid of the camera. For a simple panning scene with static items it probably has a direct relationship with the absolute position of the image however for scenes with a ahead transferring camera, eg. On a car, then it’s tough to peer any.
III.EXPERIMENTAL EXPLANATION
A. REAL-TIME VIDEO STABILIZATION
A robust post-processing algorithm for video stabilization has been detailed; however, the goal is a real-time version. In this context, it is worth noting that there are very few techniques for real-time video stabilization, and the first challenge to be solved being computational cost. Hence, calculation time is minimized in by using efficient algorithms of interest point detection and description. This method reduces time in motion intention estimation by means of a filter without accumulative global motion, using the stabilized frames in addition to the original frames. Our proposal uses an off-line optimization process for obtaining the minimum number of frames that can be applied in real time to the system at hands without decrease in initial off-line video stabilization performance. Furthermore, this filter will be combined with the known control action signal in order to eliminate the so-called ‘phantom’ movements (in fact, a sort of ‘freezing’) in the compensated video.
As indicated by movement models, video adjustment strategies can be arranged as 3D, 2.5D, and 2D approaches. The 3D techniques evaluate camera movements in the 3D space for adjustment [22]. To this end, Liu et al. built up a 3D adjustment framework in view of the full 3D recreation [15]; a profundity camera [23] and a light field camera [24] were endeavored for the 3D movement recuperation. To maintain a strategic distance from the costly furthermore, fragile 3D remaking, the 2.5D strategies use incomplete 3D data inserted in long element tracks for adjustment [25], [26]. When all is said in done, 3D and 2.5D techniques are not sufficiently vigorous for shopper recordings as they both require long element tracks, which are difficult to get in the nearness of speedy camera movements (e.g., fast pivots).
B. PICTURE STITCHING
Early picture sewing strategies receive a solitary homography for picture arrangement [1], [30]. At that point, Gao et al. proposed to utilize two homographies for picture sewing when the scene could be displayed generally by two planes (e.g., the ground furthermore, the sky) [31]. As a rule, there are two sorts of sewing methodologies: crease driven [12], [32], [33] and twist based [10], [11], [21]. In the crease driven classification, Agarwala et al. proposed the photomontage that composites a photo by cutting and joining different photographes flawlessly [33],
while Zhang and Liu found a homography that prompts a least vitality crease to join huge parallax pictures [12]. In the twist based classification, Zaragoza et al. proposed an asprojective- as could reasonably be expected (APAP) work twisting that twists pictures by taking after a worldwide projective change and permits nearby non-projective deviations [21], while Chang et al.proposed a shape-safeguarding half-projective (SPHP) technique to right twists in non-covering locales [11]. In our work, we embrace work twists for view arrangement.
C. VIDEO MOSAICS AND STITCHING
For monocular video input, early strategies [34], [35] found picture mosaics from a solitary video and speak to the video by mosaics for the effective ordering. For various video inputs, Jiang et al. proposed a way to deal with fasten recordings utilizing content-safeguarding twists [5], Li et al. connected twofold crease choice to accomplish proficient structure distortion [4], Hamza et al. balanced out all encompassing recordings caught on convenient stages [36], and Perazzi et al. computed optical stream to twist distinctive perspectives [3].
Nonetheless, these strategies are either appropriate just for static cameras or collected with settled apparatuses for compact catching. Then again, El et al. [37], [38] what's more, Lin et al. [39] proposed techniques to fasten recordings caught by individual moving cameras. In any case, El et al. for the most part centered around the edge based sewing without considering the worldly smoothness unequivocally, though Lin et al. proposed a video sewing technique that depends on the thick 3D remaking whose calculation is exceptionally entangled. Interestingly, our strategy can at the same time join and balance out recordings effectively, making recordings with not just amplified see edges additionally balanced out movements.
Methodology
The first venture of our calculation is to catch numerous recordings as the framework's contributions by cameras that can move at a specific degree of flexibility. Here, we authorize an unpleasant synchronization, i.e., all cameras start to record approaximately in the meantime. Actually, the distinction is for the most part inside a small amount of one second, which is well adequate for some cases, notwithstanding for some dynamic scenes.
The second step is to do some pre-preparing on the information sources to bring together spatial and transient resolutions. In our execution, we pick the video with the littlest spatial determination as the objective, and the rest is resized to the objective determination. Likewise, we conform the casing rates of recordings to the slowest one among all caught recordings. The decision of the least values can maintain a strategic distance from spatial up-testing and worldly insertion.
The third step is the joint enhancement of video sewing what's more, adjustment, which is the center of our framework. At this step, we appraise two sorts of movements to bring into the enhancement, i.e., entomb (movements at the relating outlines between various recordings) and intra (movements inside a video between neighboring edges). We indicate the intra movements as Cn(t), with t remaining for the time what's more, n signifying the view; though the entomb movements are signified as Tn,m(t). (e.g., movement at time t between the first furthermore, second recordings is T1,2(t)). We embrace the packaged ways approach [16] as the pattern for adjustment. The uniqueness of our approach is that intra movements as well as bury movements are considered amid the improvement.
The first part gives brilliant elements to strong bury and intra movement estimations. The second one creates an ideal camera way lying among all the first ways to stifle point of view bends. The third one uses the ideal camera way to complete a joint sewing and adjustment.
A. Quick and Rich Feature Tracking
In this segment, we introduce the insights with respect to the component following. Take note of that the elements' quality plays a critical part for both adjustment and sewing, since work based movement estimation intensely depends on these elements [16]. We trust that excellent elements ought to be recognized to cover the edge thickly and consistently, and they ought to likewise last consistently in whatever number edges as could be allowed. In the tailing, we first present the framework based tracker for the case of a monocular video. At that point, we update it by the plane-based RANSAC for the instance of different recordings.
1) Grid-Based Feature Detection: Our framework based tracker is based upon the FAST component identifier [40] and KLT tracker [19]. Customarily, a worldwide edge regularly delivers less components in inadequately finished zones , in light of the fact that the edge is one-sided by other exceptionally finished areas [18]. Thusly, we need to receive neighborhood edges for various locales to pull up more components.
In particular, we partition a solitary casing into 5×5 consistent matrices what's more, for every matrix we utilize an autonomous FAST element identifier. Every finder will consequently pick a suitable edge for a neighborhood network [17]. In addition, the limit of each finder is refreshed progressively amid following, in light of the number of identified components. Accordingly, the limits fluctuate both spatially and transiently as indicated by the scene substance. Now and then, rich surface districts may assemble an excessive number of elements. In this way, we need to prune the components by deserting some of them based on their FAST scores. Then again, some level ranges, such as the sky or the lake, will be unable to completely suit the same number of components as the ground, on the grounds that these districts have right around zero inclinations.
By producing more components for low surface districts through adjusting nearby edges and expelling a few elements for rich surface regions, we can identify highlights that are dispersed consistently. At that point, we send them into the KLT tracker. Note that components of a casing originate from two sources. Joining of highlight following and highlight coordinating. Without misfortune of all inclusive statement, we expect that there are just two noticeable planes An and B in the scene. While there are just matches of plane An at edge t − 1, we get matches of both planes at casing t utilizing following coordinating joined strategy. Already, coordinates on the plane B will be lost. Presently, we can hold all matches from different planes. Highlights from past edges and recently distinguished elements at the current frame.We run the framework based element discovery as it were at the point when the quantity of followed components dips under a limit.
the customary coordinating technique also, our following coordinating consolidated methodology. It can be seen that elements on the ground have been coordinated effectively in our strategy.
B. 2D Stabilization
Presently, we have as of now got rich and uniform elements inside and crosswise over perspectives. Beneath, we start to examine how to
stablize and line recordings together. For the fulfillment, we to start with present the packaged way strategy [16] that balances out a single video. At that point, we include the sewing imperatives in the following area to consider the entomb movements between numerous recordings. We start by assessing the strategy on account of a solitary way, taken after by the instance of packaged ways.
Motion smoothing
Motion Smoothing is further step in video stabilization. In this step, unwanted global motion vectors are filtered. There are several types of filters used to smoothen the motion. Some of the past techniques were low pass filter, IIR, FIR filters. While recently Gaussian filters, Adaptive IIR filter, Kalman filters are used. Motion smoothing is required to smooth undesired camera motion after motion estimation and to remove accumulation error prior to motion compensation.
MOTION COMPENSATION
Motion compensation compensates prediction error as well as reconstructs frame according to the motion vectors obtained previously. In motion compensation, difference between current frame and previous frame is taken and the corresponding result is added in the pixel value of current or future frame to get new current frame compensating the prediction error.
IV. RESULTS AND DISCUSSION
We examine our strategy in a few angles in this segment to demonstrate its viability.
A. Overlaying Frames
We receive the overlaying technique in our last arrangement, where one edge is laid on top of the other. The primary reason of embracing this methodology is to shroud any potential misalignment
inside the covering zone for an enhanced vigor. It demonstrates a case where the direct mixing system acquaints extreme ghosting impacts due with the misalignments.
Obviously, the overlaying methodology is a decent decision the length of the covering limit locales can be very much adjusted. For this reason, we add more weights to highlight focuses that are near covering limits. With accentuation on these limits, a few misalignments can be permitted in the focal territory of covering districts, since they are secured and can't be watched. By embracing this system, we give up the enlistment nature of focal territories to accomplish better arrangements at covering limits. A comparable plan has been accounted for in [39].
B. Usefulness of Different Components
We assess our structure by killing every part
one by one. It demonstrates a few outcomes. To look at the immediate line and our strategy as far as the worldly smoothness, we utilize worldly pictures for delineation: (an) a green line in the sewed video is chosen to show the worldly smoothness; (b) the green
line is plotted along the worldly area utilizing the immediate technique, where one video is changed to the next with no thought of fleeting smoothness; (c) the green line plotted for our technique. Plainly, the direct sewing technique yields high-recurrence butterflies. off the rich component following. Therefore, a large portion of the components are situated on the working with just a couple being put on the ground. The comparing result experiences misalignments.
for cases (b) and (c). These outcomes recommend that each segment is essential to guarantee a dependable and amazing video sewing.
C. Coordinate Stitching
The most direct thought for video sewing is to apply picture sewing strategy straightforwardly in the edge by-edge mold. Be that as it may, such an immediate sewing is hazardous due to the overlooking of fleeting smoothness. Here, we show this issue by a case, with the outcomes appeared. Initially, we settle a vertical line (appeared in green) . At the point when the video is played, we just record the arrangement of pixels along this settled line and link every one of these sets concurring their time-requesting in order to produce the result. It demonstrates the consequence of direct sewing. As can be seen, it is jittering. It appears our outcome which is much smoother.
V. TESTS
The information recordings are caught by a few moving cameras (cellphones or UAVs). For cellphones, every camera is held by one individual who can move uninhibitedly, while two UAVs with
autonomous flights are utilized for the other case. Our framework can naturally conform them to a similar determination and framerate. We run our technique on a PC with Intel i5 2.4GHz CPU what's more, 8G RAM. The limit crease is dispensed with by multi-band mixing executed in OpenCV. For a video of 1280×720 determination, our unoptimized framework takes 511 milliseconds to join two edges (i.e., around 2 fps). Specifically, we spend 123ms, 94ms, 31ms, 126ms for highlight extraction, movement estimation, way enhancement, outline distorting and multi-awful mixing, individually. For a similar determination, the running time announced in [39] is a few minutes for each casing, which includes the tedious thick 3D reproduction.
To check whether our technique is equipped for sewing different sorts of recordings, we have attempted numerous cases, with eight of them being appeared. Here, we don't bind the camera movements amid the catching so that some of them are caught amid strolling and some with camera panning or pivots. The second and fifth cases concentrate on scenes of a lake also, the sky, while the third illustration contains dynamic moving objects. The outcomes demonstrate that our framework can deal with these testing cases heartily. The fourth, sixth, and seventh illustrations film scenes comprising of two overwhelming plane structures (the ground also, building). The identified components are similarly conveyed utilizing our rich element following. The component circulation of the sixth illustration is appeared . The work twists can smother point of view contortions productively. The eighth illustration is caught by UAVs. Our technique can fasten what's more, balance out every one of these recordings effectively.
A. Target Evaluations
We propose two target measurements for the assessment of dependability and sewing quality.
1) Stability Score: Evaluates the smoothness of the last sewed video. It is initially proposed in [16] to get to the dependability of a solitary video. Here, we get the thought for assessments of sewed recordings. In particular, we track highlights on the sewed video and hold tracks with length more noteworthy than 20 outlines. At that point, we investigate these component tracks in the recurrence area. We take a couple of the most reduced frequencies (second to sixth without DC segment) and ascertain the vitality
rate over full frequencies. Averaging from all tracks
yields the last score. Strikingly, this metric is more qualified for the assessment of a similar video prepared by various approaches [16]. The solidness score ought to remain nearby to 1 for a decent outcome.
2) Stitching Score:
Evaluates the sewing quality. We compute the element reprojection blunder for the assessment. In particular, for each edge, the separation between a combine of coordinated elements is figured after the elements being changed. A little separation demonstrates a decent arrangement [20]. Averaging separations from all component sets gives the sewing score of one casing. We take the most exceedingly terrible score (the biggest esteem) among all casings as the last sewing score. Strikingly, as the overlaying procedure is embraced, we just include highlights close to the sewing limit for the assessment.
outcome. As demonstrated by these scores, the soundness has been to a great extent enhanced in all illustrations. For the sewing score, an outwardly unmistakable misalignment regularly produces scores over 5. For instance, the sewing score of a disappointment case is 6.67. The biggest incentive in our outcomes is 1.17.
B. The Parameter β
The most essential parameter in our framework is the β, which adjusts the quality of sewing and adjustment. It is set to 1 experimentally in all illustrations exhibited above. Here, we might want to expound the viability of embracing diverse β values: 0.1, 1, and 10. Appropriately, the solidness score is 0.87, 0.85, and 0.56, individually, while the sewing score is 5.39, 1.05, and 0.88, individually. At the point when β = 0.1, in spite of the fact that the outcomes have the most elevated steadiness score, it likewise relates to the poorest sewing score. On the opposite, bigger β can deliver fantastic sewed outcomes, however the video experiences solid flimsiness. The observational esteem β = 1 is by all accounts a decent tradeoff between the sewing and adjustment.
C. Contrast And Other Method
We don't contrast our strategy and the techniques proposed in [3]–[5] that depend on settled apparatuses or the strategies in [37] and [38]
that fasten recordings paying little respect to the fleeting smoothness. We contrast our strategy and the technique proposed in [39]. This strategy likewise fastens numerous synchronized recordings caught
by hand-held cameras and depends on the thick 3D recreation (to ascertain 3D camera ways and thick 3D point mists). A typical virtual way is combined in
between of the first 3D ways and the outcome is rendered by distorting every individual perspectives toward the virtual way. The distorting is guided by different imperatives to limit mutilations and increment transient dependable qualities. Take note of that the technique in [39] requires camera natural parameters that are gotten by a watchful alignment. Also, the 3D recreations (both scanty and thick) require reliably substantial covers among various recordings as well as additionally top notch recordings (i.e., catching with top of the line DVs) in order to keep away from the moving shade impacts. Then again, the moving screen impacts would be hard to keep away from when catching with mobile phones or small scale UAVs. Along these lines, the strategy introduced in this paper don't depend on the 3D remaking, yet is a 2D approach with enhanced effectiveness what's more, robustness. It gives a visual correlation. It can be seen that we have delivered equivalent outcomes regarding the sewing quality and additionally the soundness. Here and there, the outcomes in [39] contain a few contortions along the casing outskirt due to the inaccuracy of reconstructed 3D points at these regions. Conversely, our outcome is fundamentally free from these bends
D. "Video Stitcher" as AE Plugin
To show the act of our method, we have additionally built up a Plugin "Video Stitcher" at Adobe After Impacts CC2015. For the made strides power and sewing quality, we coordinate our matrix based tracker into the module. We likewise give the choices to diverse component descriptors.We might want to share this module to general society sooner rather than later.
E. Confinements and Future Works
propelled synchronization could additionally enhance the execution, for example, [45]. On the other hand, an extraordinary APP can be outlined and introduced on phones, which triggers the video recording in the meantime [7].
VI. CONCLUSION
The unstable videos are stabilized to a satisfactory level and also the quality of the video is also increased. The video stabilization is processed on the OPENCV in real time. Now the future developments could be to find a better feature detectors and motion models to improve the efficiency of the system. Further we employ cropping information in the frames which some of the viewers may dislike, to overcome this problem we can look at motion in painting technique.
We have exhibited in this paper a bound together structure that together balances out and lines different recordings caught by moving cameras. To this end, we propose to assess both entomb movements between various cameras and intra movements inside a video. In light of them, the joint video adjustment what's more, sewing is detailed into a compelled streamlining issue, in which entomb movements implement the spatial arrangement what's more, intra movements keep up the transient smoothness, separately. By partitioning every video outline into cells so as to encourage the packaged way approach, our technique is competent of dealing with scenes with parallax. Broad reenactments and some supplementary on different recordings are given to appear the adequacy of our strategy.
