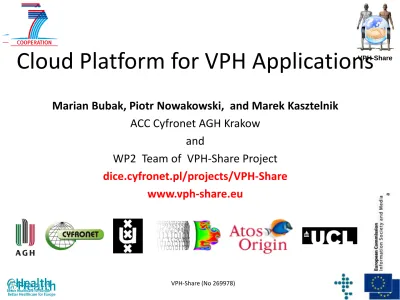

Cloud Platform for VPH Applications

VPH-Share

Cloud Platform for VPH Applications

Marian Bubak, Piotr Nowakowski, and Marek Kasztelnik

ACC Cyfronet AGH Krakow

and

WP2 Team of VPH-Share Project

dice.cyfronet.pl/projects/VPH-Share

www.vph-share.eu

VPH-Share

Outline

•

Motivation

•

Architecture

•

Overview of platform modules

•

Technology

•

Current functionality

VPH-Share

Atomic service instance:

A

running

instance of an atomic service, hosted

in the Cloud and capable of being

directly interfaced, e.g. by the

workflow management tools or

VPH-Share GUIs.

!

Virtual Machine:

A

self-contained operating system

image, registered in the Cloud

framework and capable of being

managed by VPH-Share

mechanisms.

!

Atomic service:

A VPH-Share

application (or a component

thereof) installed on a Virtual

Machine and registered with the

cloud management tools for

deployment.

!

Raw OS

OS

VPH-Share app.

(or component)

External APIs

OS

VPH-Share app.

(or component)

External APIs

Cloud host

VPH-Share

Platform for three user groups

The goal of of the platform is to manage cloud/HPC resources in support of VPH-Share applications by

:

•

Providing a mechanism for

application developers

to install their applications/tools/services on the available

resources

•

Providing a mechanism for

end users

(domain scientists) to execute workflows and/or standalone

applications on the available resources with minimum fuss

•

Providing a mechanism for

end users

(domain scientists) to securely manage their binary data in a hybrid

cloud environment

•

Providing

administrative tools

facilitating configuration and monitoring of the platform

Cloud Platform Interface

•

Manage hardware resources

•

Heuristically deploy services

•

Ensure access to applications

•

Keep track of binary data

•

Enforce common security

Hybrid cloud environment

(public and private

resources)

Application

Generic service

Application

Application

Data

Data

Data

Developer support

Tools for deploying

applications and

registering datasets

End user support

Easy access to

applications and binary

data

Admin support

Management of

VPH-Share hardware

resources

VPH-Share

Physical

resources

Atomic Service Instances

Deployed by AMS on available resources

as required by WF mgmt or generic AS

invoker

Raw OS (Linux variant)

LOB Federated storage access

Web Service cmd. wrapper

Generic VNC server

VPH-Share Tool / App.

DRI

Service

Atmosphere persistence

layer (internal registry)

VM

templates

AS images

Available

cloud

infrastructure

Managed

datasets

AM

Service

LOB federated

storage access

Cloud stack

clients

HPC resource

client/backend

Data and Compute Cloud Platform

VPH-Share Master UI

AS mgmt. interface

Generic AS invoker

Computation

UI extensions

Data mgmt. interface

Generic data retrieval

Data mgmt.

UI extensions

Remote access to

Atomic Svc. UIs

Custom AS client

Workflow description

and execution

Scientist

Admin

Security mgmt. interface

Security

framework

Web Service security agent

Cloud Platform Architecture

VPH-Share

Atmosphere

Core component of the VPH-Share cloud

platform, responsible for managing cloud

resources and deploying Atomic Services

accordingly.

The Atmosphere Management Service

•

receives requests from the Workflow Execution stating that a set of atomic services is

required to process/produce certain data;

•

queries the Component Registry to determine the relevant AS and data characteristics;

•

collects infostructure metrics,

•

analyzes available data and prepares an optimal deployment plan.

AIR

Also called the Atmosphere Internal Registry;

stores all data on cloud resources, Atomic

Services and their instances.

Computing infrastructure

(hybrid public/private cloud)

1. Application (or any other authorized entity)

requests access to an Atomic Service

2. Poll AIR for data regarding this AS and the available computing

resources 3. Heuristically determine whether to recycle an

existing instance or spawn a new one. Also determine which computing resources to use when instantiating additional instances (based on cost information and performance metrics obtained from monitoring data)

Cloud middleware

Selection of low-level middleware libraries

to manage specific types of cloud sites

[Asynchronous process] Collect monitoring data and analyze health of the cloud infrastructure to ensure optimal deployment of application services

4. Call cloud middleware services to enforce the deployment plan

5. Deploy Atomic Service Instances as directed by Atmosphere

Application

-- or --

Workflow

environment

-- or --

End user

VPH-Share

High Performance Execution

Environment



Provides virtualized access to high performance execution environments



Seamlessly provides access to high performance computing to workflows that

require more computational power than clouds can provide



Deploys and extends the Application Hosting Environment – provides a set of

web services to start and control applications on HPC resources

GridFTP

AHE Web Services

(WSRF::Lite)

Grid resources running Local Resource Manager

(PBS, SGE, Loadleveler etc.)

Application Hosting Environment

Auxiliary component of the cloud platform, responsible for managing access to traditional (grid-based) high

performance computing environments. Provides a Web Service interface for clients.

Invoke the Web Service API of AHE to delegate computation to the grid

Application

-- or --

Workflow

environment

-- or --

End user

Present security token (obtained from authentication service)

Tomcat container

WebDAV

User

access

layer

HARC

Job Submission Service

(OGSA BES / Globus

GRAM)

RealityGrid SWS

Resource

client

layer

Delegate credentials, instantiate computing tasks, poll for execution status and retrieve results on behalf of the client

VPH-Share

Data Access for Large Binary Objects

LOBCDER host

(149.156.10.143)

LOBCDER service backend

Resource

catalogue

WebDAV servlet

Resource factory

Storage

driver

Storage

driver

Storage

driver

(SWIFT)

SWIFT

storage

backend

Core component host

(vph.cyfronet.pl)

Data Manager

Portlet

(VPH-Share

Master Interface

component)

Atomic Service Instance

(10.100.x.x)

Service payload

(VPH-Share

application

component)

External host

Generic WebDAV client

GUI-based access

Mounted on local FS

(e.g. via davfs2)

•

LOBCDER (the Share federated data storage component) enables data sharing in the context of

VPH-Share applications

•

The system is capable of interfacing various types of storage resources and supports SWIFT cloud storage

(support for Amazon S3 is under development)

•

LOBCDER exposes a WebDAV interface and can be accessed by any DAV-compliant client. It can also be

mounted as a component of the local client filesystem using any DAV-to-FS driver (such as davfs2).

VPH-Share

Data Reliability and Integrity

•

Provides a mechanism which will keep track of binary data stored in the Cloud

infrastructure

•

Monitors data availability

•

Advises the cloud platform when instantiating atomic services

•

Shifts/replicate data between cloud sites, as required

Binary

data

registry

AIR

Amazon S3

OpenStack Swift

Cumulus

Register files Get metadata Migrate LOBs Get usage stats

(etc.)

Distributed Cloud storage

Store and marshal data

End-user features (browsing, querying, direct access to data)

VPH Master

Int.

Data management

portlet (with DRI

management

extensions)

DRI Service

A standalone application service, capable of autonomous operation. It periodically

verifies access to any datasets submitted for validation and is capable of issuing alerts

to dataset owners and system administrators in case of irregularities.

Validation

policy

Configurable validation runtime

(registry-driven)

Runtime layer

Extensible

resource

client layer

VPH-Share

Security Framework

•

Provides a policy-driven access system for the security framework.

•

Provides a solution for an open-source based access control system based on fine-grained

authorization policies.

•

Implements Policy Enforcement, Policy Decision and Policy Management

•

Ensures privacy and confidentiality of eHealthcare data

•

Capable of expressing eHealth requirements and constraints in security policies

(compliance)

•

Tailored to the requirements of public clouds

VPH Security Framework

Application

Workflow

managemen

t service

Developer

End user

Administrator

VPH clients

VPH Security Framework

VPH Atomic Service Instances

Public internet

(or any authorized user

capable of presenting a

valid security token)

VPH-Share

WP2 Component/Module

Technologies applied

Cloud Resource Allocation

Management

Java application with Web Service (REST) interfaces, OSGi

bundle hosted in a Karaf container, Camel integration

framework

Cloud Execution Environment

Java application with Web Service (REST) interfaces, OSGi

bundle hosted in a Karaf container, Nagios monitoring

framework, OpenStack and Amazon EC2 cloud platforms

High Performance Execution

Environment

Application Hosting Environment with Web Service

(REST/SOAP) interfaces

Data Access for Large Binary Objects Standalone application preinstalled on VPH-Share Virtual

Machines; connectors for OpenStack ObjectStore and Amazon

S3; GridFTP for file transfer

Data Reliability and Integrity

Standalone application wrapped as a VPH-Share Atomic Service,

with Web Service (REST) interfaces; uses LOB tools for access

to binary data

Security Framework

Uniform security mechanism for SOAP/REST services; Master

Interface SSO enabling shell access to virtual machines

VPH-Share

•

Install/configure each application service (which we call an Atomic Service) once –

then use them multiple times in different workflows;

•

Direct access to raw virtual machines is provided for developers, with multitudes of

operating systems to choose from (IaaS solution);

•

Install whatever you want (root access to Cloud Virtual Machines);

•

The cloud platform takes over management and instantiation of Atomic Services;

•

Many instances of Atomic Services can be spawned simultaneously;

•

Large-scale computations can be delegated from the PC to the cloud/HPC via a

dedicated interface;

•

Smart deployment: computations can be executed close to data (or the other way

round).

Basic features of the cloud platform

Developer

Application

Install

any scientific

application in the cloud

End user

Access

available

applications and data

in a secure manner

Administrator

Cloud infrastructure

for e-science

Manage

cloud

computing and storage

resources

VPH-Share

Accessing the VPH-Share Infrastructure

•

The Master Interface is deployed at

new.physiomespace.com

–

Provides access to all VPH-Share cloud platform features

–

Tailored for domain experts (no in-depth technical knowledge necessary)

–

Uses OpenID authentication provided by BiomedTown

–

Contact Piotr Nowakowski (CYF) for details regarding access and account provisioning

•

Further information at

dice.cyfronet.pl/projects/VPH-Share

www.vph-share.eu

VPH-Share

Demos of the Cloud Platform

VPH-Share

End user’s view of the cloud platform

VPH-Share Master Int.

Authentication widget

Login feature

Admin

Scientist

Portlet

Portlet

Portlet

Portlet

BiomedTown Identity Provider

Authentication service

2. Open login window and delegate credentials

VPH-Share Atomic Service Instance

Security

Proxy

with BiomedTown”

Users and

roles

Security

Policy

Service

payload

(VPH-Share

application

component)

and spawn session cookie containing user token (created by the Master

Interface)

5. Parse user token, retrieve roles and allow/deny access to the ASI according to the security policy

6’. Relay request if authorized 6’. Report error

(HTTP/401) if not authorized 4. When invoking AS, pass user token along with request header

• Developers, admins and scientists obtain access to the cloud platform via the Master Interface UI

• The OpenID architecture enables the Master Interace to delegate authentication to any public identity provider (e.g. BiomedTown).

• Following authentication the MI obtains a secure user token containing the current user’s roles. This token is then used to authorize access to Atomic Service Instances, in accordance with their security policies.

VPH-Share

End user’s view of the cloud platform –

contd.

Log into Master Interface

Select Atomic

Service

Instantiate Atomic

Service

Access and use

application

•

Atomic Services can be

instantiated on demand

•

Once instantiated, the service

can be accessed by the end

user

•

Unused instances can be

shut down by Atmosphere

VPH-Share

Handling security on the ASI level

VPH-Share Atomic Service Instance

Security

Proxy

Security

Policy

Service

payload

(VPH-Share

application

component)

Public AS API

(SOAP/REST)

Actual application API (localhost access only)

Exposed externally by local web server (apache2/tomcat) 2. Intercept request a6b72bfb5f2466512a b2700cd27ed5f84f99 1422rdiaz!developer! rdiaz,Rodrigo Diaz,rodrigo.diaz@at osresearch.eu,,SPAIN, 08018

User token

3. Decrypt and validate the digital signature

with the Master Interface’s secret key. 4. If the digital signature checks out, consult the security policy to determine whether the user should be granted access on the basis

of his/her assigned roles.

6. Intercept service response 7. Relay

response

•

The application API is only

exposed to localhost clients

•

Calls to Atomic Services are

intercepted by the Security

Proxy

•

Each call carries a user

token (passed in the request

header)

•

The user token is digitally

signed to prevent forgery.

This signature is validated by

the Security Proxy

•

The Security Proxy decides

whether to allow or disallow

the request on the basis of

its internal security policy

•

Cleared requests are

forwarded to the local service

instance

3’, 4’ Report error

3’, 4’. If the digital signature is invalid or if the security policy prevents access given the

user’s existing roles, the Security Proxy throws a HTTP/401 (Forbidden) exception to

the client.

5. Relay original request (if cleared)

5. Otherwise, relay the original request to the service payload. Include the user token

for potential use by the service itself. 6-7. The service response is relayed to the

original client. This mechanism is entirely transparent from the point of view of the person/application invoking the Atomic

VPH-Share

More information at

dice.cyfronet.pl/projects/VPH-Share

www.vph-share.eu
