Networking Cabinets > Part No Capacity Available Colors Height(mm) Width(mm) Depth(mm)

(1)

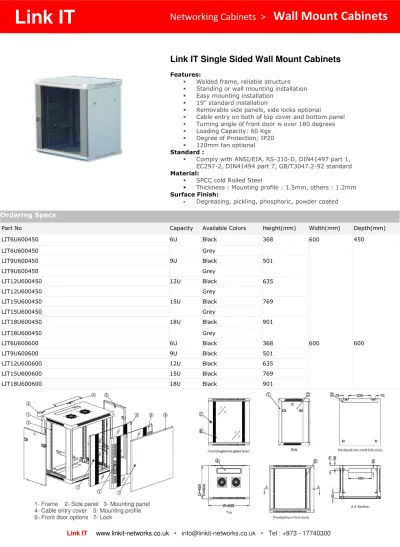

Link IT Single Sided Wall Mount Cabinets

Features:

Welded frame, reliable structure Standing or wall mounting installation Easy mounting installation

19” standard installation

Removable side panels, side locks optional Cable entry on both of top cover and bottom panel Turning angle of front door is over 180 degrees Loading Capacity: 60 Kgs

Degree of Protection: IP20 120mm fan optional

Standard :

Comply with ANSI/EIA, RS-310-D, DIN41497 part 1, EC297-2, DIN41494 part 7, GB/T3047.2-92 standard

Material:

SPCC cold Rolled Steel

Thickness : Mounting profile : 1.5mm, others : 1.2mm

Surface Finish:

Degreasing, pickling, phosphoric, powder coated

Ordering Specs

Part No Capacity Available Colors Height(mm) Width(mm) Depth(mm) LIT6U600450 6U Black 368 600 450 LIT6U600450 Grey

LIT9U600450 9U Black 501 LIT9U600450 Grey

LIT6U600600 6U Black 368 600 600 LIT9U600600 9U Black 501

LIT12U600600 12U Black 635 LIT15U600600 15U Black 769 LIT18U600600 18U Black 901

Link IT

Networking Cabinets >

Wall Mount Cabinets

1- Frame 2- Side panel 3- Mounting panel 4- Cable entry cover 5- Mounting profile 6- Front door options 7- Lock

(2)

Link IT Double Sided Wall Mount Cabinets

Features:

Welded frame, high intensity

Standing or wall mounting installation Optional side locks

Easy to install and bolt to any wall 19” Cabinet

Cable can pass through the top or bottom Featuring removable side panels

Turning angle of front door is over 180 degrees Loading Capacity: 60Kgs

Degree of Protection: IP20 Advanced moon-shaped lock 120mm fan optional

Turning angle of rear door is above 90 degrees

Standard :

Comply with ANSI/EIA, RS-310-D, DIN41497 part 1, EC297-2, DIN41494 part 7, GB/T3047.2-92 standard

Material:

SPCC cold Rolled Steel

Thickness : Mounting profile : 1.5mm, others : 1.2mm

Surface Finish:

Degreasing, pickling, phosphoric, powder coated

Ordering Specs

Part No Capacity Available Colors Height(mm) Width(mm) Depth(mm) LIT6U600610 6U Black 368 600 610 LIT9U600610 9U Black 501

LIT12U600610 12U Black 635 LIT15U600610 15U Black 769 LIT18U600610 18U Black 901

Link IT

Networking Cabinets >

Wall Mount Cabinets

1. Cable entry top 2. Back panel 3. Frame 4. Side panel

(3)

Link IT Open Sided Cabinet

Features:

Standard: comply with ANSI/EIA; RS-310-D, IEC297-2, DIN41491, PART1, DIN41494 PART7, GB/T3047.2-92 standard.

Modular design, easily assemble and disassemble for delivery, low-cost.

Various optional accessories according to requirements (cable management slot, cable management, removable working panel, etc.)

19” frame 2mm welded fold steel sheet, two side figure punching.

Static Load: 150 Kgs

Surface Finish: Degreasing, phosphoric, powder coated Made from SPCC cold rolled steel

Thickness of Four Post : Plinth and front beams: 1.2mm, Bottom beams and pole: 1.5mm

Thickness of Two Post : Plinth: 2.0mm, Front and Bottom beams: 1.5mm

Ordering Specs

Part No Capacity Available Colors Description LIT42UTP 42U Black Two Post LIT42UFP Black Four Post

(4)

Link IT Floor Standing Networking Cabinets

Features:

Comply with ANSI/EIA;RS-310-D; DIN41491; PART1; IEC297-2; DIN41494; PART7; GB/T3047.2-92 standard, compatible 19” international standard, metric system standard and ETSI standard;

Optional cable entry on top cover and bottom panel,

removable front & rear door and side panel facility, ventilation and rat-proof on the bottom.

Reliable structure, static loading capacity: 800KG Adjustable feet and castors are available, moving

conveniently, and fixing reliable

Hexagonal reticular high-density vented front door, Double section high-density vented rear door.

Varies optional accessories, reliable quality. Excellent ventilation and heat dispersing .

Surface Finish: degreasing, pickling, phosphoric, powder coated.

Material: SPCC cold rolled steel

Thickness: mounting profile 2.0mm, others: 1.2-1.5mm

Degree of Protection: IP20

Ordering Specs

Part No Capacity Available Colors Height(mm) Width(mm) Depth(mm) LIT27U6001000M 27U Black 1388 600 1000 LIT42U6001000M 42U Black 2055

LIT42U800800M 42U Black 2055 800 800

LIT42U8001000M Black 1000

Locked Equipted with

High quality Spring Fan Units equiped in Cabinet

Mounting andgle with adjustablility _{Marking Rail}

Lockable cable entry _Earthing

800mm width cabinet comes with 2 metal cable management slot

Link IT

Networking Cabinets >

Floor Standing Cabinet

(5)

Link IT Floor Standing Networking Cabinets

Features:

Comply with ANSI/EIA;RS-310-D; DIN41491; PART1; IEC297-2; DIN41494; PART7; GB/T3047.2-92 standard, compatible 19” international standard, metric system standard and ETSI standard;

Optional cable entry on top cover and bottom panel,

removable front & rear door and side panel facility, ventilation and rat-proof on the bottom.

Tempered glass front door with vented border, Double section high-density vented rear door.

Varies optional accessories, reliable quality. Excellent ventilation and heat dispersing.

Material: SPCC cold rolled steel

Thickness: mounting profile 2.0mm, others: 1.2-1.5mm Degree of Protection: IP20

Ordering Specs

Part No Capacity Available Colors Height(mm) Width(mm) Depth(mm) LIT27U6001000G 27U Black 1388 600 1000 LIT42U6001000G 42U Black 2055

LIT42U800800G 42U Black 2055 800 800

LIT42U8001000G Black 1000

Ventilated Door Frame _{Fan Units equiped in Cabinet}

Mounting andgle with adjustablility _{Marking Rail}

Lockable cable entry _Earthing

800mm width cabinet comes with 2 metal cable management slot

Link IT

Networking Cabinets >

Floor Standing Cabinet

(6)

Link IT Floor Standing Networking Cabinets

Features:

Comply with ANSI/EIA;RS-310-D; DIN41491; PART1; IEC297-2; DIN41494; PART7; GB/T3047.2-92 standard, compatible 19” international

standard, metric system standard and ETSI standard; Optional cable entry on top cover and bottom panel,

removable front & rear door and side panel facility, ventilation and rat-proof on the

bottom.

International popular tempered glass front door, steel rear door.

Varies optional accessories, reliable quality. Good ventilation and heat dispersing.

Material: SPCC cold rolled steel,

Thickness: mounting profile 2.0mm, others: 1.2-1.5mm Degree of Protection: IP20

Ordering Specs

Part No Capacity Available Colors Height(mm) Width(mm) Depth(mm) LIT22U600800 22U Black 1166 600 800 LIT22U600800 Grey

LIT27U600800 27U Black 1388 600 800 LIT27U600800 Grey

LIT42U600600 42U Black 2055 600 600 LIT42U600600 Grey 2055

LIT42U600800 42U Black 2055 600 800 LIT42U600800 Grey 2055

LIT42U800800 42U Black 2055 800 800 LIT42U8001000 42U Black 2055 800 1000

Link IT

Networking Cabinets >

Floor Standing Cabinet

Front view of Cabinet

Back view of Cabinet
