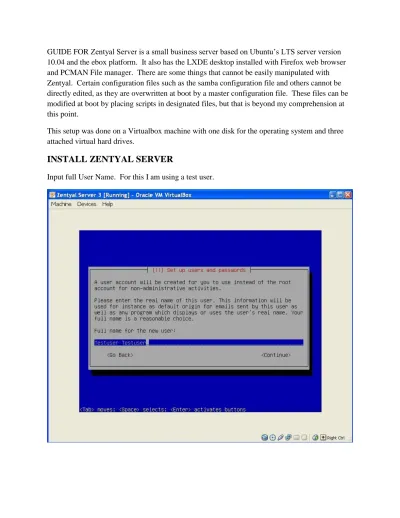

GUIDE FOR Zentyal Server is a small business server based on Ubuntu’s LTS server version 10.04 and the ebox platform. It also has the LXDE desktop installed with Firefox web browser and PCMAN File manager. There are some things that cannot be easily manipulated with Zentyal. Certain configuration files such as the samba configuration file and others cannot be directly edited, as they are overwritten at boot by a master configuration file. These files can be modified at boot by placing scripts in designated files, but that is beyond my comprehension at this point.
This setup was done on a Virtualbox machine with one disk for the operating system and three attached virtual hard drives.
INSTALL ZENTYAL SERVER
Accept or input a username for the account. I have used testuser as the user account name.
After a reboot, Zentyal will start with the web interface ready for login.
Login to the web interface in order to finish the configuration. Scroll down until the Office Icon shows. I am only installing the Office portion which includes the file sharing portion of the server.
Click on the Office Icon in order to select it. The ring around the Icon will turn green when selected. Click the Install button.
I have selected standalone server, as my home router handles all DHCP assignments and I only have one server.
There were components installed during the Office setup that I won’t need, so I removed them. Click on Software management and then Zentyal Components. Click the Delete Tab
I selected the following for removal: VPN Service
Zentyal Cloud Client Groupware (Zarafa) Web Server
After these modules were removed, I performed a system update. Click on Software
Management and then System Updates. Scroll to the bottom and check the Update all Packages box. Then click the Upgrade Button.
If you are wanting to test your configuration in VirtualBox prior to putting it into production, it is a good idea to install the Virtual Box Guest additions. This will allow the screen to stretch inside the Virtualbox window. Without this, it will be difficult to configure Flexraid because part of the web interface will be cut off and inaccessible. To install the guest additions, follow these steps:
1. Install dkms: From the user console type - sudo apt-get install dkms 2. Attach Vbox Guest additions to the Virtual CD Drive
3. From the PCMan File manager, Open the Guest additions as root 4. Right click and execute runasroot.sh I think or autorun.sh
I tend to like graphical interfaces for performing certain tasks. For this reason I installed synaptic and from synaptic, installed gparted.
To install synaptic package manager, type: sudo apt-get install synaptic I then installed gparted partition manager using synaptic.
PARTITION DISKS
In console Type: sudo fdisk –l
This will give a list of Disks attached to the system. sda contains the system and swap partitions
sdb is the first disk which will be used as a dru sdc is the second disk that will be used as a dru sdd is the third disk which will be used for parity
Open gparted and create a primary partition on each of the disks sdb, sdc,sdd. I created these with an ext4 file system. It is not necessary at this point to provide a volume label or mount point, as this will be done in the following steps.
Next, Open the PCMan File Manager
At the bottom left, click on the folder icon. This will provide a directory tree. Navigate to media and click once on this folder in the directory tree. In the top menu, click on tools, and then open this folder as root. This will allow you to create folders and change permissions for those folders. The second screen shows the media folder opened in superuser mode.
Right click in the empty space to bring up the context menu and create folders in /media for the three disks. I used Disk1, Disk2 and Parity.
I edited the permissions for these folders and changed the username to my username, changed the group to fuse, and gave full permissions to all. This may not be necessary, but i didn't want any problems writing to the folders from flexraid. Right Click on each folder, select properties and then the permissions tab.
Close the media folder superuser window. Navigate in the directory tree to etc and open this folder as root. Scroll down and find the file called fstab. Right click on the file and select open with leafpad.
This is the original fstab
Add the following lines to the end of fstab
/dev/sdb /media/Disk1 ext4 defaults 0 2 /dev/sdc /media/Disk2 ext4 defaults 0 2 /dev/sdd /media/Parity ext4 defaults 0 2
Save the fstab file and exit leafpad.
While the folder etc is still in superuser mode, find the file fuse.conf and open it with leafpad.
Next add the user to the fuse group.
Open the user terminal and type: sudo adduser
testuser
fuseINSTALL FLEXRAID
Everything up to this point was to prepare for the flexraid installation. REBOOT before continuing. This should insure that the disks are mounted in the /media folder.
Open firefox web browser, navigate to the openegg site and download the latest FlexRAID version. In this case I am using Version 2.0 release 12 revision 2. The file should be saved to /home/testuser/Downloads.
Open a user console.
Change to the download directory: cd /home/testuser/Downloads To list the files type: ls
Make the file executable:
Type: sudo chmod +x FlexRAID-2.0-Preview12r2-Setup.bin
Run the setup file: ./FlexRAID-2.0-Preview12r2-Setup.bin
Accept the EULA
Enter path for installation folder. I used /home/testuser/.flexraid. Putting the period in front of the flexraid folder will make it hidden.
FlexRaid will then install. The prompt at the end indicates success.
Open the PCman file manager. Create some test folders and files under /media/Disk1 and /media/Disk2. These are required in order to create a snapshot raid.
Open the user console and start flexraid by typing:
./FlexRAID &
The resulting screen
Give FlexRAID a minute to make sure it is started and then navigate to the installation folder in PCman file manager. Navigate to /home/testuser. In the menu, select view and then select show hidden files. The flexraid installation folder should then show up as .flexraid under the testuser folder. Open the .flexraid folder and right click on FlexRAID.html and select open with firefox web browser.
This will open the web interface as http://localhost:8080. The web interface could be accessed from another machine on the network by typing in http://ipaddress:8080 as well. Finally you should see the FlexRAID web interface.
CREATE SNAPSHOT RAID
Click on Add New ConfigurationName the Configuration (Snap-1 in this case) Make sure Snapshot is selected.
Put in the number of DRUs (2) and PPUs (1) Select the RAID Engine. (T1+ in this case) Input a description if wanted.
Click on Snap-1
Click and Drag Disk1 folder under DRU1 on right side of panel
Expand DRU2 on right side of panel. Click and Drag Disk2 folder under DRU2 on right side of panel.
Click on Runtime properties, adjust as necessary. Click Save, popup should indicate success.
STORAGE POOL
First we need to set up a folder to which the pooled folders will reside. This folder will be shared on my network to all computers.
Click on Zentyal Administration and Log in. When the Administration page has loaded, scroll down and click on File Sharing. You will see the page below.
Since I am only wanting simple file and printer sharing, I am allowing access to all computers on my home network and therefore have no need for the Personal Domain Controller (PDC) or Quota Limits. I have disabled both of these options.
Uncheck PDC
Disable Quota Limits unless you want these. Change Domain Name to match your network
Click Change button
Click save again
Get back to the file sharing page and click on shares tab
Fillout the blanks. Creating a directory under Zentyal will create a share located in
/home/samba/shares/. When using a Directory under Zentyal, the only characters allowed are alphanumeric and underscores. Alternatively, you can choose to use an existing file system directory. I enabled guest access for my share. Using the firewall, you can later restrict access via IP address.
Click Add
Click Save Changes
Click on Red Save Changes Button at top right
Right Click on Test Storage Folder and select properties and then permissions.
Change user to testuser and group to fuse.
Check all the boxes for read write execute privileges
Now go back to the FlexRaid web user interface. Click on add new.
Provide a name (SPOOL-1) and select the Storage Pool button. Add a description if wanted.
Click on the Storage pool just created. Under Unique Volumes, enter /media/Disk1 and /media/Disk2
Under advanced properties, I changed the reserve to 1GB from 10 because i am using small virtual test disks. In a production environment, this would not be necessary.
Change the Grant access to others to true Click save
Expand the Storage Pool Merge Configuration I am using the Auto-Folder Priority configuration
For the Mount Point enter : /home/samba/shares/Test_Storage
Click Save
Click Preview to see if the setup is mounting correctly. The folders from Disk1 and Disk2 should be listed under the /home/samba/shares/Test_Storage Directory.
Click Publish/(Restart) Button. Click Save
The file manager should now show that the folders for Disk1 and Disk2 listed under /home/samba/shares/Test_Storage.
Go to start and click settings
Go to Storage Pool Tab. I set the Autostart delay at 15000 ms for my setup. Without this value being set, the storage pool would not start automatically with Flexraid. Click Save.
RUN FLEXRAID at BOOT
Open the User Console. Type sudo leafpad /etc/init.d/flexraid
to create a file in /etc/init.d called flexraid Type in the script below:
#! /bin/sh # by wyld
### BEGIN INIT INFO
# Provides: FlexRAID application instance # Required-Start: $all
# Required-Stop: $all # Default-Start: 2 3 4 5 # Default-Stop: 0 1 6
# Short-Description: starts FlexRAID app
# Description: starts instance of FlexRAID app using start-stop-daemon ### END INIT INFO
PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin:/home/testuser/.flexraid sleep 10 ############### EDIT ME ################## # daemon DAEMON=/home/testuser/.flexraid/FlexRAID DAEDIR=/home/testuser/.flexraid/ NAME="flexraid"
DESC="FlexRAID backend and webui" USER="testuser"
LOGDIR=/var/log RUNDIR=/var/run ARGS=""
############### END EDIT ME ################## test -x $DAEMON || exit 0
set -e case "$1" in start)
echo "Starting $DESC: "
start-stop-daemon --start --oknodo --background --chdir $DAEDIR --exec $DAEMON echo "[ $NAME ]"
;; stop)
echo "Stopping $DESC: "
start-stop-daemon --stop --oknodo --exec $DAEMON echo "[ $NAME ]"
;; restart)
start-stop-daemon --stop --oknodo --exec $DAEMON sleep 15
start-stop-daemon --start --oknodo --background --chdir $DAEDIR --exec $DAEMON echo "[ $NAME ]"
;; *)
N=/etc/init.d/$NAME
echo "Usage: $N {start|stop|restart}" >&2 exit 1
;; esac exit 0
Make the file executable by typing in user console: sudo chmod a+x /etc/init.d/flexraid Execute the following command in the console: sudo update-rc.d flexraid defaults
REMOTE ACCESS
Zentyal Web Interface can be accessed from https://ipaddress:443 FlexRAID Web Interface can be accessed from http://ipaddress:8080
