(1)

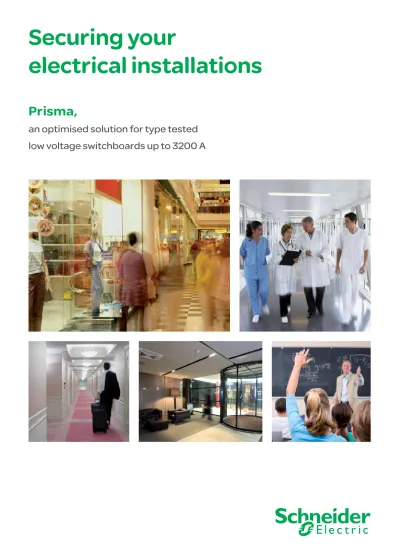

Prisma,

an optimised solution for type tested

low voltage switchboards up to 3200 A

Securing your

(2)
(3)

Table of contents

Developing installation safety

4

Prisma P

*

Electrical switchboards up to 3200 A

5

*

A complete safety of type tests

6

*

Several configurations

8

*

Schneider products inside Prisma P

10

*

General technical information:

@

Connection by cables

11

@

Sizing of protective conductor PE

11

Prisma G

*

Electrical switchboards up to 630 A

12

General technical information:

(4)

With the Prisma P & G, Schneider Electric proposes

high-performance technical solutions, with enhanced robusteness,

looks and aesthetics to produce low voltage electrical

switchboards up to 3200 A, in commercial and industrial buildings.

Prisma P & G switchboards capitalize on the experience gained

over 30 years, during which thousands of switchboards have been

built and operated.

Developing installation safety

in commercial & industrial buildings

Prisma P

up to 3200 A

Prisma G

(5)

Electrical switchboards...

For a dependable electrical installation

Total compatibility between Schneider Electric switchgear devices and the Prisma system helps build dependability into every electrical installation, that has been validated by type tests in compliance with standard IEC 60439-1.

An electrical installation capable of evolving

Modular in structure, Prisma can keep pace with evolving switchboard needs and integrate new functional units as required. Maintenance operations are fast and easy with total access to all switchgear devices.

Total safety for users

Switchgear devices are installed behind a protective front plate that leaves only the operating handle visible.

General characteristics

Enclosure

@

material: sheet steel, anti-corrosion painting

@

surface treatment: anti-corrosion coating, thermal polymerised polyester-epoxy powder. Colour Prisma beige / dark grey.

@

busbar insulating supports: all plastic parts withstand fire or excessive heat caused by internal electrical phenomena, as per IEC 695-2.1: 960° 30s/30s for supports for live metal parts.

Building up installations

Functional Prisma components can be used to build switchgear assemblies in compliance with: standards IEC 60439-1.

@

with the following electrical specifications:

;

rated insulation voltage for the main busbars: 1000 V

;

rated current 3200 A

;

peak withstand current: Ipk 187 kÂ

;

short time withstand current: Icw 85 kA rms / 1sec

;

frequency 50 / 60 Hz.

Prisma P functional system

With the Prisma P cubicles, the same

components, whether for switchgear installation, current distribution, cable running, etc., may be installed depending on the installation site, with the following varieties:

@

IP 31, IP 54

@

Form 1 & 2

@

may be dismantled

@

may be joined side by side

@

4 basic widths: 700, 900, 1100, 1300 mm

@

2 basic depths: 400, 600 mm and 2 back to back depths: 800, 1000 mm

@

frame height: 2000 mm

From the simplest through to the

highly sophisticated, these simple

yet dependable solutions are

tailored to meet customers’ needs.

The modular building blocks are

designed with a strict eye on details

to ensure a professional result.

Prisma P

(6)

A dual guarantee

The Prisma switchboard, tested and produced according to standards, offers its operator a dual guarantee:

@

use of dependable components, with platform tested assemblies,

@

rigorous final inspection.

Schneider Electric offers Prisma switchboard series on which the 7 type tests have been conducted.

Schneider Electric’s Certified Prisma Partners, who assemble & test the Prisma switchboard, also attest to quality by carrying out the 3 individual routine tests specified in the international standard IEC 60439-1.

These 10 tests guarantee the switchboard’s operational safety, as well as the safety of people and equipment from switchboard commissioning onwards and throughout switchboard service life.

7 type tests

conducted in the

laboratory

3 routine tests carried

out by Certified Prisma

Partner

+

a 100 % validated

switchboard

=

A complete safety of type tests

10 tests to certify installation quality

@

7 type tests conducted on Prisma P which are:

1- temperature rise limit, 2- dielectric properties, 3- short-circuit withstand, 4- protection circuit efficency,

5- clearances and creepage distance, 6- mechanical operation,

7- degree of protection.

@

Certified Prisma Partners attest to the quality of each switchboard by carrying out the 3 individual routine tests specified in the international standard IEC 60439-1:

1- cabling and electrical operation, 2- dielectric testing,

3- protection measures.

IEC standard 60439-1

defines 7 type tests

and 3 individual

routine tests which

offer the best long

term safety and

reliability guarantees

to electrical

(7)

Depth = 400 mm cubicles

Depth = 800 / 1000 mm (back to back) cubicles

Two basic frames side by side

700 200 400 700 200 200 700 700 700 400 200 W = 700 mm W = 900 mm W = 1100 mm W = 1300 mm or (1) (1) (1)

Depth = 600 mm cubicles

700 700 200 700 400 700 200 200 700 400 200 W = 700 mm W = 900 mm W = 1100 mm or W = 1300 mm (1) (1) (1)

(1) The cable or bar duct can be installed on the right or left side of the frame in which the devices are mounted.

(1) The cable or bar duct can be installed on the right or left side of the frame in which the devices are mounted.

D = 800 mm D = 1000 mm

A depth of 800 or 1000 is obtained by installing the basic frames in all existing widths back to back.

In the back to back layout, cubicle sides are covered by normal end panels according to the combination.

Two basic frames of different depths can be joined directly together.

Two basic frames

+

70 80

(8)

Breaker with incoming top cables.

Prisma P

several configurations

Breaker with incoming top busduct.

Upper horizontal basbar

(9)

Prisma P

several configurations

Cable tie bars in width 200 & 400 mm. Breaker with bottom cable connection.

Outgoing functional units

(10)

Schneider products inside Prisma

Power metering & monitoring unit

PowerLogic PM…

Air circuit breaker 630 A … 1600 A

Masterpact NT

Air circuit breaker 800 A … 3200 A

Masterpact NW

Molded case circuit breaker 100 A … 630 A

New Compact NSX

Molded case circuit breaker 100 A … 400 A

EasyPact

DIN rail products

Miniature circuit breakers, residual current devices, earth leakage protection, etc.

Domae

Thermal magnetic circuit breaker

GV2-ME, GV2-P Monitoring relays Zelio Control RM‥

Low voltage capacitor banks

Varplus 2 LV power factor controllers Varlogic

Prisma P switchboards are

leveraged by an unparalleled

lineup of products.

These products are the building

bricks of various solutions for

electric distribution, power

monitoring, motor control and

protection and power factor

correction.

We are committed to

developing competitive,

compatible products that

are easy to install & operate.

Our products and systems

optimize electrical installations,

make them safer and more

flexible, while complying with

prevailing standards.

(11)

Practical rules:

Schneider Electric recommends cabling according to the circuit breaker rating.

The following tables take into account the installation conditions related to the type of device (permissible temperatures near the connection terminals, etc.). They ensure consistency with the temperature derating values of the installed devices.

Connection of circuit-breaker by cables

@

copper cables.

Connection by cables

General technical information

Optimised method:

Use the calculation formula given by standard IEC 60439-1: SPE =  I

2t

k

@

SPE: cross-sectional area of PE in mm2

@

I2: value of the phase-to-earth fault current = 60% of the value of the

phase-to-phase fault current (standard IEC 60438-1 §8.2.4.2).

@

t: duration of the fault current in seconds

@

k: a factor depending on the conductor material. k = 143 for a PVC-insulated copper PE conductor.

Simplified method (based on the above formula):

@

Use the table below.

@

Depending on the Isc of the device, determine the cross-sectional area of

the PE conductor.

Sizing of protective

conductor PE

Connection of other devices by cables

@

copper cables.

Permissible current with cables secured individually Current (A)

IP  31 14 25 29 39 55 77 100 125 150 190 230

Cable

Section (mm2) 1.5 2.5 4 6 10 16 25 35 50 70 95

Device NS100 NS160 NS250 NS400/NS630

Section (mm2) 25 50 95 straps or bars

Permissible current with cables secured in bundles Current (A)

IP  31 12 20 24 33 50 70 93 120

Cable

Section (mm2) 1.5 2.5 4 6 10 16 25 35

Permissible current with cables secured individually Current (A)

IP  31 12 21 26 35 50 70 90 115 135 176 210

Cable

Section (mm2) 1.5 2.5 4 6 10 16 25 35 50 70 95

Permissible current with cables secured in bundles Current (A)

IP  31 10 19 22 30 46 63 84 103

Cable

Section (mm2) 1.5 2.5 4 6 10 16 25 35

Cross-sectional area

of the PE conductor (mm) Masterpact NWH3 witha 0.5 sec. time delay Other SchneiderElectric device

Isc  40 kA 1 bar 25 x 5 1 bar 25 x 5 40 < Isc < 50 kA 1 bar 50 x 5 1 bar 25 x 5 Isc u 50 kA 1 bar 50 x 5 1 bar 50 x 5

(12)

Prisma G

,

the innovation of a complete functional

system, is designed for the production of electrical

switchboards up to 630 A and intended for harsh

environments. Being sealed, sturdy, dismountable

and combinable,

Prisma

G

is enriched with new

solutions satisfying our customers’ needs.

Standards

Prisma G

complies with the main international standards:

@

IEC 60439-1: relating to construction of low voltage switchgear and controlgear assemblies,

@

IEC 60529: defining the degree of protection provided by enclosures,

@

IEC 60068-2-11: defining resistance to salt mist,

@

IEC 60068-2-30: defining resistance to damp heat,

@

IEC 60439-1: defining a type tested bus bar provided by the enclosure.

Construction

@

Metal frame: folded sheet metal,

@

Paint: epoxy powder polymerized at high temperature,

@

Standard color: beige Prisma,

@

Surface finish: smooth,

@

Plastic components: self extinguishing in particular the supports for bare life conductors.

Installation & cable entry

@

Wall mounted,

@

Semi-flush wall mounting,

@

Directly on Canalis® busduct, as a

multi-feeder tap-off units,

@

Indoor applications,

@

Exists in single or double cells configurations,

@

Cable entries are from top or bottom.

Switchgear

@

3 or 4 poles

@

MCB & MCCB up to 630A

Applications

@

Fixed motor control centers,

@

Power panels: main, tertiary and final distribution,

@

Lighting panels,

@

Fuse pillars,

@

Busduct Canalis® tap-off units,

@

Control and automation.

Prisma G

up to 630 A

(13)

Electrical characteristics

rated insulation voltage (V a.c. 50 - 60 Hz) 1000 rated operational voltage (V a.c.) 690 rated short-time withstand current (kA / 1 sec) up to 25 rated peak withstand current (kA) up to 53

rated current (A) up to 630

Mechanical characteristics

partitioning form 1

degree of protection - indoor type IP42 - IP54

Dimensions

Width mm

single cell configuration 580 double cell configuration 1160

Depth mm

without door knobs or logo 230

Height (without plinth) mm

11 modules 696

15 modules 896

19 modules 1096

23 modules 1296

The

Prisma G

enclosure, produced according to IEC standards, offers its operator a dual guarantee:

@

use of dependable components,

@

rigorous final inspection done by

Schneider Electric’s Certified Prisma Partners.

A dual guarantee

100%

of panelbuilders and contractors

using Prisma P & G solutions can

prove that their switchboards are

tested and compliant with IEC

standards.

(14)

General technical information

Standard IEC 60364-3 lists and codes a large number of external influences to which an elec-trical installation may be subjected: presence of water, presence of solid bodies, risk of impacts, vibrations, presence of corrosive substances. These influences are exerted with an intensity varying according to installation conditions: the presence of water may be simply a few drops fal-ling…or complete immersion.

Standard IEC 60529 indicates the degrees of protection provided by an enclosure for electrical devices against access to hazardous parts, against penetration of solid foreign objects and against penetration of water.

Degree of protection IP code

These standards do not apply for the protection against the risks of explosion or conditions such a humidity, corrosive vapour, fungus or vermin.

The IP code is made up of two digits and can include an additional letter when the actual protection against access to the hazardous parts is better than that indicated by the first digit.

The first digit characterises the protection provided by the enclosure against the ingress of solid foreign objects.

The second digit characterises the protection provided against the ingress of water with harmful effects.

2nd digit

Protection against ingress of water

1 Protected against vertically falling water drops (condensation)

2 Protected against vertically falling water drops when enclosure tilted up to 15°

3 Protected against spraying water up to 60° from vertical

4 Protected against splashing water from all directions

5 Protected against water jets from all directions

6 Protected against powerful water jets from all directions

7 Protected against the effects of temporary immersion in water

8 Protected against the effects of continuous immersion in water

1st digit

Protection against ingress of solid objects

1 Protected against solid foreign objects larger than 50 mm

2 Protected against solid foreign objects larger than 12.5 mm

3 Protected against solid foreign objects larger than 2.5 mm

4 Protected against solid foreign objects larger than 1 mm

5 Protected against dust (dust protected) 6 Dust tight Ø 50 mm Ø 12,5 mm Ø 2,5 mm Ø 1 mm 15 60

(15)
(16)

Customer Care Center (CCC) Hotline: 19775

email: [email protected]

Design & production: Communication - SEE Printing: Horizon Graphic

As standard specifications and designs change from time to time, please ask for confirmation of the information given in this publication.

Schneider Electric Egypt & NE Africa Head Office

Land Plot no. 291 & 292, Second District, Fifth Settlement, New Cairo, Egypt Postal code 11835

Tel : +202 26 189 189 Fax: +202 26 189 263

References

Related documents
