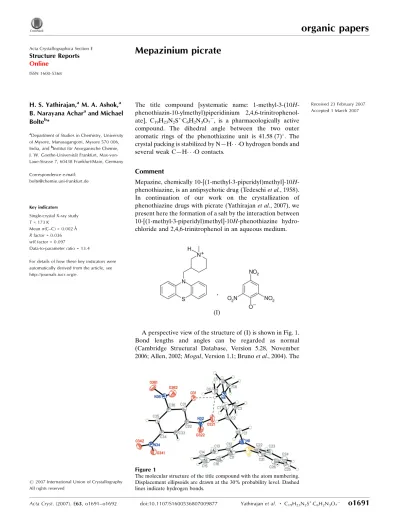

Mepazinium picrate
H. S. Yathirajan,aM. A. Ashok,a B. Narayana Acharaand Michael Bolteb*
aDepartment of Studies in Chemistry, University
of Mysore, Manasagangotri, Mysore 570 006, India, andb
Institut fu¨r Anorganische Chemie, J. W. Goethe-Universita¨t Frankfurt, Max-von-Laue-Strasse 7, 60438 Frankfurt/Main, Germany
Correspondence e-mail: [email protected]
Key indicators
Single-crystal X-ray study
T= 173 K
Mean(C–C) = 0.002 A˚
Rfactor = 0.036
wRfactor = 0.097
Data-to-parameter ratio = 13.4
For details of how these key indicators were automatically derived from the article, see http://journals.iucr.org/e.
Received 23 February 2007 Accepted 1 March 2007
#2007 International Union of Crystallography All rights reserved
The title compound [systematic name: 1-methyl-3-(10H
-phenothiazin-10-ylmethyl)piperidinium
2,4,6-trinitrophenol-ate], C19H23N2S +.
C6H2N3O7
, is a pharmacologically active compound. The dihedral angle between the two outer
aromatic rings of the phenothiazine unit is 41.58 (7). The
crystal packing is stabilized by N—H O hydrogen bonds and
several weak C—H O contacts.
Comment
Mepazine, chemically 10-[(1-methyl-3-piperidyl)methyl]-10H -phenothiazine, is an antipsychotic drug (Tedeschiet al., 1958). In continuation of our work on the crystallization of phenothiazine drugs with picrate (Yathirajanet al., 2007), we present here the formation of a salt by the interaction between
10-[(1-methyl-3-piperidyl)methyl]-10H-phenothiazine
hydro-chloride and 2,4,6-trinitrophenol in an aqueous medium.
[image:1.610.240.423.373.482.2] [image:1.610.209.458.569.717.2]A perspective view of the structure of (I) is shown in Fig. 1. Bond lengths and angles can be regarded as normal (Cambridge Structural Database, Version 5.28, November 2006; Allen, 2002;Mogul, Version 1.1; Brunoet al., 2004). The
Figure 1
dihedral angle between the two aromatic rings of the phenothiazine unit is 41.58 (7). The piperidyl ring adopts a
chair conformation with both substituents in equatorial posi-tions. The crystal packing is stabilized by N—H O hydrogen
bonds and several weak C—H O contacts (Table 1).
Experimental
Mepazine hydrochloride monohydrate (0.7300 g, 0.02M) and picric acid (0.4606 g, 0.02M) were dissolved separately in doubly distilled water (100 ml). The solutions were mixed and stirred in a beaker. A bright-yellow salt was formed instantaneously at room temperature. The separated salt was filtered off, washed thoroughly with doubly distilled water and dried in a vacuum desiccator over phosphorus pentoxide. The compound was recrystallized from ethanol (m.p. 379 K).
Crystal data C19H23N2S+C6H2N3O7
Mr= 539.56
Triclinic,P1
a= 8.3584 (9) A˚
b= 10.7782 (9) A˚
c= 14.5062 (13) A˚
= 93.524 (7) = 99.629 (8)
= 102.419 (7) V= 1251.8 (2) A˚3
Z= 2
MoKradiation
= 0.19 mm1
T= 173 (2) K 0.450.450.40 mm
Data collection Stoe IPDSII two-circle
diffractometer
Absorption correction: multi-scan (MULABS; Spek, 2003; Blessing, 1995)
Tmin= 0.911,Tmax= 0.920
12751 measured reflections 4656 independent reflections 3824 reflections withI> 2(I)
Rint= 0.037
Refinement
R[F2> 2(F2)] = 0.037
wR(F2) = 0.098
S= 1.03 4656 reflections 348 parameters
H atoms treated by a mixture of independent and constrained refinement
max= 0.24 e A˚ 3
[image:2.610.313.563.95.176.2]min=0.31 e A˚ 3

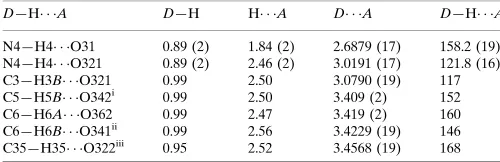

Table 1
Hydrogen-bond geometry (A˚ ,).
D—H A D—H H A D A D—H A
N4—H4 O31 0.89 (2) 1.84 (2) 2.6879 (17) 158.2 (19) N4—H4 O321 0.89 (2) 2.46 (2) 3.0191 (17) 121.8 (16) C3—H3B O321 0.99 2.50 3.0790 (19) 117 C5—H5B O342i
0.99 2.50 3.409 (2) 152 C6—H6A O362 0.99 2.47 3.419 (2) 160 C6—H6B O341ii
0.99 2.56 3.4229 (19) 146 C35—H35 O322iii
0.95 2.52 3.4568 (19) 168
Symmetry codes: (i)x1;y1;z; (ii)x;y1;z; (iii)xþ1;y;z.
H atoms were found in a difference map. The H atom bonded to nitrogen was refined freely and all other H atoms were refined using a riding model, with C—H = 0.95–0.99 A˚ andUiso(H) = 1.2Ueq(C) or
1.5Ueq(methyl C).
Data collection: X-AREA (Stoe & Cie, 2001); cell refinement:
X-AREA; data reduction: X-AREA; program(s) used to solve structure:SHELXS97(Sheldrick, 1997); program(s) used to refine structure:SHELXL97(Sheldrick, 1997); molecular graphics:XPin
SHELXTL-Plus(Sheldrick, 1991); software used to prepare material for publication:SHELXL97andPLATON(Spek, 2003).
MAA thanks the University of Mysore for research facil-ities.
References
Allen, F. H. (2002).Acta Cryst.B58, 380–388. Blessing, R. H. (1995).Acta Cryst.A51, 33–38.
Bruno, I. J., Cole, J. C., Kessler, M., Luo Jie Motherwell, W. D. S., Purkis, L. H., Smith, B. R., Taylor, R., Cooper, R. I., Harris, S. E. & Orpen, A. G. (2004).J. Chem. Inf. Comput. Sci.44, 2133–2144.
Sheldrick, G. M. (1991).SHELXTL-Plus. Release 4.1. Siemens Analytical X-ray Instruments Inc., Madison, Wisconsin, USA.
Sheldrick, G. M. (1997). SHELXS97 and SHELXL97. University of Go¨ttingen, Germany.
Spek, A. L. (2003).J. Appl. Cryst.36, 7–13.
Stoe & Cie (2001).X-AREA. Stoe & Cie, Darmstadt, Germany.
Tedeschi, D. H., Benigni, J. P., Elder, C. J., Yeager, J. C. & Flanigan, J. V. (1958).
J. Pharmacol. Exp. Ther.123, 35–38.
supporting information
sup-1 Acta Cryst. (2007). E63, o1691–o1692
supporting information
Acta Cryst. (2007). E63, o1691–o1692 [https://doi.org/10.1107/S1600536807009877]
Mepazinium picrate
H. S. Yathirajan, M. A. Ashok, B. Narayana Achar and Michael Bolte
1-methyl-3-(10H-phenothiazin-10-ylmethyl)piperidinium 2,4,6-trinitrophenolate
Crystal data
C19H23N2S+·C6H2N3O7−
Mr = 539.56 Triclinic, P1 Hall symbol: -P 1
a = 8.3584 (9) Å
b = 10.7782 (9) Å
c = 14.5062 (13) Å
α = 93.524 (7)°
β = 99.629 (8)°
γ = 102.419 (7)°
V = 1251.8 (2) Å3
Z = 2
F(000) = 564
Dx = 1.431 Mg m−3
Mo Kα radiation, λ = 0.71073 Å Cell parameters from 11665 reflections
θ = 3.6–25.7°
µ = 0.19 mm−1
T = 173 K Block, yellow
0.45 × 0.45 × 0.40 mm
Data collection
Stoe IPDSII two-circle diffractometer
Radiation source: fine-focus sealed tube Graphite monochromator
ω scans
Absorption correction: multi-scan
(MULABS; Spek, 2003; Blessing, 1995)
Tmin = 0.911, Tmax = 0.920
12751 measured reflections 4656 independent reflections 3824 reflections with I > 2σ(I)
Rint = 0.037
θmax = 25.6°, θmin = 3.5°
h = −10→9
k = −13→13
l = −17→17
Refinement
Refinement on F2
Least-squares matrix: full
R[F2 > 2σ(F2)] = 0.037
wR(F2) = 0.098
S = 1.03 4656 reflections 348 parameters 0 restraints
Primary atom site location: structure-invariant direct methods
Secondary atom site location: difference Fourier map
Hydrogen site location: inferred from neighbouring sites
H atoms treated by a mixture of independent and constrained refinement
w = 1/[σ2(F
o2) + (0.0554P)2 + 0.2289P]
where P = (Fo2 + 2Fc2)/3
(Δ/σ)max < 0.001
Δρmax = 0.24 e Å−3
Δρmin = −0.31 e Å−3
Extinction correction: SHELXL97, Fc*=kFc[1+0.001xFc2λ3/sin(2θ)]-1/4
Special details
Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full
covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.
Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2,
conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used
only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2
are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.
Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2)
x y z Uiso*/Ueq
S1 0.02175 (7) 0.37989 (5) 0.35523 (3) 0.04206 (15) N1 0.28825 (18) 0.24026 (12) 0.40629 (9) 0.0268 (3) C1 0.3945 (2) 0.14854 (15) 0.40418 (11) 0.0281 (4)
H1A 0.3353 0.0661 0.4218 0.034*
H1B 0.4974 0.1801 0.4519 0.034*
C2 0.4430 (2) 0.12556 (14) 0.30814 (11) 0.0237 (3)
H2 0.5123 0.2071 0.2933 0.028*
C3 0.28805 (19) 0.08374 (14) 0.23111 (11) 0.0224 (3)
H3A 0.2160 0.0047 0.2460 0.027*
H3B 0.2238 0.1510 0.2280 0.027*
N4 0.33760 (16) 0.05998 (12) 0.13795 (9) 0.0217 (3) H4 0.402 (3) 0.132 (2) 0.1256 (14) 0.041 (6)* C5 0.4332 (2) −0.04426 (14) 0.13991 (12) 0.0298 (4)
H5A 0.4653 −0.0579 0.0781 0.036*
H5B 0.3614 −0.1251 0.1522 0.036*
C6 0.5888 (2) −0.00758 (16) 0.21622 (13) 0.0329 (4)
H6A 0.6661 0.0675 0.1997 0.039*
H6B 0.6460 −0.0791 0.2195 0.039*
C7 0.5469 (2) 0.02409 (15) 0.31244 (13) 0.0312 (4)
H7A 0.6514 0.0558 0.3589 0.037*
H7B 0.4838 −0.0544 0.3335 0.037*
C8 0.1906 (2) 0.03098 (15) 0.06006 (12) 0.0298 (4)
H8A 0.1321 0.1006 0.0605 0.045*
H8B 0.1149 −0.0489 0.0685 0.045*
H8C 0.2277 0.0221 −0.0001 0.045*
C11 0.2373 (3) 0.44361 (16) 0.35978 (11) 0.0330 (4) C12 0.3513 (2) 0.36750 (14) 0.38561 (11) 0.0275 (4) C13 0.5205 (2) 0.41886 (15) 0.38934 (11) 0.0322 (4)
H13 0.5990 0.3696 0.4094 0.039*
C14 0.5765 (3) 0.54132 (16) 0.36413 (12) 0.0400 (5)
H14 0.6920 0.5744 0.3660 0.048*
C15 0.4627 (3) 0.61440 (17) 0.33643 (13) 0.0466 (5)
H15 0.5000 0.6973 0.3182 0.056*
C16 0.2945 (3) 0.56665 (17) 0.33535 (12) 0.0435 (5)
