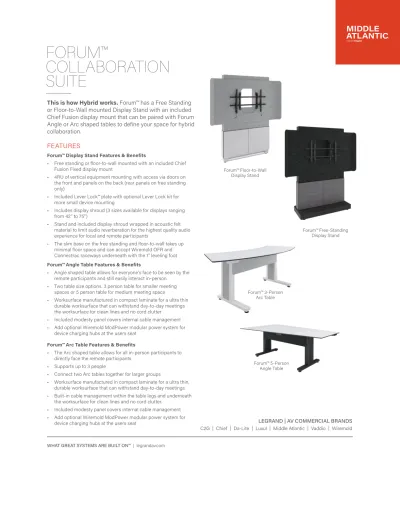

FORUM COLLABORATION SUITE

(1)

WHAT GREAT SYSTEMS ARE BUILT ON™ | legrandav.com

LEGRAND | AV COMMERCIAL BRANDS

Forum™ Display Stand Features & Benefits

• Free standing or floor-to-wall mounted with an included Chief Fusion Fixed display mount

• 4RU of vertical equipment mounting with access via doors on the front and panels on the back (rear panels on free standing only)

• Included Lever Lock™ plate with optional Lever Lock kit for more small device mounting

• Includes display shroud (3 sizes available for displays ranging from 42” to 75”)

• Stand and included display shroud wrapped in acoustic felt material to limit audio reverberation for the highest quality audio experience for local and remote participants

• The slim base on the free standing and floor-to-wall takes up minimal floor space and can accept Wiremold OFR and Connectrac raceways underneath with the 1” leveling foot Forum™ Angle Table Features & Benefits

• Angle shaped table allows for everyone’s face to be seen by the remote participants and still easily interact in-person

• Two table size options. 3 person table for smaller meeting spaces or 5 person table for medium meeting space

• Worksurface manufactured in compact laminate for a ultra thin durable worksurface that can withstand day-to-day meetings the worksurface for clean lines and no cord clutter

• Included modesty panel covers internal cable management

• Add optional Wiremold ModPower modular power system for device charging hubs at the users seat

Forum™ Arc Table Features & Benefits

• The Arc shaped table allows for all in-person participants to directly face the remote participants

• Supports up to 3 people

• Connect two Arc tables together for larger groups

• Worksurface manufactured in compact laminate for a ultra thin, durable worksurface that can withstand day-to-day meetings

• Built-in cable management within the table legs and underneath the worksurface for clean lines and no cord clutter.

• Included modesty panel covers internal cable management

• Add optional Wiremold ModPower modular power system for device charging hubs at the users seat

FEATURES

This is how Hybrid works. Forum™ has a Free Standing or Floor-to-Wall mounted Display Stand with an included Chief Fusion display mount that can be paired with Forum Angle or Arc shaped tables to define your space for hybrid collaboration.

Forum™ Floor-to-Wall Display Stand

Forum™ 5-Person Angle Table Forum™ 3-Person

Arc Table

FORUM™

COLLABORATION SUITE

Forum™ Free-Standing Display Stand

(2)

LEGRAND | AV COMMERCIAL BRANDS

SPECIFICATIONS

The Forum Display Stand shall be Middle Atlantic Products model #_____ (refer to chart). The Forum Display Stand shall be offered in free standing or floor-to-wall mounted versions. Overall dimensions of the Forum Display Stand shall be __”H x__” W x __”D (see drawing). The Forum Display Stand display height shall be from __ to __ (refer to chart). The Forum Display Stand shall include a Chief Fusion Display Mount supporting up to a 75” display and supports 150lbs. The Forum Display Stand shall have pre-installed leveling glides. The Forum Display Stand shall have a ______ (refer to chart) finish. The Forum Display Stand shall include a display shroud. The Forum Display Stand shall have a steel subframe.

The Forum Display Stand shall have a acoustic felt made from polyethylene terephthalate (PET) covering (Upper 2/3) and compact laminate (lower 1/3). The Forum Display Stand shall provide 2x 2 rackspace verticala mounting (4RU total) with a maximum of __” usable depth (refer to drawing) and 100lbs weight capacity (50lbs per bay). The Forum Display Stand shall include a Lever Lock system: (LL-VP2110). To add more Leverlock in the same area, see the option Lever Lock kit (DSA-DW-LLKIT1).

The Forum Display Stand shall have knockouts for six AVIP panels and two Single Gang Box knockouts. The Forum Display Stand shall accommodate one display and have horizontal VESA mounting patterns of 300, 400, 500, 600 and 800, and a vertical VESA pattern of 100, 200, 300 and 400. The Forum Display Stand shall have an overall weight capacity of 190 lb., with no more than 175 lb. for the monitor and 50 lb. mounted inside. The Forum Display Stand shall be warrantied to be free from defects in material or workmanship under normal use and conditions for 10 years, sheet metal components shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. The Forum Display Stand shall be manufactured by an ISO 9001 and ISO 14001 registered company.

The Forum Table shall be Middle Atlantic Products model # ________ (refer to chart). The Forum Table shall include a worksurface constructed of .5” thick compact laminate. The Forum Angle Table shall be __” wide and __” long (refer to drawing) and 30” or 38” from the floor. Worksurface to have a compact laminate finish with a black edge. The Forum Arc Table shall be 87.34” wide and 33” deep and 30” or 38” from the floor. Worksurface to have a compact laminate finish with a black edge. The Forum Table shall include integrated cable management on the underside of the worksurface to route cables. Steel components shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. Compact Laminate components shall be warrantied to be free from defects in material or workmanship under normal use and conditions for a period of 10 years, sheet metal components shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.. The Forum Angle and Arc Tables shall be manufactured by an ISO 9001 and ISO 14001 registered company.

For specifications on the acoustic felt made from polyethylene terephthalate (PET) please visit https://www.focalpointlights.com/reference

FORUM™

COLLABORATION

SUITE

(3)

LEGRAND | AV COMMERCIAL BRANDS

SEE PAGE 3 FOR SCREEN SIZES AND ADDITIONAL SHROUD DIMS.

48.00 1219 1.13 29

17.27 439 13.06 332

1.00 25 A A

FILLER PANEL MOUNTED TOP OR BOTTOM

KNOCKOUT FOR CABLE PASS THROUGH 4.00 102

BACK OF DISPLAY TO WALL

22.00 559

C 3.50 89

2 RACK UNITS

SECTION A-A

20.82 529 89.63 2277

12.89 327 MAX. RACKRAIL USABLE DEPTH

DETAIL C DOORS OPEN

SEE NOTE 3 FRONT VIEW

74.50 1892

A

BRUSH GROMMET

2X LIFT OFF LOCKING ACCESS PANELS

2.38 60

3X 2.37 60 X4.66 118 OB CABLE PASS THROUGH

DETAIL A 2 PLACES SCALE 1 : 8

SINGLE GANG BOX KNOCKOUTS 3X AVIP KNOCKOUTS

B

DETAIL B REAR PANEL REMOVED

SCALE 1 : 16 INCLUDED LL-VP2110 CAN BE MOUNTED IN 5 VERTICAL POSTIONS, BOTH FRONT OR BACK OF INTERNAL CHANNEL

NOTE(S):

1. ALL DIMENSIONS SHOWN IN FORMAT:

INCHES [MILLIMETERS]

2. INCLUDED DISPLAY MOUNT WEIGHT CAPACITY: 150 LBS (68 KGS) 3. SLIDING DOORS TO ACCESS 2 BAY 2 RU VERTICAL EQUIPMENT MOUNTING (SECTION A-A). WEIGHT CAPACITY: 50 LBS (22 KGS) PER BAY 4. LEVELING FOOT ADJUSTMENT ALLOWS FOR

USE OF CONNECTTRAC OR WIREMOLD OVER FLOOR RACEWAY. FLOOR CLEARANCE MIN: 0.42 [10] MAX: 2.15 [54]

BACK VIEW LEFT VIEW

BOTTOM VIEW

REV DESCRIPTION REV BY REV DATE APP'D BY DATE APP

A PRODUCTION RELEASE /// ///// JP 06/24/21

NUMBERPART COMPACT

LAMINATE COLOR ACOUSTIC FELT (PET) COLOR TOWER

INCLUDED SHROUD

INCLUDED FRAME COLOR DS-1-FS-M-BK ASIAN NIGHT CHARCOAL GRAY DS-1-FS-BK SRD-1-M-BK BLACK DS-1-FS-L-BK ASIAN NIGHT CHARCOAL GRAY DS-1-FS-BK SRD-1-L-BK BLACK DS-1-FS-XL-BK ASIAN NIGHT CHARCOAL GRAY DS-1-FS-BK SRD-1-XL-BK BLACK DS-1-FS-M-WH DESIGNER WHITE SILVER GRAY DS-1-FS-WH SRD-1-M-WH WHITE DS-1-FS-L-WH DESIGNER WHITE SILVER GRAY DS-1-FS-WH SRD-1-L-WH WHITE DS-1-FS-XL-WH DESIGNER WHITE SILVER GRAY DS-1-FS-WH SRD-1-XL-WH WHITE

3

SPECIFICATIONS

FORUM™

COLLABORATION

SUITE

(4)

SEE PAGE 3 FOR SCREEN SIZES AND ADDITIONAL SHROUD DIMS.

46.00 1168 13.06 332

17.27 439

1.00 25 B B

FILLER PANEL MOUNTED TOP OR BOTTOM

KNOCKOUT FOR CABLE PASS THROUGH

5.94 151

5.00 127

F 3.50 89

2 RACK UNITS

SECTION B-B

89.63 2277

16.66 [423]

RACKRAIL USABLE DEPTH

21.82 554 DETAIL F

DOORS OPEN SEE NOTE 3

74.50 1892

D

BRUSH GROMMET

4X MOUNTING SLOTS LEFT OR RIGHT SLOTS MUST ALIGN WITH WALL STUD

2.38 60

3X 2.37 60 X4.66 118 OB CABLE PASS THROUGH

DETAIL D 2 PLACES SCALE 1 : 8 3X AVIP KNOCKOUTS

SINGLE GANG KNOCKOUT FOR USE WITH RACO 440 BOX

E

DETAIL E SCALE 1 : 16 INCLUDED LL-VP2110 CAN BE MOUNTED IN 5 VERTICAL POSTIONS, BOTH FRONT OR BACK OF INTERNAL CHANNEL

NOTE(S):

2. INCLUDED DISPLAY MOUNT WEIGHT CAPACITY: 150 LBS (68 KGS) 3. SLIDING DOORS TO ACCESS 2 BAY 2 RU VERTICAL EQUIPMENT MOUNTING (SECTION A-A). WEIGHT CAPACITY: 50 LBS (22 KGS) PER BAY 4. LEVELING FOOT ADJUSTMENT ALLOWS FOR

USE OF CONNECTTRAC OR WIREMOLD OVER FLOOR RACEWAY. FLOOR CLEARANCE MIN: 1.00 [25] MAX: 2.67 [67]

BACK VIEW FRONT VIEW

BOTTOM VIEW LEFT VIEW

NUMBERPART COMPACT

LAMINATE COLOR ACOUSTIC FELT (PET) COLOR TOWER

INLCUDED SHROUD

INCLUDED FRAME COLOR DS-1-FTW-M-BK ASIAN NIGHT CHARCOAL GRAY DS-1-FTW-BK SRD-1-M-BK BLACK DS-1-FTW-L-BK ASIAN NIGHT CHARCOAL GRAY DS-1-FTW-BK SRD-1-L-BK BLACK DS-1-FTW-XL-BK ASIAN NIGHT CHARCOAL GRAY DS-1-FTW-BK SRD-1-XL-BK BLACK DS-1-FTW-M-WH DESIGNER WHITE SILVER GRAY DS-1-FTW-WH SRD-1-M-WH WHITE DS-1-FTW-L-WH DESIGNER WHITE SILVER GRAY DS-1-FTW-WH SRD-1-L-WH WHITE DS-1-FTW-XL-WH DESIGNER WHITE SILVER GRAY DS-1-FTW-WH SRD-1-XL-WH WHITE

SPECIFICATIONS

FORUM™

COLLABORATION

SUITE

(5)

LEGRAND | AV COMMERCIAL BRANDS

5

ACOUSTIC FELT (PET) FRONT PANEL, MAGNETIC ATTACHMENT INCLUDED ON BOTH FREE STANDING AND

FLOOR-TO-WALL SKUS

ACOUSTIC FELT (PET) REAR PANEL, MAGNETIC ATTACHMENT INCLUDED ONLY ON FREE STANDING SKUS

G

FRONT VIEW SHROUD REMOVED FOR CLARITY

MIDDLE OF DISPLAY HEIGHT

SEE NOTE 3

DSA-DW-LLKIT1 LEVERLOCK OPTION CAN BE INSTALLED LEFT OR RIGHT CHANNEL

BACK VIEW

"A"

SHROUD WIDTH

"B"

SHROUD HEIGHT

14.50 368 22.00 559

2.00 51

DETAIL G SCALE 1 : 10

MARKING DENOTES 54.00 [1371]

MIDDLE OF DISPLAY HEIGHT ADJUSTMENTS UP AND DOWN IN 2" INCREMENTS

78.44 1992

42.77 1086 61.01 1550

32.96 837

NOTE(S):

2. CHIEF FIXED FUSION DISPLAY MOUNT WEIGHT CAPACITY: 150LBS (68 KGS)

COMPATIBLE VESA MOUNTING PATTERNS: 100mm X 100mm - 870mm X 500mm WORKS WITH CHIEF FUSION ACCESSORIES, SEE LEGRANDAV.COM FOR COMPLETE LIST OF SKU'S

3. MIDDLE OF DISPLAY HEIGHT(2" INCREMENTS):

MINIMIUM HEIGHT: 44.00 [1117]

MAXIMUM HEIGHT: 62.00 [1574]

4. DSA-DW-LLKIT1 INCLUDES 1X LL-VP2110

NUMBERPART "A"

SHORUD WIDTH "B"

SHROUD HEIGHT RECOMMENDED DISPLAY SIZE COLOR SRD-1-M-BK 61.01 1550 32.96 837 42"-55" CHARCOAL GRAY SRD-1-L-BK 69.72 1771 37.87 962 55"-65" CHARCOAL GRAY SRD-1-XL-BK 78.44 1992 42.77 1086 65"-75" CHARCOAL GRAY SRD-1-M-WH 61.01 1550 32.96 837 42"-55" SILVER GRAY SRD-1-L-WH 69.72 1771 37.87 962 55"-65" SILVER GRAY SRD-1-XL-WH 78.44 1992 42.77 1086 65"-75" SILVER GRAY

SPECIFICATIONS

FORUM™

COLLABORATION

SUITE

(6)

OPTIONAL WIREMOLD MODPOWER™

ACCESSORIES INSTALLED (SEE NOTE 3) 90.00 2286

12.00 [304] ACOUSTIC FELT (PET) MODESTY PANEL

52.75 1340 4X CABLE KNOCKOUT

SIDE VIEW

53.74 1365 32.23 819

H

SEE NOTE 2

BOTTOM VIEW

WORKSURFACE HEIGHT

1.00 25 LKO

FRONT VIEW

ACOUSTIC FELT (PET) CABLE MANAGEMENT INSERT

2X 0.12 3 1.70 43

DETAIL H 8 LOCATIONS

SCALE 1 : 2 NOTE(S):

2. THIS AREA AVAILABLE FOR CUSTOM TABLEBOX CUTOUT;

CONTACT CUSTOMER CARE, TABLETOP NOT FIELD MODIFIABLE 3. OPTIONAL WIREMOLD MODPOWER™ ACCESSORIES;

START: MDSA10-WH CENTER: MDCA3-WH END: MDEA3-WH SEE DETAIL H FOR PRE-DRILLED MOUNTING PATTERN/LOCATIONS MAXIMUM DISTANCE BETWEEN UNITS: 72.00 [1828]

FRONT VIEW WIREMOLD MODPOWER™ ACCESSORIES

SEE NOTE 3

NUMBERPART WORKSURFACE

HEIGHT ACOUSTIC FELT (PET) COLOR FRAME

COLOR RECOMMENDED

NUMBER OF SEATS

TBL-ANG-5P-SH-WW 30.00 762 SILVER GRAY WHITE 5

TBL-ANG-5P-CH-WW 38.00 965 SILVER GRAY WHITE 5

TBL-ANG-5P-SH-WB 30.00 762 CHARCOAL GRAY BLACK 5

TBL-ANG-5P-CH-WB 38.00 965 CHARCOAL GRAY BLACK 5

SPECIFICATIONS

FORUM™

COLLABORATION

SUITE

(7)

LEGRAND | AV COMMERCIAL BRANDS

7

ACCESSORIES INSTALLED (SEE NOTE 3) 59.00 1499

53.59 1361 32.34 821

J

SEE NOTE 2

WORKSURFACE HEIGHT

1.00 25 LKO

ACOUSTIC FELT (PET CABLE MANAGEMENT INSERT FRONT VIEW

WIREMOLD MODPOWER™ ACCESSORIES SEE NOTE 3

2X 0.12 3 1.70 43

DETAIL J 6 LOCATIONS

SCALE 1 : 2 NOTE(S):

START: MDSA10-WH CENTER: MDCA3-WH END: MDEA3-WH SEE DETAIL J FOR PRE-DRILLED MOUNTING PATTERN/LOCATIONS MAXIMUM DISTANCE BETWEEN UNITS: 72.00 [1828]

SIDE VIEW

BOTTOM VIEW

FRONT VIEW

COLOR RECOMMENDED

NUMBER OF SEATS

TBL-ANG-3P-SH-WW 30.00 762 SILVER GRAY WHITE 3

TBL-ANG-3P-CH-WW 38.00 965 SILVER GRAY WHITE 3

TBL-ANG-3P-SH-WB 30.00 762 CHARCOAL GRAY BLACK 3

TBL-ANG-3P-CH-WB 38.00 965 CHARCOAL GRAY BLACK 3

SPECIFICATIONS

FORUM™

COLLABORATION

SUITE

(8)

ACCESSORIES INSTALLED (SEE NOTE 3)

87.34 2218

FRONT VIEW

33.39 848

WORKSURFACE HEIGHT

1.00 25 LKO

ACOUSTIC FELT (PET) CABLE MANAGEMENT INSERT

27.00 686 K M

SEE NOTE 2 BOTTOM VIEW

P

DETAIL M JOINING MULTIPLE ARCS TOGETHER

2X 0.12 3 1.70 43

DETAIL K 5 LOCATIONS

SCALE 1 : 2

38.00 965 30.00 762

NOTE(S):

START: MDSA10-WH CENTER: MDCA3-WH END: MDEA3-WH SEE DETAIL K FOR PRE-DRILLED MOUNTING PATTERN/LOCATIONS MAXIMUM DISTANCE BETWEEN UNITS: 72.00 [1828]

SIDE VIEW FRONT VIEW WIREMOLD MODPOWER™ ACCESSORIES

SEE NOTE 3

COLOR RECOMMENDED

NUMBER OF SEATS

TBL-ARC-3P-SH-WW 30.00 762 SILVER GRAY WHITE 3

TBL-ARC-3P-CH-WW 38.00 965 SILVER GRAY WHITE 3

TBL-ARC-3P-SH-WB 30.00 762 CHARCOAL GRAY BLACK 3

TBL-ARC-3P-CH-WB 38.00 965 CHARCOAL GRAY BLACK 3
