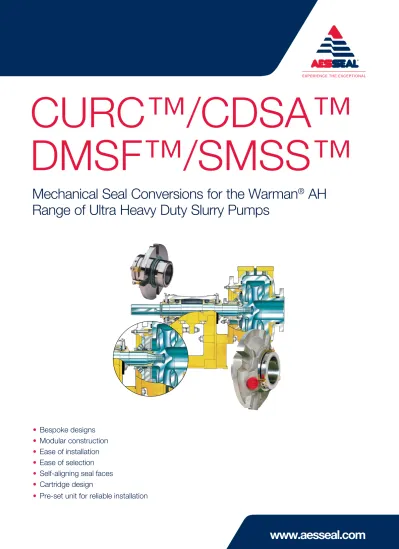

CURC™/CDSA™
DMSF™/SMSS™
Mechanical Seal Conversions for the Warman
®AH Range of Ultra Heavy Duty Slurry Pumps
• Bespoke designs
• Modular construction
• Ease of installation
• Ease of selection
• Self-aligning seal faces
• Cartridge design
• Pre-set unit for reliable installation
Mechanical seal conversions to:
CURC™, CDSA™, DMSF™ and SMSS™
Optimum seal performance via seal plate design.
• Designed for optimum seal environment
CURC™
• Self-aligning seal faces
• Cartridge design
• Pre-set unit for reliable installation
• Carbon restriction bushing
• Flush, quench and drain ports
• No shaft fretting
• Balanced seal faces
• Non-clogging internal rotary
CDSA™
• No requirement for external flushes
• Self-aligning seal faces inboard and outboard
• Cartridge design
• Pre-set unit for reliable Installation
• No shaft fretting
• Non-clogging internal rotary
SMSS™
• Patent pending design
• Cartridge seal
• Stationary design
• Monolithic seal faces
• Tangential flush ports
• Hydraulically balanced seal face design
DMSF™
• Incorporates a bi-directional pumping scroll (patent pending)
• Directional barrier fluid cooling with the use of a deflector
• Stationary design
• Monolithic seal faces
• Designed to withstand barrier and process pressure fluctuations
• Double pressure and hydraulically balanced seal faces
Unique patented bi-metal design available in the following exotic alloys (wetted parts).
Alloy 20, Alloy B, Alloy 276, titanium, monel and Alloy 255.
Any additional commercially available special alloys can be made to order.
Conversion parts available from AESSEAL
®One Housing Two Seals Four options
• Single
• Double
• Tandem
• Quench & drain
A
B
Elastomer Frame Plate Liner
Expeller Ring Seal
1
3
2
C
Conversion parts available from Warman
®Metallic Frame Plate Liner Insert
AESSEAL
®conversion parts and part numbering
• All parts available ex-stock from AESSEAL®
Pump Type
A Full Kit Product Code
(see note)
Seal Plate
Product Code Sleeve
Product Code 1.5 / 1 BAH†
2 / 1.5 BAH† 1WA001/B-MC23 1WP002/B200-52C23 1WS001/B424MC23
3 / 2 CAH† 1WA002/C-MC23 1WP002/C200-52C23 1WS002/C424MC23
4 / 3 CAH 1WA003/CAM-MC23 1WP003/CAM200-52C23 1WS003/CAM424MC23
4 / 3 CAH 1WA004/D-MC23 1WP004/D200-52C23 1WS004/D424MC23
6 / 4 DAH 1WA005/DAM-MC23 1WP005/DAM200-52C23 1WS005/DAM424MC23 6 / 4 EAH 1WA006/E-MC23 1WP006/E200-52-C23 1WS006/E424MC23 8 / 6 EAH 1WA007/EAM-MC23 1WP007/EAM200-52C23 1WS007/EAM424MC23
B C
A
NOTE:
Where a † is used next to pump type, a standard DMSFTM will not fit without modification. Contact the AESSEAL® Technical Department for more information.
Conversion Kits available for other pump sizes within the AH range.
Please contact AESSEAL® for further details. Special designs also available.
NOTE: Parts supplied in the kit are:
1 x Backplate 1 x Sleeve
2 x Sleeve ‘O’ Rings 4 x Studs
4 x Washers 4 x Nuts
• Available via AESSEAL®
• For more information contact:
AESSEAL plc Rotherham UK. AESSEAL Inc. Rockford USA
Telephone: +44 (0) 1709 369966 Telephone: +1 865 531 0192
Warman
®conversion parts and part numbering
Pump Type Open Rubber Frame
Plate Liner Open Metallic Frame
Plate Liner Insert Closed Rubber Frame
Plate Liner Insert ** Closed Metallic Frame
Plate Liner Insert ** Expeller Ring Seal * 1.5 / 1 BAH B1036MS1M--- B1041MS1--- B1036M--- *** B1041--- ***
B122--- 2 / 1.5 BAH B15036MS1M--- B15041MS1--- B15036M--- *** B15041--- ***
3 / 2 CAH C2036MS1M--- C2041MS1--- C2036M--- C2041--- C122--- 4 / 3 CAH
D3036MS1M--- D3041MS1--- D3036M--- D3041--- D122---
4 / 3 DAH 6 / 4 DAH
E4036MS1M--- E4041MS1M--- E4036M--- E4041M--- E122---
6 / 4 EAH
8 / 6 EAH F6036MS1M --- F6041MS1M--- F6036M--- F6041M--- F122---
* Expeller Ring Seals are only to be used with Metallic Frame Plate Liner Inserts
** Only to be used with dual seals
*** Seal must be Z5490 details available on request.
--- Warman® material code, Please contact Warman® International Sales Department for further details.
Complete conversion kits available - See overleaf Warman
®AH ultra heavy duty slurry pump
Pump
Type Seal
Size
1.5 / 1 BAH 50mm
2 / 1.5 BAH 50mm
3 / 2 CAH 60mm
4 / 3 CAH 60mm
4 / 3 DAH 85mm
6 / 4 DAH 85mm
6 / 4 EAH 100mm
8 / 6 EAH 100mm
One Fousing Multi Liner Options
Complete environmental control management systems available
SYSTEM W2
DRAIN
QUENCH
MAX 1 METER SEAL
MAX 2 METER
MIN LIQUI D LEVEL
DRAIN
QUENCH
MAX 1 METER SEAL
MAX 2 METER
MIN LIQUI D LEVEL
VSE/SW02 VSE/SP02
