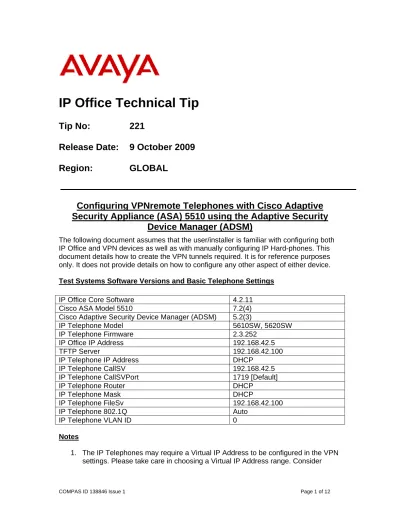

IP Office Technical Tip
Tip No:
221
Release Date: 9 October 2009
Region:
GLOBAL
Configuring VPNremote Telephones with Cisco Adaptive
Security Appliance (ASA) 5510 using the Adaptive Security
Device Manager (ADSM)
The following document assumes that the user/installer is familiar with configuring both IP Office and VPN devices as well as with manually configuring IP Hard-phones. This document details how to create the VPN tunnels required. It is for reference purposes only. It does not provide details on how to configure any other aspect of either device.
Test Systems Software Versions and Basic Telephone Settings
IP Office Core Software 4.2.11 Cisco ASA Model 5510 7.2(4) Cisco Adaptive Security Device Manager (ADSM) 5.2(3)
IP Telephone Model 5610SW, 5620SW IP Telephone Firmware 2.3.252 IP Office IP Address 192.168.42.5 TFTP Server 192.168.42.100 IP Telephone IP Address DHCP IP Telephone CallSV 192.168.42.5 IP Telephone CallSVPort 1719 [Default]
IP Telephone Router DHCP IP Telephone Mask DHCP IP Telephone FileSv 192.168.42.100 IP Telephone 802.1Q Auto IP Telephone VLAN ID 0 Notes
where the telephone is most likely to be used and ensure that the Virtual IP Range selected will not conflict. For instance, many VPNremote Telephones may be installed at user’s homes. Typically a Home Router uses 192.168.0.x or 192.168.1.x as its internal network range; therefore it is recommended that this is not used as a Virtual IP Address Range.
2. Review the Sample 46vpnsetting.txt file for simplifying configuration settings on the IP Telephones
3. While the defaults for Encryption are set at 4500-4500 and these settings do work in most configurations, there may be instances where depending on what the VPN Router and the Home router supports, the user may need to either amend or disable this setting.
IP Office Configuration
Using IP Office Manager, Open the Configuration and select IP Routes. Add a New IP Route for the Virtual LAN Network to be used in the environment.
Networking Scenario:
Cisco Adaptive Security Appliance (ASA) Configuration
1) From the Adaptive Security Device Manager (ADSM) home screen, select the
Encryption algorithms other than DES require the installation of an enhanced encryption license from Cisco.
3) Keep the default selection of Cisco VPN Client, Release 3.x or higher, or other
VPN Remote Product. Click Next to continue.
4) Select the Pre-shared Key Authentication Method. Enter your Pre-shared Key
and Tunnel Group Name to be used by the Avaya VPNremote Telephones. Click
5) The internal ASA user authentication database is used in this document. Select the Authenticate using the local user database and click Next to continue.
7) Click the New button to create a new IP Address pool. Enter the pool name and
the IP Address range to be assigned to VPNremote Telephones as the Virtual IP Address. This address range must not overlap with any addresses on the private enterprise network and must be routable within the enterprise network. Click OK and then click Next to continue.
9) Select the IKE security association parameters that you want to use from the drop down lists. Here 3DES, MD5 and 2 are used. Click Next to continue.
11) Accept the default Address Translation Exemption and Split Tunneling options and click Next to continue.
14) If the VPNremote Telephone extensions on the IP Office are configured to allow direct media path, then the following must be done. Navigate to Configuration >
VPNremote Telephone Configuration
Below are the parameters to be configured in the VPNremote telephones. Please refer to Technical Tip 205 – VPN Telephone Deployment Guide for IP Office on how to configure these parameters.
Configuration Options Value Description
VPN Profile Cisco Xauth with PSK VPN configuration profile
Server 10.1.10.52 IP address of the ASA outside interface User Name vpnuser1 User created in the ASDM VPN Wizard Password 1234567890 Password created in the wizard for the
User
Group Name vpnphone2 Group name created in the wizard Group PSK 1234567890 Pre-shared key created in the wizard for
the Group
IKE Parameters
IKE ID Type KEY-ID Specifies the format of the Group Name Diffie Hellman Group 2 Can be set to “Detect” to accept ASA
settings
Encryption ALG 3DES Can be set to “Any” to accept ASA settings
settings
IKE Xchange Mode Aggressive Mode used for Phase 1 negotiations IKE Config Mode Enable Enables IKE
Xauth Enable Cert Expiry Check Disable
Cert DN Check Disable
IPSEC Parameters
Encryption ALG AES-128 Can be set to “Any” to accept ASA settings
Authentication ALG SHA1 Can be set to “Any” to accept ASA settings
Diffie Hellman Group 2 Can be set to “Detect” to accept ASA settings
VPN Start Mode BOOT IPSec tunnel dynamically starts on phone power up
Password Type Save in Flash Saves password in flash so that user is not prompted at phone boot up
Encapsulation 4500 – 4500 Default value to enable NAT Traversal
Protected Nets
Virtual IP
Remote Net #1 0.0.0.0/0 Access to all private nets Remote Net #2
Remote Net #3
Copy TOS Yes Re-write TOS bit value to outside IP Header for QOS
File Srvr 192.168.42.100 TFTP/HTTP file server
Connectivity Check Always Frequency of connectivity check
