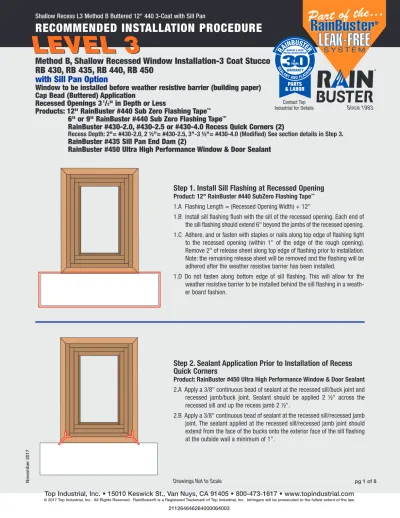

RECOMMENDED INSTALLATION PROCEDURE LEVEL 3

(1)

b

er

2

01

7

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Window to be installed before weather resistive barrier (building paper)

Cap Bead (Buttered) Application

Recessed Openings 3

1

_/

2

" in Depth or Less

Products: 12" RainBuster #440 Sub Zero Flashing Tape

™

6" or 9" RainBuster #440 Sub Zero Flashing Tape

™

RainBuster #430-2.0, #430-2.5 or #430-4.0 Recess Quick Corners (2)

Recess Depth: 2"= #430-2.0, 2 ½"= #430-2.5, 3"-3 ½"= #430-4.0 (Modified) See section details in Step 3.

RainBuster #435 Sill Pan End Dam (2)

RainBuster #450 Ultra High Performance Window & Door Sealant

RECOMMENDED INSTALLATION PROCEDURE

LEVEL 3

Contact Top

Industrial for Details Since 1983

Shallow Recess L3 Method B Buttered 12" 440 3-Coat with Sill Pan

Step 2. Sealant Application Prior to Installation of Recess

Quick Corners

Product: RainBuster #450 Ultra High Performance Window & Door Sealant

2.A Apply a 3/8" continuous bead of sealant at the recessed sill/buck joint and recessed jamb/buck joint. Sealant should be applied 2 ½" across the recessed sill and up the recess jamb 2 ½".

2.B Apply a 3/8" continuous bead of sealant at the recessed sill/recessed jamb joint. The sealant applied at the recessed sill/recessed jamb joint should extend from the face of the bucks onto the exterior face of the sill flashing at the outside wall a minimum of 1".

Step 1. Install Sill Flashing at Recessed Opening

Product: 12" RainBuster #440 SubZero Flashing Tape™

1.A Flashing Length = (Recessed Opening Width) + 12"

1.B Install sill flashing flush with the sill of the recessed opening. Each end of the sill flashing should extend 6" beyond the jambs of the recessed opening. 1.C Adhere, and or fasten with staples or nails along top edge of flashing tight to the recessed opening (within 1" of the edge of the rough opening). Remove 2" of release sheet along top edge of flashing prior to installation. Note: the remaining release sheet will be removed and the flashing will be adhered after the weather resistive barrier has been installed.

(2)

2

01

7

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Window to be installed before weather resistive barrier (building paper)

Cap Bead (Buttered) Application

Recessed Openings 3

1

_/

2

" in Depth or Less

Products: 12" RainBuster #440 Sub Zero Flashing Tape

™

6" or 9" RainBuster #440 Sub Zero Flashing Tape

™

RainBuster #430-2.0, #430-2.5 or #430-4.0 Recess Quick Corners (2)

RainBuster #435 Sill Pan End Dam (2)

RainBuster #450 Ultra High Performance Window & Door Sealant

Contact Top

Step 3. Install Recess Quick Corners at Recessed Sill Corners

Product: RainBuster #430-2.0, #430-2.5, or #430-4.0 Recess Quick Corners RainBuster #450 Ultra High Performance Window & Door Sealant

3.A Recess Depth: 2"= #430-2.0, 2 ½"= #430-2.5, 3"-3 ½"= #430-4.0 (Modified) See section details below.

3.B Apply a continuous 3/8" bead of sealant (L-shaped) to the backside of the out-side wall leg of the Recess Quick Corner insuring a continuous seal between the Recess Quick Corner and the flashing/framing.

3.C Position Recess Quick Corners firmly into buck/recessed sill/recessed jamb/ outside wall corners.

3.D Install Recess Quick Corner using nails or staples insuring secure attachment through vertical legs only.

Note: For 3"-3 ½" recess depths modify the #430-4.0 by cutting along the mid-depth cut line separating the outside corner portion from the inside corner portion. The outside corner portion should be installed prior to the inside corner portion. The inside corner portion should lap over the outside corner portion in a weather board (shingled) fashion.

430-2.0 430-2.5 430-4.0

2 x 6 wall with 2 x 4 bucks, 11_/₂_{" reveal with} 3" reveal option

Vertical Section Elevation

2 x 6 wall with 2 x 4 bucks & 7_/₁₆_"-1_/₂_{" sheathing,} 11_/₂_{" reveal with 3” reveal option}

Vertical Section Elevation Vertical Section Elevation

(3)

b

er

2

01

7

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Window to be installed before weather resistive barrier (building paper)

Cap Bead (Buttered) Application

Recessed Openings 3

1

_/

2

" in Depth or Less

Products: 12" RainBuster #440 Sub Zero Flashing Tape

™

6" or 9" RainBuster #440 Sub Zero Flashing Tape

™

RainBuster #430-2.0, #430-2.5 or #430-4.0 Recess Quick Corners (2)

RainBuster #435 Sill Pan End Dam (2)

RainBuster #450 Ultra High Performance Window & Door Sealant

RECOMMENDED INSTALLATION PROCEDURE

LEVEL 3

Contact Top

Step 4. Install Flashing at Recessed Sill Corners

Product: 12" RainBuster #440 Sub Zero Flashing Tape™

4.A Flashing Length = (Recessed Opening Depth) + 4"

4.B Adhere flashing across recessed sill, over Recess Quick Corners, and up recessed jamb maintaining 3" of adhesion to recessed sill and jamb. Press flashing firmly into inside corner eliminating any voids or wrinkles between the flashing and Recess Quick Corners.

4.C Make relief cut at corner allowing flashing to fold and adhere over outside wall sill and jamb.

4.D Using a J-Roller, apply pressure while rolling entire surface of flashing to insure adequate adhesion.

Step 5. Install Flashing on Recessed Sill

5.A Flashing Length = (Recessed Opening Width)

5.B Adhere two layers of flashing flush to the sill of the window rough opening, down wood blocking, across recessed sill, and over sill flashing (minimum 4" lap). Press flashing firmly into wood blocking/recessed sill corner elim-inating any voids or wrinkles.

5.C Using a J-Roller, apply pressure while rolling entire surface of flashing to insure adequate adhesion.

(4)

2

01

7

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Window to be installed before weather resistive barrier (building paper)

Cap Bead (Buttered) Application

Recessed Openings 3

1

_/

2

" in Depth or Less

Products: 12" RainBuster #440 Sub Zero Flashing Tape

™

6" or 9" RainBuster #440 Sub Zero Flashing Tape

™

RainBuster #430-2.0, #430-2.5 or #430-4.0 Recess Quick Corners (2)

RainBuster #435 Sill Pan End Dam (2)

RainBuster #450 Ultra High Performance Window & Door Sealant

Contact Top

Step 6. Install Sill Pan End Dams at Window Sill

Product: RainBuster #435 Sill Pan End Dam (2) & RainBuster #450 Ultra High Performance Window & Door Sealant

6.A Precut Sill Pan End Dam to window sill/jamb depth if depth is less than 3". 6.B Apply a 3/8" continuous bead of sealant to the backside of the outside wall leg of the Sill Pan End Dam, insuring a continuous seal between the Sill Pan End Dam and the flashing/framing.

6.C Position Sill Pan End Dam firmly into window sill/jamb corner and at jamb/head corner.

6.D Install Sill Pan End Dams using nails or staples insuring secure attachment through the vertical legs only.

6.E Modify (cut) Sill Pan End Dams to fit recess reveal at sill if reveal is less than 2".

Step 7. Install Window Sill Pan Flashing

Product: 6" or 9" RainBuster #440 Sub Zero Flashing Tape™

7.A Flashing Length = (Rough Opening Width) + 16"

7.B Install window sill pan flashing. The window sill pan flashing should extend the width of the rough opening + 8" up the jamb on each side of the rough opening. Flashing should extend a minimum of 1/2" past the interior face of the window after window is installed.

7.C Adhere window sill pan flashing across window sill, over Sill Pan End Dams, and up jambs. Press flashing firmly into inside corner eliminating any voids or wrinkles between the flashing and Sill Pan End Dams. 7.D Make relief cut at corner allowing flashing to fold and adhere over sill

flashing minimum 2" lap) and Sill Pan End Dam at jamb.

(5)

b

er

2

01

7

RECOMMENDED INSTALLATION PROCEDURE

LEVEL 3

Contact Top

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Window to be installed before weather resistive barrier (building paper)

Step 8. Install Jamb Flashing

8.A Flashing Length = (Recessed Opening Height) + 14"

8.B Position jamb flashing into recessed opening. Make 2" vertical relief cut at top of jamb flashing to allow flashing to fold onto bottom of header at wood blocking/recessed header/jamb corner.

8.C Adhere jamb flashing flush with the jamb of the window rough opening, over the wood blocking, onto the recessed header, across the recessed jamb, and onto the outside wall. Press jamb flashing firmly into corners eliminating any voids or wrinkles. Jamb flashing should extend 2" onto the recessed header and to within 1/2" or flush with the bottom edge of the sill flashing.

(6)

2

01

7

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Window to be installed before weather resistive barrier (building paper)

Cap Bead (Buttered) Application

Recessed Openings 3

1

_/

2

" in Depth or Less

Products: 12" RainBuster #440 Sub Zero Flashing Tape

™

6" or 9" RainBuster #440 Sub Zero Flashing Tape

™

RainBuster #430-2.0, #430-2.5 or #430-4.0 Recess Quick Corners (2)

RainBuster #435 Sill Pan End Dam (2)

RainBuster #450 Ultra High Performance Window & Door Sealant

Contact Top

Step 9. Install Integral Flanged Window

9.A Apply a 3/8" continuous bead of sealant to the backside of the window flange. Leave a 3" void in the sealant at each end of the window flange at the sill of the window. Apply sealant in line with the prepunched holes in the window flange.

9.B Sealant must be applied no longer than 20 minutes prior to installation of window.

9.C Install window per window manufacturer’s installation specifications insur-ing window is securely fastened and plumb, level, and square.

9.D Sealant squeeze out should be visible around perimeter and through all prepunched holes in the window flange (except at required voids at sill cor-ners). Tool (knockdown) sealant squeeze out flat.

Step 10. Apply Sealant at Interior of Window

Product: RainBuster #450 Ultra High Performance Window & Door Sealant

10.A Apply a 3/8" continuous bead of sealant to interior perimeter of window sealing window to window sill pan flashing.

10.B Sealant should extend across window sill and up jambs 8".

(7)

b

er

2

01

7

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Window to be installed before weather resistive barrier (building paper)

Cap Bead (Buttered) Application

Recessed Openings 3

1

_/

2

" in Depth or Less

RECOMMENDED INSTALLATION PROCEDURE

LEVEL 3

Contact Top

Step 11. Install Head Flashing

11.A Flashing Length = (Rough Opening Width) + (Width of Jamb Flashings) + 2" 11.B Install head flashing over the window flange and flush with the top of the window at the top of recessed opening. Each end of the head flashing should extend the width of the jamb flashing + 1" on each side of the recessed opening.

11.C Position head flashing into recessed opening and temporarily secure along top edge.

11.D Make vertical relief cuts at recessed jambs for head flashing to fold into recessed opening.

11.E Adhere flashing over window flange flush with the top of the window. Continue adhering flashing up the wood blocking, across the recessed header and up the outside wall (minimum 4"). Press flashing firmly into wood blocking/recessed header corner eliminating any voids or wrinkles. 11.F Using a J-Roller, apply pressure and roll entire surface of flashing. 11.G Fasten with staples or nails along top edge of flashing. Use minimum

number of fasteners required to keep flashing in place.

Step 12. Apply Cap Bead of Sealant at Window Flange

12.A Apply a 1/2"-5/8" cap bead of sealant to the edge of the window flange at the sill and jambs. Leave a 3" void in the sealant at each end of the window flange at the sill of the window. Using a putty knife, flatten or “butter” cap bead and sealant squeeze out. “Buttered” sealant should extend 2" away from the window frame (approximately 1" beyond the outer edge of the window flange).

12.B Apply a 3/8"-1/2" fillet bead of sealant at the head flashing/top of win-dow joint. Tool into joint insuring bottom edge of head flashing is sealed to the top of the window.

(8)

2

01

7

Method B, Shallow Recessed Window Installation-3 Coat Stucco

RB 430, RB 435, RB 440, RB 450

with Sill Pan Option

Contact Top

Drawings Not to Scale

Step 13. Apply Cap Bead of Sealant at Recessed Corners

13.A Apply a 1/2"-5/8" cap bead of sealant at the recessed header/jamb and recessed sill/jamb corners. Using a putty knife, tool sealant into corners insuring flashing seams are sealed.

Installation Recommendations: It’s recommended that backing (OSB, plywood, dimensional lumber) be installed to support flashing at all window and door

openings. Installation substrates should be clean and free from substances and protrusions that could adversely effect adhesion and or compromise flashing/mem-brane performance. When an installation requires adhering RainBuster #415 Self-Adhered Flashing Memflashing/mem-brane directly to the substrate (OSB, plywood, fiberglass faced gypsum board, masonry, and concrete) an adhesion test is recommended to insure sufficient adhesion is achieved. Adhesion may be improved by rolling the

Step 14. Installation of Bond Breaker (by others)

Product: Weather resistive barrier (building paper) by others (non-RainBuster product)

14.A After the weather resistive barrier has been properly integrated (weather board/ship lap fashion) with the window and door flashing systems, an additional piece of weather resistive barrier should be installed over the sill flashing acting as a bond breaker.
