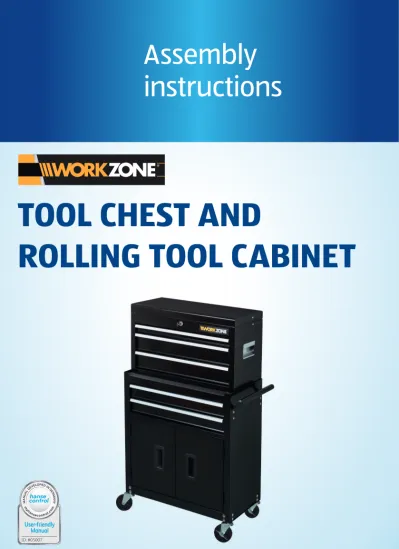

TOOL CHEST AND
ROLLING TOOL CABINET
Assembly instructions
UAL DEVELOPED IN GERM
A
Package contents ...3
Components ... 6
Required tools (not included) ... 6
General information ... 7
Reading and storing the assembly instructions ...7
Proper use ...7
Explanation of symbols ...7
Safety ...8
Signal symbol/word definitions ... 8
General safety instructions ... 8
First use ... 10
Checking the cabinet and package contents ...10
Basic cleaning...10
Assembly ... 10
Wall anchor ...11
Use ...12
Cleaning and maintenance ...12
Storage ...12
Technical data ... 13
Disposal ... 13
Disposing of the packaging ... 13
Disposing of the cabinet ... 13
Warranty details ... 14
Repair and refurbished goods or parts notice ... 15
Contents
Package contents
Dok./Rev.-Nr. 197654_20190722_AU
A 1
3 4 5 6 7
8 9 10 11 12
13 14 15 16
17 18
2
Package contents
Package contents
B C
D E
4 5 3
1 15
3 14
4 5
4 5
3 7 6
Package contents
F G
H I
17
1
10 5 1
2
5 13 16
8
11 9 12
8
Package contents
Components
1 Chest 11 Wall anchor, 2×
2 Base cabinet 12 Wood screw (38 mm), 2×
3 M6 nut, 18×* 13 M6 bolt (16 mm), 4×
4 M6 bolt (14 mm), 18×* 14 Round washer, 2×*
5 M6 washer, 26×* 15 Cross-head screw (pre-assembled), 4×*
6 Swivel caster, 2× 16 Handle
7 Caster with brake, 2× 17 Anti-scratch sticker, 4×
8 Screw (12 mm), 6× 18 Lock bar 9 L-shaped bracket, 2× 19 Key, 2×
10 Bracket, 2×
*including the pre-assembled ones
Required tools (not included)
20 12 mm wrench 20
21 Cross-head screwdriver 21
22 Electric drill (for wall anchor) 22
General information
General information
Reading and storing the assembly instructions
These assembly instructions accompany this tool chest and rolling tool cabinet (hereafter referred to as the “cabinet”), and contain important information on setup and handling.
Before using the cabinet, read the assembly instructions carefully. This particularly applies to the safety instructions. Failure to do so may result in personal injury or damage to the cabinet.
Store the assembly instructions for further use. Make sure to include these assembly instructions when passing the cabinet on to third parties.
Proper use
The cabinet is exclusively designed for storing tools and supplies with a maximum load of 61.37 kg. It is only intended for private use and not suitable for commercial purposes.
Only use the cabinet as described in these assembly instructions. Any other use is considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury incurred through improper or incorrect use.
Explanation of symbols
The following symbols and signal words are used in these assembly instructions, on the cabinet or on the packaging.
This symbol provides you with useful additional information on handling and use.
Safety
Safety
Signal symbol/word definitions
The following symbols and signal words are used in this user manual.
WARNING!
This signal symbol/word designates a hazard with moderate risk, which may result in death or severe injury if not avoided.
NOTICE!
This signal word warns of possible damage to property.General safety instructions
WARNING!
Risk of injury!
If the cabinet is assembled and/or used when a fault has occurred, it may cause personal injury.
− Do not exceed the total loading capacity of 61.37 kg. The cabinet is not designed to accommodate weight other than standard loads of storage. Refer to the chapter “Technical data”
for the maximum load-bearing capacity of each part.
− Do not use the cabinet if there is any visible damage or any parts are defective.
− It is suggested that at least two competent people assemble the cabinet to make assembly easier and avoid injury.
− The cabinet may only be used with adult supervision and must not be used as a toy.
− Never store the cabinet such that there is a risk of it falling
Safety
− Do not alter the cabinet in any manner such as welding external bars or attaching electrical equipment to the cabinet.
− Close all doors and drawers before moving the cabinet. The doors or drawers may open and make the cabinet unstable.
− Always lock the casters after the cabinet has been moved to the desired location to prevent the cabinet from rolling.
− Keep children away during the assembly of the cabinet. Small parts may cause choking if swallowed or inhaled.
− Make sure that children do not play with the plastic wrapping.
They may get caught in it when playing and suffocate.
NOTICE!
Risk of damage!
Improper handling of the cabinet may result in damage to the cabinet.
− All individual parts must be properly assembled before using the cabinet.
− Install the cabinet on an easily accessible, level, dry and sufficiently stable surface.
− Only use the cabinet indoors. Do not use it in damp rooms or in the rain or outdoors.
− Never expose the cabinet to high temperatures (heaters etc.) or to the effects of the weather (rain etc.).
− Never attempt to clean the cabinet by immersing it in water
and do not use a steam cleaner to clean it. Otherwise, you
could damage the cabinet.
First use
First use
Checking the cabinet and package contents
NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a sharp knife or other pointed object, you may quickly damage the product.
− For this reason, be very careful when opening it.
The chest is packed in a carton box inside the base cabinet and the individual parts are stored in the drawers for easy delivery.
1. Take the base cabinet 2 out of the packaging.
2. Remove the four sets of M6 nuts 3 , M6 bolts (14 mm) 4 and M6 washers 5 from the base cabinet with a 12 mm wrench 20.
Save the removed bolts, washers and nuts for the cabinet assembly.
3. Lift off the base cabinet to remove the chest 1 inside (see Fig. B). Take the chest out of the packaging.
4. Check to make sure that all parts are included (see Fig. A).
5. Check whether any of the individual parts are damaged. If this is the case, do not assemble the cabinet. Contact the manufacturer via the service address indicated on the warranty card.
Basic cleaning
1. Remove the packaging material and all plastic wrappings.
2. Clean all parts of the cabinet before first use as described in the chapter “Cleaning and maintenance”.
Assembly
− Begin the assembly of the cabinet close to the intended use location.
Assembly
1. Place the chest 1 and base cabinet 2 upside down so that their bottom sides are facing upwards.
2. Remove the four cross-head screws 15 on the bottom panel of the chest and discard (see Fig. C).
3. Take out the bottom panel and fit it onto the bottom of the base cabinet. Further secure it with two sets of M6 nuts 3 , M6 bolts (14 mm) 4 , M6 washers 5 and round washers 14 at the rear (see Fig. D).
4. Line up the holes on the swivel casters 6 and casters with brake 7 with the holes at the bottom corners. Secure the casters to the base panel and the bottom of the base cabinet with four sets of M6 nuts, M6 bolts (14 mm) and M6 washers (see Fig. E).
5. Stick the anti-scratch stickers 17 on the bottom of the chest (see Fig. F).
6. Place the chest on the base cabinet.
7. Align the brackets 10 with the screw holes of the chest and base cabinet and secure each of them with two sets of screws 8 and M6 washers (see Fig. G).
8. Insert the handle 16 into the holes on the side of the base cabinet and further secure it with four sets of M6 bolts (16 mm) 13 and M6 washers(see Fig. H).
The cabinet is now assembled.
Wall anchor
− To prevent the cabinet from tipping over, it is recommended to secure the cabinet to a wall.
− A screwdriver 21 and an electric drill 22 are required for securing the cabinet to a wall.
− Ensure that the positions where the drill holes are to be made are free from pipes and other obstructions.
− It is suggested to mount the L-shaped bracket to a wall stud. If you are mounting to a different wall type, consult your hardware store for advice on the appropriate fixings to use.
1. Attach an L-shaped bracket 9 to the side of the base cabinet with a screw (12 mm) 8 . Repeat on the other side (see Fig. I).
2. Attach the other end of the L-shaped bracket to the wall stud with a wood screw (38 mm) 12 (see Fig. I). Repeat on the other side.
− For a different wall type, wall anchor 11 should be utilized. Drill the holes on the wall aligning with the screw holes of the L-shaped bracket and place the wall anchor inside the holes for securing the L-shaped bracket to the wall.
Use
Use
− Close all drawers and doors before moving the cabinet.
− The top tray can be locked with the provided keys 19 .
− The drawers of the chest can be locked by using the provided lock bar 18 . To lock the drawers, insert the lock bar into the middle hole in the top compartment while all drawers are closed.
− Pay attention to the loading capacity of the cabinet and the drawers. Do not overload them (see chapter “Technical data”).
− It is suggested to store large and heavy tools or equipment in the bottom cabinet with bifold doors, and store small tools in the top compartment.
Cleaning and maintenance
NOTICE!
Risk of damage!
Improper handling of the cabinet may result in damage.
− Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. They could damage the surfaces.
• Use a damp cloth with mild detergent to wipe off the cabinet. Then let all parts dry completely.
• Lubricate the drawer slides and casters periodically.
• Check the tightness of the screws and bolts periodically, and re-tighten if necessary.
Storage
All parts must be completely dry before being stored.
− Always store the cabinet in a dry area.
Technical data
Technical data
Model: 99609
Product weight: 22.2 kg
Dimensions (W × D × H): 56.9 × 29.5 × 106 cm Maximum load-bearing capacity
- top compartment: 6.82 kg
- small drawer: 4.55 kg
- per large drawer: 9.09 kg
- bottom cabinet with bifold doors: 13.64 kg
- total: 61.37 kg
Product code: 99609
Disposal
Disposing of the packaging
− Sort the packaging before you dispose of it. Dispose of paperboard and cardboard with the recycled paper service and wrappings with the appropriate collection service.
Disposing of the cabinet
− Should the cabinet no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your city or county.
− Please ensure your recycling information applies to local regulations.
Tool Chest and Rolling Tool Cabinet
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
3
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/
TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
Repair and Refurbished Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1 800 130 489 or write to us at:
