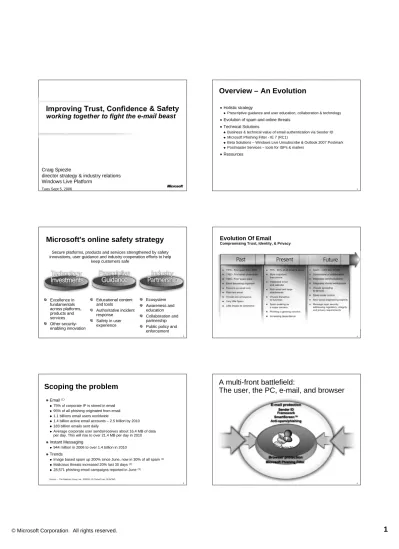

Improving Trust, Confidence & Safety
working together to fight the e-mail beast
Craig Spiezle
director strategy & industry relations
Windows Live Platform
Tues Sept 5, 2006 2
Overview – An Evolution
Holistic strategyPrescriptive guidance and user education, collaboration & technology Evolution of spam and online threats
Technical Solutions
Business & technical value of email authentication via Sender ID Microsoft Phishing Filter - IE 7 (RC1)
Beta Solutions – Windows Live Unsubscribe & Outlook 2007 Postmark Postmaster Services – tools for ISPs & mailers
Resources
3
Microsoft's online safety strategy
Secure platforms, products and services strengthened by safety innovations, user guidance and industry cooperation efforts to help
keep customers safe
Excellence in fundamentals across platforms, products and services Other security-enabling innovation Educational content and tools Authoritative incident response Safety in user experience Ecosystem Awareness and education Collaboration and partnership Public policy and enforcement
4
Evolution Of Email
Compromising Trust, Identity, & Privacy
1978 - First spam from DEC 1982 - First email chain letter 1995 - First “spam ware” Email becoming important Focus is on email only Plain text email Viruses are annoyance Very little Spam Little impact to commerce
70% - 90% of all email is spam More important than phone Integrated email and calendar Rich email and large attachments Viruses disruptive to business Spam peaking as a major concern Phishing a growing concern Increasing dependence
Spam – zero day threats Cornerstone of collaboration Integrated communications Integrated shared workspaces Viruses spreading to devices Spam under control New social engineering exploits Message layer security, addressing regulatory, integrity and privacy requirements
5
Scoping the problem
Email (1)
75% of corporate IP is stored in email 95% of all phishing originated from email 1.1 billions email users worldwide
1.4 billion active email accounts – 2.5 billion by 2010 183 billion emails sent daily
Average corporate user sends/receives about 16.4 MB of data per day. This will rise to over 21.4 MB per day in 2010 Instant Messaging
944 million in 2006 to over 1.4 billion in 2010 Trends
Image based spam up 200% since June, now in 30% of all spam (2)
Malicious threats increased 20% last 30 days (2)
28,571 phishing email campaigns reported in June (3) Source: -- The Radicati Group, Inc., 8/30/06, (2) CipherTrust, (3) APWG
6 E-mail protection Sender ID Framework SmartScreen™ Anti-spam/phishing Browser protection
Microsoft Phishing Filter
Me/my PC
A multi-front battlefield:
7 Outlook Inbox Outlook Junk E-mail Incoming Internet E-mail
Challenge
Hotmail - 4 Billion+ emails per day / 90% spam Complete solution blocks over 95% of all spam Microsoft IT Department over 12 million inbound mails per day
MSIT deployed every anti-spam feature of Exchange Server 2007 (beta)
Connection Filtering
SMTP Filtering
Content Filtering
Impact of Spam at Microsoft
8 Establish
score
Trash
Windows Live Mail
Connections
Inbox
Junk
Inbound
Internal block lists
SmartScreen™ User filters Safe-lists/Sender Score Sender ID User lists
Sender ID Framework
providing senders a drivers license
Improve reliability and confidence of electronic messaging
Detect spoofing and forged mail, prevalent in 95% of phishing e-mails Protect credibility and reputation of corporate brands and domains Help detect “zero” day security threats
10 Inventory completed of sending domains
Publish Sender Policy Framework (SPF) record
in Domain Name System (DNS)
User sends e-mail as normal
Look up sender's SPF record in DNS
Determine "PRA" or "Mail From" check
Compare to legitimate IPs in SPF record
Match neutral or positive score
No match neutral or negative score
Reputation added to score
Optional user interface to users
Message transits one to many e-mail servers en route to receiver
Sender ID - How does it work?
11
SIDF Adoption
Highlights
Adoption over 39% of legitimate email SIDF with positive reputation reducing False Positives to 0 & false-negatives by over 85%
3.5MM .com/net/org compliant domains (2)
~4.5MM TLD worldwide
Over a dozen 3rd party solutions
Sources: Microsoft research 9/1/06 / (2) MarkMonitor Report 8/30/06
12
Business value of SIDF
with reputation
Authenticated e-mail via SIDF is providing business value
at no cost or impact to performance
SIDF with reputation improves filtering
Legitimate, SIDF-compliant mail realizes a substantial reduction in false positives
Improves deliverability and resulting open rates
High-volume "good" senders who publish, their false positives rates have effectively dropped to zero!
False negatives on fail (implying spoofing) is ~85% lower than a random sampling of non-SIDF mail
13
Protecting Users
Suspicious Message Unknown Failed Sender ID Lookup 14 Browser protectionMicrosoft Phishing Filter IE 7 / Windows Live Tool Bar
Me/my PC
Microsoft Phishing Filter:
Second line of defense
Internet Explorer 7 - Now in RC1 Beta! Windows Live Tool Bar / Vista Customer Benefits & Safeguards Privacy15
Microsoft Phishing filter
Dynamic protection against fraudulent Web sites
3 "checks" to protect users from phishing
To date blocking nearly 1 million instances of users trying to
access confirmed phishing sites
Compares Web site with local list of known legitimate sites
Scans the site for characteristics common to phishing sites
Double-checks site with online Microsoft service of reported phishing sites dynamically updated
Level 1: Warn
Suspicious Web site signaled
Level 2: Block
Confirmed phishing site signaled and blocked
Two levels of warning and protection in Internet Explorer 7 & Windows Live
16 Does not transmit any identifiable information without user consent. URL information transmitted automatically by the Phishing Filter client cannot be traced back to the user’s personal information.
HTTP and HTTPS URLs automatically transmitted by the Phishing Filter client are limited to the domain and path only. All other data is stripped.
Transmission of any and all URL information is over SSL on the Internet. Third party privacy audit
Jefferson-Wells Audit Firm confirmed these claims.
http://www.jeffersonwells.com/client_audit_reports/main.htm
Link to Privacy Statement
www.microsoft.com/windowsvista/privacy/ieprivacy_pr7.mspx.
Microsoft Phishing Filter in IE7
Ensuring Privacy A Key Goal
17
Microsoft Phishing Filter in IE7
Privacy Opt-In: Internet Explorer 7
First Run ExperienceOn Demand
18
Microsoft Phishing Filter
Dynamic Protection Against Fraudulent Sites
Two Levels of Warning and Protection
19
Microsoft Phishing Filter
Dynamic Protection Against Fraudulent Sites
Two Levels of Warning and Protection
Level 2: Block Confirmed Phishing Site
Signaled and Blocked
20 Built-in online notification for individuals and Web site owners
Microsoft Phishing Filter:
Prevention of "false positives" a key goal
21
Postmaster Services
http://postmaster.live.com
Unsubscribe beta program
Services to help ISPs and Mailers improve email deliverability and reduce outbound spam
Junk Email Reporting Program (JMR)
Instant feedback on user complaints for list maintenance & daily reporting Smart Network Data Services
At a glance deliverability reports
Measures of outbound traffic and complaints from your IP space Isolate compromised hosts / servers
Sender ID Escalations
22
Windows Live Unsubscribe
Goal to help users & legitimate email marketers Best Practice developed with input from users & marketers How does it work?
List Unsubscribe header (non-URL)
Requires users to previously identified the sender as legitimate, (allow list). Standardized approach as specified in RFC 2369
Does this apply to all mail sent?
Applies to mail previously allowed or in the user’s address book.
23
Junk Mail Reporting
Tailored to large senders remove recipients from their lists. Clean-up distribution lists so that users receive wanted e-mail and senders aren’t negatively affected by complaints.
Senders receive any mail that is reported as junk mail. Info [email protected]
24
Smart Network Data Services (SNDS)
Monitor deliverability and traffic quality of outbound servers
Free reports on your entire IP space
Mail, spam, complaint, virus, and malware data Easy instant access, signup by IP or ASN
Identify compromised hosts / users
25 #1 Authenticate Inbound & Outbound email
Support the Trust Ecosystem
#3 Develop innovative products and services using standards
and best practices
#4 Provide prescriptive advice Business and Consumers
#2 Business, Industry, Governmental, and Collaboration
Call To Action
Maximize trust and confidence
26
Summary
Insure your outbound email is Sender ID compliant
www.microsoft.com/senderid or email [email protected]
