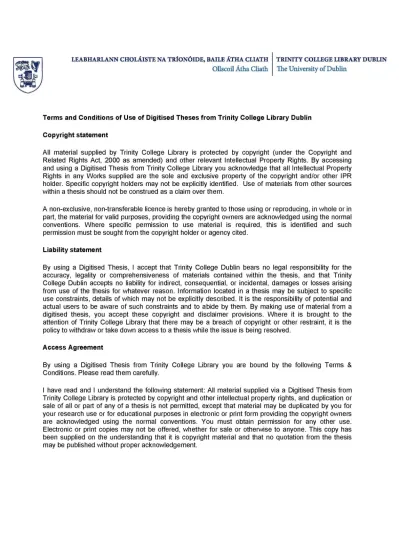

Terms and Conditions of Use of Digitised Theses from Trinity College Library Dublin

Copyright statement

All material supplied by Trinity College Library is protected by copyright (under the Copyright and Related Rights Act, 2000 as amended) and other relevant Intellectual Property Rights. By accessing and using a Digitised Thesis from Trinity College Library you acknowledge that all Intellectual Property Rights in any Works supplied are the sole and exclusive property of the copyright and/or other I PR holder. Specific copyright holders may not be explicitly identified. Use of materials from other sources within a thesis should not be construed as a claim over them.

A non-exclusive, non-transferable licence is hereby granted to those using or reproducing, in whole or in part, the material for valid purposes, providing the copyright owners are acknowledged using the normal conventions. Where specific permission to use material is required, this is identified and such permission must be sought from the copyright holder or agency cited.

Liability statement

By using a Digitised Thesis, I accept that Trinity College Dublin bears no legal responsibility for the accuracy, legality or comprehensiveness of materials contained within the thesis, and that Trinity College Dublin accepts no liability for indirect, consequential, or incidental, damages or losses arising from use of the thesis for whatever reason. Information located in a thesis may be subject to specific use constraints, details of which may not be explicitly described. It is the responsibility of potential and actual users to be aware of such constraints and to abide by them. By making use of material from a digitised thesis, you accept these copyright and disclaimer provisions. Where it is brought to the attention of Trinity College Library that there may be a breach of copyright or other restraint, it is the policy to withdraw or take down access to a thesis while the issue is being resolved.

Access Agreement

By using a Digitised Thesis from Trinity College Library you are bound by the following Terms & Conditions. Please read them carefully.

Redox Cationic Polymerisation

A thesis submitted to the University of Dublin

for the degree of

Doctor of Philosophy

by

David J. Farrell

TRINITY COLLEGE 2 6 JUL 2011 LIBRARY DUBLIN ^

DECLARATION

This thesis has not been submitted as an exercise for a degree at any other university.

Except where stated, I carried out the work described therein alone.

SUMMARY

The aim of this work is the development of an initiation chemistry that allows preparation of

storage stable single-component epoxy compositions, which polymerize when contacted with

metallic substrates, at ambient temperatures and without the use of an externally applied energy

stimulus such as heat or light. Such epoxy compositions would be considered the cationically

initiated analogues of existing radical initiated acrylic systems used commercially as so-called

anaerobic machinery adhesives.

Known redox cationic polymerisation systems consist of an iodonium salt latent catalyst and a

reducing agent component, typically an ascorbic acid derivative, as the redox couple catalysed

by a Cu(II) species. A fundamental investigation of this redox polymerisation chemistry was

undertaken looking at the effect of concentration and catalyst-type on redox couple activity,

this is reported in Chapter Two. Additionally the influence of residual oxygen and moisture, as

well as the nature of the latent catalyst cation, anion and the reducing agent component was

assessed. The activity of several cationically polymerisable monomers was also considered.

The relative reactivities of the systems studied were quantified using a calorimetric method.

The longterm reactivity of an optimised model system was evaluated, and its applicability as an

ambient temperature curable, single-component epoxy adhesive was ascertained by a standard

tensile strength test method. It was determined that copper catalysed redox cationic

polymerisation does not have adequate reactivity or stability to meet the requirements of a

commercially useful single-component adhesive.

In Chapter Three a new approach to the surface promoted redox cationic polymeristion of

epoxy monomers based on the direct reduction of silver salts of non-nucleophilic anions by

metallic substrates was investigated. The various factors influencing the activity of the redox

polymerisations were studied including influence of the cation, anion, substrate-type and the

monomeric environment. All surface promoted polymerisations were followed using FTIR-

ATR. The relative conversion to polymer was determined for each system evaluated. Ag(I)

surface promoted redox cationic polymerisation was shown to have the general performance

and storage stability of typical redox anaerobic acrylate adhesives, in addition to thermal

properties particular to polyethers. An alternative approach to surface promoted cationic

polymerisation based on the reduction of onium salts by redox-generated radicals was also

explored.
