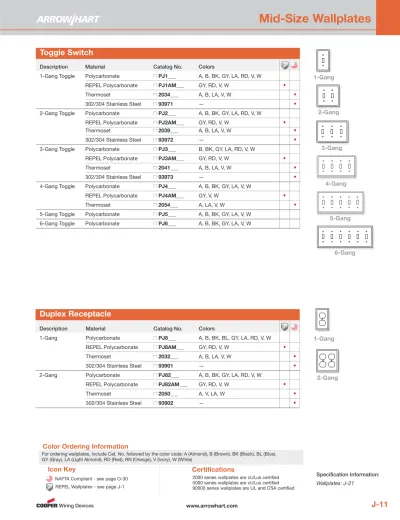

Mid-Size Wallplates. Toggle Switch. Duplex Receptacle

Mid-Size Wallplates

www.arrowhart.com

J-11

Description Material Catalog No. Colors

1-Gang Toggle Polycarbonate ■■PJ1___ A, B, BK, GY, LA, RD, V, W

REPEL Polycarbonate ■■PJ1AM___ GY, RD, V, W •

Thermoset ■■2034___ A, B, LA, V, W •

302/304 Stainless Steel ■■93971 — •

2-Gang Toggle Polycarbonate ■■PJ2___ A, B, BK, GY, LA, RD, V, W

REPEL Polycarbonate ■■PJ2AM___ GY, RD, V, W •

Thermoset ■■2039___ A, B, LA, V, W •

302/304 Stainless Steel ■■93972 — •

3-Gang Toggle Polycarbonate ■■PJ3___ B, BK, GY, LA, RD, V, W

REPEL Polycarbonate ■■PJ3AM___ GY, RD, V, W •

Thermoset ■■2041___ A, B, LA, V, W •

302/304 Stainless Steel ■■93973 — •

4-Gang Toggle Polycarbonate ■■PJ4___ A, B, BK, GY, LA, V, W

REPEL Polycarbonate ■■PJ4AM___ GY, V, W •

Thermoset ■■2054___ A, LA, V, W •

5-Gang Toggle Polycarbonate ■■PJ5___ A, B, BK, GY, LA, V, W

6-Gang Toggle Polycarbonate ■■PJ6___ A, B, BK, GY, LA, V, W

Toggle Switch

6 Gang Toggle 2156, 93076, 97076 5 Gang Toggle 2155, 93075, 97075 4 Gang Toggle 2054, 2154, 5154, 93074, 93874, 97074, 97874 1 Gang Toggle 2034, 2134, 2144, 4134, EM5134, 5134, EM93071, 93071, 93871, 93971, 97071, 97971, 97871 2 Gang Toggle 2039, 2139, 2149, 2750, 4139, EM5139, 5139, 93072, 93872, 93972, 97072, 97872, 97972 3 Gang Toggle 2041, 2141, 2741, 5141, 93073, 93873, 93973, 97073, 97873, 97973 5-Gang 4-Gang 6-Gang 1-Gang 3-Gang 2-Gang 1 Gang Duplex 2032, 2132, 2142, 4132, IG5132, 5132, 93101, 93801, 93901, 97101, 97801, 97901 2 Gang Duplex 2050, 2150, 4150, 5150, EM93102, 93102, 93802, 93902, 97102, 97802, 97902 1-Gang 2-Gang

Description Material Catalog No. Colors

1-Gang Polycarbonate ■■_{PJ8___ A, B, BK, BL, GY, LA, RD, V, W}

REPEL Polycarbonate ■■_{PJ8AM___ GY, RD, V, W •}

Thermoset ■■_{2032___ A, B, LA, V, W •}

302/304 Stainless Steel ■■_{93901 — •}

2-Gang Polycarbonate ■■_{PJ82___ A, B, BK, GY, LA, RD, V, W}

REPEL Polycarbonate ■■_{PJ82AM___ GY, RD, V, W •}

Thermoset ■■_{2050___ A, V, LA, W •}

302/304 Stainless Steel ■■_{93902 — •}

Duplex Receptacle

Certifications

2000 series wallplates are cULus certified 5000 series wallplates are cULus certified 90000 series wallplates are UL and CSA certified

Color Ordering Information

For ordering wallplates, include Cat. No. followed by the color code: A (Almond), B (Brown), BK (Black), BL (Blue), GY (Gray), LA (Light Almond), RD (Red), RN (Orange), V (Ivory), W (White)

Specification Information:

Wallplates: J-21

Icon Key

NAFTA Compliant - see page O-30 REPEL Wallplates - see page J-1

Wallplate Dimensional Information

www.arrowhart.com

J-2

Mounting Holes for Wallplates and Covers

Plate and Cover Opening Dimensions

Device or Strap 2.37" (60.3mm) 3.28" (83.3mm) Box Decorator/GFCI 3.81" (96.7mm) 3 FS Box 3.25" (82.5mm) 1.37" (34.9mm) 4-Wire Power Device 2.46 " (61. 7m m) Off Center Power Device 2.15 " (54. 7m m) 3-Wire Power Device 2.15 " (54. 7m m) Single Locking Receptacle 20/30 AMP Single Receptacle 1.59 " (40. 4m m) 1.41 " (35. 7m m)

These are the most common nominal spacings for mounting holes on wallplates and covers. Holes are normally countersunk for oval head #6-32 screws.

Common Opening Configurations

Nominal dimensions for plate and cover openings conform to industry standards and practices.

Cover Openings

Toggle Decorator 0.40" (10.3mm) .93" (23.8mm) Decorator 1.31" (33.3mm) 2.64" (67.1mm) . Duplex Receptacle 0 0.76" (19.4mm) 1.31" (33.3mm) 2.65" (67.4mm)

Wallplate Dimensional Information

www.arrowhart.com

J-3

First Gang Gang

Description Height Width to Edge to Gang

1-Gang Standard 4.50" 2.75" 1.37" — (114.3mm) (69.8mm) (34.9mm) Mid-Size 4.87" 3.12" 1.56" — (123.8mm) (79.4mm) (39.7mm) Oversize 5.25" 3.50" 1.75" — (133.3mm) (88.9mm) (44.4mm) 2-Gang Standard 4.50" 4.56" 1.37" 1.81" (114.3mm) (115.9mm) (34.9mm) (46.0mm) Mid-Size 4.87" 4.94" 1.56" 1.81" (123.8mm) (125.4mm) (39.7mm) (46.0mm) Oversize 5.25" 5.31" 1.75" 1.81" (133.3mm) (134.9mm) (44.4mm) (46.0mm) 3-Gang Standard 4.50" 6.37" 1.37" 1.81" (114.3mm) (161.9mm) (34.9mm) (46.0mm) Mid-Size 4.87" 6.75" 1.56" 1.81" (123.8mm) (171.4mm) (39.7mm) (46.0mm) Oversize 5.25" 7.17" 1.75" 1.81" (133.4mm) (182.2mm) (44.4mm) (46.1mm) 4-Gang Standard 4.50" 8.19" 1.37" 1.81" (114.3mm) (207.9mm) (34.9mm) (46.0mm) Mid-Size 4.87" 8.56" 1.56" 1.81" (123.8mm) (217.5mm) (39.7mm) (46.0mm) Oversize 5.25" 8.94" 1.75" 1.81" (133.3mm) (227.0mm) (44.4mm) (46.0mm) 5-Gang Standard 4.50" 10.00" 1.37" 1.81" (114.3mm) (254.0mm) (34.9mm) (46.0mm) Mid-Size 4.87" 10.37" 1.56" 1.81" (123.8mm) (263.5mm) (39.7mm) (46.0mm) 6-Gang Standard 4.50" 11.81" 1.37" 1.81" (114.3mm) (300.0mm) (34.9mm) (46.0mm) Mid-Size 4.87" 12.18" 1.56" 1.81" (123.8mm) (309.5mm) (39.7mm) (46.0mm)

Wallplate Sizes

Oversize 1.75" (44.4mm) 1.81'' (46.1mm) 5.31'' (134.9mm) 5.25'' (133.35mm) S Standard O 1.37" (34.9mm) 1.81'' (46.1mm) 4.50'' (114.3mm) 11.81'' (300.1mm) 5 3.50'' (88.9mm) Standard Mid-size Oversize 1 5.25'' (133.4mm) 4.50'' (114.3mm) 4.88'' (123.8mm) 2.75'' (69.85mm) 3.13'' (79.4mm)

Wallplate Specification & Performance Data

Standard Size

Mid-Size

Oversize

REPEL

Wallplates

W a ll p la te T y p e

Standard Size, Mid-Sized

& Oversize Wallplates REPEL

M a te ri a l T y p e

Thermoset Nylon Stainless

Steel Polycarbonate

REPEL Polycarbonate Mid-Sized Wallplates PJ_AM and PJS_AM Series

REPEL Stainless Steel Standard Size Wallplates 93070_AM, 93090_AM, 93100_AM, 93400_AM Series

M a n u fa c tu ri n g P ro c e s s Injection

Molded Injection Molded Stamped

Injection

Molded Injection Molded Stamped

T e s ti n g & C o d e C o m p li a n c e UL Listed to UL 514D, file no. E33216 UL Listed to UL 514D, file no. E33216 UL Listed to 514D, file no. E92003 UL Listed to UL 514D, file no. E33216 UL Listed to UL 514D, file no. E33216

UL Listed to UL 514D, file no. E92003

cUL certified to C22.2, no. 42.1, UL file E33216 cUL certified to C22.2, no. 42.1, UL file E33216 CSA certified to C22.2, no. 42.1 cUL, UL file E33216 certified to C22.2, no. 42.1 Agion®_{Antimicrobial}

Additive: EPA approved for use as product ingredient

Agion®_{Antimicrobial Additive:}

EPA approved for use as product ingredient

PJ_AM only: cUL Listed to CSA C22.2, no 42.1, file no. E33216

CSA certified to C22.2, no. 42.1 S p e c if ic a ti o n s : E n v ir o n m e n ta l F la m m a b il it y Meets UL 94 requirements; 5V rated Meets UL 94 requirements; 5V rated N/A Meets UL 94 requirements 5VA rated Meets UL 94 requirements; 5V rated N/A T e m p e ra tu re R a ti n g -40ºC to 90ºC (-40°F to 194°F) -40ºC to 70ºC (-40°F to 158°F) -40ºC to 70ºC (-40°F to 158°F) -40º to 70º C (-40°F to 158°F) -40ºC to 70ºC (-40°F to 158°F) -40ºC to 70ºC (-40°F to 158°F) M a te ri a ls : B o d y 0.080" thick thermoset urea or phenolic 0.060" thick thermoplastic 0.032" thick stainless steel alloy, 18% chromium and 8% nickel for corrosion resistance 0.08" thick thermoplastic polycarbonate 0.071" thick polycarbonate with Agion®_{Antimicrobial}

Additive incorporated

0.032" thick 302/304 stainless steel alloy, 18% chromium and 8% nickel for corrosion resistance, DuPont®_Alesta®

powder coating with Agion®

Antimicrobial incorporated In n e r W a ll p la te

N/A N/A N/A 0.071" thick

polycarbonate

PJS_AM only: 0.071" thick
