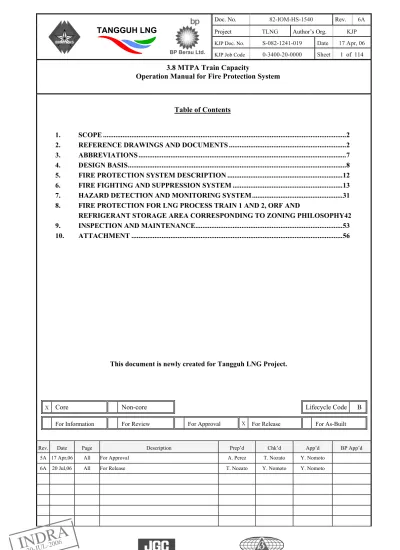

PT. Brown & Root Indonesia
KJP Job Code 0-3400-20-0000 Sheet 1 of 114
1. SCOPE ...2
2. REFERENCE DRAWINGS AND DOCUMENTS ...2
3. ABBREVIATIONS ...7
4. DESIGN BASIS...8
5. FIRE PROTECTION SYSTEM DESCRIPTION ...12
6. FIRE FIGHTING AND SUPPRESSION SYSTEM ...13
7. HAZARD DETECTION AND MONITORING SYSTEM...31
8. FIRE PROTECTION FOR LNG PROCESS TRAIN 1 AND 2, ORF AND REFRIGERANT STORAGE AREA CORRESPONDING TO ZONING PHILOSOPHY42 9. INSPECTION AND MAINTENANCE...53
10. ATTACHMENT ...56
This document is newly created for Tangguh LNG Project.
X Core Non-core Lifecycle Code B
For Information For Review For Approval X For Release For As-Built
Rev. Date Page Description Prep’d Chk’d App’d BP App’d
5A 17 Apr,06 All For Approval A. Perez T. Nozato Y. Nomoto
6A 20 Jul,06 All For Release T. Nozato Y. Nomoto Y. Nomoto
3.8 MTPA Train Capacity
Operation Manual for Fire Protection System
Table of Contents
BP Berau Ltd.
_____
| |
| |
_____
INDRA
20-JUL-20061. SCOPE
This manual covers the operating instructions for the fire protection system and hazard detection and monitoring system (HDMS) for the Tangguh LNG Project in Tanah Merah, Papua, Indonesia.
For the buildings in the Off Site Building Area, Administration and Dormitory Area and Gas Production Facilities Shore Base (GPFSB), the manual covers only the provisions and requirements of the fire protection system and hazard detection and monitoring system (HDMS).
2. REFERENCE DRAWINGS AND DOCUMENTS 2.1 Piping and Instrumentation Diagrams
82-PID-HS-1201 (D-082-1225-002) Piping and Instrumentation Diagram Fire Fighting System Fire Water Pump
82-PID-HS-1202 (D-082-1225-003) Piping and Instrumentation Diagram Fire Fighting System LNG Storage and BOG Compressor Area
82-PID-HS-1203 (D-082-1225-004) Piping and Instrumentation Diagram Fire Fighting System Condensate Storage, Combo Dock and Haul Road Area 82-PID-HS-1204 (D-082-1225-005) Piping and Instrumentation Diagram Fire Fighting System LNG Loading Deck and Trestle
82-PID-HS-1205 (D-082-1225-006) Piping and Instrumentation Diagram Fire Fighting System High Expansion Foam System
82-PID-HS-1006 (D-082-1225-007) Piping and Instrumentation Diagram Fire Fighting System Process (LNG) Train 1
82-PID-HS-1007 (D-082-1225-008) Piping and Instrumentation Diagram Fire Fighting System ORF / Refrigerant Storage and Flare Area
82-PID-HS-1008 (D-082-1225-009) Piping and Instrumentation Diagram Fire Fighting System Utility and Building Area
82-PID-HS-1009 (D-082-1225-010) Piping and Instrumentation Diagram Fire Fighting System Water Spray System for Monitor and Gangway Tower 82-PID-HS-1010 (D-082-1225-011) Piping and Instrumentation Diagram Fire Fighting System Process (LNG) Train 2
340-PID-HS-1001 (D-340-1225-110) Piping and Instrumentation Diagram Unit 340 Administration and Dormitory Complex Fire Water Pump
340-PID-HS-1002 (D-340-1225-111) Piping and Instrumentation Diagram Unit 340 Administration and Dormitory Complex Fire Fighting System
350-PID-HS-3003-S2 (D-350-1225-005) Piping and Instrumentation Diagram Unit 350 Gas Production Facilities Shore Base Fire Fighting System
_____
| |
| |
_____
INDRA
20-JUL-20062.2 Layout Drawing Fire Fighting Equipment
82-DWG-HS-1530 (D-082-1241-002) LNG Loading Deck and Trestle Layout Drawing Fire Fighting Equipment
82-DWG-HS-1533 (D-082-1241-003) Combo Dock Layout Drawing Fire Fighting Equipment
82-DWG-HS-1541 (D-082-1241-011) LNG Process Train – 1 Layout Drawing Fire Fighting Equipment
82-DWG-HS-1542 (D-082-1241-012) Plant Utility Layout Drawing Fire Fighting Equipment
82-DWG-HS-1543 (D-082-1241-013) Onshore Receiving Facilities and Refrigerant Storage Layout Drawing Fire Fighting Equipment
82-DWG-HS-1544 (D-082-1241-014) LNG Storage Layout Drawing Fire Fighting Equipment
82-DWG-HS-1545 (D-082-1241-015) BOG Compressor, Tankage Flare & Desalination Area Layout Drawing Fire Fighting Equipment
82-DWG-HS-1946 (D-082-1241-016) Flare KO Drum and Flare Stack Layout Drawing Fire Fighting Equipment
82-DWG-HS-1574 (D-082-1241-017) Building Area Layout Drawing Fire Fighting Equipment
82-DWG-HS-1537 (D-082-1241-019) Condensate Storage Area Layout Drawing Fire Fighting Equipment
82-DWG-HS-1548 (D-082-1241-041) Haul Road Area, Administration Dormitory Area and Off Site Building Area Layout Drawing Fire Fighting Equipment
82-DWG-HS-1549 (D-082-1241-043) LNG Process Train – 2 Layout Drawing Fire Fighting Equipment
350-LAY-HS-3003-S1 (D-350-1241-001) Gas Production Facilities Shore Base Fire Water (General Layout)
_____
| |
| |
_____
INDRA
20-JUL-20062.3 Hazard Detection and Monitoring System Schematic Diagrams
82-DWG-HS-1534 (D-082-1241-004) Overall Schematic Diagram Hazard Detection and Monitoring System
82-DWG-HS-1550 (D-082-1241-020) Combo Dock Hazard Detection and Monitoring System Schematic Diagram
340-LAY-HS-1001 (D-340-1241-110) Administration and Dormitory Area Hazard Detection and Monitoring System Schematic Diagram
350-LAY-HS-3007-S2 (D-350-1241-007) Gas Production Facilities Shore Base Hazard Detection and Monitoring System Schematic Diagram
2.4 Hazard Detection and Monitoring System Layout Drawing
82-LAY-HS-1527 (D-082-1241-021) Plant Utility Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1528 (D-082-1241-022) LNG Storage Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1529 (D-082-1241-023) Onshore Receiving Facilities and Refrigerant Storage Layout Drawing Hazard Detection and Monitoring System 82-LAY-HS-1530 (D-082-1241-024) Condensate Storage Tank and Haul Road Layout
Drawing Hazard Detection and Monitoring System
82-LAY-HS-1531 (D-082-1241-025) BOG Compressor and Desalination Area Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1532 (D-082-1241-026) Flare KO Drum and Flare Stack Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1533 (D-082-1241-027) LNG Loading Deck and Trestle Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1534 (D-082-1241-028) Combo Dock Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1535 (D-082-1241-029) LNG Process Train – 1 Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1545 (D-082-1241-040) Building Area Layout Drawing Hazard Detection and Monitoring System
82-LAY-HS-1549 (D-082-1241-042) LNG Process Train – 2 Layout Drawing Hazard Detection and Monitoring System
350-LAY-HS-3007-S1 (D-350-1241-006) Gas Production Facilities Layout Drawing Hazard Detection and Monitoring System
_____
| |
| |
_____
INDRA
20-JUL-20062.5 Fire Hazardous Zone Maps
82-LAY-HS-1536 (D-082-1241-030) LNG Loading Deck and Trestle Fire Hazardous Zone Map 82-LAY-HS-1537 (D-082-1241-031) LNG Storage Area Fire Hazardous Zone Map
82-LAY-HS-1538 (D-082-1241-032) Combo Dock Fire Hazardous Zone Map
82-LAY-HS-1539 (D-082-1241-033) LNG Process Train – 1 Fire Hazardous Zone Map 82-LAY-HS-1540 (D-082-1241-034) Plant Utility Fire Hazardous Zone Map
82-LAY-HS-1541 (D-082-1241-035) Onshore Receiving Facilities and Refrigerant Storage Area Fire Hazardous Zone Map
82-LAY-HS-1542 (D-082-1241-036) Condensate Storage Area Fire Hazardous Zone Map 82-LAY-HS-1546 (D-082-1241-037) BOG Compressor, Tankage Flare and Desalination Area
Fire Hazardous Zone Map
82-LAY-HS-1547 (D-082-1241-038) Flare KO Drum and Flare Stack Fire Hazardous Zone Map 82-LAY-HS-1548 (D-082-1241-039) Plant Building Fire Hazardous Zone Map
2.6 Telecommunication Equipment Layout
112-LAY-EL-1801 (D-112-1386-301) Telecommunication Equipment Layout in LNG Plant – 1 (MCB, Utility, LNG Process Train –1, ORF and KO Drum and Flare Stack)
112-LAY-EL-1802 (D-112-1386-302) Telecommunication Equipment Layout in LNG Plant – 2 (LNG Storage and BOG)
112-LAY-EL-1803 (D-112-1386-303) Telecommunication Equipment Layout in LNG Jetty 112-LAY-EL-1804 (D-112-1386-304) Telecommunication Equipment Layout in Off Site Building Area
112-LAY-EL-1805 (D-112-1386-305) Telecommunication Equipment Layout in Condensate Tank Area
112-LAY-EL-1806 (D-112-1386-306) Telecommunication Equipment Layout in Administration, Dormitory, Custom and Security Area
350-LAY-EL-1010 (D-350-1386-008) Combo Dock Telecommunication Equipment Layout (Basic Plan)
_____
| |
| |
_____
INDRA
20-JUL-20062.7 Design Criteria
82-DBS-HS-1200 (S-082-1241-001) Utilities Description Unit – 082 Fire Fighting 82-DBS-HS-1525 (S-082-1241-002) Fire Fighting and Suppression Design Basis
82-DBS-HS-1526 (S-082-1241-003) Hazard Detection and Monitoring System Design Basis 82-SPE-HS-1525 (S-082-1241-004) Specification for Fire Protection Equipment
82-SPE-HS-1526 (S-082-1241-005) Specification for Hazard Detection and Monitoring System 82-SPE-HS-1527 (S-082-1241-006) Specification for Personnel Protection Equipment
82-SPE-HS-1528 (S-082-1241-007) Fireproofing for Structure and Equipment 82-SPE-HS-1529 (S-082-1241-008) Safety and Fire Fighting Equipment List
82-SPE-HS-1531 (S-082-1241-010) Specification for Fire Water Truck for Plant Area 82-SPE-HS-1532 (S-082-1241-011) Specification for Triple Agent Fire Truck
82-SPE-HS-1533 (S-082-1241-012) Specification for Commander Car 82-SPE-HS-1534 (S-082-1241-013) Specification for Ambulance Vehicle 82-SPE-HS-1535 (S-082-1241-014) Data Sheet for Fire Protection Equipment 82-SPE-HS-1536 (S-082-1241-015) Data Sheet for Fire Extinguishers
82-SPE-HS-1537 (S-082-1241-016) Data Sheet for Fire Station Standard and Miscellaneous Equipment
82-LOG-HS-1538 (S-082-1241-017) Cause and Effect Chart for Hazard Detection and Monitoring System
82-SPE-HS-1542 (S-082-1241-021) Consolidated Hazardous Equipment List 350-SPE-HS-1001 (S-350-1241-001) Fire Protection System for GPF Shore Base
350-SPE-HS-1002 (S-350-1241-002) Data Sheet of Fire Protection Equipment for GPF Shore Base 112-SPE-EL-1803 (S-112-1386-008) Technical Specification for PA / GA System
82-CAL-HS-1001 (C-082-1241-001) Hydraulic Calculation of Fire Water System 82-CAL-HS-1002 (C-082-1241-002) Calculation for Fire Water Demand
82-CAL-HS-1003 (C-082-1241-003) Hydraulic Surge Analysis for Fire Main System 64-IOM-PS-1201 (S-064-1283-001) Operation Manual for Seawater / Water Systems
_____
| |
| |
_____
INDRA
20-JUL-20063. ABBREVIATIONS
2oo2 Two – Out – Of – Two 2oo5 Two – Out – Of – Five AFFF Aqueous Film Forming Foam BOG Boil Off Gas
CCTV Closed Circuit Television CO2 Carbon Dioxide
DCS Distributed Control System ESD Emergency Shut Down EDP Emergency Depressurization FALP Fire Alarm Local Panel F & G Fire and Gas GA General Alarm
GPFSB Gas Production Facilities Shore Base GT Gas Turbine
H2S Hydrogen Sulfide
HDMS (F&G) Hazard Detection and Monitoring System (Fire and Gas) HSSD High Sensitivity Smoke Detection
HVAC Heating, Ventilation and Air-Conditioning IR Infra Red
IPS Interruptible Power Supply
LEL Lower Explosive Limit
LCR Local Control Room LLLL Low – Low Liquid Level LNG Liquefied Natural Gas LO Locked Open
LPG Liquefied Petroleum Gas MCB Main Control Building
NFPA National Fire Protection Association ORF Onshore Receiving Facilities P & ID Piping and Instrumentation Diagram PA / GA Public Address / General Alarm PSV Pressure Safety Valve
RTD Resistance Temperature Detector SCBA Self – Contained Breathing Apparatus UPS Uninterruptible Power Supply
UV / IR Ultra Violet / Infra Red
_____
| |
| |
_____
INDRA
20-JUL-20064. DESIGN BASIS
Fire protection system consists of fire water main distribution system, water and foam protection system, portable fire extinguishers, fixed fire extinguishing systems (i.e. CO2, dry chemical systems), fire fighting
vehicles and hazard detection and monitoring system.
The fire protection system intends to control and/or extinguish fires by a private fire brigade and no external fire fighting sources will be readily available.
The fire protection system is designed based on the assumption that there will be a single major leak of flammable liquids or gases at a time in the plant and fire will not occur simultaneously at different places.
4.1 General System Description
Fire protection of plant equipment is designed considering effectiveness of the following extinguishing and cooling agents.
4.1.1 Desalinated Water as Fire Water
Water is normally used as a diluting, cooling and fire extinguishing agent.
As a cooling agent, fire intensity can be controlled by applying water to equipment exposed to heat radiation by fire due to its outstanding heat absorption characteristic. Additionally, water can extinguish Class A fire such as wood, paper and textile fire.
Water shall not be applied onto LNG / LPG spill because it will accelerate the vaporization speed of the liquid and enlarge the fire.
4.1.2 Foam
Two (2) types of foam are being employed: Aqueous film forming foam (AFFF) for the low expansion foam and Synthetic foam for the high expansion foam.
The low expansion foam is applied to extinguish flammable or combustible hydrocarbon liquid fires by smothering and cooling the liquid surface to prevent re-ignition. AFFF agents will be used for the low expansion foam system and are synthetic concentrates based on fluorinated surfactants and foam stabilizers. The foam produced forms a barrier against air and oxygen as well as develops an aqueous film on the liquid surface to halt vaporization. For this plant, AFFF concentrates are available for proportioning to a final concentration of 3 percent by volume with either fresh water or sea water.
The high expansion foam is applied to LNG fires by suppressing the vaporization speed and controlling the intensity and size of the fire developed. Synthetic foam agents suitable to the high expansion foam equipment will be used and are composed of hydrocarbon surfactants. The foam produced develops a stable frozen foam layer that insulates the LNG and blocks radiation feed back to the fuel by excluding additional air. For this plant, the synthetic foam concentrates are diluted to a final concentration of 3 percent by volume with either fresh or sea water.
Both AFFF and synthetic foam concentrates are compatible for use with the dry chemical powder for hydrocarbon liquid fires and LNG fire.
_____
| |
| |
_____
INDRA
20-JUL-20064.1.3 Dry Chemical Powder
Dry chemical powder is applied to extinguish small spill hydrocarbon fires and fires on flammable solids. Class BC type dry powder is used in plant outdoor area suitable for hydrocarbon and LNG fires. For this plant, the Class BC type dry powder shall be a potassium bicarbonate based agent, which is called Purple K and used for the portable and wheeled fire extinguishers, fixed dry chemical system and the triple agent fire truck.
Class ABC type dry powder is used inside the buildings. For this plant the Class ABC type dry powder shall be a monoammonium phosphate based agent, which is called Foray and used for the portable fire
extinguishers.
Dry powder agents extinguish a fire primarily due to the interaction of the particles to stop the chain reaction that takes place in flame combustion. It shall be noted that after the application of the dry chemical agent, re-ignition of flammable material after the flame knock down may occur, if the ignition sources are not cooled down or removed.
4.1.4 Carbon Dioxide
The mechanism by which carbon dioxide (CO2) extinguishes fire is by reducing the concentration of oxygen
(smothering) and the vapor phase of the fuel or both in the air to the point where combustion stops.
Carbon dioxide is used for the total flooding fire suppression systems for the sealed under-floor cableways in the Local Control Rooms (LCR) and Main Control Building (099-B-1001), gas turbine enclosures and emergency diesel generator enclosures.
Wheeled CO2 extinguishers are installed near the main substation and main control building. Portable CO2
extinguishers are installed inside buildings where electrical rooms are located.
The discharge of CO2 in fire extinguishing system creates serious hazard to personnel such a suffocation and
reduced visibility during and after discharge period. Pre-discharge notification should be provided to prevent personnel from being exposed to an atmosphere made hazardous by CO2 discharge.
4.1.5 Fire Water Capacity 4.1.5.1 Fire water storage
(1) Utility Area Fire Water Source
The fire water storage tank shall be the Desalinated Water Tank (064-TK-1001). Net working capacities are as follows:
(a) 4160 m3 (4160000 L) : Four (4) hours fire water
(b) 8282 m3 (8282000 L) : One (1) week plant consumption excluding potable water demand The total fire water capacity is based on the requirement of fire water demand at the rate of 1040 m3/hr (17333 l/min) for a minimum of four (4) hours continuous fire fighting operation.
(2) Sea Water Intake Area at the LNG Loading Deck and Trestle Area Fire Water Source
The fire water source shall be sea water in the sea water intake and used as a back up fire water source during emergency operation when Utility Area fire water source is not available. The sea water back up system can supply a total of 1040 m3/hr (17333 l/min) equivalent to the rated capacity of two (2) sea water supply pumps.
_____
| |
| |
_____
INDRA
20-JUL-2006(3) Administration and Dormitory Area Fire Water Source
The fire water storage tank shall be the Service Water Reservoir (340-TK-1001). Net working capacities are as follows:
(a) 456 m3 (456000 L) : Two (2) hours fire water
(b) 150 m3 (150000 L) : One (1) day potable water demand
The total fire water capacity is based on the requirement of fire water demand at the rate of 228 m3/hr
(3800 l/min) for a minimum of two (2) hours continuous fire fighting operation.
4.1.5.2 Fire water pumps and jockey pumps (1) Utility Area
Item No. Pump Rated Capacity Discharge Head Driver
m3/hr (l/min) m
082-P-1001A Fire Water Pump 1040 m3/hr (17333 l/min) 104 Motor 082-P-1001B Fire Water Pump 1040 m3/hr (17333 l/min) 104 Diesel 082-P-1002 Jockey Pump 15 m3/hr (250 l/min) 104 Motor
(2) Sea Water Intake Area at the LNG Loading Deck and Trestle Area
Item No. Pump Rated Capacity Discharge Head Driver
m3/hr (l/min) m
078-P-1001A Sea Water Supply Pump 530 m3/hr (8833l/min) 120 Motor
078-P-1001B Sea Water Supply Pump 530 m3/hr (8833l/min) 120 Diesel 078-P-1001C Sea Water Supply Pump 530 m3/hr (8833l/min) 120 Motor
(3) Administration and Dormitory Area
Item No. Pump Rated Capacity Discharge Head Driver
m3/hr (l/min) m
340-P-1001A Fire Water Pump 228 m3/hr (3800 l/min) 80 Motor 340-P-1001B Fire Water Pump 228 m3/hr (3800 l/min) 80 Diesel
340-P-1002 Jockey Pump 24 m3/hr (400 l/min) 90 Motor
4.1.6 Design Conditions
Design conditions for fire protection system and hazard detection and monitoring system are described in the documents listed in Section 2.7 Design Criteria.
_____
| |
| |
_____
INDRA
20-JUL-20064.2 Fire Water System, Foam System and Extinguisher Location
Piping and Instrumentation Diagrams of Fire Fighting System are listed in Section 2.1.
Layout Drawings of Fire Fighting System listed in Section 2.2 incorporates the fire water system, foam system and extinguisher location information.
4.3 Hazard Detection and Monitoring System
The concept of hazard detection and monitoring system is summarized in the Hazard Detection and Monitoring System Schematic Diagrams are listed in Section 2.4.
Hazard Detection and Monitoring System Layout Drawings are listed in Section 2.3.
Detail of logic of Hazard Detection and Monitoring System is described in Section 7.6 of this Operation Manual. Regarding the detail logic of package equipment, such as CO2 system for sealed under floor
cableways, gas turbine enclosures and emergency diesel generators and fixed dry chemical system, refer to each Vendor’s document.
4.4 Vendor Operation Manual
Detailed operation and maintenance procedure are described in the following vendor operation manual. 4.4.1 V-2158-501-A-360, Instruction, Operation and Maintenance Manual (Gas Turbine MS7001EA) 4.4.2 V-2158-501-A-404, Control System Functional Description (Gas Turbine)
4.4.3 V-2181-001-A-692, Fire Fighting System Data Sheet (Emergency Diesel Generators) 4.4.4 V-2181-001-A-801, Operation and Maintenance Manual (Emergency Diesel Generators)
_____
| |
| |
_____
INDRA
20-JUL-20065. FIRE PROTECTION SYSTEM DESCRIPTION 5.1 System Description
Fire protection system consists of the following; 5.1.1 Fire water storage facility
5.1.2 Fire water pumps and jockey pumps
5.1.3 Fire water distribution network with fire hydrants, fixed water monitors, fixed remote on / off oscillating fire water monitors, remotely operated water monitors, live hose reels, indoor hose reels, isolating valves, etc. 5.1.4 Fixed foam extinguishing system (low expansion and high expansion)
5.1.5 Fixed water spray (water deluge) system 5.1.6 Fixed fog nozzle system
5.1.7 Automatic sprinkler system
5.1.8 Portable monitor and trailer mounted oscillating foam monitor 5.1.9 Hose boxes and safety apparatus
5.1.10 Portable and wheeled fire extinguishers 5.1.11 Fixed dry chemical fire extinguishing system 5.1.12 Carbon dioxide fire suppression system
5.1.13 Hazard detection and monitoring system with fire alarm / control panels 5.1.14 Fire station and standard and miscellaneous equipment
5.1.15 Fire fighting vehicles
5.2 Fire Protection System Provisions
The Tangguh LNG Project is adequately provided with fire protection and hazard detection systems for each area depending on the gravity of the hazard present. Fire fighting equipment and / or systems in suitable numbers and purpose are provided to prevent damage to equipment, property and more importantly to the loss of lives.
Refer to Attachment – 1, for the summary of the fire protection and Attachment – 2, for the summary of hazard detection and monitoring system (HDMS) provisions to be provided for each area.
_____
| |
| |
_____
INDRA
20-JUL-20066. FIRE FIGHTING AND SUPPRESSION SYSTEM 6.1 Fire Water Sources
Three (3) fire water sources are available for the consumption of the whole fire water system. These are from the Utility Area, Administration and Dormitory Area and Sea Water Intake Area at the LNG Loading Deck and Trestle Area. Each fire water source is integrated to the plant through separate connection points within the fire water network through manual isolation valves. Amongst the three (3), only the Administration and Dormitory Area fire water source is not capable to supply the fire water consumption of the whole system. The capacity of each storage source is described in Section 4.1.5.1.
Fresh water from the Desalinated Water Tank (064-TK-1001) in the Utility Area shall be the primary source of water for the fire fighting system. However, during emergency situations in which a low – low liquid level (LLLL) of the desalinated water tank is reached, sea water shall be introduced to the fire water system through the activation of the sea water supply pumps and manual opening of the isolation valve in the LNG Loading Deck and Trestle Area.
A separate fire water system is provided for the Administration and Dormitory Area; thus, potable water from the Service Water Reservoir (340-TK-1001) shall be the primary source of water. Secondary sources of water shall be fresh water from the desalinated water tank in the Utility Area can be introduced to the system through a manual opening of the car-sealed closed isolation valve at the connection point with the plant area fire water system.
6.2 Fire Water Pump System
Fire water supply shall be derived from two (2) fire water main pump systems and one (1) back up fire water supply. The independent fire pump systems are in the Utility Area, Administration and Dormitory Area and Sea Water Intake in the LNG Loading Deck and Trestle. During fire fighting, the fire pumps shall maintain a minimum residual pressure of 7.0 Kg/cm2G under the required flow rates for each area at the outlet of hose connection of hydrant farthest from the fire water pumps.
6.2.1 Utility Area Fire Water Pumps 6.2.1.1 Main fire water pumps
Fresh water fire pumps as the main pumps of the whole plant are located in the Utility Area. Two (2) centrifugal fire water pumps, one (1) motor driven pump and one (1) diesel engine driven pump are provided. The motor driven pump (082-P-1001A) is rated sufficient to supply the greatest fire water demand of the plant, while the diesel engine driven pump (082-P-1001B) is on standby. Each pump is capable of producing 100 percent rated capacity of 1040 m3/hr (17333 l/min) at the rated head of 10.3 Kg/cm2G. Pumps shall furnish not less than 150% of rated capacity with not less than 65% of total rated head.
The diesel engine is provided with a fuel tank (082-PD-1001) and engine cooling water is taken from the pump discharge line. All fire water pumps are provided with a dedicated local control panel;
082-LCP-P1001A for 082-P-1001A and 082-LCP-P1001B for 082-P-1001B.
6.2.1.2 Jockey pumps
One (1) electric motor driven jockey pump (082-P-1002) with a capacity of 15 m3/hr (250 l/min) is provided to continuously maintain the pressure in the fire water distribution piping at 10.3 Kg/cm2G.
_____
| |
| |
_____
INDRA
20-JUL-20066.2.1.3 Piping system
The 24” outlet from the desalinated water tank (064-TK-1001) is connected to a common suction header of the fire water pumps and jockey pump. The fire water pumps are provided with a common test line and return line. A pressure control valve (082-PV-001) is installed at the common return line to prevent fire main pressure from exceeding 12.3 Kg/cm2G.
The jockey pump is also provided with a minimum flow line.
Discharge line of fire water pumps and jockey pump are connected to the fire water distribution grid system. All pump suction and discharge block valves are in the locked open (LO) position.
6.2.1.4 Operation of utility fire water pumps
The jockey pump is started and stopped at field through a local hand switch (082-HS-0030).
The main fire water pumps are provided with automatic start provision on low fire main pressure signals from the pressure switch low (082-PSL-0010 and 082-PSL-0020). Normally, main fire water pumps are in auto mode position and shall be started automatically in the following order;
(1) 082-P-1001A (Electric Motor Driven Pump) (2) 082-P-1001B (Diesel Engine Driven Pump)
Electric motor driven pump is given priority over diesel pump except in periods of maintenance and when normal power generation is out of service.
Time difference for the main fire water pumps are used as consequent operation of multi main fire water pumps. The following operation sequence is used:
(1) The pressure of the fire water main line is maintained at more than 10.3 Kg/cm2G by the jockey pump (082-P-1002).
(2) The first priority electric motor driven pump (082-P-1001A) will be put into operation automatically with no time delay when the pressure in the fire main falls to 8.5 Kg/cm2G. This decrease in pressure is detected by pressure switch low (082-PSL-0010 and 082-PSL-0020). If the fire main pressure reaches the above set pressure within set time, then the diesel engine driven pump (082-P-1001B) will not start. (3) But when the pressure of the main line further falls to 8.5 Kg/cm2G, the diesel engine driven pump
(082-P-1001B) will start automatically after 10 seconds.
The main fire water pumps can only be stopped at field through a local hand switch (082-HS-0011F for the electric motor driven (082-P-1001A) and 082-HS-0021C for the diesel engine driven (082-P-1001B)).
6.2.1.5 Activation and alarm notification
Remote start-up of the fire water pumps (except jockey pump) is possible through the HDMS Operation Board in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001). Manual start of the main fire water pumps is also possible at the local control panel. All of the pumps can only be stopped manually from the local control panels.
Indication for status of the fire water pumps shall be provided at the HDMS Visual Display Unit (VDU) in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001). The following status indication shall be provided;
(1) Jockey pump (082-P-1002) (a) Running
_____
| |
| |
_____
INDRA
20-JUL-2006(2) Electric motor driven fire water pump (082-P-1001A) (a) Running
(b) Power failure (c) Phase reversal
(3) Diesel engine driven fire water pump (082-P-1001B) (a) Running
(b) Off position (c) Common trouble (d) Manual position
Refer to Attachment – 3 for the summary of the Utility fire water pump operation.
6.2.2 Administration and Dormitory Fire Water Pumps 6.2.2.1 Main fire water pumps
The fire water pumps for this area shall be solely used for the Administration and Dormitory Area only. Two (2) centrifugal fire pumps, one (1) motor driven and one (1) diesel engine driven pump are provided. The motor driven pump (340-P-1001A) is rated to supply the greatest fire water demand of the
Administration and Dormitory Area, while the diesel engine driven pump (340-P-1001B) is on standby. Each pump is capable of producing 100 percent rated capacity of 228 m3/hr (3800 l/min) at the rated discharge head of 7.93 Kg/cm2G. Pumps shall furnish not less than 150% of rated capacity with not less than 65% of total rated head.
The diesel engine is provided with a fuel tank (340-PD-1001) and engine cooling water is taken from the pump discharge line. All fire water pumps are provided with a dedicated local control panel;
340-LCP-P1001A for 340-P-1001A and 340-LCP-P1001B for 340-P-1001B.
6.2.2.2 Jockey pumps
One (1) electric motor driven jockey pump (340-P-1002) with a capacity of 24 m3/hr (400 l/min) is provided to continuously maintain the pressure in the fire water distribution piping at 8.92 Kg/cm2G.
6.2.2.3 Piping system
The 10” outlet from the service water reservoir (340-TK-1001) is connected to a common suction header of the fire water pumps and jockey pump. The fire water pumps are provided with a common test line and return line. A pressure control valve (082-PV-0051) is installed at the common return line to prevent fire main pressure from exceeding 12.3 Kg/cm2G and to satisfy the minimum flow requirement of the pump at all conditions.
The jockey pump is also provided with a minimum flow line.
Discharge line of fire water pumps and jockey pump are connected to the fire water distribution grid system. All pump suction and discharge block valves are in the locked open (LO) position.
_____
| |
| |
_____
INDRA
20-JUL-20066.2.2.4 Operation of administration and dormitory fire water pumps
The jockey pump is started and stopped at field through a local hand switch (082-HS-0080).
The main fire water pumps are provided with automatic start provision on low fire main pressure signals from the pressure switch low (082-PSL-0060 and 082-PSL-0070). Normally, main fire water pumps are in auto mode position and shall be started automatically in the following order;
(1) 340-P-1001A (Electric Motor Driven Pump) (2) 340-P-1001B (Diesel Engine Driven Pump)
Electric driven pump is given priority over diesel pump except in periods of maintenance and when normal power generation is out of service.
Time difference for the main fire water pumps are used as consequent operation of multi fire water pumps. The following operation sequence is used:
(1) The pressure difference of the fire water main line is maintained at more than 8.92 Kg/cm2G by the jockey pump (340-P-1002)
(2) The first priority electric motor driven pump (340-P-1001A) will be put into operation automatically with no time delay when the pressure in the fire main falls to 7.5 Kg/cm2G. This decrease in pressure is detected by pressure switch low (082-PSL-0060 and 082-PSL-0070). If the fire main pressure reaches the above set pressure within set time, then the diesel engine driven pump (340-P-1001B) will not start. (3) But when the pressure of the main line further falls to 7.5 Kg/cm2G, the diesel engine driven pump
(340-P-1001B) will start automatically after 10 seconds.
The main fire water pumps can only be stopped at field through a local hand switch (082-HS-0061F for the electric motor driven (340-P-1001A) and 082-HS-0071C for the diesel engine driven (340-P-1001B)).
6.2.2.5 Activation and alarm notification
Remote start-up of the fire water pumps (except jockey pump) is possible through the HDMS Operation Board in the Fire and Emergency Station (082-B-1001). Manual start of the main fire water pumps is also possible at the local control panel. All of the pumps can only be stopped manually from the local control panels.
Indication for status of the fire water pumps shall be provided at the HDMS Visual Display Unit (VDU) in the Fire and Emergency Station (082-B-1001). The following status indication shall be provided;
(1) Jockey pump (340-P-1002) (a) Running
(2) Electric motor driven fire water pump (340-P-1001A) (a) Running
(b) Power failure (c) Phase reversal
(3) Diesel engine driven fire water pump (340-P-1001B) (a) Running
(b) Off position (c) Common trouble (d) Manual position
Refer to Attachment – 4 for the summary of the Administration and Dormitory Area fire water pump operation.
_____
| |
| |
_____
INDRA
20-JUL-20066.2.3 LNG Loading Deck and Trestle Sea Water Supply Pumps 6.2.3.1 Sea water supply pumps
Sea water supply pumps as the back up fire water supply shall be located in the Sea Water Intake pit at the LNG Loading Deck and Trestle Area. Three (3) vertical pumps, two (2) motor driven pumps and one (1) diesel driven pump are provided. Each pump is sized to 50% capacity of the rated flow of the maximum fire water demand of the plant, that is 520 m3/hr (8666 l/min) at the rated head of 12.22 Kg/cm2G.
6.2.3.2 Operation of sea water supply pumps
At normal conditions, the sea water supply pumps are used to deliver sea water to the desalination and chlorination packages. However, during emergency operations, they will be used to deliver adequate flow of sea water to the fire water system. Since the sea water pump will only be used, as back up fire water pumps, NFPA 20 requirements shall not apply.
The desalinated water tank (064-TK-1001) shall have a minimum water inventory sufficient to meet the four (4) hours fire water required for fire fighting purpose. However, during emergency operations when the low-low-level alarm (082-LALL-2810) of the desalinated water tank is activated, the sea water pumps will be started automatically to deliver the sea water to the fire water system.
At low-level alarm (082-LAL-2810) activation, an operator in the LNG Loading Trestle should manually open the two (2) 16” isolation valves at the common discharge header of the pumps just before the activation of the sea water supply pumps. Refer to Attachment – 5 for the sea water supply pump discharge header. Concurrently, an operator should be stationed at the Utility Area fire water pump area to manually stop the pump after low-low-level alarm (082-LALL-2810), to avoid pump cavitation, if the desalinated water tank becomes empty.
6.2.3.3 Activation and alarm notification
Remote start-up and stop of the sea water supply pumps is possible through the DCS in the MCB
(099-B-1001). Manual start and stop of the sea water supply pumps is also possible at the local panel for the diesel engine driven pump and at the field hand switch for the electric motor driven pumps.
Indication for status of the sea water supply pumps shall be provided at the DCS. The following status indication shall be provided;
(1) Common alarm (for diesel engine driven fire water pump, 078-P-1001B) (2) Running (for diesel engine driven fire water pump, 078-P-1001B) (3) Primary pump not started
(4) Secondary pump not started
_____
| |
| |
_____
INDRA
20-JUL-20066.3 Fire Water Main Distribution System
Fire water main piping is laid out in loops or grids along the roads surrounding the areas to be protected such as the Process Area, Utility Area, Onshore Receiving Facilities and Refrigerant Storage Area, LNG Storage Tank Area, Main Control Building Area, Condensate Storage Tank Area, Administration and Dormitory Area, Off Site Building Area and GPFSB.
Single fire water main piping is applied for the LNG Loading Deck and Trestle, Combo Dock, BOG Compressor Area, Off Site and Flare Area, Heavy Haul Trestle Area and the area between the LNG Storage Tank and Process Trains.
Fire water main material is carbon steel and laid above ground for all areas except for road crossings and access ways where it shall be buried or laid underground. Minimum fire main size is 8 inches. The fire water main system is sized such that the minimum residual pressure at outlet of hose connection of the hydrant outlet farthest from a fire water pump shall be 7.0 Kg/cm2G.
Loops or grids have at least two (2) sources of supply from separate fire water main laterals, and isolated with butterfly valves. Block valves are appropriately installed to isolate failed portions of the fire main so that a minimum of 50% for the whole system is still available to supply fire water. For long fire water main lines supporting fire water system equipment, block valves are installed at no more than 305 m intervals, otherwise block valves are provided beyond this limit.
The fire water main distribution piping is provided with hydrants, fixed water monitors, oscillating fire water monitors, etc. at specific zones and areas of the plants for adequate coverage and protection.
6.4 Fire Water Hydrants
Hydrants are installed throughout the plant area for fire fighting activity with hose and also as a fire water supply source for the fire water trucks.
Two (2) types of hydrant are provided in the plant; four way and two way hydrant. Four way hydrant shall be located at spacing no longer than 60 m for areas handling LNG, LPG, flammable liquids or gases and two way hydrants at spacing no longer than 90 m for other areas.
A four way hydrant with International Ship / Shore Connections is installed at the LNG Loading Trestle. The hydrants have the following specifications:
(1) Type : Wet barrel type hydrant, 6 inches for four way type with four (4) 2-1/2” valved hose connections and two way type with two (2) 2-1/2” valved hose connections.
(2) Hydrant Body : Carbon steel same as the material of the fire water main lines, 6 and 4 inches lateral to fire hydrant body for four and two way hydrant respectively.
(3) Flange Connection to the Fire Hydrant Valve and International Ship / Shore Connection Assembly : 3” ANSI 150# FF Flange
(4) Hose Connector to Coupling : 2-1/2” BS 336 Instantaneous Female hose connection (5) Fire Hydrant Valve : Built-in total flow gate valves (HOLD)
Fire water main pressure in this plant would become high (possibly around 12.2 Kg/cm2G) after fire water
pump starts; therefore due to care should be given when hydrants are operated. Fire hydrant valves should also be opened gradually, confirming the water flow and force from the portable water nozzle.
_____
| |
| |
_____
INDRA
20-JUL-20066.5 Fixed Water Monitors
Fixed water monitors are provided at the ground level for the LNG Loading Deck and Trestle, Utility Area and BOG Compressor Area.
Monitors are located at least 15 m from the equipment to be protected with a minimum effective radial coverage of 36 m per monitor.
The monitor will be manually operated through the opening of the butterfly valve at the inlet of each water monitor while movement and stream adjustment shall be through a hand lever with locking device and monitor nozzle, respectively.
6.6 Fixed Remote On / Off Oscillating Fire Water Monitor
Oscillating fire water monitors are provided at the ground level for the LNG Process Train 1 and 2, ORF and Refrigerant Storage Area.
These monitors are fed fire water by activating the deluge valves. The monitors area remotely - manually operated from the MCB (099-B-1001) and pre-adjusted for horizontal oscillating angle, vertical angle and water discharge pattern to cover the protected equipment in one (1) specific fire zone with maximum effective radial coverage of 36 m.
When adequate water coverage cannot be provided by the oscillating fire water monitors alone, fixed fog nozzle systems are provided as supplementary protection. Refer to Section 6.11.
One (1) oscillating water monitor shall be provided with a self-educting water / foam air aspirating nozzle to cover the equipment associated with debutanizer in the fractionation area of each process train (091-U-1112 for LNG Process Train – 1 and 092-U-1112 for LNG Process Train – 2.
A deluge valve system, which is of hydraulic operated Viking deluge valve Model J- 1 with electric release, is provided for each oscillating monitor or group of oscillating monitors. This type of deluge valve is capable of remote open and close operation via a hand switch from the HDMS Operation Board in the MCB (099-B-1001). Deluge valves can also be closed and opened manually via emergency release valve at the deluge valve trim.
Refer to Attachment – 6 for the fixed remote on / off oscillating fire water monitors, fixed fog nozzle system, deluge valves and hand switches in the LNG Process Train – 1.
Refer to Attachment – 7 for the fixed remote on / off oscillating fire water monitors, fixed fog nozzle system, deluge valves and hand switches in the LNG Process Train – 2.
Refer to Attachment – 8 for the fixed remote on / off oscillating fire water monitors, fixed fog nozzle system, deluge valves and hand switches in the ORF, Refrigerant Storage and Flare Area.
Refer to Attachment – 45 to Attachment – 57 for the oscillating monitor arrangement for the LNG Process Train – 1 and 2 and the ORF and Refrigerant Storage Area.
_____
| |
| |
_____
INDRA
20-JUL-20066.7 Remotely Operated Water Monitor
Remotely operated water monitors of electric motor operation type are located on the Gangway Tower and Monitor Tower at the LNG Loading Deck to protect the loading facilities on the upper platform on the ship’s manifold, considering the operation of the loading arms. The monitors can be remotely started and stopped from a local hand switch at least 60 m away from the LNG Loading Deck.
A deluge valve system, which is of hydraulic operated Viking deluge valve Model J- 1 with electric release, is provided for the remote monitors. The deluge valves are opened and closed through hand switch activation (082-HS-0452 and 082-HS-0453) on the roof of the Substation - Jetty Seawater Switchgear Room
(071-B-1001). Deluge valves can also be closed and opened manually via emergency release activation included in the deluge valve system.
Upon actuation of the remote monitors, actuation alarm (082-PAH-0452A and 082-PAH-0453A) from the pressure switch (082-PSH-0452 and 082-PSH-0453) downstream of the deluge valve will be available in the HDMS VDU in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001).
In the same location, monitor local control panels (070-U-1241/LCP-11 and 070-U-1242/LCP-11) shall be positioned in order to assist operators to adjust monitor movement and discharge patterns.
Refer to Attachment – 9, Item 3 and 4 for the activation summary of the fixed fog nozzle system for the LNG Storage Tanks.
6.8 Live Hose Reels
Live hose reels are installed under the main pipe racks of LNG Process Train 1 and 2 at 30 m spacing where equipment are handling LNG, flammable liquids, combustible liquids and flammable gases for quick fire fighting at an incipient stage of fire. The operator should open the inlet valve gradually to avoid
inconvenience in handling the hose due to sudden high pressure.
6.9 Indoor Hose Reels
Indoor hose reels are provided inside the buildings for extinguishing small fires. The following buildings are protected with indoor hose reels;
(1) Maintenance Workshop (200-B-1001) (2) Warehouse (220-B-1001)
(3) Solid Waste Storage (310-B-1001) (4) Office Block (350-B-1001) (5) Warehouse (350-B-1002)
(6) Five Bay Workshop (350-B-1008) (7) Machine Shop (350-B-1009) (8) Vehicle Workshop (350-B-1010) (9) Administration Building (341-B-1001) (10) Dormitory Block A (342-B-1001) (11) Central Building (345-B-1001)
(12) Customs and Security Office (346-B-1001) (13) Dormitory Block B (347-B-1002)
(14) Clinic (349-B-1001)
_____
| |
| |
_____
INDRA
20-JUL-20066.10 Fire Hose Boxes
Fire hose boxes are provided at alternate fire water hydrants throughout the plant so as to provide portable equipment e.g. nozzles, fire hoses etc. for first aid fire extinguishment. Each box and its contents shall be checked to ensure the operability of the equipment
Each box stores the following:
(1) Two (2) pcs. 2-1/2” adjustable portable water nozzle, with a maximum capacity of 950 l/min at 7.0 Kg/cm2G
(2) Four (4) pcs. fire hose, 30 m length with BS 336 Instantaneous Male and Female couplings
6.11 Fixed Fog Nozzle System
Fixed fog nozzle systems are provided for equipment or group of equipment that cannot be adequately protected by other fire water system equipment. The fog nozzles shall be remote operated on / off from the MCB (099-B-1001). The fixed fog nozzles shall be of Elkhart make, NTC or NTLC Fixed Constant Flow Nozzle model.
6.11.1 LNG Process Train 1 and 2, ORF and Flare Area
The fixed fog nozzle systems for the LNG Process Train 1 and 2, ORF and Flare Area are either a stand alone system with a designated supply line and deluge valve or as a supplementary protection in conjunction with the fixed remote on / off oscillating fire water monitor. The fog nozzle system shall be of remote – manual operation type.
A deluge valve system, which is of hydraulic operated Viking deluge valve Model J- 1 with electric release, is provided for each fog nozzle system or combination fog nozzle and fixed remote on / off oscillating fire water monitor. This type of deluge valve is capable of remote open and close operation from the HDMS Operation Board in the MCB (099-B-1001). Deluge valves can also be closed and opened manually via emergency release valve at the deluge valve trim.
Refer to Attachment – 6 for the fixed remote on / off oscillating fire water monitors, fixed fog nozzle system, deluge valves and hand switches in the LNG Process Train – 1.
Refer to Attachment – 7 for the fixed remote on / off oscillating fire water monitors, fixed fog nozzle system, deluge valves and hand switches in the LNG Process Train – 2.
Refer to Attachment – 8 for the fixed remote on / off oscillating fire water monitors, fixed fog nozzle system, deluge valves and hand switches in the ORF, Refrigerant Storage and Flare Area.
_____
| |
| |
_____
INDRA
20-JUL-20066.11.2 LNG Storage Tank
Fixed fog nozzle system is also provided for the LNG Storage Tanks (071-TK-1001 and 1002) pump platform for area coverage. The fog nozzles shall be of remote manual / automatic activation type.
A deluge valve system, which is of hydraulic operated Viking deluge valve Model F – 1 with electric release is provided for each tank fog nozzle system. This type of deluge valve shall be activated by two out of two (2oo2) voting of Triple IR flame detectors on the pump platform of each tank. Upon automatic activation of the fixed fog nozzle system, actuation alarm (082-PAH-0406A or 082-PAH-0407A) from the pressure switch (082-PSH-0401 or 082-PSH-0402) downstream of the deluge valve will be available in the HDMS VDU in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001).
Water spray discharge can also be remotely opened from the HDMS Operation Board in the MCB
(099-B-1001) and Fire and Emergency Station (082-B-1001) by hand switch activation of the deluge valve. Deluge valves can also be opened manually via emergency release valve at the deluge valve trim.
Upon activation of the Viking Model F – 1 deluge valve, the 6” manual valve upstream the deluge valve needs to be closed first in order to depressurize the deluge valve before the valve is reset and closed. Sudden closure of the manual valve may cause high surge pressure, which may damage the valve. For this reason, it is important to observe the proper valve closure time of minimum 30 seconds, to minimize surge pressure. The following are detailed instruction to properly close and reset the Viking Model F – 1 deluge valve;
(1) Close the 3/4" manual valve in the inlet of the valve trim line.
(2) Close the 6” manual valve upstream of the deluge valve (closure time of min. 30 seconds).
(3) Drain the spray system piping downstream of the deluge valve to depressurize the system, via the drain valve in the deluge system package.
(4) Drain the trim line of the deluge valve via the solenoid valve (three – way valve operation). (5) Reset the solenoid valve to the “de-energized to close” setting.
(6) Open the 3/4" manual valve in the inlet of the valve trim line to close the deluge valve. (7) Open the 6” manual valve upstream deluge valve.
Refer to Attachment – 9, Item 1 and 2 for the activation summary of the fixed fog nozzle system for the LNG Storage Tanks.
_____
| |
| |
_____
INDRA
20-JUL-20066.12 Water Spray (Water Deluge) System
Remote – manual / automatic activated fixed water spray system shall be provided for the Gangway Tower and Monitor Tower in the LNG Loading Deck and Trestle Area. Additionally, water curtain nozzles shall be provided for each floor of the gangway tower to protect escaping personnel against heat radiation from a ship’s manifold and / or loading manifold.
The system comprises of full cone type water spray nozzles, fan type water curtain nozzles and pilot sprinkler heads as heat detector. A deluge valve system, which is of hydraulic operated Viking deluge valve Model F – 1 with hydraulic and electric release is provided for the water spray system. The pilot sprinkler heads installed near each water spray system ring shall activate the deluge valve. Pilot sprinkler lines are normally pressurized by fire water, when the pilot sprinkler heads are exposed to heat radiation by fire, the sprinklers will open and release water, consequently the deluge valve will open.
Upon actuation of the water spray system, actuation alarm (082-PAH-0454A) from the pressure switch (082-PSH-0454) downstream of the deluge valve will be available in the HDMS VDU in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001).
Water spray discharge can be remotely activated from the HDMS Operation Board in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001) by means of hand switch (082-HS-0454A and
082-HS-0454B). Deluge valves can be opened manually via emergency release valve at the deluge valve trim.
Upon activation of the Viking Model F – 1 deluge valve, the 6” manual valve upstream the deluge valve needs to be closed first in order to depressurize the deluge valve before the valve is reset and closed. Sudden closure of the manual valve may cause high surge pressure, which may damage the valve. For this reason, it is important to observe the proper valve closure time of minimum 30 seconds, to minimize surge pressure. The following are detailed instruction to properly close and reset the Viking Model F – 1 deluge valve;
(1) Close the 3/4" manual valve in the inlet of the valve trim line.
(2) Close the 6” manual valve upstream of the deluge valve (closure time of min. 30 seconds).
(3) Drain the spray system piping downstream of the deluge valve to depressurize the system, via the drain valve in the deluge system package.
(4) Drain the trim line of the deluge valve via the solenoid valve (three – way valve operation). (5) Reset the solenoid valve to the “de-energized to close” setting.
(6) Open the 3/4" manual valve in the inlet of the valve trim line to close the deluge valve. (7) Open the 6” manual valve upstream deluge valve.
After the automatic activation of the water spray (water deluge) system in the Gangway and Monitor Tower, the pilot sprinkler heads cannot be re-used, thus, new pilot sprinkler heads shall be installed in the system. Refer to Attachment – 9, Item 5 for the activation summary of the water spray (water deluge) system in the LNG Loading Deck and Trestle Area.
6.13 Water Sprinkler System
Automatic operated water sprinkler system is provided to protect buildings in the plant area. The following buildings shall be provided with sprinkler system:
(1) Warehouse (220-B-1001) (2) Laboratory (200-B-1002)
(3) Dormitory Block A and B (342-B-1001 and 347-B-1002)
_____
| |
| |
_____
INDRA
20-JUL-20066.14 Automatic High Expansion Foam System
Automatic high expansion foam system is provided for each spill impounding basin in the LNG Process Train 1 and 2, LNG Loading Deck and LNG Storage Tanks. The foam supply system mainly consists of atmospheric foam concentrate tanks, balanced pressure proportioning system, foam distribution piping, foam generators and deluge valve system.
6.14.1 Foam Proportioning System
The balanced pressure foam proportioning system comprises of atmospheric foam tanks, foam proportioner, water driven foam pump and necessary control system that will produce 3% foam solution by mixing synthetic foam concentrate into water flow at the proportioner. A balanced pressure foam proportioning skid is provided at each area.
1% to 3% Synthetic foam concentrate is employed for the high expansion foam system.
A deluge valve system, which is of hydraulic operated Viking deluge valve Model J – 1 with electric release, is provided for each high expansion foam system. This type of deluge valve shall be automatically activated upon receipt of a signal from the cryogenic spill detector or 2oo2 alarm signals from flame detectors. In case, that one of the flame detectors is faulty, the fire detection by one (1) flame detector will automatically activate the high expansion foam system.
Automatic activation via cryogenic spill detector will result in an LNG spill alarm (TAL) in the HDMS VDU in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001). While, activation of the flame detector will result in a fire alarm indication in the HDMS VDU in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001).
Upon automatic activation of the high expansion foam system, actuation alarm (PAH) from the pressure switches (PSH), downstream of the deluge valves will be available in the HDMS VDU in the MCB (099-B-1001) and Fire and Emergency Station (082-B-1001).
High expansion foam system can be remotely opened and closed from the HDMS Operation Board in the MCB (099-B-1001) by hand switch activation of the deluge valves. Deluge valves can also be closed and opened manually via emergency release valve at the deluge valve trim.
During a foam discharge operation, once the required foam depth of 0.6 m over the LNG liquid surface is achieved, the system shall be operated manually and intermittently by local on – off switch located near the spill containment basin to maintain the foam depth.
After automatic activation, the deluge valves will be automatically closed overriding the flame or LNG spill detection to prevent premature depletion of the foam concentration and safe guard against expanded foam over flowing from the LNG spill basin in cases where the operators are not aware of the automatic foam discahrge. The approximate time to close for each system will be as follows:
(1) LNG Process Train – 1 : 60 seconds (2) LNG Process Train – 2 : 60 seconds (3) LNG Loading Deck : 90 seconds (4) LNG Storage Tank (071-TK-1001) : 90 seconds (5) LNG Storage Tank (071-TK-1002) : 90 seconds
Refer to Attachment – 9, Item 6 to Item 10 for the activation summary of the high expansion foam system for LNG Process Train 1 and 2, LNG Loading Deck and LNG Storage Area.
To refill the foam tanks, the high expansion foam concentrate stored in the Warehouse (220-B-1001) is charged to the atmospheric foam tank with the support of a diesel engine portable pump for air foam concentrate stored in the Fire and Emergency Station (082-B-1001). The portable foam pump has a flexible tube which draws up foam concentrate from the drum into the pump. The delivery hose at the pump outlet is connected to the refilling nozzle of the atmospheric tank.
_____
| |
| |
_____
INDRA
20-JUL-20066.14.2 Foam Solution Piping System
Foam solution piping is of galvanized carbon steel material and laid above ground with low point drain. The foam solution main line should be normally dry and flushed out using the flushing connection downstream deluge valve after each operation to avoid system degradation.
Foam generator, of Angus Turbex type is provided for all areas.
6.15 Low Expansion Foam System
The Condensate Storage Tank (076-TK-1001), is protected with a semi fixed low expansion foam system applied thru air foam chamber where 3% AFFF – water solution will be aerated and expanded foam will be discharged on the surface of the burning liquid.
6.15.1 Atmospheric Foam Tank
An atmospheric foam concentrate tank, 076-TK-1002 with a capacity of 9 m3 (9000 liters) is the external supply of the foam concentrate for the low expansion foam system of the condensate storage tank. The tank is equipped with a loading connection compatible to the portable foam pump and unloading connections compatible with the triple agent fire truck. All connections, loading and unloading are provided with 2-1/2” fire hoses with BS 336 Instantaneous couplings.
To refill the foam tank, the low expansion foam concentrate stored in the Warehouse (220-B-1001) is charged to the atmospheric foam tank with the support of a diesel engine driven portable pump for air foam concentrate stored in the Fire and Emergency Station (082-B-1001). The portable foam pump has a flexible tube which draws up foam concentrate from the drum into the pump. The delivery hose at the pump outlet is connected to the refilling nozzle of the atmospheric tank.
6.15.2 Foam Solution Piping System
The air foam chamber system consist of the foam solution piping, three (3) air foam chambers and six (6) foam hose connections with check valve.
Foam solution piping connected to the air foam chambers is of galvanized carbon steel material and laid above ground with low point drains. Three (3) foam chambers around the tank on the periphery of the floating roof are connected to a single foam solution line. At the end of this foam solution line, six (6) foam hose connection with check valves compatible with the 2-1/2” BS 336 fire hoses. The foam solution main line should be normally dry
6.15.3 Semi Fixed Low Expansion Foam Supply System
The balanced pressure foam proportioning system of the triple agent fire truck generates the foam solution. Proportioning capacity of the truck is between 36 to 360 m3/hr (600 to 6000 l/min).
The truck is provided with six (6) discharge hose connections for the foam solution and six (6) suction hose connections for the water supply and one (1) suction hose connection for the external foam concentrate supply.
The foam solution piping for the air foam chambers are provided with a manifold of six (6) foam hose connections in which six (6) fire hoses shall be connected to the discharge hose connections of the triple agent fire truck. In order to maintain a constant supply of water, six (6) suction hose connections is connected to the fire water hydrants through fire hoses. Foam concentrate is also supplied to the truck via a hose connection to an external foam concentrate tank, 076-TK-1002.
Refer to Attachment – 10, for the typical arrangement of the semi fixed low expansion foam system for the condensate storage tank.
_____
| |
| |
_____
INDRA
20-JUL-20066.16 Portable and Wheeled Fire Extinguishers
The following types of portable and wheeled fire extinguisher are provided for this plant:
6.16.1 56.7 Kg Wheeled BC Dry Chemical Fire Extinguishers
56.7 Kg wheeled type dry chemical extinguishers are of Ansul Model, CR-RT-I-K-150-C. The extinguishers are located at strategic points in the LNG Process Train 1 and 2, LNG Loading Deck, Combo Dock, BOG Compressor, Utility Area and GPF Shore Base.
6.16.2 8.2 Kg BC Portable BC Dry Chemical Fire Extinguishers
8.2 Kg BC type portable fire extinguishers are of Ansul Model, I-K-20-G. The extinguishers are distributed throughout the plant area and located so that the maximum travel distance of 15.25 m as stated in NFPA 10 is satisfied and to cope with small fires at incipient stage.
6.16.3 22.7 Kg Wheeled CO2 Fire Extinguishers
22.7 Kg carbon dioxide fire extinguishers are of Ansul Model, CD-50-D. The extinguishers are located outside the Main Substation (099-B-1002) and Main Control Building (099-B-1001).
6.16.4 4.6 Kg Portable CO2 Fire Extinguishers
4.6 Kg carbon dioxide fire extinguishers are of Ansul Model CD-10-1. The extinguishers are stored in the Fire and Emergency Station (082-B-1001) and may be provided for buildings where electrical equipment is located.
6.16.5 4.54 Kg Portable ABC Dry Chemical Fire Extinguishers (Ansul Model : A10H)
4.54 Kg ABC type portable dry chemical fire extinguishers are of Ansul Model, A10H. The extinguishers are provided for all buildings in the plant.
For the detailed provision of 4.6 Kg carbon dioxide fire extinguishers and 4.54 Kg ABC type dry chemical extinguishers, refer to separate operation manual of buildings.
All fire extinguishers are rechargeable. For the detailed refilling instructions refer to the operation manual for each type of extinguishers.
After using the extinguisher, immediate replacement is required so that no extinguishers shall be de-commissioned for a long time.
_____
| |
| |
_____
INDRA
20-JUL-20066.17 Portable Fire Fighting Equipment
The plant shall be provided with portable water and foam fire fighting equipment. 6.17.1 Portable Water Monitor
Portable ground monitor is provided at the Combo Dock near the temporary ground container storage and to be connected to the fire water hydrants via hose connection.
6.17.2 Trailer Mounted Oscillating Fire Water Monitor
Knowsley trailer mounted oscillating water – foam monitor is provided at the Combo Dock to cover the Condensate Loading Arms and surrounding areas.
The trailer is equipped with a 200 L foam tank and oscillating water monitor with self-educting monitor nozzle capable of handling 3% AFFF low expansion foam concentrate.
Suitable connections are provided to connect the trailer to the fire water hydrants via hose connections.
6.18 Safety Apparatus
The following safety apparatus are provided for personnel protection and first aid. For the detailed operation and maintenance procedures, refer to Vendor’s manual.
6.18.1 Self-Contained Breathing Apparatus
A complete set of breathing assembly including face piece, breathing tube, regulators, hose assembly, harness and carrier assembly suitable for 30 min. breathing oxygen supply. This equipment is provided for the following areas:
(1) LNG Process Train 1 and 2
Stored in sturdy boxes and installed at the main pipe rack columns near the Acid Gas Removal Area. (2) Off Site Building Area
Stored in the Fire and Emergency Station (082-B-1001) and used by fire fighters as well as replacement spares for the breathing apparatus installed outdoors.
6.18.2 Toxic Gas Mask
Toxic gas masks of full-face type suitable against H2S suffocation. The equipment shall be provided in the
following areas:
(1) LNG Process Train 1 and 2
Stored in sturdy boxes (separate from the self-contained breathing apparatus) and installed at the main pipe rack columns near the Acid Gas Removal Area.
(2) Off Site Building Area
Stored in the Fire and Emergency Station (082-B-1001) used by fire fighters as well as replacement spares for the toxic gas mask installed outdoors.
_____
| |
| |
_____
INDRA
20-JUL-20066.18.3 First Aid Kit
First aid medical equipment packed in a carrying case, suitable for diseases and possible injuries in the LNG plant.
(1) LNG Process Train 1
Inside the LCR – Process Train 1 (091-B-1002) (2) LNG Process Train 2
Inside the LCR – Process Train 2 (092-B-1002) (3) Utility Area
Inside the LCR - Utility (060-B-1001) (4) Main Control Building Area
Inside the Main Control Building (099-B-1001), Laboratory (200-B-1002) and Solid Waste Storage (310-B-1001).
(5) GPF Shore Base
Inside the Office Block (350-B-1001) (6) Off Site Building and Haul Road Area
Inside the Fire and Emergency Station (082-B-1001), Maintenance Workshop (200-B-1001) and Warehouse (220-B-1001).
6.19 Fire and Emergency Station
A Fire and Emergency Station (082-B-1001) is provided within the Off Site Building Area. Operation Board and HDMS (F&G) VDU are located since fire fighters are always stationed in this area. The four (4) fire fighting vehicles namely : Fire Water Truck for Plant Area, Triple Agent Fire Truck, Commander Car and Ambulance Vehicle will also be parked in this building. Moreover, sufficient space is allocated to store miscellaneous equipment and do maintenance work.
6.20 Standard and Miscellaneous Equipment
Standard and miscellaneous equipment are provided in the Fire and Emergency Station (082-B-1001) in addition to the equipment and tools mounted on the fire fighting vehicles. These equipment and tools may be mounted on the vehicles, used as spares for outdoor equipment and as special equipment during maintenance work and refilling work. Refer to Attachment –11 for the list of Standard and Miscellaneous Equipment.
