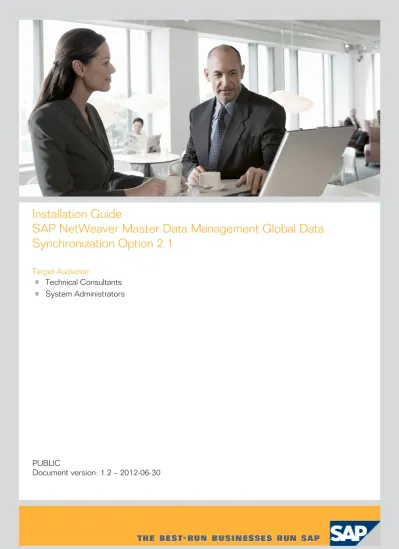

Installation Guide

SAP NetWeaver Master Data Management Global Data

Synchronization Option 2.1

Target Audience ■ Technical Consultants ■ System Administrators PUBLIC Document version: 1.2 – 2012-06-30

(2)

Document History

CAUTION

Before you start the implementation, make sure you have the latest version of this document. You can find the latest version at the following location: http://service.sap.com/

instguides.

The following table provides an overview of the most important document changes. Version Date Description

1.0 2010-05-31 Initial version

1.1 2011-12-07 Support Package 2 version. Help Portal paths corrected. Other updates. 1.2 2012-06-30 Updates in chapter Editing in Application Properties.

(3)

This page is left blank for documents

that are printed on both sides.

(5)

1 SAP NetWeaver MDM GDS: GDS

Console Installation Guide

The GDS Console is a mandatory component of the SAP NetWeaver MDM GDS business scenario, enabling users to:

■ Retrieve information from back end SAP ERP or MDM systems, for processing on the GDS Console

■ Create, enhance, maintain, and store specific data on the GDS Console

■ Register and publish data to the data pools and the Global Registry

■ Manage publication of item data between suppliers and their trade partners This manual describes how to install the SAP NetWeaver MDM GDS Console.

(6)

This page is left blank for documents

that are printed on both sides.

(7)

2 GDS Console Overview

Use

The GDS Console is a Java-based application running on the SAP NetWeaver Application Server (Web AS) Java, which is the main interface of SAP NetWeaver MDM GDS. Connected to the back-end system through SAP NetWeaver Process Integration (PI) connectors, the GDS Console imports item data for enhancement and storage, registration with the data pools and Global Registry, and subsequent publication to trade partners.

Components

The GDS Console operates with the following components to execute processes within the SAP NetWeaver MDM GDS business scenario:

■ MDM Server and Database

The GDS Repository is stored on the MDM Server. It includes the functionality required for backup and restoration, and metadata management.

■ MDM Console

An MDM application used to administer and monitor the MDM Server software, and for creating, backing up, and restoring repositories on MDM.

■ SAP NetWeaver Process Integration (PI) non-central J2EE Adapter Engine and PI AS2 Adapter (by Seeburger)

Responsible for the secure transfer and synchronization of messages between the GDS Console and the data pools. SAP NetWeaver PI is also used to transfer data between the back-end system and the GDS Console.

■ ERP Back End System

Creates the items and transfers the initial data and item status changes to the GDS Console through a system of messages.

■ SAP EHP1 for SAP NetWeaver CE 7.1 Java Stack (with SAP NetWeaver Portal Core - optional) The GDS application runs on the SAP NetWeaver Java stack as a Web Dynpro application. The GDS portal content can be deployed to the server if you select the “Portal Core” option. GDS is made available as a workset in SAP NetWeaver Portal Core, thereby utilizing the portal features of single sign-on and role based access. This is optional. The GDS application can also run in standalone mode without the SAP NetWeaver Portal Core.

The figure below illustrates a typical minimum SAP NetWeaver MDM GDS technical landscape:

(8)

Figure 1:

(9)

3 Preparing for Installation

Before installing the GDS Console, be sure that you have performed all prerequisite procedures outlined in the master guide for SAP NetWeaver MDM GDS. For more information, see SAP Service Marketplace at http://service.sap.com/instguides Industry Solutions Industry Solution Guides SAP for Consumer Products SAP MDM GDS 2.1 .

NOTE

The versions of all MDM components must be compatible with the required version of the GDS Console.

The minimal system requirements for the GDS Console are listed in the following table:

CPU Dual Xeon 2.0 GHz with 533 MHz + FSB

Memory 2 GB RAM

Storage 18 GB

Network topology TCP/IP-based network

Operating system All SAP EHP1 for SAP NetWeaver PI 7.1 released operating systems and databases

AS Java Installed as part of SAP NetWeaver PI Adapter Engine

Version must be at least SAP EHP1 for SAP NetWeaver PI 7.1 Adapter Engine SP04 P1

J2EE Adapter Engine

(component of SAP NetWeaver Process Integration)

Installed as part of SAP NetWeaver PI Adapter Engine

Version must be at least SAP EHP1 for SAP NetWeaver PI 7.1 Adapter Engine SP04 P1

CAUTION

The GDS Console must be installed on the same server.

EP Basis (Enterprise Portal

Basis components - Optional – only if the user uses the application in portal mode)

Installed as part of SAP EHP1 for SAP NetWeaver CE 7.1 SP04 P1

CAUTION

The GDS Console must be installed on the same server. Before you begin installing the GDS Console, perform these preparatory steps:

1. Check that all the files required for installing the GDS Console are available on your installation media. For more information, see Deploying the GDS Console Application [page 14].

2. Ensure that the MDM Server is running.

3. Create an MDM repository on the MDM Server that will be used by the GDS Console to store trade items and other application data, as follows:

1. Copy the repository archive file \\DATA_UNITS\MDM_CONTENT_GDS

\GDS_21_<datapool>_INITIAL_REPOSITORY.A2A from the installation media to the Archives 3 Preparing for Installation

(10)

folder of your MDM Server. On a Windows platform, you can find this folder in the following path:

\\<SAPGLOBALHOST>\sapmnt\<SAPSID>\MDS<No>\mdm\archive

NOTE

There are two repositories delivered as part of MDM content, one for 1Sync data pool and other one for SA2 data pool. Choose the right repository based on which data pool you want GDS to interact with.

2. Start the MDM Console, mount the MDM Server, and unarchive the repository archive. 3. Connect to the repository with the following credentials:

■ User name: Admin

■ Password: abc123

4. Load the repository with indexes. NOTE

For more information, see the console reference guide on SAP Service Marketplace at http:// service.sap.com/installmdm SAP NetWeaver MDM 7.1 Reference Documentation MDM 7.1 - Console Reference Guide .

(11)

4 Installing the GDS Console

You can install the GDS Console in standalone and Portal mode.

Procedure

Installing the GDS Console entails performing the following procedures: 1. Deploying the GDS Console Application [page 14]

2. Editing the Application Properties [page 15] 3. Configuring Portal Settings [page 21]

4.1 Installing the GDS Console in Standalone Mode

If you are installing the GDS Console in standalone mode, you can access it without the Portal. The figure below summarizes the system installation in standalone mode.

Figure 2:

If you are using GDS in standalone mode, you must install the SAP NetWeaver J2EE Adapter Engine. The non-central J2EE Adapter Engine is an SAP NetWeaver Process Integration component.

Additionally, the following prerequisites apply:

4 Installing the GDS Console

(12)

■ SAP EHP1 for SAP NetWeaver PI 7.1 Adapter Engine stack are installed and configured according to the installation guide provided for SAP NetWeaver PI Adapter Engine.

For more information, see http://service.sap.com/instguides SAP NetWeaver SAP NetWeaver Process Integration 7.1 Installation Installation - Standalone Engines Adapter Engine (Java EE) on <operating system> for SAP NetWeaver 7.11 .

■ Once the J2EE adapter engine is installed, patch the system to SAP EHP1 for SAP NetWeaver PI 7.1 SP04 Patch 1 or higher according to the SAP NetWeaver patch guides.

For more information about patch guides, see http://service.sap.com/instguides SAP NetWeaver SAP NetWeaver Process Integration 7.1 Maintenance .

4.2 Installing the GDS Console in Portal Mode

If you install the GDS Console in Portal mode, you can access it through the Portal. GDS supports two installation options in Portal mode.

4.2.1 Installing the GDS Console in Distributed Portal Mode

The figure below summarizes the system installation recommended by SAP in distributed Portal mode.

Figure 3:

In distributed Portal mode, the SAP NetWeaver Portal Core component and the GDS UI can be deployed on one J2EE server (GDS Portal instance), and GDS core and other required components can be deployed on another J2EE server (GDS standalone instance). GDS UI deployed on the Portal instance remotely communicates with the GDS standalone instance.

NOTE

When you install SAP NetWeaver CE, the ’CompPlatform Standard System’ installation includes the Enterprise Portal Basis (EP Basis) components, so no separate portal installation is required.

(13)

The EP Basis components are part of usage type 'Composition Platform'. For more information, see SAP Note 1229080.

If you use GDS in distributed Portal mode, first install the GDS standalone instance as described in Installing the GDS Console in Standalone Mode [page 11]. Then, make sure that the following prerequisites are fulfilled for the GDS Portal instance:

■ SAP EHP1 for SAP NetWeaver CE 7.1 is installed and configured as described in the installation guide provided for SAP NetWeaver composition environment.

For more information, see http://service.sap.com/instguides SAP NetWeaver SAP NetWeaver Composition Environment SAP EHP1 for SAP NetWeaver CE 7.1 Installation Installing the CE Server (64-Bit) .

■ Once SAP NetWeaver Composition Environment is installed, patch the system to SAP EHP1 for SAP NetWeaver CE 7.1 SP04 Patch 1 or higher according to the SAP NetWeaver patch guides. For more information about patch guides, see http://service.sap.com/instguides _SAP NetWeaver SAP NetWeaver Composition Environment SAP EHP1 for SAP NetWeaver CE 7.1

Maintenance .

4.2.2 Installing the GDS Console in Non-Distributed Portal Mode

The figure below summarizes the system installation recommended by SAP in non-distributed Portal mode.

Figure 4:

(14)

In non-distributed Portal mode, SAP NetWeaver Portal Core component, GDS UI, GDS core, and other required components are deployed on single J2EE server.

NOTE

When you install SAP NetWeaver CE, the ’CompPlatform Standard System’ installation includes the Enterprise Portal Basis (EP Basis) components, so no separate portal installation is required. The EP Basis components are part of usage type 'Composition Platform'. For more information, see SAP Note 1229080.

If you use GDS in non-distributed Portal mode, the following prerequisites apply:

■ SAP EHP1 for SAP NetWeaver CE 7.1 is installed and configured as described in the installation guide provided for SAP NetWeaver composition environment.

For more information, see http://service.sap.com/instguides SAP NetWeaver SAP NetWeaver Composition Environment SAP EHP1 for SAP NetWeaver CE 7.1 Installation Installing the CE Server (64-Bit) .

■ Once J2EE adapter engine is installed, patch the system to SAP EHP1 for SAP NetWeaver CE 7.1 SP04 Patch 1 or higher according to the SAP NetWeaver patch guides.

For more information about patch guides, see http://service.sap.com/instguides SAP NetWeaver SAP NetWeaver Composition Environment SAP EHP1 for SAP NetWeaver CE 7.1

Maintenance .

■ Deploy XI Adapter Framework, XI Adapter Framework Component, and Messaging System Service components located at http://service.sap.com/instguides Downloads SAP Support Package

Support Packages and Patches - Entry by Application Group SAP NetWeaver SAP NetWeaver SAP EHP1 for SAP NW PI 7.1 Entry by Component Adapter Engine (Java EE) .

4.3 Deploying the GDS Console Application

4.3.1 Deploying the GDS Console in Standalone Mode

Using the SAP Java Support Package Manager (JSPM), deploy the GDS Console application to the GDS host.

NOTE

You must deploy the GDS Console application using the JSPM tool. Choose the option New Software Component.

Procedure

Use the following files, in the following order, to deploy the GDS Console application to the GDS host: 1. GDSCORE00_0.sca

2. GDSUI00_0.sca

(15)

3. GDSTOOLS00_0.sca

4. GDSDDIC00_0.sca

CAUTION

If you have an existing GDS 1.0 or GDS 2.0 installation, do not deploy this SCA.

4.3.2 Deploying the GDS Console in Portal Mode Procedure

Deploying the GDS Console in Distributed Mode

In the GDS standalone instance, deploy the files as described in Deploying the GDS Console in Standalone Mode [page 14].

In the GDS Portal instance, deploy the following files:

GDSUI00_0.sca GDSPORTAL00_0.sca

Deploying the GDS Console in Non-Distributed Mode

Deploy the files as described in Deploying the GDS Console in Standalone Mode [page 14], followed by the following file:

GDSPORTAL00_0.sca

4.4 Editing the Application Properties Prerequisites

The GDS application has been installed on the J2EE engine.

Procedure

1. Log on to SAP NetWeaver Administrator at http://<host>:<port>/nwa. 2. Choose Configuration Management Infrastructure Java System Properties . 3. Select the Applications tab in the Details section

4. Filter the table for is~gds~core~app.

5. Set the parameters for the application properties file according to the table below and edit data. To ensure that changes take effect in the SAP NetWeaver Administrator, restart the J2EE engine.

NOTE

Application properties marked bold are mandatory to be set by the customer in order to get the GDS Console up and running.

Application Properties

4 Installing the GDS Console 4.4 Editing the Application Properties

(16)

Application Property Default Description Example AUTOMATIC_PUBLICATION_RESTRICTIONS_ MDM_FIELDS ■ TMData-InformationProvi der ■ GlobalData-BrandName ■ GlobalData-GlobalItemClassifi cation

List of fields on which the user can specify restrictions against a partner or partner group for automatic publication.

AutomaticRegistrationFlag true Flag for automatic registration

true DataPoolTimeZone UTC Datapool time zone

DestinationDataPoolGln The GLN of the source data pool for which the current GDS instance is configured

GDS.CatalogManagementEnabled false Show the button required for catalog maintenance

true

GDS.DataPoolType 1Sync Datapool type _■ 1Sync

■ SA2 GDS.FieldsToPropagate ■ GlobalData-BrandName ■ GlobalData-BrandOwner ■ TMData-CountryOfOrigin ■ TMData-FunctionalName ■ TMData-PartnerSpecificDa ta-StartAvailabilityD ate

List of fields for which changes can be propagated when an item at the top level is modified. Note that an asterisk (*) means propagating all attributes.

GDS.IS_AUTOMATIC_PUBLISHING_ENABLED true Flag to enable or disable automatic publication at system level

■ true ■ false GDS.MAX_PASSWORD_LENGTH 12 Maximum length of the

password

GDS.MIN_PASSWORD_LENGTH 5 Minimum length of the password

GDS.PropagateBasedOnMaterialNumber true Flag to indicate whether values for the fields specified in application property

GDS.FieldsToPropagate should be propagated based on items with the

■ true ■ false

(17)

Application Property Default Description Example same material number

or on all the items under it.

GDS.SA2ContentVersion <Undefined> SA2 content version GDS.SA2TransactionSchemaLocation <Undefined> SA2 transaction schema

location GDS.SchemaLocation http://www.preprod. 1sync.org/schemas/ item/1.0/ CatalogueRequestProx y.xsd

1Sync Schema location

GDS.Server localhost Location of the GDS Server

localhost GDS.SystemUser GDSAdmin Special technical user of

the GDS application

GDS.SystemUserPassword abc123 Password of the GDS system user GDS.VALIDATION_AUTOMATIC_PUBLISHING_ IS_ITEM_AUTOMATIC_PUBLISHABLE VALIDATION_TO_BE _ USED_ONLY_BY_ AUTOMATIC_ PUBLICATION

Name of the validation that identifies items that must be published automatically GDS.VALIDATION_AUTOMATIC_PUBLISHING_ IS_PUBLICATION_TYPE_INITIAL_LOAD VALIDATION_TO_BE _ USED_ONLY_BY_ AUTOMATIC_ PUBLICATION

Name of the validation that specifies which publication type must be used in automatic publication GDS.Version 2.1 Version of GDS 2.0 GDSN_HEADER_VERSION 1.0 GDSN Header information version 1.0 GDSN_PROVIDER_GLN GDSN Provider GLN GDSN_PROVIDER_ID GDSN Provider ID

LOCAL_EJB_ACCESS_ENABLED true Flag for enabling EJB access true LOCKED_DOWN_ATTRIBUTES GlobalData;BaseUnitIn dicator;GlobalData;Qt yOfNextLevelItems;Gl obalData;ConsumerU nitIndicator;GlobalDat a;SpecialItemCode

List of locked down attributes

MDM.AdminName Admin Name of the MDM Administrator

MDM.AdminPassword abc123 Password of the MDM

Administrator 4 Installing the GDS Console

(18)

Application Property Default Description Example MDM.AdminRole Admin Name of the MDM

Administrator role

MDM.DatabaseServer localhost Location of the MDM server

MDM.DatabaseType MS_SQL Type of the MDM

database ■ MS_SQ L ■ MaxDB ■ IBM_D B2

MDM.Import.DateFormat MM/dd/yyyy Date format in which data come from ERP MDM.Import.DateTimeFormat yyMMddHHmmss Date-time format in

which data come from ERP

MDM.Import.MuliValueFlatLookup A Multivalue lookup append (A) or Overwrite (O)

A

MDM.Import.MuliValueQualifiedLookup A Qualified lookup append (A) or Overwrite (O)

A

MDM.Import.R3SystemID R3 ID of the R3 system MDM.NumberOfFailedPasswordRetries 5 Maximum number of

failed password attempts

5

MDM.RegionName English [US] Name of the region

MDM.repositoryName gds Name of the

repository

MDM.server localhost Location of the MDM

server

PI.Server localhost Location of the PI server PI.Version 7.1 Version of the PI server 7.1 TIME_IN_MINUTE_TO_WAIT_FOR_RESPONSE_

FROM_DATAPOOL

15 Time in minutes to wait for the response message from the data pool before setting the status to error

GDS.AUTO_REG_DELAY_AFTER_IMPORT 0 Delay time starting the automatic registration process after processing the import message.

5000

GDS.AUTO_PUB_DELAY_AFTER_CORR_RESPONSE 300000 Time in milliseconds to wait after sending out an automatic publication after having received a correct response from the Data Pool (useful for

60000

(19)

Application Property Default Description Example example to wait for the

registration of the whole hierarchy before automatic publication takes place)

UI.ResultList.DefPageSize 500 The default page size on the result list of the Item

Maintenance screen.

Possible values: 100, 500, and 0; where 0 means unlimited page size. UNITTEST.initialcontextserverhostname 127.0.0.1 Host name of unit test

initial context server UNITTEST.initialcontextserverport 53004 Port number of unit test

initial context server

VALIDATION.GTIN {

OneSyncValidationsBe an}validateGtin

External validation for validating GTIN format VALIDATION.PUBLICATION_VALIDATION_ROLE default value is empty Restrict the external

validations executed before publication to the validations of the role specified here

Admin

VALIDATION.REGISTRATION_VALIDATION_ROL E

default value is empty Registration validation role

VALIDATION.PRICE_TYPE_PUBLICATION_ VALIDATION_ROLE

default value is empty Contains the name of the role containing the validations before the price type publication is started Admin VALUE_RESTRICTIONS_MDM_FIELDS ■ TMData-InformationProvi der ■ TMData-TargetMarket ■ GlobalData-BrandName ■ GlobalData-BrandOwner

List of fields (only from the TMData and GlobalData tables) on which you want to define value restrictions. You may add or remove fields. VALUE_RESTRICTIONS_OPERATIONSLIST ■ MODIFY_ITEM ■ PUBLISH_ITEM ■ REGISTER_ITEM ■ REPUBLISH_ITE M ■ UNPUBLISH_ITE M Allowed list of GDS operations for which a value restriction can be specified

(20)

Application Property Default Description Example ■ LAUNCH_WORK FLOW ■ CORRECT_ITEM ■ ITEM_VISIBILITY Workflow.CorrectError GDS_CORRECT_ITE M

Correct Error triggers

GDS_CORRECT_ITE M workflow

Workflow.CreateNewTradeItem GDS_REGISTER_ITE M

Create New Trade Item

triggers GDS_REGISTER_ITE M workflow Workflow.GSDNItemRegistrationError GDS_CORRECT_GDS N GDSN Item Registration Error triggers GDS_CORRECT_GDS N workflow Workflow.ImportTradeItemToCorrect GDS_CORRECT_ITE M

Import Trade Item to Correct

triggers

Workflow.ImportTradeItemToRegister GDS_REGISTER_ITE M

Import Trade Item to Register triggers

GDS_REGISTER_ITE M workflow

Workflow.ItemAuthorizationError GDS_CORRECT_AU THORIZATION

Item Authorization Error

triggers

GDS_CORRECT_AUT HORIZATION workflow Workflow.LinkError GDS_LINK Link Error triggers

GDS_LINK workflow Workflow.ModifyRegisteredTradeItem GDS_CORRECT_ITE

M

Modify Registered Trade Item triggers

Workflow.PublishError GDS_PUBLISH Publish Error triggers

GDS_PUBLISH workflow Workflow.RegisterError GDS_REGISTER_ITE

M

Register Error triggers

GDS_REGISTER_ITE M workflow

Workflow.RepublishError GDS_REPUBLISH Republish Error triggers

GDS_REPUBLISH workflow

Workflow.ReviewTradeItems GDS_REVIEW_ITEM Review Trade Item triggers

GDS_REVIEW_ITEM workflow

(21)

Application Property Default Description Example Workflow.SyncError GDS_CORRECT_SYN

C

Sync Error triggers GDS_

CORRECT_SYNC workflow

Workflow.UnlinkError GDS_UNLINK Unlink Error triggers

GDS_UNLINK workflow

Workflow.UnpublishError GDS_UNPUBLISH Unpublish Error triggers

GDS_UNPUBLISH workflow

PRICEXVALID.EJB.server default value is empty Name of host of the price validation EJB

127.0.0.1:5010 4

PRICEXVALID.EJB.jndi default value is empty JNDI path of the price validation EJB sap.com/ is~gds~cust om~price~a pp/ ExternalPric eValidatorsE JBBean XVALID.WEIGHT_TOLARANCE_PERCENT default value is empty Tolerance for 1Sync Net

weight and Gross weight attributes in a hierarchy 0.1 XVALID.EJB.jndi.1 sap.com/ is~gds~core~app/ ExternalValidatorsEJB Bean

Location of XVALID EJB

XVALID.EJB.no_of_servers 1 Number of external validation server EJBs XVALID.EJB.server.1 127.0.0.1:53004 Location of XVALID EJB

server gds.helpURL http://help.sap.com URL of help

gds.logon.enableUserListDropDown false Flag for enabling the selection of users from a dropdown list at logon. NOTE

If there is no need to start a workflow for a particular trigger, remove the workflow name value for that trigger property.

4.5 Configuring Portal Settings

Set up the trusted connection between the GDS Portal instance and the MDM server by completing the following steps.

4 Installing the GDS Console 4.5 Configuring Portal Settings

(22)

Procedure

1. Create an allow.ip text file in the \usr\sap\MDM\MDS<Instance number>\exe folder.

2. Add the IP address of the server where GDSCORE is deployed in this file. NOTE

If you use GDS in distributed portal mode, add the IP address of the GDS standalone instance. 3. Log in to the Portal with Portal Administrator and create your new GDS portal user.

4. Add the following GDS portal role to the new GDS portal user:

Name pcd:portal_content/com.sap.pct/specialist /SAP_NetWeaver_MDM_GDS/Roles/SAP_MDM_GDS Now you can access the SAP GDS workset with the new users.

If the GDS portal user with the pcd:portal_content/com.sap.pct/specialist/SAP_NetWeaver_MDM_GDS/Roles/ SAP_MDM_GDS role has been created, the new GDS portal user has to log in to GDS in the portal mode and choose the SAP NetWeaver MDM global data synchronization option tab. At the same time, a new user with the same name as the GDS portal user is created in the GDS Console with the Everyone role.

NOTE

The new GDS portal user has only the rights defined in the Everyone role. Administrator users can assign additional roles to the new GDS user.

NOTE

If your GDS portal user name is 'GDSAdmin', 'Admin', or 'Administrator', the new user gets 'Admin' role in MDM. Otherwise, it gets only the 'Everyone' role and the administrator can extend the access rights.

NOTE

If you use GDS in distributed Portal mode, set the appropriate values for the following application properties in the GDS portal instance for application is~gds~ui~model:

Property Name Default Value Comments

GDSCORE.nwserverhostname 127.0.0.1 IP address for the GDS standalone instance

GDSCORE.nwserverport 50304 P4 port for the GDS standalone instance

GDSCORE.nwsystemuser Administrator J2EE 'Admin' user for the GDS standalone instance

GDSCORE.nwsystemuserpassword abc123 Password of user specified in GDSCORE.nwsystemuser GDSCORE.mdmsystemuser GDSAdmin MDM administrator user GDSCORE.mdmsystemuserpassword abc123 Password of MDM user

'GDSAdmin'

GDSCORE.nwhttpport 50300 http port for the GDS standalone instance

(23)

Property Name Default Value Comments GDSCORE.nwlogviewerlocation /webdynpro/dispatcher/sap.com/

tc~lm~itsam~ui~lv~client_ui/ LVApp

Location of the Log Viewer application on the remote server.

Do not change the default value.

NOTE

Check that everything has been set as described in the Editing the Application Properties [page 15] section.

(24)

This page is left blank for documents

that are printed on both sides.

(25)

5 Configuring Languages

You can define the languages you want your item to be published in for a selected target market. For more information about configuring languages, see SAP Library for GDS 2.1 Console on SAP Help Portal at http://help.sap.com/mdm-gds SAP Library GDS Metadata Management Defining Languages for Target Markets .

(26)

This page is left blank for documents

that are printed on both sides.

(27)

6 Checking the Installation

To ensure that the GDS Console has been successfully installed and configured, perform the following installation test.

Procedure

1. Log on using one of the following URLs:

Standalone http://<host name>:<port>/GDS/Console Portal mode http://<host name>:<port>/irj/portal/go/gds

2. On the site logon screen, enter a valid user name and password, and choose the Log On pushbutton. The initial logon name is Admin, and the password is abc123.

NOTE

If you change the password, you must change it in the application property as well and restart the application and the MDM connector using the Visual Admin Deploy service.

3. After a successful logon, your browser displays the GDS Console dashboard.

(28)

This page is left blank for documents

that are printed on both sides.

(29)

7 Troubleshooting

Procedure

If your logon fails or if error messages are displayed in your browser, perform the following steps to troubleshoot the installation:

1. If an error is displayed on the user interface, follow the specific instructions for troubleshooting. 2. Verify the application properties.

For more information, see Editing the Application Properties [page 15].

3. Open the Deploy service of the Web AS using the SAP NetWeaver Administrator and verify that the

sap.com/is~gds~core~app application is running (marked with blue).

For more information about navigating the Deploy service, see steps 1, 2, and 3 in Restarting the GDS Console in the solution operations guide for GDS on SAP Service Marketplace at http://

service.sap.com/instguides Industry Solutions Industry Solution Guides SAP for Consumer Products SAP MDM GDS 2.1 Application Operations Guide .

4. If the problem is not solved, restart the MDM connector and the GDS Console.

For more information about restarting the MDM connector and the GDS Console, see Restarting the GDS Console in the solution operations guide for GDS on SAP Service Marketplace at http:// service.sap.com/instguides Industry Solutions Industry Solution Guides SAP for Consumer Products

SAP MDM GDS 2.1 Application Operations Guide .

5. Use the Log Viewer service of the Web AS SAP NetWeaver Administrator to search for general errors.

For more information about using the Log Viewer service, see Viewing the GDS Console Log in the solution operations guide for GDS on SAP Service Marketplace at http://service.sap.com/ instguides _{Industry Solutions Industry Solution Guides SAP for Consumer Products SAP MDM GDS 2.1}

Application Operations Guide .

(30)

This page is left blank for documents

that are printed on both sides.

(31)

A Reference

A.1 The Main SAP Documentation Types

The following is an overview of the most important documentation types that you need in the various phases in the life cycle of SAP software.

Cross-Phase Documentation

SAPterm is SAP’s terminology database. It contains SAP-specific vocabulary in over 30 languages, as well as many glossary entries in English and German.

■ Target group:

● Relevant for all target groups

■ Current version:

● On SAP Help Portal at http://help.sap.com Glossary

● In the SAP system in transaction STERM

SAP Library is a collection of documentation for SAP software covering functions and processes. ■ Target group:

● Consultants

● System administrators

● Project teams for implementations or upgrades

● On SAP Help Portal at http://help.sap.com (also available as documentation DVD)

The security guide describes the settings for a medium security level and offers suggestions for raising security levels. A collective security guide is available for SAP NetWeaver. This document contains general guidelines and suggestions. SAP applications have a security guide of their own.

■ Target group:

● Technology consultants

● Solution consultants

● On SAP Service Marketplace at http://service.sap.com/securityguide

Implementation

The master guide is the starting point for implementing an SAP solution. It lists the required installable units for each business or IT scenario. It provides scenario-specific descriptions of preparation,

A Reference

(32)

execution, and follow-up of an implementation. It also provides references to other documents, such as installation guides, the technical infrastructure guide and SAP Notes.

■ Target group:

● Project teams for implementations

● On SAP Service Marketplace at http://service.sap.com/instguides

The installation guide describes the technical implementation of an installable unit, taking into account the combinations of operating systems and databases. It does not describe any business-related configuration.

■ Target group:

Configuration Documentation in SAP Solution Manager – SAP Solution Manager is a life-cycle platform. One of its main functions is the configuration of business scenarios, business processes, and implementable steps. It contains Customizing activities, transactions, and so on, as well as

documentation.

■ Target group:

● In SAP Solution Manager

The Implementation Guide (IMG) is a tool for configuring (Customizing) a single SAP system. The Customizing activities and their documentation are structured from a functional perspective. (In order to configure a whole system landscape from a process-oriented perspective, SAP Solution Manager, which refers to the relevant Customizing activities in the individual SAP systems, is used.)

■ Target group:

● Project teams for implementations or upgrades

● In the SAP menu of the SAP system under Tools Customizing IMG

Production Operation

The technical operations manual is the starting point for operating a system that runs on SAP NetWeaver, and precedes the application operations guides of SAP Business Suite. The manual refers

A Reference

(33)

users to the tools and documentation that are needed to carry out various tasks, such as monitoring, backup/restore, master data maintenance, transports, and tests.

■ Target group:

The application operations guide is used for operating an SAP application once all tasks in the technical operations manual have been completed. It refers users to the tools and documentation that are needed to carry out the various operations-related tasks.

■ Target group:

Upgrade

The upgrade master guide is the starting point for upgrading the business scenarios and processes of an SAP solution. It provides scenario-specific descriptions of preparation, execution, and follow-up of an upgrade. It also refers to other documents, such as upgrade guides and SAP Notes.

■ Target group:

● Project teams for upgrades

The upgrade guide describes the technical upgrade of an installable unit, taking into account the combinations of operating systems and databases. It does not describe any business-related

configuration.

■ Target group:

Release notes are documents that contain short descriptions of new features in a particular release or changes to existing features since the previous release. Release notes about ABAP developments are the technical prerequisite for generating delta and upgrade Customizing in the Implementation Guide (IMG).

■ Target group:

A Reference

(34)

● Consultants

● On SAP Service Marketplace at http://service.sap.com/releasenotes

● In the SAP menu of the SAP system under Help Release Notes (only ABAP developments)

A Reference

(35)

Typographic Conventions

Example Description

<Example> Angle brackets indicate that you replace these words or characters with appropriate entries to make entries in the system, for example, “Enter your <User Name>”.

Example Example

Arrows separating the parts of a navigation path, for example, menu options

Example Emphasized words or expressions

Example Words or characters that you enter in the system exactly as they appear in the documentation

http://www.sap.com Textual cross-references to an internet address

/example Quicklinks added to the internet address of a homepage to enable quick access to specific content on the Web

123456 Hyperlink to an SAP Note, for example, SAP Note 123456

Example _■ Words or characters quoted from the screen. These include field labels, screen titles, pushbutton labels, menu names, and menu options.

■ Cross-references to other documentation or published works Example ■ Output on the screen following a user action, for example, messages

■ Source code or syntax quoted directly from a program

■ File and directory names and their paths, names of variables and parameters, and names of installation, upgrade, and database tools

EXAMPLE Technical names of system objects. These include report names, program names, transaction codes, database table names, and key concepts of a programming language when they are surrounded by body text, for example, SELECT and INCLUDE

(36)

SAP AG Dietmar-Hopp-Allee 16 69190 Walldorf Germany T +49/18 05/34 34 34 F +49/18 05/34 34 20 www.sap.com

No part of this publication may be reproduced or transmitted in any form or for any purpose without the express permission of SAP AG. The information contained herein may be changed without prior notice.

Some software products marketed by SAP AG and its distributors contain proprietary software components of other software vendors.

Microsoft, Windows, Excel, Outlook, PowerPoint, Silverlight, and Visual Studio are registered trademarks of Microsoft Corporation.

IBM, DB2, DB2 Universal Database, System i, System i5, System p, System p5, System x, System z, System z10, z10, z/VM, z/ OS, OS/390, zEnterprise, PowerVM, Power Architecture, Power Systems, POWER7, POWER6+, POWER6, POWER, PowerHA, pureScale, PowerPC, BladeCenter, System Storage, Storwize, XIV, GPFS, HACMP, RETAIN, DB2 Connect, RACF, Redbooks, OS/2, AIX, Intelligent Miner, WebSphere, Tivoli, Informix, and Smarter Planet are trademarks or registered trademarks of IBM Corporation.

Linux is the registered trademark of Linus Torvalds in the United States and other countries.

Adobe, the Adobe logo, Acrobat, PostScript, and Reader are trademarks or registered trademarks of Adobe Systems Incorporated in the United States and other countries.

Oracle and Java are registered trademarks of Oracle and its affiliates.

UNIX, X/Open, OSF/1, and Motif are registered trademarks of the Open Group.

Citrix, ICA, Program Neighborhood, MetaFrame, WinFrame, VideoFrame, and MultiWin are trademarks or registered trademarks of Citrix Systems Inc.

HTML, XML, XHTML, and W3C are trademarks or registered trademarks of W3C®, World Wide Web Consortium, Massachusetts Institute of Technology.

Apple, App Store, iBooks, iPad, iPhone, iPhoto, iPod, iTunes, Multi-Touch, Objective-C, Retina, Safari, Siri, and Xcode are trademarks or registered trademarks of Apple Inc.

IOS is a registered trademark of Cisco Systems Inc.

RIM, BlackBerry, BBM, BlackBerry Curve, BlackBerry Bold, BlackBerry Pearl, BlackBerry Torch, BlackBerry Storm, BlackBerry Storm2, BlackBerry PlayBook, and BlackBerry App World are trademarks or registered trademarks of Research in Motion Limited.

Google App Engine, Google Apps, Google Checkout, Google Data API, Google Maps, Google Mobile Ads, Google Mobile Updater, Google Mobile, Google Store, Google Sync, Google Updater, Google Voice, Google Mail, Gmail, YouTube, Dalvik and Android are trademarks or registered trademarks of Google Inc.

INTERMEC is a registered trademark of Intermec Technologies Corporation. Wi-Fi is a registered trademark of Wi-Fi Alliance.

Bluetooth is a registered trademark of Bluetooth SIG Inc.

Motorola is a registered trademark of Motorola Trademark Holdings LLC. Computop is a registered trademark of Computop Wirtschaftsinformatik GmbH.

SAP, R/3, SAP NetWeaver, Duet, PartnerEdge, ByDesign, SAP BusinessObjects Explorer, StreamWork, SAP HANA, and other SAP products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of SAP AG in Germany and other countries.

Business Objects and the Business Objects logo, BusinessObjects, Crystal Reports, Crystal Decisions, Web Intelligence, Xcelsius, and other Business Objects products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of Business Objects Software Ltd. Business Objects is an SAP company.

Sybase and Adaptive Server, iAnywhere, Sybase 365, SQL Anywhere, and other Sybase products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of Sybase Inc. Sybase is an SAP company.

(37)

Crossgate, m@gic EDDY, B2B 360°, and B2B 360° Services are registered trademarks of Crossgate AG in Germany and other countries. Crossgate is an SAP company.

All other product and service names mentioned are the trademarks of their respective companies. Data contained in this document serves informational purposes only. National product specifications may vary.

These materials are subject to change without notice. These materials are provided by SAP AG and its affiliated companies (“SAP Group”) for informational purposes only, without representation or warranty of any kind, and SAP Group shall not be liable for errors or omissions with respect to the materials. The only warranties for SAP Group products and services are those that are set forth in the express warranty statements accompanying such products and services, if any. Nothing herein should be construed as constituting an additional warranty.

Disclaimer

Some components of this product are based on Java™. Any code change in these components may cause unpredictable and severe malfunctions and is therefore expressly prohibited, as is any decompilation of these components.

Any Java™ Source Code delivered with this product is only to be used by SAP’s Support Services and may not be modified or altered in any way.

Documentation in the SAP Service Marketplace

(38)

SAP AG Dietmar-Hopp-Allee 16 69190 Walldorf Germany T +49/18 05/34 34 34 F +49/18 05/34 34 20 www.sap.com

SAP Master Data Management Guide

Installation Guide

SAP NetWeaver Master Data Management Global Data

Synchronization Option 2.1

Document History

Table of Contents

This page is left blank for documents

that are printed on both sides.

1 SAP NetWeaver MDM GDS: GDS

Console Installation Guide

This page is left blank for documents

that are printed on both sides.

2 GDS Console Overview

3 Preparing for Installation

4 Installing the GDS Console

This page is left blank for documents

that are printed on both sides.

5 Configuring Languages

This page is left blank for documents

that are printed on both sides.

6 Checking the Installation

This page is left blank for documents

that are printed on both sides.

7 Troubleshooting

This page is left blank for documents

that are printed on both sides.

A Reference

Typographic Conventions
