Verilog Code

(1)

1

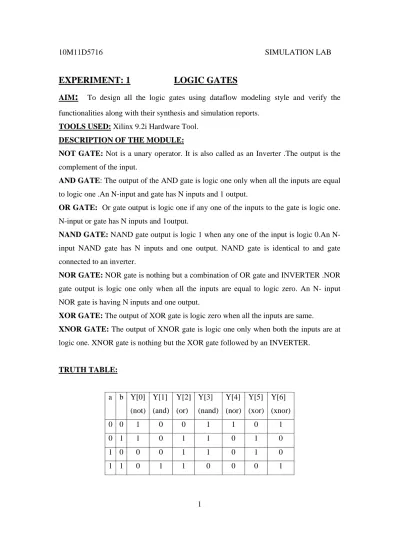

EXPERIMENT: 1 LOGIC GATES

AIM: To design all the logic gates using dataflow modeling style and verify the functionalities along with their synthesis and simulation reports.

TOOLS USED: Xilinx 9.2i Hardware Tool. DESCRIPTION OF THE MODULE:

NOT GATE: Not is a unary operator. It is also called as an Inverter .The output is the

complement of the input.

AND GATE: The output of the AND gate is logic one only when all the inputs are equal

to logic one .An N-input and gate has N inputs and 1 output.

OR GATE: Or gate output is logic one if any one of the inputs to the gate is logic one.

N-input or gate has N inputs and 1output.

NAND GATE: NAND gate output is logic 1 when any one of the input is logic 0.An

N-input NAND gate has N N-inputs and one output. NAND gate is identical to and gate connected to an inverter.

NOR GATE: NOR gate is nothing but a combination of OR gate and INVERTER .NOR

gate output is logic one only when all the inputs are equal to logic zero. An N- input NOR gate is having N inputs and one output.

XOR GATE: The output of XOR gate is logic zero when all the inputs are same.

XNOR GATE: The output of XNOR gate is logic one only when both the inputs are at

logic one. XNOR gate is nothing but the XOR gate followed by an INVERTER.

TRUTH TABLE: a b Y[0] (not) Y[1] (and) Y[2] (or) Y[3] (nand) Y[4] (nor) Y[5] (xor) Y[6] (xnor) 0 0 1 0 0 1 1 0 1 0 1 1 0 1 1 0 1 0 1 0 0 0 1 1 0 1 0 1 1 0 1 1 0 0 0 1

(2)

2

VERILOG CODE:

LOGIC GATES USING DATAFLOW MODELING STYLE

`resetall

`timescale 1ns / 1ps

module logicgate_df(a, b, y);

input a,b; // input declarations output [0:6]y; //output declarations wire a,b; //input as wires assign y[0] = ~a; //not gate assign y[1] = a&b; //and gate assign y[2] = a|b; //or gate assign y[3] = ~(a&b); //nand gate assign y[4] = ~(a|b); //nor gate assign y[5] = a^b; //xor gate assign y[6] = ~(a^b); //xnor gate endmodule

LOGIC GATES TEST BENCH

`resetall `timescale 1ns/1ps module logicgate_df_tb_v; // Inputs reg a; reg b; // Outputs wire [0:6] y;

// Instantiate the Unit Under Test (UUT) logicgate_df uut ( .a(a), .b(b), .y(y) ); initial begin a = 0; b = 0;

(3)

3 #10 a = 0; b = 1; #10 a = 1; b = 0; #10 a = 1; b = 1; end initial begin #50 $finish; end endmodule SYNTHESIS RESULTS:

(4)

4

SIMULATION RESULTS:

CONCLUSION:

Basic logic gates NOT, AND, OR, NOR, NAND, XOR, XNOR are designed in dataflow, behavioral models and outputs are verified using test bench

.

(5)

5

EXPERIMENT: 2 ADDERS

2.1. HALF ADDER

AIM: To design a half adder along with a verilog code in the dataflow model and verify

its functionality and check its simulation report.

TOOLS USED: Xilinx 9.2i Hardware Tool DESCRIPTION OF THE MODULE:

A combinational circuit that performs the addition of two bits is called half adder.The half adder operation needs two binary inputs (augends and addend bits)and two binary outputs (sum and carry). The sum can range from 0 to 2 which require two bits to express. The lower order bit may be named as half sum and the higher order bit may be named as carry. BLOCK DIAGRAM: TRUTH TABLE: a b carry Sum 0 0 0 0 0 1 0 1 1 0 0 1 1 1 1 0

(6)

6

VERILOG CODE:

HALF ADDER USING DATAFLOW MODELING STYLE

`resetall

`timescale 1ns/1ps

module halfadder(a, b, sum, carry); input a;

input b; output sum; output carry;

wire a,b;

assign sum= a^b; assign carry=a&b;

endmodule

HALF ADDER TEST BENCH

`resetall `timescale 1ns/1ps module halfadder_bh_tb_v; // Inputs reg a; reg b; // Outputs wire sum; wire carry;

// Instantiate the Unit Under Test (UUT) halfadder_beh uut ( .a(a), .b(b), .sum(sum), .carry(carry) );

(7)

7 initial begin // Initialize Inputs a = 0; b = 0; #20 a=0; b=1; #20 a=1; b=0; #20 a=1; b=1; end initial begin #100 $finish; end endmodule SYNTHESIS RESULTS:

(8)

8

CONCLUSION:

HALF ADDER is designed in behavioral and dataflow styles and output is verified through a test bench.

(9)

9 2.2 FULL ADDER

AIM: To design a FULL ADDER along with a verilog code in behavioral and dataflow

the two models and verify its functionality and check its simulation report.

The FULL ADDER is a combinational circuit that performs the arithmetic sum of three input bits. It consists of three inputs and two outputs. A FULL ADDER can also be implemented using two HALF ADDERS and one OR gate.

BLOCK DIAGRAM: TRUTH TABLE: A B C Sum Carry 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1

(10)

10

VERILOG CODE:

FULL ADDER USING DATAFLOW MODELING STYLE

`resetall

`timescale 1ns/1ps

module fulladder_dt(a, b, c, sum, carry); input a; input b; input c; output sum; output carry; wire a,b; assign sum=a^b^c; assign carry=(a&b)|(b&c)|(c&a); endmodule

FULL ADDER TEST BENCH

`resetall `timescale 1ns/1ps module fulladder_beh_tb_v; // Inputs reg a; reg b; reg c; // Outputs wire sum; wire carry;

// Instantiate the Unit Under Test (UUT) fulladder_beh uut (

.a(a), .b(b), .c(c), .sum(sum),

(11)

11 .carry(carry) ); initial begin // Initialize Inputs a=0; b=0;c =0; #20 a=0; b=0; c=1; #20 a=0; b=1; c=0; #20 a=0; b=1; c=1; #20 a=1; b=0; c=0; #20 a=1; b=0; c=1; #20 a=1; b=1; c=0; #20 a=1; b=1; c=1; end initial begin #220 $finish; end endmodule

(12)

12

SYNTHESIS RESULTS:

CONCLUSION:

FULL ADDER is designed in behavioral and dataflow styles and output is verified through a test bench.

(13)

13

4-BIT BINARY PARALLEL ADDER

AIM: To design a 4-BIT BINARY PARALLEL ADDER in the behavioral model and

verify its functionality and check its simulation report.

TOOLS USED:Xilinx 9.2i Hardware Tool

DESCRIPTION OF THE MODULE: 4 bit binary parallel adder adds four bit binary

numbers. The binary parallel adder is a digital function that produces the arithmetic sum of two binary numbers in parallel. It consists of full adders connected in cascade, with the output carry of one full adder connected to the input carry of the next full adder.

BLOCK DIAGRAM:

A[3] B[3] A[2] B[2] A[1] B[1] A[0] B[0] Ci

S[3] S[2] S[1] S[0]

FULL ADDER FULL ADDER FULL ADDER FULL ADDER Co

(14)

14 TRUTH TABLE: A B Ci S Co Ci S Co 0000 0000 0 0000 0 1 0001 0 0001 0001 0 0010 0 1 0011 0 0010 0010 0 0100 0 1 0101 0 0011 0011 0 0110 0 1 0111 0 0100 0100 0 1000 0 1 1001 0 0101 0101 0 1010 0 1 1011 0 0110 0110 0 1100 0 1 1101 0 0111 0111 0 1110 0 1 1111 0 1000 1000 0 0000 1 1 0001 1 1001 1001 0 0010 1 1 0011 1 1010 1010 0 0100 1 1 0101 1 1011 1011 0 0110 1 1 0111 1 1100 1100 0 1000 1 1 1001 1 1101 1101 0 1010 1 1 1011 1 1110 1110 0 1100 1 1 1101 1 1111 1111 0 1110 1 1 1111 1

Where a,b,cin are the inputs and sum,carry are outputs

VERILOG CODE:

4-BIT BINARY PARALLEL ADDER USING BEHAVIORAL MODELING

`resetall `timescale 1ns/1ps module bit4pladbh(a,b,ci,s,co) ; input [0:3]a; input [0:3]b; input ci;

(15)

15 output [0:3]s; output co; wire [0:3]a; wire [0:3]b; wire ci; reg [0:3]s; reg co; always@(a or b or ci) begin if(ci==1'b0) begin case({a,b}) 8'b00000000: begin s=4'b0000; co=1'b0;end 8'b00010001: begin s=4'b0010; co=1'b0;end 8'b00100010: begin s=4'b0100; co=1'b0;end 8'b00110011: begin s=4'b0110; co=1'b0;end 8'b01000100: begin s=4'b1000; co=1'b0;end 8'b01010101: begin s=4'b1010; co=1'b0;end 8'b01100110: begin s=4'b1100; co=1'b0;end 8'b01110111: begin s=4'b1110; co=1'b0;end 8'b10001000: begin s=4'b0000; co=1'b1;end 8'b10011001: begin s=4'b0010; co=1'b1;end 8'b10101010: begin s=4'b0100; co=1'b1;end 8'b10111011: begin s=4'b0110; co=1'b1;end 8'b11001100: begin s=4'b1000; co=1'b1;end 8'b11011101: begin s=4'b1010; co=1'b1;end 8'b11101110: begin s=4'b1100; co=1'b1;end 8'b11111111: begin s=4'b1110; co=1'b1;end endcase end else begin case({a,b}) 8'b00000000: begin s=4'b0001; co=1'b0;end 8'b00010001: begin s=4'b0011; co=1'b0;end 8'b00100010: begin s=4'b0101; co=1'b0;end 8'b00110011: begin s=4'b0111; co=1'b0;end 8'b01000100: begin s=4'b1001; co=1'b0;end 8'b01010101: begin s=4'b1011; co=1'b0;end 8'b01100110: begin s=4'b1101; co=1'b0;end 8'b01110111: begin s=4'b1111; co=1'b0;end 8'b10001000: begin s=4'b0001; co=1'b1;end 8'b10011001: begin s=4'b0011; co=1'b1;end 8'b10101010: begin s=4'b0101; co=1'b1;end 8'b10111011: begin s=4'b0111; co=1'b1;end 8'b11001100: begin s=4'b1001; co=1'b1;end

(16)

16 8'b11011101: begin s=4'b1011; co=1'b1;end 8'b11101110: begin s=4'b1101; co=1'b1;end 8'b11111111: begin s=4'b1111; co=1'b1;end endcase end end endmodule

BIT 4 BINARY PARALLEL ADDER TEST BENCH

`resetall `timescale 1ns/1ps module bit4plabh_tb_v; // Inputs reg [0:3] a; reg [0:3] b; reg ci; // Outputs wire [0:3] s; wire co;

// Instantiate the Unit Under Test (UUT) bit4pladbh uut ( .a(a), .b(b), .ci(ci), .s(s), .co(co) ); initial begin a = 4'b0000; b=4'b0000; ci=1'b0; #5 a = 4'b0001; b=4'b0001; ci=1'b0; #5 a = 4'b0010; b=4'b0010; ci=1'b0; #5 a = 4'b0011; b=4'b0011; ci=1'b0; #5 a = 4'b0100; b=4'b0100; ci=1'b0; #5 a = 4'b0101; b=4'b0101; ci=1'b0; #5 a = 4'b0110; b=4'b0110; ci=1'b0; #5 a = 4'b0111; b=4'b0111; ci=1'b0; #5 a = 4'b1000; b=4'b1000; ci=1'b0; #5 a = 4'b1001; b=4'b1001; ci=1'b0; #5 a = 4'b1010; b=4'b1010; ci=1'b0; #5 a = 4'b1011; b=4'b1011; ci=1'b0;

(17)

17 #5 a = 4'b1100; b=4'b1100; ci=1'b0; #5 a = 4'b1101; b=4'b1101; ci=1'b0; #5 a = 4'b1110; b=4'b1110; ci=1'b0; #5 a = 4'b1111; b=4'b1111; ci=1'b0; #5 a = 4'b0000; b=4'b0000; ci=1'b1; #5 a = 4'b0001; b=4'b0001; ci=1'b1; #5 a = 4'b0010; b=4'b0010; ci=1'b1; #5 a = 4'b0011; b=4'b0011; ci=1'b1; #5 a = 4'b0100; b=4'b0100; ci=1'b1; #5 a = 4'b0101; b=4'b0101; ci=1'b1; #5 a = 4'b0110; b=4'b0110; ci=1'b1; #5 a = 4'b0111; b=4'b0111; ci=1'b1; #5 a = 4'b1000; b=4'b1000; ci=1'b1; #5 a = 4'b1001; b=4'b1001; ci=1'b1; #5 a = 4'b1010; b=4'b1010; ci=1'b1; #5 a = 4'b1011; b=4'b1011; ci=1'b1; #5 a = 4'b1100; b=4'b1100; ci=1'b1; #5 a = 4'b1101; b=4'b1101; ci=1'b0; #5 a = 4'b1110; b=4'b1110; ci=1'b1; #5 a = 4'b1111; b=4'b1111; ci=1'b1; end initial begin #200 $finish; end endmodule

(18)

18

(19)

19

CONCLUSION:

4 BIT BINARY PARALLEL ADDER is designed in behavioral style and output is verified through a test bench.

(20)

20

EXPERIMENT: 4 DECODERS

4.1---- 2 TO 4 LINE DECODER

AIM: To design a 2x4 decoder and to write its verilog code in dataflow, behavioral models, verify the functionality and its output in the simulation report

A decoder is a combinational circuit that converts binary information from n input lines to a maximum of unique output lines. The purpose of decoder is to generate ( or less) minterms of n input variables. A 2 to 4 decoder generates all the minterms of two input variables. Exactly one of the output lines will be one for each combination of values of input variables. BLOCK DIAGRAM

TRUTH TABLE:

a b D0 D1 D2 D3 0 0 1 0 0 0 0 1 0 1 0 0 1 0 0 0 1 0 1 1 0 0 0 1

Here a,b are two inputs and D0,D1,D2,D3 denote the outputs of the decoder which implies minterms of two input variables.

(21)

21

VERILOG CODE:

2X4 DECODER USING DATA FLOW MODELING STYLE

`resetall

`timescale 1ns/1ps

module decoder24df(a, b, y); input a;

input b; output [0:3] y;

wire a,b;

assign y[0]=(~a) & (~b); assign y[1]=(~a)& (b); assign y[2]=(a) & (~b); assign y[3]= a & b; endmodule

2 TO 4 LINE DECODER TEST BENCH:

`resetall `timescale 1ns/1ps module decoder24_tb_v; // Inputs reg a; reg b; // Outputs wire [0:3] y;

// Instantiate the Unit Under Test (UUT) decoder24df uut (

.a(a), .b(b), .y(y) );

(22)

22 initial begin // Initialize Inputs a=0;b=0; #10 a=0; b=1; #10 a=1; b=0; #10 a=1; b=1; end initial begin #60 $finish; end endmodule SYNTHESIS RESULTS:

(23)

23

CONCLUSION: 2 to 4 decoder has been designed using behavioral, dataflow models

(24)

24

4.2---3X8 LINE DECODER

AIM: To design a 3*8 decoder and to write its verilog code in dataflow, behavioral models, verify the functionality and its out put in the simulation report

A Decoder is a multiple-input ,multiple –output logic circuits and converts the coded input into coded outputs ,the input and output codes are different. The input has fewer bits than the output code. In 3 to 8 decoder 3 inputs are decoded into 8 outputs.

BLOCK DIAGRAM: TRUTH TABLE:

a b c D0 D1 D2 D3 D4 D5 D6 D7

0 0

0 1 0 0 0 0 0 0 0

0 0

1 0 1 0 0 0 0 0 0

0 1

0 0 0 1 0 0 0 0 0

0 1

1 0 0 0 1 0 0 0 0

1 0

0 0 0 0 0 1 0 0 0

1 0

1 0 0 0 0 0 1 0 0

1 1

0 0 0 0 0 0 0 1 0

1 1

1 0 0 0 0 0 0 0 1

(25)

25

Here a,b,c are the inputs and D0 to D7 are the outputs.

3TO8 LINE DECODER USING DATA FLOW MODELING STYLE

`resetall

`timescale 1ns/1ps

module dec38data (a,b,c,dout); input a,b,c; output [0:7]dout; assign dout[0]=(~a)&(~b)&(~c); assign dout[1]=(~a)&(~b)&c; assign dout[2]=(~a)&b&(~c); assign dout[3]=(~a)&b&c; assign dout[4]=a&(~b)&(~c); assign dout[5]=a&(~b)&c; assign dout[6]=a&b&(~c); assign dout[7]=a&b&c; endmodule

3 TO 8 DECODER USING BEHAVIORAL MODELING STYLE

`resetall

`timescale 1ns/1ps

module decoder38beh(a, b, c, y); input a; input b; input c; output [0:7] y; reg [0:7]y; // wire a,b,c; always@(a or b or c) begin

(26)

26 case({a,b,c})

3'b000:begin y=8'b10000000; end 3'b001:begin y=8'b01000000; end 3'b010:begin y=8'b00100000; end 3'b011:begin y=8'b00010000; end 3'b100:begin y=8'b00001000; end 3'b101:begin y=8'b00000100; end 3'b110:begin y=8'b00000010; end 3'b111:begin y=8'b00000001; end default :begin y=8'b00000000; end

endcase

end

endmodule

3 TO 8 LINE DECODER TEST BENCH

`resetall `timescale 1ns/1ps module decoder38beh_tb_v; // Inputs reg a; reg b; reg c; // Outputs wire [0:7] y;

// Instantiate the Unit Under Test (UUT) decoder38beh uut ( .a(a), .b(b), .c(c), .y(y) ); initial

(27)

27 begin // Initialize Inputs a =0;b=0;c=0; #10 a=0; b=0; c=1; #10 a=0; b=1; c=0; #10 a=0; b=1; c=1; #10 a=1; b=0; c=0; #10 a=1; b=0; c=1; #10 a=1; b=1; c=0; #10 a=1; b=1; c=1; end initial begin #100 $finish; end endmodule

(28)

28

(29)

29

CONCLUSION:3 to 8 line decoder has been designed using different modeling styles

and is verified using the Test Bench.

EXPERIMENT: 5

ENCODERS

5.1---4: 2 LINE ENCODER

AIM: To design a 4:2 line encoder using behavioral and data flow modeling styles and verified using the test bench

An encoder is a digital circuit that performs the inverse operation of the decoder. It has inputs and n outputs.

(30)

30

TRUTH TABLE:

din[0] din[0] din[0] din[0] a b

1 0 0 0 0 0

0 1 0 0 0 1

0 0 1 0 1 0

0 0 0 1 1 1

Here din[0],din[1],din[2],din[3] are the inputs and the a,b are the outputs.

VERILOG CODE:

4 TO 2 LINE ENCODER USING BEHAVIORAL MODEL

`resetall `timescale 1ns/1ps module encoder42beh(din, a, b); input [0:3] din; output a; output b; reg a; reg b; always@(din) begin case({din})

4'b1000:begin a=1'b0; b=1'b0; end 4'b0100:begin a=1'b0; b=1'b1; end

(31)

31 4'b0001:begin a=1'b1; b=1'b1; end

endcase

end

endmodule

4TO2 LINE ENCODER USING DATAFLOW MODELING STYLE:

`resetall `timescale 1ns/1ps module encoder42data(din,a,b) ; input [0:3]din; output a,b; assign a=(din[2])|(din[3]); assign b=(din[1])|(din[3]); endmodule

4TO 2 LINE ENCODER TEST BENCH `resetall `timescale 1ns/1ps module encoder42beh_tb_v; // Inputs reg [0:3] din; // Outputs wire a; wire b;

// Instantiate the Unit Under Test (UUT) encoder42beh uut ( .din(din), .a(a), .b(b) ); initial

(32)

32 begin // Initialize Inputs din=4'b1000; #10 din=4'b0100; #10 din=4'b0010; #10 din=4'b0001; end initial begin #50 $finish; end endmodule SYNTHESIS RESULTS:

(33)

33

CONCLUSION:

A 2 to 4 line encoder has been designed using different modeling styles and is verified using test bench.

5.2---8 : 3 LINE ENCODER

AIM: To design a 8 : 3 line encoder using behavioral and data flow modeling styles and

verified using the test bench.

An encoder is a digital circuit that performs the inverse operation of the decoder. It has inputs and n outputs.

(34)

34

TRUTH TABLE:

din0 din1 din2 din3 din4 din5 din6 din7 a b c

1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 1 1 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 0 1 0 0 1 0 1 0 0 0 0 0 0 1 0 1 1 0 0 0 0 0 0 0 0 1 1 1 1

Where din0 to din7 are inputs and a,b,c are outputs.

VERILOG CODE:

8 TO 3 ENCODER USING DATAFLOW MODELING STYLE

`resetall `timescale 1ns/1ps module encoder83df(din, a, b, c); input [0:7] din; output a; output b; output c;

(35)

35 assign a=din[4] | din[5] | din[6] | din[7]; assign b=din[2] | din[3] | din[6] | din[7]; assign c=din[2] | din[4] | din[6] | din[7]; endmodule

8 TO 3 ENCODER USING BEHAVIORAL MODELING STYLE

`resetall

`timescale 1ns/1ps

module encodr83bh (din,a,b,c); input [0:7]din; output a,b,c; reg a,b,c; always@(din) begin case(din) 8'b10000000:begin a=1'b0;b=1'b0,c=1'b0;end 8'b01000000:begin a=1'b0;b=1'b0;c=1'b1;end 8'b00100000:begin a=1'b0;b=1'b1;c=1'b0;end 8'b00010000:begin a=1'b0;b=1'b1;c=1'b1;end 8'b10001000:begin a=1'b1;b=1'b0,c=1'b0;end 8'b10000100:begin a=1'b1;b=1'b0,c=1'b1;end 8'b10000010:begin a=1'b1;b=1'b1,c=1'b0;end 8'b10000001:begin a=1'b1;b=1'b1,c=1'b1;end default :begin a=1'bz;b=1'bz;c= 1'b1;end endcase

end endmodule

8 TO 3 LINE ENCODER TEST BENCH:

(36)

36 `timescale 1ns/1ps module encoder83df_tb_v; // Inputs reg [0:7] din; // Outputs wire a; wire b; wire c;

// Instantiate the Unit Under Test (UUT) encoder83df uut ( .din(din), .a(a), .b(b), .c(c) ); initial begin // Initialize Inputs din=8'b10000000; #10 din=8'b01000000; #10 din=8'b00100000; #10 din=8'b00010000; #10 din=8'b00001000; #10 din=8'b00000100; #10 din=8'b00000010; #10 din=8'b00000001; end initial begin

(37)

37 #100 $finish; end endmodule SYNTHESIS RESULTS: SIMULATION RESULTS:

(38)

38

CONCLUSION:

8 to 3 line encoder has been designed using behavioral and data flow modeling styles and verified using the test bench.

EXPERIMENT:

6 MULTIPLEXER

(39)

39

AIM: To design a 4:1 multiplexer using behavioral, dataflow models and verify its functionality using the test bench.

A multiplexer has a group of data inputs and a group of control inputs. It is also called as data selector. The control inputs are used to select one of the data inputs and connect it to the output terminal. A 4:1 mutliplexer has four inputs ,2 selection line and 1 output.

BLOCK DIAGRAM: TRUTH TABLE: S1 S0 Y 0 0 din[0] 0 1 din[1] 1 0 din[2] 1 1 din[3] VERILOG CODE:

4:1 MUX USING DATA FLOW MODELING STYLE:

`resetall

`timescale 1ns/1ps

module mux41data (din,s,y); input [0:3] din;

input[0:1]s; output out; assign out=din[s];

(40)

40 endmodule

4:1 MUX USING BEHAVIORAL MODELING STYLE:

`

resetall

`timescale 1ns/1ps

module mux42beh(din, s0, s1, y); input [0:3] din; input s0; input s1; output y; reg y; wire s0,s1; always@(s0 or s1) begin case({s0,s1}) 2'b00:y=din[0]; 2'b01:y=din[1]; 2'b10:y=din[2]; 2'b11:y=din[3]; default:y=1'b1; endcase end endmodule

4:1 MUX TEST BENCH:

`resetall `timescale 1ns/1ps module mux42beh_tb_v; // Inputs reg [0:3] din; reg s0; reg s1;

(41)

41 // Outputs

wire y;

// Instantiate the Unit Under Test (UUT) mux42beh uut ( .din(din), .s0(s0), .s1(s1), .y(y) ); initial begin din=4'b0011; s0=1'b0; s1=1'b0; #5 s0=1'b0; s1=1'b1; #5 s0=1'b1; s1=1'b0; #5 s0=1'b1; s1=1'b1; end initial begin #50 $finish; end endmodule SYNTHESIS RESULTS:

(42)

42

CONCLUSION: A 4:1 multiplexer is designed using behavioral, dataflow models are

verified using test bench.

(43)

43

AIM: To design a 8:1 multiplexer using behavioral ,dataflow models and verify its functionality using the test bench.

A multiplexer has a group of data inputs and a group of control inputs. It is also called as data selector. The control inputs are used to select one of the data inputs and connect it to the output terminal. A 8:1 mux has eight inputs ,3 selection lines and 1 output.

BLOCK DIAGRAM: TRUTH TABLE: S0 S1 S2 Y 0 0 0 Y[0] 0 0 1 Y[1] 0 1 0 Y[2] 0 1 1 Y[3] 1 0 0 Y[4] 1 0 1 Y[5] 1 1 0 Y[6] 1 1 1 Y[7]

Where S0,S1,S2 are inputs and Y is output

(44)

44

8:1 MUX USING DATA FLOW MODEL

`resetall `timescale 1ns/1ps module mux81data1(s,din,y) ; input [0:2]s; input [0:7]din; output y; wire [0:7]t; assign t[0]=(~s[0])&(~s[1])&(~s[2]&i[0]); assign t[1]=(~s[0])&(~s[1])&(s[2]&i[1]); assign t[2]=(~s[0])&(s[1])&(~s[2]&i[2]); assign t[3]=(~s[0])&(s[1])&(s[2]&i[3]); assign t[4]=(s[0])&(~s[1])&(~s[2]&i[4]); assign t[5]=(s[0])&(~s[1])&(s[2]&i[5]); assign t[6]=(s[0])&(s[1])&(~s[2]&i[6]); assign t[7]=(s[0])&(s[1])&(s[2]&i[7]); assign y=t[0]|t[1]|t[2]|t[3]|t[4]|t[5]|t[6]|t[7]; endmodule

8:1 MUX USING BEHAVIORAL MODELING STYLE:

`resetall `timescale 1ns/1ps module mux81bh(i,s,o) ; input [0:7]i; input [0:2]s; output o; wire [0:7]i; wire [0:2]s; wire [0:7]y; reg o; always@(s)

(45)

45 begin case(s) 3'b000: o=i[0]; 3'b001: o=i[1]; 3'b010: o=i[2]; 3'b011: o=i[3]; 3'b100: o=i[4]; 3'b101: o=i[5]; 3'b110: o=i[6]; 3'b111: o=i[7]; endcase end endmodule

8:1 MUX TEST BENCH:

`resetall `timescale 1ns/1ps module mux81df_tb_v; // Inputs reg [0:7] din; reg [0:2] s; // Outputs wire y;

// Instantiate the Unit Under Test (UUT)

mux81df uut ( .din(din), .y(y), .s(s) ); initial begin // Initialize Inputs

(46)

46 din=8'b01010101; s=3'b000; #10 s=3'b001; #10 s=3'b010; #10 s=3'b011; #10 s=3'b100; #10 s=3'b101; #10 s=3'b110; #10 s=3'b111; end initial begin #100 $finish; end endmodule SYNTHESIS RESULTS:

(47)

47

CONCLUSION: A 8:1 multiplexer is designed using behavioral, dataflow models are verified using test bench.

(48)

48

7.1. 1:4 DEMULTIPLEXER

AIM: To design a 1X4 DEMULTIPLEXER and verify its functionality and check its

simulation report.

The demultiplexer is the exact opposite to the multiplexer. In this, the data form one line can be sent onto any one of many lines. The block diagram of multiplexer is given below and the associated truth table.1:4 demultiplexer has one input and 4 output lines.

BLOCK DIAGRAM: A TRUTH TABLE: S1

S

₀ Z0

Z

₁

Z

₂

Z

₃

0 0 A 0 0 0

0 1 0 A 0 0

1 0 0 0 A 0

1 1 0 0 0 A

VERILOG CODE FOR 1:4 DEMULTIPLEXER: DEMULTIPLEXER Z0 Z1 Z3 Z2 S0 S1

(49)

49 `resetall `timescale 1ns/1ps module demux14bh(din,s,y) ; input [0:1]s; input din; output [0:3]y; wire [0:1]s; wire din; reg [0:3]y; always @(s or din) begin case(s) 2'b00: begin y[0]=din;y[1]=4'b0;y[2]=4'b0;y[3]=4'b0;end 2'b01: begin y[1]=din;y[0]=4'b0;y[2]=4'b0;y[3]=4'b0;end 2'b10: begin y[2]=din;y[1]=4'b0;y[0]=4'b0;y[3]=4'b0;end 2'b11: begin y[3]=din;y[1]=4'b0;y[2]=4'b0;y[0]=4'b0 ;end endcase

end

endmodule

TEST BENCH FOR 1:4 DEMULTIPLEXER:

`resetall `timescale 1ns/1ps module demux14bh_tb; // Inputs reg din; reg [0:1] s; // Outputs wire [0:3] y;

(50)

50 demux14bh uut ( .din(din), .s(s), .y(y) ); initial begin // Initialize Inputs din = 1; s=2'b00; #10 s=2'b01; #10 s=2'b10; #10 s=2'b11; end initial begin #50 $finish; end endmodule

(51)

51

CONCLUSION:

(52)

52

7.2--- 1:8 DEMULTIPLEXER

AIM: To design a 1:8 DEMULTIPLEXER and verify its functionality and check its

simulation report.

The demultiplexer is the exact opposite to the multiplexer. In this, the data form one line can be sent onto any one of many lines. The block diagram of multiplexer is given below and the associated truth table.1:8 demultiplexer has one input and 8 output lines.

BLOCK DIAGRAM:

A

TRUTH TABLE:

S0 S1 S2 Y[0] Y[1] Y[2] Y[3] Y[4] Y[5] Y[6] Y[7]

0 0 0 A 0 0 0 0 0 0 0 0 0 1 0 A 0 0 0 0 0 0 0 1 0 0 0 A 0 0 0 0 0 0 1 1 0 0 0 A 0 0 0 0 1 0 0 0 0 0 0 A 0 0 0 1 0 1 0 0 0 0 0 A 0 0 DEMULTIPLEXER 1x8 Y0 Y1 Y3 Y2 S0 S1 Y5 Y4 Y6 Y7 S2

(53)

53

1 1 0 0 0 0 0 0 0 A 0

1 1 1 0 0 0 0 0 0 0 A

VERILOG CODE FOR 1:8 DEMUX:

`resetall

`timescale 1ns/1ps

module demux18beh(din, s, y); input din; input [0:2] s; output [0:7] y; // reg din; // reg [0:2] s; wire din; wire [0:2] s; reg [0:7]y; always@(s) begin case (s) 3'b000:y=8'b10000000; 3'b001:y=8'b01000000; 3'b010:y=8'b00100000; 3'b011:y=8'b00010000; 3'b100:y=8'b00001000; 3'b101:y=8'b00000100; 3'b110:y=8'b00000010; 3'b111:y=8'b00000001; default:y=8'b11111111; endcase end endmodule

(54)

54

TEST BENCH FOR 1:8 DEMULTIPLEXER:

`resetall `timescale 1ns/1ps module demux18beh_tb_v; reg din; reg [0:2] s; // Outputs wire [0:7] y;

// Instantiate the Unit Under Test (UUT)

demux18beh uut ( .din(din), .s(s), .y(y) ); initial begin din=1; s=3'b000; #5 s=3'b001; #5 s=3'b010; #5 s=3'b011; #5 s=3'b100; #5 s=3'b101; #5 s=3'b110; #5 s=3'b111; end initial begin #80 $finish; end

(55)

55 endmodule

CONCLUSION:

(56)

56

EXPERIMENT: 8

COMPARATORS

4- BIT COMPARATOR

AIM: To design a four bit comparator using behavioral model and verify using the

functionality using test bench.

TOOLS USED: Xilinx 9.2i.Hardware Tool. DESCRIPTION OF THE MODULE:

Comparator is a circuit which compares two n-bit binary numbers and determines if they are equal or which one is larger if they are not equal.

(57)

57

TRUTH TABLE:

a b

altb aeqb agtb

0000 1111

1

0

0 0001 1110

1

0

0 0010 1101

1

0

0 0011 1100

1

0

0 0100 1011

1

0

0 0101 1010

1

0

0 0110 1001

1

0

0 0111 0111

0

1

0 1000 1000

0

1

0 1001 0110

0

1 1010 0101

0

1 1011 0100

0

1 1100 0011

0

1 1101 0010

0

1 1110 0001

0

1 1111 0000

0

1

Where aeqb denotes a equals b and altb denotes a less than b and agtb denotes a greater than b

VERILOG CODE:

(58)

58 `timescale 1ns/1ps

module comparator1(a, b, altb, aeqb, agtb); input [0:3] a; input [0:3] b; output altb; output aeqb; output agtb; //wire a[0:3]; //wire b[0:3]; reg altb,aeqb,agtb; always@(a or b) begin if(a<b) begin altb=1'b1; {aeqb,agtb}=1'b0; end else if(a==b) begin aeqb=1'b1; {altb,agtb}=1'b0; end else begin agtb=1'b1; {aeqb,altb}=1'b0; end end endmodule

4 BIT COMPARATOR TEST BENCH

(59)

59 `timescale 1ns/1ps module comparator_tv_v; // Inputs reg [0:3] a; reg [0:3] b; // Outputs wire altb; wire aeqb; wire agtb;

// Instantiate the Unit Under Test (UUT) comparator1 uut ( .a(a), .b(b), .altb(altb), .aeqb(aeqb), .agtb(agtb) ); initial begin a=4'b0101; b=4'b0101; #10 a=4'b0100; b=4'b0110; #10 a=4'b1010; b=4'b0011; end initial begin #30 $finish; end endmodule

(60)

60

(61)

61

CONCLUSION: A 4- bit comparator is designed and its functionality is verified using the test bench

\

EXPERIMENT: 9 ARITHMETIC AND LOGIC UNIT

AIM: To design all the logic ALU using the behavioral modeling style and verify the

functionalities along with their synthesis and simulation reports.

Arithmetic logic unit is used to perform all the arithmetic operations like Addition, Subtraction, division, multiplication etc and logical operations like AND, OR, NOR, NAND, XOR, XNOR etc.

VERILOG CODE:

`resetall

`timescale 1ns/1ps module alu4(a, b, s, y); input [3:0] a; input [3:0] b; input [1:0] s; output [3:0] y; wire [3:0]a; wire [3:0]b; wire [3:0]s; reg [3:0]y; always@(s) begin case(s) 2'b00:y=b; 2'b01:y=a+b; 2'b10:y=a|b; 2'b11:y={b[2:0],1'b0}; endcase end endmodule

(62)

62

TEST BENCH FOR ALU:

`resetall `timescale 1ns/1ps module alu_tb_v; // Inputs reg [3:0] a; reg [3:0] b; reg [3:0] s; // Outputs wire [3:0] y;

// Instantiate the Unit Under Test (UUT) alu4 uut ( .a(a), .b(b), .s(s), .y(y) ); initial begin a=4'b0000; b=4'b0001; s=2'b00; #10 s=2'b01; #10 s=2'b10; #10 s=2'b11; end initial begin #100 $finish; end endmodule

(63)

63

(64)

64

CONCLUSION:

ARITHEMETIC AND LOGIC UNIT is designed in behavioral model and output is verified using test bench.

(65)

65

EXPERIMENT: 10

D-FLIP FLOP

AIM: To design a D-flip flop with synchronous reset in behavioral model and testing the

functionality using test bench

The flip flop circuit can maintain a binary state indefinitely (as long as the power is delivered to the circuit) until directed by an input signal to switch states. The major difference among the various types of the flip flops are in the number of inputs they possess and in the manner in which the inputs affect the binary states. A D- flip flop has one input D ,the input D is sampled during the occurrence of the clock pulse. In D-flip flop with synchronous reset, the output depends only on the clock..

BLOCK DIAGRAM:

TRUTH TABLE:

Clk Q D Q(n+1)

(66)

66

1 0

1

1 1 1

0

0 1 1

1

VERILOG CODE: `resetall `timescale 1ns/1ps

module dff1(data, clk, reset, q); input data; input clk; input reset; output q; wire data,clk,reset; reg q; always @ ( posedge clk ) if (reset) begin q <= 1'b0; end else begin q <= data; end endmodule TEST BENCH: `resetall `timescale 1ns/1ps module dff1_tb_v; // Inputs reg data; reg clk; reg reset; // Outputs wire q;

// Instantiate the Unit Under Test (UUT) dff1 uut (

.data(data), .clk(clk), .reset(reset),

(67)

67 .q(q) ); initial clk = 1'b1; always #5 clk = ~clk; initial begin data=1; reset=1; #5 data=0; reset=0; #5 data=1; reset=0; #10 data=1; reset=0; end initial begin #50 $finish; end endmodule SYNTHESIS RESULTS: SIMULATION RESULTS:

(68)

68

CONCLUSION:

A D- Flip flop with synchronous reset is designed in behavioral model and tested using test bench.

EXPERIMENT:

11 SHIFT REGISTERS

11.1 LEFT SHIFT REGISTER USING ASYNCHRONOUS RESET AIM:To design a 4-bit left shift register using asynchronous reset in behavioral model and testing the functionality using test bench.

The Shift registers are a type of sequential circuits mainly used for the storage of the data, a shift register is a group of flip flops connected in a chain so that the output of one flip flop is connected as the input to the next flip flop. All the flip flops are driven by a global clock, left shift register is shift register in which the data keeps shifting towards the left for each positive edge of the clk

BLOCK DIAGRAM: TRUTH TABLE:

Clk Reset Q Ser

Qa Da A Qb Db B Qd Db D Qc Dc C q clk Ser

(69)

69

0 1 0000 0

1 0 0001 1

1 0 0011 1

1 0 0111 1

1 0 1111 1

VERILOG CODE:

4-

BIT LEFT SHIFT REGISTER WITH ASYNCHRONOUS RESET USING

B

EHAVIORAL

M

ODEL

`resetall

`timescale 1ns/1ps

module leftshiftreg(clk, reset, sr, q); input clk; input reset; input sr; output [3:0] q; wire reset,sr,clk; reg [3:0] q; always@(posedge clk) begin if(reset) q=4'b0000; else q={q[2:0],sr}; end endmodule

4-BIT LEFT SHIFT REGISTER TEST BENCH

`resetall

`timescale 1ns/1ps module leftshiftreg_tb_v;

(70)

70 // Inputs reg clk; reg reset; reg sr; // Outputs wire [0:3] q;

// Instantiate the Unit Under Test (UUT) leftshiftreg uut ( .clk(clk), .reset(reset), .sr(sr), .q(q) ); initial clk=1'b1; always #5 clk=~clk; initial begin reset=1'b1; #3 reset=1'b0; #6 reset=1'b0; end initial begin sr=1'b0; #10 sr=1'b1; #10 sr=1'b1; #10 sr=1'b1; #10 sr=1'b1; #10 sr=1'b1;

(71)

71 #10 sr=1'b1; end initial begin #100 $finish; end endmodule SYNTHESIS RESULTS: SIMULATION RESULTS: CONCLUSION:

A 4-bit shift register using asynchronous reset is designed in behavioral model and tested using test bench.

(72)

72

EXPERIMENT:

12 UNIVERSAL SHIFT REGISTER

AIM: To design UNIVERSAL SHIFT REGISTER and verify the functionalities along with their synthesis and simulation reports.

TOOLS USED: Xilinx 9.2i.Hardware Tool.

DESCRIPTION OF THE MODULE: The UNIVERSAL SHIFT REGISTER(USR)

performs hold value, shift left, shift right and load value functions. This register can be used as a serial in-serial out, parallel in –parallel out, serial in-parallel out, parallel in serial out shift register.

BLOCK DIAGRAM: clock reset leftsh rightsf pin

VERILOG CODE USING BEHAVIORAL MODELING:

`resetall

Universal Shift register

(73)

module universalshiftreg(clk, reset, leftsh, rightsf, sel, pin, q); input clk; input reset; input leftsh; input rightsf; input [0:1]sel; input [0:3] pin; output [0:3] q; wire clk,sel,leftsh,rightsf,reset; wire [0:3] pin; reg [3:0] q; always@(posedge clk ) begin if (reset) q=4'b0000; else begin case(sel) 2'b00:q=4'b0000; 2'b01: q={q[2:0],leftsh}; 2'b10: q={rightsf,q[3:1]}; 2'b11: q=pin; endcase end end endmodule

(74)

74 `resetall `timescale 1ns/1ps module universalshift_tb_v; // Inputs reg clk; reg reset; reg leftsh; reg rightsf; reg [0:1] sel; reg [0:3] pin; // Outputs wire [3:0] q;

// Instantiate the Unit Under Test (UUT) universalshiftreg uut ( .clk(clk), .reset(reset), .leftsh(leftsh), .rightsf(rightsf), .sel(sel), .pin(pin), .q(q) ); initial clk=1'b1; always #5 clk=~clk; initial begin reset=1'b1; #5 reset=1'b0; end

(75)

75 initial begin leftsh=1'b1; #5 rightsf=1'b1; #10 pin=4'b1010; end initial begin sel=2'b00; #5 sel=2'b01; #5 sel=2'b10; #5 sel=2'b11; end initial #50 $finish; endmodule SYNTHESIS RESULTS:

(76)

76

(77)

77

CONCLUSION: UNIVERSAL SHIFT REGISTER is designed in Behavioral model and

tested using test bench.

(78)

78

12.1 UP COUNTER

AIM: To design UP COUNTER and verify functionality along with its synthesis and

simulation reports.

TOOLS USED: Xilinx 9.2i Hardware Tool.

DESCRIPTION OF THE MODULE: A sequential circuit that goes through a

prescribed sequence of states upon the application of input pulses is called counter. If a counter counts from lower value to higher value then it is known as UP COUNTER.

BLOCK DIAGRAM:

clock reset enable

TRUTH TABLE:

Clock Reset Enable q

1 1 X 0000 2 0 1 0001 3 0 1 0010 4 0 1 0011 5 0 1 0100 6 0 1 0101 7 0 1 0110 8 0 1 0111 9 0 1 1000 10 0 1 1001

VERILOG CODE USING BEHAVIORAL MODELING:

`resetall

Up counter

(79)

module upcounter(clk, reset, enable, q); input clk; input reset; input enable; output [0:3] q; wire clk,reset,enable; reg [0:3] q; always@(posedge clk) begin if(reset==1'b1) q=4'b0000; else if(enable==1'b1) begin q=q+4'b0001; end end endmodule

UPCOUNTER TEST BENCH:

`resetall `timescale 1ns/1ps module upcounter_tb_v; // Inputs reg clk; reg reset; reg enable; // Outputs wire [0:3] q;

// Instantiate the Unit Under Test (UUT) upcounter uut (

(80)

80 reset(reset), .enable(enable), .q(q) ); initial clk=1'b1; always #5 clk=~clk; initial begin enable=1'b1; reset=1'b1; #5 reset=1'b0; end initial begin #160 $finish; end endmodule SYNTHESIS RESULTS:

(81)

81

CONCLUSION: UP COUNTER is designed using behavioral modeling style and is

tested using test bench.

(82)

82

AIM: To design DOWN COUNTER and verify functionality along with its synthesis and

simulation reports.

TOOLS USED: Xilinx 9.2i.Hardware Tool.

DESCRIPTION OF THE MODULE: A sequential circuit that goes through a

prescribed sequence of states upon the application of input pulses is called counter. DOWN COUNTER counts from higher value to lower value.

BLOCK DIAGRAM: clock reset enable TRUTH TABLE:

clock reset enable q

1 1 X 1111 2 0 1 1110 3 0 1 1101 4 0 1 1100 5 0 1 1011 6 0 1 1010 7 0 1 1001 8 0 1 1000 9 0 1 0111 10 0 1 0110 VERILOG CODE: Down counter q

(83)

83 `resetall

`timescale 1ns/1ps

module downcounter(clk, enable, reset, q); input clk; input enable; input reset; output [0:3] q; wire enable,clk,reset; reg [3:0]q; always@(posedge clk) begin if(reset) q=4'b1111; else if(enable==1'b1) q=q-4'b0001; end endmodule

DOWN COUNTER TEST BENCH:

`resetall `timescale 1ns/1ps module downcounter_tb_v; // Inputs reg clk; reg enable; reg reset; // Outputs wire [3:0] q;

// Instantiate the Unit Under Test (UUT) downcounter uut (

(84)

84 .enable(enable), .reset(reset), .q(q) ); initial clk=1'b1; always #5 clk=~clk; initial begin enable=1'b1; reset=1'b1; #5 reset=1'b0; end initial begin #300 $finish; end endmodule SYNTHESIS RESULTS:

(85)

85

CONCLUSION: DOWN COUNTER is designed using behavioral modeling style and is
