Le fabricant et nous même, nous réservons le droit de modifier le produit en vue d’une amélioration
Art-
2007-

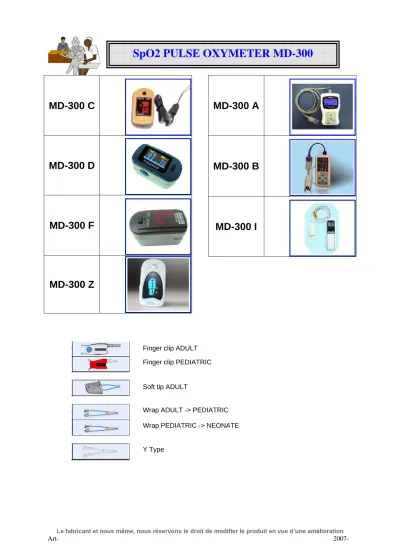

SpO2 PULSE OXYMETER MD-300
MD-300 C
MD-300 D
MD-300 F
MD-300 Z
MD-300 A
MD-300 B
MD-300 I
Finger clip ADULT
Finger
clip
PEDIATRIC
Soft
tip
ADULT
Wrap
ADULT
->
PEDIATRIC
Wrap
PEDIATRIC
->
NEONATE
Pulse oxymètre portable MD-300C
Technical Parameters Display Format: LED
SPO2:35-99% in 2-digit 7-segment digital;
Pulse Ratio:30-240 BPM in 3-digit 7-segment digital; Pulse Wave: 6-segment bargraph
Battery Voltage Low Indication: LED signals.
* Power Requirements: Two AAA size 1.5V Alkali Battery; * Power Consumption: less than 40mA.
* Resolution: ±1% for SPO2 and ±1 BPM for Pulse Ratio.
* Measurement Accuracy: ±2% in stage of 70%-99% SPO2 and meaningless when stage being smaller than 70%. ±2 BPM for Pulse Ratio.
* Measurement Performance in Weak Filling Condition: Oxyhemoglobin and pulse value can be shown correctly when pulse-filling ratio is 0.5%.
* Interference Resistance Capacity against Ambient Light: Deviation is smaller than ±1% between value of Oxyhemoglobin measured in natural lighting indoor condition and present lighting sources and that measured in dark room.
Product Properties
Operation of the product is simple and convenient
* The product is small in volume, light in weight (total weight is about 50g including batteries) and convenient in carrying.
* Power consumption of the product is low and the two originally equipped two AAA batteries can be operated continuously for 30 hours.
* Low voltage warning will be indicated in visual window when battery voltage is so low that normal operation of the Oximeter might be influenced.
* The product will automatically be powered off when no signal is in the product for more than 8 seconds. Packing Dimension
15cm x 10.5cm x 4cm/pc/box Gross Weight
Le fabricant et nous même, nous réservons le droit de modifier le produit en vue d’une amélioration
Art-
2007-
SpO2 PULSE OXYMETER MD-300
Pulse oxymètre portable MD-300D
Technical Parameters Display Format: LCD SPO2:35-99% in 2-digit ;
Pulse Ratio:30-240 BPM in 3-digit; Pulse Wave: 6-segment bargraph Plethys Waveform
Battery Voltage Low Indication: .
* Power Requirements: Two AAA size 1.5V Alkali Battery; * Power Consumption: less than 40mA.
* Resolution: ±1% for SPO2 and ±1 BPM for Pulse Ratio.
* Measurement Accuracy: ±2% in stage of 70%-99% SPO2 and meaningless when stage being smaller than 70%. ±2 BPM for Pulse Ratio.
* Measurement Performance in Weak Filling Condition: Oxyhemoglobin and pulse value can be shown correctly when pulse-filling ratio is 0.5%.
* Interference Resistance Capacity against Ambient Light: Deviation is smaller than ±1% between value of Oxyhemoglobin measured in natural lighting indoor condition and present lighting sources and that measured in dark room.
Product Properties
Operation of the product is simple and convenient
* The product is small in volume, light in weight (total weight is about 50g including batteries) and convenient in carrying.
* Power consumption of the product is low and the two originally equipped two AAA batteries can be operated continuously for 30 hours.
* Low voltage warning will be indicated in visual window when battery voltage is so low that normal operation of the Oximeter might be influenced.
* The product will automatically be powered off when no signal is in the product for more than 8 seconds. Packing Dimension
15cm x 10.5cm x 4cm/pc/box Gross Weight
Pulse oxymètre portable MD-300C
Technical Parameters Display Format: LED
SPO2:35-99% in 2-digit 7-segment digital;
Pulse Ratio:30-240 BPM in 3-digit 7-segment digital; Pulse Wave: 6-segment bargraph
Battery Voltage Low Indication: LED signals.
* Power Requirements: Two AAA size 1.5V Alkali Battery; * Power Consumption: less than 40mA.
* Resolution: ±1% for SPO2 and ±1 BPM for Pulse Ratio.
* Measurement Accuracy: ±2% in stage of 70%-99% SPO2 and meaningless when stage being smaller than 70%. ±2 BPM for Pulse Ratio.
* Measurement Performance in Weak Filling Condition: Oxyhemoglobin and pulse value can be shown correctly when pulse-filling ratio is 0.5%.
* Interference Resistance Capacity against Ambient Light: Deviation is smaller than ±1% between value of Oxyhemoglobin measured in natural lighting indoor condition and present lighting sources and that measured in dark room.
Product Properties
Operation of the product is simple and convenient
* The product is small in volume, light in weight (total weight is about 50g including batteries) and convenient in carrying.
* Power consumption of the product is low and the two originally equipped two AAA batteries can be operated continuously for 30 hours.
* Low voltage warning will be indicated in visual window when battery voltage is so low that normal operation of the Oximeter might be influenced.
* The product will automatically be powered off when no signal is in the product for more than 8 seconds. Packing Dimension
15cm x 10.5cm x 4cm/pc/box Gross Weight
Le fabricant et nous même, nous réservons le droit de modifier le produit en vue d’une amélioration
Art-
2007-
SpO2 PULSE OXYMETER MD-300
Pulse oxymètre portable MD-300Z
Technical Parameters Display Format: OLED SPO2:70-99% in 2-digit 7;
Pulse Ratio:30-240 BPM in 3-digit ;
Battery Voltage Low Indication: LED signals.
* Power Requirements: Two AAA size 1.5V Alkali Battery; * Power Consumption: less than 40mA.
* Resolution: ±1% for SPO2 and ±1 BPM for Pulse Ratio.
* Measurement Accuracy: ±2% in stage of 70%-99% SPO2 and meaningless when stage being smaller than 70%. ±2 BPM for Pulse Ratio.
* Measurement Performance in Weak Filling Condition: Oxyhemoglobin and pulse value can be shown correctly when pulse-filling ratio is 0.5%.
* Interference Resistance Capacity against Ambient Light: Deviation is smaller than ±1% between value of Oxyhemoglobin measured in natural lighting indoor condition and present lighting sources and that measured in dark room.
Product Properties
Operation of the product is simple and convenient
* The product is small in volume, light in weight (total weight is about 50g including batteries) and convenient in carrying.
* Power consumption of the product is low and the two originally equipped two AAA batteries can be operated continuously for 30 hours.
* Low voltage warning will be indicated in visual window when battery voltage is so low that normal operation of the Oximeter might be influenced.
* The product will automatically be powered off when no signal is in the product for more than 8 seconds. * Size: 58mm(L), 32mm(W), 34mm(H)
Packing Dimension
15cm x 10.5cm x 4cm/pc/box Gross Weight
Pulse oxymètre portable MD-300A
Technical Specifications
[Patient Range]: Adult, Pediatric and Neonatal [SpO2]
Range 0%-100% Resolution 1%
Accuracy 70%-100%: ±2% 0%-69%:unspecified Method Dual wavelength LED
[Heart (Pulse) Rate] Range 25-254 bpm
Resolution 1bpm Accuracy ±2bpm or ±2% [Alarm]
Alarm SpO2, probe off Modes Audio, visual, information [Display]
Type Backlit LCD
Parameters SpO2, PR, Pleth waveform, Pleth bar.
Information SpO2 & PR trend, browse, Low power, error, time [Environmental]
Operating Temperature 0℃-50℃ Storage Temperature -10℃ - 60℃ Operating Humidity 15%RH - 95%RH Storage Humidity 10%RH - 95%RH [Classification]
Type of protection internally powered equipment Safety IEC Standard 61601-1-1 [Storage]
Le fabricant et nous même, nous réservons le droit de modifier le produit en vue d’une amélioration
Art-
2007-
SpO2 PULSE OXYMETER MD-300
Pulse oxymètre portable MD-300B
Technical Specifications
[Patient Range] Adult, Pediatric and Neonatal [SpO2]
Range 0%-100% Resolution 1%
Accuracy 70%-100%: ±2% 0%-69%:unspecified Method Dual wavelength LED
[Heart (Pulse) Rate] Range 25-254 bpm
Resolution 1bpm Accuracy ±2bpm or ±2% [Alarm]
Alarm SpO2, probe off Modes Audio, visual, information [Display]
Type 3-digit 7-segment LED
Parameters SpO2, PR, Pleth waveform, Pleth bar.
Information SpO2 & PR trend, browse, Low power, error, time [Environmental]
Operating Temperature 0℃-50℃ Storage Temperature -10℃ - 60℃ Operating Humidity 15%RH - 95%RH Storage Humidity 10%RH - 95%RH [Classification]
Type of protection internally powered equipment Safety IEC Standard 61601-1-1 [Storage]
Data records Store and replay 72 hours SPO2% and Pulse rate value [Mechanical]
Size 120 ×60 ×22mm Weight: 120 g [Battery]
Type 4 AAA Alkaline batteries or 4 AAA rechargeable batteries Operation time About 48 hours for normal operation
Technical Specifications
[Patient Range] Adult, Pediatric and Neonatal [SpO2]
Range 0%-100% Resolution 1%
Accuracy 70%-100%: ±2% 0%-69%:unspecified Method Dual wavelength LED
[Heart (Pulse) Rate] Range 25-254 bpm
Resolution 1bpm Accuracy ±2bpm or ±2% [Alarm]
Alarm SpO2, probe off Modes Audio, visual, information [Display]
Type LCD
Parameters SpO2, PR, Pleth waveform, Pleth bar. Information SpO2 & PR trend, browse,
Low power, error, time [Environmental]
Operating Temperature 0℃-50℃ Storage Temperature -10℃ - 60℃ Operating Humidity 15%RH - 95%RH Storage Humidity 10%RH - 95%RH [Classification]
Type of protection internally powered equipment Safety IEC Standard 61601-1-1 [Storage]
