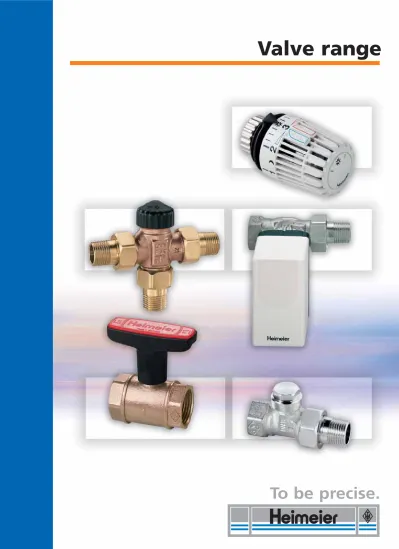

Valve range
Thermostatic heads
Thermostatic head K
with built-in sensor.
– Graduation cap white RAL 9016, – Graduation cap chrome-plated,
– Graduation cap anthracite grey RAL 7016, – Graduation cap light grey RAL 7035 and – Graduation cap dusty grey RAL 7037.
Thermostatic heads
Thermostatic head DX
with built-in sensor.
– Graduation cap white RAL 9016, – Graduation cap chrome-plated,
– Graduation cap graphite grey RAL 7024, – Graduation cap light grey RAL 7035 and – Graduation cap dusty grey RAL 7037.
Thermostatic heads
Thermostatic head VD
with connection cover
for radiators with integrated valves, from the DESIGN LINE range.
Thermostatic head WK
Angle form for radiators with integrated valves.
Thermostatic head VK
with clamp, for radiators with integrated valves. – standard
– with zero position – with anti-theft protection
Thermostatic heads
Thermostatic head B
secured public building model.
Thermostatic head D Thermostatic head K
– anti-theft ring
– anti-theft device with two screws – with zero position
– for indoor swimming-pools – model for public buildings
Thermostatic
room temperature control
Thermostatic heads
Thermostatic head F
Remote dial. – with built-in sensor – with remote sensor – for indoor swimming-pools
Thermostatic head K
with remote sensor. – anti-theft ring
– anti-theft device with two screws – with zero position
– for indoor swimming-pools – model for public buildings
Thermostatic heads
With direct connection to valves from other manufacturers
– K for Danfoss RAVL – K for Danfoss RAV – VK for Danfoss RA
– standard – with zero position – with anti-theft protection – D for Danfoss RA – K for Vaillant – D for Herz M 28 x 1.5
Thermostatic valve bodies
E-Z Valve
including immersion pipe for radiators with bottom single-point connection. Models for single and two-pipe systems. Body made of gunmetal, nickel-plated.
Single pipe valve
with immersion pipe for radiators with a lateral single-point connection.
Body made of gunmetal, nickel-plated.
Thermostatic valve bodies
Standard
for two-pipe pumped heating systems.
with particularly low resistance
for gravity and conventional single-pipe heating systems.
Body in angle, straight, axial and double-angle form, made out of gunmetal and nickel-plated. Models in DN 10 – DN 32 with a female thread and DN 15 with a male thread and press connection. Can be fitted with covers from the DESIGN LINE range for angle and straight NW 10 – NW 15 with female thread.
Thermostatic valve bodies
V-exakt
with exact pre-setting for heating systems with a normal to higher temperature spread.
F-exakt
with exact pre-setting for heating systems with low mass flows or large-scale temperature spreads, e.g. for remote heating systems. Body in angled, straight, axial and double-angle form, made out of gunmetal and nickel-plated. Models in DN 10 – DN 20 with a female thread and DN 15 with a male thread and press connection. Can be fitted with covers from the DESIGN-LINE range for angle and straight NW 10 – NW 15 with female thread.
Thermostatic valve bodies
E-Z System
Valve for radiators with lateral two-point connection.
Can be changed from single-pipe to two-pipe operation. Body made of gunmetal, nickel-plated.
Thermostatic valve bodies
Duolux
Valve for radiators with lateral two-point connection.
Models for single and two-pipe systems. Body made of gunmetal, nickel-plated.
Thermostatic valve bodies
Multilux
for radiators with low-positioned, two-point connection, distance from center to center 50 mm. For pre-setting and draining.
Available in angle and straight models for both single and two-pipe systems.
Connection R 1/
2and G 3/4.
Body made of gunmetal, nickel-plated. Can be fitted with covers from the DESIGN LINE range in white and chrome.
Electric/electronic
room temperature control
Time Adaptor
E-Pro Time Adaptor for Thermostatic Valves
A time adaptor designed to regulate room temperatures in tune with specific times of the day and night. The device is fitted between the valve and the thermostatic head. HEIMEIER thermostatic heads, which are already available, can continue to be used after fitting of the time adaptor.
Radio system for
floor heating system
Radiocontrol F
consisting of room transmitter and central unit. For the individual room temperature control of floor, wall or ceiling heating systems or cooling systems.
Motorized actuators
EMO EIB
Proportional actuator for direct connection to the European Installation Bus
EMOLON
Proportional actuator for use in LonWorks®
networks.
Motorized actuators
EMO 1
Proportional actuator for heating, ventilation and air-conditioning systems.
EMO 3
Three-point actuator for heating, ventilation and air-conditioning systems.
EMO 3 / 230
"3-point 230 V" input signal. Ideally suited for the regulating of the supply pipe temperature.
Thermal actuators
EMO T
Two-point actuator for heating, ventilation and air-conditioning systems.
EMOtec
Two-point actuator for floor heating systems. With position indicator in NC version.
Room temperature controllers
Room thermostat
Two-point room thermostat for thermal actuators EMO T/ EMOtec.
Thermostat P
Two-point room thermostat with 7-day switch clock for thermal actuators EMO T/EMOtec.
Thermostat E 1
Proportional room thermostat for motorized actuators EMO 1.
Thermostat E 3
The 3-point room thermostat for motorized actuators EMO 3.
Special fittings
Three-way valves
Three-way reversing valve
for distributing flow rates in heating and cooling systems.
Three-way mixing valve
with and without pre-setting feature for mixing flow rates in heating and cooling systems.
Body made of gunmetal.
For all HEIMEIER thermostatic heads and actuators.
Thermostatic head K
with contact or
immersion sensor
Use of the sensor in conjunction with heat conducting base as a contact sensor or with an immersion sleeve as an immersion sensor. Thermostatic head with spiral-shaped immersion sensor without immersion sleeve. Sealed to the capillary tube by means of clamping joint.
Floor control set
for the constant control of the supply temperature in combined floor and radiator heating systems.
Double connection fittings
for radiators with
integrated valves
Vekolux
Double connection fitting with drain-off facility. Versions for single and two-pipe systems. Can be fitted with covers in white from the DESIGN LINE range.
Vekotec
Double connection fitting. Models for two-pipe systems.
Body in angle and straight form and made of gunmetal, nickel-plated.
Connection R 1/
2and G 3/4.
Flush individual
room control for
floor heating systems
Multibox K with thermostatic valve.
Multibox RTL with return temperature limiter. Multibox K-RTL with thermostatic valve and
return temperature limiter. Models in white or chrome.
Multibox F with thermostatic valve. Multibox C/E with thermostatic inserts for
actuators or remote dial.
Multibox C/RTL with interior
return temperature limiter. Models available in white.
Return temperature
limiter
RTL
e. g. for the temperature control of smaller floor areas. Body in angle and straight versions, made of gunmetal, nickel-plated. Connection R 1/
Manual valves
Manual radiator valve
Mikrotherm
with pre-setting.
With hand wheel cap made of white plastic. Body in angle and straight form, made of gunmetal and nickel-plated.
NW 10 – NW 32.
Manual valves for floor
heating system
Manual valves
and also lockshields for heating manifolds, universal connection possibilities on both sides, body made of gunmetal.
Radiator
lockshield
Regutec
for shutting off and controlling. Body made of gunmetal, nickel-plated. Models in DN 10 – DN 20 with a female thread and DN 15 with a male thread and press connection.
Can be fitted with covers from the DESIGN LINE range for angle and straight versions NW 10 – NW 15.
Radiator
lockshield
Regulux
for shutting off, pre-setting, draining and filling. Body made of gunmetal, nickel-plated. Models in DN 10 – DN 20 with a female thread and DN 15 with a male thread and press connection.
Can be fitted with covers from the DESIGN LINE range for angle and straight versions NW 10 – NW 15 with female thread.
Ball valve
for heating systems
Globo H
Body and ball made of gunmetal. Models available as DN 10 – DN 50 with a female thread, DN 15 – DN 40 with a one-sided male thread and DN 15 – 32 with press connection.
Thermometer in red or blue as an accessory, can be upgraded by exchanging the locking cap.
Can be fitted with heat insulating shell.
Pump ball valve
for heating systems
Globo P
Globo P-S with gravity brake.
Body and ball made of gunmetal Models available as 1“ x 1“, 11/
4“ x 11/4“, 11/4“ x 1“,
with 28 mm x 1“ and 35 x 11/ 4“ press
connections.
Thermometer in red or blue as an accessory, can be upgraded by exchanging the locking cap. Can be fitted with heat insulating shell.
Drinking Water Ball Valve
Globo D
Body and ball made of gunmetal.
Models DN 15 - DN 32 with female thread and press connection.
Thermometer in green as an accessory, can be upgraded by exchanging the locking cap. Can be fitted with heat insulating shell.
Differential pressure
overflow valve
Hydrolux
Proportionally-operating differential pressure overflow valve for installation in pumped heating systems.
With clearly visible display of setting values. Models with female thread or fitting ranging from NW 20 – NW 32.
Filling and
draining ball valve
Globo KFE
with locking cap or with threaded hose coupling and locking cap.
Body made of brass and brass nickel-plated. Models ranging from NW 10 – NW 20.
About us
With its thermostatic valve, HEIMEIER has attained a leading position worldwide. The K head is the best-selling thermostatic head in the world. In Germany, the largest thermostatic valve market of all, almost every second thermostatic valve installed in recent years came from HEIMEIER. A great success story which began when Theodor Heimeier founded the company in the Westphalian town of Lippstadt in 1928.
In the 1950s the company started specia-lizing in valves for heating systems. The tandem valve “Mikrotherm“ developed during this phase was the first great classic from HEIMEIER.
The final breakthrough came with the thermostatic valve with an incompressible sensor, corrosion-resistant gunmetal body and the “HEIMEIER adaptor“ M 30 x 1.5 presented in 1969. These three typical features have been retained till this day – a decisive reason for the triumphal march of the HEIMEIER thermostatic valve, which has also always been ranked first in product tests for the past 20 years. At the German testing institution, Stiftung Warentest, it was given the mark “Very good“ four times in a row.
Apart from the thermostatic valves for almost all conceivable requirements – the current range includes more than
120 different thermostatic valve bodies on which the over 40 different thermostatic heads can be mounted – HEIMEIER offers an extensive assortment of actuators, room thermostats, special valves, manual valves and shut-off valves. HEIMEIER has belonged to the British group IMI plc since the middle of the 1990s. In this con-stellation HEIMEIER has become a major global player on international markets as well. Today, more than 30 per cent of the product range for heating and air-conditioning systems for our export business are manufactured at the production site in the Westphalian town of Erwitte.
V
alve range
Printed on paper bleached without the use of chlorine.
9000-18.483
/02.07
Subject to technical alterations.
