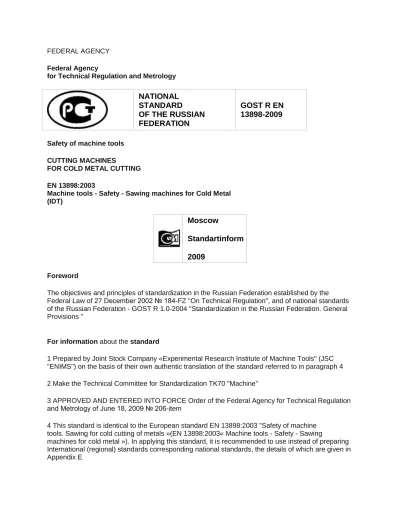

FEDERAL AGENCY
Federal Agency
for Technical Regulation and Metrology
NATIONAL
STANDARD
OF THE RUSSIAN
FEDERATION
GOST R EN
13898-2009
Safety of machine tools CUTTING MACHINES
FOR COLD METAL CUTTING EN 13898:2003
Machine tools - Safety - Sawing machines for Cold Metal (IDT)
Moscow
Standartinform
2009
Foreword
The objectives and principles of standardization in the Russian Federation established by the Federal Law of 27 December 2002 № 184-FZ "On Technical Regulation", and of national standards of the Russian Federation - GOST R 1.0-2004 "Standardization in the Russian Federation. General Provisions "
For information about the standard
1 Prepared by Joint Stock Company «Experimental Research Institute of Machine Tools" (JSC "ENIMS") on the basis of their own authentic translation of the standard referred to in paragraph 4 2 Make the Technical Committee for Standardization TK70 "Machine"
3 APPROVED AND ENTERED INTO FORCE Order of the Federal Agency for Technical Regulation and Metrology of June 18, 2009 № 206-item
4 This standard is identical to the European standard EN 13898:2003 "Safety of machine tools. Sawing for cold cutting of metals »(EN 13898:2003« Machine tools - Safety - Sawing
machines for cold metal »). In applying this standard, it is recommended to use instead of preparing International (regional) standards corresponding national standards, the details of which are given in Appendix E
5 ENTERED THE FIRST TIME
Information about changes to this standard is published in the annual information published by the sign "National Standards", and the text changes and amendments - in monthly indexes published information "national standards." In the case of revision (replacement) or cancellation of this standard a notice will be published in the monthly index published by the Information "national standards." Relevant information, notification and lyrics are also posted in the public information system - the official website of the Federal Agency for Technical Regulation and Metrology of the Internet
TABLE OF CONTENTS
1 Scope. 2
2 References. 2
3 Terms and definitions. 4
4 A list of major hazards. 4
5 Requirements and / or security measures. 7
6 Verification of requirements and / or security measures. 21
7 Information for the user. 21
Annex A (normative) Measurement of noise emission. 22
Annex B (normative) Recommended test conditions for measuring the level of noise on
the cutting machines and requirements to cut material. 23
Annex C (informative) Examples of types of saws. 25
Annex D (informative) Examples of barriers to cutting machines. 31
Annex E (normative) Information about the compliance of the national standards of the
Russian Federation, the international reference (regional) standards .. 35
Introduction
This standard is a list of major hazards and their sources when working on cutting machines for cold metal cutting, establishes methods of verification, as well as measures to prevent hazards to ensure the production of safe products in accordance with international standards, in addition to GOST 12.2.009 «Machines metal. General requirements for safety. "
This standard is the standard type C in accordance with EN 292:1991 and EN 1070:1998. Additional information is given in the standard types A and B are linked in text.
Figures are given for illustrative purposes only and are not the only interpretation of the text. It is intended for designers, producers, consumers, machine tools and other interested individuals and organizations.
GOST R EH 13898-2009
NATIONAL STANDARD OF THE RUSSIAN FEDERATION
Safety of machine tools
CUTTING MACHINES FOR COLD METAL CUTTING
Safety of machine tools. Sawing machines for metal cold cutting
Date of implementation -2010 - 07-011 Scope
This standard specifies requirements for the safety and determine the measures to be taken by persons engaged in the design, manufacture and supply (including assembly / disassembly, transportation and maintenance) cutting machines for cold cutting of metals (ferrous and
non-ferrous) or materials, in part consisting of metal using cutting tools (detachable cutters, circular saws segment, hacksaw blades, band saw continuous). Cutting disc cutters and saws segment will continue to be called disc cutting tool.
This standard provides for the use of the machine for its intended purpose, including the possible misuse of their use, maintenance, adjustment, cleaning, etc. It includes access to the machine from all sides, while it describes a means to reduce the risk to operators and other workers.
This standard also applies to additional devices, unless they are an integral part of the
machine. Where such devices are an integral part of the machine, the designers and manufacturers must ensure the safe connection of these devices to the machine.
2 References
The standard used by dated or undated reference to international (regional) standards. For dated references, the latest edition of the international (regional) standards or amendments thereto may apply to this standard only after the introduction of changes to the current standard, or by preparing a new edition of this standard. For undated references, the latest edition of the referenced
document, including the changes.
EN 292-1:1991 Safety of machinery. Basic concepts, general principles for design.Part 1. Basic terminology, methodology
EN 292-2:1991 Safety of machinery. Basic concepts, general principles for design.Part 2. Technical principles
EN 292-2:1991 + A1: 1995 Safety of machinery. Basic concepts, general principles for design. Part 2. Technical principles
EN 294:1992, Safety of machinery. Safety distances to prevent the upper limbs from getting into the danger zone
EN 349:1993, Safety of machinery. Minimum gaps to avoid crushing of parts of the human body EH 414:2000 Safety of machinery. Rules for the development and execution of safety standards EN 418:1992, Safety of machinery. Emergency stop. Functional aspects. Principles
EN 614-1:1995 Safety of machinery. Ergonomic design principles. Part 1. The terms and general provisions
EN 614-2, Safety of machinery. Ergonomic design principles. Part 2. The relationship between the design of the machine and its operation
EN 626-1, Safety of machinery. Reduction of risks to health from exposure emitted during operation of the machines emissions. Part 1. The main provisions for machinery manufacturers
EN 811 Safety of machinery. Safety distances to prevent lower limb from falling into the danger zone EN 842 Safety of machinery. The main characteristics of optical and acoustic signals of
danger. Technical requirements and methods of control
EN 894-1:1997 Safety of machinery. Ergonomics requirements for the design of displays and
controls. Part 1. General principles of interaction of the user with the means of displaying information and controls
EN 894-2:1997 Safety of machinery. Ergonomic requirements and design data displays and actuators. Part 2. Displays
EN 894-3:2000 Safety of machinery. Ergonomics requirements for the design of displays and controls. Part 3. The actuators control system
EN 953:1997, Safety of machinery. Fencing. General requirements for the construction of fences EN 954-1:1996 Safety of machinery. The elements of the management system, related to security. Part 1. General principles for design
EN 981 Safety of machinery. The main characteristics of optical and acoustic signals of danger EN 982:1996, Safety of machinery. Safety requirements for fluid power systems and their components. Hydraulics
EN 983:1996, Safety of machinery. Safety requirements for fluid power systems and their components. Pneumatics
EN 999 Safety of machinery. Location of protective devices with the approach speeds of parts of the human body
EN 1005-1, Safety of machinery. Physical capabilities. Part 1. Terms and definitions
EN 1005-2, Safety of machinery. Physical capabilities. Part 2. The component of manual labor when working with machines and mechanisms
EN 1005-3, Safety of machinery. Physical capabilities. Part 3. Recommended limits of efforts to work on the machines
EN 1033 Vibration shoulder. Laboratory measurement of vibration machines with manual gripping surface. General Provisions
EN 1037:1995, Safety of machinery. Prevention of unexpected start-up
EN 1050:1996, Safety of machinery. The principles of risk assessment and determination EN 1070:1998, Safety of machinery. Terminology
EN 1088:1995, Safety of machinery. Interlocking devices associated with safety devices. Principles for design and selection
EN 1299 mechanical vibrations and shocks. Vibration isolation of machines. Notes on sources of vibration isolation
EN 1760-1:1997 Safety of machinery. Safety devices that respond to pressure. Part 1. General principles for design and testing of carpets and floors, pressure sensitive
EN 1837:1999, Safety of machinery. Recessed lighting cars
EN 60204-1:1997, Safety of machinery. Electrical equipment of machines. Part 1.General requirements (IEC 204-1:1991, modified)
EN 61000-6-2 Electromagnetic compatibility (EMC). Part 6-2. Common standards.Industrial Environmental Protection (MEK61000-6-2: 1999, modified)
EN 61000-6-4 Electromagnetic compatibility (EMC). Part 6-4. Common standards.Emission targets (MEK61000-6-4: 1997, modified)
EH 61496-1:1997, Safety of machinery. Electro-sensitive protective equipment. Part 1. General requirements and tests (IEC 61496-1:1997)
EN ISO 3744:1995 Acoustics. Determination of sound power levels of noise sources using sound pressure. Engineering method in an essentially free field over a reflecting plane (ISO 3744:1994) EN ISO 3746:1995 Acoustics. Determination of sound power levels of noise sources using sound pressure. Survey method using the measurement surface over a reflecting plane (ISO 3746:1995) EN ISO 4871:1996 Acoustics. Declaration and verification of noise emission values (ISO 4871:1996) EN ISO 7250 Basic human body measurements for technological calculations (ISO 7250:1996) EN ISO 9614-1:1995 Acoustics. Determination of sound power levels of noise sources on the basis of the intensity of the sound. Part 1. Measurement at discrete points (ISO 9614-1:1993)
EN ISO 11202:1995 Acoustics. The noise level of machines and equipment. Method of measurement of sound pressure levels in the workplace and at other locations.The method of measuring the workplace (ISO 11202:1995)
EN ISO 11204:1995 Acoustics. The noise level of machines and equipment. The method of correcting for the environment (ISO 11204:1995)
EN ISO 11546-1 Acoustics. Characterization of acoustic isolation fencing. Part 1.Measurements under laboratory conditions (for the customs declaration) (ISO 11546-1:1995)
EN ISO 11546-2 Acoustics. Characterization of acoustic isolation fencing. Part 2.Measurements in the workplace (for acceptance and verification) (ISO 11546-2:1995)
EN IS011688-1: 1998 Acoustics. Practical recommendations for the design of machinery and equipment with a reduced noise level. Part 1. Planning (ISO / TR 11688-1:1995)
EN IS011688-2: 1998 Acoustics. Practical recommendations for the design of machinery and equipment with a reduced noise level. Part 2. Basic principles of design of low-noise design (ISO / TR 11688-2:1998)
EN ISO 11691:1995 Acoustics. Reduction of noise when the channel silencing in the absence of flow. The method of laboratory testing (ISO 11691:1995)
EN ISO 11820 Acoustics. Measurements on silencers in the workplace (ISO 11820:1996)
EN ISO 11821 Acoustics. Measurement in the workplace portable screen sound attenuation (ISO 11821:1997)
EN ISO 14122-2 Safety of machinery. Fixed means of access to the machines. Part 2.Working platforms and walkways (ISO 14122-2:2001)
EN ISO 14122-3 Safety of machinery. Fixed means of access to the machines. Part 3.Stairs, steps and rails (ISO 14122-3:2001)
ISO 683-1 Heat-treatable steels, alloy steels and cutting steel. Part 1. Hardenable unalloyed and low alloyed steel for pressure treatment
MEK61496-2: 1997 Safety of machinery. Electro-protection. Part 2. Special requirements for equipment using active electro-optical device protection (AOPDs)
3 Terms and definitions
In this standard, the terms of EN 292-1 and EN 1070, and the following terms and definitions: 3.1 Cutting tool (continuous band saw, jig saw, disc cutting tool) (Saw Blade): The cutting tool used in the band saw, circular saw and a hacksaw.
3.2 The place of installation of cutting tools (saw blade mounting position): Zone machine, designed for installation, adjustment and removal of the operator cutting tools, access to this area during cutting must be closed, to be opened only after turning off the movement of the cutting tool and the above operations repair the machine.
3.3 The loading / unloading (load / unload positions): Machine Zone, where provided the conditions for safe manual loading or unloading of the material being cut by the operator during normal
operation of the machine.
3.4 The process of cutting with manual control (manual sawing process): The work of the
machine in manual mode when all the manufacturing operations of machining involved are controlled on and off manually by the operator.
3.5 semi-automatic or single-cycle machine (semi-automatic or single-cycle machine): The machine that performs a fully automatic production cycle, activated by the operator.
Note - An example of a typical cycle of the machine, semi-automatic: - Installation of the material being cut by hand;
- Fast approach of cutting tool to cut material automatically; - Automatic cutting process;
- Stop and automatic removal of the cutting tool to the starting position; - The removal of the cut workpiece by hand.
3.6 Machine-machine (automatic machine): The machine in which all manufacturing operations, including the loading and unloading of the material being cut and cut blanks are performed
automatically, and the first cycle is initiated by the operator in the process of adjustment, will not be achieved until all the conditions required for the automatic operation of the machine .
Note - An example of a typical cycle of the lathe: - Supply of material to be cut automatically; - Fixation of the cut material automatically;
- Fast approach of cutting tool to cut material automatically; - Automatic cutting process;
- Stop and automatic removal of the cutting tool to the starting position; - Unloading the workpiece is automatically cut off;
- Repeating the cycle until a stop signal.
3.7 feeder material to be cut in the treatment zone with the clamping device (intermittent
feeding) (feed back jaw (Hitch feed)): the cut material feeder in the cutting zone, equipped with a
clamping device which clamps the material to be cut at any point along its length, and moves the position of the cutting, the required cutting length is determined by the progress of the supply carriage.
3.8 feeder cut material in the treatment zone, equipped with a pusher (push feed): Feeder cut material with automatic drive, pushing forward the material being cut to the desired position, or to the end, which determines the required cutting length.
3.9 feeder cut material into the processing zone, equipped with driven rollers (rollerfeed): feeder material to be cut with an automatic drive, wherein the material to be cut is fed into the treatment zone driven rollers, a clamp device has a cutting material to the feed rollers and the desired length of the measuring system sawed blanks.
3.10 Types of cutting processes
3.10.1 profile and contour cutting (profile and contour cutting): the material being cut, either manually or mechanically fed to the cutting and similar tools, and the direction of its movement is not parallel to the plane of the cutting tool, for profile and contour cutting of a vertical band saw with the appropriate type fixed the saw frame.
3.10.2 cutting at an angle (45 °) (Mitre-sawing): Cutting tool moves at an angle of 45 ° to the axis of the material being cut.
3.11 The work area (work area): Danger zone in which the cutting tool is moved with respect to the cut material, and is the feed mechanism and fixing of the cut material (depending on whether, where applicable).
3.12 Supply Systems coolant (coolant)
3.12.1 coolant recirculation system (recirculating system): Coolant system with its collection and recycling using a pump.
3.12.2 dispensing system of minimum coolant (minimum quantity system): A special system in which a small amount of liquid is supplied directly to the cutting area, in this case the circulation of coolant is required.
3.13 metalworking fluids (coolant) (Metalworking fluid): The fluid for cooling and lubrication of the elements involved in the process of cutting (tool cutting material, chips, etc.). As the coolant used oil emulsions, oil, oil mist, etc.
4 A list of major hazards
4.1 Table 1 lists the main hazards arising from the analysis of the hazards and risks, carried out for a wide range of cutting machines for cold metal cutting by the procedure established by EN
1050. Requirements for safety and security measures, as well as consumer information contained in Sections 5 and 7, provide either completely eliminate the risks or reduce the risks to a minimum. 4.2 The risks for operators and for other persons having access to hazardous areas should be determined on the basis of the dangers that can occur in different circumstances during the life of the machine (for example, commissioning, start-up, industrial maintenance, repair, O of
service). Assessment includes an analysis of the situation at damage control, the unexpected start-up, etc.
4.3 In addition, the user of this standard (eg, a designer, manufacturer, supplier) is aware of that risk assessment is fully machine to the subject as a whole, particular attention should be paid to:
- The use of the machine for its intended purpose, including operation, adjustment and cleaning, as well as fairly predictable use it for other purposes;
- Identification of significant hazards associated with the machine. Table 1 - List of major hazards and the sources of these hazards
Room
partition
points
EN1050
The list of
major
hazards
Source of major
hazards
Zone of dangerous
situations
1
Mechanical
hazards
(Requirements
and security
measures, see
5.3, 5.4, 5.5)
1.1
Crushing hazard
Mechanical clamping of
the cut material during
the loading /
reorientation / unload
the material being cut
Between the clamp and cut
material
Mechanical feed during
start-up, the process of
cutting, setting up the
machine, cutting tools,
repairs and
maintenance
Between the device and the
material being cut, between
fixed and moving parts of the
machine
1.2
Risk of injury
Manual and mechanical
supply of material to be
Between the cutting tool and
the device, between the
cut when loading,
unloading, setting up
the machine, cutting
tools
material being cut and the
device
1.3
Risk of cutting or
tearing
Moving the cutting tool
at work, setting up the
machine, cutting tools,
repairs and
maintenance
Cutter
1.4
The danger of
entanglement
Manual and mechanical
supply of cutting tools
at work
On the cutting tool and the
adjacent parts of the movable
machine.
Between the cleaning device
for the cutting tool and the tool
Mechanical movement
of the machine (for
example, elements of
the drive)
On the moving parts of the
machine
1.5
Risk of delaying
or falling into the
trap
Manual and mechanical
feed material to be cut
or move the cutter at
work
On the material being cut and
adjacent mechanisms
machine
Mechanical movement
of the machine (for
example, elements of
the drive)
When loading / unloading and
operating positions near the
cutting area
1.6
Risk of stroke
Mechanized
transportation of the cut
material during
operation, the
instrument
Mechanical components of
the machine during the
movement (for example, saw
frame hack saw machine
during operation)
Fall under gravity
The material being cut or
transport mechanisms of cut
material
1.7
The risk of being
pricked or
pierced
Manipulation of the
cutting tool
On the sharp edges of the tool
(especially when replacing)
2
Electrical
hazards
(Requirements
and security
measures, see
5.6)
2.1
Human contact
with live parts
(direct contact)
Human contact with live
parts during operation,
adjustment of the
machine tool change
during the repairs
Control and other electrical
equipment
2.2
Human contact
with the items
become live due
to faults (indirect
contact)
Human contact with the
items be energized at
work, setting up the
machine, tool change
during the repairs
Electrically conductive parts of
the machine
3
Thermal
hazards
(Requirements
and security
measures, see
5.7)
3.1
Contact with hot
surfaces
Release of hot chips or
cut pieces during
cutting
Machine or a place near the
machine, cutting tool, the
workpiece surface with a
temperature above 42 ° C
4
The hazards
caused by
noise
(Requirements
and security
measures, see
5.8)
4.1
Hearing loss
(deafness), other
physiological
disorders (eg,
impaired
balance, the
weakening of
attention)
Mechanical movement
of the machine, the
vibration of the tool and
the material being cut
during startup, idling or
cutting
Machine or a place near the
machine
The deterioration
of speech
perception,
sound signals
and etc..
Cleaning machines,
workstations
compressed air
Same
5
The hazards
caused by
vibration
(Requirements
and security
measures, see
5.9)
5.1
Human contact
with the vibrating
of the machine or
of the cut
material
The material being cut
or control stick, which
keeps the operator at
the start or during the
cutting
The material being
cut. Manual control of the
machine
7
Hazards caused
by materials or
substances
(Requirements
and safety
measures see
5.10)
7.1
Hazards from
contact with
hazardous
liquids, particles
of the material
being cut
Release of coolant
droplets, particles of
the material being cut
Machine or a place near the
machine
Inhalation of
harmful liquids,
mists, gases,
fumes, dust,
Emission dust, vapor,
mist or fumes during
operation
Same
7.2
The danger of
fire or explosion
Applications processed
flammable materials
(e.g., magnesium),
industrial oils, coolant
having a low ignition
temperature
"
7.3
Biological or
microbiological
hazards (viruses
or bacteria)
Dealing with industrial
oils, coolants or cut
material containing
viruses or bacteria
"
8
Hazards caused
by the neglect
of ergonomic
principles in the
design of
(Requirements
and safety
measures see
5.11)
8.1
A poor posture or
excessive force
operator
(repetitive strain)
Manual feeding of the
cut material to the
cutting and similar tools
during cutting
The machine
Excessive force
and / or repetitive
stress
Lifting weights during
the transport of the cut
material, cutting tools
and / or parts of the
machine
At the loading / unloading of
the material being cut, setting
the cutting tool and the point
where maintenance
8.2
Inconsistency
anatomical
features of
human hands or
feet
Errors in the
instructions for use of
the machine,
uncomfortable seating
knobs
In the workplace during
commissioning and operation
8.3
Neglecting the
use of personal
protective
equipment
Execution of works on
transportation of the cut
material, cutting tools,
machine components
when loading,
unloading, cutting,
setting up the machine,
requiring the
maintenance of
personal protective
equipment
The machine and the machine
around
8.4
Inadequate local
coverage
The deterioration of the
manual operations
during movement /
positioning of the
material being cut and
the cutting tool
On the positions of loading /
unloading and installation of
cutting tool
8.6
Errors in human
behavior
Improper transportation
and fixing of the cut
material or cutting tool,
incorrect relative
movement of the cut
material and tools and
other process upsets
8.7
Faulty design,
improper
placement or
identification of
controls
Improper operation of
controls
Same
8.8
Improperly
designed or
incorrect
placement of
displays
Misunderstanding, the
displayed information
"
10
Sudden starts,
turns, scrolling
or any such
abnormal
conditions
(Requirements
and safety
measures see
5.12)
10.1
Malfunction or
damage to the
control system
Mechanical hazards
associated with the
movement of the
machine during
start-up, cleaning
The machine
10.2
Resumption of
power supply
after interruption
Sudden movement of
the machine during
start-up, cleaning or
maintenance
Machine or a place near the
machine
10.3
External
influence on the
electrical
Unpredictable behavior
of controls, caused by
electromagnetic
interference during
commissioning or
operating cycle
Same
11
Inability to stop
the machine in
the desired
position
(Requirements
and safety
measures see
Improper operation of
control during start-up
or cycle machine
Machine or a place near the
machine
5.3.3.4)
Inability to stop
the machine in
the desired
position
15
Installation
error
(Requirements
and safety
measures see
5.13)
Installation error
Elements of machine
tools during the
operation of a sudden
fall or swing
Machine and / or a place near
the machine
17
Falling or
ejected objects
or liquids
(Requirements
and safety
measures see
5.14)
Falling or ejected
objects or liquids
Release or drop the
parts of broken tools,
the material being cut
and chip during
start-up, cutting and setting
up the machine, tool
change, maintenance,
due to a malfunction of
clamping devices and
guards
Area of cut and / or a place
near it, the material being cut
Coolant system
damage and / or
hydraulic
Machine or a place near the
machine
18
Loss of stability
and rollover
machine
(Requirements
and security
measures, see
5.15)
Loss of stability
and rollover
machine
Loose machine or a
part of the machine
(held in position only by
the force of gravity)
Machine
19
Sliding,
overturning and
falling people
(Requirements
and safety
measures see
5.16)
Sliding,
overturning and
falling people
Release or spill oil,
coolant.Getting chips in
the spill.
Inadequate fencing or
other means of keeping
people especially in
places where there is
danger of falling from
one level to another
Gender and place near the
machine and the machine, as
well as the material being cut
5 Requirements and / or safety measures
5.1 General
Cutting machines must comply with the safety and / or security measures referred to in this section. Concerning possible, but minor risks that are not addressed in this standard, the design of machines to guide EN 292-2 (Sections 3 and 4).
5.2 Specific Requirements for cutting machines
Since this standard covers the different types of cutting tools, safety measures concerning the hazards of mechanical action (see 5.3 - 5.5), common to all saws are shown in Table 2, and the specific requirements for certain groups of cutting machines - in Tables 3, 4 and 5.
The requirements to reduce the risks for all non-mechanical hazards (see 5.6 - 5.16) should be applied to all machines.
Table 2 - General requirements for all machines
Subcategory
Description
The
item
number
The figure number
Cutting
machines
Machines for cold metal cutting
using the following cutting tools:
a) continuously bandsaw
5.3.1
C.1 - C.6
b) disc cutting tool
5.3.2
P.7 - P.17
c) reciprocating saw.
5.3.3
C.18
Machines can be manual,
semi-automatic and semi-automatic
control. Appendix C provides
examples of types of saws. The
drawings show only the layout of
machines / machine
configuration
Optional
equipment:
5.5
- Feeder and
mounting
material to be
cut
5.5.2
- Supply device
and mounting of
the cut material
driven
Table 3 - Band saws
Subcategory
Brief description of the
machine
Phone
point
Number
Horizontal
Band Saw:
A band saw blade is moved in
the horizontal plane
5.4.1.1
- With a
swinging the
saw frame
Feeding is carried out by
swinging the saw frame in an
arc around a fixed axis
5.4.1.1
C.1
- With a
swinging rotary
saw frame
Specific sawing machine -
saw frame is located at the
shoulder of the operator
5.4.1.1
C.2
Feeding is carried out by
swinging the saw frame in an
arc around a fixed axis
- Column-type
The infeed is performed by
vertically moving saw frame
for one or more uprights down
5.4.1.1
C.3
Vertical band
saw:
A band saw blade moves in a
vertical plane
5.4.1.1
- With a fixed
saw frame for
contouring
(vertical loop
machine)
The saw frame is fixed, the
material being cut is applied to
the saw blade by hand or with
the help of
table-driven. Cutting can be straight
or contoured. The cutting
angle is achieved by turning
the table
5.4.1.1
C.4
- With front
cutting
Feeding is carried out by a
horizontally moving the saw
frame. Material to be cut is
clamped on the table saw is
supplied to the front of the
machine to the
operator. Some machines are
tilting the saw frame cutting
angle
5.4.1.1
C.5
- Longitudinal
type
Material to be cut is pressed
(if necessary) on the table with
a groove. Band saw blade
passes through the slot in the
table. Feeding is carried out
by moving the table or saw
frame along the front of the
5.4.1.1,
5.4.1.2
Moving Wallpaper -
S.6a Move the saw
frame - S.6b
machine. This type is used for
cutting sheet
Bandsaw as a cutting tool using a band saw, which is a continuous flexible blade with cutting edges in the form of teeth along one edge.
Table 4 - Circular cutting machines
Subcategory
Brief description of the machine
Phone
point
Number
Machine with
oscillating tool
head
Feeding is carried out by swinging the
tool head around a fixed axis.
5.4.2.1 and
manual /
mechanical
control-5.4.2.2
Manual -
S.7a
Mechanical
- S.7b
Disc cutting tool approaches the cut
material in an arc. Producing machines
tool head, perpendicular to the axis of
the cut material or pivotable or tilting
relative to the axis.
Submission of the tool head can be
manual or motorized.
To ensure the cutting angle can be
provided as a turntable.
Machines of this type produced by
automatic or semi-automatic.
The machine is an automatic tool head
with a swinging usually involves
motorized disc cutting tools, mechanical
supply and fixing of the cut
material. Close-semiautomatic machine
supplied for use with rotary cutter tool
diameter not less than 760 mm, typically
includes a mechanized feeding disk
cutting tool and mechanical fixing of the
cut material
Automatic /
semi-automatic
control -
5.4.2.3
Machine tool
with a vertical
column-type
feeding down
Release two versions of this type of
machines: Single Column and a large
heavy-duty cutting - a two.
Feeding is carried out by the movement
5.4.2.1 and
5.4.2.4
A two -
C.8and
Single
Column -
of the tool head vertically from top to
bottom racks to cut material. To ensure
the cutting angle on some machines,
usually single-post, bar with tool head to
be rotatable about the axis of the
material being cut at a certain angle.
Machines of this type release with
manual, automatic and semi-automatic
p.8 b
The machine of
vertical type
with upward
feed
The infeed is performed by moving the
tool head vertically to cut material from
the bottom up so that the cutting tool disc
passes through a slot in the table. For
cutting angle of the tool head with the
guide bar and the slot in the table must
be able to rotate around one or more
axes.
Some machines have the ability to lock
the tool head in its upper position to
provide the cutting along the fibers (see
3.10.1).
Machines of this type produced by
automatic or semi-automatic
5.4.2.1,
5.4.2.5 and
Manual
submission
tool head -
5.4.2.5.1
Mechanical
feed the tool
head -
5.4.2.5.2
C.9
Machine for
cutting sheet
material with
tool head
located under
the table
Tool head with a disk cutter tool mounted
on a carriage that moves horizontally
below the plane of the table so that the
disc cutting tool passes through a slot in
the table.
Machines of this type are available in
manual, automatic and semi-automatic
5.4.2.1,
5.4.2.6
C.10
Machine for
cutting sheet
material with
tool head
located above
the table
Tool head with a disk cutter tool mounted
on a carriage which moves on rails over
the table perpendicular to the axis of the
table. Also produces machines with tilting
table.
Machines of this type can be manual,
automatic and semi-automatic
5.4.2.1,
5.4.2.7
C.11
Machine for
cutting sheet
material with
tool head
Instrumental head rotary cutter tool is
mounted on a carriage that moves an
arm, having the ability to rotate in a
horizontal plane. Angular swiveling
5.4.2.1,
. 4.2.8
located on the
arm, which has
the ability to
rotate in a
horizontal
plane
bracket can be rotated on the axis of the
column for cutting angle, the tool head
can be fixed or be able to rotate.
Machines of this type can be manual and
semi-automatic
Machine
Pendulum
Instrumental head rotary cutter is
mounted on the axis of the tool and can
swing like a pendulum over the
table. Disc cutting tool approaches the
cut material in an arc.
Machines of this type can be manual,
automatic and semi-automatic
5.4.2.1,
5.4.2.8
P.13
Cutting
machine with
frontal
Feeding is carried out by moving the
caliper mounted on the tool head with a
disc cutter tool.
For cutting tool headstock angle may
have to rotate at a certain angle.
Machines of this type can be manual,
automatic and semi-automatic
5.4.2.1,
5.4.2.8
P.14
Machine with
multiple disk
Cutting Tools /
tool head:
There are several types of cutting
machines with multiple disk Cutting Tools
/ tool head.
- Machine with
two disk
Cutting Tools /
one tool head
Two circular cutting tool mounted on the
tool head at an angle of 90 ° with respect
to each other and at an angle of 45 ° - to
the axis of the workpiece.Feeding is
carried out by the movement of the tool
head vertically from top to bottom. This
type of machine is usually used for
cutting angle.
Machines of this type can be manual,
automatic and semi-automatic
5.4.2.1,
5.4.2.9
C.15
- Machine with
two tool head
This type of machine is designed for
two-sided (symmetric) of cut and can have
more than two instrumental attendants.
5.4.2.1
P.16
Feeding is carried out by swinging the
tool head rotary cutter tool around a fixed
axis. Cutting angle produce machines
Frontal cut -
semi-automatic
with the ability to rotate the tool head.
(see
5.4.2.10)
Also produces machine tools, usually to
cut at an angle of 45 °, with the filing of
instrumental attendants vertically from
top to bottom like a machine, shown in
Figure C.15.
Vertical
supply (see
5.4.2.10)
Machines of this type can be automatic
and semi-automatic machines.
- Machines with
several tool
head
This type of machine is designed for
high-volume cutting-to-length (see Figure
C.17).
Feeding is carried out by moving all the
tools attendants simultaneously or
selectively, in accordance with the
established program.
Machines of this type can be automatic
and semi-automatic
5.4.2.1,
5.4.2.10
C.17
Circular cutting machine as a cutting tool uses a disc cutting tools with cutting edges of the teeth in the form of a circle.
Table 5 - hacksaws
Subcategory
Brief description of the machine
Phone
point
Number
With a
horizontal axis
of rotation
The saw frame with a hacksaw blade
moves back and forth
motion. Feeding is carried out by
swinging the saw frame in an arc
around a fixed axis
5.4.3
C.18
Hacksaw as a cutting tool uses a reciprocating saw, having a linear shape with a cutter in the shape of the teeth along one edge
5.3 Protection of the total mechanical hazards 5.3.1 Guards
Access to moving a cutting tool should be prevented by a combination of public and private guards, except when using the measures defined in 5.4.
Other mechanical hazards must be prevented application of the measures defined in 5.5.
Fences should be selected in accordance with EN 953, Section 6, and are designed in accordance with EN 953, Section 7. All openings in the fence must comply with the requirements of EN 294, Table 4.
Locking devices on fences must have at least one electromechanical position sensor for positive opening in accordance with EN 1088, paragraph 5.1, corresponding to category 1 of EN 954-1. Operation of the locking device should trigger stop category 0 or 1 according to EN 60204-1, clause 9.2.2
Those in which there is a run-time access to the moving Cutting Tools after opening lockable fence, fencing should be applied, providing sufficient time to stop moving the tool before the operator can touch it after opening the enclosure (EN 1088, para 7.4).
The corresponding value of time - according to EN 999. Verification Method
By checking the relevant drawings and / or circuit diagrams, inspection, functional testing of the machine.
Note - If the loading / unloading of the cut material provides for the use of power-driven (eg, cranes, forklifts, etc.), the designer should provide additional protection to guard against the dangers of the elements of mechanical damage from contact with the equipment (see EN 953, paragraphs 5.2.5 and 5.3.2).
5.3.2 Modes of operation
5.3.2.1 Mode Selection
Automatic and semi-automatic cutting machines must have the modes of "exploitation" and
"adjustment." Choose these modes should be key switch, access code, or other means of ensuring safety.
5.3.2.2 Mode of production
To start the automatic cutting cycle, fences should be closed and / or the inclusion of appropriate safety devices.
5.3.2.3 Mode adjustment
This regime should be capable of setting up the machine when working with a reduced risk. This mode is supported by the closure removable fences are allowed only essential for the operation of the machine movement, initiated and supported by the device management with retention. Examples of movements allowed in this context are: the mechanical movement of the cutting tool, the
mechanical movement or fixation of the cut material, the mechanical removal of swarf conveyor. If the mode of adjustment, the additional requirements specified in 5.5, shall remain in force.
If the control device has a retention of more than one control unit, the adjustment mode should be able to control only one of them.
5.3.3 The management system requirements
5.3.3.1 The elements of the management system, safety-related Viewed in this standard, the term "control elements related to security" means a chain of elements in the system of governance, security-related, reagiruschih to input signals (for example, machine control, or position -sensitive sensor) and producing output signals (for example, an electromagnetic actuator, solenoid valve). Safety-related machine control elements must comply with the following categories of safety in accordance with EN 954-1, according to function (see Table 6).
Table 6 - Categories of safety management system elements in accordance with the functions performed
Function of the control system
The minimum required category to EN 954-1
Start and Restart
1
Stop due to operational
requirements
1
Emergency Stop
1 or 3 *
Selecting
1
Lock guard
1 or 3 *
Reduced rate
3
The control unit with retention
1
* Category 1 may be used for machines with manual control with a contactor or
control of a drive motor.
Can be any combination of categories of individual elements of the control system in accordance with EN 954-1, which achieves at least an equivalent level of safety.
Verification Method
Checking electrical circuits. 5.3.3.2 Start / Restart
Button start / restart must be located outside of the work area and become active only when all guards with locked shut. If at least one guard is opened, all starts and all dangerous movements should be excluded in accordance with EN 1037, Section 6.Closure of the fence with locking should not lead to the automatic start-up of the machine.
Verification Method
Checking electrical circuits, visual inspection, functional testing of the machine. 5.3.3.3 Stopping due to operational requirements
Stop button is due to operational requirements, should be on each machine, providing an interruption in the lathe and ensuring safety when stopping the machine.Method validation test electrical circuits, visual inspection, functional testing of the machine.
5.3.3.4 Emergency Stop
The emergency stop function must be provided for all types of machine tools, with the exception of cutting machines cutting tool drive system controlled by a holding device, and manual feed spindle head.
The emergency stop function must comply with the requirements of EN 418 and EN 60204-1, clause 9.2.5.4. Emergency stop category (eg, category 1 or 0), the designer must determine the machine. Emergency stop shall activate the brake on machines equipped with a brake.
Emergency stop controls must be provided at all positions of machine control (such as the main control panel, positions of loading and unloading the material being cut).
Additional emergency stop devices shall be provided in areas that are not visible from the main operator console and in which a person may be at risk.
Verification Method
Checking electrical circuits, visual inspection, functional testing of the machine. 5.3.3.5 Device mode
Devices mode must ensure that a given time only one mode is active. Where in programmable electronic systems have an access code, steps shall be taken to prevent unauthorized access to the programmed information relating to the safety or programmable functions.
Reselection of automatic operation should not cause automatic start work. Verification Method
Checking electrical circuits, visual inspection, functional testing of the machine. 5.3.3.6 Emergency audible and / or visual alarm
To warn people about the dangers that are not visible from the operator's console, before starting the machine should include a means of emergency audible and / or visual alarm (in accordance with EN 842 and EN 981).
5.4 Safety requirements specific to a particular type of machine, in addition to the requirements specified in Section 5.3
5.4.1 Band sawing machines (see Figures C.1 - C.5, C.6 and C. and b )
Stationary, relocatable fencing and fencing with locks should be provided to prevent access along the entire length of blade, except the cutting zone.
Cleaning brushes or wheels must be protected stationary, moving fencing or fence with a lock. Access to the moving pulley bandsaw should be closed with interlocking movable guards conforming to the requirements of category 1 of EN 954-1, paragraph 6.2.2.Fencing should be at least one sensor, operated in positive mode (see EN 1088, section 5.1 and Appendix A).
Adjustable guide should be with the mobile guard, which moves along with fencing and support the saw blade during cutting, reducing the risk of damage to the canvas.
Verification Method
Checking drawings, circuit diagrams, inspection, functional testing of the machine.
5.4.1.2 Additional requirements for the vertical band saw machines to traverse the table (see Figure C.6 a ) or traverse the saw frame (see Figure C.6 b ).
In machines with manual feed of the material or saw frame with a feed rate of 2 m / min access to the working area must be closed stationary fencing and / or lockable enclosure.
In addition, to protect the operator when it is operating in a hazardous area (for example, cleaning or repair current) must be provided for additional fencing or protective devices (such as automatic shut-off device) associated with the management of supply.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine, measurement.
5.4.2 Circular cutting machines
5.4.2.1 General requirements
When designing machines must be provided fencing to prevent access to:
1) The teeth of the rotating disk cutting tool when the spindle head is in the home position; 2) Cutting Tools disk during cutting, other than the place of cutting;
3) any device to clean the disk cutting tool during cutting. Enclosures should be designed so that the ejected fragments (for example, parts of
disk cutting tool, cutting material) were sent to the collection area.
In machines with oscillating tool head of one component breaking counterbalancing system should not cause the tool head to fall under gravity.
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.4.2.2 Additional requirements for machines with oscillating tool head with manual and motorized cutting tool (see Figures C.7 and , p.7 b , D.3 A , D.3 b )
Access to Cutting Tools should be closed and fixed automatically lockable barriers (Figure
D.3 A , A and In - fixed guards, C - fencing, closes automatically). To ensure automatic closing fence sufficient gravity or spring action. This should be a dedicated lock, the locking rail, an opening that should be possible only with a special tool or key.
Where the movement or closing of a self-closing fence depends on the position of the cutting tool should be appropriate devices to prevent the fall of the tool head by gravity from the original or a raised position (eg, return or relief springs, emergency brakes).
If fencing disk cutting tool removed (for example, when changing tools, current repairs, etc.), the locking device must ensure that the rotation of the disk cutting tool will be excluded, while his guard is fully restored.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.4.2.3 Additional requirements for machines with oscillating tool head with an automatic (see Figure D.4) and semi-automatic feeds the cutting tool (see Figure D.5)
Access to the working area and a feeder must be ruled out by the fixed and movable guards self-locking. To avoid dangerous situations when the need for operator access to the danger zone (for example, delayed stop cutting tool storage) shall be provided for locking the lock fences (see EN 1088).
For small cutting machines (diameter disc cutting tools up to 760 mm) should be used fence cutting machine as a whole, for large cutting machines (diameter disk cutting tool over 760 mm) - fencing around the perimeter of the instrument.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine, measurement. 5.4.2.4 Additional requirements for column-type machines with a vertical feed cutting tool from the top down (see Figures C.8 and C.8 and b )
These machines must be self-closing and adjustable fence to fence cutting tool storage on both sides.
Where the material to be cut is applied to the saw automatically, access to the treatment area should be closed fixed and / or movable fences with locking. The holes in the fence to feed material to be cut at the points of loading shall be governed in accordance with EN 294, Table 1, 3 and 5. Movable fence with locking must have at least one position sensor with operation at break (EN 1088, clause 5.1 and Annex A).
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.4.2.5 Additional requirements for machines with vertical-type cutting tool feed from the bottom up (see Figure C.9)
5.4.2.5.1 machines with manual feed of the tool head
These machines must be moved and / or adjustable guards for the protection of disk cutting tool on the machine table.
Where during cutting possible human contact with the disc cutter tool, tool rotation should be possible only in the management of the control device to hold (for jogging).This device may be built into the control handle.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine. 5.4.2.5.2 machines with integrated feed the tool head
Access to the rotating disk Cutting Tools on the table should be avoided by using fixed and / or movable fence with lock and lock. The castle is not required if the wiring diagram provided by the machine:
- The brake, stopping rotation of the tool before it is opened for access, or
- Rotating the tool is retracted to a safe position under the machine table before him open access. Movable fence with locking must have at least one position sensor with the opening pick-up (EN 1088, section 5.1 and Appendix A). Verification Method Verification of drawings, diagrams, visual inspection, functional testing of the machine, the measurements.
5.4.2.6 Additional requirements for machine tools for cutting sheet material with the tool head located under the table (see Figure C.10)
Access to the rotating disk Cutting Tools and clips the cut material from the point of loading /
unloading must be closed combination of fixed fences (EN 953, clause 3.2.2 of EN 294 and EN 811) and automatic shut-off devices (for example, active optoelectronic protective devices ( AOPDs) - IEC 61496-2) or protection devices, pressure sensitive (EN 1760-1), or on the position in space of human body parts (EN 999).
Access to the back of the rotating tool to clamp devices and any mechanical feeding devices must be closed fixed guards (EN 953, paragraph 3.2.2), as well as with interlocking movable guards or automatic shut-off devices.
Verification Method
Access to the rotating tool or other dangerous items under the table to be closed fixed fence. Where the need to access the disk drive or Cutting Tools, such as the frequency of rotation of the spindle must be provided with interlocking movable guards (EN 292-1, paragraph 3.22.5 and EN 1088, para 7.4).
Fixed guards shall be provided on each side of the machine table so as to ensure the collection of chips, coolant and minimize the risks from the release of the material being cut.
With interlocking movable guards must have at least one position sensor with the opening pick-up (EN 1088, section 5.1 and Appendix A). The actuation of the locking and / or automatic shut-off devices should cause stop category 0 or 1 to EN 60204-1, clause 9.2.2.
Where necessary, equipment should be installed (elevators) for cleaning chips. Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.4.2.7 Additional requirements for machine tools for cutting sheet material with the tool head, above the table (see Figure C.11)
There must be self-closing and fixed, adjustable or movable fence with lockable, closing access to the rotating tool. Verification Method Verification of drawings, diagrams, visual inspection, functional testing of the machine.
5.4.2.8 Additional requirements for machine tools for cutting sheet material with the tool head, located on an arm, which has the ability to rotate in a horizontal plane (see Figure C.12), Pendulum (see Figure C.13), with a front cutting (cm . figure C.14).
There must be self-closing and fixed, adjustable or movable fence with lockable covering accidental access to the rotating tool. There should also be provided for an automatic return of disk cutting tool to its original position after use.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.4.2.9 Additional requirements for machines with two disc cut-off tool, a tool head, vertical feed (see Figures C.15 and D.7)
There must be fixed and adjustable "tunnel" fences, closing access to the rotating instruments. Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
Where the fence is at the back of the cut material to the longitudinal axis, shall be provided to lock the clamp and the cut material.
To center the workpiece during the cutting should be additional protections built into the tunnel of the cut material.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.4.2.10 Additional requirements for machines with two tool head (see Figures D.8 Aand D.8 b ) and multiple tool head (see Figure C.17)
Access to the treatment area should be closed fixed and / or movable fences with locking. The holes in the fence to download the cut material should be regulated in accordance with EN 294, Table 1, 3, 5
Movable guards should have at least one position sensor with operation at break (EN 1088, section 5.1 and Appendix A).
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
For small machines (with a diameter of the cutting tool is not more than 315 mm) shall be provided or regulated self-closing fence, closing access to the rotating tool.Additional adjustable fence or clamps workpieces to prevent access to the rotating tool at the loading / unloading.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
For large machines (with a diameter of disk cutting tool with more than 315 mm) access to the rotating tool should be avoided by using movable fences with locking.Movable guards should have at least one position sensor with operation at break (EN 1088, section 5.1 and Appendix A). Lockout should lead to leads a rotating tool in a safe position or to stop rotation of the tool (EN 294 and EN 999).
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
If you have a mechanical movement instrumental attendants, access to the potential danger of crushing between them should be closed. This can be achieved by:
a) automatic shut-off devices, if known border movement of material being cut (EN 999) b) fixed guards with automatic shut-off devices at the loading / unloading, if you know the
requirements for the movement of the material being cut and the minimum gap corresponds to EN 349.
An example is the automatic shut-off devices Electro-sensitive protective equipment (ESPE) in accordance with EN 61496-1, IEC 61496-2 or safety devices, pressure sensitive (PSPDs) in accordance with EN 1760-1.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine. All the cutting head on multi-spindle machines must be designed according to 5.4.2.1 Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.4.3 hacksaws (see Figure C.18).
Access to representing the risk of crushing or trapping the reciprocating drive mechanism and the saw machine frame should be excluded by fixed and / or movable fences with locking.
Verification Method
Checking drawings, diagrams, visual inspection.
5.5 Other hazards of mechanical action
5.5.1 mechanical power transmission elements
Access to the operating mechanisms should be avoided by using self-closing of fixed or movable barriers (eg, telescopic guards).
Movable guards to lock should be used when a normal job requires frequent access to the danger zone (more than once per shift). Movable fence with locking must have at least one position sensor with operation at break (EN 1088, clause 5.1 and Annex A).
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.5.2 Devices fixing of the cut material
All cutting machines should be clamping devices that hold the material to be cut to the desired position, or other equally effective devices to prevent unintentional movement of the cut material during the cutting process.
The exceptions are the vertical cutting machines for profile and contour cutting and vertical machines with two cut-off tools, and a tool head for cutting at an angle (see 5.4.1 and 5.4.2.9). Verification Method
5.5.3 Devices fixing of the material with a mechanical drive
5.5.3.1 Risk of crushing
The danger of being crushed, hitting between the jaws of a mechanical drive and cut material can be reduced as follows:
1) limiting the clamping stroke and 6 mm or
2) limiting the speed of the clip up to 10 mm / s when using a control device to hold, or
3) providing protections to guarantee the impossibility of access to the danger zone (EN 294, Table 1, 2 and 3 to determine the appropriate type of fencing).
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine, measurement. 5.5.3.2 Control Lock
Reducing the clamping force of the cut material during the cutting process must lead to the stoppage of the machine.
Semi-automatic machines and machine control system to ensure the integration of the cutting process only after securing a reliable piece.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine. 5.5.3.3 clamping, cutting material during cutting
The clamping force of the cut material, carried out a mechanical drive should remain sufficient to secure the material until the completion of the cutting process. Otherwise, the cutting process must be stopped.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine. 5.5.3.4 Disabling clamp the material being cut by hand
Semi-automatic and automatic machines fastening material to be cut off by hand should be possible only after the cutting tool retracted to its original position, and the dangerous movement stopped. Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine.
5.5.4.1 Submission by the roller mechanism (see 3.9)
Feeder of the material being cut by rollers driven must be completely enclosed.Danger Zone (jamming) between the rollers with mechanical drive and cut material should be shielded fixed and / or movable fences with locked except when the input port (for example, the entry point of the cut material to the machine) meets the requirements of EN 294.
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine, measurement. 5.5.4.2 Serve with a clamping device (see 3.7)
Access to the dangerous zones feeder material to be cut by the clamping device must be closed (e.g. by a fixed fences movable fence with interlocked active optoelectronic protection device (AOPDs) IEC 61496-2).
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine, measurement. 5.5.4.3 The push feed (see 3.8)
There must be fencing, closing access to the movement of the mechanism and the cut material during the forward stroke and during the return stroke to prevent the risk of crushing between the end of the cut material and the feeder (see EN 294).
Verification Method
Checking drawings, diagrams, visual inspection, functional testing of the machine, measurement.
5.5.5 Collection System and chip / chips
Access to dangerous parts of the system of collection and removal of chips / sawdust (if any) should be removed with the help of fixed and / or movable fences with locking.
Opening with interlocking movable guards should cause a shutdown of the system.
If you want to move the system when the outdoor fence (for example, to clean the machine), it shall be effective only by a control device with retention.
Danger zone unloading chips / sawdust must be marked accordingly. Verification Method
Checking drawings, diagrams, visual inspection.
