UNIT – III
MICROPROCESSOR 8085

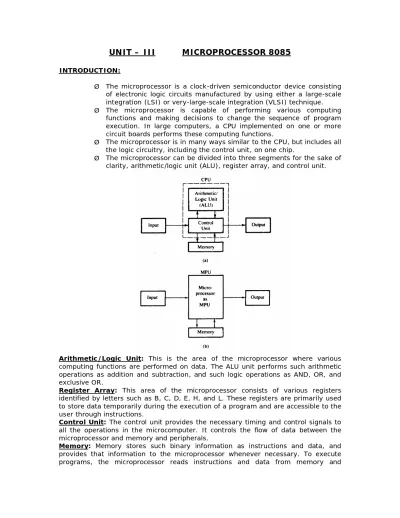

INTRODUCTION:
Ø The microprocessor is a clock-driven semiconductor device consisting of electronic logic circuits manufactured by using either a large-scale integration (LSI) or very-large-scale integration (VLSI) technique. Ø The microprocessor is capable of performing various computing
functions and making decisions to change the sequence of program execution. In large computers, a CPU implemented on one or more circuit boards performs these computing functions.
Ø The microprocessor is in many ways similar to the CPU, but includes all the logic circuitry, including the control unit, on one chip.
Ø The microprocessor can be divided into three segments for the sake of clarity, arithmetic/logic unit (ALU), register array, and control unit.
Arithmetic/Logic Unit: This is the area of the microprocessor where various
computing functions are performed on data. The ALU unit performs such arithmetic operations as addition and subtraction, and such logic operations as AND, OR, and exclusive OR.
Register Array: This area of the microprocessor consists of various registers
identified by letters such as B, C, D, E, H, and L. These registers are primarily used to store data temporarily during the execution of a program and are accessible to the user through instructions.
Control Unit: The control unit provides the necessary timing and control signals to
all the operations in the microcomputer. It controls the flow of data between the microprocessor and memory and peripherals.
Memory: Memory stores such binary information as instructions and data, and
provides that information to the microprocessor whenever necessary. To execute programs, the microprocessor reads instructions and data from memory and
performs the computing operations in its ALU section. Results are either transferred to the output section for display or stored in memory for later use. Read-Only memory (ROM) and Read/Write memory (R/WM), popularly known as Random-Access memory (RAM).
1. The ROM is used to store programs that do not need alterations. The monitor program of a single-board microcomputer is generally stored in the ROM. This program interprets the information entered through a keyboard and provides equivalent binary digits to the microprocessor. Programs stored in the ROM can only be read; they cannot be altered. 2. The Read/Write memory (RIWM) is also known as user memory It is
used to store user programs and data. In single-board microcomputers, the monitor program monitors the Hex keys and stores those instructions and data in the R/W memory. The information stored in this memory can be easily read and altered.
I/O (Input/Output): It communicates with the outside world. I/O includes two
types of devices: input and output; these I/O devices are also known as peripherals.
Ø System Bus: The system bus is a communication path between the microprocessor and peripherals: it is nothing but a group of wires to carry bits
MICROPROCESSOR ARCHITECTURE AND ITS OPERATIONS:
Ø Address Bus: The address bus is a group of 16 lines generally identified as A0 to A15. The address bus is unidirectional: bits flow in one direction —from
the MPU to peripheral devices. The MPU uses the address bus to perform the first function: identifying a peripheral or a memory location.
Data Bus:
The data bus is a group of eight lines used for data flow. These lines are bidirectional —data flow in both directions between the MPU and memory and peripheral devices. The MPU uses the data bus to perform the second function: transferring binary information .The eight data lines enable the MPU to manipulate 8-bit data ranging from 00 to FF (28 = 256 numbers). The largest number that can
appear on the data bus is 11111111.
Control Bus:
The control bus is comprised of various single lines that carry synchronization signals, providing timing signals. The MPU generates specific control signals for every operation it performs. These signals are used to identify a device type with which the MPU intends to communicate.
Registers:
8085 Bus Structure
The 8085 programmable
register
The 8085 have six general-purpose registers to perform the first operation listed above; that is, to store 8-bit data during program execution. These registers are identified as B, C, D, E, H, and L. They can be combined as register pairs —BC, DE, and HL —to perform some 16-bit operations.
Ø Accumulator: The accumulator is an 8-bit register that is part of the arithmetic/logic unit (ALU). This register is used to store 8-bit data and to perform arithmetic and logical operations. The result of an operation is
stored in the accumulator. The accumulator is also identified as register A.
Ø Flags:
The ALU includes five flip-flops that are set or reset according to the result of an opera tion. The microprocessor uses them to perform the third operation; namely, testing for data conditions. They are Zero (Z), Carry (CY), Sign (S), Parity (P), and Auxiliary Carry (AC) flags. The most commonly used flags are Sign, Zero, and Carry; the others will be explained as necessary.
The bit position for the flags in flag register is,
D7 D6 D5 D4 D3 D2 D1 D0
S Z AC P CY
(1)
Sign Flag (S): After execution of any arithmetic and logicaloperation, if D7of the result is 1, the sign flag is set. Otherwise it is
reset. D7 is reserved for indicating the sign; the remaining is the
magnitude of number. If D7 is 1, the number will be viewed as
negative number. If D7 is 0, the number will be viewed as positive
number.
(2)
Zero Flag (z): If the result of arithmetic and logical operation iszero, then zero flag is set otherwise it is reset.
(3)
Auxiliary Carry Flag (AC): If D3generates any carry when doingany arithmetic and logical operation, this flag is set. Otherwise it is reset.
(4)
Parity Flag (P): If the result of arithmetic and logical operationcontains even number of 1’ s then this flag will be set and if it is odd number of 1’ s it will be reset.
(5)
Carry Flag (CY): If any arithmetic and logical operation resultsany carry then carry flag is set otherwise it is reset.
Program Counter (PC):
Ø
Ø
This 16-bit register deals with the fourth operation, sequencing the execution of instructions. This register is a memory pointer.Ø
Ø
The microprocessor uses this register to sequence the execution of instructions. The function of the program counter is to point to the memory address from which the next byte is to be fetched.Ø
Ø
When a byte (machine code) is being fetched, the program counter is incremented by one to point to the next memory location.Stack Pointer (Sp):
The stack pointer is also a 16-bit register used as a memory pointer; initially, it will be called the stack pointer register to emphasize that it is a register. It points
to a memory location in R/W memory, called the stack. The beginning of the stack is defined by loading a 16-bit address in the stack pointer (register).
Temporary Register: It is used to hold the data during the arithmetic and logical
operations.
Instruction Register: When an instruction is fetched from the memory, it is loaded
in the instruction register.
Instruction Decoder: It gets the instruction from the instruction register and
decodes the instruction. It identifies the instruction to be performed.
Serial I/O Control: It has to control signals named SID and SOD for serial data
transmission.
Timing and Control unit: It has control and status signals. It provide control signal
to synchronize the components of microprocessor and timing for instruction to perform the operation.
Interrupt Control Unit: It is used to receive an interrupt signal for process the
operation and send an acknowledgement for receiving the interrupt signal.
I/O INTERFACING:
The two methods of data transfer are:
• Serial I/O : One bit is transferred using one data line
• Parallel I/O : Data can enter (or exit) in groups of eight bits using the
entire data bus.
Thus the I/O devices (Keyboards and displays) can be interfaced using two methods namely:
• Peripheral-mapped I/O: The device is identified with an 8-bit address and
enabled by I/O – related control signals.
• Memory-mapped I/O: The device is identified with a 16-bit address and
enabled by memory related control signals.
Concepts Review for peripheral mapped I/O
a) When an I/O instruction is executed, 8085 places the device address (Port number) on the de multiplexed low – order and high – order address bus. b) The address is decoded to generate the pulse corresponding to the device. c) The device address pulse is AND ed with the appropriate control signals like
IO/M, RD and WR to assert the I/O device.
d) A latch is used for an output port and a tri-state buffer is used for an input port..
e) The address bus can be decoded by using either the absolute or the linear select decoding reduces the component cost but the I/O device ends up with multiple addresses.
Memory Mapped I/O :
Here, the input and output devices are assigned and identified by 16-bit addresses. To transfer data between 8085 and I/C devices, memory – related instructions like LDA, STA etc are used. The control signals MEMR and MEMW should be connected to I/O devices.
STA 8000H; Address 2050H; stores the contents of A to 8000. 2050 32;
2051 00; 2052 80;
8085 requires 4 Machine cycles to execute STA; Instruction fetch and decode in M1; read 2051 and 2052 in M2 an M3; In M4 8085 places the entire address (8000H) on the address lines, the contents of the accumulator on data bus and generates MEMW
Characteristics Memory-Mapped I/O Peripheral I/O
1. Device address 16 Bit 8 Bit
2. Control Signals RD / WR (MEMR / MEMW)
IO/M , RD / WR (IOR, IOW)
3. Instructions Memory related instructions
LDA, STA, MOV, ADD, SUB
IN, OUT
4. Data transfer Between any register and I/O
Between I/O and Accumulator 5.Maximum number of I/O 64K memory shared
between I/O and system memory.
256 Input; 256 Output
6. Execution 13 T States (LDA, STA)
7 T States (MOV) 10 T States 7. Hardware More hardware required
to decode 16 bit address Less hardware to decode8 bit address 8. Other features Arithmetic or Logical
operations can be performed
Not Possible.
8085 INSTRUCTION SET:
The 8085 instruction set can be classified into the following five functional headings.
1. DATA TRANSFER INSTRUCTIONS :
Includes the instructions that moves (copies) data between registers or between memory locations and registers. In all data transfer operations the content of source register is not altered. Hence the data transfer is copying operation.
2. ARITHMETIC INSTRUCTIONS:
Includes the instructions, which performs the addition, subtraction, increment or decrement operations. The flag conditions are altered after execution of an instruction in this group.
3. LOGICAL INSTRUCTIONS:
The instructions which performs the logical operations like AND, OR, EXCLUSIVE- OR, complement, compare and rotate instructions are grouped under this heading. The flag conditions are altered after execution of an instruction in this group.
4. BRANCHING INSTRUCTIONS:
The instructions that are used to transfer the program control from one memory location to another memory location are grouped under this heading.
5. MACHINE CONTROL INSTRUCTIONS:
Includes the instructions related to interrupts and the instruction used to halt program execution.
1. ACI: Add Immediate to Accumulator with Carry.
Description: The 8-bit data (operand) and the Carry flag are added to the contents
of the accumulator, and the result is stored in the accumulator. All flags are modified to reflect the result of the addition.
2. ADC: Add Register to Accumulator with Carry
Description: The contents of the operand (register or memory) and the Carry flag
are added to the contents of the accumulator and the result is placed in the accumulator.
The contents of the operand are not altered; however, the previous Carry flag is reset.
All flags are modified to reflect the result of the addition.
3. ADD: Add Register to Accumulator
Description: The contents of the operand (register or memory) are added to the
contents of the accumulator and the result is stored in the accumulator. If the operand is a memory location, that is indicated by the 16-bit address in the HL register. All flags are modified to reflect the result of the addition.
4. ADI: Add Immediate to Accumulator
Description : The 8-bit data (operand) are added to the contents of the
accumulator, and the result is placed in the accumulator. All flags are modified to reflect the result of the addition.
5. ANA: Logical AND with Accumulator
Description: The contents of the accumulator are logically AND ed with the
contents of the operand (register or memory), and the result is placed in the accumulator. If the operand is a memory location, its address is specified by the contents of HL registers. Flags S, Z, P are modified to reflect the result of the operation. CY is reset. In 8085 AC is set.
Description: The contents of the accumulator are logically AND ed with the 8-bit
data (operand) and the results are placed in the accumulator. Flags S, Z, P are modified to reflect the results of the operation. CY is reset. In 8085, AC is set.
7. CALL: Unconditional Subroutine Call
Description: The program sequence is transferred to the address specified by the
operand. Before the transfer, the address of the next instruction to CALL (the contents of the program counter) is pushed on the stack.
8. CMA: Complement Accumulator
Description: The contents of the accumulator are complemented. No flags are
affected.
9. CMC: Complement Carry.
Description: The carry flag is complemented. 10. CMP: Compare with Accumulator.
Description: The contents of the operand (register or memory) are compared with
the contents of the accumulator.
11. CPI: Compare Immediate with Accumulator
Description: The second byte (8-bit data) is compared with the contents of the
accumulator.
12. DAA: Decimal-Adjust Accumulator
Description: The contents of the accumulator are changed from a binary value to
two 4-bit binary-coded decimal (BCD) digits. This is the only instruction that uses the auxiliary flag (internally) to perform the binary-to-BCD conversion. Flags S, Z, AC, P. CY flags are altered to reflect the results of the operation.
13. DAD: Add Register Pair to H and L Registers
Description: The 16-bit contents of the specified register pair are added to the
contents of the HL register and the sum is saved in the HL register. The contents of the source register pair are not altered. If the result is larger than 16 bits the CY flag is set. No other flags are affected.
14. DCR: Decrement Source by 1
Description: The contents of the designated register/memory are decremented by 1
and the results are stored in the same place. If the operand is a memory location, it is specified by the contents of the HL register pair. Flags S. Z, P, AC are modified to reflect the result of the operation. CY is not modified.
Description: The contents of the specified register pair are decremented by 1. This
instruction views the contents of the two registers as a 16-bit number. No flags are affected.
16. DI: Disable Interrupts
Description: The Interrupt Enable flip-flop is reset and all the interrupts except the
TRAP (8085) are disabled. No flags are affected.
17. El: Enable Interrupts
Description: The Interrupt Enable flip-flop is set and all interrupts are enabled. No
flags are affected.
18. HLT: Halt and Enter Wait State
Description: The MPU finishes executing the current instruction and halts any
further execution. The MPU enters the Halt Acknowledge machine cycle and Wait states are inserted in every clock period. The address and the data bus are placed in the high impedance state. The contents of the registers are unaffected during the HLT state. An interrupt or reset is necessary to exit from the Halt state. No flags are affected.
19. IN: Input Data to Accumulator from a Port with 8-bit Address
Description: The contents of the input port designated in the operand are read and
loaded into the accumulator. No flags are affected.
20. INR: Increment Contents of Register/Memory by 1
Description: The contents of the designated register/memory are incremented by I
and the results are stored in the same place. If the operand is a memory location, it is specified by the contents of HL register pair. Flags S. Z, P, AC are modified to reflect the result of the operation. CY is not modified.
21. INX: Increment Register Pair by 1
Description: The contents of the specified register pair are incremented by 1. The
instruction views the contents of the two registers as a 16-bit number. No flags are affected.
22. JMP: Jump Unconditionally.
Description: The program sequence is transferred to the memory location specified by the 16-bit address. This is a 3-byte instruction; the second byte specified the low-order byte and the third byte specifies the high-low-order byte. No flags are affected.
Jump Conditionally: Description: Jump on carry Jump on No carry Jump on Positive Jump on minus Jump on Parity Even
Jump on parity Odd Jump on Zero Jump on No Zero
23. LDA: Load accumulator Direct
Description: The contents of a memory location, specified by a 16-bit address in
the operand, are copied to the accumulator. The contents of the source are not altered. This is a 3-byte instruction; the second byte specifies the low-order address and the third byte specifies the high-order address. No flags are affected.
24. LDAX: Load Accumulator Indirect.
Description: The contents of the designated register pair point to a memory
location. This instruction copies the contents of that memory location into the accumulator. The contents of either the register pair or the memory location are not altered. No flags are affected.
25. LD: Load H and L Registers Direct
Description: The instruction copies the contents of the memory location pointed out
by the 16-bit address in register L and copies the contents of the next memory location in register H. The contents of source memory locations are not altered. No flags are affected.
26. Load Register Pair Immediate
Description: The instruction loads 16-bit data in the register pair designated in the
operand. This is a 3-byte instruction; the second byte specifies the low-order byte and third byte specifies the high-order byte.
27. MOV: Move – Copy from Source to Destination.
Description: This instruction copies the contents of the source register into the
destination register; the contents of the source register are not altered. If one of the operand is a memory location, it is specified by the contents of HL registers. No flags are affected.
28. MVI: Move Immediate 8-Bit
Description: The 8-bit data is stored in the destination register or memory. If the
operand is a memory location, it is specified by the contents of HL registers. No flags are affected.
29. NOP: No Operation
Description: No operation is performed. The instruction is fetched and decoded;
how ever, no operation is executed. No flags are affected.
30. ORA: Logically OR with Accumulator
Description: The contents of the accumulator are logically OR with the contents of
the operand is a memory location, its address is specified by the contents of HL registers. Flags Z, S, P are modified to reflect the results of the operation. AC and CY are reset.
31. ORI: Logically OR Immediate
Description: The contents of the accumulator are logically OR with the 8-bit data in
the operand and the results are placed in the accumulator. Flags S, Z, P are modified to reflect the results of the operation. CY and AC are reset.
32. OUT: Output Data from Accumulator to a Port with 8-Bit Address
Description: The contents of the accumulator are copied into the output port
specified by the operand. Flags No flags are affected.
33. PCHL: Load Program Counter with HL Contents
Description: The contents of registers H and L are copied into the program counter.
The contents of H are placed as a high-order byte and of L as a low-order byte. No flags are affected.
34. POP: Pop off Stack to Register Pair
Description: The contents of the memory location pointed out by the stack pointer
register are copied to the low-order register (such as C, E, L, and flags) of the operand. The stack pointer is incremented by 1 and the contents of that memory location are copied to the high-order register (B, D, H, A) of the operand. The stack pointer register is again incremented by 1. No flags are modified.
35. PUSH: Push Register Pair onto Stack
Description: The contents of the register pair designated in the operand are copied
into the stack in the following sequence. The stack pointer register is decremented and the contents of the high-order register (B, D, H, A) are copied into that location. The stack pointer register is decremented again and the contents of the low-order register (C, E, L, flags) are copied to that location. No flags are modified.
36. RAL: Rotate Accumulator Left through Carry
Description: Each binary bit of the accumulator is rotated left by one position
through the Carry flag. Bit D is placed in the bit in the Carry flag and the Carry flag is placed in the least significant position D. Flags CY is modified to bit D S, Z, AC, P are not affected.
37. RAR: Rotate Accumulator Right through Carry
Description: Each binary bit of the accumulator is rotated right by one position
through the Carry flag. Bit D is placed in the Carry flag and the bit in the Carry flag is placed in the most significant position, D. Flags CY is modified according to bit D S, Z, P, AC are not affected.
38. RLC: Rotate Accumulator Left
Description: Each binary bit of the accumulator is rotated left by one position. Bit D
is placed in the position of D as well as in the Carry flag. Flags CY is modified according to bit D S, Z, P, AC are not affected.
39. RRC: Rotate Accumulator Right
Description: Each binary bit of the accumulator is rotated right by one position. Bit
D is placed in the position of D as well as in the Carry flag. Flags CY is modified according to bit Do. S. Z, P, AC are not affected.
40. RET: Return from Subroutine Unconditionally.
Description: The program sequence is transferred from the subroutine to th4e
calling program. The two bytes from the top of the stack are copied into the program, counter and the program execution begins at the new address. The instruction is equivalent to POP Program Counter. No flags are affected.
41. RIM: Read Interrupt Mask.
Description: This is a multipurpose instruction used to read the status of interrupts
7.5, 6.5, 5.5 and to read serial data input bit. No flags are affected.
42. RST: Restart.
Description: The RST instructions are equivalent to 1-byte call instruction to one of
the eight memory locations on page 0. The instructions are generally used in conjunction with interrupts and inserted using external hardware. However, these can be used as software instructions in a program to transfer program execution to one of the eight locations. No flags are affected.
43. SBB: Subtract Source and Borrow from Accumulator.
Description: The contents of the operand (register or memory) and the Borrow flag
are subtracted from the contents of the accumulator and the results are placed in the accumulator. The contents of the operand are not altered; however, the previous Borrow flag is reset. All flags are altered to reflect the result of the subtraction.
44. SBI: Subtract Immediate with Borrow.
Description: The 8-bit data (operand) and the borrow are subtracted from the
contents of the accumulator, and the results are placed in the accumulator. All flags are altered and the results are placed in the accumulator.
45. SHLD: Store H and L Register Direct.
Description: The contents of register L are stored in the memory location specified
by the 16 bit address in the operand, and the contents of H register are stored in the next memory location by incrementing the operand. The contents of registers HL are not altered. This is a 3-byte instruction; the second byte specifies the low-order address and the third byte specifies the high order address. No flags are affected.
46. SIM: Set Interrupt Mask.
Description: This is a multipurpose instruction and used to implement the 8085
interrupts (RST 7.5,6.5 and 5.5) and serial data output.
Description: The instruction loads the contents of the H and L registers into the
stack pointer register; the contents of the H register provide the High order address, and the contents of the L register provide the low order address. The contents of the H and L registers are not altered. No flags are affected.
48. STA: Store Accumulator Direct.
Description: The contents of the accumulator are copied to a memory location
specified by the operand. This is a 3-byte instruction; the second byte specifies the low order address and the third byte specifies the high order address. No flags are affected.
49. STAX: Store Accumulator Indirect.
Description: The contents of the accumulator are copied into the memory location
specified by the contents of the operand (register pair). The contents of the accumulator are not altered. No flags are affected.
50. STC: Set Carry.
Description: The carry flag is set to 1. No other flags are affected. 51. SUB: Subtract Register or Memory from Accumulator.
Description: The contents of the register or the memory location specified by the
operand are subtracted from the contents of the accumulator, and the results are placed in the accumulator. The contents of the source are not altered. All flags are affected to reflect the result of the subtraction.
52. SUI: Subtract Immediate from Accumulator.
Description: The 8-bit data (the operand) are subtracted from the contents of the
accumulator and the results are placed in the accumulator. All flag are modified to reflect the results of the subtraction.
53. XCHG: Exchange H and L with D and E.
Description: The contents of register H are exchanged with the contents of register
D and the contents of register L are exchanged with the contents of register E. No flags are affected.
54. XRA: Exclusive OR with Accumulator.
Description: The contents of the operand (register or memory) are Exclusive OR
with the contents of the accumulator, and the results are placed in the accumulator. The contents of the operand are not altered. Z,S,P are altered to reflect the results of the operation. CY and AC are reset.
55. XRI: EXCLUSIVE OR Immediate with Accumulator.
Description: The 8 bit data (operand) are exclusive ORed with the contents of the
accumulator, and the result are placed in the accumulator. Z,S,P are altered to reflect the results of the operation. CY and AC are reset.
56. XTHL: Exchange H and L with Top of Stack.
Description: The contents of the L register are exchanged with the stack location
pointed out by the contents of the stack pointer register. The contents of the H register are exchanged with the next stack location (SP+1); however, the contents of the stack pointer register are not altered. No flags are affected.
ADDRESSING MODES:
Every instruction of a program has to operate on a data. The method of specifying the data to be operated by the instruction is called Addressing. The 8085 has the following 5 different types of addressing.
1. Immediate Addressing 2. Direct Addressing 3. Register Addressing
4. Register Indirect Addressing 5. Implied Addressing
Immediate Addressing:
In immediate addressing mode, the data is specified in the instruction itself. The data will be a part of the program instruction.
Ex: MVI B, 3EH - Move the data 3EH given in the instruction to B register.
Direct Addressing:
In direct addressing mode, the address of the data is specified in the instruction. The data will be in memory. In this addressing mode, the program instructions and data can be stored in different memory.
Ex: LDA 1050H - Load the data available in memory location 1050H in to accumulator..
Register Addressing:
In register addressing mode, the instruction specifies the name of the register in which the data is available.
Ex: MOV A, B - Move the content of B register to A register.
Register Indirect Addressing:
In register indirect addressing mode, the instruction specifies the name of the register in which the address of the data is available. Here the data will be in
memory and the address will be in the register pair.
Ex; MOV A, M - The memory data addressed by H L pair is moved to A register.
Implied Addressing:
In implied addressing mode, the instruction itself specifies the data to be operated.
Ex: CMA - Complement the content of accumulator.
ASSEMBLY LANGUAGE PROGRAMMING:
ASSEMBLER:
An ASSEMBLER is a program, which is used to translate assembly language program to correct binary code for each instruction.
Types of assembler:
• It is an assembler in which the source codes are processed only once.
• Very fast.
• Backward reference only used.
• It issues an error message if it encounters a label or variable that is defined at a later end of a program. So it cannot have forward references.
2. Two pass assembler:
• The source codes are processed two times.
• In the first pass it assigns addresses to all the labels and attach values to all the variables used in the program.
• In the second pass it converts the source code into machine code.
Advantages of assembler:
• Translates mnemonics into binary code with speed and accuracy.
• Allows the programmer to use variables in the program.
• It is easier to alter the program and reassemble.
• It identifies the syntax error.
• It can reserve memory locations for data or result.
• It provides list file for documentation.
Assembler directives:
• They are the instructions to the assembler regarding the program being assembled.
• Also called as pseudo instructions or pseudo op-codes.
• They will give information’ s like start and end of program, values of variables used in the program, storage locations of output and input data etc.
• Assemblers are
ORG origin of a program END End of program
EQU Equate
DB Define Byte
DW Define Word
DS Define Storage
SUBROTINE:
• It is a group of instructions written separately from the main program to perform a function that occurs repeatedly in the main program.
• It is called in the main program by using CALL addr16 instruction. The addr16 is the starting address of subroutine.
• It should be terminated by RET instruction.
Advantage of subroutine:
• Modular programming: The various tasks in a program can be developed as separate modules and called in the main program.
• Reduction in the amount of work and program development time.
• Reduces memory requirement for program storage.
DELAY ROUTINE:
It is a subroutine used for maintaining the timings of various operations in microprocessor.
List: List is a linked data structure used in programming techniques. The linked data
structure will have a number of components linked in a particular fashion. Each component will consists of a string data and a pointer to next component. Types of list are,
• Linear linked lists
• Linked list with multiple pointers
Array: it is a series of data of the same type stored in successive memory locations.
EACH value in the array is referred to as an element of the array.
Flow chart: It is a graphical representation of the operation flow of the program. It
is a graphical form of algorithm.
Symbol Operation
Race track shape box
To indicate the start or end of the program Parallelogram
To represent input or output operation Rectangular box To represent simple operations other than I/O
operations Rectangular box with
double lines on vertical
sides To represent a subroutine or procedure
Diamond shaped box
To represent the decision point Small circle It is used as a connector to show the
connections between various part of flowchart within a page. Identical numbers are entered
inside the boxes that represent the same connecting point.
Five sided box It is used as a off-page connector to show the connections between various sections of
flowchart in a different page. Identical numbers are entered inside the boxes that
represent the same connecting point. Line
Arrow
The lines are drawn between boxes and diamonds to indicate the program flow and the arrow is placed on the lines to indicate the
direction of flow.
ASSEMBLY LANGUAGE PROGRAMMING DEVELOPMENT TOOLS:
1. Editor: It is a program which when run on a microcomputer system, allows
the user to type and modify the assembly language program statements. The main use of editor is to help the user to construct the assembly language program in the right format and save as a file.
2. Assembler: An ASSEMBLER is a program, which is used to translate assembly language program to correct binary code for each instruction.
3. Linker: A program used to join together several object files into one large
object file.
4. Locator: A program used to assign specific addresses to the object codes to
be loaded into memory.
5. Debugger: It is a software used to locate and troubleshoot the errors in a
6. Simulator: A program, which can be run on the development system to simulate the operations of the newly designed system. Some of the operations that can be simulated are given below.
• Execute a program and display the result.
• Single step execution of a program.
• Break-point execution of a program.
• Display the content of register/memory.
7. Emulator: A system that can be used to test the hardware and software of a newly developed microprocessor based system.
Counter:
Ø A counter is designed simply by loading an appropriate number into one of the registers and using the INR (Increment by one) or the DCR (Decrement by one) instructions.
Ø A loop is established to update the count and each count is checked to determine whether it has reached the final number; if not, the loop is repeated.
Ø The flowchart illustrates the following steps.
Ø This counter has one major drawback; the counting is performed at such high speed that only the last count can be observed. To observe counting there must be an appropriate time delay between counts.
No
Yes
Time delay:
Ø The procedure used to design a specific delay is similar too that used to set up a counter.
Ø A register is loaded with a number, depending on the time delay required and then the register is decremented until it reaches zero by setting up a loop with a conditional jump instruction.
Ø The loop causes the delay, depending upon the clock period of the system.
Time delay using one register:
Ø The flow chart shows a time delay loop.
Ø A count is loaded in a register, and the loop is executed until the count reaches zero.
Ø The set of instructions necessary to set up the loop is shown below.
Initialize
Display
Update
Is this
final
count
No
Yes
Label Opcode Operand Comments T-states
MVI C,FFH ;Load register C 7
Loop: DCR C ;Decrement C 4
JNZ Loop ;Jump back to 10/7
;decrement C
• The last column shows the T-states (clock period ) required by the 8085 microprocessor to execute each instruction. The instruction MVI requires seven clock periods. An 8085 based micro computer with 2 MHz clock frequency will execute the instruction MVI in 3.5µs as follows.
Clock frequency of the system f=2 MHz Clock period T=1/f=1/2x10-6 =0.5µs
Time to execute MVI = 7T states * 0.5 =3.5µs.
• However if the clock frequency of the system is 1MHZ , the microprocessor will require 7µs to execute the same instruction. To calculate the time delay in a loop , we must account for the T-states required for each instruction and for the number of times the instructions are execute in the loop.
• In above figure , register C is loaded with the count FFH (22510) by the
instruction MVI, which is executed once and takes seven T-states. The next two instructions DCR and JNZ, form a loop with a total of 14(4+10) T-states. The loop is repeated 255 times until register C=0.
The time delay in the loop TL with 2 MHZ clock frequency is
calculated as
TL=(T x Loop T-States x N10).
Where TL= Time delay in the loop
T = System clock period
N10 = Equivalent decimal number of the hexadecimal count loaded in the delay register.
TL= (0.5x10-6x14x225) =1785µs = 1.8ms.
In most applications, this approximate calculation of the time delay is considered reasonably accurate. However, to calculate the time delay more accurately, we need
Load delay Register
Decrement Register
Is
to adjust for the execution of the JNZ instruction and add the execution time of the initial instruction.
• The T-states for JNZ instruction are shown as 10/7. This can be interpreted as follows: The 8085 micro processor requires ten T-states to execute a conditional jump instruction when it jumps or changes the sequence of the program and seven T-states when the program falls through the loop (goes to the instruction following the JNZ). In the above figure the loop is
executed 255 times; in the last cycle, the JNZ instruction will be executed in seven T-states . This difference can be accounted for in the delay calculation by subtraction the execution time of three states. There fore , the adjusted loop delay is
TLA= TL-(3 T states x clock period)
=1785.0µs - 1.5µs =1783.5µs.
Now the total delay must take into account the execution time of the instructions outside the loop. In the above example we have only one instruction (MVI C) outside the loop. Therefore, the total delay is
Total delay = Time to execute instruction + Time to execute the loop instructions.
TD=To+ TLA
=(7x0.5µs) + 1783.5µs =1787µs. ≅1.8ms.
• The difference between the loop delay TL and these calculations is only 2µs
and can be ignored in most instances.
• The time delay can be varied by changing the count FFH; however to
increase the time delay beyond 1.8ms in a 2MHZ micro computer system, a register pair or a loop within a loop technique should be used.
Time delay using a register pair:
The time delay can be considerably increased by setting a loop and using a register pair with a 16-bit number (maximum FFFFH). The 16 bit number is
decremented by using the instruction DCX.
Label Opcode Operand Comments
T-States
LXI B,2384H ;Load BC with 16 bit count 10
Loop: DCX B ;Decrement (BC) by one 6
MOV A,C ;Place contents of C in A 4
ORA B ;OR (B) with (C)
to set Zero flag
JNZ Loop ;if result =
0,jump back to Loop 10/7
Time delay:
• The time delay in the loop is calculated as in the previous example. The loop includes four instruction: DCX, MOV, ORA, and JNZ, and takes 24 clock periods for execution. The loop is repeated of 2384H times which is converted to decimal as
2384H= 2x (16)3 + 3x(16)2 + 8x(16)1 + 4(16)0 = 9092 10
If the clock period of the system =0.5µs, the delay in the loop T TL= (0.5 x 24 x 909210)
≈109 ms (without adjusting for the last cycle) Total delay Td = 109 ms + T0:
Time delay using a loop within a loop technique:
A time delay similar to that of a register pair can also be achieved by using two loops; one-loop insides the other loop is shown in below figure. For example, register C is used in the inner loop (LOOP 1) and register B is used for the outer loop (LOOP 2). The following instructions can be used to implement the flow chart is shown in figure. MVI B, 38H 7T Loop2: MVI C,FFH 7T Loop1: DCR C 4T JNZ Loop1 10/7T DCR B 4T JNZ Loop2 10/7T Delay calculations:
The delay in Loop 1 is TL1=1783.5µs. We are replace loop1 by TL1. Now we can calculate these delay in Loop2 as if it is one loop; this loop is executed 56 times because of the count (38H) in register B:
TL2=56(Tl1+21 T states x 0.5µs) = 56(1783.5µs+10.5µs) = 100.46ms. Flow chart for time delay with two loops.
MVI C, FF Loop 2 Loop1 No DCR B JNZ Loop2 Yes No
Load Register B
Load register C
Decrement
Register C
Is register
C=0
Decrement register
B
Is register
B=0
TL, Delay
in Loop
• The total delay should include the execution time of the first instruction (MVI B,&T); however, the delay outsides these loops insignificant. The time delay can be increased considerably by using register pairs in the above example.
TIMING DIAGRAM OF 8085 INSTRUCTIONS:
• The 8085 instructions consist of one to five machine cycles.
• Actually the execution of an instruction is the execution of the machine cycles of that instruction in the predefined order. Therefore, from the knowledge of the timing diagrams of each machine cycle of an instruction, the timing diagram of that instruction can be obtained.
• The timing diagram of an instruction ate obtained by drawing the timing diagrams of the machine cycles of that instruction, one by one in the order of execution.
MICROPROCESSOR APPLICATIONS:
1.TEMPERATURE CONTROL SYSTEM:
The microprocessor based temperature control system can be used for automatic control of the temperature of a body. A simplified block diagram of 8085 microprocessor based temperature control system is,
8085 Microprocessor based Temperature Control System
• The system consist of 8085 microprocessor as CPU, EPROM & RAM memory for program & data storage, INTEL 8279 for keyboard and display interface, ADC, DAC, INTEL 8255 for I/O ports, Amplifiers, Signal conditioning circuit, Temperature sensor and Supply control circuit.
• The EPROM memory is provided for storing system program and RAM memory for temporary data storage & stack operation.
• Using INTEL 8279, a keyboard and six numbers of 7-segment LEDs are interfaced to the system. The system has been designed to accept the desired temperature and various control commands through keyboard.
• The 7-segment display has been provided to display the temperature of the body at any time instant.
• The temperature of the body is measured using a temperature sensor. The different types of temperature sensors that can be used for temperature measurement are Thermo-couples, Thermistors, PN-junctions, IC sensors like AD590, etc.
• The sensors will convert the input temperature to proportional analog voltage or current. The output signal of the sensor will be a weak signal and so it has to be amplified using high input impedance op-amp.
• The analog signal is scaled to suitable level by the signal conditioning circuit.
• The microprocessor can process only digital signals and so the processor cannot read the analog signal from signal conditioning circuit directly. The system has an analog-to-digital converter (ADC) to convert the analog signal to proportional digital data.
• In this system the ADC is interfaced to 8085 processor through port-A of 8255. The 8085 processor send signal to ADC to start conversion and at the end of conversion it read the digital data from the port-A of 8255.
• The 8085 processor calculate the actual temperature using the input data and display it on the 7-segment LED.
• Also, the processor compare the desired temperature with actual temperature (The operator can enter the desired temperature through keyboard) and calculate the error (the difference between actual temperature and desired temperature).
• The error is used to compute a digital control signal, which is converted to analog control signal by DAC. The DAC is interfaced to the system through port-B of 8255.
• The analog control signal produced by DAC is used to control the power supply of the heating element of the body.
• The digital control signal can be computed by the 8085 processor using different digital control algorithms (P/PL’ PID/FUZZY logic control algorithms).s
• The control circuit for power supply can be either thyristor - based circuit or relay. In case of thyristor control circuits the firing angle can be varied by the control signal to control the power input to the heater.
• In case of relay the control signal can switch ON/OFF the re to control the power input to the heater.
2.TRAFFIC LIGHT CONTROL SYSTEM:
The traffic lights placed at the road crossings can be automatically switched ON/OFF in the desired sequence using the microprocessor system. The system can also have a manual control option, so that during heavy traffic (or during traffic jam) the duration of ON/OFF time can be varied by the operator.
A typical traffic light control system (demonstration type) is,
8085 Microprocessor based Traffic Light Control demonstration System
• The system has been developed using 8085 as CPU. The system has EPROM memory for system program storage and RAM memory for stack operation. For manual control a keyboard have been provided. It will be helpful for the operator if the direction of traffic flow is displayed during manual control. Hence 7 segment LEDs are interfaced
to display the direction of traffic flow both during manual and automatic mode.
• The primary function of the microprocessor in the system is to switch ON/OFF the Red/Yellow/Green lights in the specified sequence. In the demonstration system of fig shown, Red/Yellow/Green LEDs are provided instead of lights (lamps). The LEDs are interfaced to the system through buffer (74LS245) and ports of 8255.
Ø In the practical implementation scheme the lights can be turned ON/ OFF using driver transistors and relays.
Ø In practical implementation the output of buffer (74LS245) can be connected to the driver transistor.
Ø A relay placed at the collector of the transistor can be used to switch ON/ OFF the light as shown in fig.
Ø A reverse biased diode is connected across relay coil to prevent relay chattering (for free-wheeling action).
The microprocessor sends HIGH through a port line to switch ON the light and LOW to switch OFF the light. A switching schedule (or sequence) can be developed as shown in table. In this switching sequence it is assumed that the traffic is allowed only in one direction at a time.
Ø The processor can output the codes for switching the lights for schedule-I and then waits. After a specified time delay the processor output the codes for schedule-I and so on.
Ø For each schedule the processor can wait for a specified time. After schedule-XH, the processor can again return to schedule-I. On observing the schedules we can conclude that three different delay routines are sufficient for implementing the twelve switching schedules.
3.STEPPER MOTOR CONTROL SYSTEM:
Ø The stepper motors are popularly used in computer peripherals, plotters, robots and machine tools for precise incremental rotation. Ø In stepper motor, the stator windings are excited by electrical pulses
and for each pulse the motor shaft advances by one angular step. (Since digital pulses can drive the stepper motor, it is also called digital motor).
Ø The step size in the motor is determined by the number of poles in the rotor and the number of pairs of stator windings (one pair of stator winding is called one phase). The stator windings are also called control windings.
Ø The motor is controlled by switching ON/OFF the control winding. The popular stepper motor used for demonstration in laboratories has a step size of 1.8° (i.e, 200 steps per revolution).
Ø The basic step size of the motor is called full-step. By altering the switching sequence, the motor can be made to run with incremental motion of half the full-step value.
