300G_587_387 Testing

(1)

Note: Only enter in yellow Enter calculations protected. Results

E87W1 = Y E87W2 = Y E87W3 = N E87W4 = N W1CT = Y W2CT = Y W3CT = Y W4CT = Y CTR1 = 400 CTR2 = 1000 CTR3 = 120 CTR4 = 120 MVA = 120 VWD1 = 115 VWD2 = 13.8 VWD3 = 41.6 VWD4 = 41.6 TAP1 = 1.51 0.22 TAP2 = 5.02 0.22 TAP3 = 13.88 0.22 TAP4 = 13.88 1 W1CTC = 11 W2CTC = 0 W3CTC = 1 W4CTC = 1 O87P = 0.34 pu SLP1 = 30 % SLP2 = 80 % IRS1 = 3

Part 1: Single Phase Test to check an 87R1 pickup point at a predetermined IRT Value, use 87R1 to monitor.

Where multi winding are enables you may wish to select the test giving the lowest required test currents.

This Test Point is at IRT= 3.3 on SLP2 slope and at 1/2 the required IOP for this IRT point

Enter the following settings

This sheet contains a few portions:

- The first portion provides single phase test information similar to the IM section 10's testing information.

- The second portion provides a balanced three phase test similar to the single phase test described above, this is desired by a few.

- The third part allows simulated relay differential element testing using equivalent relay terminal winding.

- Please note: Not all relay combinations and spreadsheet errors are addressed in this spreadsheet, use only as an aid, and ensure you satisfy yourself that the relay is correct independent of this aid.

- The test sheet is protected without a password, normal operation does not require protection to be off, if defeated take care as hidden cells and indexing etc may be unknowingly be deleted and make the spreadsheet's calculations

incorrect!

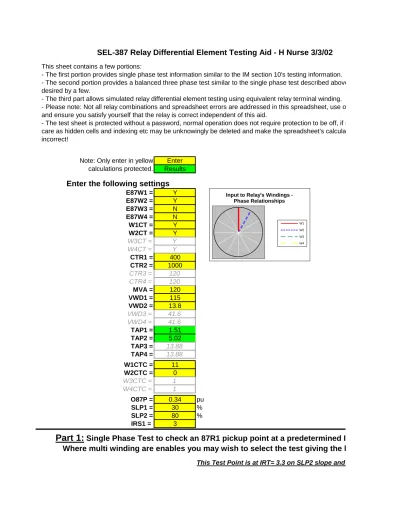

SEL-387 Relay Differential Element Testing Aid - H Nurse 3/3/02

Input to Relay's Windings - Phase Relationships

W1 W2 W3 W4

(2)

Select

Test IRT =

3.3

These points are moving up to the SLP2 part of the curve

then start injecting at

IAW1 =

8.47 0 deg

87R1 not asserted

See Test Point 1 on Graph

IAW2 =

13.71 180 deg

and increase IAW1 to

Threshold:

IAW1 =

10.10 0 deg

87R1 asserts

See Test Point 2 on Graph

IAW2 =

13.71 180 deg

for interest

Zero IOP Point is

IAW1 =

7.12 0 deg

See Test Point 3 on Graph

IAW2 =

13.71 180 deg

Select

Test IRT =

3.3 then start injecting at

IAW1 =

4.89 0 deg

See Test Point 1 on Graph

IBW1 =

4.89 -120 deg

ICW1 =

4.89 120 deg

IAW2 =

13.71 150 deg

IBW2 =

13.71 30 deg

ICW2 =

13.71 270 deg

and increase In W1 to

Threshold:

IAW1 =

5.83 0 deg

See Test Point 2 on Graph

IBW1 =

5.83 -120 deg

ICW1 =

5.83 120 deg

IAW2 =

13.71 150 deg

IBW2 =

13.71 30 deg

ICW2 =

13.71 270 deg

for interest

Zero IOP Point is

IAW1 =

4.11 0 deg

See Test Point 3 on Graph

IBW1 =

4.11 -120 deg

ICW1 =

4.11 120 deg

IAW2 =

13.71 150 deg

IBW2 =

13.71 30 deg

ICW2 =

13.71 270 deg

May wish to check that IOP1 = 0 using the Meter Diff command

This Test Point is at IRT= 3.3 and the required IOP

This Test Point is at IRT= 3.3 on SLP2 slope and at 1/2 the required IOP for this IRT point This Test Point is at IRT= 3.3 and zero IOP

This Test Point is at IRT= 3.3 and zero IOP

Part 2: Optional Balanced Three Phase Test to check an 87R pickup point at a predetermined IRT Value

Use 87R to monitor ( 87R = 87R1 + 87R2 +87R3).

(3)

Part 3: Optional Multiphase and multiwinding testing with expected relay element operate, restraint values and 87 element responses.

Input

Mag

Angle [deg] Warnings

IAW1 = 67.00 0.0 IBW1 = 69.00 -120.0 ICW1 = 73.00 120.0 IAW2 = 84.00 150.0 IBW2 = 76.00 30.0 ICW2 = 89.00 270.0

IAW3 = 23.00 150.0 Not Used

IBW3 = 24.00 30.0 Not Used

ICW3 = 29.00 270.0 Not Used

IAW4 = 90.00 150.0 Not Used

IBW4 = 84.00 30.0 Not Used

ICW4 = 81.00 270.0 Not Used

Primary Quantities

If you Inject

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

Graph X Y Y axis 0 0 0 1.668 X axis 0 0 3.96 0 O87P 0 0.34 SLP1 1.13333333 0.34 SLP2 3 0.9 SLP2/SLP1 run out 3.96 1.668

Test Points from Part 3

87R1 0.07 0.10 87R2 0.06 0.10 87R3 0.07 0.10 Breakpoints O87P 1.13333333 0 1.13333333 1.668 SLP1 3 0 3 1.668 IRT-R1 0.07 0 0.07 1.668 IRT-R2 0.06 0 0.06 1.668 IRT-R3 0.07 0 0.07 1.668 Other point Y intercept for SLP2 0 -1.5 0 1.1 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 0 1 2 IOP

(12)

SLP1 and O87p intercept point 1.13333333 0.34

SLP1 and SLP2 intercept point 3 0.9

SLP1 X val @ SLP2 intersects O87P 2.3 0.69

SLP1 at limit of graph 3.96 1.188 Overall Characteristic 0 0.34 Break 1 1.13333333 0.34 Break 2 3 0.9 end 3.96 1.668

Part 1 Test values

Test 3 2.73 0.00

Test 1 2.99 0.52

Test 2 3.30 1.14

3.564 1.668

Part 2 Test values

Test 3 2.73 0.00 Test 1 2.99 0.52 Test 2 3.30 1.14 3.564 1.668 Vector Display W1 0 0 0 1 W2 0 0 0.5 0.866025404 330 W3 0 0 0 0 300 W4 0 0 0 0 300 Extremes 1 1 -1 1 -1 -1 1 -1 Grid 0 0 0.5 0.866025404 0 0 0.8660254 0.5 0 0 1 6.12574E-17 0 0 0.8660254 -0.5 0 0 0.5 -0.8660254 0 0 1.2251E-16 -1 0 0 -0.5 -0.8660254 0 0 -0.8660254 -0.5 1.1 0 0 1 2

(13)

0 0 -1 -1.8377E-16 0 0 -0.8660254 0.5 0 0 -0.5 0.866025404

(14)

Minimum Maximum

0.67 37.65

0.21 11.29

0.67 11.29

Lowest Test Values are between IAW1 and IAW2
