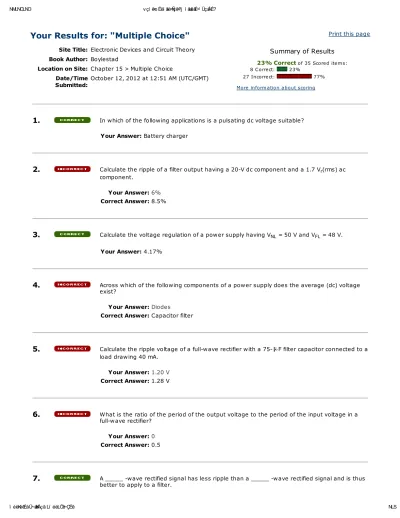

Your Results for: "Multiple Choice"

Print this page

Site Title: Electronic Devices and Circuit Theory Book Author: Boylestad

Location on Site: Chapter 15 > Multiple Choice Date/Time

Submitted:

October 12, 2012 at 12:51 AM (UTC/GMT)

Summary of Results

23% Correct of 35 Scored item s: 8 Correct: 23%

27 Incorrect: 77%

More inform ation about scoring

1.

In which of the following applications is a pulsating dc voltage suitable? Your Answer: Battery charger

2.

Calculate the ripple of a filter output having a 20-V dc component and a 1.7 V_r(rms) ac component.

Your Answer:6% Correct Answer: 8.5%

3.

Calculate the voltage regulation of a power supply having V_NL = 50 V and V_FL = 48 V. Your Answer: 4.17%

4.

Across which of the following components of a power supply does the average (dc) voltage exist?

Your Answer:Diodes

Correct Answer: Capacitor filter

5.

Calculate the ripple voltage of a full-wave rectifier with a 75- F filter capacitor connected to a load drawing 40 mA.

Your Answer:1.20 V Correct Answer: 1.28 V

6.

What is the ratio of the period of the output voltage to the period of the input voltage in a full-wave rectifier?

Your Answer:0 Correct Answer: 0.5

7.

A _____ -wave rectified signal has less ripple than a _____ -wave rectified signal and is thus better to apply to a filter.

(2)

OLS ï éëKéêÉåÜ~ääKÅçã Lï éëLÖê~ÇÉê

8.

If the value of full-load voltage is the same as the no-load voltage, the voltage regulation calculated is _____ %, which is the best expected.

Your Answer: 0

9.

In which period is the capacitor filter charged in a full-wave rectifier? Your Answer:The time during the positive cycle

Correct Answer: The time during which the diode(s) is (are) conducting

10.

In which period is the capacitor filter discharged through the load in a full-wave rectifier? Your Answer:The time during the positive cycle

Correct Answer: The time during which the diodes are not conducting

11.

If a peak rectified voltage for the full-wave filter circuit is 40 V, calculate the filter dc voltage if C = 75 F and load current is 40 mA.

12.

Calculate the ripple of a capacitor filter for a peak rectified voltage of 40 V, a capacitor value C = 75 F, and a load current of 40 mA.

Your Answer: 3.2%

13.

What is the ratio of the peak ripple voltage level to its rms voltage level? Your Answer:

14.

The larger the value of the capacitor, the smaller the peak current drawn through the rectifying diodes.

Your Answer:True Correct Answer: False

15.

What is the purpose of an additional RC filter section in a power supply circuit? Your Answer:Increase the dc voltage component

(3)

PLS ï éëKéêÉåÜ~ääKÅçã Lï éëLÖê~ÇÉê

16.

Calculate the dc voltage across a 2-k load for an RC filter section (R = 50 , C = 20 F). The dc voltage across the initial filter capacitor is V_dc = 50 V.

17.

The purpose of the added RC section is to pass most of the dc component while reducing as much of the ac component as possible.

Your Answer: True

18.

This circuit is an example of the ac equivalent of an RC filter.

Your Answer:True Correct Answer: False

19.

For a full-wave rectifier with ac ripple at 120 Hz, the impedance of a capacitor can be calculated using X_C = _____.

Your Answer:1.414 ÷ C Correct Answer: 1.3 ÷ C

20.

In a simple series regulator circuit, which of the following components is the controlling element?

Your Answer:Zener diode Correct Answer: Transistor Q₁

(4)

QLS ï éëKéêÉåÜ~ääKÅçã Lï éëLÖê~ÇÉê

21.

circuit?

Your Answer:Load resistor Correct Answer: Resistors R₁ and R₂

22.

In this op-amp series regulator circuit, which of the following components is the comparator circuit?

Your Answer:Transistor Q₁ Correct Answer: Op-amp

23.

What regulated output voltage is provided for the following circuit elements: R₁ = 15 k , R₂ = 35 k , and V_Z = 11.2 V?

Your Answer:17.35 V Correct Answer: 17 V

24.

Which component(s) set(s) the voltage across the load in a basic transistor shunt regulator? Your Answer:None of the above

(5)

RLS ï éëKéêÉåÜ~ääKÅçã Lï éëLÖê~ÇÉê

25.

In an improved shunt regulator, which of the following components sets the reference voltage?

Your Answer:Transistor Q₂ Correct Answer: Zener diode

26.

For what range of load current can voltage regulators be selected for operation? Your Answer:Hundreds of picoamperes to tens of milliamperes

Correct Answer: Hundreds of milliamperes to tens of amperes

27.

For what range of fixed regulated voltages do the series 78xx regulators provide regulation? Your Answer:None of the above

Correct Answer: +5 V to +24 V

28.

What is the typical dropout voltage for the 7812 fixed positive voltage regulator? Your Answer:100 mV

Correct Answer: 2 V

29.

How many diodes conduct in the full-wave bridge rectifier while the capacitor is being charged?

Your Answer:4 Correct Answer: 2

30.

What is the range of the voltage level of the LM317 adjusted voltage regulator? Your Answer:5 V to 24 V

Correct Answer: 1.2 V to 37 V

31.

What are the typical values of V_refand I_adj for the LM317 adjustable voltage regulator? Your Answer:1.25 V, 10 mA

Correct Answer: 1.25 V, 100 μA

32.

The 7812 regulator IC provides _____.

Your Answer:–12 V Correct Answer: 12 V

(6)

SLS ï éëKéêÉåÜ~ääKÅçã Lï éëLÖê~ÇÉê

33.

The 7912 regulator IC provides _____ .

Your Answer:5 V Correct Answer: –12 V

34.

Your Answer:5 V Correct Answer: –5 V

35.

Your Answer: 5 V
