SECTION GYPSUM BOARD ASSEMBLIES

(1)

TPW.027 – FAWCETT WMA

100% CD’s GYPSUM BOARD ASSEMBLIES 09 21 16 - 1

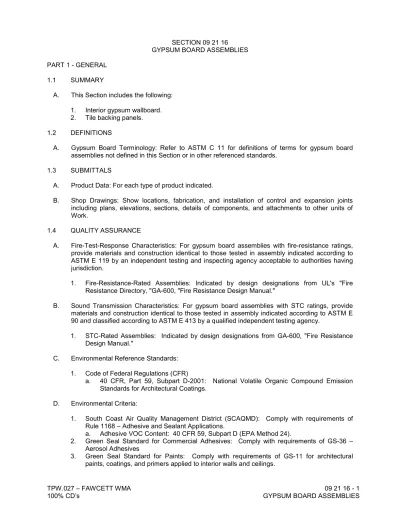

SECTION 09 21 16

GYPSUM BOARD ASSEMBLIES PART 1 - GENERAL

1.1 SUMMARY

A. This Section includes the following: 1. Interior gypsum wallboard. 2. Tile backing panels. 1.2 DEFINITIONS

A. Gypsum Board Terminology: Refer to ASTM C 11 for definitions of terms for gypsum board assemblies not defined in this Section or in other referenced standards.

1.3 SUBMITTALS

A. Product Data: For each type of product indicated.

B. Shop Drawings: Show locations, fabrication, and installation of control and expansion joints including plans, elevations, sections, details of components, and attachments to other units of Work.

1.4 QUALITY ASSURANCE

A. Fire-Test-Response Characteristics: For gypsum board assemblies with fire-resistance ratings, provide materials and construction identical to those tested in assembly indicated according to ASTM E 119 by an independent testing and inspecting agency acceptable to authorities having jurisdiction.

1. Fire-Resistance-Rated Assemblies: Indicated by design designations from UL's "Fire Resistance Directory, "GA-600, "Fire Resistance Design Manual."

B. Sound Transmission Characteristics: For gypsum board assemblies with STC ratings, provide materials and construction identical to those tested in assembly indicated according to ASTM E 90 and classified according to ASTM E 413 by a qualified independent testing agency.

1. STC-Rated Assemblies: Indicated by design designations from GA-600, "Fire Resistance Design Manual."

C. Environmental Reference Standards: 1. Code of Federal Regulations (CFR)

a. 40 CFR, Part 59, Subpart D-2001: National Volatile Organic Compound Emission Standards for Architectural Coatings.

D. Environmental Criteria:

1. South Coast Air Quality Management District (SCAQMD): Comply with requirements of Rule 1168 – Adhesive and Sealant Applications.

a. Adhesive VOC Content: 40 CFR 59, Subpart D (EPA Method 24).

2. Green Seal Standard for Commercial Adhesives: Comply with requirements of GS-36 – Aerosol Adhesives

3. Green Seal Standard for Paints: Comply with requirements of GS-11 for architectural paints, coatings, and primers applied to interior walls and ceilings.

(2)

4. Green Seal Standard for Anti-Corrosive Paints: Comply with requirements of GC-03 for anti-corrosive and anti-rust paints applied to interior ferrous metal substrates.

5. South Coast Air Quality Management District (SCAQMD): Comply with requirements of Rule 1113 – Architectural Coatings for clear wood finishes, floor coatings, stains, sealers, and shellacs applied to interior elements.

6. Insulation: Environmental Protection Agency (EPA) Comprehensive Procurement Guidelines (CPG): Comply with recovered (recycled) content criteria of the CPG for insulation materials.

1.5 DELIVERY, STORAGE, AND HANDLING

A. Deliver materials in original packages, containers, or bundles bearing brand name and identification of manufacturer or supplier.

B. Store materials inside under cover and keep them dry and protected against damage from weather, direct sunlight, surface contamination, corrosion, construction traffic, and other causes. Stack gypsum panels flat to prevent sagging.

1.6 PROJECT CONDITIONS

A. Environmental Limitations: Comply with ASTM C 840 requirements or gypsum board manufacturer's written recommendations, whichever are more stringent.

PART 2 - PRODUCTS

2.1 INTERIOR GYPSUM WALLBOARD

A. Panel Size: Provide in maximum lengths and widths available that will minimize joints in each area and correspond with support system indicated.

B. Gypsum Wallboard: ASTM C 36.

1. Regular Type:

a. Thickness: 5/8 inch unless otherwise indicated.

b. Long Edges: Tapered and featured (rounded or beveled) for pre-filling. c. Location: Vertical surfaces, unless otherwise indicated.

2. Type X:

a. Thickness: 5/8 inch.

b. Long Edges: Tapered and featured (rounded or beveled) for pre-filling.

c. Location: Where required for fire-resistance-rated assembly Vertical surfaces, unless otherwise indicated.

C. Water-Resistant Gypsum Backing Board: ASTM C 630/C 630M, 5/8” standard taper.

1. Core: 5/8 inch, Type X at all plumbing walls and at locations indicated on the drawings. Refer to Section 09 30 00 for ceramic tile backer board.

2.2 TRIM ACCESSORIES A. Interior Trim: ASTM C 1047.

1. Material: Galvanized or aluminum-coated steel sheet, rolled zinc, plastic, or paper-faced galvanized steel sheet Galvanized or aluminum-coated steel sheet or rolled zinc Plastic Paper-faced galvanized steel sheet.

2. Shapes:

a. Cornerbead: Use at outside corners, unless otherwise indicated.

b. LC-Bead: J-shaped; exposed long flange receives joint compound; use at exposed panel edges.

(3)

c. L-Bead: L-shaped; exposed long leg receives joint compound; use where indicated. d. U-Bead: J-shaped; exposed short flange does not receive joint compound; use at

exposed panel edges.

e. Expansion (Control) Joint: Use where indicated and at each side of door frames extending to above ceiling, and every 30 horizontal feet of partition surface.

2.3 JOINT TREATMENT MATERIALS A. General: Comply with ASTM C 475.

B. Joint Tape:

1. Interior Gypsum Wallboard: Paper.

C. Joint Compound for Interior Gypsum Wallboard: For each coat use formulation that is compatible with other compounds applied on previous or for successive coats.

1. Pre-filling: At open joints, rounded or beveled panel edges, and damaged surface areas, use setting-type taping compound.

2. Embedding and First Coat: For embedding tape and first coat on joints, fasteners, and trim flanges, use setting-type taping compound.

a. Use setting-type compound for installing paper-faced metal trim accessories. 3. Fill Coat: For second coat, use drying-type, all-purpose compound.

4. Finish Coat: For third coat, use drying-type, all-purpose compounder. D. Joint Compound for Tile Backing Panels:

1. Water-Resistant Gypsum Backing Board: Use setting-type taping and setting-type, sandable topping compounds.

2.4 AUXILIARY MATERIALS

A. General: Provide auxiliary materials that comply with referenced installation standards and manufacturer's written recommendations.

B. Steel Drill Screws: ASTM C 1002, unless otherwise indicated.

1. Use screws complying with ASTM C 954 for fastening panels to steel members from 0.033 to 0.112 inch thick.

C. Sound Attenuation Blankets: ASTM C 665, Type I (blankets without membrane facing) produced by combining thermosetting resins with mineral fibers manufactured from glass, slag wool, or rock wool.

1. Fire-Resistance-Rated Assemblies: Comply with mineral-fiber requirements of assembly.

PART 3 - EXECUTION 3.1 EXAMINATION

A. Examine areas and substrates, with Installer present, and including welded hollow-metal frames, cast-in anchors, and structural framing, for compliance with requirements and other conditions affecting performance. Proceed with installation only after unsatisfactory conditions have been corrected.

3.2 PREPARATION

A. Suspended Ceilings: Coordinate installation of ceiling suspension systems with installation of overhead structure to ensure that inserts and other provisions for anchorages to building

(4)

structure have been installed to receive ceiling hangers at spacing required to support ceilings and that hangers will develop their full strength.

3.3 APPLYING AND FINISHING PANELS, GENERAL

A. Gypsum Board Application and Finishing Standards: ASTM C 840 and GA-216.

B. Install sound attenuation blankets before installing gypsum panels, unless blankets are readily installed after panels have been installed on one side.

C. Install ceiling board panels across framing to minimize the number of abutting end joints and to avoid abutting end joints in the central area of each ceiling. Stagger abutting end joints of adjacent panels not less than one framing member.

D. Install gypsum panels with face side out. Butt panels together for a light contact at edges and ends with not more than 1/16 inch of open space between panels. Do not force into place.

E. Locate edge and end joints over supports, except in ceiling applications where intermediate supports or gypsum board back-blocking is provided behind end joints. Do not place tapered edges against cut edges or ends. Stagger vertical joints on opposite sides of partitions. Do not make joints other than control joints at corners of framed openings.

F. Attach gypsum panels to wood studs so leading edge or end of each panel is attached to open (unsupported) edges of stud flanges first.

G. Attach gypsum panels to framing provided at openings and cutouts.

H. Form control and expansion joints with space between edges of adjoining gypsum panels.

I. Cover both faces of steel stud partition framing with gypsum panels in concealed spaces (above ceilings, etc.), except in chases braced internally.

1. Unless concealed application is indicated or required for sound, fire, air, or smoke ratings, coverage may be accomplished with scraps of not less than 8 sq. ft. in area.

2. Fit gypsum panels around ducts, pipes, and conduits.

J. Isolate perimeter of non-load-bearing gypsum board partitions at structural abutments, except floors.

1. Provide 1/4- to 1/2-inch wide spaces at these locations, and trim edges with U-bead edge trim where edges of gypsum panels are exposed. Seal joints between edges and abutting structural surfaces with acoustical sealant.

K. STC-Rated Assemblies: Seal construction at perimeters, behind control and expansion joints, and at openings and penetrations with a continuous bead of acoustical sealant. Install acoustical sealant at both faces of partitions at perimeters and through penetrations. Comply with ASTM C 919 and manufacturer's written recommendations for locating edge trim and closing off sound-flanking paths around or through gypsum board assemblies, including sealing partitions above acoustical ceilings.

L. Space fasteners in gypsum panels according to referenced gypsum board application and finishing standard and manufacturer's written recommendations.

1. Space screws a maximum of 12 inches o.c. for vertical applications.

M. Space fasteners in panels that are tile substrates a maximum of 8 inches o.c. 3.4 PANEL APPLICATION METHODS

(5)

A. Single-Layer Application:

1. On ceilings, apply gypsum panels before wall/partition board application to the greatest extent possible and at right angles to framing, unless otherwise indicated.

2. On partitions/walls, apply gypsum panels vertically (parallel to framing) , unless otherwise indicated or required by fire-resistance-rated assembly, and minimize end joints.

a. Stagger abutting end joints not less than one framing member in alternate courses of board.

B. Single-Layer Fastening Methods: Apply gypsum panels to supports with steel drill screws. 3.5 INSTALLING TRIM ACCESSORIES

A. General: For trim with back flanges intended for fasteners, attach to framing with same fasteners used for panels. Otherwise, attach trim according to manufacturer's written instructions.

B. Control Joints: Install control joints at locations indicated on Drawings and according to ASTM C 840 and in specific locations approved by Architect for visual effect.

3.6 FINISHING GYPSUM BOARD ASSEMBLIES

A. General: Treat gypsum board joints, interior angles, edge trim, control joints, penetrations, fastener heads, surface defects, and elsewhere as required to prepare gypsum board surfaces for decoration. Promptly remove residual joint compound from adjacent surfaces.

B. Pre-fill open joints, rounded or beveled edges, and damaged surface areas.

C. Apply joint tape over gypsum board joints, except those with trim having flanges not intended for tape.

D. Gypsum Board Finish Levels: Finish panels to levels indicated below, according to ASTM C 840, for locations indicated:

1. Level 1: Embed tape at joints in ceiling plenum areas, concealed areas, and where indicated, unless a higher level of finish is required for fire-resistance-rated assemblies and sound-rated assemblies.

2. Level 2: Embed tape and apply separate first coat of joint compound to tape, fasteners, and trim flanges where panels are substrate for tile and where indicated.

3. Level 3: Embed tape and apply separate first and fill coats of joint compound to tape, fasteners, and trim flanges where indicated.

4. Level 4: Embed tape and apply separate first, fill, and finish coats of joint compound to tape, fasteners, and trim flanges at panel surfaces that will be exposed to view.

5. Level 5: Level 5 requires all the operations in Level 4. Additionally, a thin skim coat of joint compound, or material manufactured especially for this purpose, is applied to the entire surface. The surface is smooth and free from tool marks and ridges. Before final decoration it's recommended that the prepared surface be coated with a primer prior to the application of final finishes. The Level 5 finish is required to achieve the highest degree of quality by providing a uniform surface and minimizing the possibility of joint photographing and/or fasteners "burning through" the final decoration. Level 5 finish will be required at all gypsum board surfaces that will exposed to view throughout the main building on the first and second floors throughout.

3.10 FIELD QUALITY CONTROL

A. Above-Ceiling Observation: Before Contractor installs gypsum board ceilings, Architect will conduct an above-ceiling observation and report deficiencies in the Work observed. Do not proceed with installation of gypsum board to ceiling support framing until deficiencies have been corrected.

(6)

1. Notify Architect seven days in advance of date and time when Project, or part of Project, will be ready for above-ceiling observation.

2. Before notifying Architect, complete the following in areas to receive gypsum board ceilings: a. Installation of 80 percent of lighting fixtures, powered for operation.

b. Installation, insulation, and leak and pressure testing of water piping systems. c. Installation of air-duct systems.

d. Installation of air devices.

e. Installation of mechanical system control-air tubing. f. Installation of ceiling support framing.

(7)

TPW.027 – FAWCETT WMA 100% CD’s 09 30 00 - 1 TILING SECTION 09 30 00 TILING PART 1 - GENERAL 1.1 SUMMARY

A. This Section includes the following: 1. Unglazed ceramic mosaic floor tile. 2. Glazed ceramic wall tile.

3. Marble Thresholds. 1.2 SUBMITTALS

A. Submit Product Data and material Samples each type of product specified.

B. For tile installed on walkway surfaces, provide products with static coefficients of friction of minimum

1. 0.6 for level surfaces and step treads, and of minimum 0.8 for ramp surfaces, as determined by testing identical products per ASTM C 1028.

C. Samples for initial selection purposes in form of manufacturer’s standard tile chips consisting of actual tiles or sections of tile showing, tile color selection and full range of colors, textures and patterns available for each type and composition of tile indicated. Include samples of grout and accessories involving color selection.

1.3 ENVIRONMENTAL REQUIREMENTS

A. Comply with requirements of referenced standards and recommendations of material manufacturers for environmental conditions before, during, and after installation.

B. Do not begin installation until building is completely enclosed and HVAC system is operating and maintaining temperature and humidity conditions consistent with "after occupancy" conditions for a minimum of 2 weeks.

C. Maintain continuous and uniform building temperatures of not less than 50 degrees F during installation nor more than 100 degrees F.

D. Ventilate spaces receiving tile in accordance with material manufacturers' instructions.

E. South Coast Air Quality Management District (SCAQMD): Comply with requirements of Rule 1168 – Adhesive and Sealant Applications.

F. Green Seal Standard for Commercial Adhesives: Comply with requirements of GS-36 – Aerosol Adhesives.

A. Single Source Responsibility for Tile: Obtain each color, grade, finish, type, composition, and variety of tile from a single source with resources to provide products of consistent quality in appearance and physical properties without delaying the progress of the Work.

B. Single Source Responsibility For Setting and Grouting Materials: Obtain ingredients of a uniform quality from one manufacturer of each cementitious and admixture component and form one source or producer for each aggregate.

(8)

100% CD’s 09 30 00 - 2 TILING

C. Installer Qualifications: Engage an experienced Installer who has successfully completed tile installations similar in material, design and extent to that indicated for the Project.

1.5 EXTRA MATERIAL

A. Deliver extra material to Owner. Furnish extra materials that match products as described below, packaged with protective covering for storage and identified with labels clearly describing contents. Provide to owner 2% of total quantities used in the project of material of each type, make, model, and color.

PART 2 - PRODUCTS 2.1 CERAMIC TILE

A. Ceramic tile that complies with Standard Grade requirements of ANSI A137.1, "Specifications for Ceramic Tile."

B. Tile Products:

1. Unglazed Ceramic Mosaic Tile For Application on Floors: Provide factory mounted flat tile complying with the following requirements.

a. Composition: Porcelain

b. Nominal Facial Dimensions: 3 inches x 3 inches unless otherwise indicated. c. Nominal Thickness: ¼ inch.

d. Face: Plain with cushion edges, unless otherwise indicated.

e. Color: To be selected by Architect from manufacturer’s full range of colors. Basis of Design shall be Crossville Color Blox/Color Blox Mosaic with minimum of 20 basic colors to be selected by Architect – this shall include all Price Groups I, II, III, and IV. 2. Unglazed Ceramic Base: Provide 6”x12” mosaic tile with cove as needed for built-up base

complying with the following requirements.

a. Nominal Facial Dimensions: 6” high unless otherwise indicated. b. Nominal Thickness: ¼ inch.

c. Face: Unglazed with cushion edges, unless otherwise indicated.

d. Color: To match Ceramic Mosaic tile indicated above. Base to be provided in Restrooms of Building A, B, and C only. Basis of Design shall be Crossville Color Blox/Color Blox Mosaic with minimum of 20 basic colors to be selected by Architect – this shall include all Price Groups I, II, III, and IV.

3. Glazed Ceramic Wall Tile: Provide flat tile complying with the following requirements. a. Nominal Facial Dimensions: 12inches x 24 inches unless otherwise indicated

(restroom wall tile).

b. Nominal Thickness: ¼ inch.

c. Face: Plain with cushion edges, unless otherwise indicated.

d. Colors: Basis of Design shall be Crossville Color Blox/Color Blox Mosaic with minimum of 20 basic colors to be selected by Architect – this shall include all Price Groups I, II, III, and IV.

4. Glazed Ceramic Wall Tile at Kitchen Backsplash: Provide “Subway” flat tile complying with the following requirements.

a. Nominal Facial Dimensions: 3 inches x 6 inches unless otherwise indicated (Kitchen backsplash).

b. Nominal Thickness: ¼ inch.

c. Face: Plain with cushion edges, unless otherwise indicated.

d. Colors: Basis of Design shall be Daltile Color Whelel Collection – Cllassic with minimum of 41 basic colors to be selected by Architect – this shall include all Price Groups I, II, III, and IV.

(9)

100% CD’s 09 30 00 - 3 TILING

5. Accent tile units: Provide accent tile to match color and characteristics of wall tile and provide color selections as indicated on drawings, if not noted provide from Manufacturer’s “Standard Colors”.

6. Trim Units: Provide accent tile to match characteristics of adjoining flat tile and comply with following requirements:

a. Size: As indicated, coordinate with sizes and coursing of adjoining flat tile where applicable.

b. Shapes: As follows, selected from manufacturer’s standard shapes:

c. Base: Coved. Provide cove base with bull nose top edge where no wall tile or wainscot is indicated.

d. Wainscot Cap for Thin set Installations: Surface Bull nose.

e. Internal Corners: Field-butted square Corners, except use coved base and cap angle pieces designed to member with stretcher shapes.

f. External Corners for Thin set Installations: Surface Bull nose.

7. Through Body Porcelain Floor and Wall Tile: Provide factory mounted flat tile complying with the following requirements.

a. Composition: Porcelain

b. Nominal Facial Dimensions: 12 inches x 24 inches unless otherwise indicated. c. Nominal Thickness: Approximately 1/2 inch.

d. Face: Plain with cushion edges, unless otherwise indicated.

e. Color: To be selected by Architect from manufacturer’s full range of colors. (Color Group I, II, III and IV)

C. Cement Backer Board:

1. ½” thick cement based sheet material used as a backing for ceramic tile. 2.2 CERAMIC TILE-SETTING AND -GROUTING MATERIALS

A. Setting Materials:

1. Reinforced Wire Fabric: Galvanized Welded Wire Fabric, 2 inches by 2 inches, WO .3 x WO .3, (16 ASW gauge or 0.0625 inch diameter), comply with ASTM A 185 and ASTM A 82 except for minimum wire size.

2. Expanded Metal Lathe: Provide diamond mesh lathe complying with ASTM C 847 for requirements indicated below:

a. Base Metal and Finish: Fabricate lathe from zinc coated, (galvanized), steel sheets. b. Configuration over solid surfaces: Self-furring.

c. Weight 3.4 psf.

B. Latex Portland Cement Mortar: ANSI A118.4. Composition as follows:

1. Latex additive, (water emulsion), of type described below, serving as replacement for part of all of gauging water, combined at job site with prepackaged dry mortar mix supplied or specified by latex additive manufacturer:

a. Latex Type: Manufacturer’s Standard.

C. Latex Portland Cement Grout: ANSI A118.6, Composition as follows. 1. Latex Type: Manufacturer’s standard.

2. Dry Grout Mixture: Dry set grout specified or supplied by latex additive manufacturer. Use latex additive without retarder with dry set grout.

a. Application: Use dry set grout combined with latex additive for grouting joints in glazed wall tile.

3. Dry Grout Mixture: Commercial Portland Cement specified or supplied by latex additive manufacturer.

a. Application: Use commercial Portland Cement grout combined with latex additive for grouting joints in floor tile unless otherwise indicated.

(10)

100% CD’s 09 30 00 - 4 TILING

D. Epoxy Grout: ANSI A118.8, 100 percent solids epoxy grout; color as selected. Epoxy grout to be provided in all restrooms (men’s, women’s, and unisex, and all bathroom areas).

2.3 ACCESSORIES

A. White, honed marble thresholds complying with the Marble Institute of America's Group A requirements for soundness, and with ASTM C 503 fabricated to be not more than 1/2 inch above adjoining finished floor surfaces, with transition edges beveled on a slope of no greater than 1:2. 1. Minimum hardness of 10 per ASTM C 241.

2. Provide marble complying with MIA Group “A” requirement for soundness.

3. Thresholds shall comply with ADA Accessibility Guidelines For Buildings and Facilities. 4. Size to full width of door or with of shower enclosure.

B. Cementitious backer units complying with ANSI A118.9, of thickness indicated. C. Elastomeric Sealants:

1. General: Provide manufacturer’s standard chemically curing, elastomeric sealants of base polymer indicated that comply wit requirements of Division 7 Section “Joint Sealers”, including ASTM C 920 as referenced by Type, Grade, Class and Users.

2. Colors: Provide colors of exposed sealants to match colors of grout in the adjoining sealed joints unless otherwise indicated.

3. One Part Mildew Resistant Silicone Sealant: Type S, Grade NS, Class 25, Uses NT, G, A and as applicable to non-porous joint substrates indicated, O; formulated with fungicide, intended for sealing interior ceramic tile joints and other non-porous substrates that are subject to in-service exposures of high humidity and temperature extremes.

D. Edge Protection and Transition Profiles for Walls and Floors:

1. General: Shapes and profiles identified within the drawings are based upon products from Schulter Systems, L.P., 194 Pleasant Ridge Road, Plattsburgh, NY 12901-5841. Tel.: (800) 472-4588. Fax: (800) 477-9783. E-mail: [email protected]. Internet: www.schluter.com.

2. Provide accessories as indicated in drawings from the above Basis of Design or an approved equal. Coordinate required sizes of individual pieces with actual tile to be used on this project.

3. Consult manufacturer’s current technical literature for proper design and installation instructions for respective products.

PART 3 - EXECUTION 3.1 EXAMINATION

A. Examine substrates and areas where tile will be installed, with Installer present, for compliance with requirements for installation tolerances and other conditions affecting performance of installed tile.

1. Verify that substrates for setting tile are firm, dry, clean, and free from oil or waxy films and curing compounds.

2. Verify that installation of grounds, anchors, recessed frames, electrical and mechanical units of work, and similar items located in or behind tile has been completed before installing tile. B. Do not proceed with installation until unsatisfactory conditions have been corrected.

(11)

100% CD’s 09 30 00 - 5 TILING

A. Blending: For tile exhibiting color variations within the ranges selected during sample submittals, verify that tile has been blended in factory and packaged accordingly so that tile units taken from one package show the same range in colors as those taken from other packages and match approved samples. If not factory blended, either return to manufacturer or blend tiles at Project site before installing.

3.3 INSTALLATION, GENERAL

A. ANSI Tile Installation Standard: Comply with parts of ANSI 108 series of tile installation standards included under "American National Standard Specifications for the Installation of Ceramic Tile" that apply to type of setting and grouting materials and methods indicated.

B. TCA Installation Guidelines: TCA "Handbook for Ceramic Tile Installation"; comply with TCA installation methods indicated.

C. Extend tile work into recesses and under or behind equipment and fixtures to form a complete covering without interruptions except as otherwise shown. Terminate work neatly at obstructions, edges, and corners without disrupting pattern or joint alignments

D. Accurately form intersections and returns. Perform cutting and drilling of tile without marring visible surfaces. Carefully grind cut edges of tile abutting trim, finish, or built-in items for straight aligned joints. Fit tile closely to electrical outlets, piping, fixtures, and other penetrations so that plates, collars, or covers overlap tile.

E. Jointing Pattern: Unless otherwise shown, lay tile in grid pattern. Align joints when adjoining tiles on floor, base, walls, and trim are same size. Lay out tile work and center tile fields in both directions in each space or on each wall area. Adjust to minimize tile cutting. Provide uniform joint widths unless otherwise shown.

1. For tile mounted in sheets, make joints between tile sheets same width as joints within tile sheets so that extent of each sheet is not apparent in finished work.

F. Lay out tile wainscots to next full tile beyond dimensions indicated.

G. Expansion Joints: Locate expansion joints and other sealant-filled joints, including control, contraction, and isolation joints, where indicated during installation of setting materials, mortar beds, and tile. Do not saw cut joints after installation of tiles.

1. Locate joints in tile surfaces directly above joints in concrete substrates.

2. Where joint locations are not indicated, provide expansion joints where expansion or control joints are located in the sub-floor or structural backing, where tile floors abut rigid walls and in large floor areas, at intervals of 24' to 36' each way. Install expansion joints at base of all curbs.

3. Expansion joints shall extend completely through tile mortar bed and reinforcing. Insert back-up material in joints at proper heights to allow correct cavity depths for sealant. Width of expansion and control joints same as tile joints. Prior to grouting, keep expansion and control joints open and clean by stuffing with paper or other material to prevent filling with dirt, grout or mortar.

4. After tile is grouted and completely dry, remove filler material, brush joints clean and fill expansion and control joints with back-up material and sealant in strict accordance with manufacturer’s instructions. Remove excess sealant and clean adjacent surfaces. To facilitate cleaning, strips of pressure-sensitive adhesive tape may be applied on surface of tile at edge along joints to be sealed. Remove tape immediately after sealing.

H. Grout tile to comply with the requirements of the following installation standards: 1. For ceramic tile grouts (latex-Portland cement grouts), comply with ANSI A108.10. 3.4 WATERPROOFING MEMBRANE INSTALLATION

(12)

100% CD’s 09 30 00 - 6 TILING

A. Install waterproofing in compliance with waterproofing manufacturer's instructions to produce a waterproof membrane of uniform thickness bonded securely to substrate.

B. Lap, solvent weld and seal seams in accordance with waterproofing manufacturer’s installation instructions to provide a continuous waterproof membrane.

C. Turn waterproofing membrane down into floor drains, form drain opening and depression at drain opening and install mortar and sealant in accordance with waterproofing manufacturer's installation instructions.

D. Turn waterproofing membrane up wall 4 inches minimum and form waterproof pan by folding and sealing at corners with sealant equal to “Noblebond” 150 for thinset applications, and “Nobleweld” 100 for thickset applications. Seal top edge of membrane to wall with sealant equal to “Noblebond” 150.

E. Do not install tile over waterproofing until waterproofing has cured and been tested to determine that it is watertight.

3.5 FLOOR INSTALLATION METHODS

A. Ceramic Mosaic Tile: Install tile to comply with requirements indicated below for setting bed methods, TCA installation methods related to types of floor construction, and grout types:

1. Portland Cement Mortar: ANSI A108.1

a. Bond Coat: Thin-set mortar on cured concrete ANSI A108.5: b. Latex-Portland cement mortar; ANSI A118.4

c. Concrete Subfloors ( at slabs on grade), Interior: TCA F111. Where waterproof membrane is indicated, install in accordance with TCA Handbook Method F121. d. Grout: Latex-Portland cement; ANSI 118.6.

2. Shower Receptors and curbs:

a. Thick set (Regular Set) method with sloped, reinforced Portland Cement Mortar bed (ANSI A108.1A) over waterproof membrane: TCA B414.

b. Stone Thresholds: Install stone thresholds at locations indicated; set in same type of setting bed as abutting field tile unless otherwise indicated.

3. Set thresholds in latex-Portland cement mortar for locations where mortar bed would otherwise be exposed above adjacent non-tile floor finish.

3.6 WALL TILE INSTALLATION METHODS

A. Install types of tile designated for wall application to comply with requirements indicated below for setting-bed methods, TCA installation methods related to subsurface wall conditions, and grout types:

1. Thin-set: Latex Portland Cement Mortar: ANSI A118.4.

a. Ceramic wall tile on stud-framed walls: Cementitious Backer Units, Interior: TCA W244.

b. Ceramic wall tile on solid masonry, Interior: TCA W202. c. Grout: Latex-Portland cement.

3.7 CLEANING AND PROTECTION

A. Cleaning: Upon completion of placement and grouting, clean all ceramic tile surfaces so they are free of foreign matter.

1. Remove latex-Portland cement grout residue from tile as soon as possible.

2. Unglazed tile may be cleaned with acid solutions only when permitted by tile and grout manufacturer's printed instructions, but no sooner than 14 days after installation. Protect metal surfaces, cast iron, and vitreous plumbing fixtures from effects of acid cleaning. Flush surface with clean water before and after cleaning.

(13)

100% CD’s 09 30 00 - 7 TILING

B. Finished Tile Work: Leave finished installation clean and free of cracked, chipped, broken, un-bonded, and otherwise defective tile work.

C. Provide final protection and maintain conditions in a manner acceptable to manufacturer and installer that ensures that tile is without damage or deterioration at time of Substantial Completion.

1. When recommended by tile manufacturer, apply a protective coat of neutral protective cleaner to completed tile walls and floors. Protect installed tile work with kraft paper or other heavy covering during construction period to prevent staining, damage, and wear.

2. Prohibit foot and wheel traffic from tiled floors for at least 7 days after grouting is completed. 3. Before final inspection, remove protective coverings and rinse neutral cleaner from tile

surfaces.

(14)

TPW.027 – FAWCETT WMA 100 % CD’s EXTERIOR PAINTING 09 91 13 - 1 SECTION 09 91 13 EXTERIOR PAINTING PART 1 - GENERAL 1.1 SUMMARY

A. Section includes surface preparation and the application of paint systems on the following exterior substrates:

1. Fiber-cement board. 2. Steel and iron. 3. Wood.

1.2 DEFINITIONS

A. MPI Gloss Level 1: Not more than five units at 60 degrees and 10 units at 85 degrees, according to ASTM D 523.

B. MPI Gloss Level 3: 10 to 25 units at 60 degrees and 10 to 35 units at 85 degrees, according to ASTM D 523.

C. MPI Gloss Level 4: 20 to 35 units at 60 degrees and not less than 35 units at 85 degrees, according to ASTM D 523.

D. MPI Gloss Level 5: 35 to 70 units at 60 degrees, according to ASTM D 523. E. MPI Gloss Level 6: 70 to 85 units at 60 degrees, according to ASTM D 523. F. MPI Gloss Level 7: More than 85 units at 60 degrees, according to ASTM D 523.

1.3 ACTION SUBMITTALS

A. Product Data: For each type of product. Include preparation requirements and application instructions.

1. Include printout of current "MPI Approved Products List" for each product category specified, with the proposed product highlighted.

B. Samples: For each type of paint system and each color and gloss of topcoat.

A. Mockups: Apply mockups of each paint system indicated and each color and finish selected to verify preliminary selections made under Sample submittals and to demonstrate aesthetic effects and set quality standards for materials and execution.

1. Architect will select one surface to represent surfaces and conditions for application of each paint system.

(15)

100 % CD’s EXTERIOR PAINTING 09 91 13 - 2

b. Other Items: Architect will designate items or areas required. 2. Final approval of color selections will be based on mockups.

a. If preliminary color selections are not approved, apply additional mockups of additional colors selected by Architect at no added cost to Owner.

A. Do not apply materials when surface and ambient temperatures are outside the temperature ranges required by the paint product manufacturer.

B. Do not apply exterior coatings during rain or snow, or when relative humidity is outside the hu-midity ranges required by the paint product manufacturer.

C. Minimum Application Temperatures for Latex Paints: 7 degrees C (45 degrees F) for interiors; 10 degrees C (50 degrees F) for exterior; unless required otherwise by manufacturer's instructions. D. Minimum Application Temperature for Varnish Finishes: 18 degrees C (65 degrees F) for interior

or exterior, unless required otherwise by manufacturer's instructions.

E. Provide lighting level of 860 lx (80 ft candles) measured mid-height at substrate surface. F. Other Considerations:

1. Install prior to adhesively applied flooring and wall covering. 2. Install prior to carpet and acoustical material.

3. Schedule installation to minimize accumulation of air contaminants that cannot be removed prior to occupancy.

4. Air out construction with 100% outside air. a. Do not recirculate prior to occupancy.

b. Ventilate during installation. Seal return air ducts and use direct exhaust to outdoors. G. Environmental Criteria

1.6 EXTRA MATERIAL

A. Deliver extra material to Owner. Furnish extra paint materials that match products as described below, packaged with protective covering for storage and identified with labels clearly describing contents. Contractor shall provide an amount equal to 2% (or one unopened gallon of each color used) of the installed material provided within the Scope of the Work (provide amount for each color used on project). Surplus material is a requirement of the Work and Final Payment will not be issued until all material is provided to the Owner.

(16)

PART 2 - PRODUCTS

2.1 MANUFACTURERS

A. Products: Subject to compliance with requirements, available products that may be incorporated into the Work.

2.2 PAINT, GENERAL

A. MPI Standards: Products shall comply with MPI standards indicated and shall be listed in its "MPI Approved Products Lists."

B. Material Compatibility:

1. Materials for use within each paint system shall be compatible with one another and substrates indicated, under conditions of service and application as demonstrated by manufacturer, based on testing and field experience.

2. For each coat in a paint system, products shall be recommended in writing by topcoat manufacturers for use in paint system and on substrate indicated.

C. Colors: As selected by Architect from manufacturer's full range.

PART 3 - EXECUTION

3.1 EXAMINATION

A. Examine substrates and conditions, with Applicator present, for compliance with requirements for maximum moisture content and other conditions affecting performance of the Work.

B. Maximum Moisture Content of Substrates: When measured with an electronic moisture meter as follows:

1. Fiber-Cement Board: 12 percent. 2. Wood: 15 percent.

C. Verify suitability of substrates, including surface conditions and compatibility with existing finishes and primers.

D. Proceed with coating application only after unsatisfactory conditions have been corrected. 1. Application of coating indicates acceptance of surfaces and conditions.

3.2 PREPARATION

A. Comply with manufacturer's written instructions and recommendations in "MPI Architectural Painting Specification Manual" applicable to substrates and paint systems indicated.

B. Remove hardware, covers, plates, and similar items already in place that are removable and are not to be painted. If removal is impractical or impossible because of size or weight of item, provide surface-applied protection before surface preparation and painting.

(17)

1. After completing painting operations, use workers skilled in the trades involved to reinstall items that were removed. Remove surface-applied protection.

3.3 APPLICATION

A. Apply paints according to manufacturer's written instructions and recommendations in "MPI Manual."

B. Apply paints to produce surface films without cloudiness, spotting, holidays, laps, brush marks, roller tracking, runs, sags, ropiness, or other surface imperfections. Cut in sharp lines and color breaks.

A. Protect work of other trades against damage from paint application. Correct damage to work of other trades by cleaning, repairing, replacing, and refinishing, as approved by Architect, and leave in an undamaged condition.

B. At completion of construction activities of other trades, touch up and restore damaged or defaced painted surfaces.

3.5 EXTERIOR PAINTING SCHEDULE

A. Note: Painting Schedule is provided as a reference. Contractor will verify with Owner/End User on the final requested topcoat. Finish to be between Satin or Eggshell. This will be finalized/approved during the submittal process of the project.

B. Steel and Iron Substrates:

1. Alkyd System [MPI EXT 5.1D]:

a. Prime Coat: Primer, alkyd, anticorrosive, for metal[, MPI #79].

b. Prime Coat: Shop primer specified in Section where substrate is specified. c. Intermediate Coat: Exterior, alkyd enamel, matching topcoat.

d. Topcoat: Alkyd, exterior, semi-gloss (MPI Gloss Level 5)[, MPI #94]. C. Wood Substrates: Glued-laminated construction.

1. Latex over Latex Primer System[ MPI EXT 6.1L]:

a. Prime Coat: Primer, latex for exterior wood[, MPI #6]. b. Intermediate Coat: Latex, exterior, matching topcoat.

c. Topcoat: Latex, exterior, semi-gloss (MPI Gloss Level 5)[, MPI #11]. D. Wood Substrates: Exposed framing.

(18)

a. Prime Coat: Primer, latex for exterior wood[, MPI #6]. b. Intermediate Coat: Latex, exterior, matching topcoat. c. Topcoat: Latex, exterior, flat (MPI Gloss Level 1)[, MPI #10]. E. Wood Substrates: Wood-based panel products.

1. Latex over Latex Primer System[ MPI EXT 6.4K]:

a. Prime Coat: Primer, latex for exterior wood[, MPI #6]. b. Intermediate Coat: Latex, exterior, matching topcoat.

c. Topcoat: Latex, exterior, semi-gloss (MPI Gloss Level 5)[, MPI #11]. F. Cement Board Substrates:

1. Latex System MPI EXT 3.3A:

a. Prime Coat: Latex, exterior, matching topcoat. b. Intermediate Coat: Latex, exterior, matching topcoat.

c. Topcoat: Latex, exterior, low sheen (MPI Gloss Level 3-4)[, MPI #15].

(19)

TPW.027 – FAWCETT WMA 100 % CD’s INTERIOR PAINTING 09 91 23 - 1 SECTION 09 91 23 INTERIOR PAINTING PART 1 - GENERAL 1.1 SUMMARY

A. Section includes surface preparation and the application of paint systems on interior substrates, the following interior substrates:

1. Gypsum board. 2. Wood

1.2 DEFINITIONS

A. MPI Gloss Level 1: Not more than five units at 60 degrees and 10 units at 85 degrees, according to ASTM D 523.

B. MPI Gloss Level 2: Not more than 10 units at 60 degrees and 10 to 35 units at 85 degrees, according to ASTM D 523.

C. MPI Gloss Level 3: 10 to 25 units at 60 degrees and 10 to 35 units at 85 degrees, according to ASTM D 523.

D. MPI Gloss Level 4: 20 to 35 units at 60 degrees and not less than 35 units at 85 degrees, according to ASTM D 523.

E. MPI Gloss Level 5: 35 to 70 units at 60 degrees, according to ASTM D 523. F. MPI Gloss Level 6: 70 to 85 units at 60 degrees, according to ASTM D 523. G. MPI Gloss Level 7: More than 85 units at 60 degrees, according to ASTM D 523.

1. Include Printout of current "MPI Approved Products List" for each product category specified, with the proposed product highlighted.

B. Samples: For each type of paint system and in each color and gloss of topcoat.

A. Mockups: Apply mockups of each paint system indicated and each color and finish selected to verify preliminary selections made under Sample submittals and to demonstrate aesthetic effects and set quality standards for materials and execution.

(20)

100 % CD’s INTERIOR PAINTING 09 91 23 - 2

1. Architect will select one surface to represent surfaces and conditions for application of each paint system.

a. Vertical and Horizontal Surfaces: Provide samples of at least 100 sq. ft. (9 sq. m). b. Other Items: Architect will designate items or areas required.

2. Final approval of color selections will be based on mockups.
